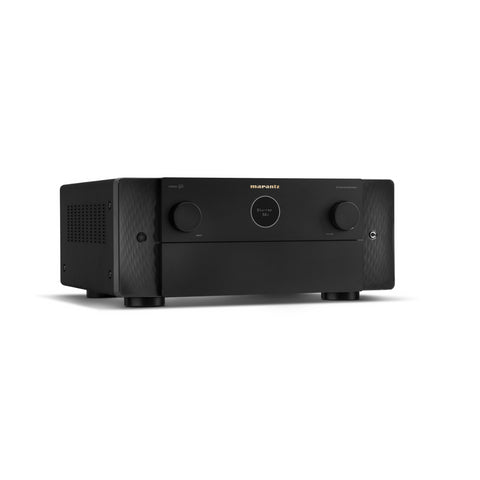

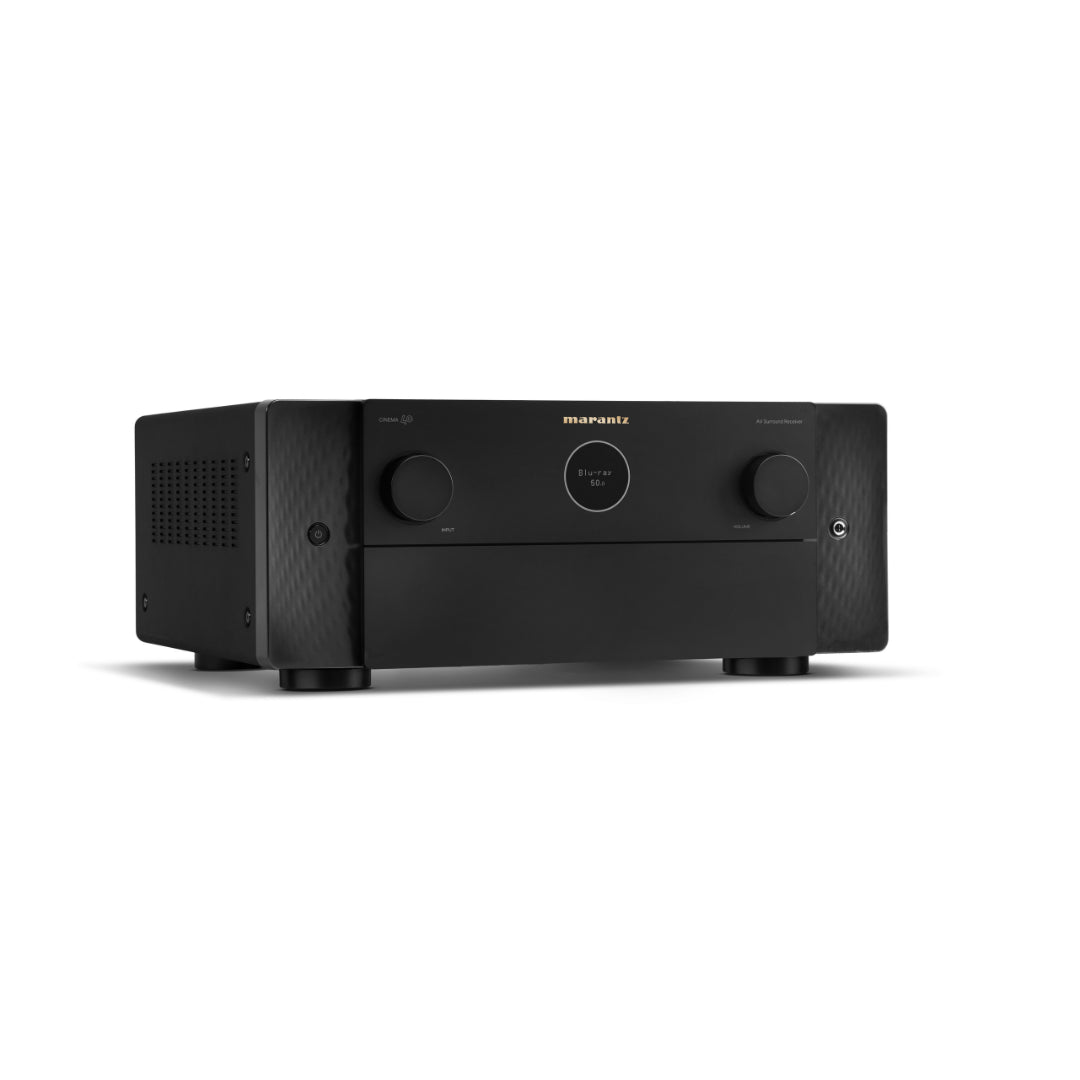

Discover Elevated Home Entertainment with Cinema 40: Unleashing Superior AV Experience

Step into a realm of unmatched audio bliss with Cinema 40, the ultimate AV receiver designed to redefine your home entertainment. Boasting 9x125 watts of Marantz's iconic amplification, seven 8K UHD-compatible HDMI inputs, built-in HEOS® streaming, and advanced Audyssey MultEQ XT32 room correction, Cinema 40 elevates your movie and music enjoyment to new heights.

Exceptional Audio Performance

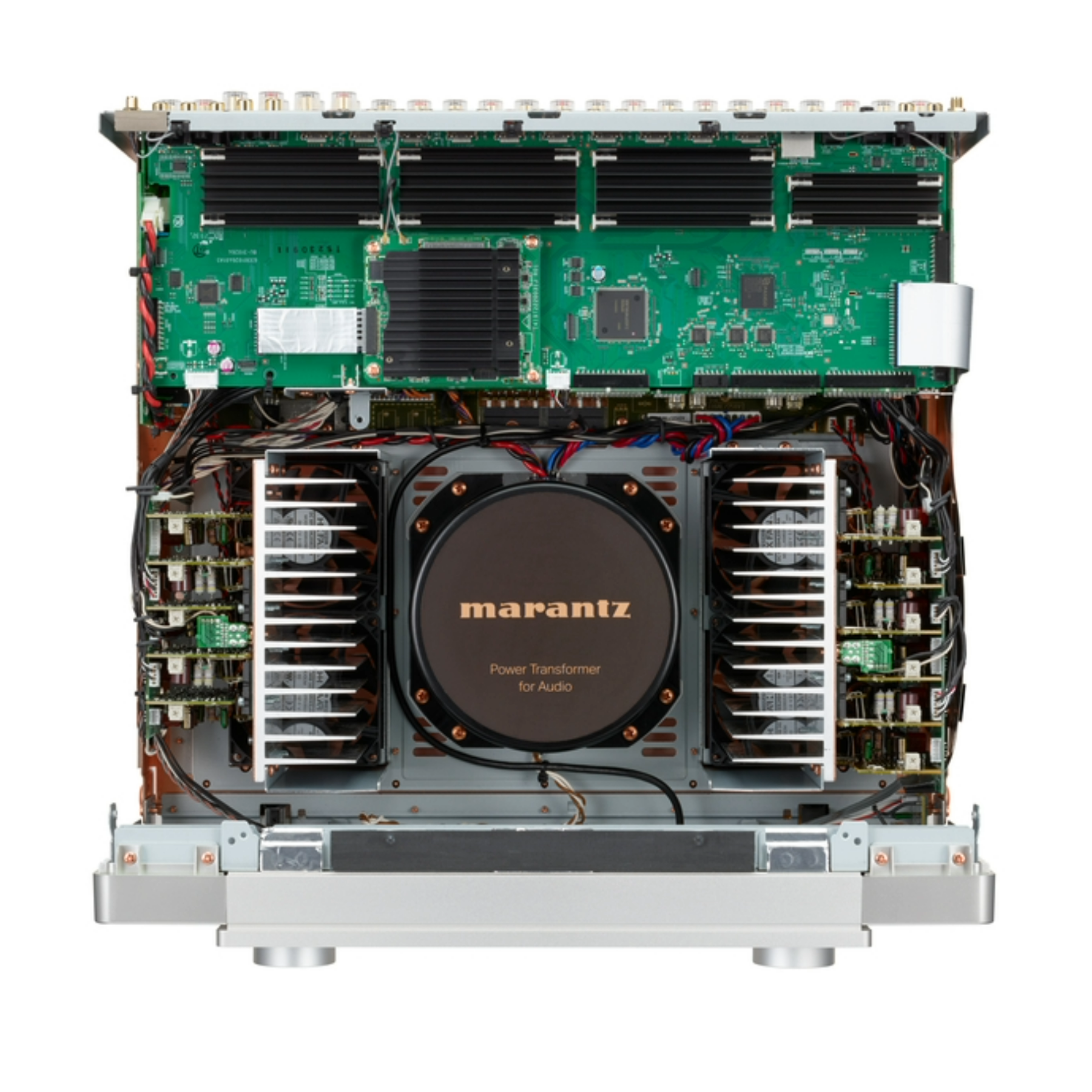

Crafted by Marantz Sound Masters, Cinema 40 harmoniously blends art and science to deliver the signature warm and dynamic Marantz sound. Featuring Discrete Hyper Dynamic Amplifier Modules and cutting-edge current feedback amplification, it surpasses expectations, delivering unparalleled audio quality for your entertainment pleasure.

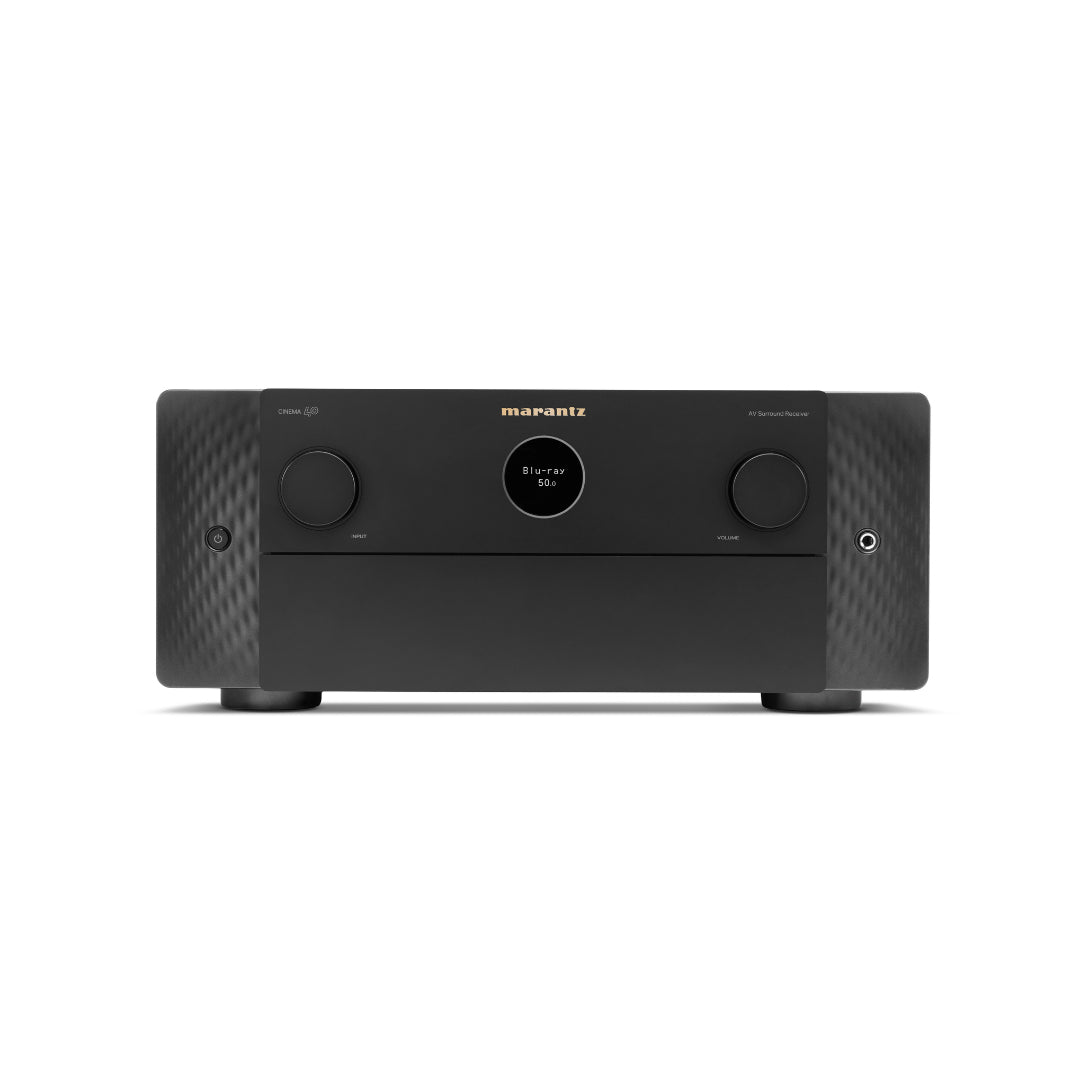

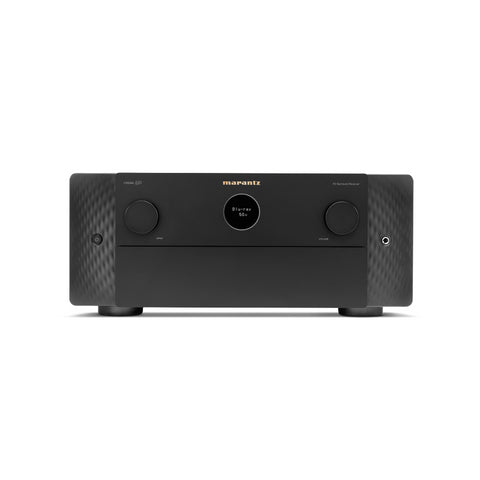

Timeless Elegance in Design

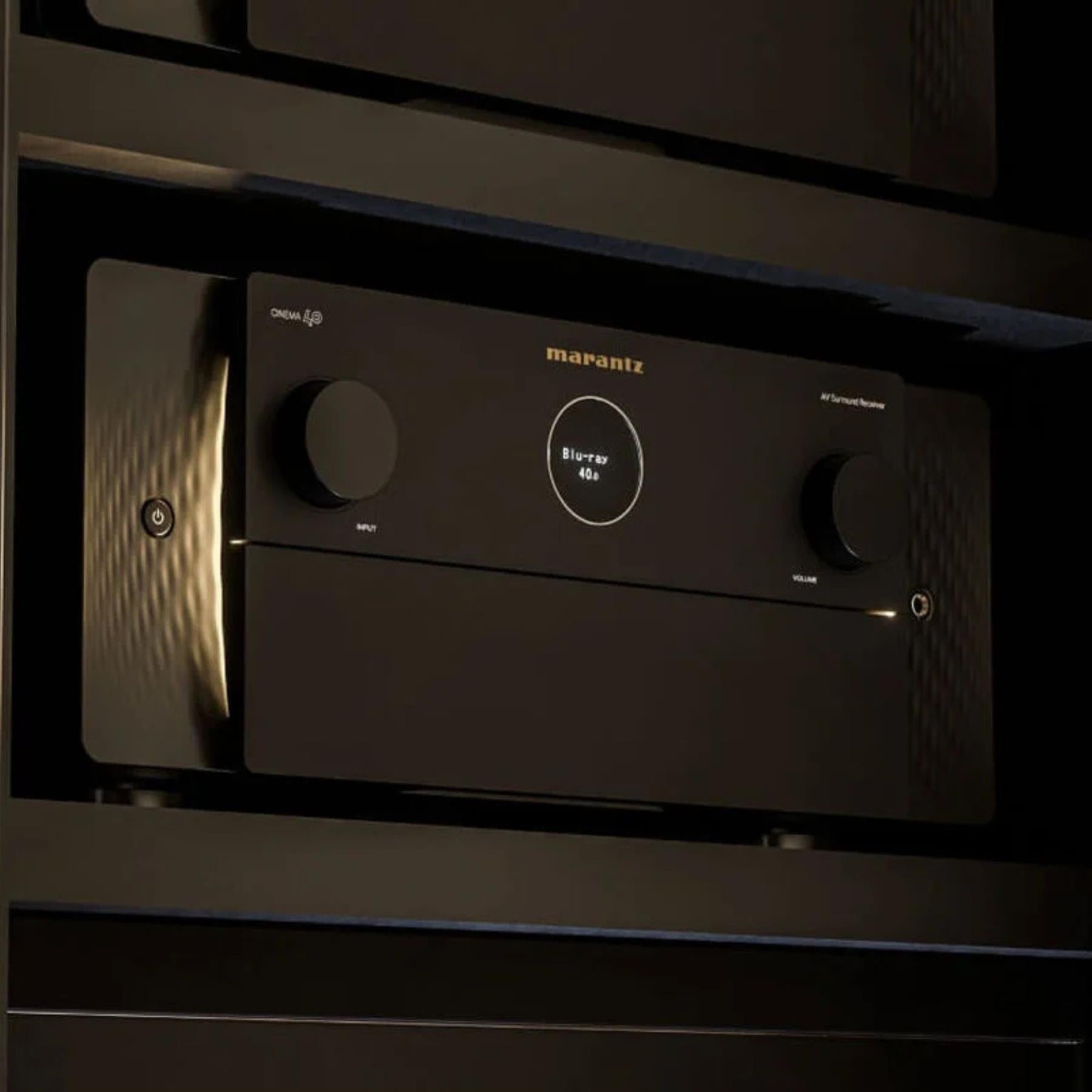

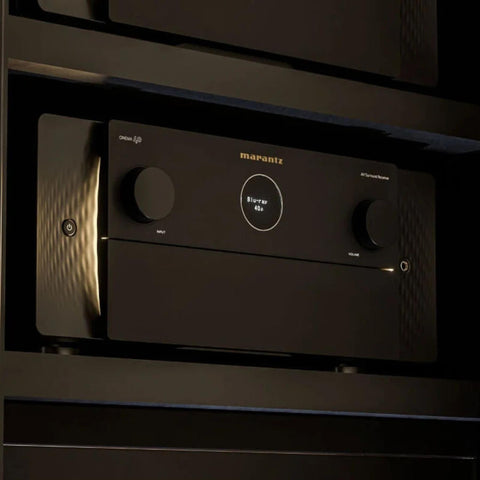

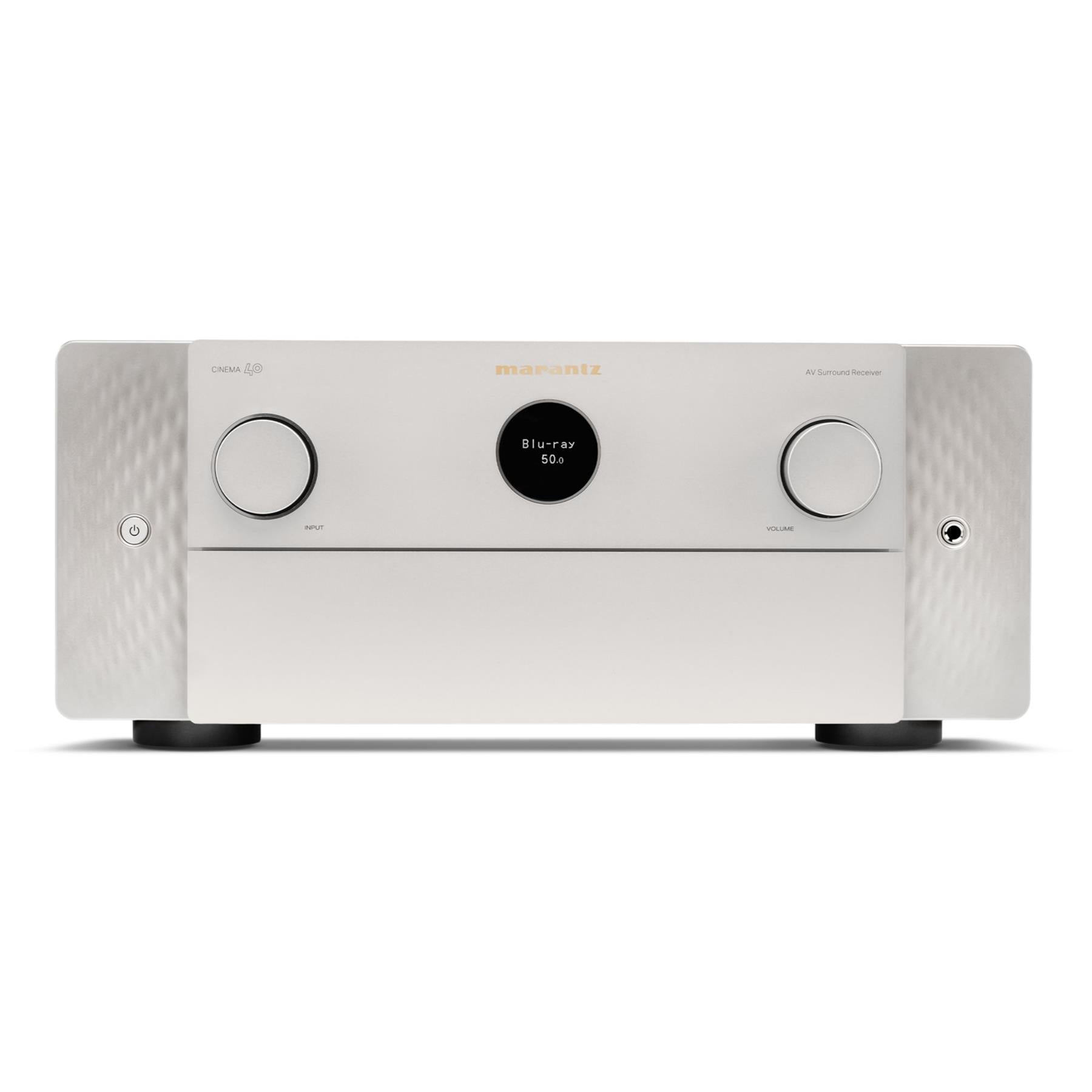

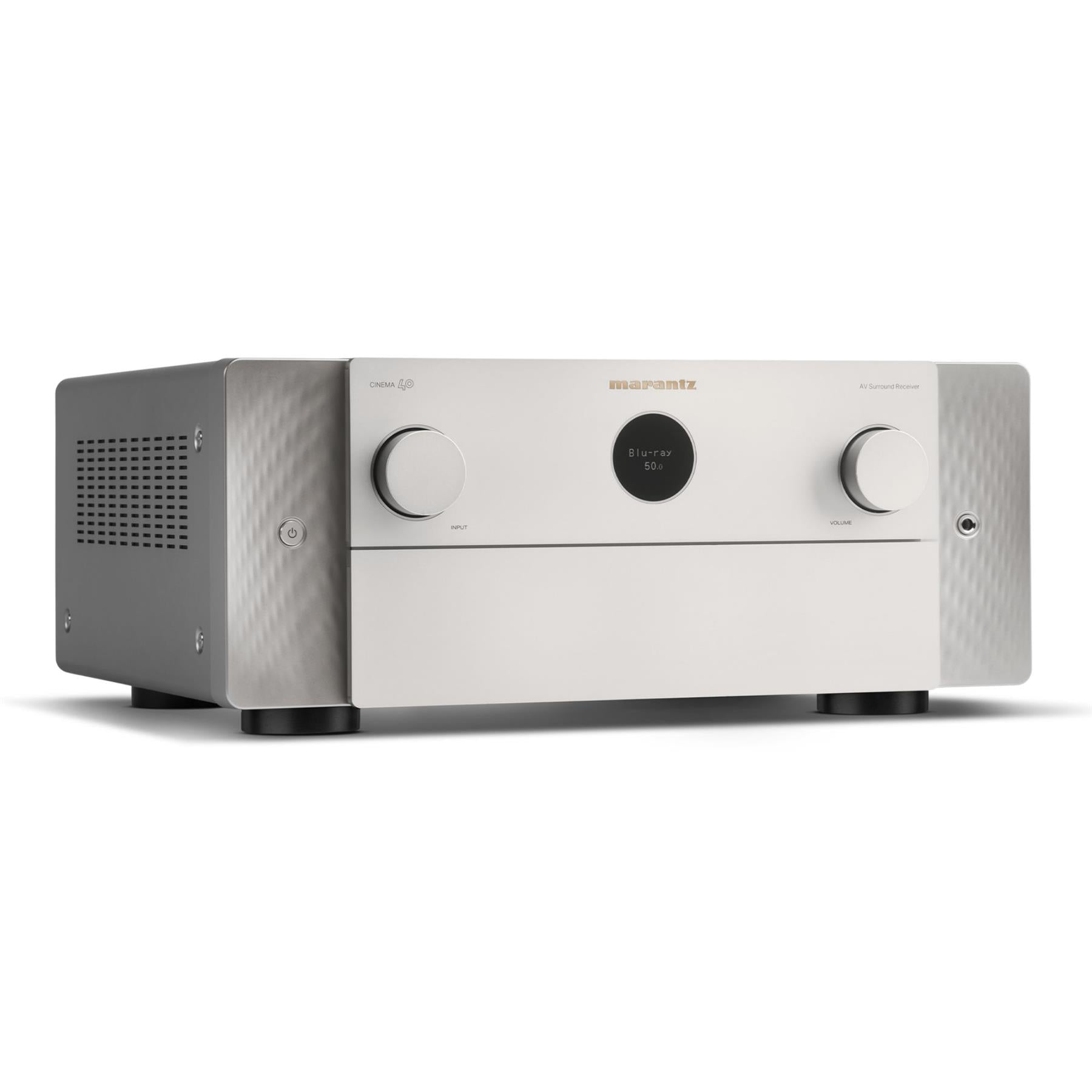

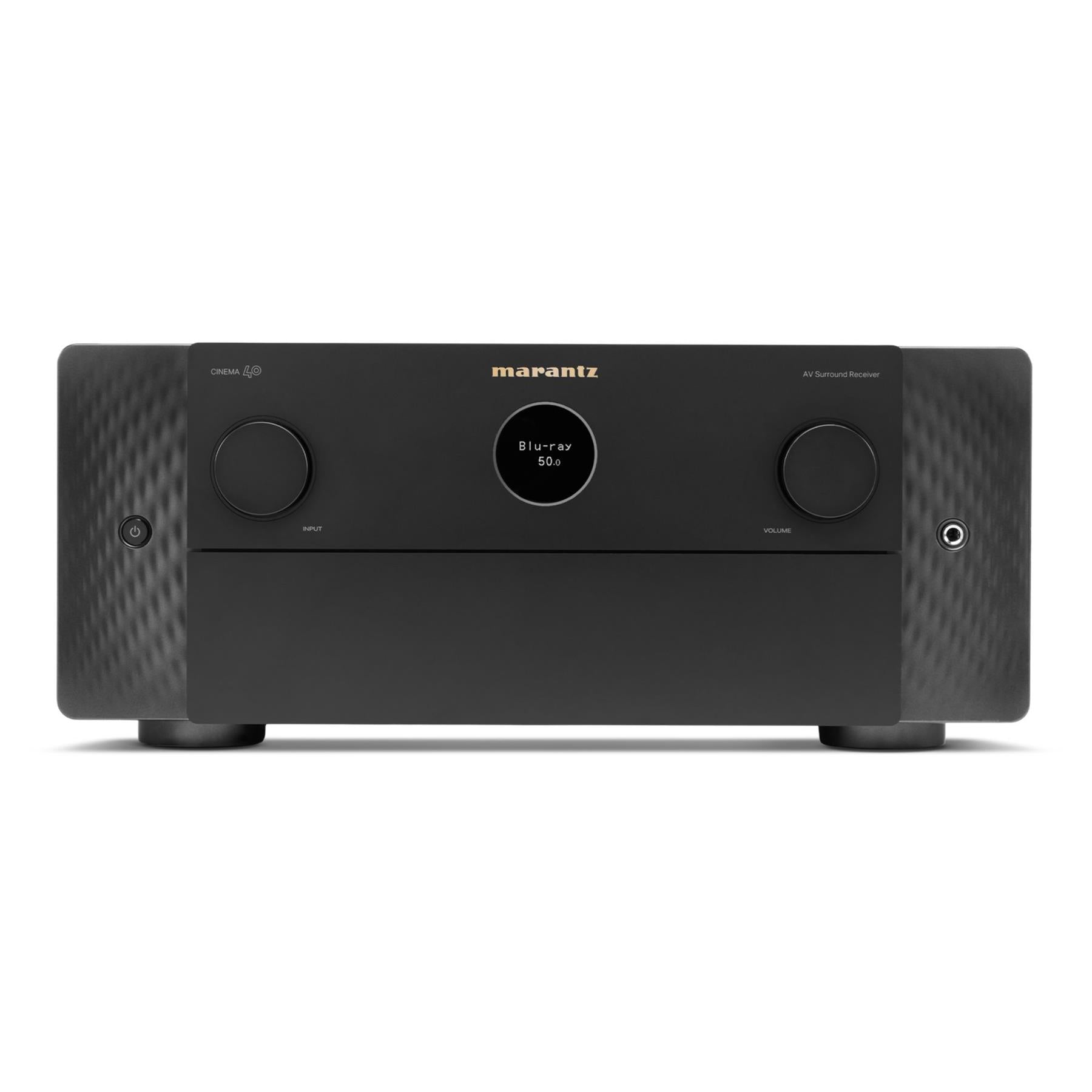

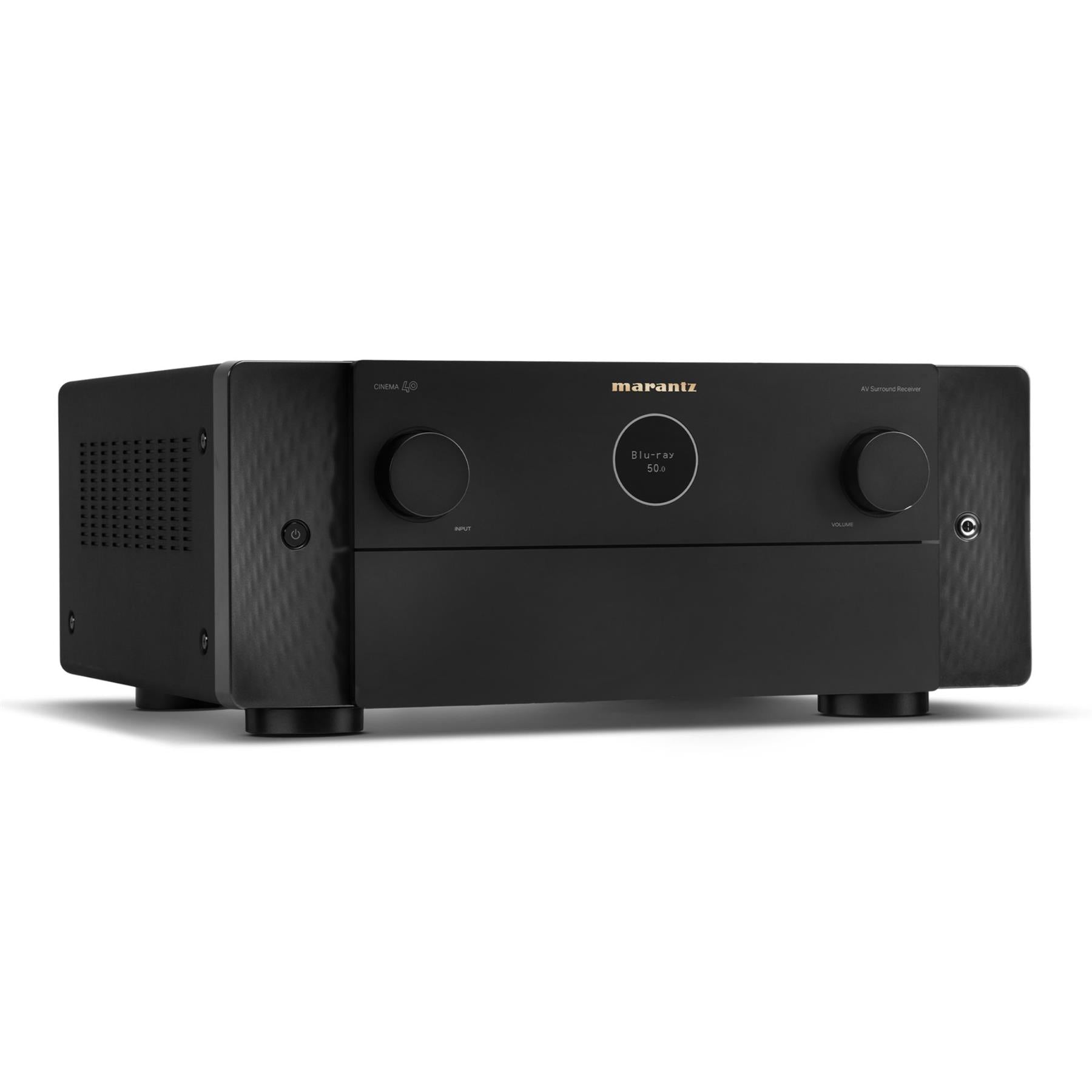

Reflecting Marantz's commitment to timeless elegance, Cinema 40 boasts an artfully constructed design with steel and aluminum casework. The subtly textured front panel, softly illuminated by sidelights, adds a touch of sophistication to your home theater setup.

Customized to Your Style

Tailor your home cinema experience with Cinema 40's versatile connection options. Utilize Audyssey MultEQ XT32 to optimize your loudspeakers, ensuring exceptional audio quality in any acoustic setting.

Seamless User Experience

Experience advanced features with ease. Cinema 40's quick start guide and on-screen setup simplify configuration, while the metal backlit remote offers convenient access to frequently used features. Seamless HDMI connectivity allows effortless control with your TV remote, and integration with voice assistants like Hey Google, Alexa, and Siri adds a new level of convenience.

Versatile Connectivity Hub

At the core of your home entertainment, Cinema 40 serves as a hub of connectivity. Seven 8K-compatible HDMI inputs enable seamless integration with various devices, while HD and 4K sources can be seamlessly upscaled to 8K. Traditional analog and digital inputs, including turntable compatibility, make it a versatile audio companion.

Future-Ready Technological Marvel

Invest in the future of home entertainment with Cinema 40. Its extensive connectivity and technological prowess make it ready for what lies ahead. Expand your system with 11.4 channel pre-amp outputs, allowing for the addition of outboard amplification and adapting your loudspeaker layout over time. Immerse yourself in entertainment that evolves with your changing needs.

Marantz Cinema 40 Specifications

Power Amplifier

• Number of Powered Channels: 9
• Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive):
• Power Output (8 Ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125 W
• Power Output (6 Ohm, 1 kHz, 0.7% 2ch Drive): 165 W
• Power Output (6 Ohm, 1 kHz, 10% 1ch Drive): 235 W
• 70% Guarantee: Yes
• Discrete Power Amplifier: Yes
• Amplifier Topology: Class A/B
• Current Feedback Topology: Yes
• Bi-Amp Drive: Assignable

Multichannel Surround Technologies

• DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
• Max Number of Processing (Preamp) Channels: 11.4

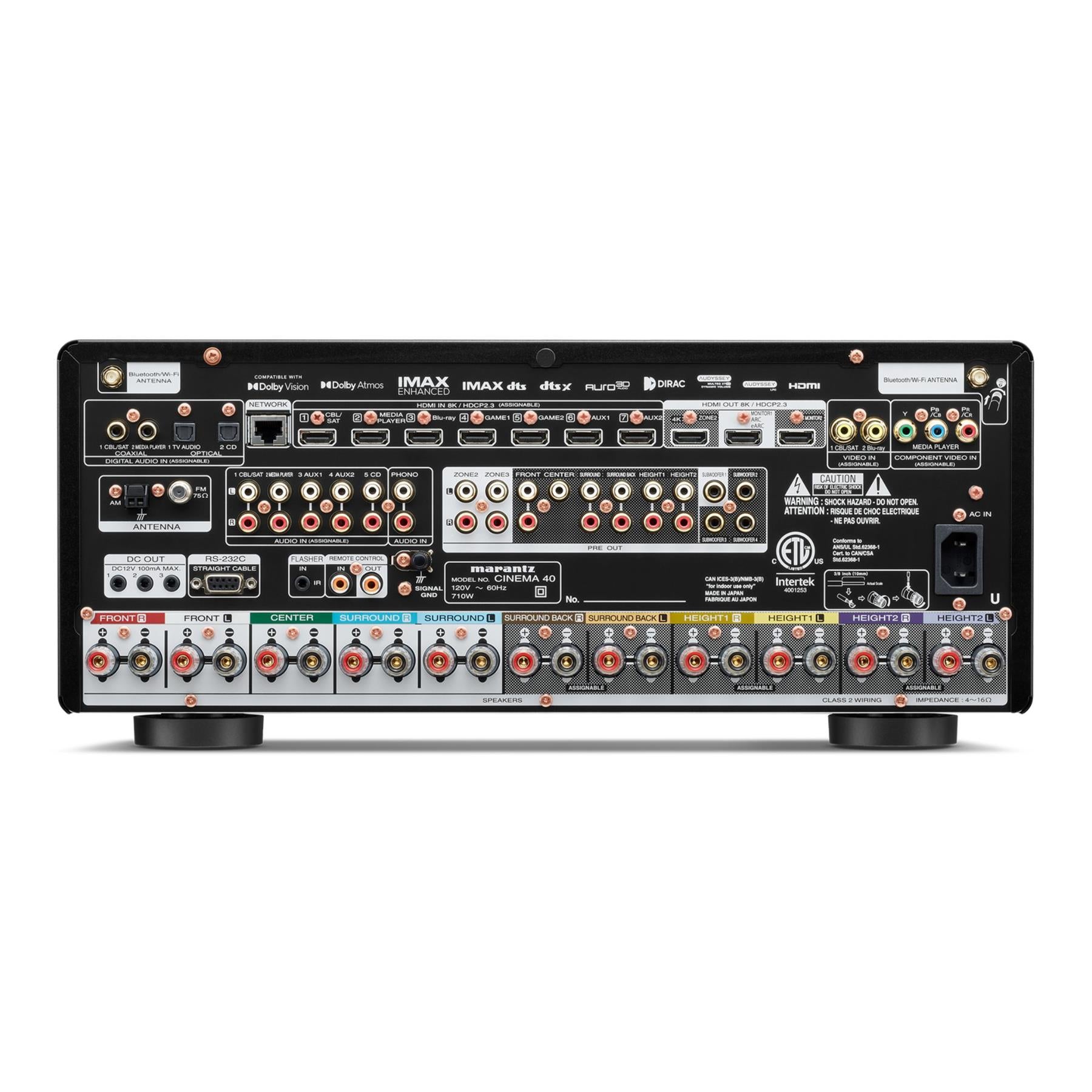

Inputs/Outputs

• Composite In/Out: 2/0
• Component In/Out: 1/0
• HDMI In/Out: 7/3
• Multi-Room Video Out via HDMI: Yes
• Analog In/Fixed Level Out: 5 in/0 out
• Phono (MM) In: Yes
• Digital In: Optical/Coaxial: 2/2
• Multi-Room Out: Analog/Digital: 2/0
• Multichannel Preamp Out: 11.4
• Subwoofer Out: 4 (Independent)
• 7.1 Multichannel Input: No
• Number of Speaker Terminals: 11
• Speaker A/B: Assignable
• Multi-Room Speaker Terminal: Assignable
• Front Inputs: USB-A
• USB Audio/Made for iPod/Made for iPhone: Yes/No/No
• AM/FM Tuner: Yes

HDMI

• Total HDMI Inputs/No. Support 8K: 7/7
• HDCP2.3 Support: Yes
• HDMI Outputs: Main/Zone: 2/1
• Analog to HDMI Video Conversion: Yes
• HDMI Upscaling: 1080P/4K to 8K
• Max Resolution @ Framerate: 8K @ 60Hz, 4K @ 120Hz
• Audio Return Channel: ARC, eARC
• Video Dynamic Range: HDR/HLG/Dolby Vision/HDR10+/Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for Gaming: Yes
• Variable Refresh Rate/Quick Frame Transport: Yes/Yes
• HDMI Pass-Through in Standby Mode: Yes
• CEC: Yes
• DSD Audio over HDMI: Yes
• Auto LipSync: Yes

Performance Technologies

• Copper Plated Chassis: No
• Toroidal Power Supply Transformer: No
• Hyper Dynamic Amplifier Modules (HDAM) (List Version): Yes
• Pure Direct Mode: Yes
• Gold Plated RCA Terminals: Yes
• Clock Jitter Reducer: Yes

Acoustic/Room Correction

• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ/Dynamic Volume: Yes/Yes
• Audyssey LFC: Yes/Yes
• Dirac Live Upgradability: Yes
• Variable Crossover: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: Yes

Music File Support

• Lossy Formats: MP3/WMA/AAC
• Lossless Formats: FLAC HD 192/24/WAV 192/24/ALAC 192/24
• DSD Audio: 2.8MHz/5.6MHz
• Gapless Playback: FLAC, WAV, ALAC, DSD
• Compressed Audio Enhancer: MDAX2: Yes

Network Audio Sharing

• Yes

Streaming Services

• HEOS Multi-room and Streaming: Yes
• AirPlay Audio Streaming: Airplay 2
• Internet Radio: TuneIn
• Spotify*: Spotify Connect
• Pandora: Yes
• SiriusXM: Yes
• Other Streaming Services*: Amazon Music HD/Amazon Music/TIDAL/Deezer/iHeart Radio/Napster/SoundCloud/Mood Mix
• Roon Tested: Yes

Network Connectivity

• Ethernet Ports: Yes
• Wi-Fi (Include Version/Band): Yes
• Bluetooth (Include Version): Yes
• Bluetooth Re-transmit for Bluetooth Headphones: Yes

Smart Home Integration and Control

• Voice Assistant Compatibility: Alexa/Google Voice Assistant/Apple HomePod
• App for Smartphones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/IP: Yes/Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI/Opt, Coax/Network, USB/Analog: 2 Ch/2 Ch/Yes/Yes
• Zone Audio Output: Speaker/Preout: Yes/Yes
• Zone HDMI Output from HDMI Source: Yes
• Control Connectivity: IP Control/RS232 Control/Web Control/App Control
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 3
• HDMI Diagnostics: Yes

Others

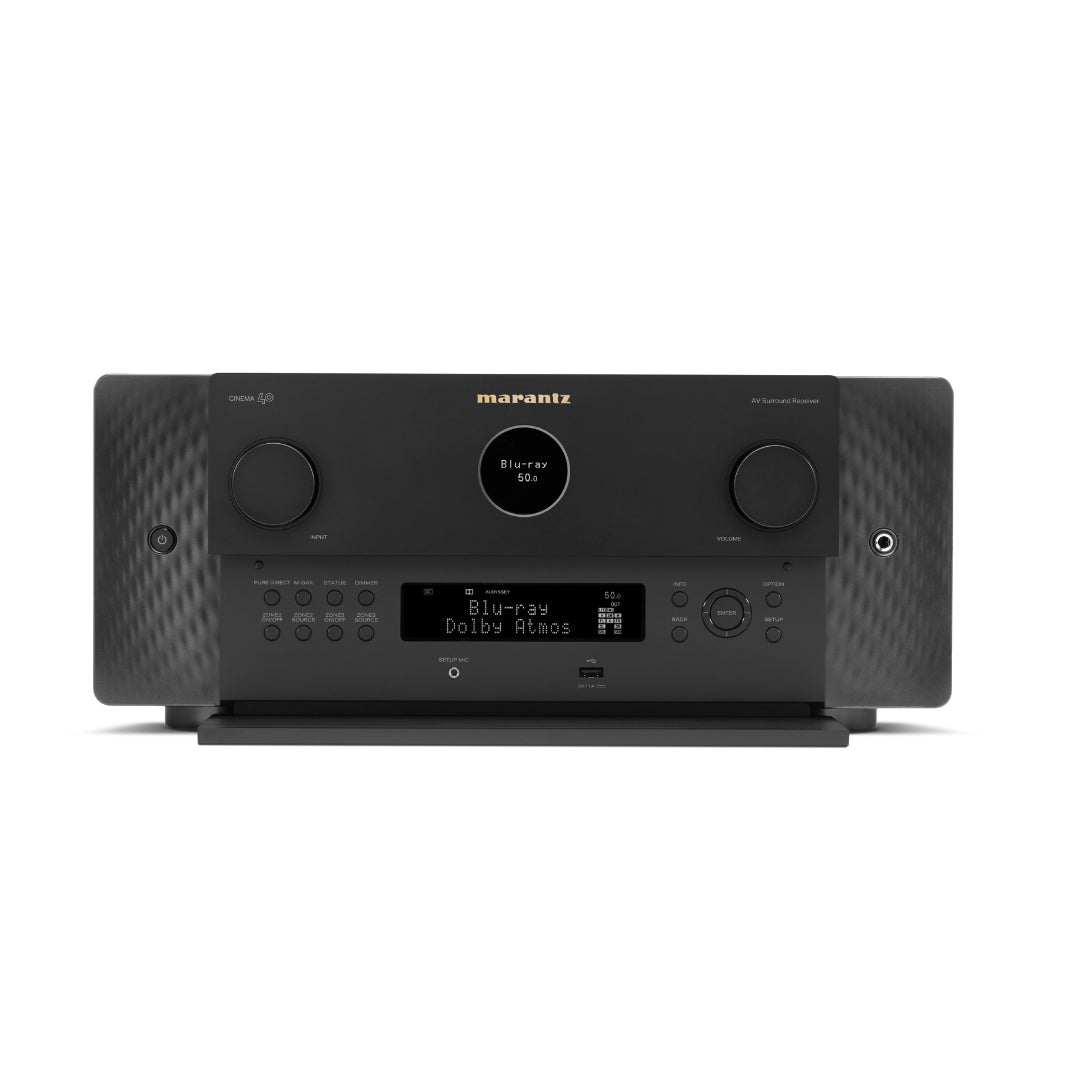

• Front Display: 2 line FLD + port hole OLED
• GUI Languages: 9
• Setup Assistant: Yes
• Smart Select on Remote: Yes
• Firmware Update by Network/USB: Yes/Yes
• ECO Mode: Yes
• Auto Power Off: Yes
• Sleep Timer: Yes

General

• Available Colors: Black/Silver-Gold
• Metal Front Panel: Yes
• System Remote Control: RC048SR
• Power Consumption in W: 710
• Power Consumption No-Sound (ECO on/off) in W: 65/110
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: Less than 2.0

Maximum Dimensions

• Antenna: Horizontal (W x D x H) in Inches: 17.3 x 16.2 x 7.3
• Antenna: Vertical (W x D x H) in Inches: 17.3 x 16.2 x 10
• W/o Antenna: (W x D x H) in Inches: 17.3 x 15.8 x 7.3

Weight in lbs.: 33.3

What's in the Box

• Main Unit
• Remote Control
• Batteries
• Wire Labels
• Quick Start Guide
• Audyssey Microphone
• Microphone Stand
• 2 External Detachable Antenna
• AC Cord
