Marantz CINEMA 60 SERIES 2 7.2-Channel AV Receiver
The Marantz CINEMA 60 SERIES 2 is a powerful 7.2-channel AV receiver designed for immersive movies, detailed music, and responsive gaming. Seven discrete amplifier channels deliver 100 watts per channel, while Dolby Atmos, DTS:X, and Marantz Sound Master tuning create a clear, spacious, and emotionally engaging listening experience.
An upgraded 32-bit, 8-channel DAC improves clarity, resolution, and dynamic range across every source. Audyssey MultEQ XT room correction is included, and optional Dirac Live support provides advanced calibration for listeners seeking more precise performance. Built-in HEOS, AirPlay 2, Bluetooth, and high-resolution audio support make music streaming simple throughout the home.
Six HDMI inputs, two HDMI outputs, eARC, 8K/60Hz, and 4K/120Hz support make the CINEMA 60 SERIES 2 an ideal hub for televisions, gaming consoles, streaming players, and disc players. Its timeless Marantz design, porthole OLED display, modern setup interface, and extensive control options combine premium performance with everyday convenience.
Specifications
-
Channels: 7.2-channel AV receiver with 7 power amplifiers
-
Power Output: 100W per channel into 8 ohms, 20Hz–20kHz, 0.08% THD, 2 channels driven
-
6-Ohm Output: 140W per channel at 1kHz, 0.7% THD, 2 channels driven
-
Processing: Up to 7.1 preamp channels with 7.2-channel pre-outs
-
Subwoofer Outputs: 2
-
DAC: Upgraded 32-bit, 8-channel DAC
-

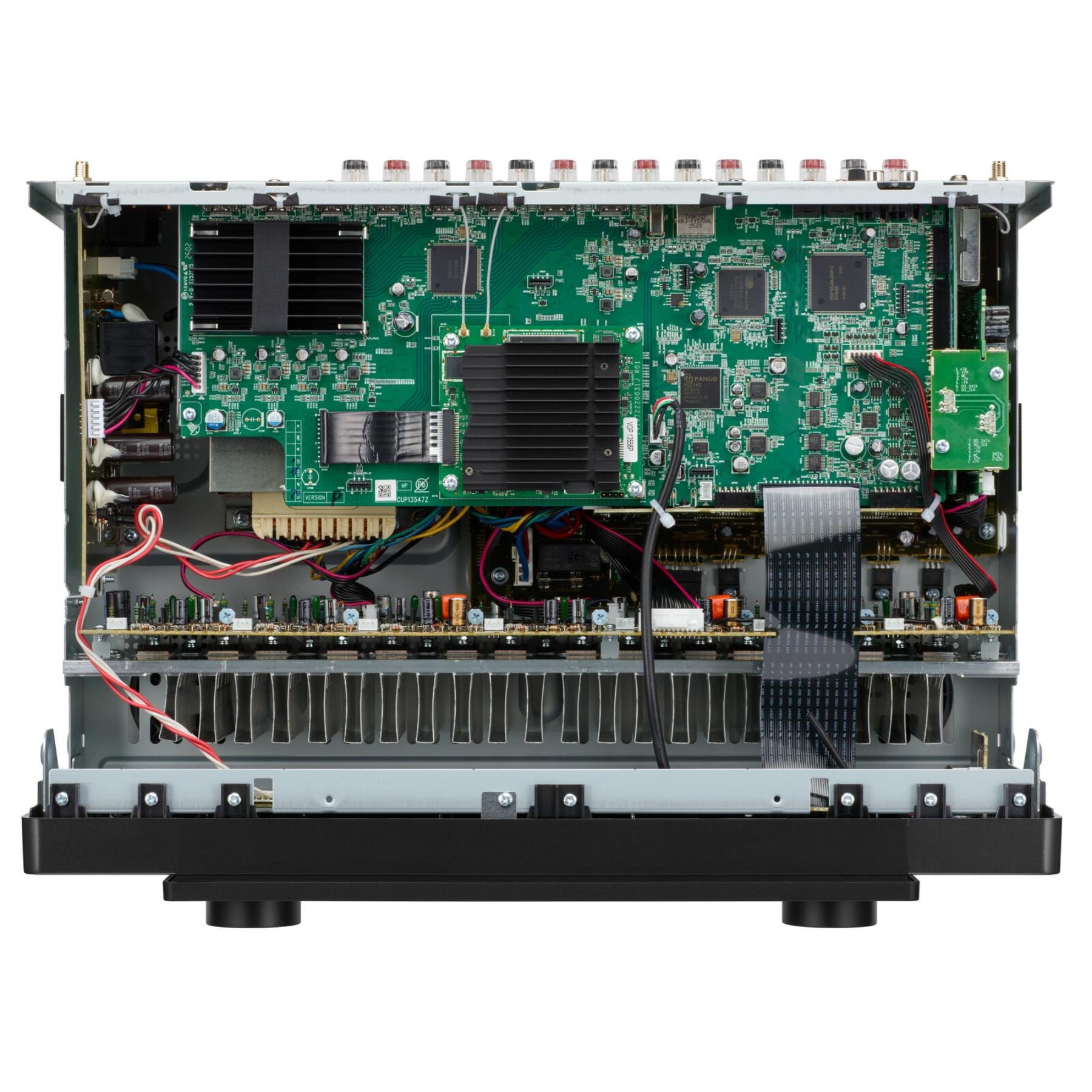

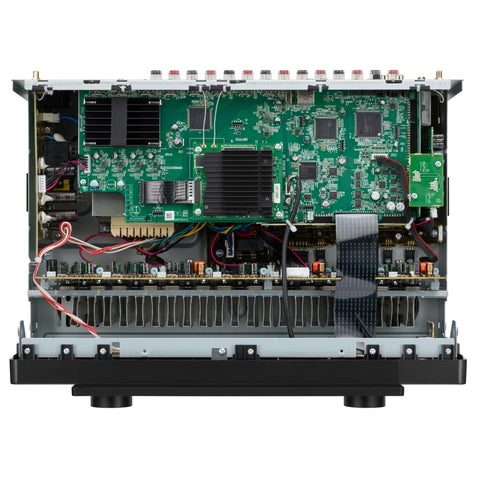

Amplifier Design: Discrete amplification, Current Feedback topology, HDAM-SA2 modules, EI transformer
-
Audio Modes: Pure Direct, Multichannel Stereo, MDAX2 compressed audio enhancement
-
Dolby Support: Dolby TrueHD, Dolby Atmos, Atmos Height Virtualization, Atmos Music, Dolby Surround
-
DTS Support: DTS-HD, DTS:X, DTS Neural:X, DTS Virtual:X
-
Room Correction: Audyssey MultEQ XT with Dynamic EQ and Dynamic Volume
-
Dirac Live: Supported as an optional upgrade
-

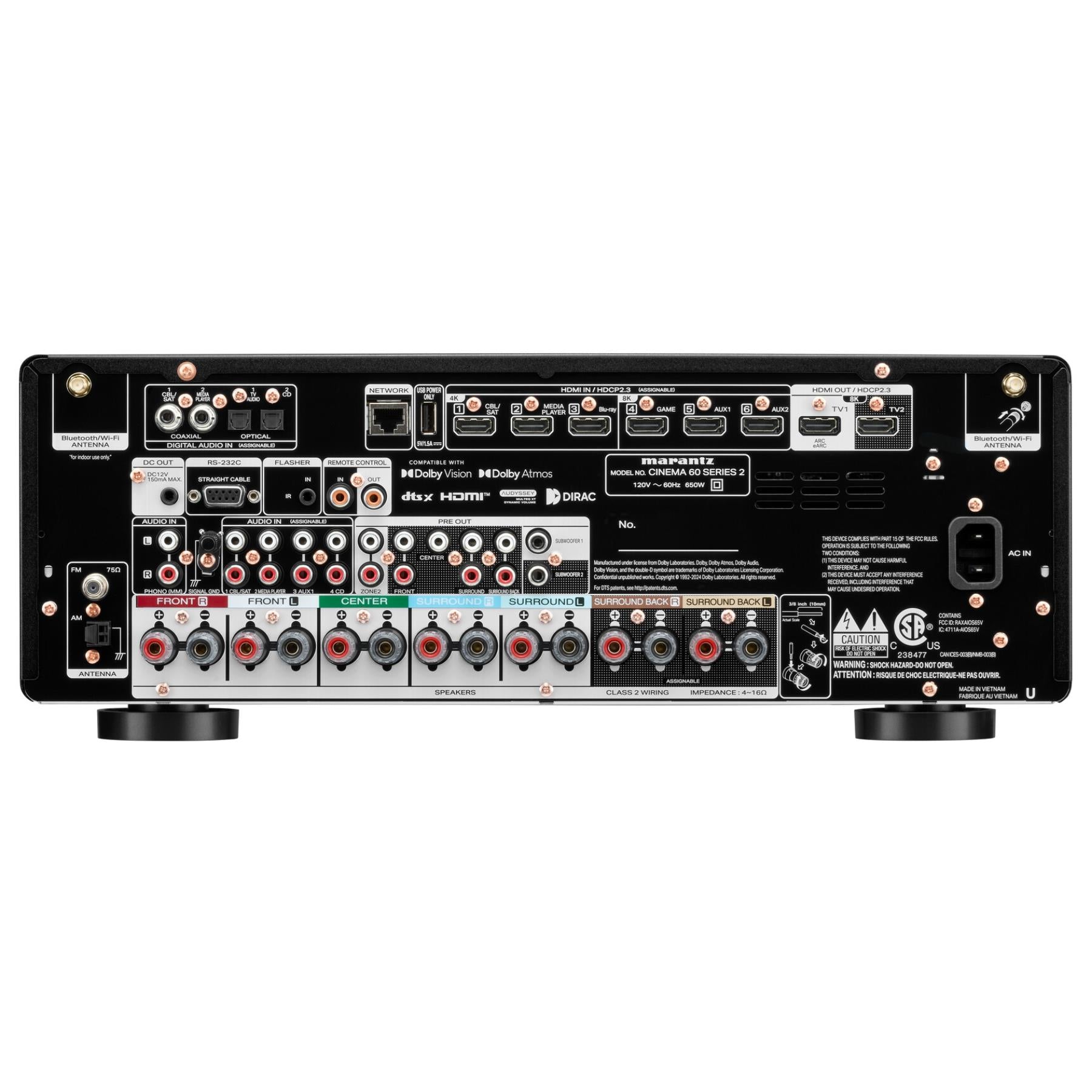

HDMI Inputs/Outputs: 6 rear inputs and 2 outputs
-
HDMI Bandwidth: 3 inputs and 2 outputs support up to 40Gbps
-
Video Support: 8K/60Hz, 4K/120Hz, 1080p/4K-to-8K scaling, 3D pass-through
-
HDR Support: HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
-
Gaming Features: ALLM, VRR, QFT, AMD FreeSync on HDMI inputs 4–6
-
HDMI Audio: eARC, ARC, Auto Lip Sync, CEC
-
Streaming: HEOS, AirPlay 2, Bluetooth, Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn, Pandora, SiriusXM, Amazon Music, Deezer, iHeartRadio, SoundCloud, and Mood Mix
-
Roon Ready: Yes
-
Bluetooth Headphone Output: Yes, with transmitter volume control
-
Network Connectivity: Wi-Fi, Bluetooth, and Ethernet
-
Audio Formats: MP3, WMA, AAC, FLAC, WAV, ALAC, and DSD
-
High-Resolution Audio: FLAC, WAV, and ALAC up to 192kHz/24-bit; DSD 2.8/5.6MHz
-
Gapless Playback: FLAC, WAV, ALAC, and DSD
-
Analog Inputs: 4
-
Phono Input: Moving-magnet phono input
-
Digital Inputs: 2 optical and 2 coaxial
-
USB: Front USB audio input and rear USB power output
-
Tuner: AM/FM
-
Speaker Terminals: 7 assignable screw-type terminals
-
Speaker Assignments: Speaker A/B, bi-amp, and Zone 2 assignable
-
Multi-Room: 2 zones with Zone 2 speaker and preamp outputs
-
Zone 2 Sources: Optical/coaxial 2-channel, network, USB, and analog
-

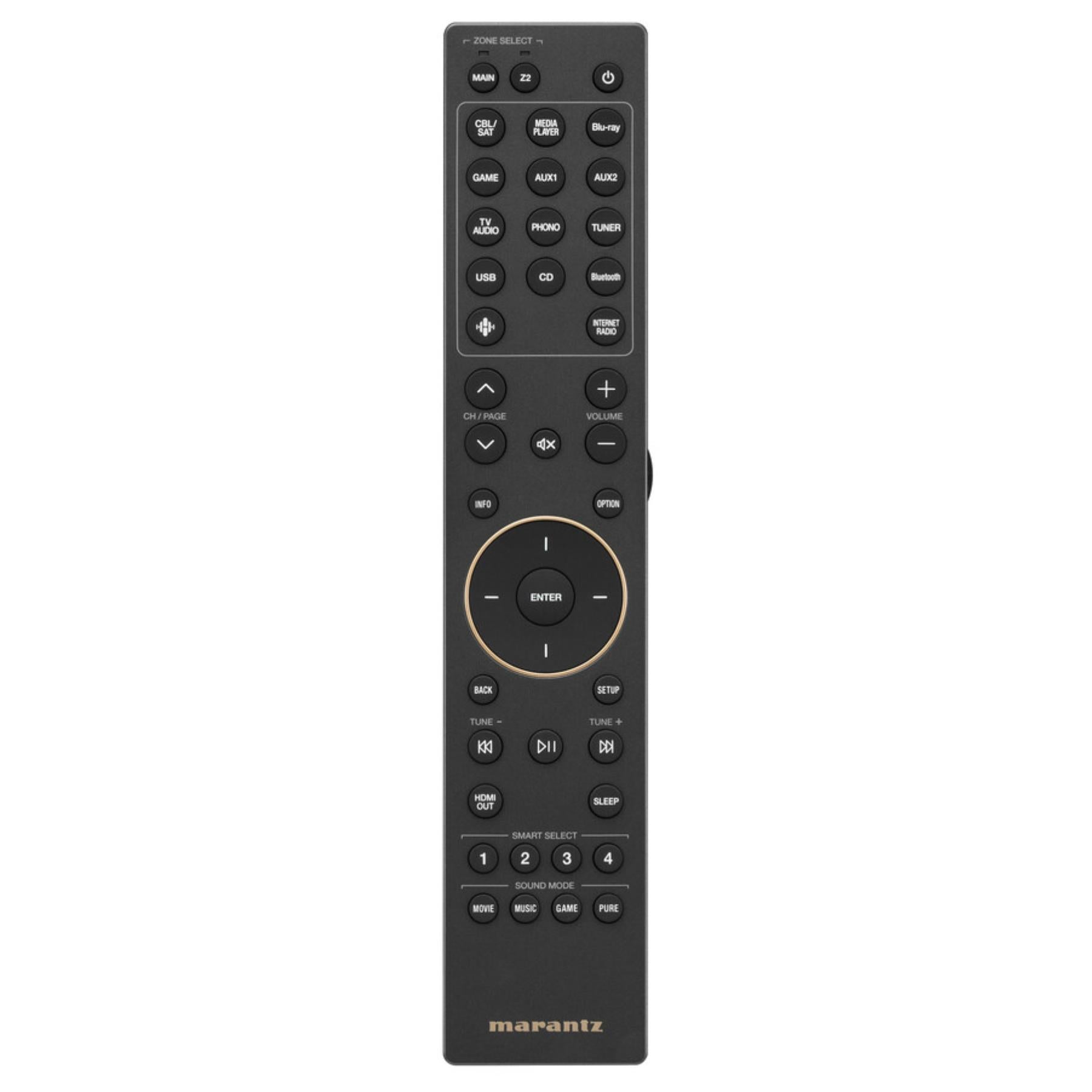

Control: Marantz AVR Remote, HEOS app, IP, RS232, web, IR, remote bus, and DC trigger
-
Display: Porthole OLED with modern HD graphical interface
-
Setup Features: Setup Assistant, Smart Select, network and USB firmware updates
-
Power Features: ECO Mode, Auto Power Off, and Sleep Timer
-
Power Consumption: 650W; standby 0.2W; network standby under 2W
-
Dimensions: 17.4 × 13.5 × 6.5 inches without antennas
-
Weight: 24 lbs
-
Included Accessories: Remote, batteries, AM/FM antennas, wire labels, quick-start guide, Audyssey microphone, microphone stand, detachable antennas, and AC cord
-
UPC: 747192148195
What It's Great At
-
Immersive Home Theater: Dolby Atmos and DTS:X create spacious, multidimensional surround sound.
-
Music Playback: The upgraded DAC, HDAM-SA2 circuitry, and Sound Master tuning deliver balanced, detailed audio.
-
Room Optimization: Audyssey MultEQ XT is included, with optional Dirac Live for advanced calibration.
-
Modern Gaming: 4K/120Hz, VRR, ALLM, QFT, and FreeSync support smooth, responsive gameplay.
-
Whole-Home Streaming: HEOS, AirPlay 2, Bluetooth, and popular music services simplify multi-room listening.
-
Flexible Integration: HDMI, phono, optical, coaxial, USB, network, and custom-control connections support complete entertainment systems.
FAQ Section
Q: How many speakers can the CINEMA 60 SERIES 2 power?
A: It powers seven speakers and supports configurations such as 7.1 or 5.1.2, plus two subwoofer outputs.
Q: Does it support Dolby Atmos and DTS:X?
A: Yes. It supports Dolby Atmos, DTS:X, height virtualization, Dolby TrueHD, and DTS-HD.
Q: Is Dirac Live included?
A: Dirac Live is available as an optional upgrade, while Audyssey MultEQ XT is included.
Q: Does it support 8K and 4K/120Hz video?
A: Yes. Three HDMI inputs and two outputs support up to 40Gbps for 8K/60Hz and 4K/120Hz signals.
Q: Is it good for gaming?
A: Yes. It supports 4K/120Hz, VRR, ALLM, QFT, and AMD FreeSync on HDMI inputs 4 through 6.
Q: Can it stream music without the TV?
A: Yes. HEOS, AirPlay 2, Bluetooth, Spotify Connect, TIDAL Connect, Qobuz Connect, and other services work independently.
Q: Can I connect Bluetooth headphones?
A: Yes. Bluetooth retransmission sends receiver audio to compatible wireless headphones.
Q: Does it have a phono input?
A: Yes. A moving-magnet phono input is included for compatible turntables.
