McIntosh MCD350 2-Channel SACD/CD Player

• 2-Channel, 32-bit/192kHz DAC
• Rigid aluminum die-cast CD tray
• Fixed analog stereo outputs
• Digital coax and optical outputs also included if an external DAC is preferred
• 2x read speed allows disc data to be stored in a buffer memory for a better error correction and tracking

The MCD350 SACD/CD Player delivers a pure playback experience from your SACDs and CDs. It features a balanced 2-channel, 32-bit/192kHz Digital-to-Analog Converter (DAC) to reproduce your music with the greatest clarity. Fixed analog stereo outputs are available in both balanced and unbalanced offerings; a coax and optical output are also available if you prefer to send the digital audio signal to an external DAC, preamplifier or home theater processor. All analog plus the digital coax outputs are gold plated or superior corrosion resistance.

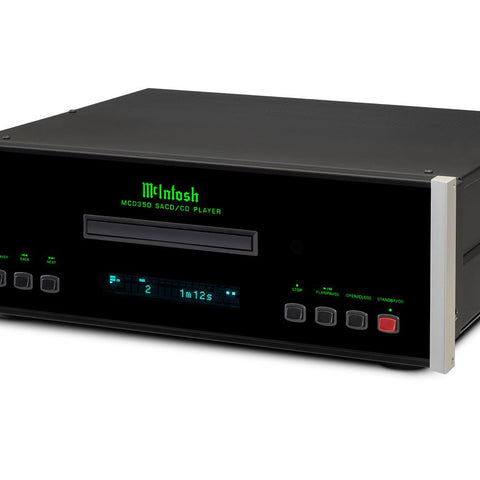

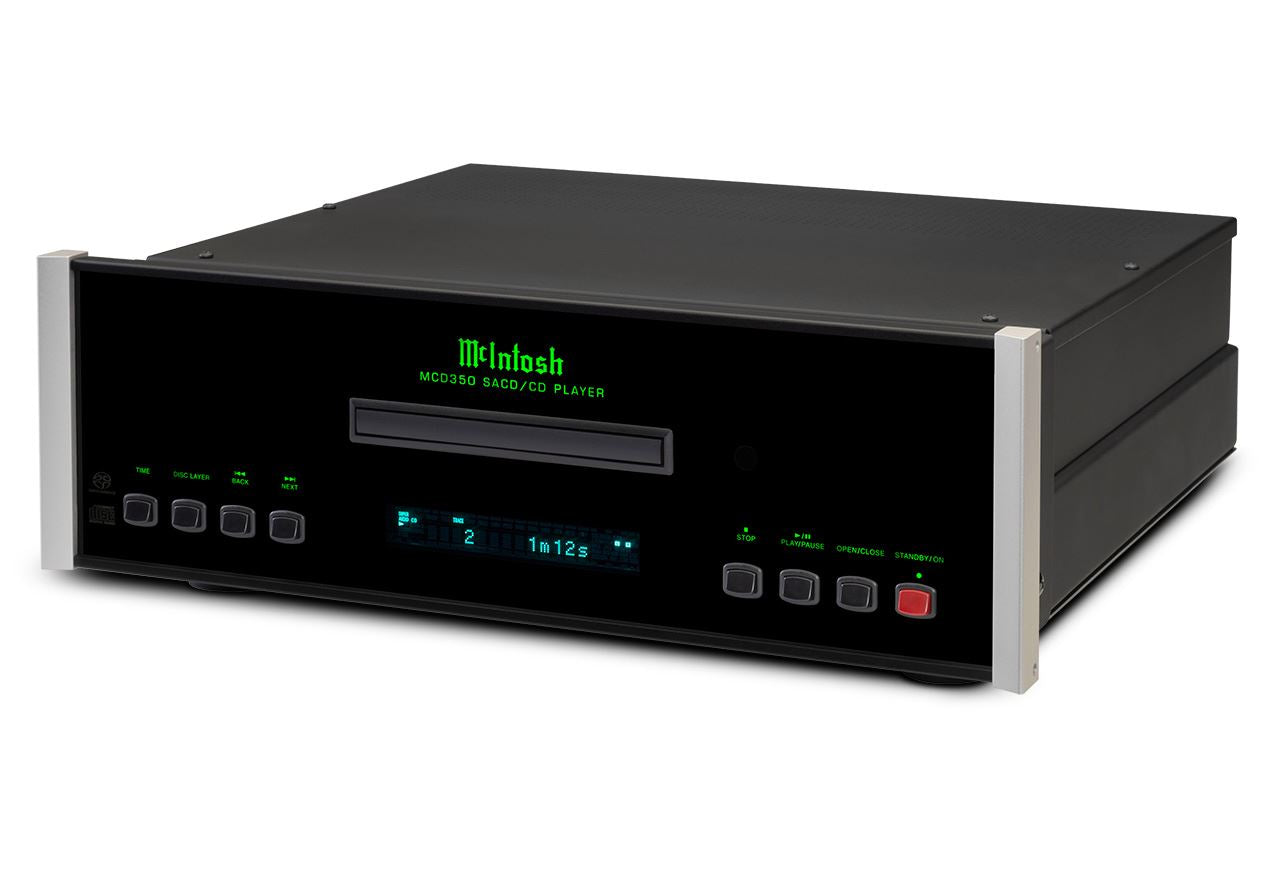

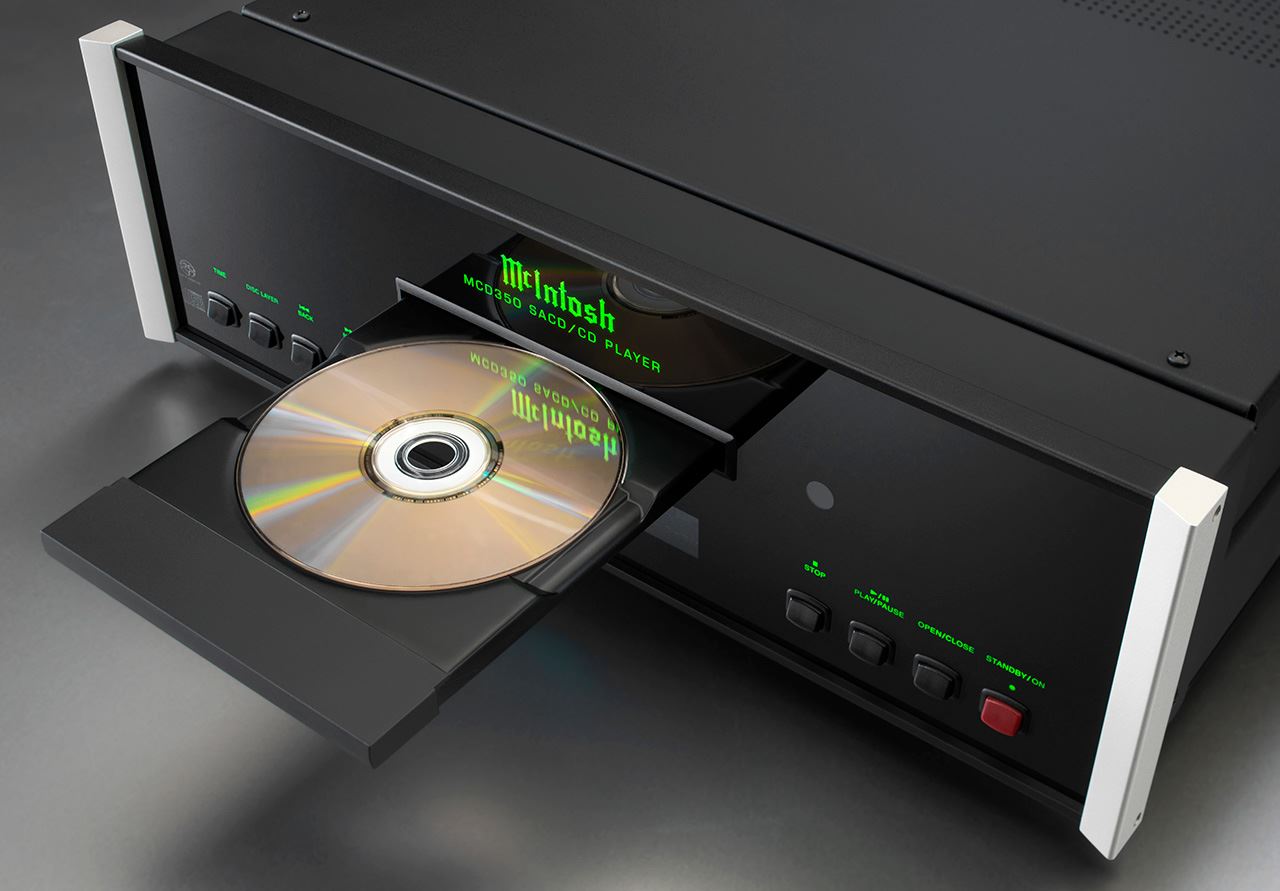

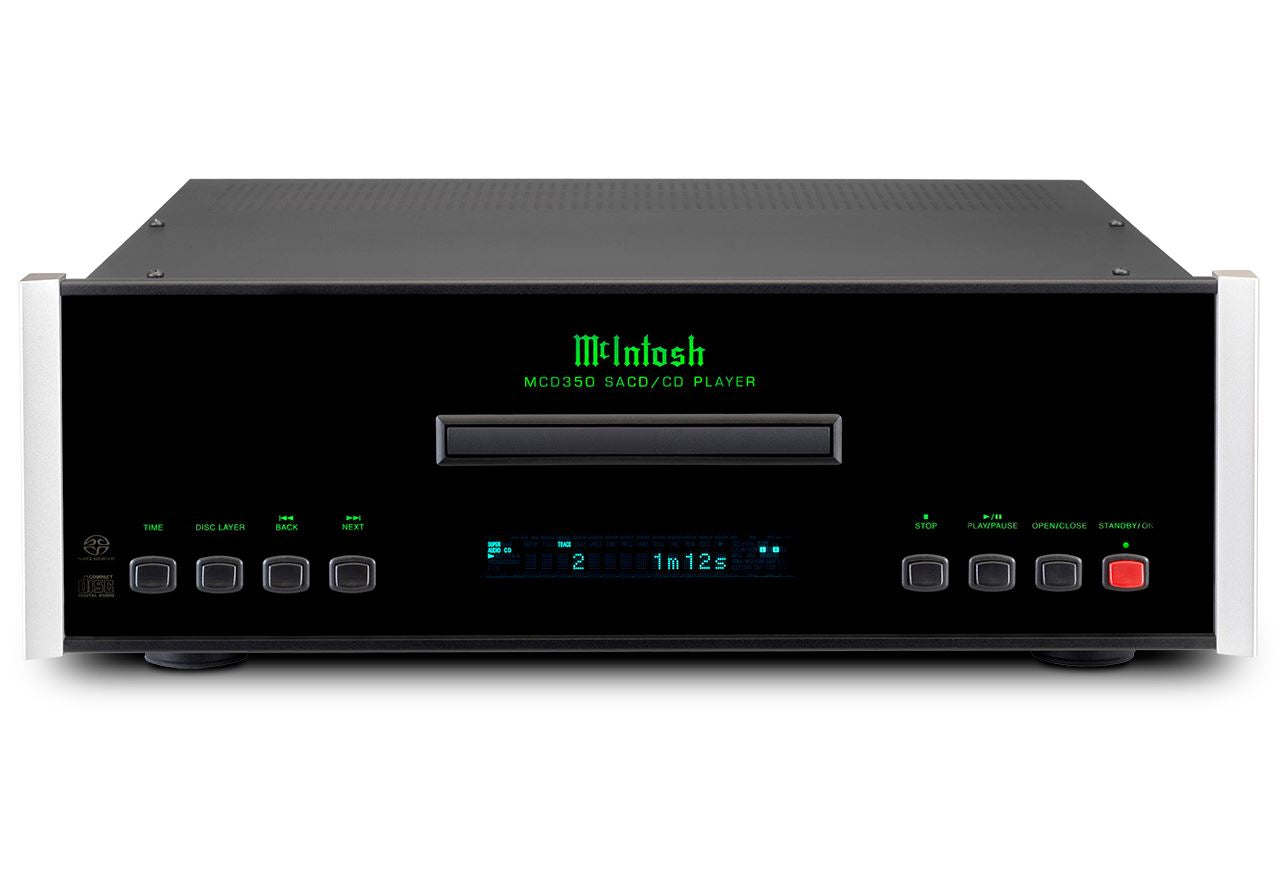

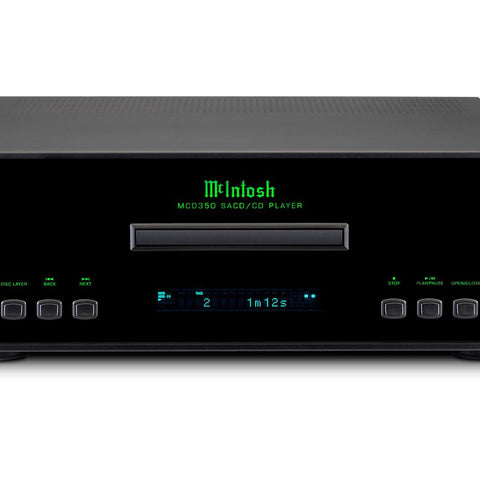

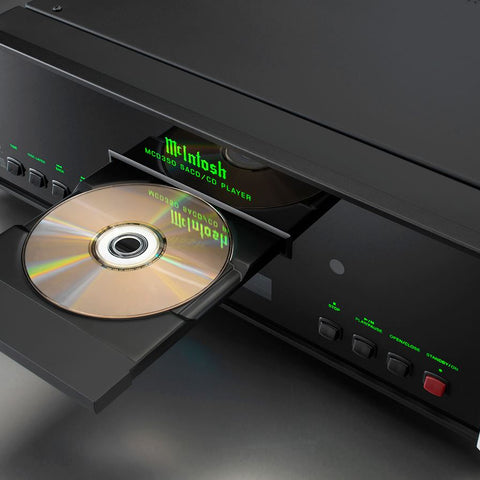

The MCD350 features 2x read speed so that all discs placed in its rigid aluminum die-cast tray are read at higher speeds allowing their data to be stored in a buffer memory for a better error correction and tracking. A twin laser optical pickup uses a single objective lens with two laser units each employing different wavelengths that are optimized for SACD and CD playback. The classic McIntosh black glass front panel with an illuminated logo and aluminum end caps complete the unit.

McIntosh MCD350 Specifications

Audio Specifications :

• NUMBER OF CHANNELS: 2
• FIXED OUTPUT LEVEL:
  • 2.0Vrms Unbalanced
  • 4.0Vrms Balanced
• OUTPUT IMPEDANCE: 600 ohms Unbalanced and Balanced
• FREQUENCY RESPONSE:
  • 4Hz to 40kHz, +0.5, -2dB (SACD)
  • 4Hz to 20kHz, ±0.5dB (CD)
• SIGNAL TO NOISE RATIO: Better than 108dB (A-weighted)
• DYNAMIC RANGE: Better than 100dB
• TOTAL HARMONIC DISTORTION:
  • 0.003% @ 1000Hz (SACD)
  • 0.002% @ 1000Hz (CD)
• CHANNEL SEPARATION: Better than 98dB (1,000Hz)

Digital Audio Specifications :

• DIGITAL-TO-ANALOG CONVERTER (DAC) TYPE: 2-channel, 32-bit/192kHz PCM/DSD
• DIGITAL OUTPUT SAMPLE RATE: Up to 24-bit/192kHz
• DIGITAL OPTICAL OUTPUT: -15dbm to -21dbm
• DIGITAL COAXIAL OUTPUT: 0.5V p-p/75 ohms

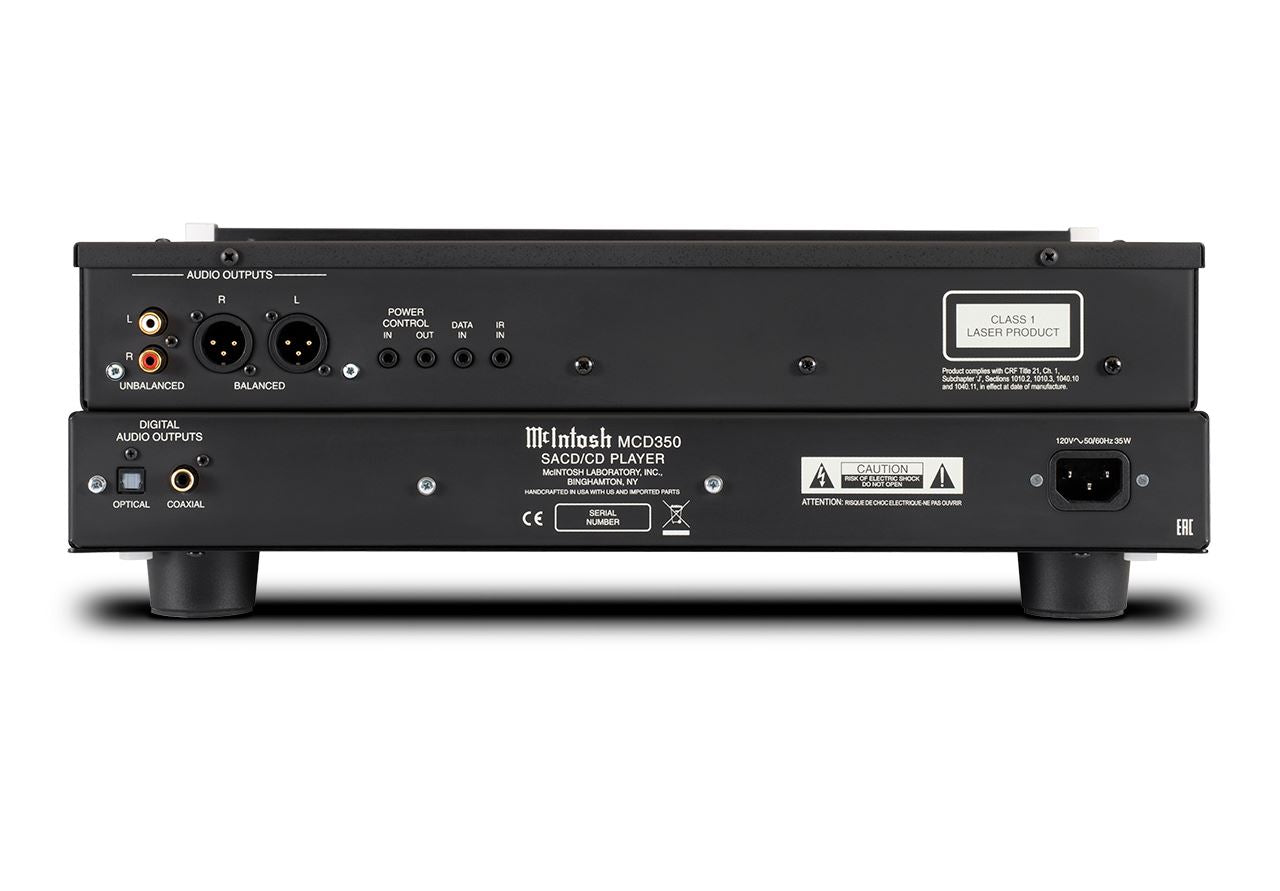

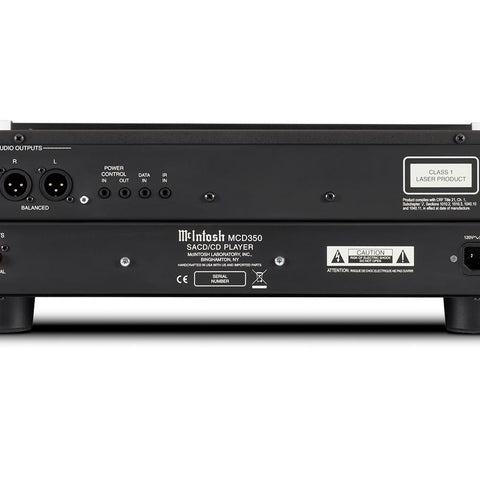

Connectivity

• BALANCED FIXED OUTPUT: 1
• UNBALANCED FIXED OUTPUT: 1
• DIGITAL COAXIAL OUTPUT: 1
• DIGITAL OPTICAL OUTPUT: 1

Control :

• REAR PANEL IR SENSOR INPUT: 1
• REAR PANEL DATA INPUT: 1
• POWER CONTROL INPUT: 1
• POWER CONTROL OUTPUT: 1

General Specifications :

• DISC FORMATS: CD, SACD, MP3 and WMA
• DISC CAPACITY: 1
• LASER TYPE: Twin Beam
• LASER BEAM WAVELENGTH:
  • 650nm (SACD)
  • 790nm (CD)
• LASER POWER: CLASS IIa/CLASS I
• STANDBY POWER REQUIREMENT: <0.5 watt

Weights & Dimensions :

• DIMENSIONS (W x H x D): 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
• WEIGHT: 28 lbs (12.7 kg)
• SHIPPING WEIGHT: 42.5 lbs (19.2 kg)

ListenUp has the only factory-authorized McIntosh service center in the Denver metro area.
