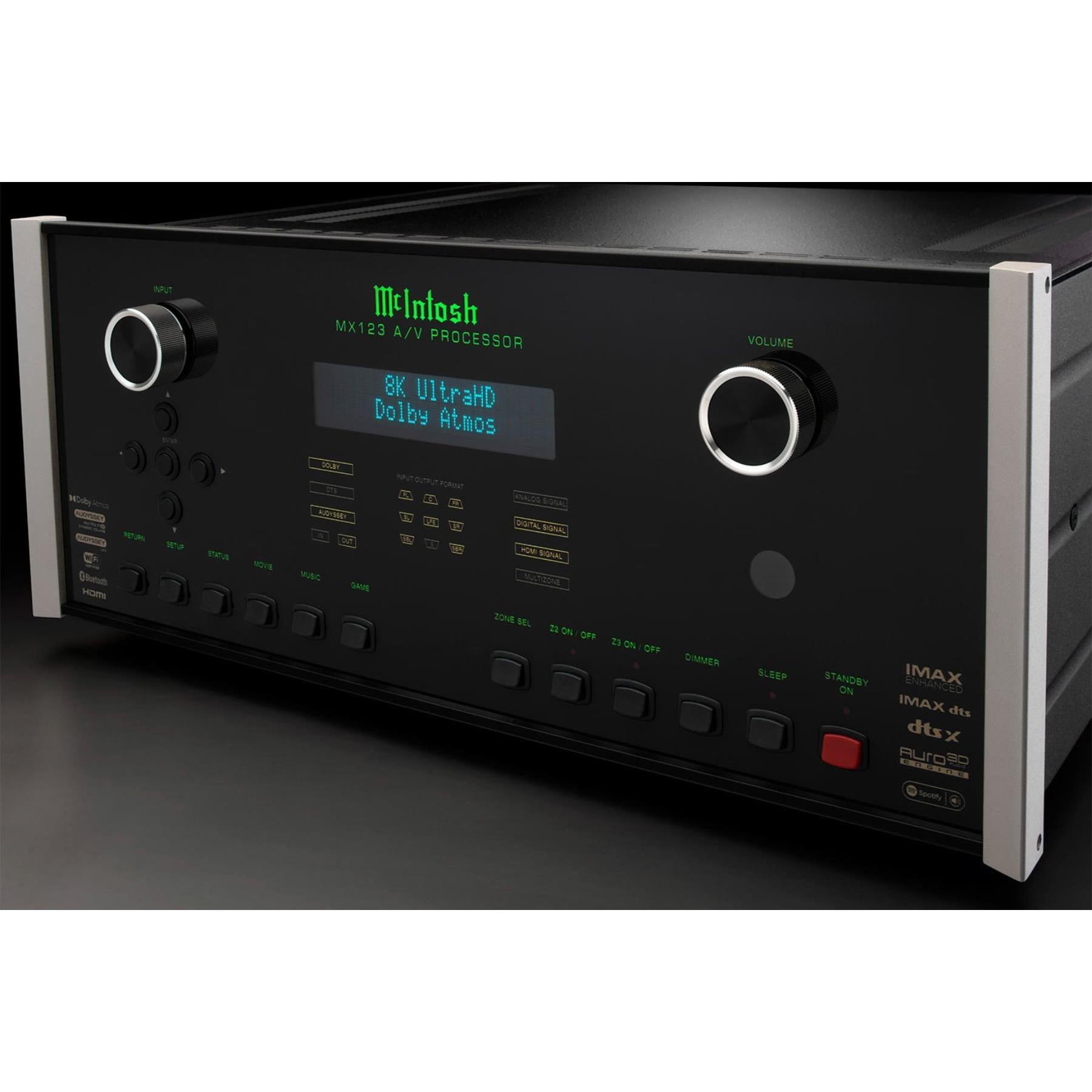

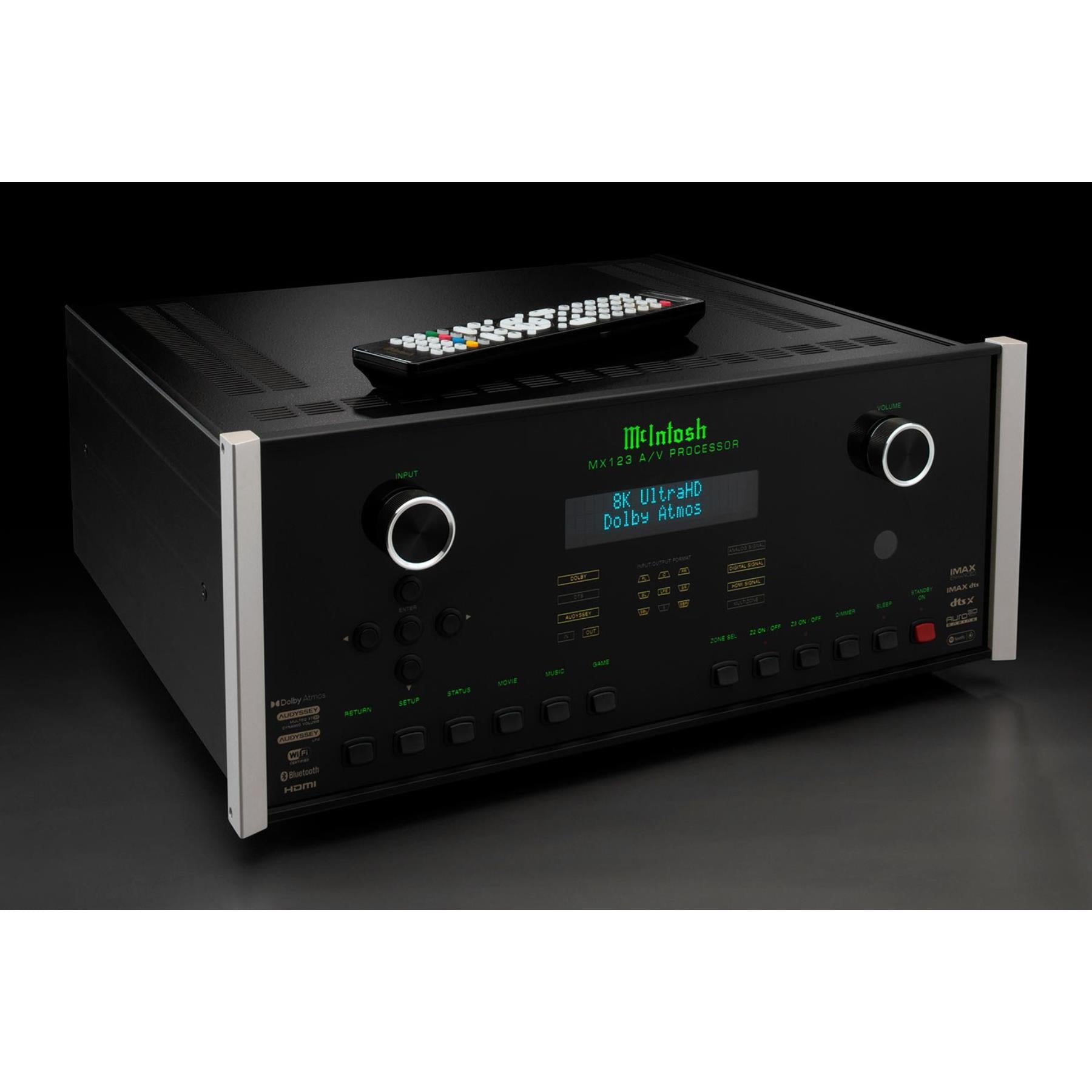

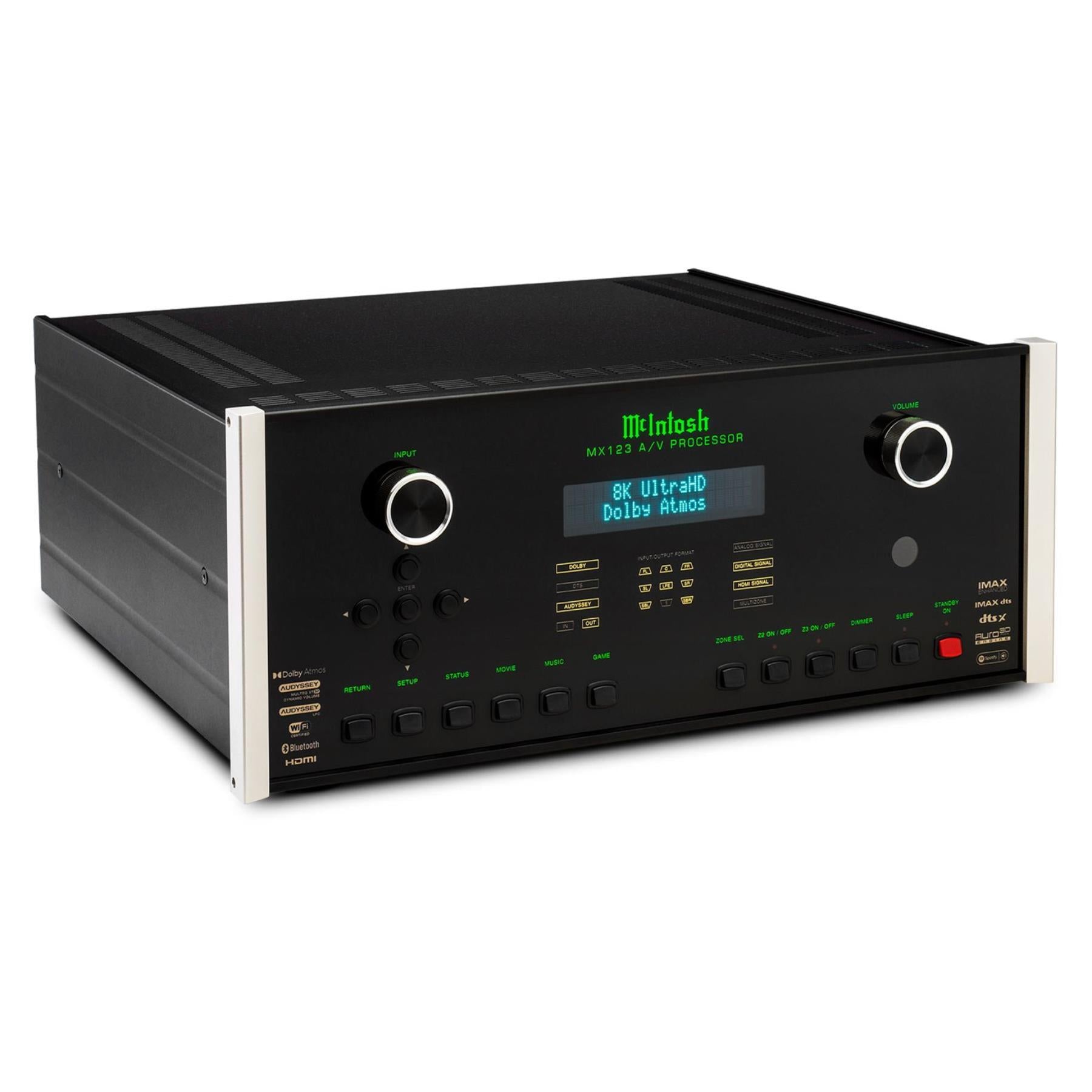

McIntosh MX123 A/V Processor
- 10 HDMI ports: 4K/60Hz; HDCP 2.3; Rec. 2020; 4:4:4 color spacing; Dynamic Lip-sync
- 8K/60Hz & 4K/120Hz on 1 HDMI input & 2 HDMI outputs
- HDR (static HDR); Dynamic HDR; HDR10+; HLG; Dolby Vision
- Quick Media Switching; Auto Low Latency Mode; Quick Frame Transport; Variable Refresh Rate
- 13.2 Audio Channels; eARC/ARC; Apple AirPlay 2; Bluetooth; Spotify Connect
- Dolby Atmos; DTS:X Pro; Auro-3D; IMAX Enhanced; 360 Reality Audio; MPEG-H Audio
- Connects with Control4 Certification; Works with Crestron Home Certification
- Audyssey MultEQ XT32
To satisfy the video needs of your home cinema, the MX123 has 7 HDMI inputs and 3 HDMI outputs. All HDMI inputs and outputs support HDCP 2.3; Rec. 2020; 4:4:4 color spacing; Dynamic Lip-sync; and 3D Video pass-through. To create the most life-like and realistic picture possible, all MX123 HDMI ports support a myriad of high dynamic range formats: HDR (static HDR); Dynamic HDR; HDR10+; HLG; and Dolby Vision (including low latency).
Of the 10 HDMI ports, 1 input and 2 outputs are 8K/60Hz and 4K/120Hz compatible with the rest supporting 4K/60Hz.
The MX123 is also fully compatible with all the leading home theater surround sound and object-based 3D audio formats such as Dolby Atmos (including Dolby Atmos Height Virtualizer); DTS:X® Pro; Auro-3D; Sony's 360 Reality Audio, an immersive audio experience utilizing Sony’s spatial sound technology; and MPEG-H Audio.
Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) functionality is included on 1 of the HDMI outputs. ARC allows a compatible TV to send audio data to the audio video processor over the HDMI cable, eliminating the need for separate audio cables. The more advanced eARC offers greater bandwidth so higher resolution audio formats such as DTS-HD Master Audio™, DTS:X®, Dolby TrueHD, and Dolby Atmos can be sent through the HDMI cable.
The MX123 features upgraded digital audio processing capabilities that results in 2 more discrete audio channels, bringing the MX123 to 13.2 discrete audio channels compared to 11.2 in the previous model. These 13.2 discrete channels are available via both balanced and unbalanced audio outputs that can be used in a variety of home theater speaker configurations; 2 additional unbalanced outputs offer further connection flexibility. DSD and ALAC playback support have been doubled to DSD128 and ALAC 192kHz for better high resolution audio performance.

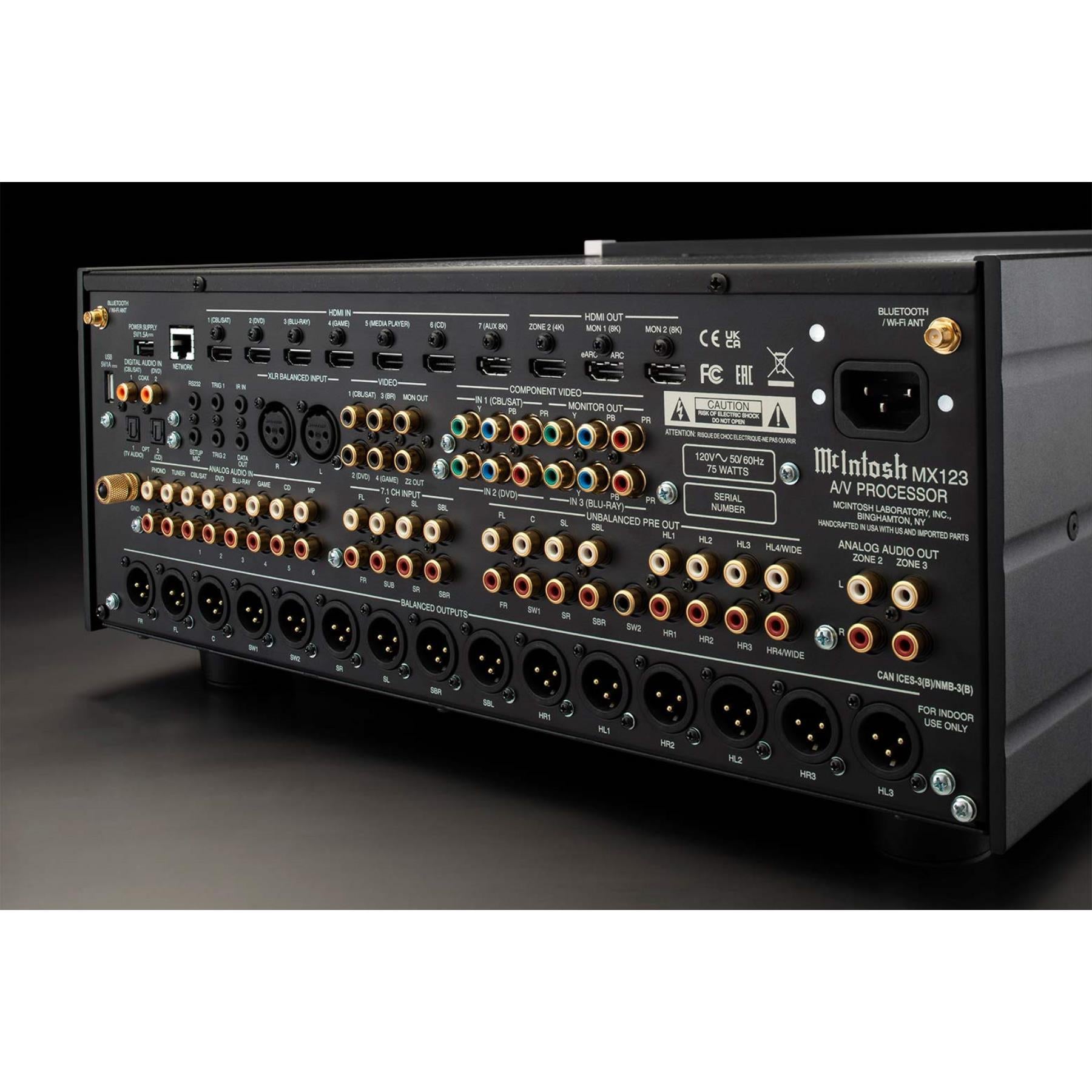

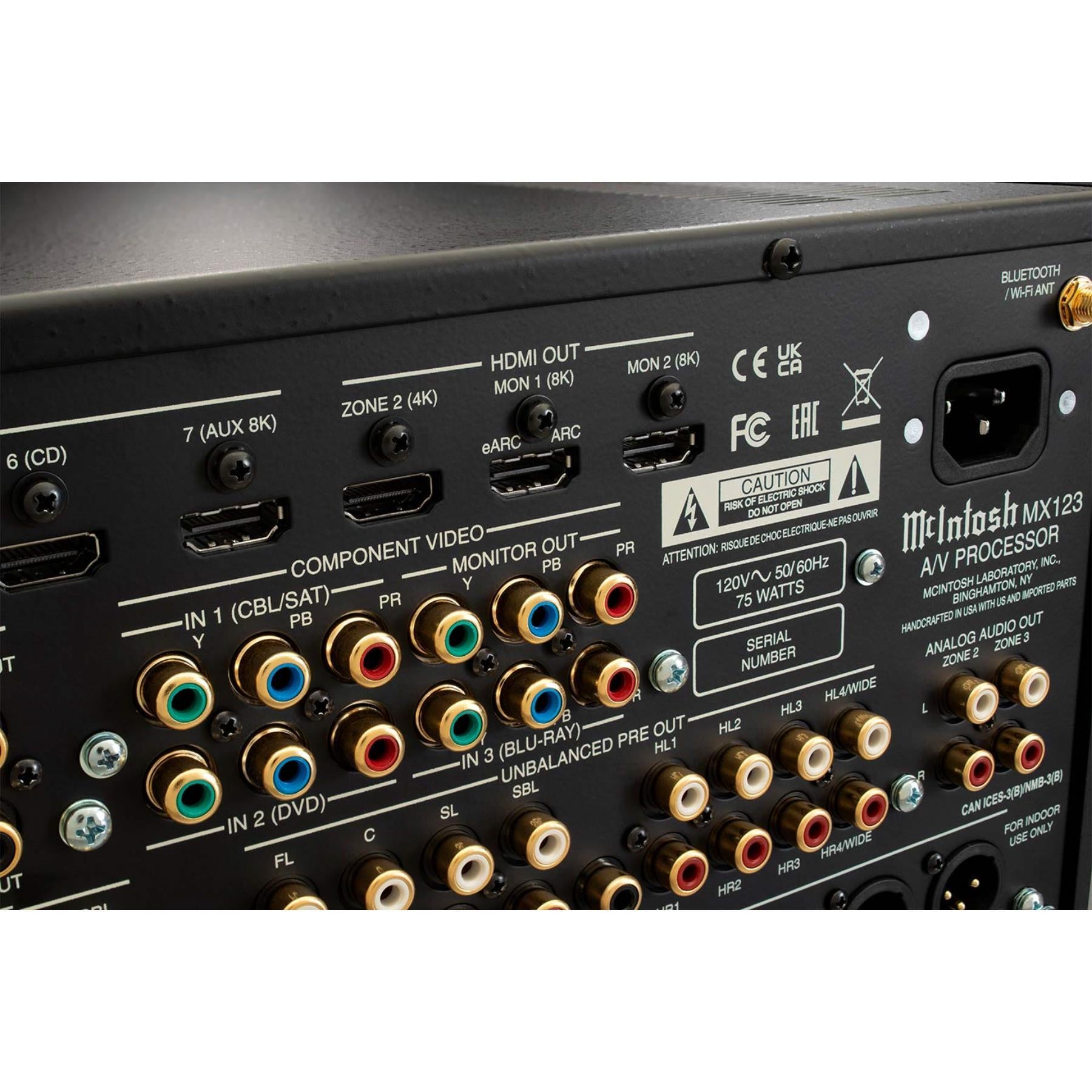

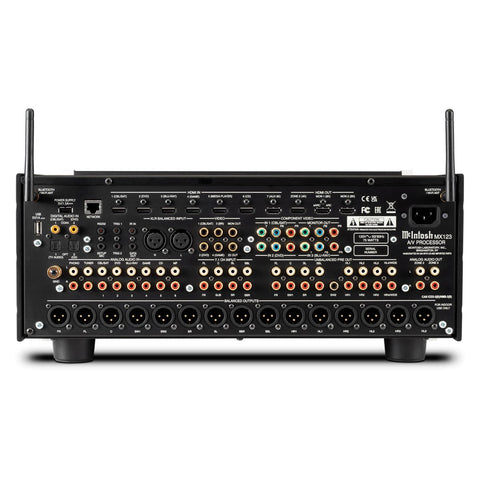

Additional connections include: 4 digital audio inputs; 1 balanced and 8 unbalanced analog stereo audio inputs (including 1 dedicated as a Moving Magnet phono input to connect a turntable); an unbalanced 7.1 multi-channel audio input; 3 component and 4 composite video inputs; 1 USB Type A input; 2 unbalanced analog stereo outputs; 2 composite video outputs; and 1 component video output.

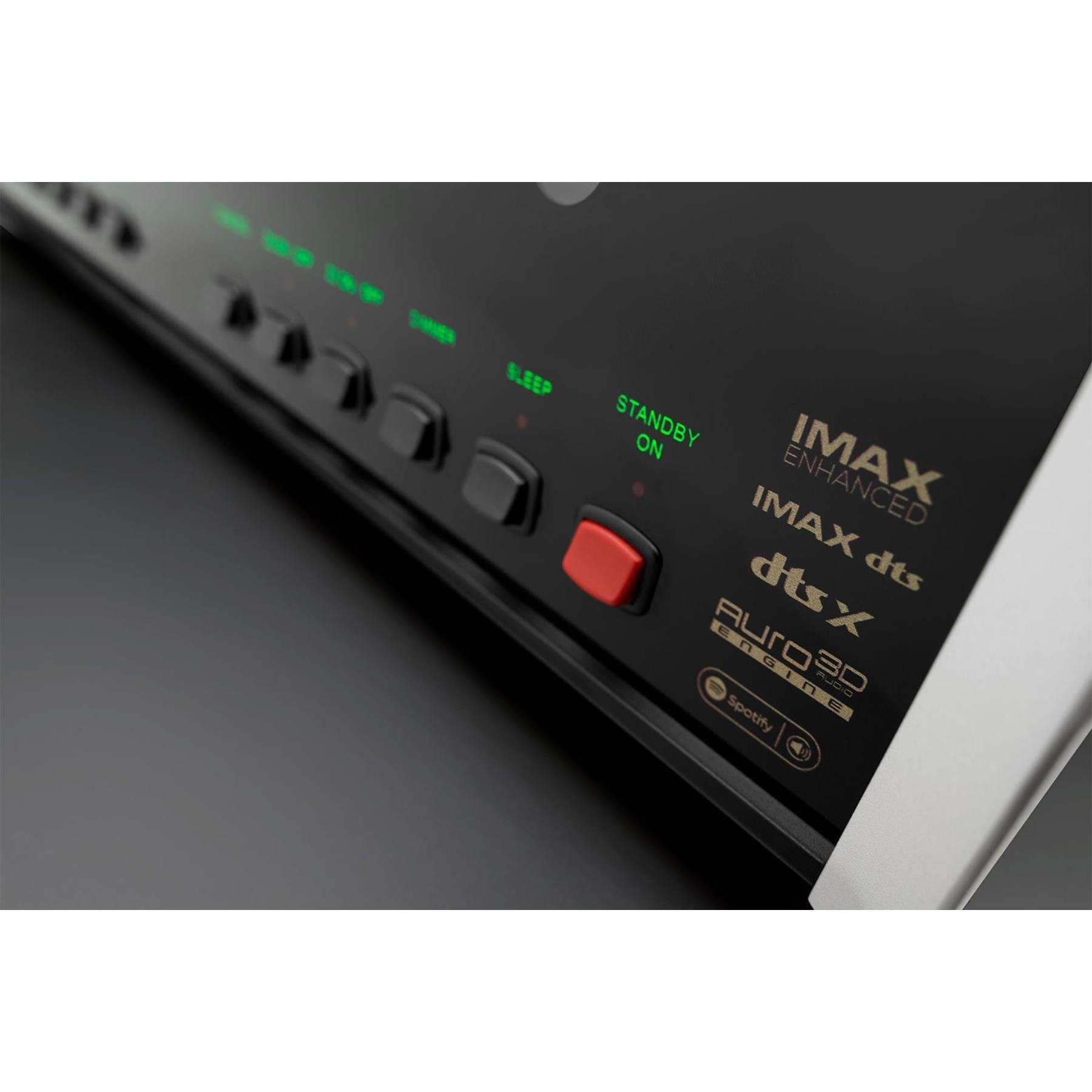

The MX123 is IMAX Enhanced compatible. IMAX Enhanced is a set of stringent performance standards established by IMAX and DTS® to create a consistent and higher bar for image and sound performance on premium devices.
Music streaming options3 on the MX123 includes Apple® AirPlay 2 along with Bluetooth and Spotify Connect for easy streaming from your mobile devices. AirPlay 2 is an Apple technology designed to control home audio systems and speakers in any room – with a tap or by just asking Siri – right from an iPhone, iPad, HomePod, or Apple TV. It offers multiroom audio, Siri voice control, and enhanced playback. TuneIn is also included for further music streaming options. To assist with wireless streaming performance and reliability, it includes 2.4/5GHz dual band support. An ethernet port that lets you make a hardwired connection to your network is also included to aid in producing the best possible music streaming experience.
Audyssey MultEQ XT32 is included and will calibrate the MX123 to your home theater’s unique acoustical properties, letting it deliver the clearest and most balanced earth-shattering sound possible. Each discrete audio channel has its own 32-bit premium Digital-to-Analog Converter (DAC) to produce the best audio quality. Bass and treble tone controls plus a 9-band equalizer offer additional fine-tuning. The MX123 also gives you the flexibility to create 2 additional zones in your house and send select audio and/or video to each zone.
CONNECTIVITY
-
Multi-Channel Outputs Balanced 13.2
-
Multi-Channel Inputs Unbalanced 7.1
-
Multi-Channel Outputs Unbalanced 15.2
-
Stereo Inputs Balanced 1
-
Stereo Inputs Unbalanced 8 (including 1 Moving Magnet Phono)
-
Stereo Outputs Unbalanced 2
-
Digital Coaxial Input 2
-
Digital Coaxial Output 0
-
Digital Optical Input 2
-
AES/EBU Balanced Input 0
-
HDMI Input 7
-
HDMI Output 3
-
USB 1 Type A
-
Component Input 3
-
Component Output 1
-
Composite Input 4
-
Composite Output 2
-
Subwoofer 2 Output Yes (discrete signal from subwoofer 1)
-
Network Connection 1
-
Max # of audio channels in Zone A 15
-
Additional Zone Outputs
- Zone 2: HDMI audio/video, component video, composite video, analog stereo audio
- Zone 3: Analog stereo audio
-
Advanced Connections Ethernet Web interface and firmware update, IP-based control, Web Data Streaming, Apple AirPlay 2, Bluetooth, Spotify Connect
HDMI FEATURES
-
Resolution and Refresh Rates 8K/60Hz and 4K/120Hz on 1 HDMI input and 2 HDMI outputs (4K/60Hz on all other ports)
-
HDCP 2.3
-
4:4:4 Color Yes
-
Rec. 2020 (BT.2020) Yes
-
3D video pass-through Yes
-
Dynamic Lip-sync Yes
-
ARC Yes (on 1 output)
-
eARC Yes (on 1 output)
-
Video Scaling 8K Upconversion
-
High Dynamic Range (HDR) HDR (static HDR), Dynamic HDR, HDR10+, HLG, Dolby Vision (including low latency)
-
Quick Media Switching (QMS) Yes (on 8K/60Hz and 4K/120Hz ports)
-
Auto Low Latency Mode (ALLM) Yes (on 8K/60Hz and 4K/120Hz ports)
-
Quick Frame Transport (QFT) Yes (on 8K/60Hz and 4K/120Hz ports)
-
Variable Refresh Rate (VRR) Yes (on 8K/60Hz and 4K/120Hz ports)
PROCESSING
-
Total Harmonic Distortion (DSP Bypass) 0.005%
-
Dolby Processing Dolby Atmos, Dolby Surround Upmixer
-
DTS Processing DTS-X, Neural:X Surround Upmixer, DTS Virtual:X
-
Auro Processing Auro 3D, Auro-Matic, Auro 9.1, 10.1
-
Pure Stereo DSP Bypass Mode Yes
-
MPEG-H Audio Yes
-
360 Reality Audio Yes
-
IMAX Enhanced Yes
-
Room Correction Audyssey MultEQ XT32, Dynamic EQ / Dynamic Volume, DSX
CONTROL
-
Third Party Control RS232, Web IP, IR Input
-
Tone Controls 9 Band Equalizer, Bass and Treble
-
OSD Overlay on HDMI Output Yes
-
Input-Output Format Indicators 9 in and 9 out
-
Control of McIntosh Sources Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks
GENERAL SPECIFICATIONS
-
Channel Formats 13.2, 7.1, 5.1, Stereo
-
Microphone and stand included Yes
-
Network Features Wi-Fi dual band 2.4/5GHz, Apple AirPlay 2, Bluetooth, Spotify Connect
-
Unique Crossover Frequency, Each Speaker Yes
-
Special Features Rear Panel USB-Apple Dock, HDMI in standby, Apple AirPlay 2, Bluetooth, Spotify Connect
