Bowers & Wilkins M-1 Satellite Speaker

The Bowers & Wilkins M-1 is a compact yet high-performance speaker designed for both immersive home theater and refined two-channel audio. As the foundation of B&W’s updated Mini Theatre concept, the M-1 delivers impressive power, extended bass, and seamless integration with subwoofers like the ASW608 or PV1D. Its versatile design allows for placement on shelves, walls, or optional floor stands, and it can even be rotated for use as a center channel. With a sleek clamshell enclosure available in Matte Black or Matte White, the M-1 offers both exceptional sound and aesthetic flexibility for any living space.

Specifications

• Technical Features: Nautilus™ tube-loaded aluminum dome tweeter, woven glass fiber mid/bass driver, clamshell cabinet design
• Drive Units: 1x 25mm (1in) aluminum dome tweeter, 1x 100mm (4in) woven glass fiber mid/bass driver
• System Description: 2-way vented-box system
• Frequency Response: 64Hz – 23kHz (±3dB)
• Frequency Range: -6dB at 55Hz and 50kHz
• Sensitivity: 85dB (2.83V, 1m)
• Nominal Impedance: 8Ω (minimum 4Ω)
• Recommended Amplifier Power: 20W – 100W into 8Ω
• Dimensions (H x W x D): 248mm x 114mm x 162mm (9.8in x 4.5in x 6.4in)
• Net Weight: 2.3kg (5.1lb)
• Finish Options: Matte Black or Matte White

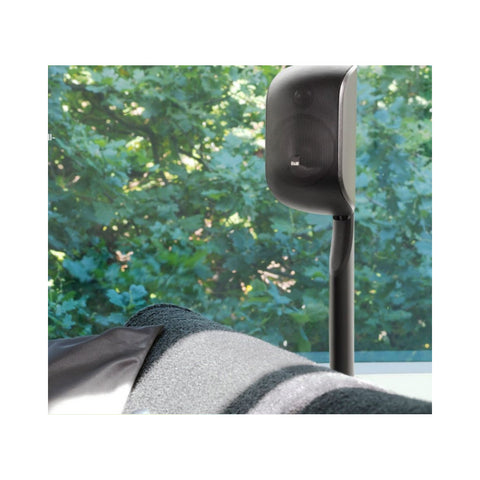

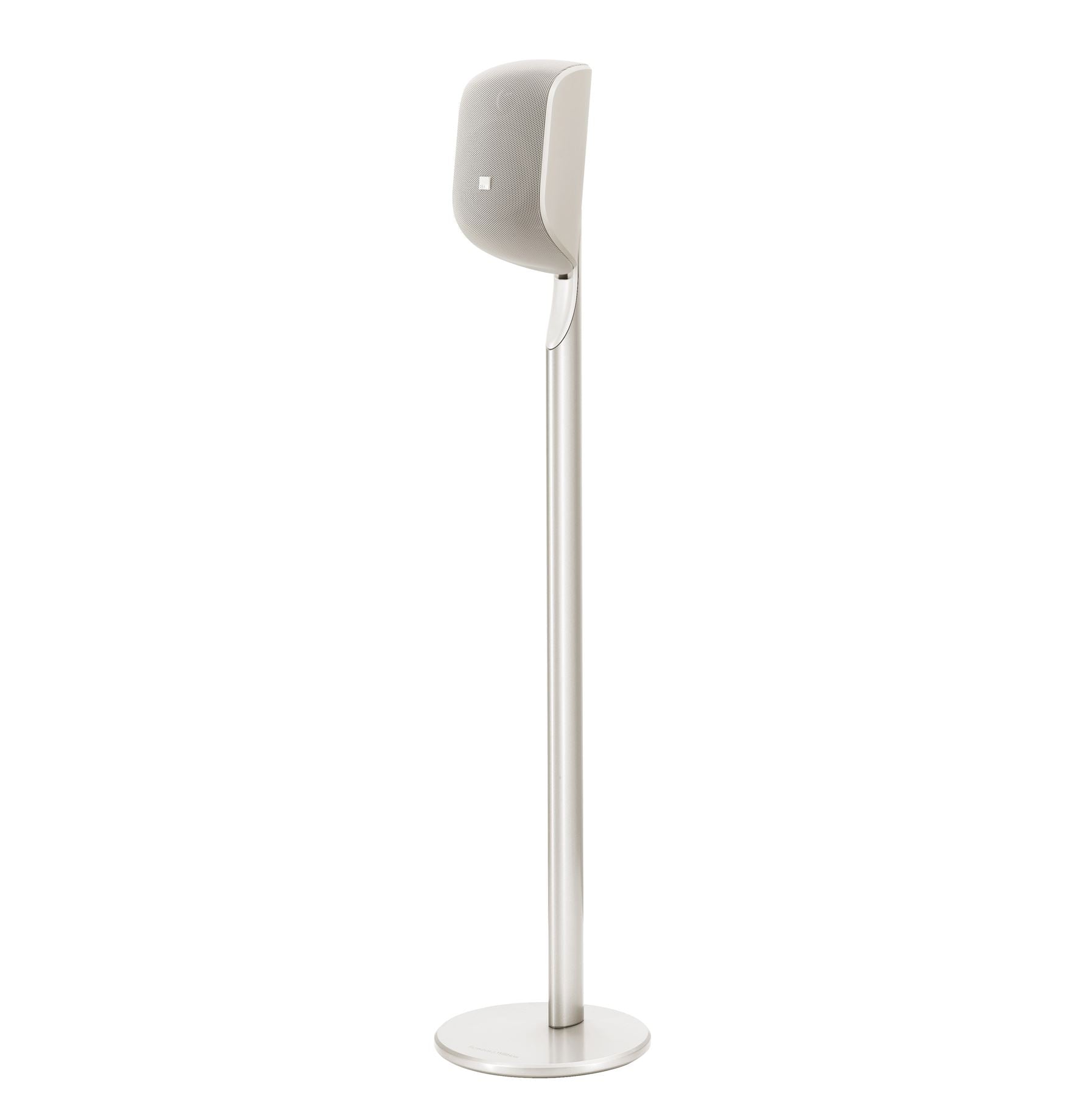

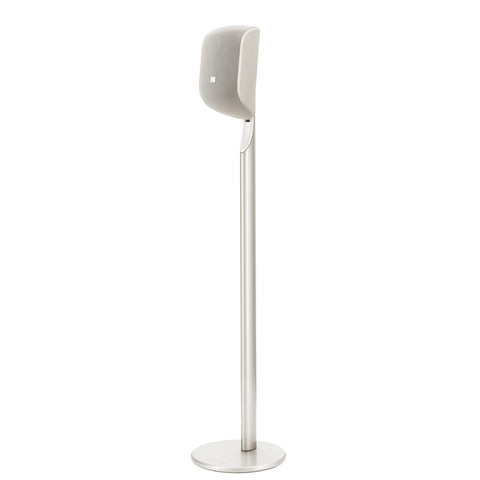

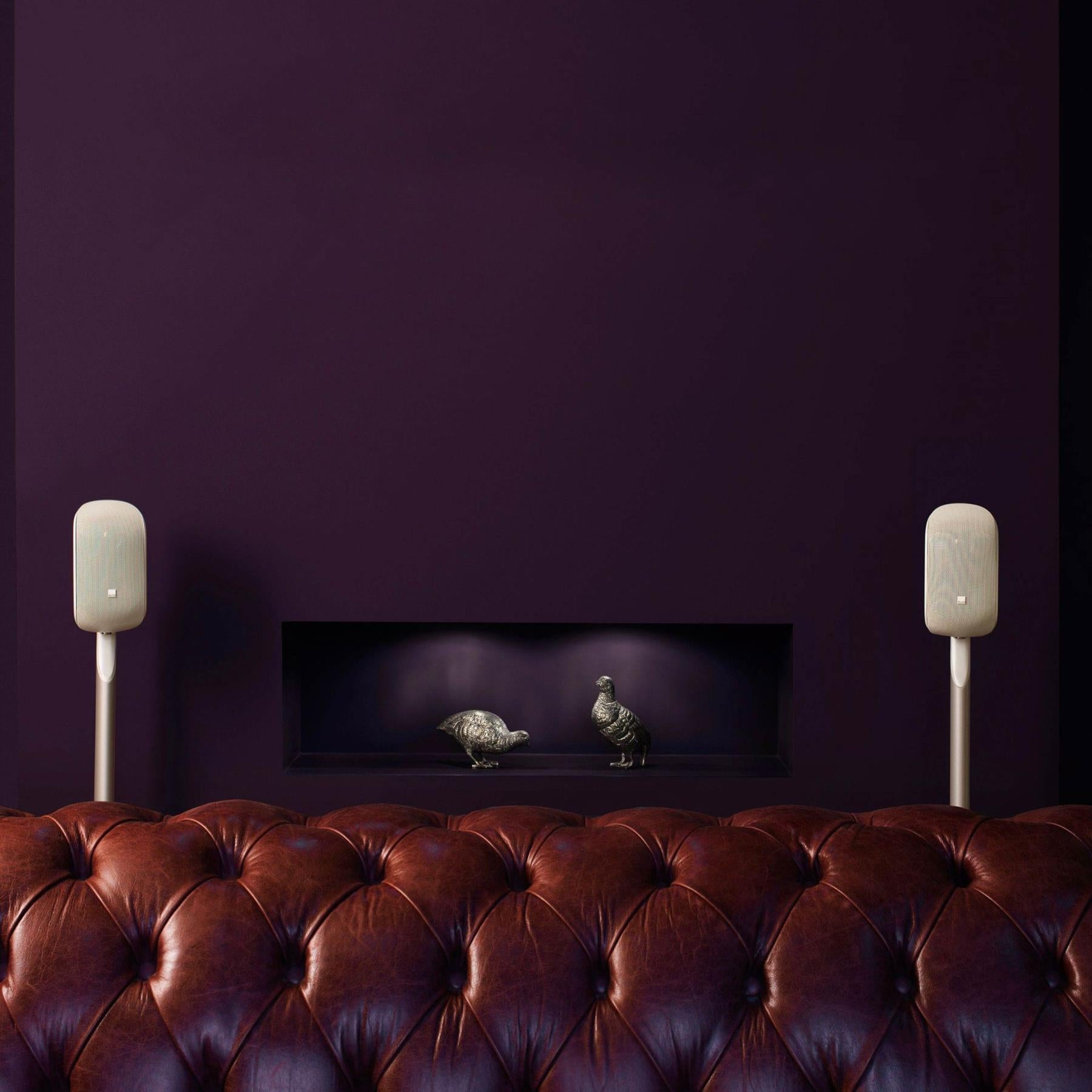

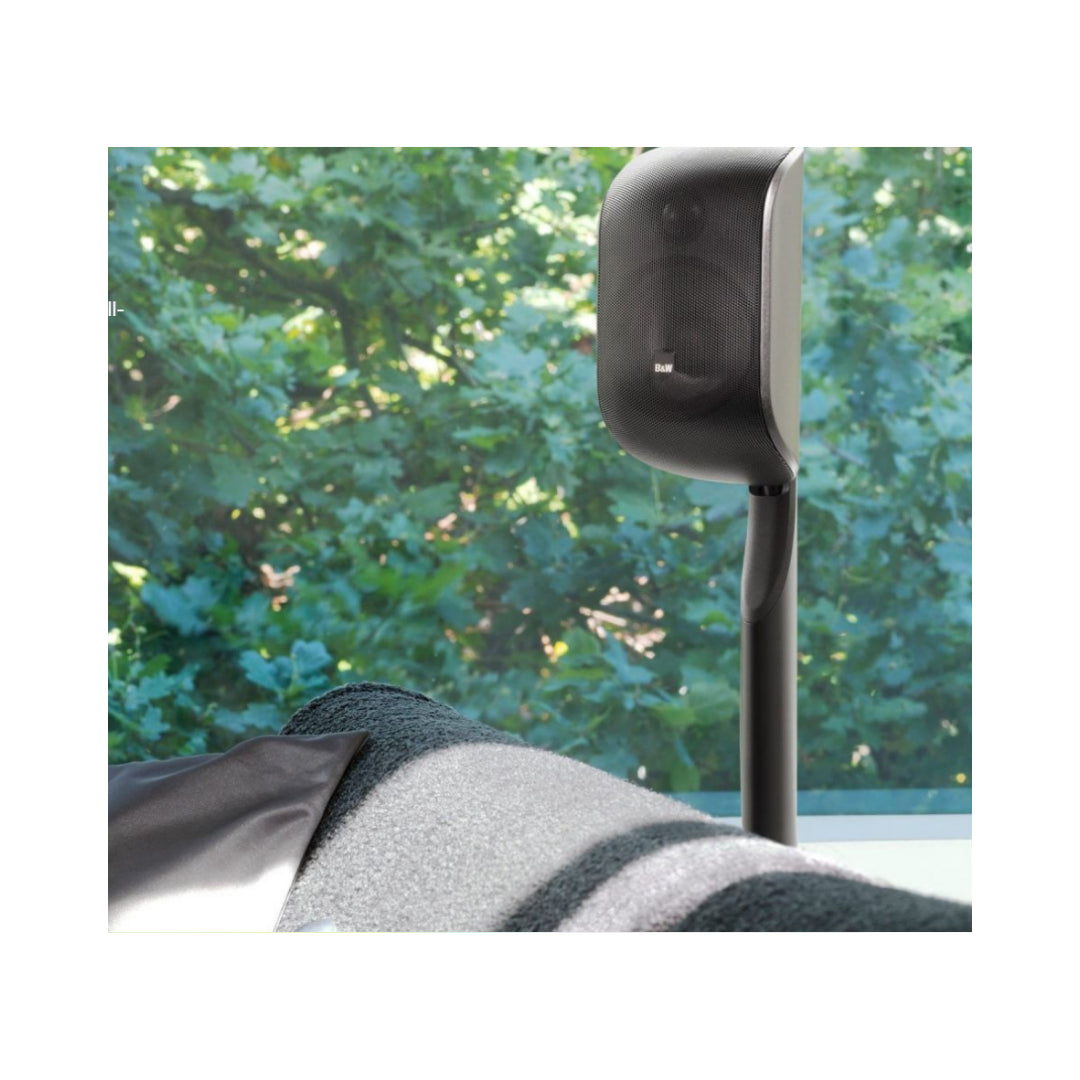

• Mounting Options: Tabletop, wall mount (bracket included), or floor stand (sold separately)

Expanded Key Features List

• Compact, High-Performance Design: Engineered for impressive output and clarity despite its small size.

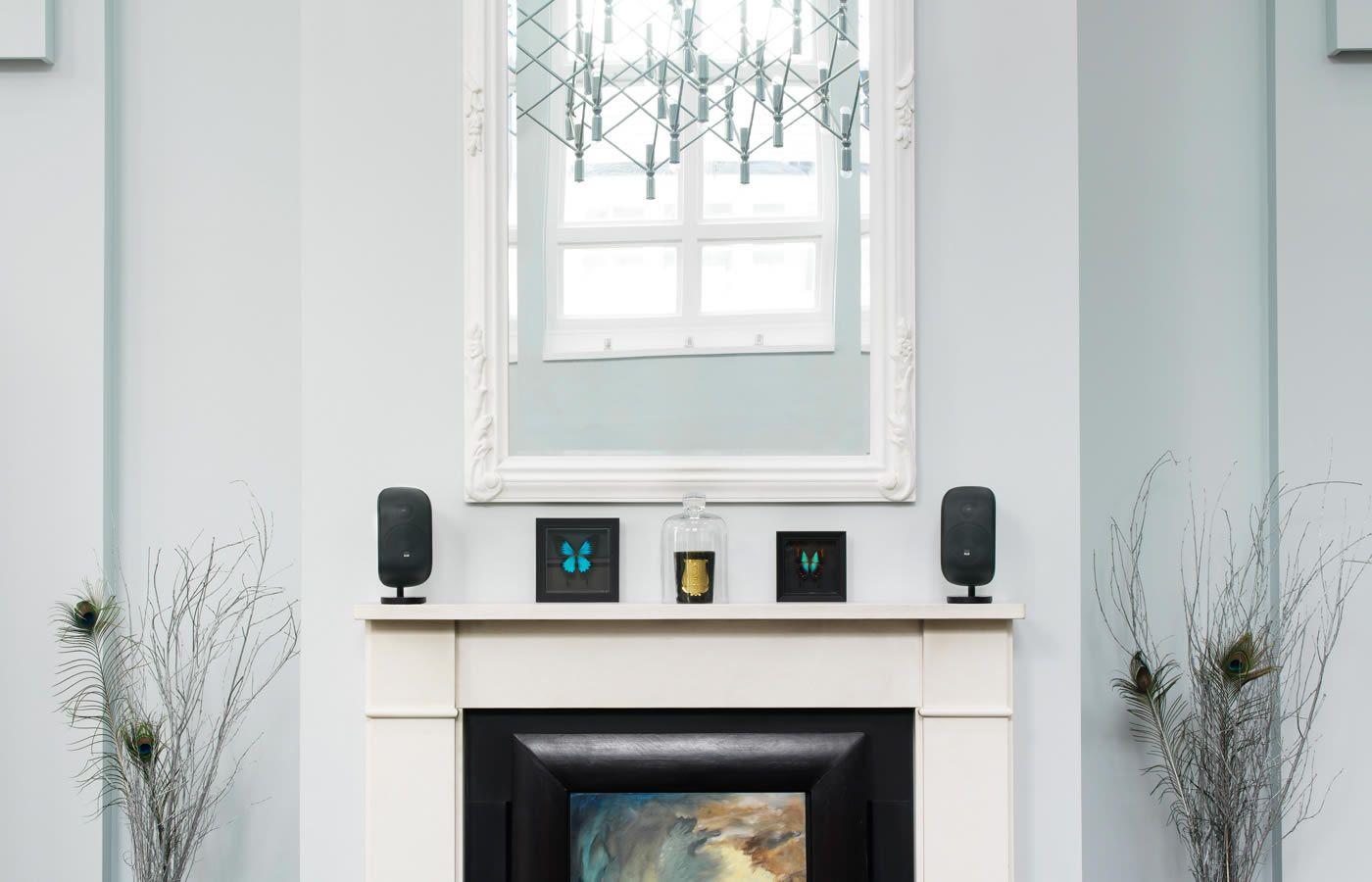

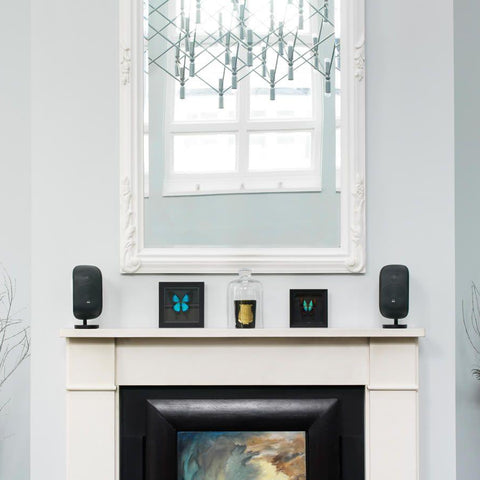

• Flexible Placement Options: Mount on a wall, place on a shelf, use with an optional stand, or rotate horizontally for center use.
• Clamshell Cabinet Construction: Two interlocking curved sections enhance rigidity and reduce resonance.
• Extended Bass Response: Capable of standalone use in two-channel systems without a subwoofer.
• Center Channel Capability: Swivels into a horizontal orientation to serve as a compact center speaker.
• Perfect Mini Theatre Integration: Pairs seamlessly with ASW608 or PV1D subwoofers for a complete home cinema experience.

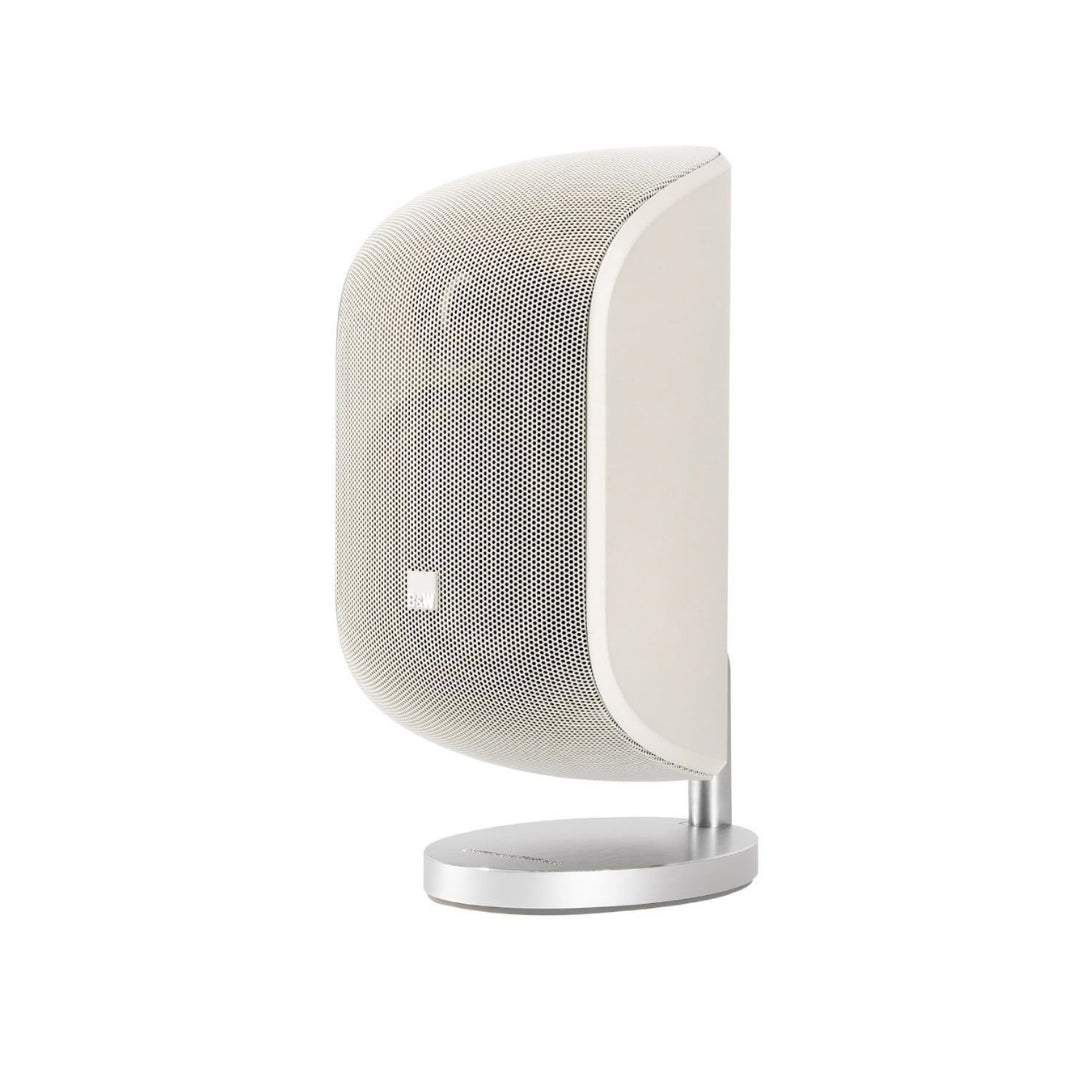

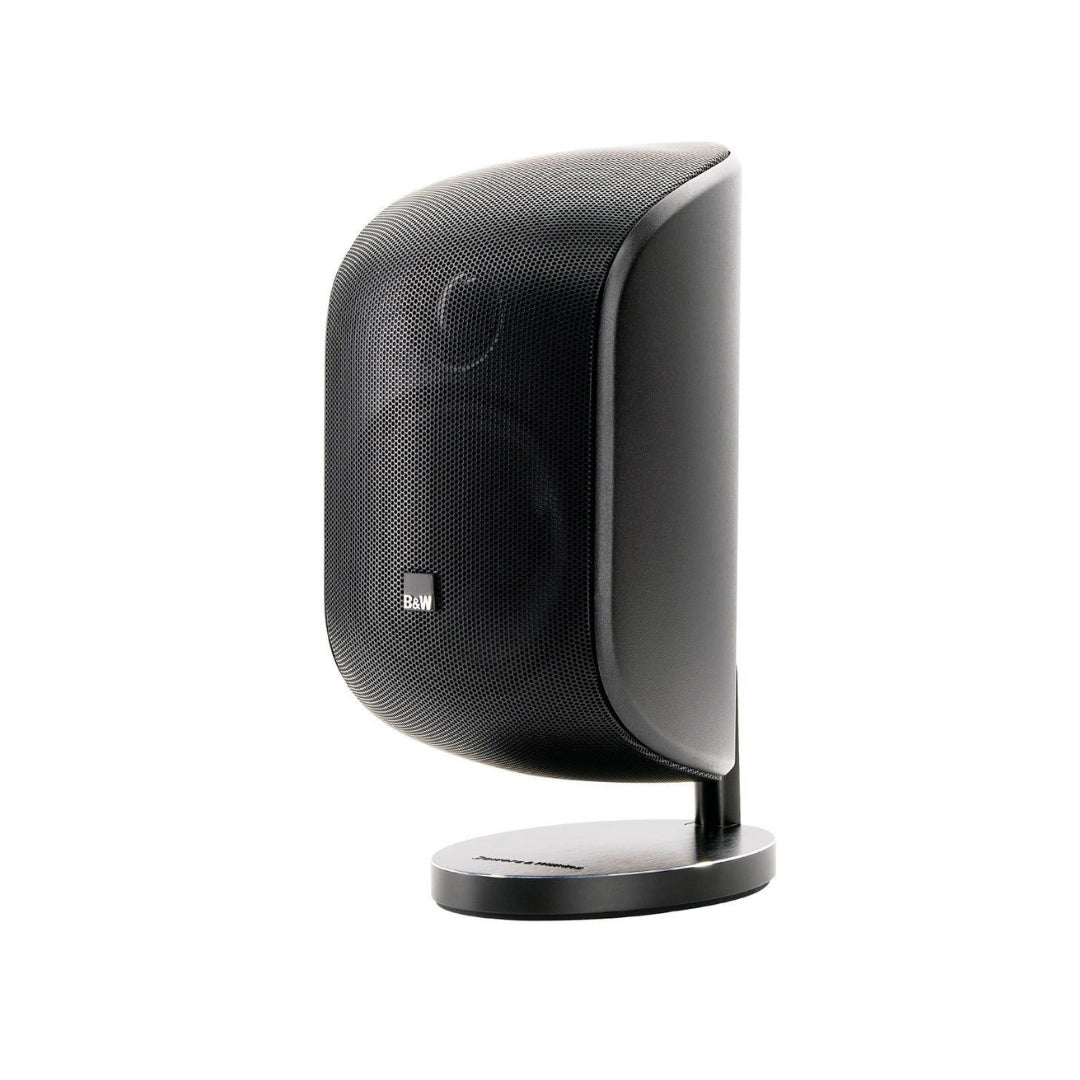

• Premium Matte Finishes: Available in Matte Black or Matte White to suit modern interior aesthetics.

Q&A Section

Q: Can the M-1 speaker be used without a subwoofer?
A: Yes, the M-1 has an extended bass response and can perform well as a standalone speaker for two-channel setups.

Q: Is the M-1 suitable for center channel use?
A: Absolutely. The speaker can swivel into a horizontal position, making it ideal as a center channel in home theater configurations.

Q: What subwoofers are recommended with the M-1?
A: The M-1 pairs especially well with the Bowers & Wilkins ASW608 or the PV1D subwoofer for full-range cinematic sound.

Q: How is the speaker mounted?
A: The M-1 can be placed on a table or shelf, mounted on a wall with the included bracket, or used with an optional floor stand.

Q: What amplifier power is recommended?
A: Bowers & Wilkins recommends using an amplifier rated between 20W and 100W into 8Ω.

Q: What colors are available?
A: The M-1 comes in elegant Matte Black or Matte White finishes to blend with any room decor.

Q: Can I use the M-1 in a 5.1 or 7.1 home theater setup?
A: Yes, the M-1 is a perfect fit for multi-channel surround sound systems and provides a consistent sonic signature throughout.

Q: Is the M-1 magnetically shielded?
A: Yes, it’s magnetically shielded, allowing for flexible placement near TVs and other electronics.
