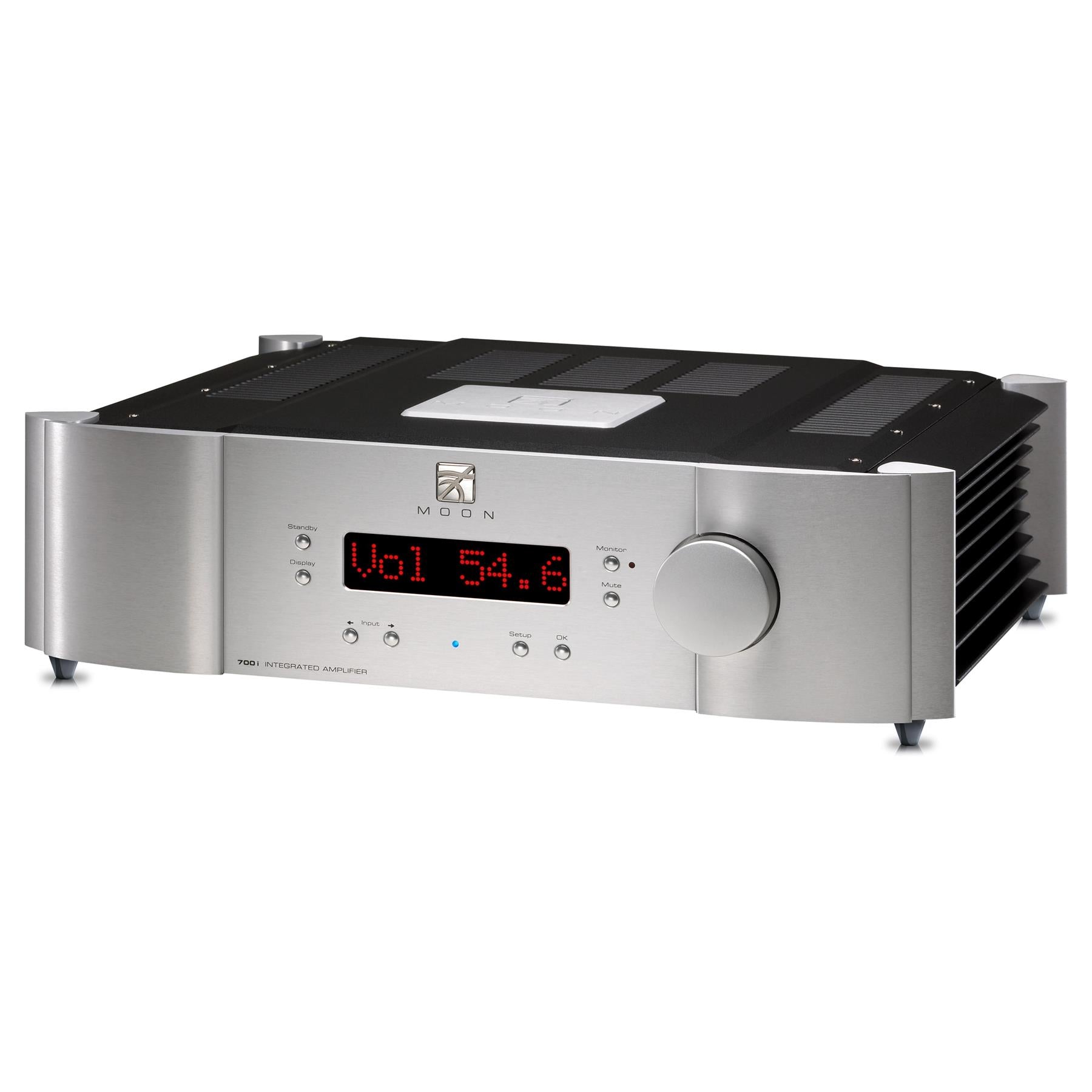

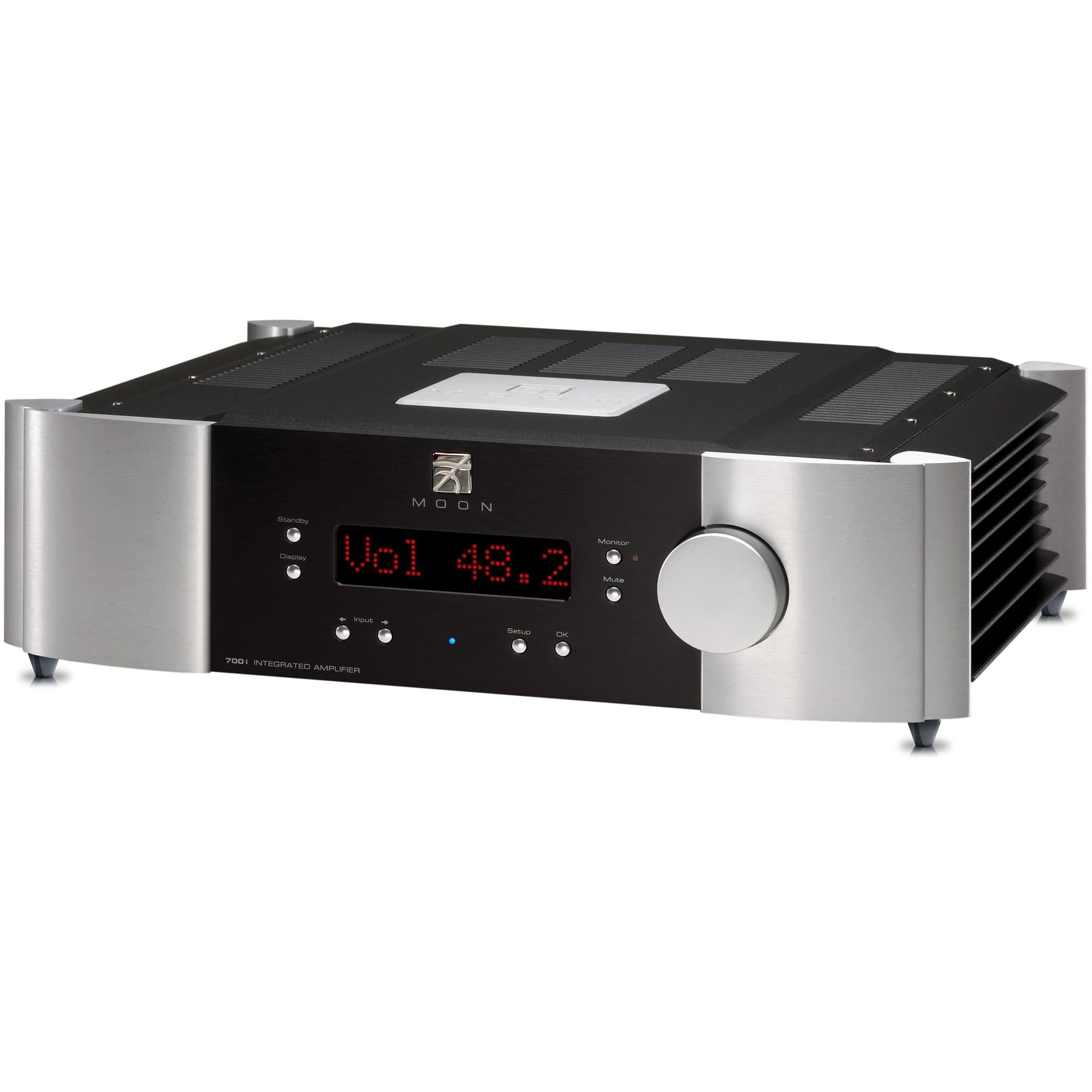

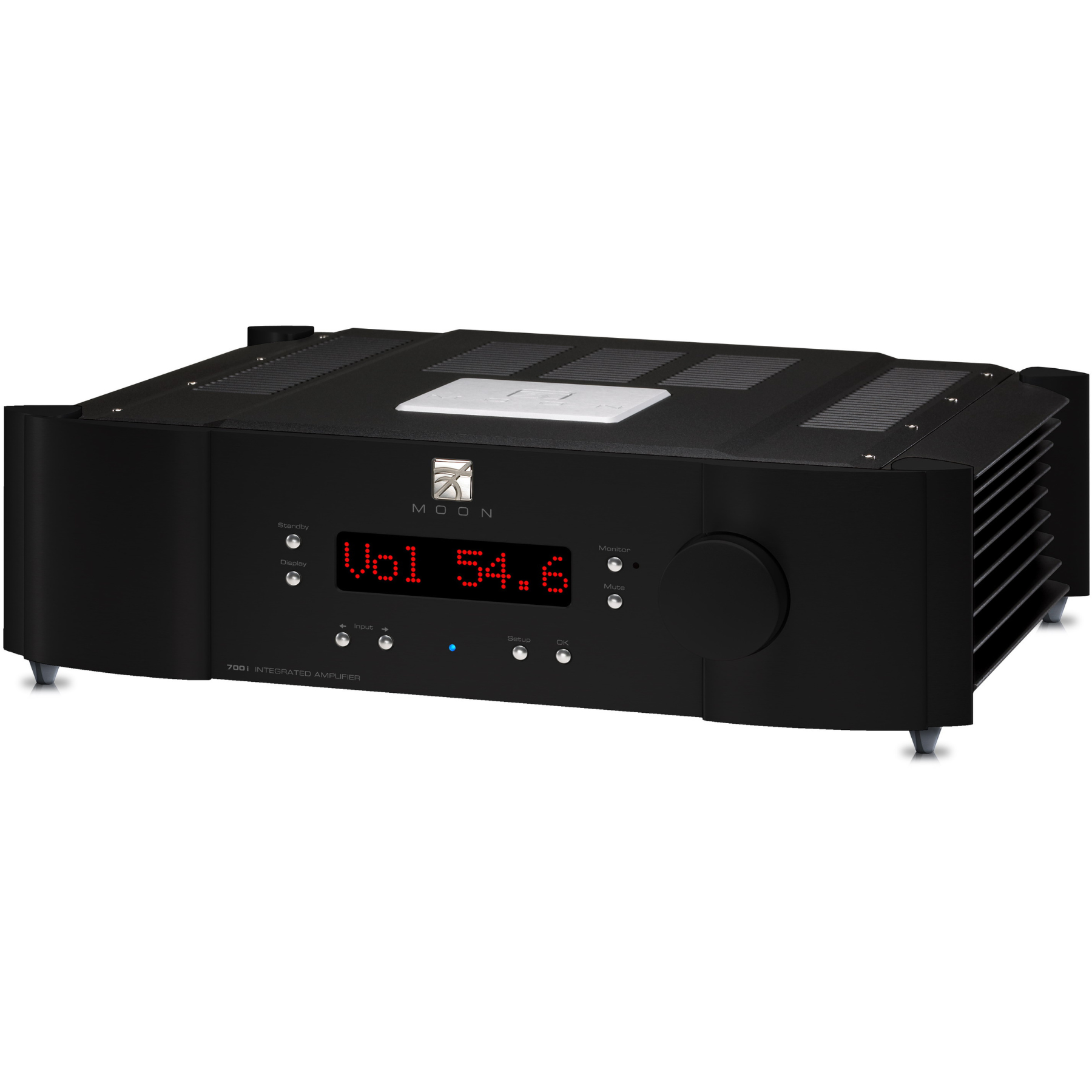

MOON 700i Integrated Amplifier - Certified Reserved

The MOON 700i Integrated Amplifier is a premium integrated amplifier from MOON by Simaudio designed for listeners who want a refined stereo centerpiece with the convenience of a single-component design. By combining core amplification functions into one elegant unit, the 700i supports a cleaner system layout while preserving the upscale appeal expected in serious two-channel audio environments. It is a strong fit for shoppers searching for a high-end integrated amplifier, audiophile stereo amplifier, or premium Simaudio amplifier for a dedicated music room or elevated home listening setup. Support resources listed for the model include a user manual, quick start guide, drivers, videos, product brochure, and upgrade information, helping owners get more from setup, operation, and long-term ownership.

The MOON Certified Reserve Standard

Every MOON Certified product meets a strict manufacturer standard:

• Fully tested, refurbished, and certified by MOON technicians
• Includes new packaging and complete accessory packs
• Technician sign-off certification included
• Backed by a 5-year manufacturer warranty

What It's Good At:

• Serving as a premium integrated amplifier centerpiece for a dedicated stereo system
• Simplifying system design with a single-chassis amplifier solution
• Supporting setup and ownership with multiple listed resources and guides
• Fitting listeners who want a refined, music-focused home audio component
• Offering added value through videos, brochure access, and upgrade information
• Giving premium-audio shoppers a streamlined MOON by Simaudio option

MOON 700i Full Specifications:

• Configuration: Fully balanced, dual-mono
• Power Supply Transformers: 2 x 500VA, 1 x 25VA
• Power Supply Capacitance: 68,000μF
• Balanced Inputs (XLR): 1 pair
• Single-Ended Inputs (RCA): 4 pairs
• Monitor Loop (RCA): 1 pair (inputs & outputs)
• Input Impedance: 23,700Ω
• Input Sensitivity: 490mV – 6.0V RMS
• Preamplifier Line-Level Output (RCA): 1 pair @ 50Ω
• Output Device Type – Amplifier: Proprietary MOON BiPolars – 6 per channel
• Output Power @ 8Ω: 175 Watts per channel
• Output Power @ 4Ω: 350 Watts per channel
• Volume Steps: 0.5dB from 0-30 and 0.1dB from 30-80
• Gain Control: M-eVOL2
• Gain: 37dB
• Signal-to-Noise Ratio (Preamplifier/Amplifier): 120dB (20-20kHz) / 105dB @ 125W
• Frequency Response: 10Hz – 100kHz +0/-0.1dB
• Crosstalk @ 1kHz: 100dB
• Intermodulation Distortion: 0.02%
• THD (20Hz - 20kHz @ 1 watt): 0.015%
• THD (20Hz - 20kHz @ 125 watts): 0.04%

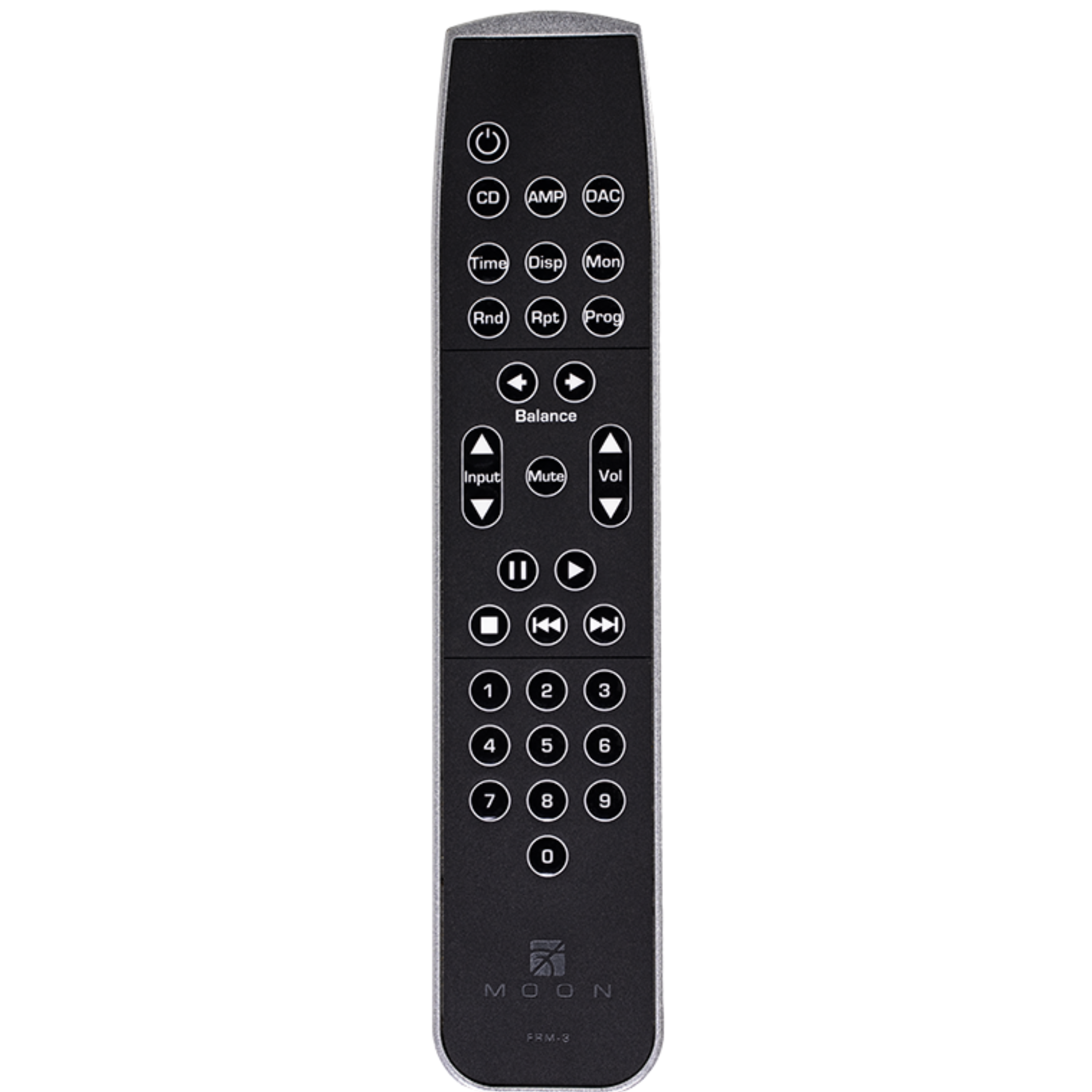

• Remote Control: All Aluminum Full-Function (FRM-3)
• Display Type: 8 character dot matrix LED
• Power Consumption @ Idle: 50 Watts
• AC Power Requirements: 120V / 60Hz or 240V / 50Hz
• Shipping Weight: 60 lb. / 27 Kg.
• Dimensions (W x H x D, inches / cm.): 18.75 x 5.5 x 18.1 / 47.6 x 14.0 x 46.0
• Balanced Input Pin Assignment:
  • Pin 1: Ground
  • Pin 2: Positive
  • Pin 3: Negative
• Fuse Replacement:
  • 120V version: 6A fast blow (3AG size)
  • 230V version: 3A fast blow (3AG size)

MOON 700i Integrated Amplifier Q&A:

What can be connected to the MOON 700i?

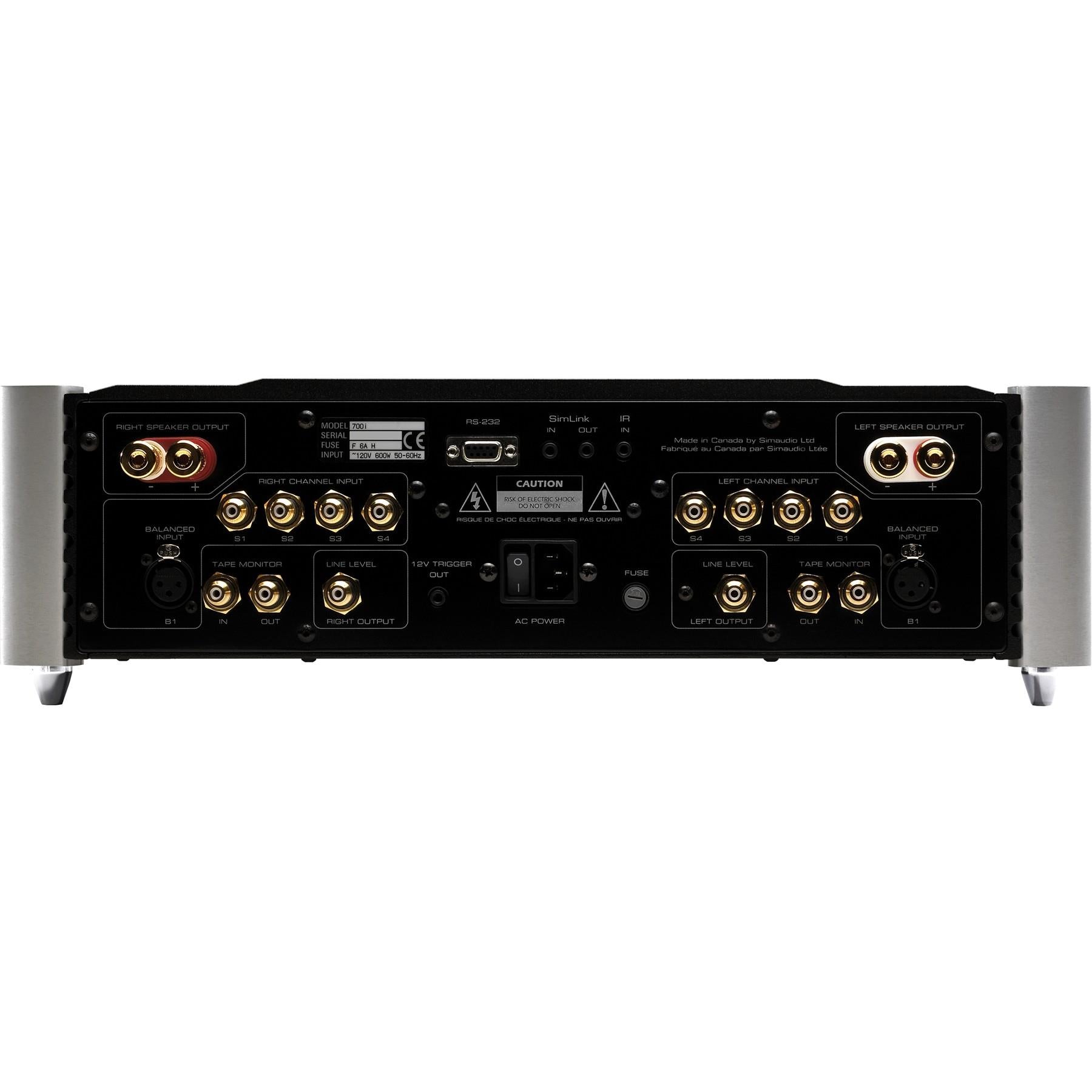

The 700i includes five audio inputs: one balanced XLR input labeled B1 and four single-ended RCA inputs labeled S1, S2, S3, and S4. It also provides a tape monitor loop, a line-level preamplifier output, RS-232, SimLink in/out, an IR input, and a 12V trigger output for broader system integration.

Can the 700i be used with a home theater processor or source with its own volume control?

Yes. Each input can be configured for volume bypass, which lets the connected component control the listening level instead of the 700i. This makes the amplifier suitable for home theater integration or for sources that already have their own volume control.

Can the 700i be used as a preamplifier only?

Yes. The rear panel includes a line-level preamplifier output so the 700i can be used with a separate power amplifier. The manual also shows 12V trigger operation with an external MOON power amplifier for coordinated on/off control.

Can inputs be customized for easier everyday use?

Yes. The setup menu lets you rename inputs, including creating a custom label up to 8 characters, set a maximum volume, apply a volume offset, enable bypass, disable unused inputs, assign the 12V trigger, disable the front-panel IR sensor, change IR code sets, and reset the unit to factory defaults.

How does Standby mode work on the 700i?

In Standby, the input section is disengaged and the digital display turns off, but the audio circuitry stays powered to help maintain performance. When the unit returns to active mode, it restores the previous input and volume settings from the last listening session.

What does SimLink do on the 700i?

SimLink enables communication between compatible MOON components. It can support automatic input switching in certain setups, synchronize display brightness between linked components, and place connected MOON components into Standby together when the 700i’s Standby button is held for 2 seconds.

MOON 700i Downloads:

MOON 700i User Manual
MOON 700i Comparison Chart
