MOON 780D v2 Network Player/DAC Certified Reserved
The MOON 780D v2 Network Player / DAC is a reference-level streaming DAC built for listeners who want uncompromising digital playback, refined network streaming, and premium system integration in one chassis. Its fully balanced dual-mono architecture uses two ESS ES9018S Sabre32 DACs and 32 total DAC circuits to deliver exceptional clarity, dynamics, and low-noise musical detail. With built-in MiND 2 streaming, Roon Ready support, MQA decoding from all digital inputs, native DSD up to DSD256, PCM up to 384kHz, and aptX Bluetooth, it is equipped to handle virtually every serious digital source. Add MOON Hybrid Power, advanced voltage regulation, fixed XLR and RCA outputs, and integration features like RS-232, SimLink, IR input, and a 12V trigger, and the 780D v2 becomes a high-end network player DAC engineered for both sonic precision and daily convenience.
The MOON Certified Reserve Standard
Every MOON Certified product meets a strict manufacturer standard:
- Fully tested, refurbished, and certified by MOON technicians
- Includes new packaging and complete accessory packs
- Technician sign-off certification included
- Backed by a 5-year manufacturer warranty
What It's Good At:
- Delivering reference-grade digital playback with outstanding detail, dynamic range, and very low distortion
- Streaming high-resolution music over Ethernet or Wi-Fi with built-in MiND 2 convenience
- Working seamlessly in Roon-based systems for elegant library control and playback
- Decoding MQA from all digital inputs for expanded compatibility with studio-quality content
- Handling native DSD256 and PCM up to 384kHz from compatible USB and network sources
- Integrating into premium two-channel systems with balanced outputs and advanced control connections
MOON 780D v2 Full Specifications:
- Product type: Network Player / DAC
- Model: MOON 780D v2
- Configuration: Fully balanced differential
- DAC architecture: True dual-mono design with one DAC chip per channel
- DAC chips: ESS ES9018S Sabre32 32-bit Hyperstream x 2
- Total DAC circuits: 32 total DAC circuits
- Streaming module: Built-in MiND 2 network streaming player
- Roon Ready: Yes
- MQA support: Yes, decoding from all digital inputs
- DSD over network: Yes, DSD streaming over Ethernet via MiND
- Supported DSD rates: DSD64, DSD128, DSD256
- Supported PCM bit depth: 16-bit to 32-bit
- Supported PCM sample rates: 44.1kHz to 384kHz
- High-resolution support note: Native DSD up to DSD256 and PCM up to 384kHz via USB and network inputs
- Frequency response: 2Hz - 100kHz, +0/-3dB
- THD at 1kHz, 0dBFS (A-weighted): 0.0001%
- Intermodulation distortion: 0.0001%
- Dynamic range: 124dB
- Signal-to-noise ratio: 124dB at full output
- Channel separation: 120dB
- Intrinsic jitter: 150 femtoseconds RMS
- Analog outputs: 1 pair XLR balanced, 1 pair RCA single-ended
- Analog output level at 0dBFS: 2.0V
- Analog output impedance: 100 ohms

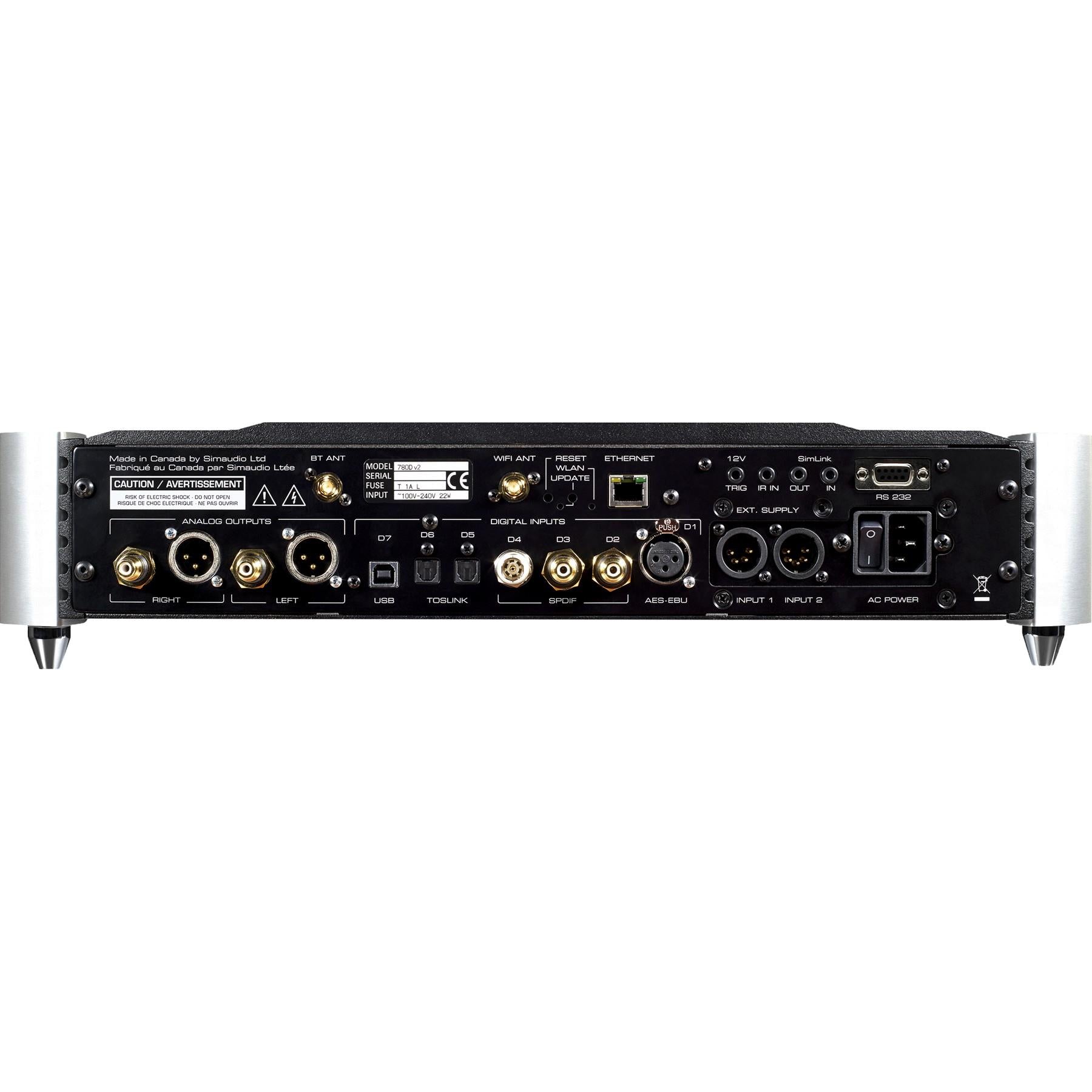

- Digital inputs: 9 total
- Digital input breakdown: 1 x AES/EBU, 3 x S/PDIF, 2 x TosLink optical, 1 x USB, MiND via 100Base-T RJ45 Ethernet and IEEE 802.11 b/g/n Wi-Fi, plus Bluetooth with Qualcomm aptX audio support
- Power supply: MOON Hybrid Power (MHP) high-performance universal power supply
- DC regulation: 12 stages of DC voltage regulation including 2 stages of M-LoVo and 4 stages of i2DCf
- Signal path: Very short capacitor-free signal path with DC servo circuit and proprietary 18dB/octave analog filter
- On-board software: Programmable software for end-user interface customization
- Control and integration: RS-232, 12V trigger output, IR input, SimLink in/out
- Chassis: Ultra-rigid construction to reduce external vibration effects
- Remote control: Full-function FRM-3
- Power consumption at idle: 22 watts
- AC power requirements: 100V - 240V / 50Hz - 60Hz
- Dimensions (W x H x D): 18.75 x 4.0 x 16.8 in / 47.6 x 10.2 x 42.7 cm
- Shipping weight: Simaudio materials list both 38 lb / 18 kg and 42 lb / 19 kg
- Balanced pin assignment: Pin 1 Ground, Pin 2 Positive, Pin 3 Negative
MOON 780D v2 Q&A:
- Is the MOON 780D v2 Roon Ready?
- Yes. The 780D v2 includes built-in MiND 2 streaming and is Roon Ready once the network connection is configured through Ethernet or Wi-Fi.
- What audio formats does the 780D v2 support?
- It supports PCM from 44.1kHz to 384kHz at 16-bit to 32-bit resolution, plus native DSD64, DSD128, and DSD256. The highest PCM and DSD support applies through USB and network playback.
- Does the 780D v2 decode MQA?
- Yes. It supports MQA decoding from all digital inputs, making it highly versatile for modern digital music sources.
- How many digital inputs are included?
- The unit offers nine digital inputs: AES/EBU, three S/PDIF, two TosLink optical, USB, MiND via Ethernet/Wi-Fi, and Bluetooth with Qualcomm aptX audio support.
- Does it support both Ethernet and Wi-Fi streaming?
- Yes. The built-in MiND 2 platform supports both wired Ethernet and IEEE 802.11 b/g/n Wi-Fi streaming, and it also supports DSD streaming over Ethernet.
- What analog outputs does it provide?
- The 780D v2 offers fixed-level balanced XLR and single-ended RCA analog outputs, giving it excellent compatibility with premium preamps and integrated amplifiers.
- Is the 780D v2 suitable for custom installation and system control?
- Yes. It includes RS-232, SimLink connections, an IR input, and a 12V trigger output for flexible integration into advanced audio and automation systems.
- What comes in the box?
- Included accessories are an AC power cable, FRM-3 remote control with three AAA batteries, a SimLink cable, two Wi-Fi antennas, the owner’s manual, and warranty/product registration information for USA and Canada only.
