MOON Voice 22 Loudspeakers

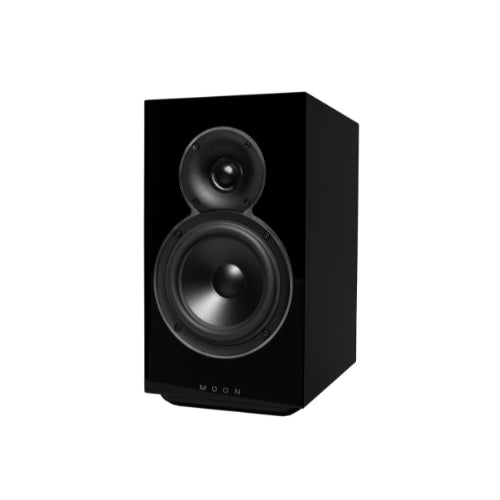

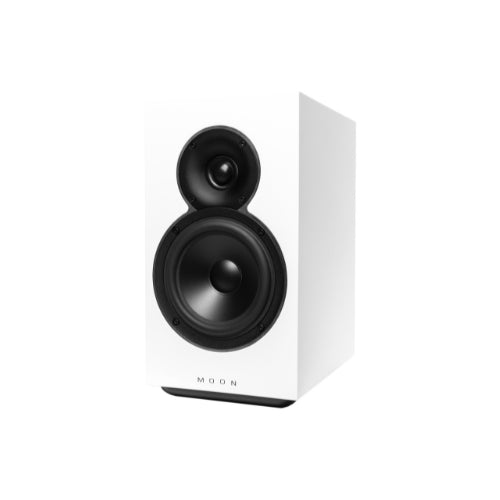

The MOON Voice 22 is a compact, high-performance 2-way loudspeaker created to bring the signature MOON sound into a complete MOON system—from source to speakers. Built for transparency and realism, it delivers a stable, expansive soundstage with clean imaging, natural tonal balance, and controlled bass that stays consistent at both low and high listening levels. Inside the rigid enclosure, MOON’s CGD (Curved Groove Damping) technology helps manage cabinet resonance for clearer midrange detail and more believable instrument scale. A 29mm soft-dome tweeter with an integrated waveguide and a 155mm mineral-filled polypropylene mid/bass driver are carefully matched with a phase-conscious crossover for smooth, non-fatiguing clarity and confident dynamics. Finished in understated black or white with a removable magnetic grille, the Voice 22 also includes MOON’s distinctive Hover Base for added stability and vibration control, and it’s engineered to pair beautifully with MOON amplifiers like the ACE and the 200/300 series.
What It's Good At:
- Delivering transparent, natural hi-fi sound with excellent tonal balance and low listening fatigue
- Creating a stable, spacious soundstage with precise imaging and consistent clarity at any volume
- Producing tight, controlled bass and detailed midrange from a compact stand-mount form factor
- Reducing cabinet resonance for cleaner, more accurate playback using CGD (Curved Groove Damping)
- Blending seamlessly with MOON electronics for a cohesive “all-MOON” system voice and synergy
- Offering flexible placement with the included Hover Base and foam port dampeners for room tuning
MOON Voice 22 Full Specifications:
-
Type: 2-way loudspeakers
-
Tweeter: 29mm soft dome with waveguide
-
Tweeter design detail: 29mm dome textile membrane with a large surround, designed to work without a typical front plate; integrated into a custom waveguide for wider frequency range and lower crossover frequency
-
Woofer: 155mm mineral-filled polypropylene cone
-
Woofer design detail: 155mm woofer with cast-aluminum basket and mineral-filled polypropylene membrane for detailed midrange and strong, extended bass
-
Crossover frequency: 1.5kHz
-
Crossover design detail: Dual-layer PCB with carefully selected, high-quality metallized polypropylene film capacitors for optimal sound quality and long-term reliability
-
Cabinet resonance control: CGD (Curved Groove Damping) technology to control panel resonances without adding mass
-
Base / isolation: Hover Base (preinstalled) for floating appearance, minimized contact vibrations, added stability, and surface-friendly placement (no marks)
-

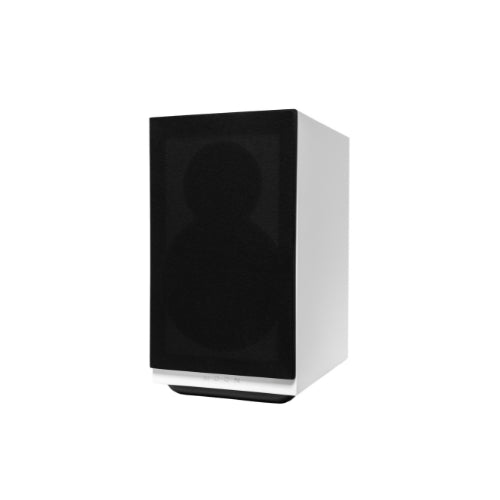

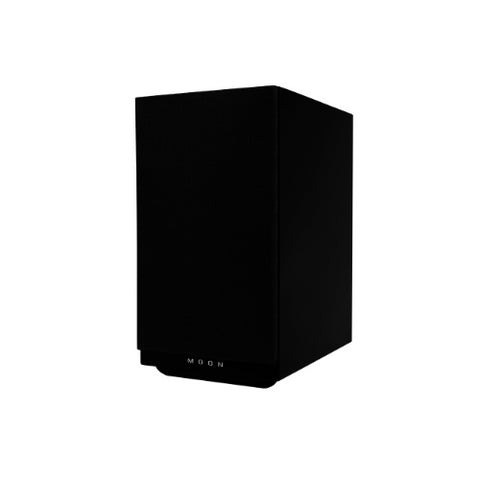

Grille: Removable magnetic grille
-
Sensitivity: 89dB / 2.83V / 1m
-
Nominal impedance: 6Ω
-
Recommended amplifier power: 50W – 150W
-
Frequency response (±3dB): 55Hz – 24kHz
-
Frequency range (-6dB): 45Hz – 30kHz
-
Dimensions (W x H x D): 20cm x 35cm x 29cm
-
Weight: 10.5kg
-
Finishes: Black or white (availability may vary by location)
-

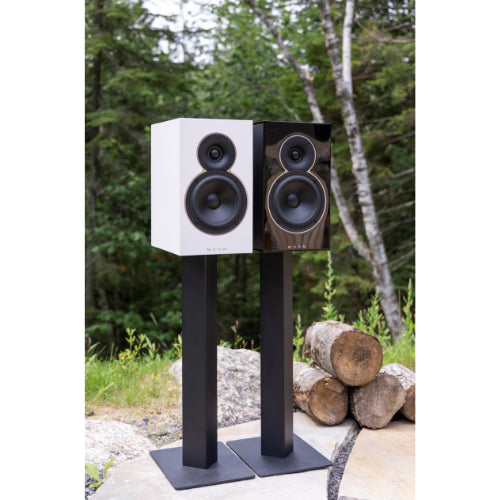

Optional accessory: Optional custom-designed stands available for optimal performance
-
In the box: 2 Hover Bases (preinstalled), 2 grilles, 2 foam dampeners, Owner’s manual, Warranty
MOON Voice 22 Q&A:
- What type of speaker is the MOON Voice 22?
- The Voice 22 is a 2-way loudspeaker designed to deliver a balanced, high-fidelity presentation with clear detail and controlled dynamics.
- What drivers are used in the Voice 22?
- It uses a 29mm soft-dome tweeter with a waveguide and a 155mm mineral-filled polypropylene cone woofer for smooth highs, articulate mids, and strong bass.
- What amplifier power is recommended for the Voice 22?
- MOON recommends pairing the Voice 22 with an amplifier rated between 50W and 150W for optimal performance and control.
- How easy are the Voice 22 speakers to place in a room?
- They’re designed to perform well without elaborate tuning—place them at ear height, keep left/right distances equal, and toe them in slightly for focused imaging.
- What is the Hover Base, and why does it matter?
- The included Hover Base improves stability, helps minimize contact vibrations, and allows placement on many surfaces without leaving marks—supporting cleaner playback and easier setup.
- What do the included foam dampeners do?

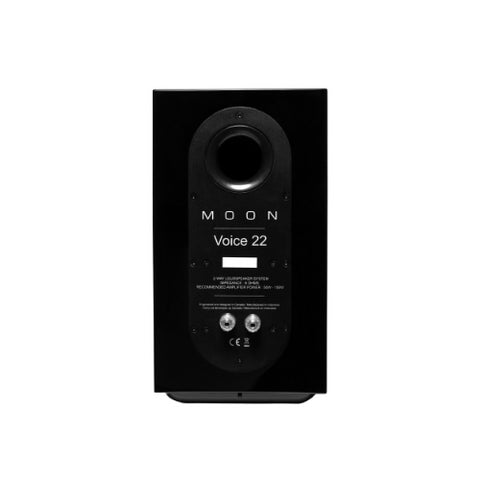

- If a speaker must be positioned close to the wall behind it, inserting the foam dampener into the rear port can help reduce overly “bloated” or sluggish low frequencies.
- What comes included with the MOON Voice 22 speakers?
- You get two speakers with two preinstalled Hover Bases, two grilles, two foam dampeners, an owner’s manual, and warranty documentation.
- How should the Voice 22 cabinets be cleaned and cared for?
- Regular maintenance isn’t necessary—when cleaning is unavoidable, use a dry microfiber cloth or feather duster and avoid cleaning products or contact with the driver components.
