Product Description

Line Circle

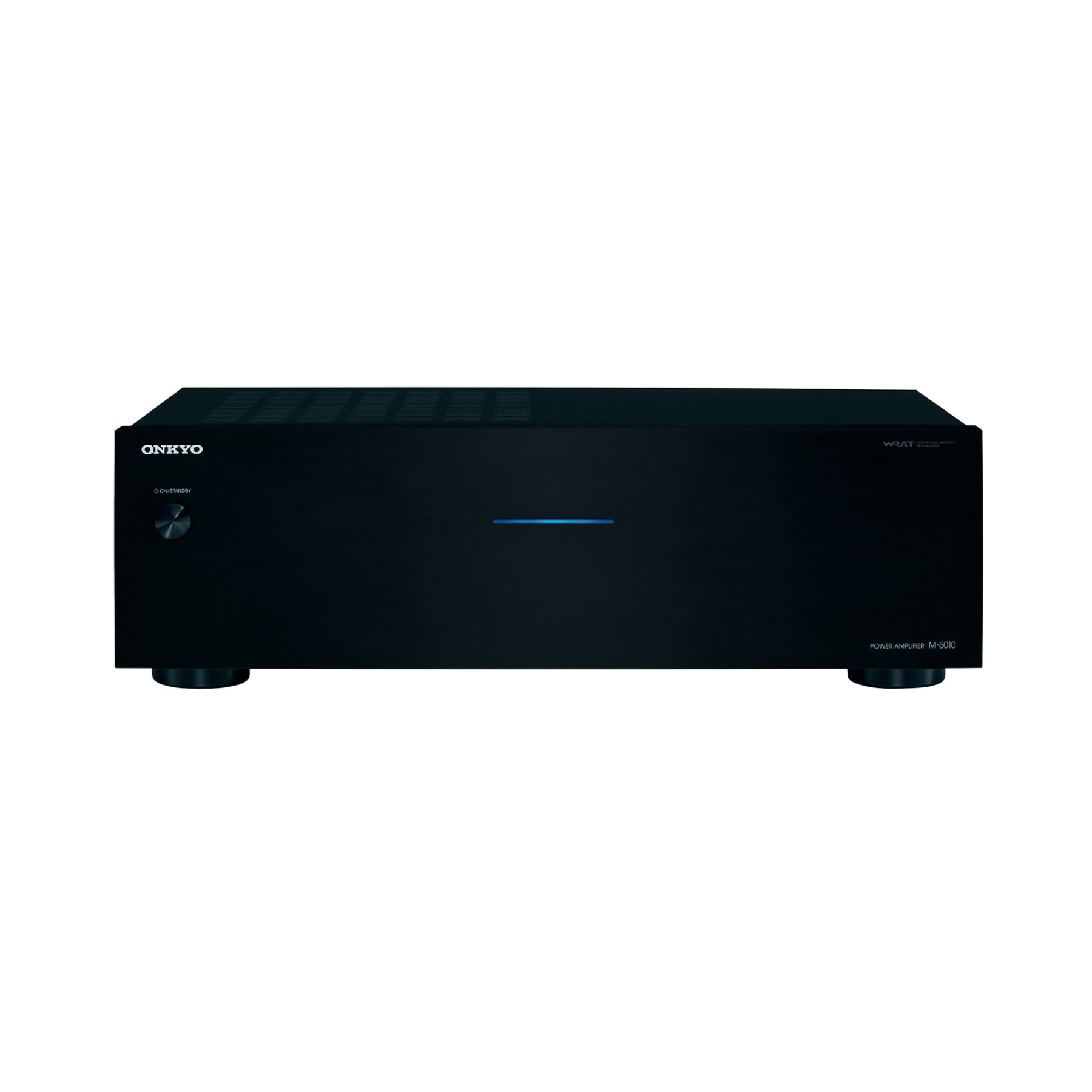

M-5010: 2-Channel Power Amplifier

  • Low negative feedback circuits for reduced noise, expanded frequency response, and maximum efficiency
  • Highly durable amp construction built around a thick anti-resonant metal chassis for extra vibration resistance
  • All-analog circuitry for an ultra-clear sound
  • High-output power supply for signal purity

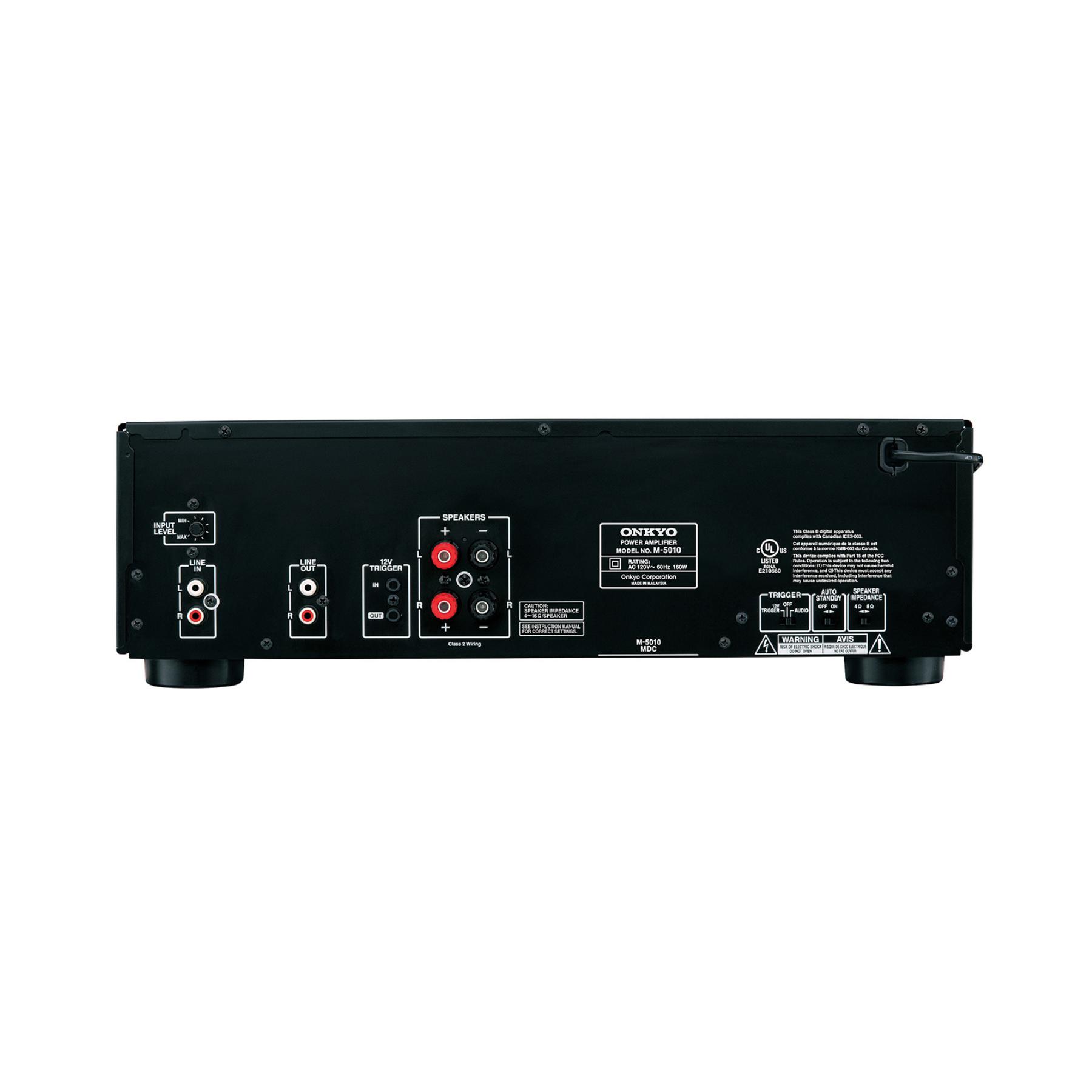

  • Configure your setup with selectable audio, 12-volt triggers, and rear side level adjustments
  • Banana plug-compatible speaker posts included for easy integration

Explore the Full Potential of Your Onkyo Home Entertainment System
Add the M-5010 2-channel amplifier to expand your home theater’s multi-room capabilities or to enable the 11-channel surround sound feature offered on selected Onkyo A/V receivers. Boasting Onkyo's acclaimed Wide Range Amplifier Technology (WRAT) with three-stage inverted Darlington Circuitry, this two-channel power amp is perfect for handling the fast-changing dynamics of movie soundtracks while retaining enough sensitivity to deliver all the nuances of your favorite music.

Spec Sheet

Product Manual

Features & Specs Line Circle

POWER OUTPUT
75 W/Ch (8 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC)
65 W/Ch (4 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC)
FREQUENCY RESPONSE
10 Hz–100 kHz/+0 dB, -3 dB
TOTAL HARMONIC DISTORTION
0.08% (Rated Power)
SIGNAL-TO-NOISE RATIO
110 dB (Line, IHF-A)
SPEAKER IMPEDANCE
4 Ohms–16 Ohms
DIMENSION (WxHxD) and WEIGHT
17-1/8" x 5-1/2" x 12-1/4" (435 x 139 x 311 mm)
17.6 lbs. (8.0 kg)
POWER OUTPUT
75 W/Ch (8 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC)
65 W/Ch (4 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC)
FREQUENCY RESPONSE
10 Hz–100 kHz/+0 dB, -3 dB
TOTAL HARMONIC DISTORTION
0.08% (Rated Power)
SIGNAL-TO-NOISE RATIO
110 dB (Line, IHF-A)
SPEAKER IMPEDANCE
4 Ohms–16 Ohms
DIMENSION (WxHxD) and WEIGHT
17-1/8" x 5-1/2" x 12-1/4" (435 x 139 x 311 mm)
17.6 lbs. (8.0 kg)
