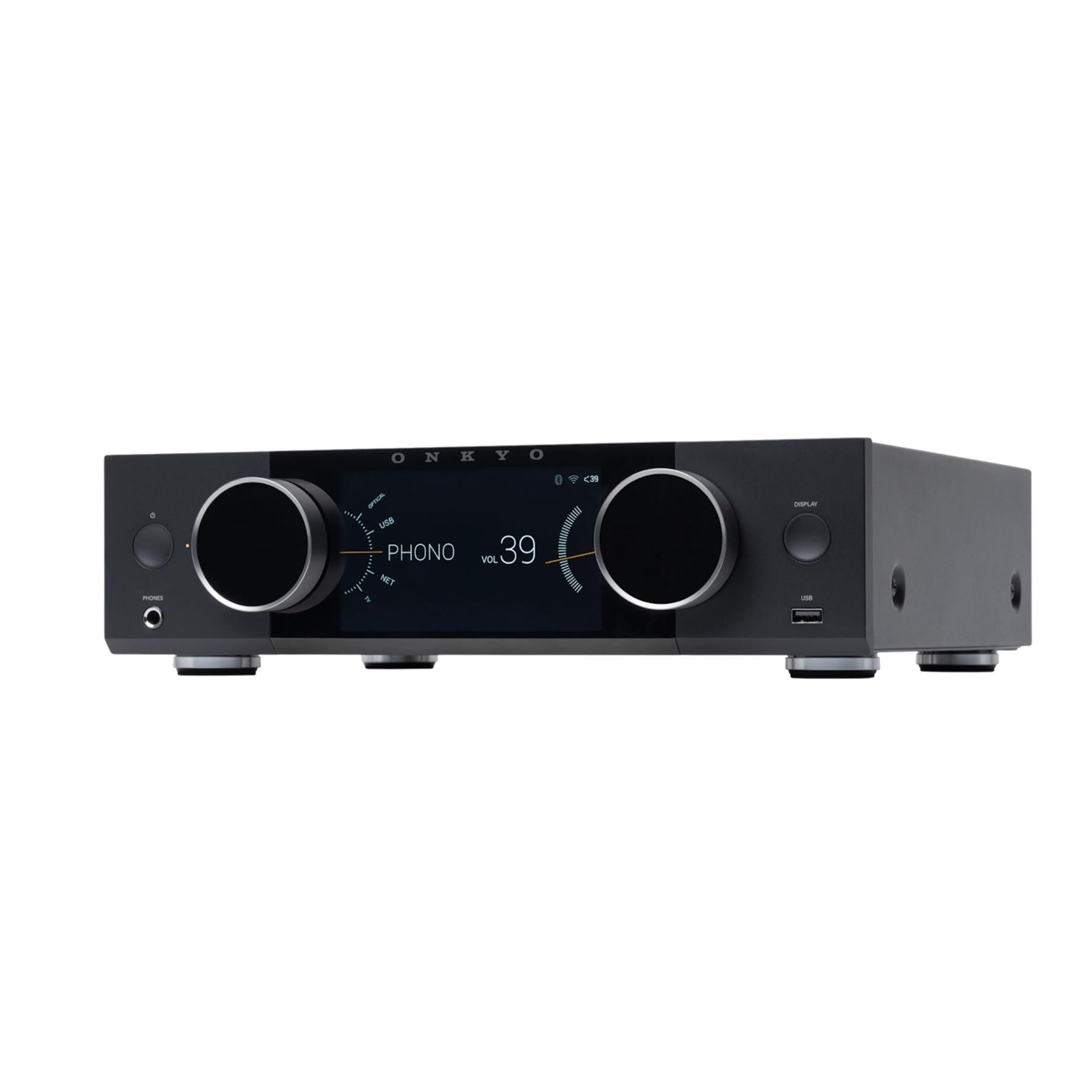

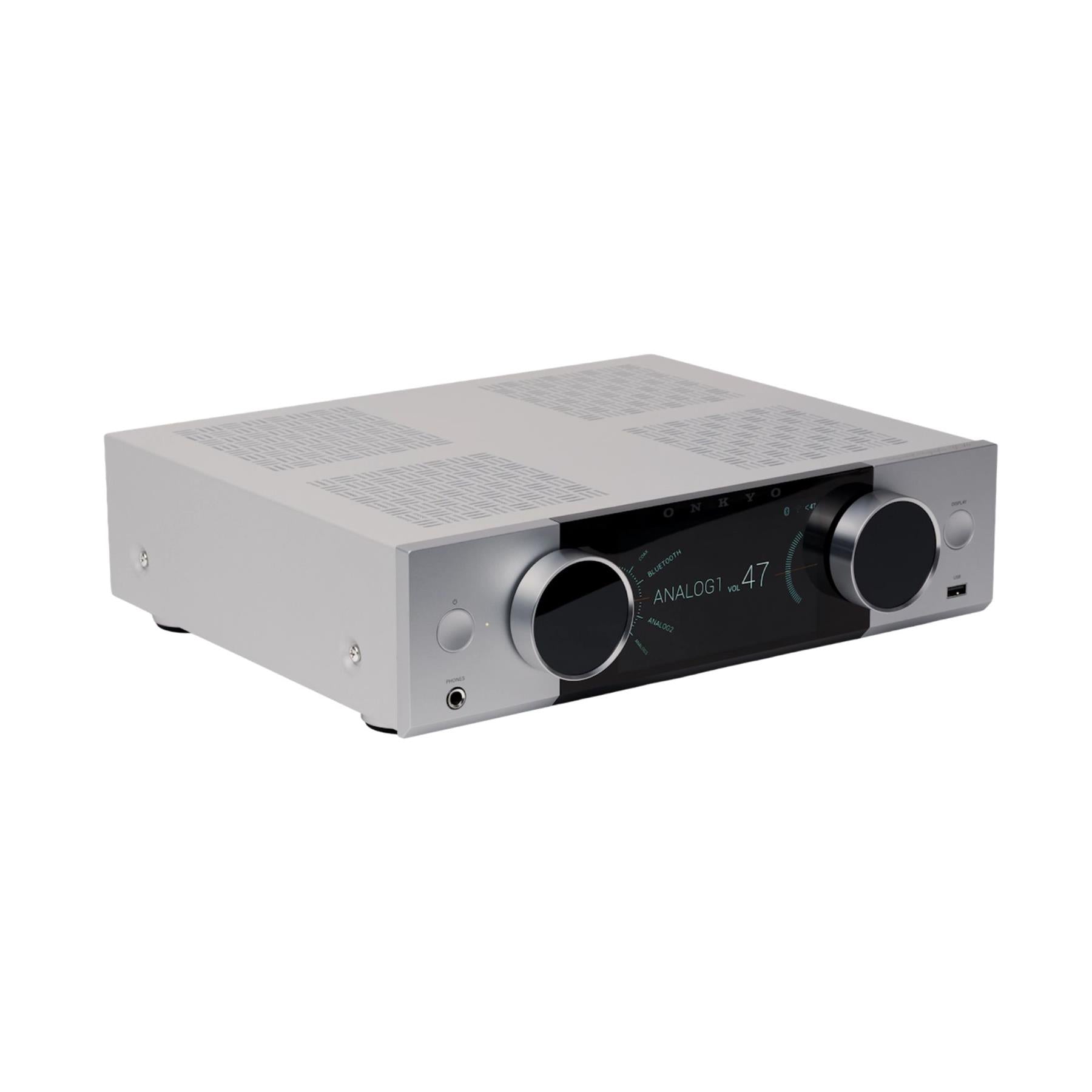

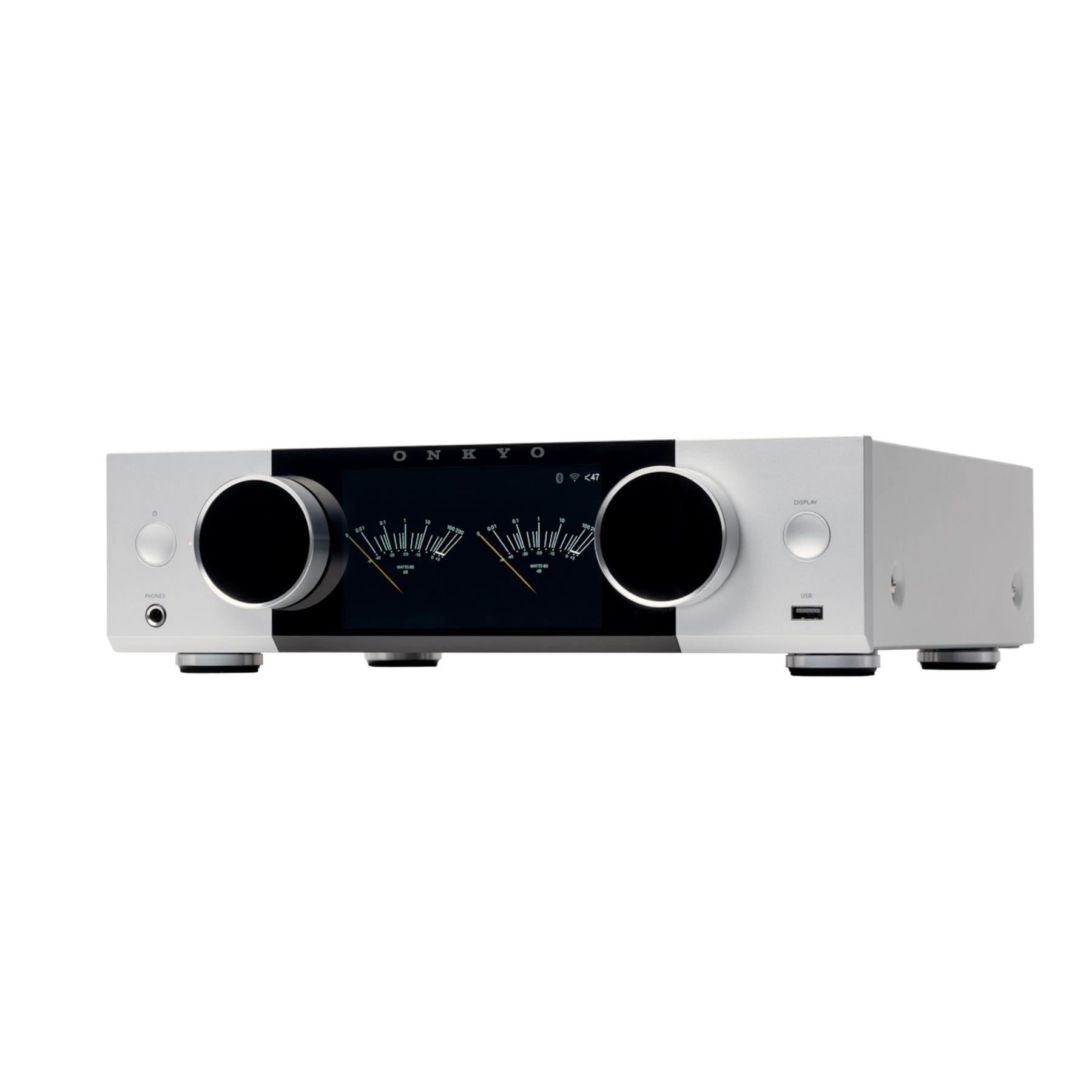

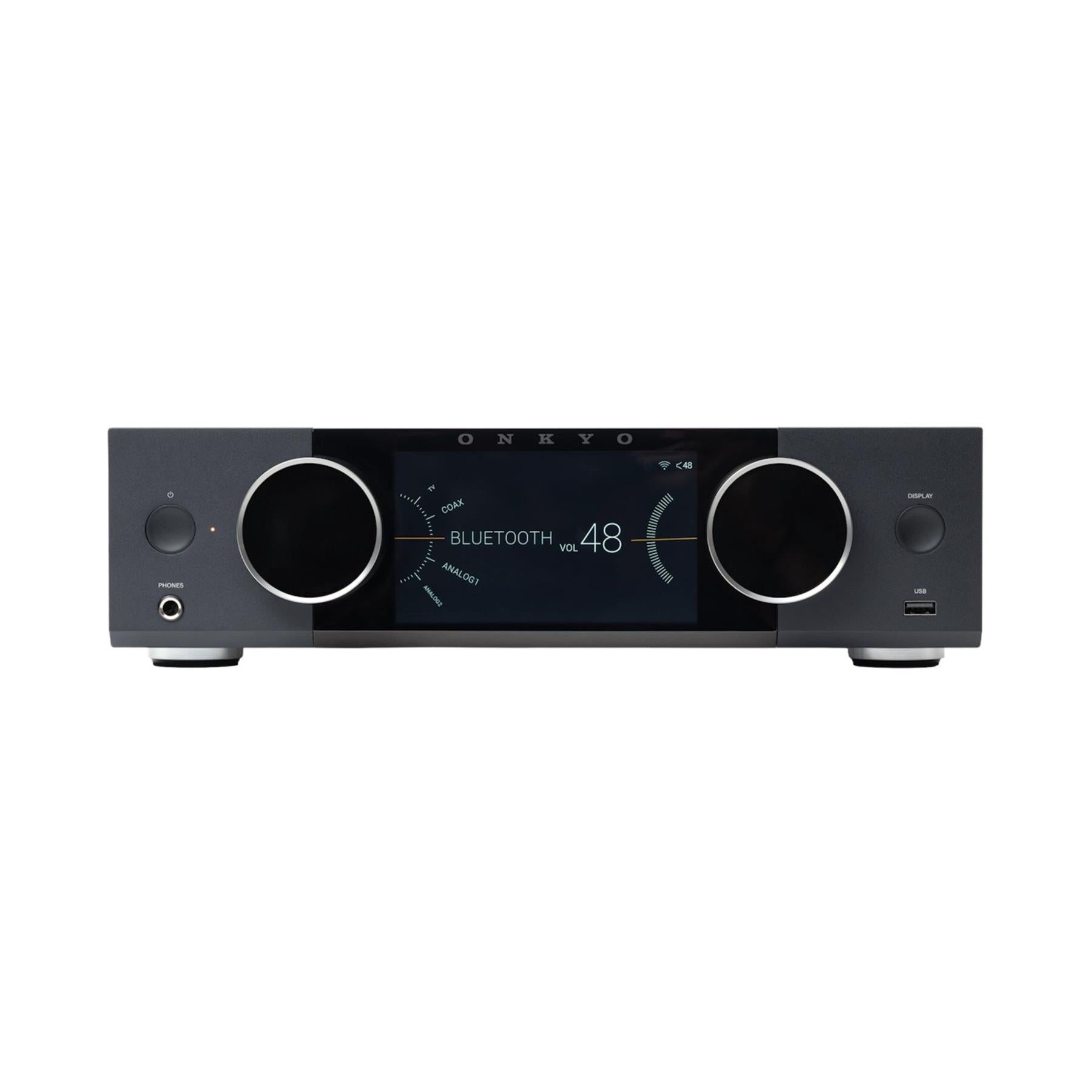

Onkyo Muse Y-40 Network Streamer & Integrated High-Power Amplifier
The Onkyo Muse Y-40 Network Streamer & Integrated High-Power Amplifier is a compact all-in-one hi-fi solution built for listeners who want premium stereo sound, modern streaming convenience, and elegant design in one centerpiece. Drawing on Onkyo’s long heritage in Japanese audio craftsmanship, the Y-40 combines a full digital circuit, an Axign Class D amplifier with MOSFET output stage, and up to 150 watts at 4 ohms to deliver detailed, controlled, room-filling sound for a wide range of speakers. Its 5.46-inch color LCD display, intuitive controls, and Onkyo Controller app support make it easy to manage music, settings, and playback, while built-in Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Chromecast expand your listening options. With HDMI ARC, phono MM input, analog and digital connections, Wi-Fi, Ethernet, Bluetooth, USB playback, and a clean fanless design, the Muse Y-40 is engineered to be the modern hub for music, TV, and vinyl enjoyment.
What It’s Good At:
- Delivering powerful 2-channel hi-fi sound with up to 150W at 4 ohms for confident speaker control
- Streaming music easily through Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Chromecast
- Serving as a stylish all-in-one stereo hub with a 5.46-inch color LCD and app-based control
- Connecting to turntables, TVs, streamers, and legacy audio gear through phono, HDMI ARC, analog, and digital inputs
- Maintaining quieter performance with a fanless, temperature-managed design and premium speaker terminals
- Blending compact size, refined industrial styling, and modern functionality for living-room-friendly hi-fi systems
Onkyo Muse Y-40 Full Specifications:
- Model: Onkyo Muse Y-40
- Product type: Network streamer and integrated high-power amplifier
- Series: Muse Series
- Finishes: Silver, Black
- Custom app: Onkyo Control / Onkyo Controller app

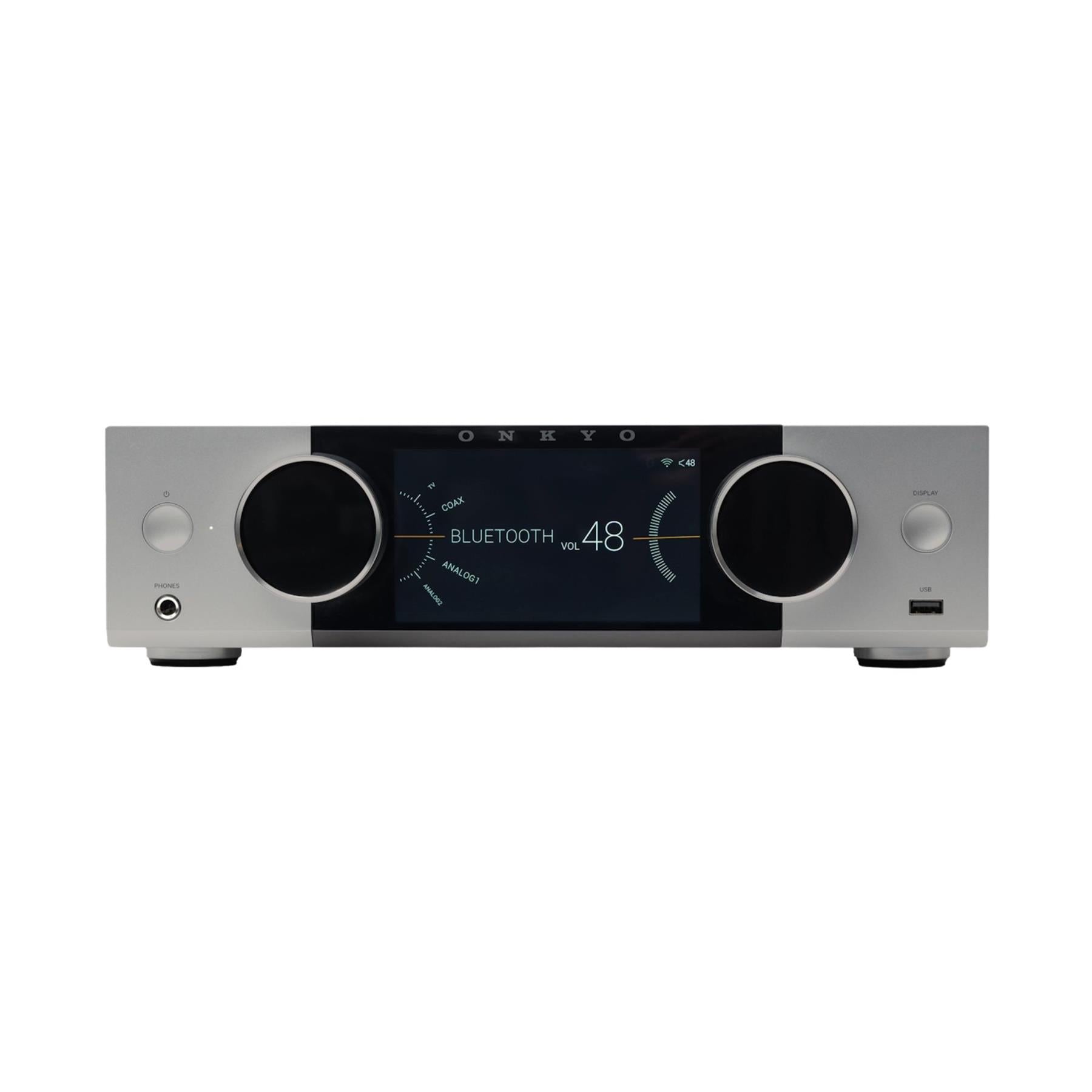

- Display: 5.46-inch color LCD
- Amplifier type: Class D
- Output power (U.S.): 75W FTC at 8Ω, 20Hz–20kHz, THD 0.08%, 2 channels driven; 150W at 4Ω, 1kHz, THD 0.7%, 2 channels driven
- Output power (EMEA/APAC): 150W at 4Ω, 1kHz, THD 0.7%, 2 channels driven; 75W at 8Ω, 20Hz–20kHz, THD 0.08%, 2 channels driven
- Amplifier channels: 2ch
- Pre-amplifier channels: 2.0ch / 2ch
- Frequency response: 20Hz–30kHz (+1/-3dB); 20Hz–30kHz/+1dB, -3dB (Direct)
- Tone control: Bass 100Hz ±10dB; Treble 10kHz ±10dB
- THD+N: 0.08% (20Hz–20kHz, half power)
- Speaker impedance: 4–16Ω
- Input sensitivity and impedance: 200mV/20kΩ (LINE RCA); 4mV, 47kΩ
- Rated RCA output level and impedance: 1V/470Ω (PRE OUT L/R)
- Phono maximum input signal voltage: 50mV (MM 1kHz 0.5%)
- Signal-to-noise ratio: 100dB (IHF-A, LINE 2V IN, SP OUT); 106dB (IHF-A, digital source with 0dB input, SP OUT); 76dB (IHF-A, PHONO MM 5mV IN, SP OUT)
- Headphone rated output: 80mW + 80mW (32Ω, 1kHz, 10% THD)
- Supported headphone impedance: 13–600Ω
- Headphone frequency response: 20Hz–40kHz
- Analog audio inputs: RCA (unbalanced) x 3 pairs
- Phono input: 1 pair (MM)
- Digital audio inputs: HDMI ARC x 1, COAX x 1, Optical x 1, USB-A x 1 for storage playback
- Audio pre output: RCA (unbalanced) x 1 pair
- Headphone output: 1/4-inch (6.3mm) jack x 1
- Other terminals: Speaker terminal, USB port, GND terminal
- Network connectivity: Wi-Fi, Ethernet terminal (10BASE-T/100BASE-TX)
- Wireless LAN standard: IEEE 802.11 a/b/g/n/ac, 5GHz/2.4GHz
- Bluetooth version: 5.1
- Bluetooth codecs: SBC, AAC
- Bluetooth profiles: A2DP 1.4, AVCTP 1.4, AVDTP 1.3, AVRCP 1.6.2
- Bluetooth frequency band: 2.4GHz (2.402–2.480GHz)
- Bluetooth modulation method: FHSS
- Maximum Bluetooth communication range: Approx. 15m line of sight
- Network services: Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Chromecast
- Supported PCM sampling rates via digital input: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz; 16-bit, 20-bit, 24-bit (stereo/mono)
- USB supported file systems: FAT16, FAT32
- USB storage supported audio formats: MP3, WMA, WAV, AIFF, AAC, FLAC, Apple Lossless
- Music server supported audio formats: MP3, WMA, WAV, AIFF, AAC, FLAC, LPCM, Apple Lossless
- Product dimensions (W x H x D): 350 x 99 x 337 mm / 13.8 x 3.9 x 13.3 in / 13-3/4 x 3-7/8 x 13-1/4 in
- Product weight: 4.4kg / 9.7 lbs
- Package dimensions (W x H x D): 465 x 225 x 405 mm / 18.3 x 8.9 x 15.9 in
- Package weight (U.S.): 6.6kg / 14.6 lbs
- Package weight (EMEA/APAC): CUM 7.0kg / 15.4 lbs; CUP 6.8kg / 15.0 lbs; CUR/CUJ 6.6kg / 14.6 lbs
- Standby power consumption: Less than 0.4W
- Network standby power consumption: 1.8W
- HDMI CEC standby: 0.4W
- Standby mode (all on): 1.8W
- Power consumption: 65W
- AC voltage / power supply: AC 100–240V 50Hz/60Hz; manual also lists AC 120–240V, 50/60Hz for Y-40
- In the box: Main unit, power cord, wireless antenna, initial setup guide, safety information, remote controller (RC-994S), AAA/R03 batteries x 2

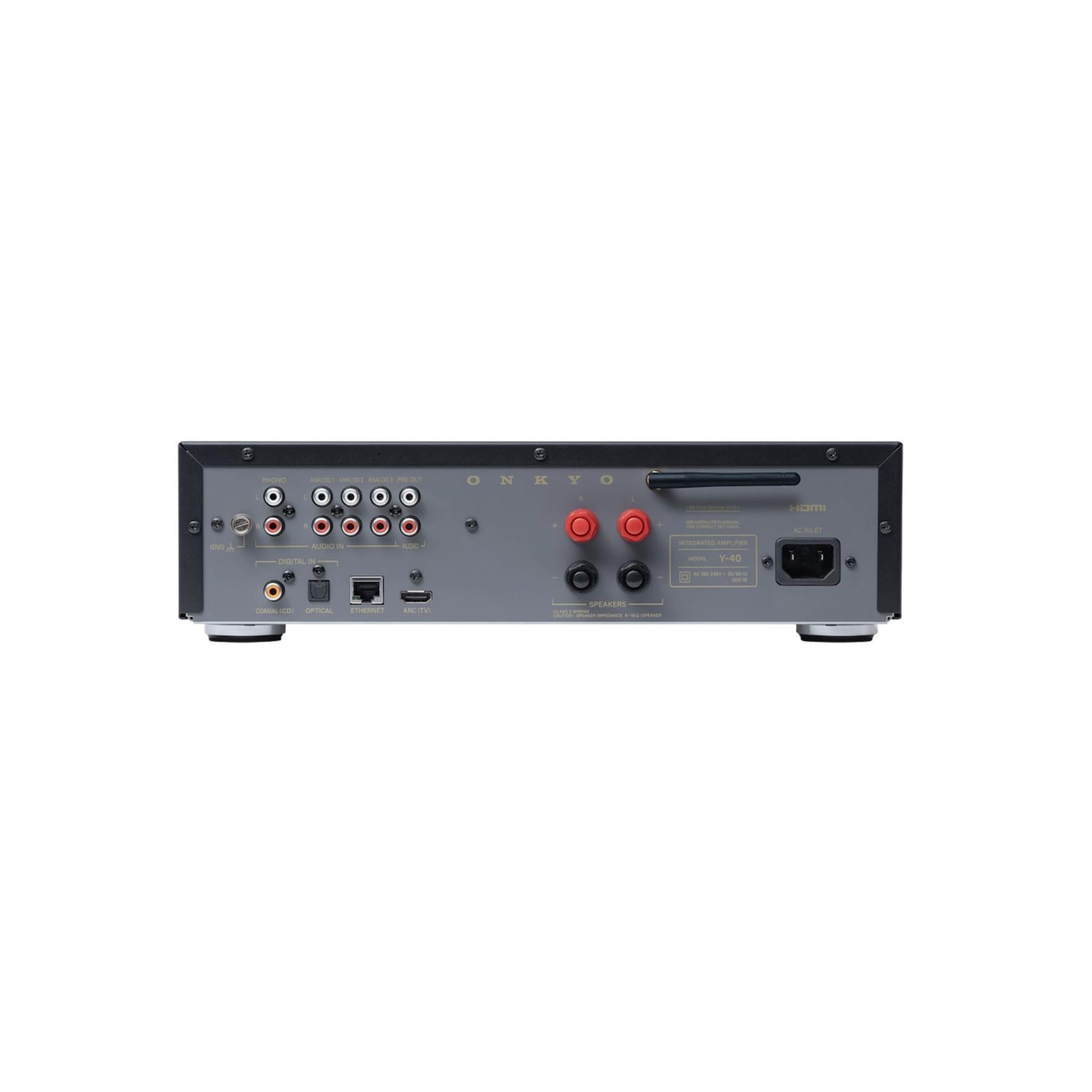

- Rear-panel connections: GND terminal, PHONO input, AUDIO IN jacks, PRE OUT jacks, antenna terminal, DIGITAL IN optical/coaxial, Ethernet port, HDMI ARC jack, speaker terminals, AC IN terminal
Onkyo Muse Y-40 Q&A:
- What kind of product is the Onkyo Muse Y-40?
- It is a compact network streamer and integrated stereo amplifier designed to power passive speakers while also handling modern music streaming, TV audio through HDMI ARC, and analog sources like a turntable.
- How much power does the Y-40 deliver?
- The Y-40 outputs up to 150 watts at 4 ohms and 75 watts at 8 ohms, giving it the headroom needed to drive a broad range of bookshelf and floorstanding speakers.
- Which streaming platforms are built in?
- Built-in streaming support includes Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Chromecast, giving users several flexible ways to play music wirelessly.
- Can I connect a turntable directly to the Y-40?
- Yes. The unit includes a phono input compatible with MM cartridges, along with a GND terminal for proper turntable grounding.
- Does it support TV audio?
- Yes. The Muse Y-40 includes an HDMI ARC input so it can function as a high-quality stereo upgrade for TV, movies, and gaming audio.
- What wired and wireless connections are available?
- It offers three pairs of analog RCA inputs, phono MM input, optical input, coaxial input, USB-A for storage playback, Ethernet, Wi-Fi, Bluetooth, a headphone jack, and RCA pre-out connections.
- Does the Y-40 have app control?
- Yes. The Onkyo Controller app allows users to control playback and configure settings from a mobile device for a more convenient day-to-day listening experience.
- Is the design suitable for quiet listening rooms and visible placement?
- Yes. The Y-40 uses a compact fanless design with temperature-managed circuitry for quieter operation, and it features a refined chassis with a 5.46-inch color LCD that looks at home in modern living spaces.
Onkyo Muse Y-40 Downloads:
Onkyo Muse Y-40 User Manual
Onkyo Muse Y-40 Specifications Sheet
