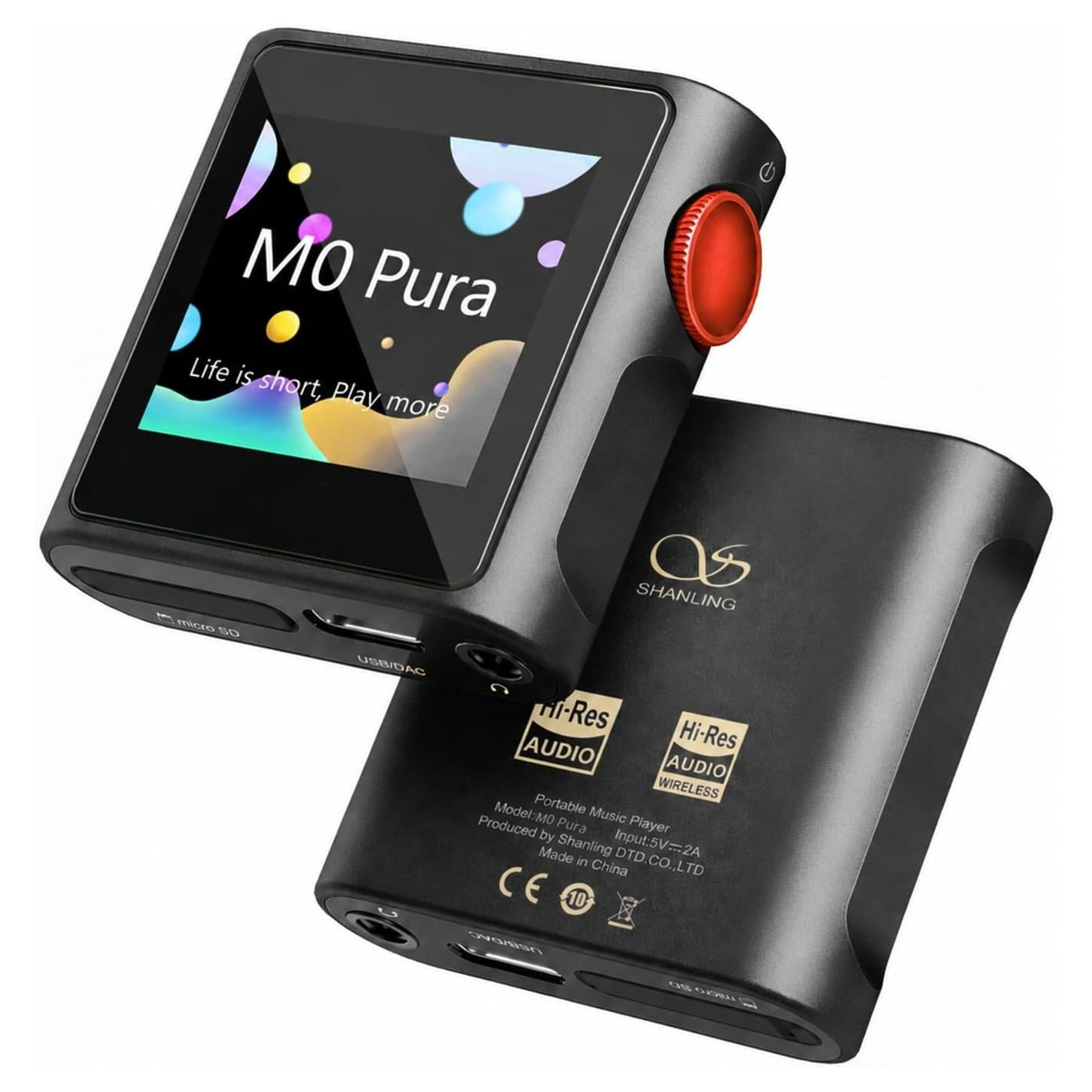

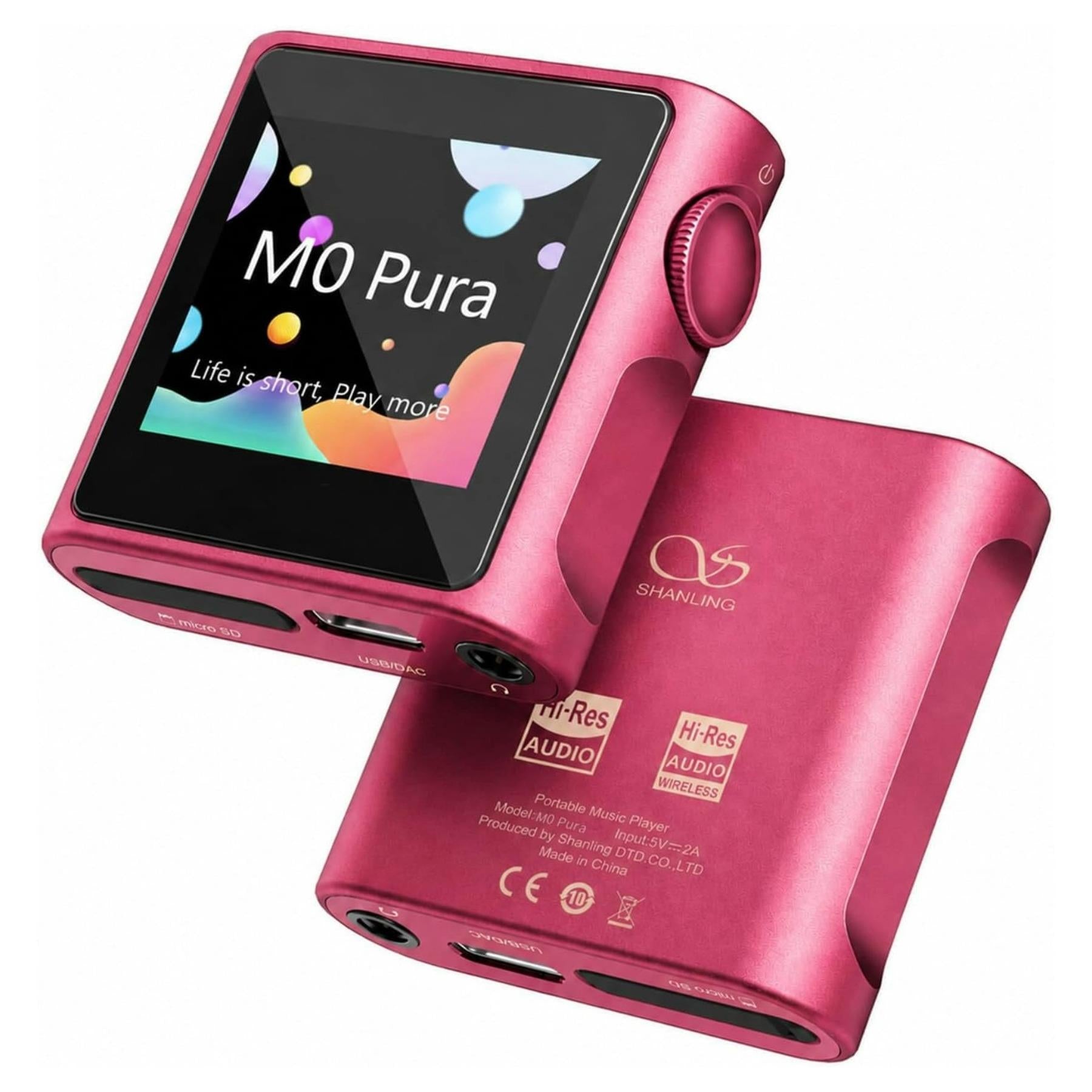

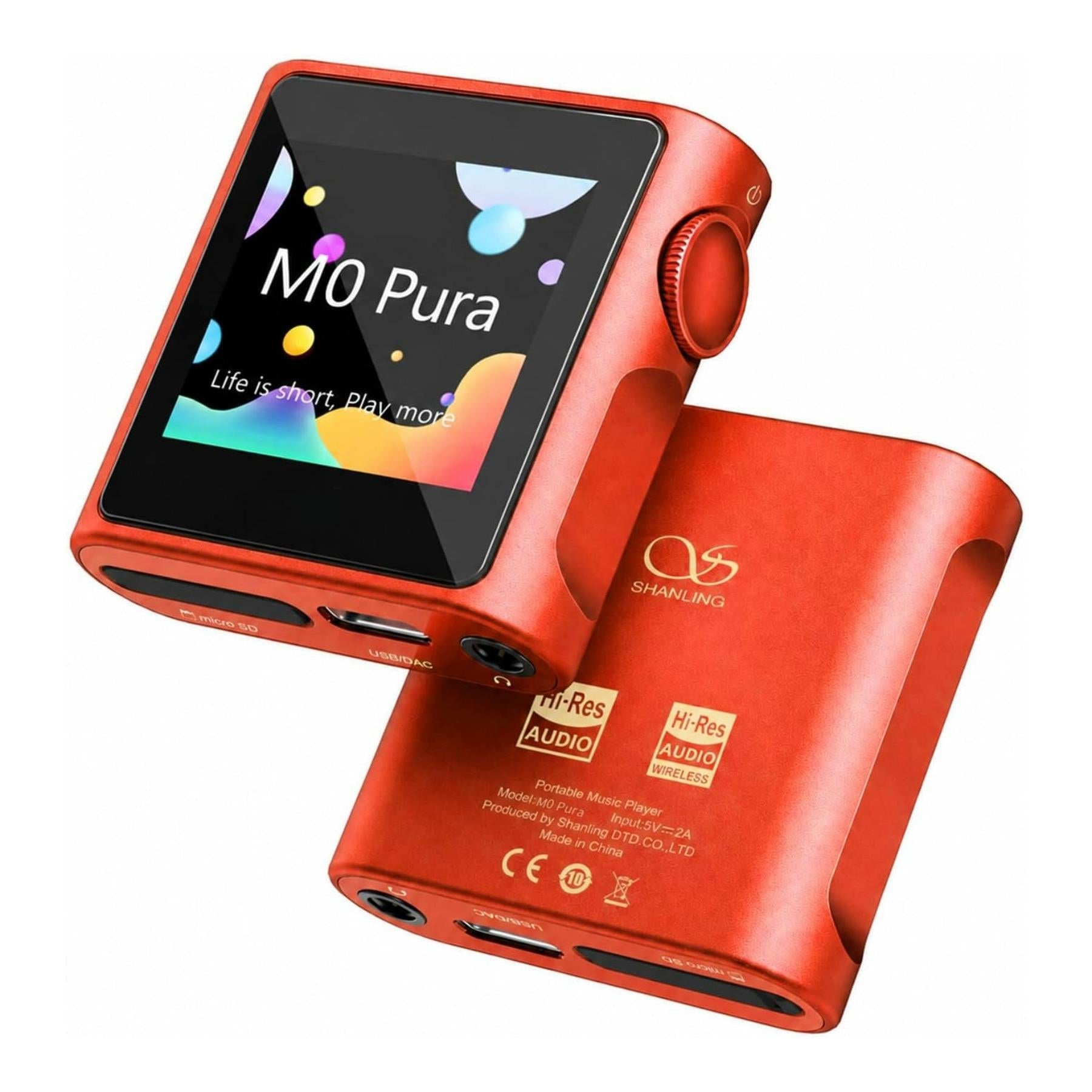

SHANLING M0 Pura HiFi Music Player

Enjoy high-resolution sound anywhere with the SHANLING M0 Pura HiFi Music Player, an ultra-compact portable digital audio player designed for serious listening on the go. Built with dual Cirrus Logic CS43131 DAC chips, Bluetooth 5.0, MTouch OS, and support for PCM up to 384kHz/32-bit and DSD128, this pocket-size player delivers clean, detailed audio for wired headphones, Bluetooth listening, USB DAC use, and everyday music playback. With a 1.54-inch HD touchscreen, 3.5mm single-ended/balanced output, USB Type-C connectivity, app control, and support for up to 2TB microSD storage, the M0 Pura is a versatile Hi-Res MP3 player, DAC, AMP, and portable music companion in one compact device.

Specifications

• Brand: SHANLING
• Model: M0 Pura
• Product Type: Portable HiFi music player, Hi-Res MP3 player, DAC/AMP, digital audio player
• DAC Chips: Dual Cirrus Logic CS43131 DAC chips
• Operating System: MTouch OS
• Display: 1.54-inch HD LCD touchscreen
• Screen Resolution: 240 x 240
• Dimensions: 43.8 x 45 x 13.8 mm
• Weight: Approximately 35.8 g
• Battery Capacity: 650 mAh
• Battery Life: Approximately 9.5 hours, depending on usage
• Storage: Supports external TF/microSD card up to 2TB
• Included Storage: microSD card not included
• Headphone Output: 3.5mm single-ended and balanced integrated headphone jack
• USB Port: Two-way USB Type-C
• USB DAC Support: Up to 192kHz/32-bit and DSD128
• Hi-Res Playback Support: Up to 384kHz/32-bit and DSD128
• Bluetooth Version: Bluetooth 5.0
• Bluetooth Transmission Codecs: LDAC, aptX, AAC, SBC
• Bluetooth Receiving Codecs: LDAC, AAC, SBC
• Supported Audio Formats: DSD, ISO, DSF, DFF, DXD, APE, FLAC, ALAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG, MP2, M4A, AC3, CUE, M3U
• Digital Filters: 4 selectable filter modes
• Gain Settings: High gain and low gain
• Single-Ended Output Power: 1.8V at 32 ohms, 100mW at 32 ohms
• Single-Ended Frequency Response: 20Hz–40kHz, -0.5dB
• Single-Ended THD+N: 0.0004% at 32 ohms, A-weighted at 1V
• Single-Ended Dynamic Range: 121dB at 32 ohms, A-weighted
• Single-Ended Channel Separation: 73dB at 32 ohms
• Single-Ended Signal-to-Noise Ratio: 121dB at 32 ohms, A-weighted
• Single-Ended Output Impedance: Less than 0.4 ohms
• Balanced Output Power: 2.8V at 32 ohms, 250mW at 32 ohms
• Balanced Frequency Response: 20Hz–40kHz, -0.5dB
• Balanced THD+N: 0.0007% at 32 ohms, A-weighted at 2V
• Balanced Dynamic Range: 128dB at 32 ohms, A-weighted
• Balanced Channel Separation: 99dB at 32 ohms
• Balanced Signal-to-Noise Ratio: 128dB at 32 ohms, A-weighted
• Balanced Output Impedance: Less than 0.8 ohms
• Control Options: Touchscreen control and app control
• Use Modes: Standalone music player, USB DAC, DAC/AMP, computer external sound card, Bluetooth transmitter, Bluetooth receiver

What It's Great At

• Delivering high-resolution portable audio from an ultra-compact player that fits easily in a pocket.
• Powering wired headphones and IEMs with clean single-ended or balanced 3.5mm output.
• Playing large Hi-Res music libraries with support for up to 2TB external microSD storage.
• Streaming wirelessly with Bluetooth 5.0 and high-quality codec support including LDAC, aptX, AAC, and SBC.
• Functioning as a flexible DAC/AMP for computers, mobile setups, and everyday listening systems.
• Providing simple navigation through a compact 1.54-inch HD touchscreen and MTouch OS interface.

Expanded Key Features List

• Dual CS43131 DAC Design: Uses two Cirrus Logic CS43131 DAC chips to deliver clean, detailed, and efficient Hi-Res audio playback in a compact portable player.
• Hi-Res 384kHz/32-Bit Playback: Supports PCM audio up to 384kHz/32-bit and DSD128 for listeners who want more detail from high-resolution music files.
• Powerful Balanced Output: Provides up to 250mW at 32 ohms through the balanced output, giving compatible headphones and IEMs stronger drive and improved dynamics.
• Two-Way Bluetooth 5.0: Works as both a Bluetooth transmitter and receiver with LDAC, aptX, AAC, and SBC support for flexible wireless listening.
• USB DAC and DAC/AMP Functionality: Connects through USB Type-C to serve as an external DAC, AMP, or computer sound card for upgraded audio performance.
• Expandable 2TB Music Storage: Supports external TF/microSD cards up to 2TB, making it ideal for carrying large offline music libraries without relying on phone storage.
• Compact Touchscreen Design: Features a 1.54-inch 240 x 240 HD touchscreen in a lightweight 35.8 g body for easy control while traveling, commuting, or exercising.
• Wide Audio Format Compatibility: Plays popular and advanced formats including FLAC, WAV, ALAC, APE, DSD, MP3, AAC, OGG, AIFF, DTS, CUE, and M3U playlists.
• Selectable Gain and Filter Modes: Includes high/low gain settings and four digital filter options so users can fine-tune output for different headphones and listening preferences.
• Long Portable Playback: The 650mAh battery provides approximately 9.5 hours of listening time, depending on playback mode, volume, file type, and connection method.

FAQ Section

Q: What is the SHANLING M0 Pura designed for?
A: The M0 Pura is designed for portable Hi-Res music playback, wired headphone listening, Bluetooth streaming, USB DAC use, and compact DAC/AMP performance.

Q: Does the SHANLING M0 Pura support high-resolution audio?
A: Yes, it supports PCM playback up to 384kHz/32-bit and DSD128, making it suitable for Hi-Res music files and detailed portable listening.

Q: Can the M0 Pura be used as a USB DAC?
A: Yes, the USB Type-C connection allows it to function as a USB DAC, DAC/AMP, or external computer sound card with support up to 192kHz/32-bit and DSD128.

Q: What Bluetooth codecs does the M0 Pura support?
A: It supports Bluetooth 5.0 with LDAC, aptX, AAC, and SBC transmission, plus LDAC, AAC, and SBC receiving for versatile wireless use.

Q: Does the M0 Pura have built-in storage?
A: No, the player requires an external TF or microSD card for music storage, and it supports cards up to 2TB.

Q: What headphone outputs are included?
A: The M0 Pura includes a 3.5mm headphone jack that supports both single-ended and balanced output modes.

Q: How powerful is the headphone output?
A: The single-ended output delivers up to 100mW at 32 ohms, while the balanced output delivers up to 250mW at 32 ohms.

Q: How long does the battery last?
A: Battery life is approximately 9.5 hours, though actual performance varies based on volume, file format, gain setting, Bluetooth use, and headphone load.
