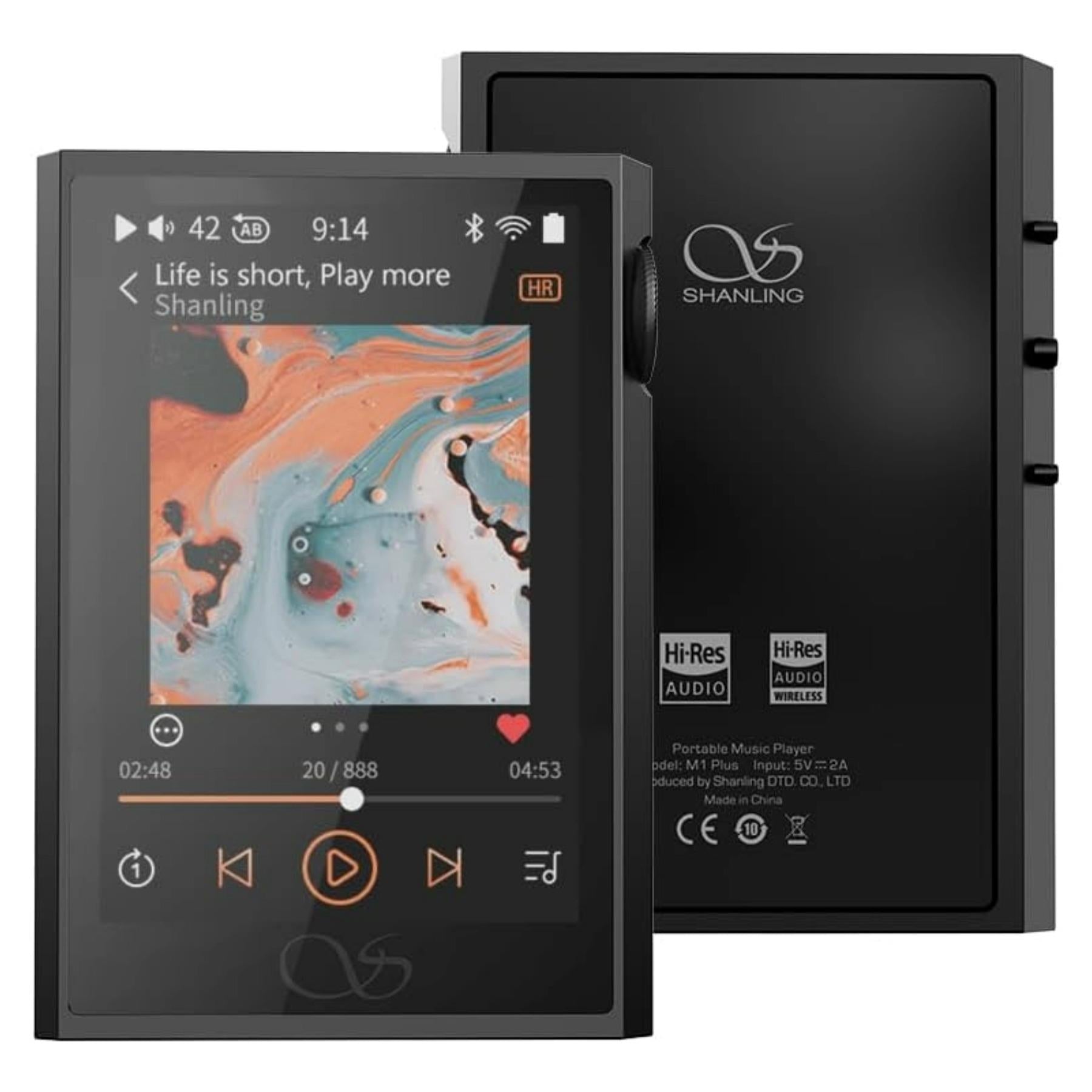

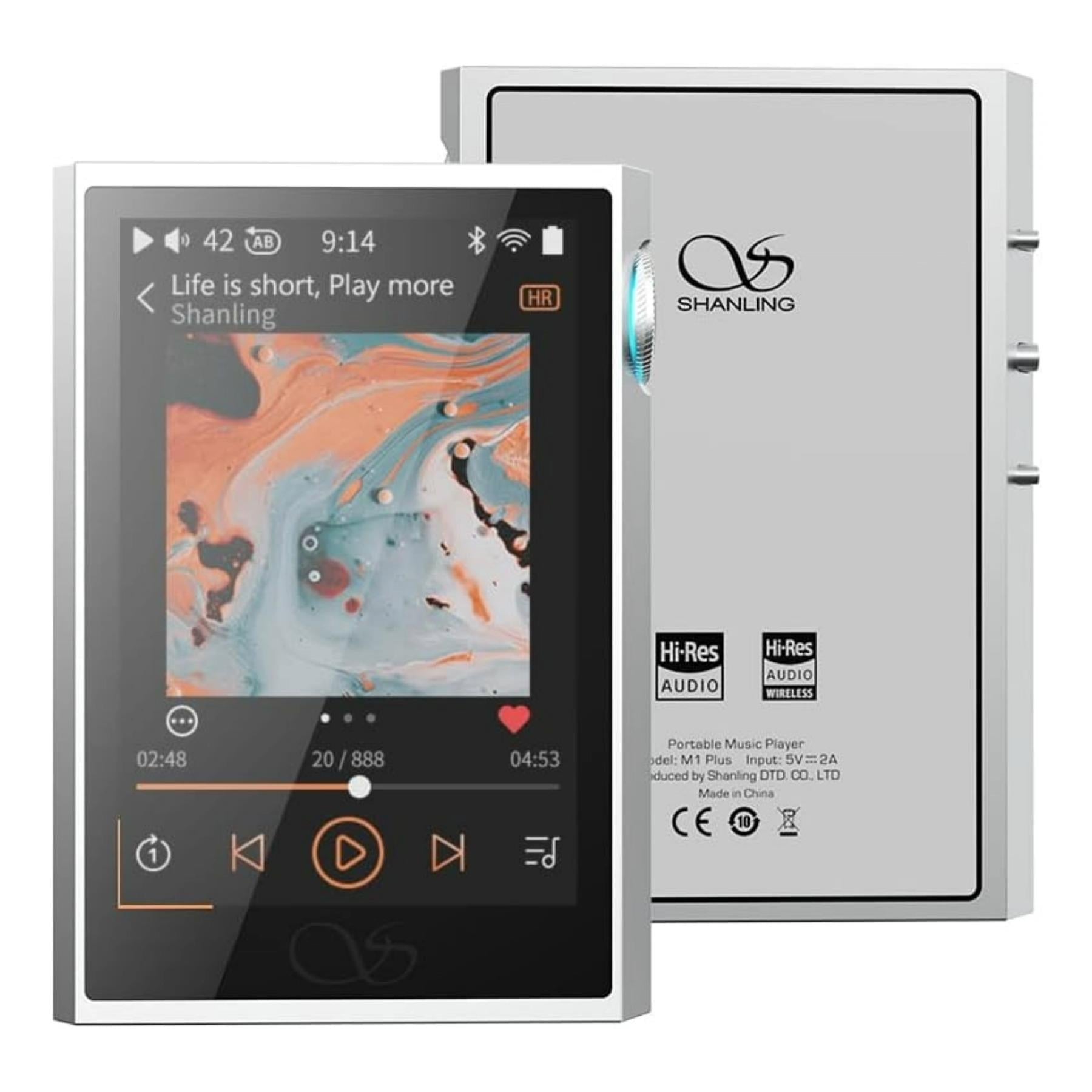

SHANLING M1 Plus Portable HiFi Music Player

Take high-resolution audio anywhere with the SHANLING M1 Plus, a compact portable HiFi music player built for listeners who want powerful sound, flexible connectivity, and smooth local playback in one pocket-friendly device. Designed around an ESS ES9069Q DAC, dual SGM8262 amplifiers, the Ingenic X2000 platform, and Shanling’s MTouch system, the M1 Plus supports PCM up to 768kHz/32-bit, DSD512, Bluetooth 5.2, Wi-Fi streaming, USB-C audio, MicroSD storage, and both 3.5mm single-ended and 4.4mm balanced headphone outputs. With up to 660mW at 32 ohms from the balanced output, a 3.2-inch touchscreen, DLNA/AirPlay support, and up to 12.5 hours of battery life, this high-definition lossless MP3 player is ideal for audiophiles, commuters, travelers, and anyone who wants dedicated music playback beyond a smartphone.

Specifications

• Brand: SHANLING
• Model: M1 Plus
• Product Type: Portable HiFi music player, high-definition lossless MP3 player, digital audio player, DAC/AMP
• Color: Black
• DAC: ESS ES9069Q
• Amplifier: Dual SGM8262 amplifiers
• Platform: Ingenic X2000 processor
• Operating System: Shanling MTouch system
• Display: 3.2-inch touchscreen
• Screen Resolution: 320 x 480
• Body Material: Aluminum and glass
• Dimensions: 86 x 61 x 17 mm
• Weight: 116 g
• Hi-Res Audio Support: PCM up to 768kHz/32-bit and DSD512
• USB DAC Support: Up to 384kHz/32-bit and DSD256
• Digital Output: 3.5mm coaxial SPDIF output, PCM up to 192kHz/24-bit
• Headphone Outputs: 3.5mm single-ended and 4.4mm balanced
• Single-Ended Output Power: 195mW at 32 ohms
• Single-Ended THD+N: 0.0007%
• Single-Ended Channel Separation: 74dB
• Single-Ended Signal-to-Noise Ratio: 122dB
• Single-Ended Output Impedance: 0.6 ohm
• Balanced Output Power: 660mW at 32 ohms
• Balanced THD+N: 0.0007%
• Balanced Channel Separation: 100dB
• Balanced Signal-to-Noise Ratio: 122dB
• Balanced Output Impedance: 1.2 ohm
• Bluetooth: Bluetooth 5.2 with bi-directional support
• Bluetooth Codec Support: LDAC, aptX HD, aptX, AAC, SBC
• Wi-Fi: 2.4GHz and 5GHz Wi-Fi
• Wi-Fi Features: DLNA, AirPlay, OTA updates
• Companion App: Eddict Player app through SyncLink
• Storage: MicroSD card slot
• Maximum Storage Support: Up to 2TB MicroSD card
• Supported Media Type: MicroSD
• Connectivity: Bluetooth 5.2, Wi-Fi, DLNA, AirPlay, USB-C, coaxial SPDIF
• USB Connection: Two-way USB connection
• Connectors: 3.5mm single-ended, 4.4mm balanced, USB-C
• Compatible Devices: Headphones, personal computers, smartphones, speakers
• Supported Audio Formats: MP3, AAC, FLAC, WAV, WMA, OGG, APE, ALAC, DFF, DSD, MP2, MP1, AIFF, LPCM, PCM, M4A, AMR
• Battery: 2100mAh lithium battery
• Battery Life: Up to 12.5 hours single-ended playback
• Balanced Battery Life: Up to 10 hours balanced playback
• Controls: Touchscreen controls, physical playback buttons, illuminated volume wheel

What It's Great At

• Delivering powerful portable HiFi audio with an ESS ES9069Q DAC and dual SGM8262 amplifier design.
• Playing high-resolution music files up to PCM 768kHz/32-bit and DSD512 for detailed lossless listening.
• Driving wired headphones and IEMs through both 3.5mm single-ended and 4.4mm balanced outputs.
• Streaming wirelessly with Bluetooth 5.2, LDAC, aptX HD, aptX, AAC, SBC, Wi-Fi, DLNA, and AirPlay support.
• Serving as a flexible USB DAC/AMP for computers, smartphones, and compact desktop audio setups.
• Carrying large offline music libraries with MicroSD card support up to 2TB.

Expanded Key Features List

• ESS ES9069Q DAC: Delivers clean, dynamic, and detailed digital-to-analog conversion for high-resolution portable audio playback.
• Dual SGM8262 Amplifiers: Provides strong headphone drive with up to 660mW at 32 ohms through the balanced output.
• 768kHz/32-Bit and DSD512 Support: Plays demanding Hi-Res music files with excellent resolution and wide format compatibility.
• 3.5mm and 4.4mm Outputs: Offers both standard single-ended and balanced headphone connections for easy pairing with a wide range of earphones and headphones.
• Bi-Directional Bluetooth 5.2: Supports wireless transmitting and receiving with LDAC, aptX HD, aptX, AAC, and SBC codec compatibility.
• Wi-Fi with DLNA and AirPlay: Enables network-based music playback, wireless streaming, and OTA updates through 2.4GHz and 5GHz Wi-Fi.
• USB DAC/AMP Functionality: Connects through USB-C to work as a high-resolution external DAC and amplifier for computers and compatible devices.
• Expandable MicroSD Storage: Supports MicroSD cards up to 2TB, making it easy to carry a large offline music library.

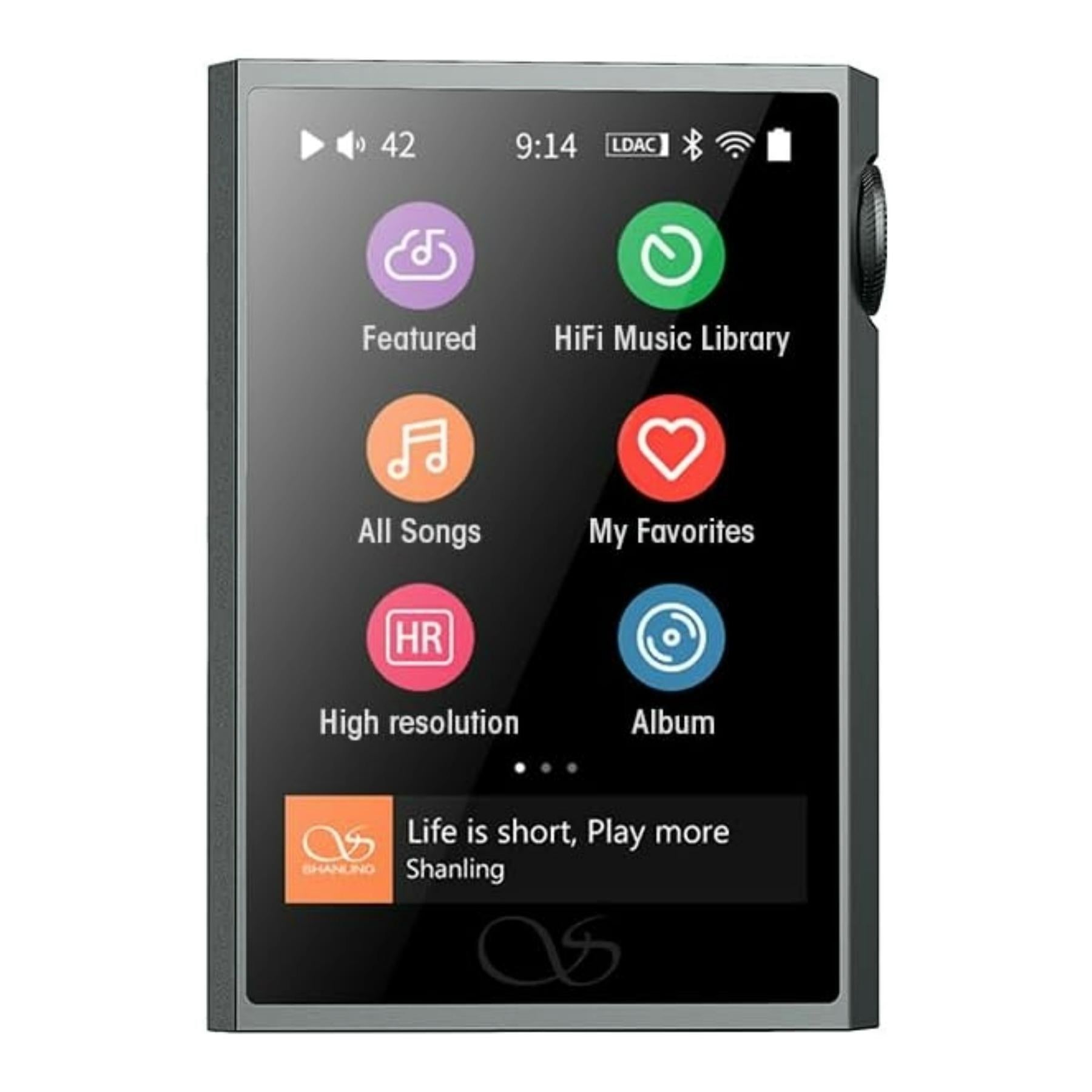

• Compact Touchscreen Design: Combines a 3.2-inch 320 x 480 touchscreen with physical controls and an illuminated volume wheel for simple everyday operation.
• Portable Aluminum and Glass Body: Uses a compact 116 g body measuring 86 x 61 x 17 mm for easy travel, commuting, and daily carry.

FAQ Section

Q: What is the SHANLING M1 Plus designed for?
A: The M1 Plus is designed for high-resolution portable music playback, wired headphone listening, wireless Bluetooth audio, Wi-Fi streaming, and USB DAC/AMP use.

Q: Does the SHANLING M1 Plus support Hi-Res audio?
A: Yes, it supports PCM up to 768kHz/32-bit and DSD512 for high-definition lossless audio playback.

Q: What DAC does the SHANLING M1 Plus use?
A: It uses an ESS ES9069Q DAC paired with dual SGM8262 amplifiers for clean conversion and powerful headphone output.

Q: Does the M1 Plus have balanced output?
A: Yes, it includes a 4.4mm balanced output with up to 660mW at 32 ohms, along with a 3.5mm single-ended headphone output.

Q: Can the SHANLING M1 Plus be used with Bluetooth headphones?
A: Yes, it supports bi-directional Bluetooth 5.2 with LDAC, aptX HD, aptX, AAC, and SBC codec support.

Q: Does the M1 Plus support Wi-Fi streaming?
A: Yes, it supports 2.4GHz and 5GHz Wi-Fi with DLNA, AirPlay, and OTA update functionality.

Q: How much storage does the SHANLING M1 Plus support?
A: It supports MicroSD cards up to 2TB, giving you plenty of room for large Hi-Res music libraries.

Q: How long does the battery last?
A: Battery life is up to 12.5 hours through single-ended playback and up to 10 hours through balanced playback, depending on usage.
