Product Description

Line Circle
The SVS PB1000PRO Subwoofer is a tremendous value with a 12” driver and Sledge 325D Class-D amplifier!
Get the Details

Features & Specs Line Circle

DRIVER
12-inch long-throw
AMPLIFICATION
Sledge 325D Class D
FREQUENCY RESPONSE
17-260 Hz +/- 3 dB
DIMENSIONS
18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D w/grill
DRIVER
12-inch long-throw
AMPLIFICATION
Sledge 325D Class D
FREQUENCY RESPONSE
17-260 Hz +/- 3 dB
DIMENSIONS
18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D w/grill

Expert Insight

Line Circle

“Best-in-class. Deep, powerful, quick, and punchy, would easily recommend both models…Impeccable!”" Read Full Review

Expert Img
Sound & Vision Honors 1000 Pro Series as "Top Picks of the Year"

Details

Line Circle

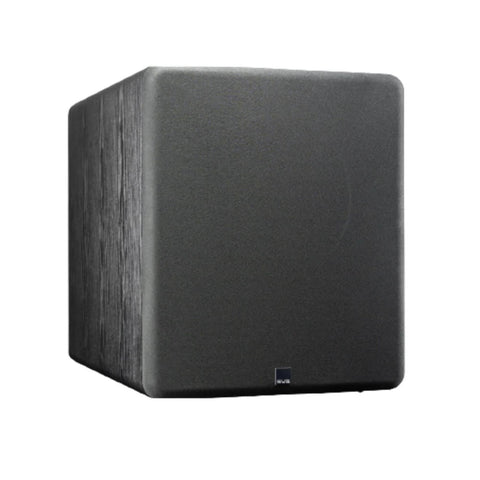

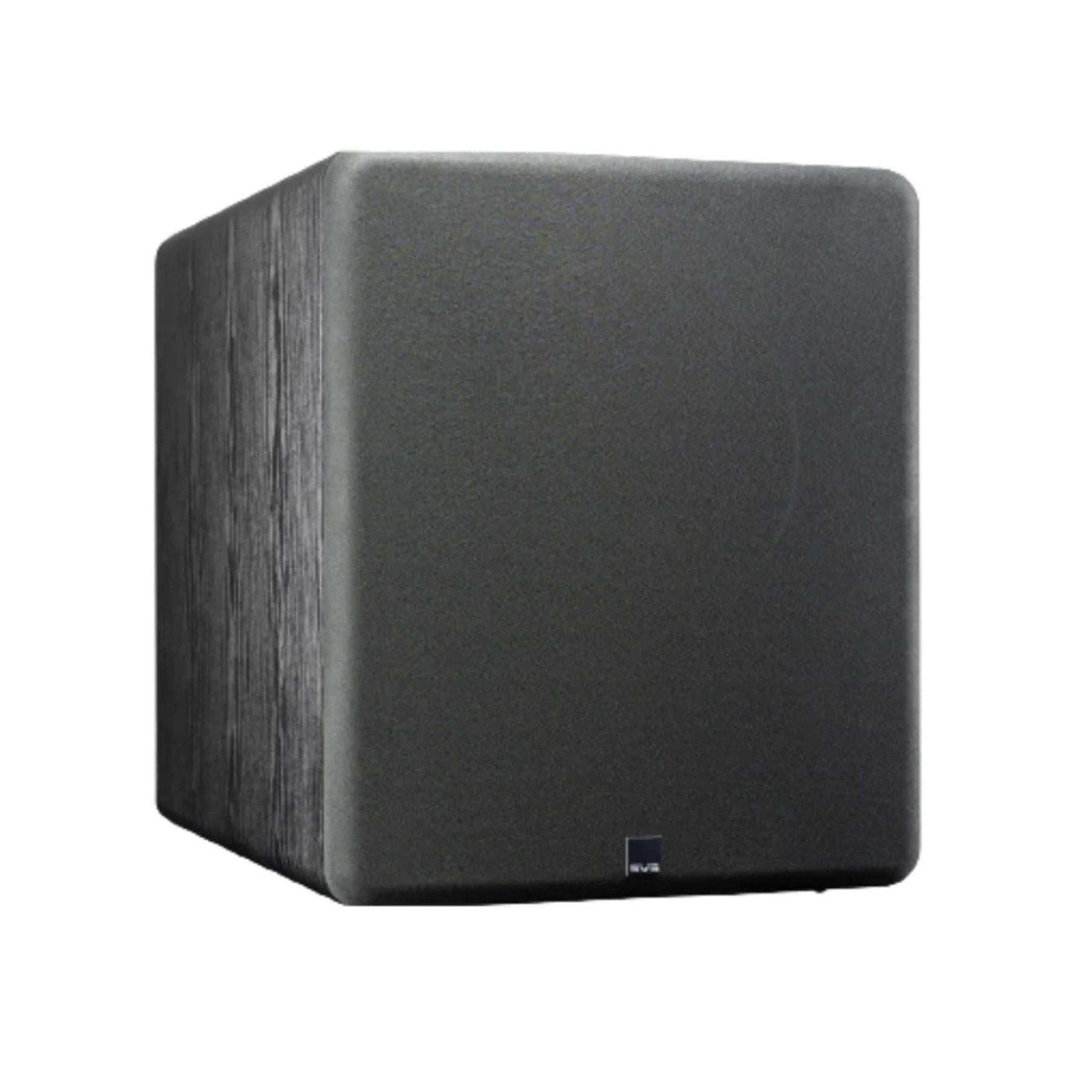

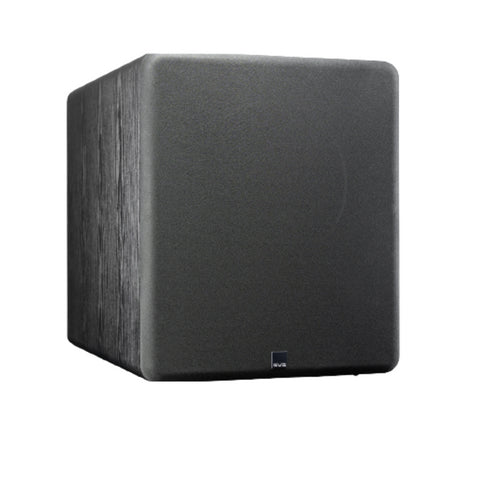

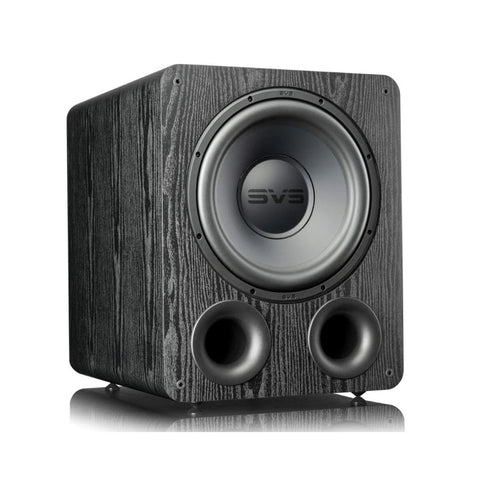

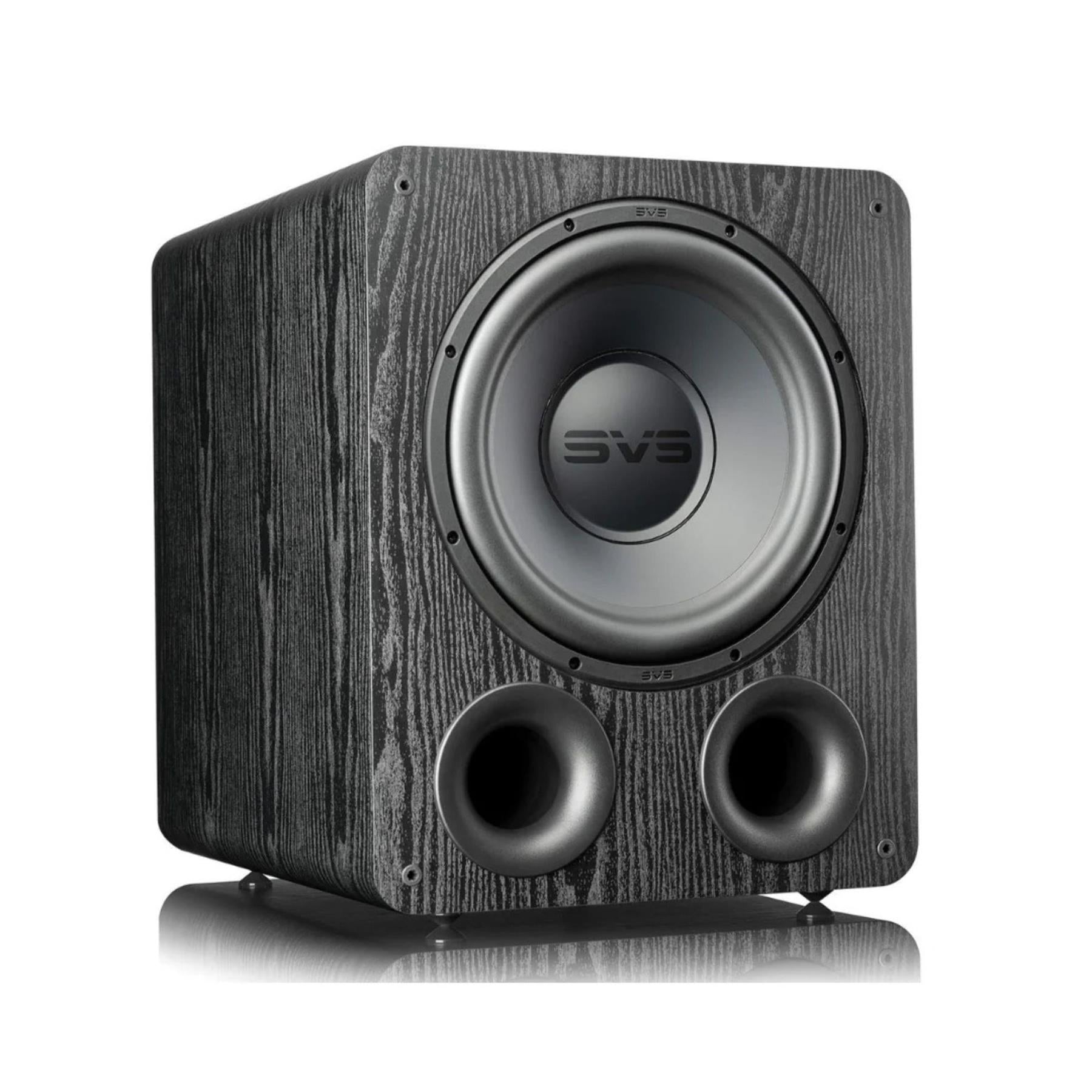

The SVS PB1000PRO Subwoofer

A 12-inch high-excursion SVS driver is married to a reference Sledge 325D Class-D amplifier with fully discreet MOSFET output for stunningly immersive cinematic bass. The PB-1000 Pro is optimized with a new dual-port cabinet design for effortless bass with vanishingly low distortion and features the SVS Subwoofer DSP smartphone app for convenient tuning and control.

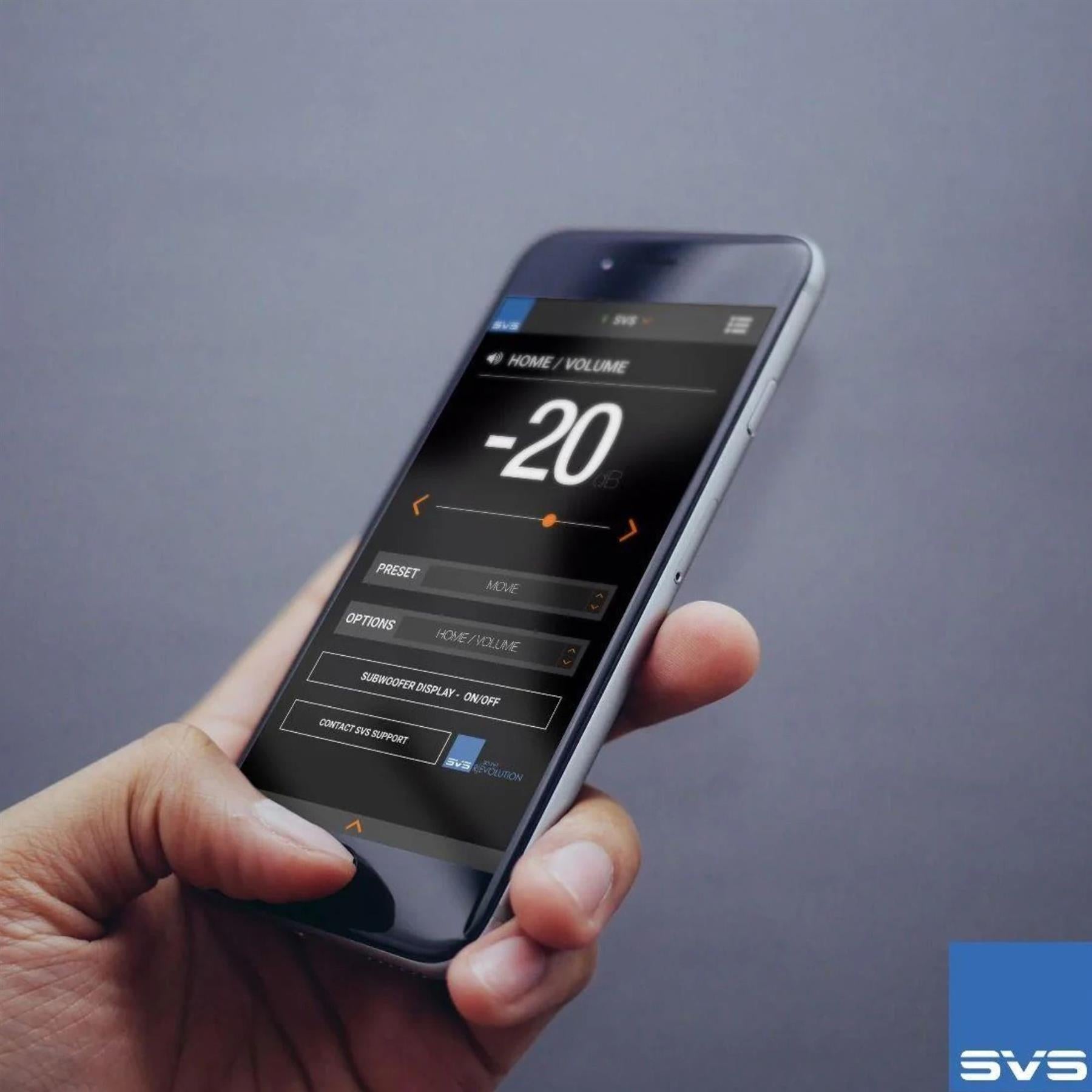

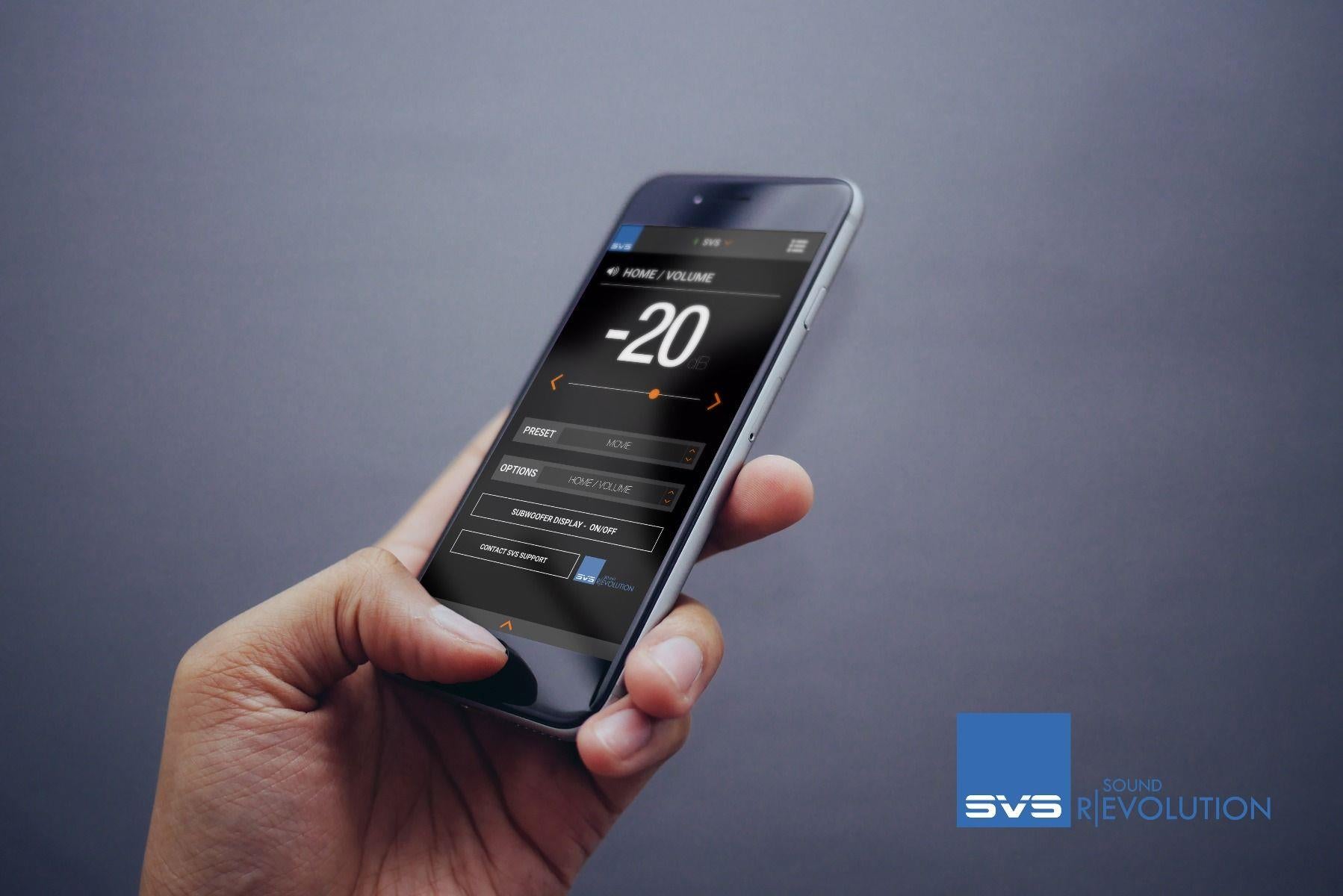

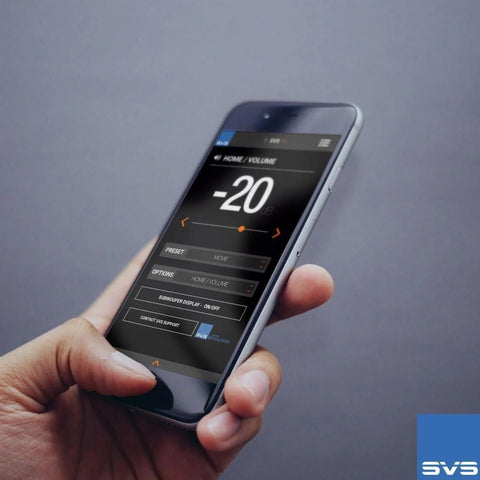

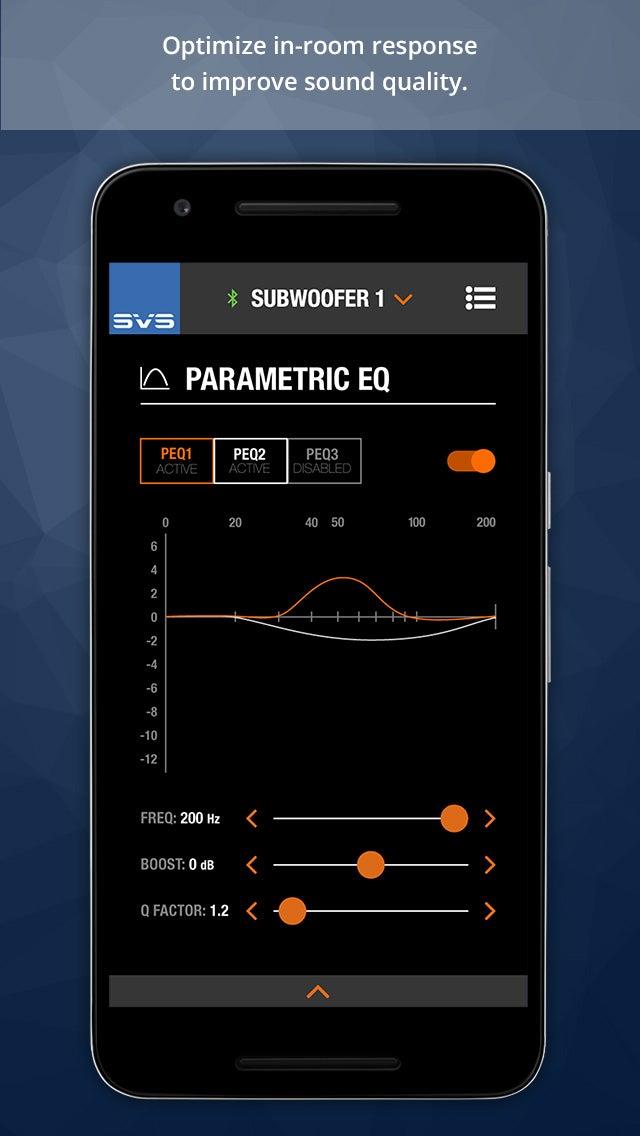

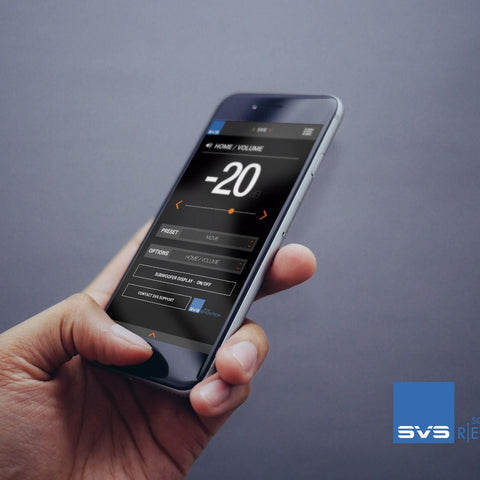

App Screenshot

SVS PB1000PRO Specifications:

  • Fequency Response: 17-260 Hz +/- 3 dB (standard mode) | 19-260 Hz +/- 3 dB (sealed mode) | Expect 2-3 Hz deeper extension in small to mid-size rooms.
  • Protective non-resonant extra-thick ABS fabric mesh grille
  • Iso-elastomer feet included
  • Extra heavy-duty, high current power cord 6'
  • Quick Start Guide
  • Port Plugs (free upon request)
  • Unbalanced stereo input/output
  • Speaker Level Stereo Input
  • Auto/On and Trigger options through app, 3-12V AC/DC trigger
  • RoHS compliant, lead-free construction, world-wide safety certifications
  • Green 0.5-watt low standby power consumption

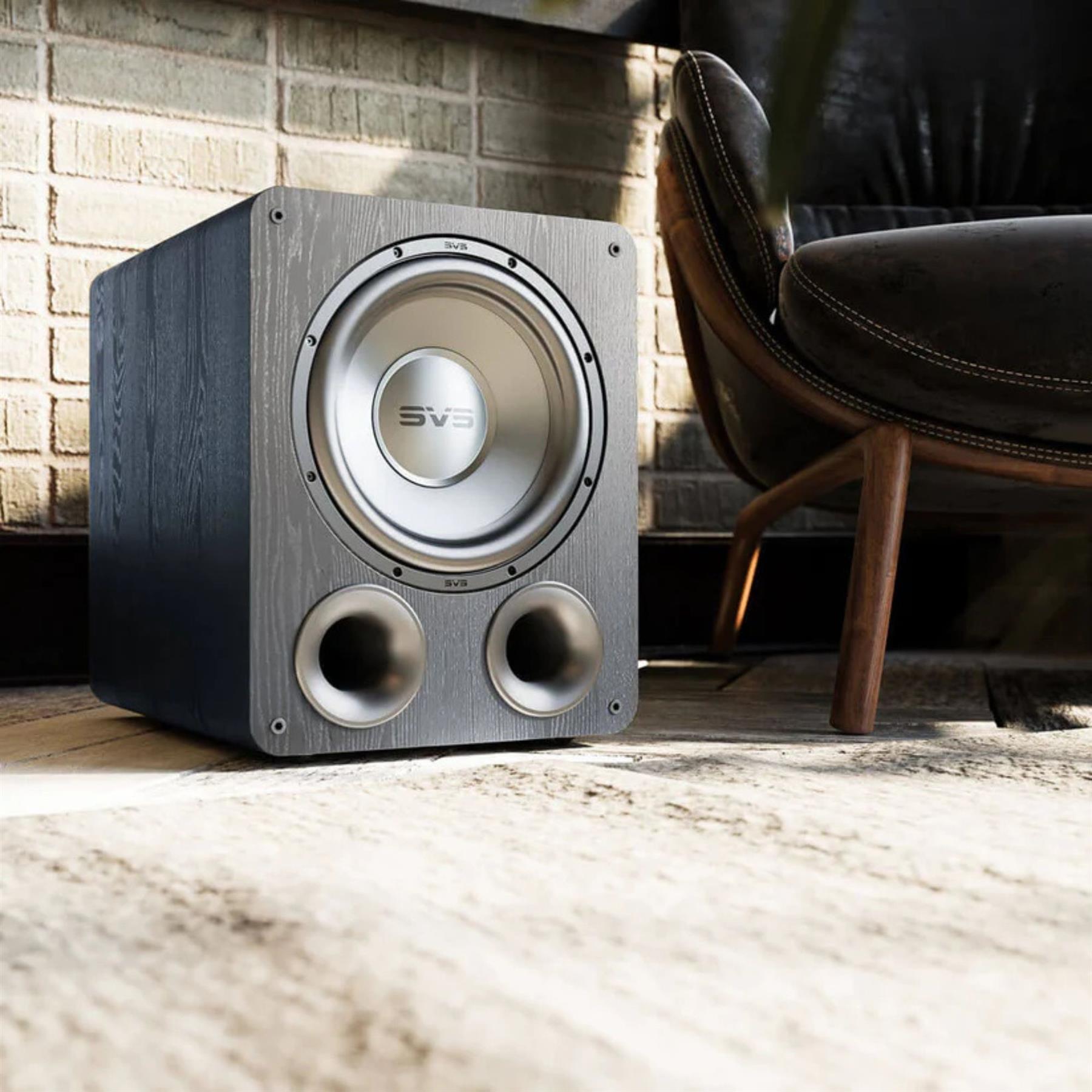

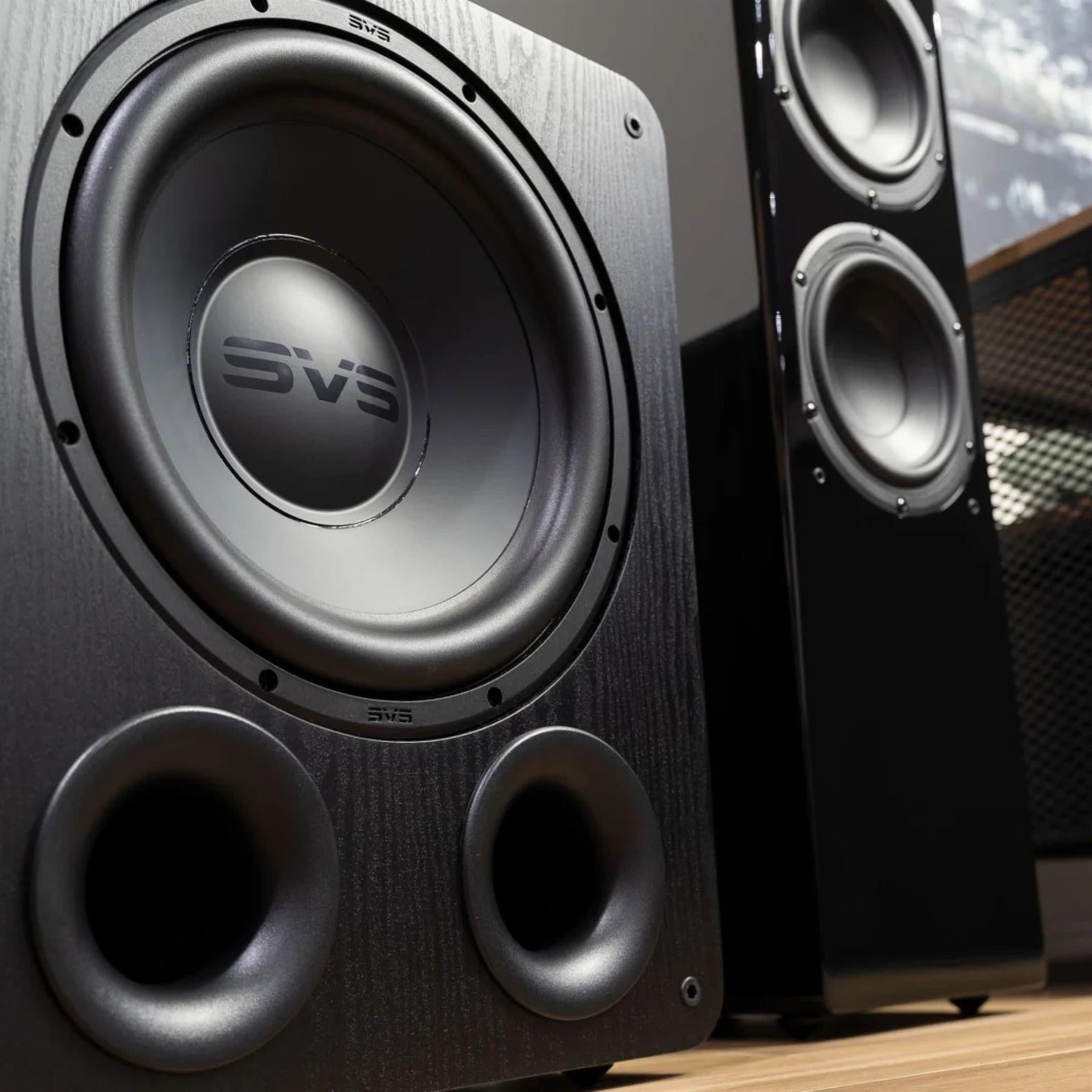

  • Dual 2.5-inch ports
  • Dimensions (w/ grille): 18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D
  • Dimensions (without grille): 18.9” (479mm) H X 15” (380mm) W X 19.2” (488mm) D
  • Shipped Dimensions: 23.4” (594mm) H 19.9” (506mm) W X 24.4” (619mm) D
  • Weight (unboxed): 42.5lbs (19.3kg) with Grille
  • Shipped Weight: 51.6lbs (23.4kg)

      PB1000PRO Driver Specs:

      • All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
      • 9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor
      • 13.1mm Xmax, 26.8mm Xmech precision aligned excursion
      • 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
      • Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
      • Two-piece high grade oversized Y35 Ferrite magnet motor
      • High Temperature 3003-H18 aluminum former/bobbing
      • 6” composite cotton-poly extreme excursion linear spider
      • Dual 24-strand copper-alloy high-temperature leads
      • Proprietary injection molded gasket and NBR extreme-excursion surround
      • Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
      • Top plate assembly with low carbon 1010 steel for optimal magnetics
      • Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
      • 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
      • Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
      • Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

        PB1000PRO Sledge-325D Amplifier Specs:

        • 325 watts RMS, 820+ watts peak power output Class D design
        • 50MHz Analog Devices Audio DSP, high resolution double precision 56bit filtering
        • Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
        • High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
        • Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s

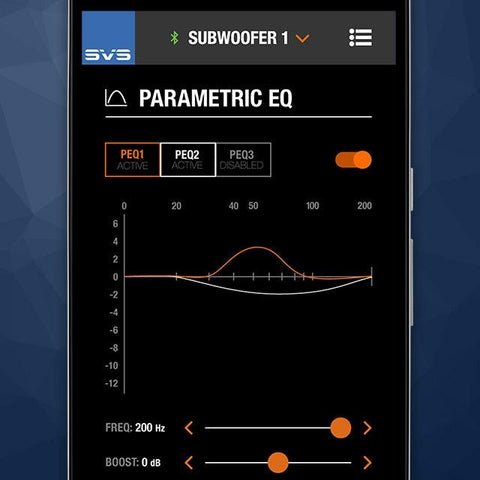

        • SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
        • Customer EQ and DSP limiter settings specifically for the 1000 Pro
        • Input impedance 16kohm (unbalance RCA)
        • Input impedance 1kohm (speaker level)

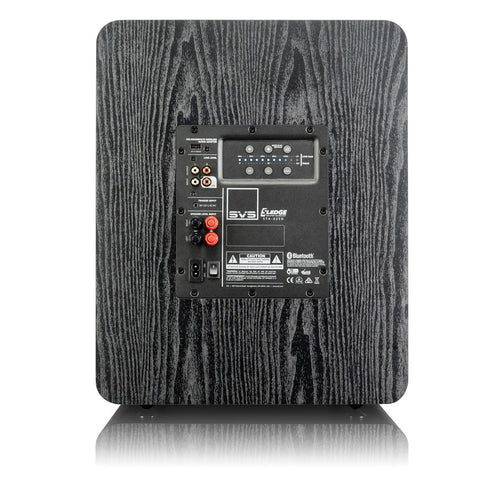

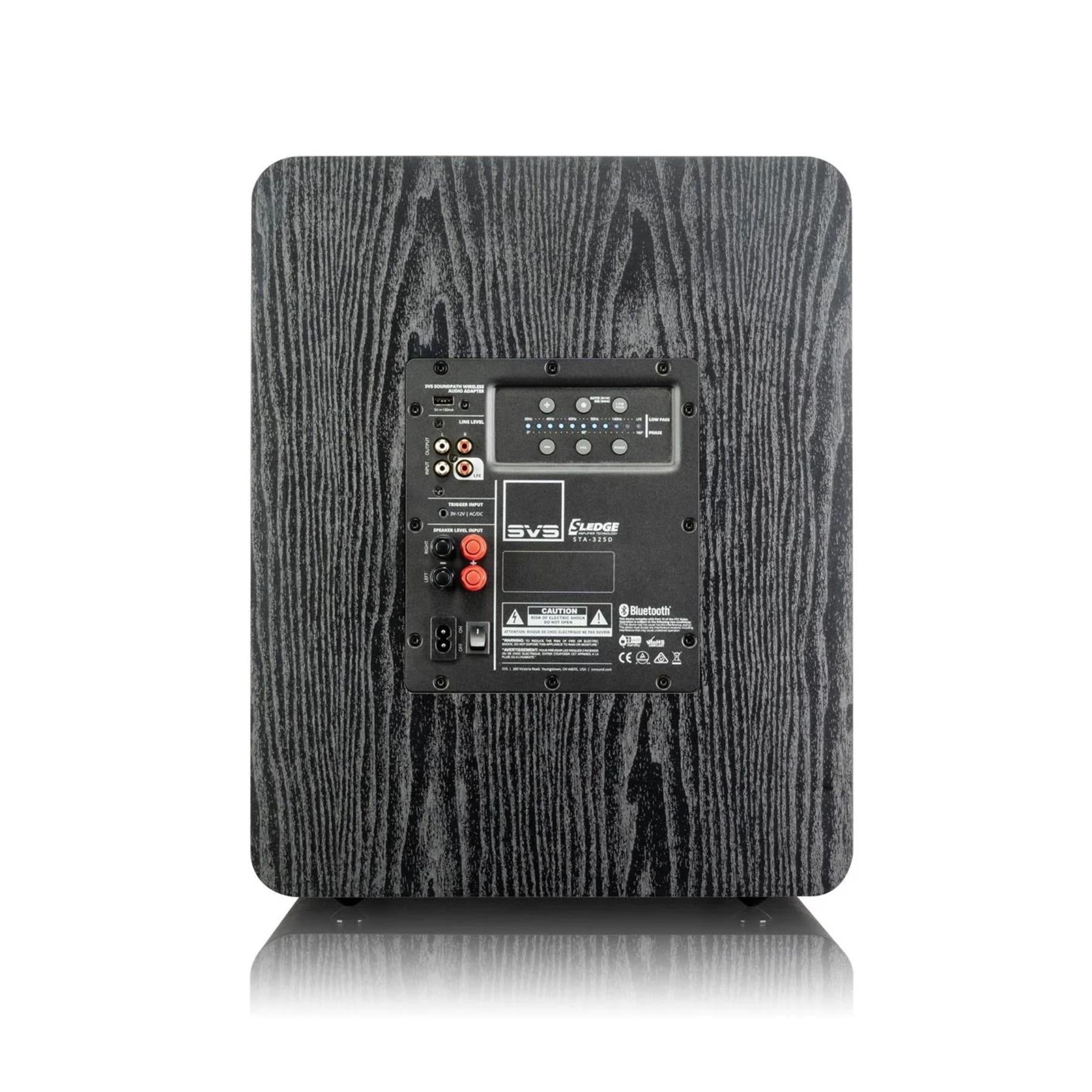

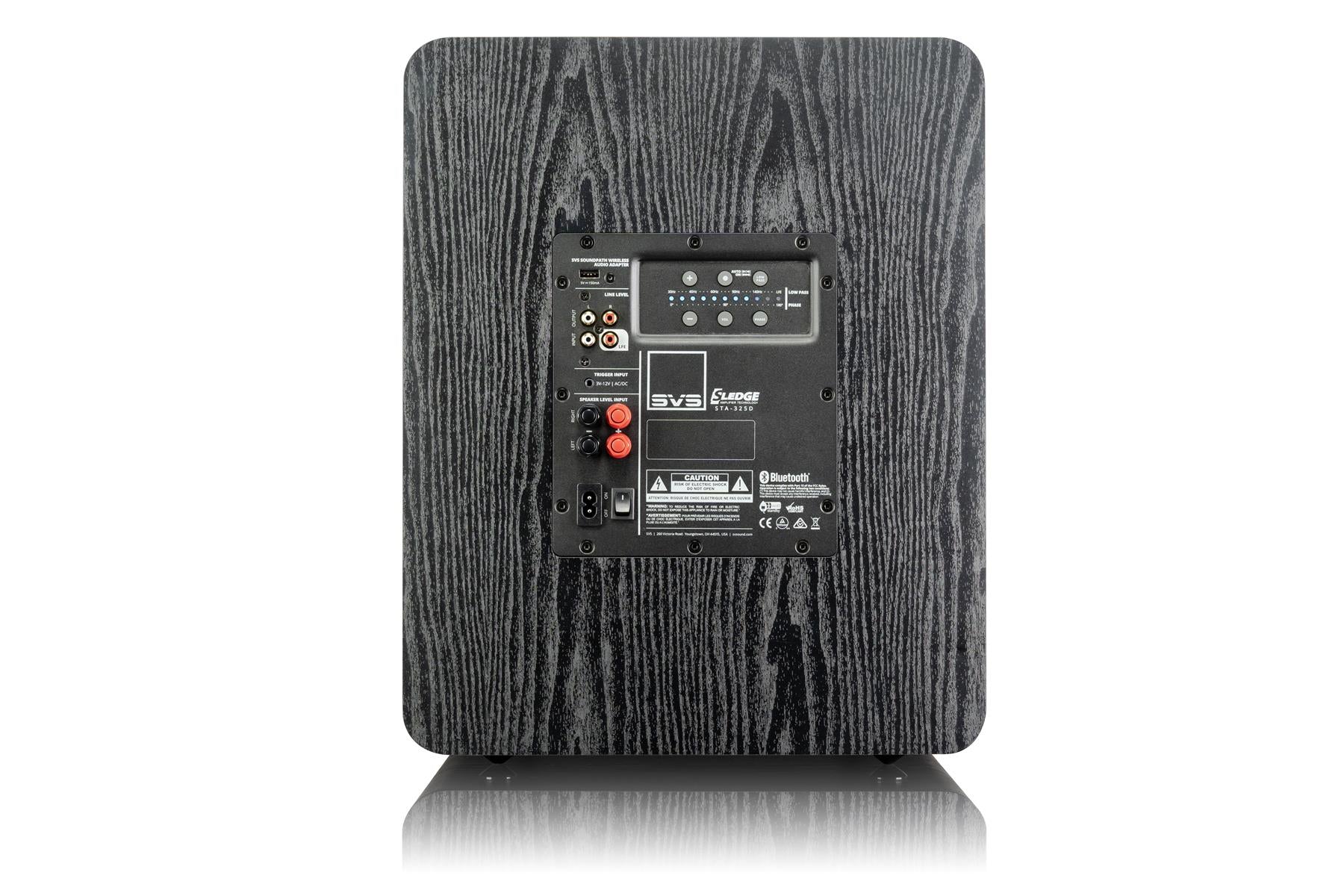

        • New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.
