The SVS PB-3000 R|Evolution is a high-output, dual-ported subwoofer engineered for reference-level bass down to 16Hz with exceptional control and clarity. It pairs a 13-inch high-excursion driver with a 1,200W RMS (4,000+W peak) STA-1200D2 MOSFET amplifier for powerful, low-distortion performance in home theater and music systems. Advanced DSP tuning and presets are easily managed through the SVS smartphone app, with support for RCA and balanced XLR connections, plus trigger and IR integration. With flexible Standard/Sealed tuning and a rigidly braced cabinet, it delivers clean, room-energizing bass that blends seamlessly into premium setups.
Get the Details

SVS PB-3000 R|Evolution Subwoofer

The SVS PB-3000 R|Evolution is a reference-caliber, dual-ported subwoofer built to deliver room-pressurizing bass down to 16Hz with the kind of control and detail that makes movies, music, and gaming feel more lifelike. At its core is an all-new front-firing 13-inch high-excursion driver paired with the STA-1200D2 MOSFET Class D amplifier rated at 1,200W RMS (4,000+W peak)—a combination engineered for massive slam, fast transient response, and ultra-low distortion even at demanding playback levels.

Integration is just as advanced as the output. You get balanced XLR and unbalanced RCA inputs/outputs, flexible Standard or Sealed tuning (with included port plugs), and deep DSP control via the SVS Subwoofer Control Smartphone App—including low-pass filtering, phase, polarity, parametric EQ, room gain compensation, presets, and more. Finished in Premium Black Ash and housed in a heavily braced MDF enclosure with high-flow ports, the PB-3000 R|Evolution is designed to stay clean, composed, and authoritative at reference volume. The PB-3000 R|Evolution is part of ListenUp's SVS Ported Subwoofer Collection.

What It's Good At:

• Delivering true ultra-low bass extension to 16Hz for cinematic impact you can feel
• Producing high-output, low-distortion bass that stays tight and controlled at loud levels
• Offering flexible tuning (Standard or Sealed) for maximum output or faster transient response
• Making setup and blending easy with app-based DSP control, presets, and advanced EQ tools
• Supporting premium systems with XLR + RCA I/O, trigger input, IR input, and wireless-adapter power via USB
• Holding performance steady with robust cabinet bracing, high-flow ports, and advanced amplifier monitoring/cooling

SVS PB-3000 R Full Specifications:

• Model: SVS PB-3000 R|Evolution (ported subwoofer)
• Finish: Premium Black Ash
• Frequency Response (Standard mode, ports open): 16–235Hz ±3 dB
• Frequency Response (Sealed mode, ports sealed): 17–270Hz ±3 dB
• In-room extension note: Expect ~2–3Hz deeper extension in small to mid-size rooms
• Roll-off: Optimized to maximize available room gain
• Measurement note: 2-meter ground plane away from reflective structures (quasi-anechoic)
• Distortion improvement note: 20%–60% lower acoustic THD+N in critical low-frequency bandwidth vs previous generation

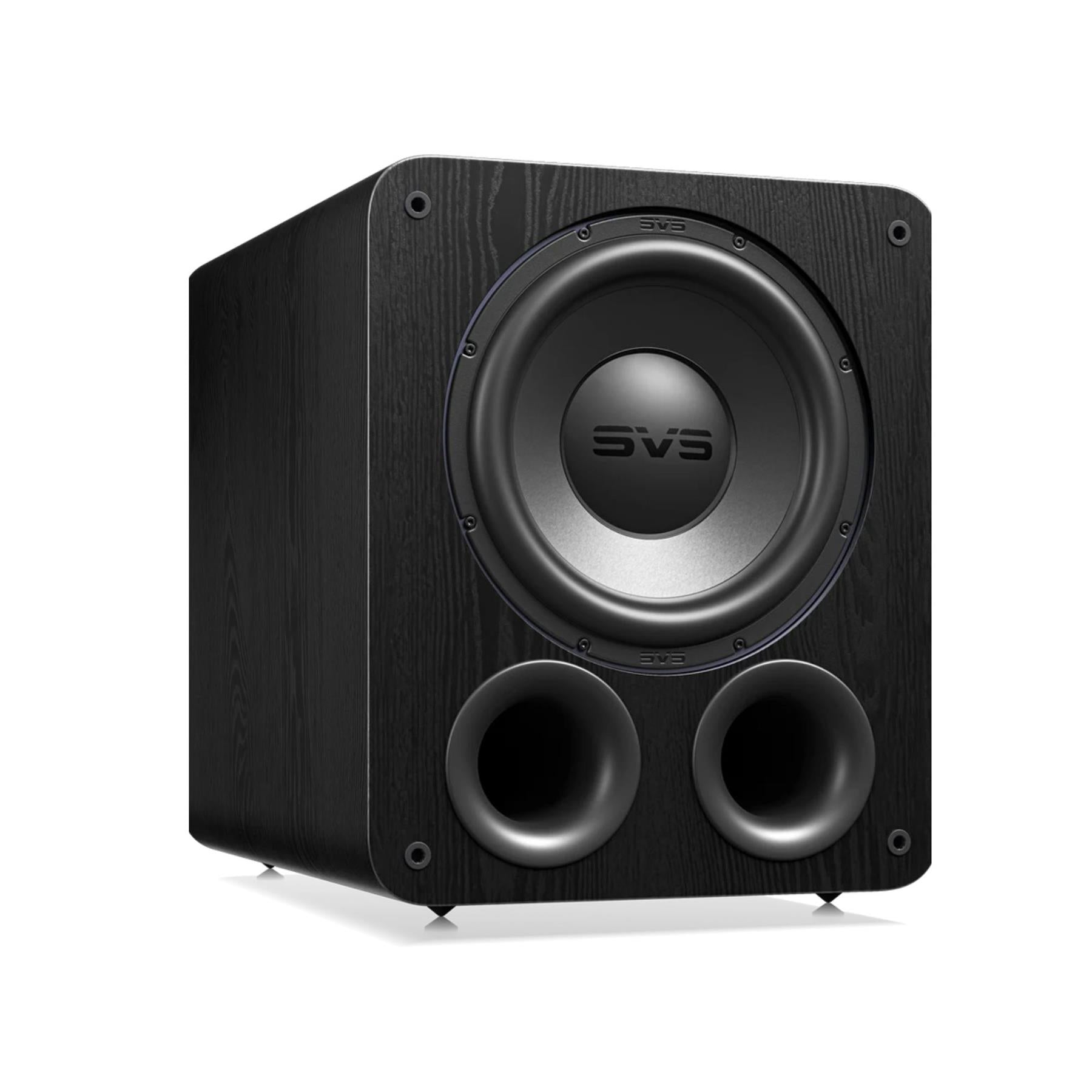

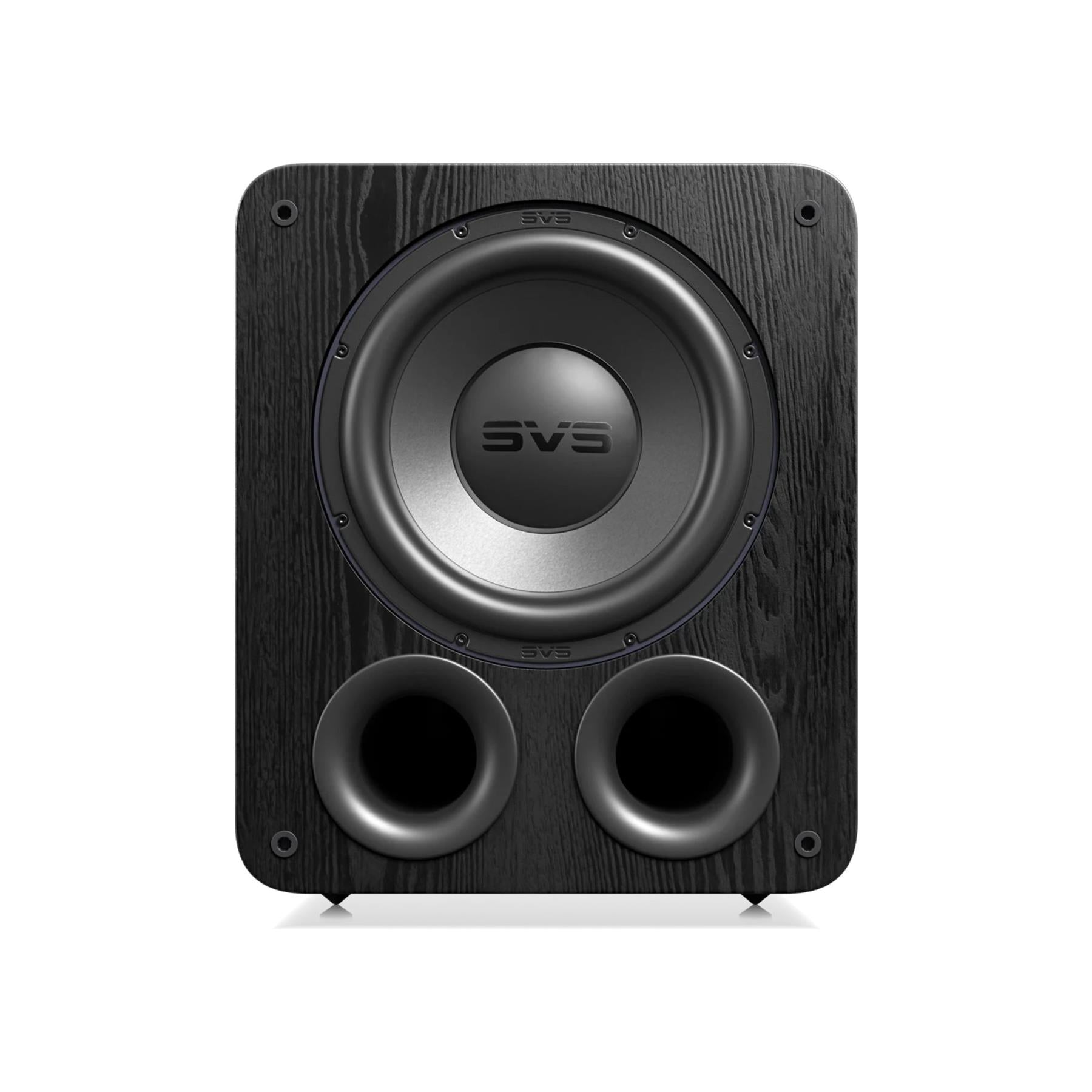

• Driver: Front-firing 13-inch high-excursion driver
• Ports: Dual high-flow 3.5-inch rounded ports
• Cabinet: Rigid MDF front baffle and extensive internal bracing; reinforced internal design with acoustic insulation

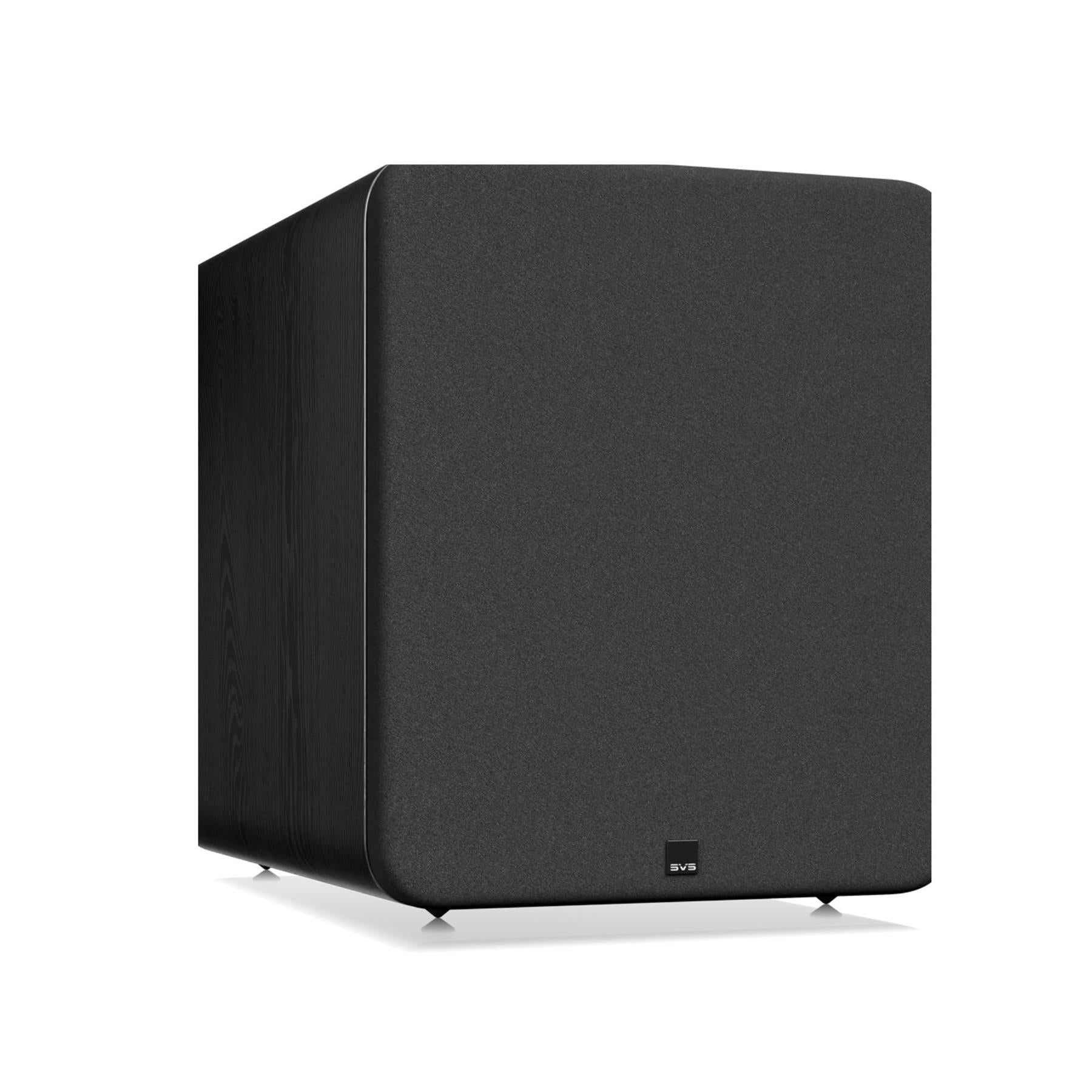

• Grille: Protective, non-resonant extra-thick ABS grille frame with fabric mesh cover
• Feet: Screw-in iso-elastomer feet

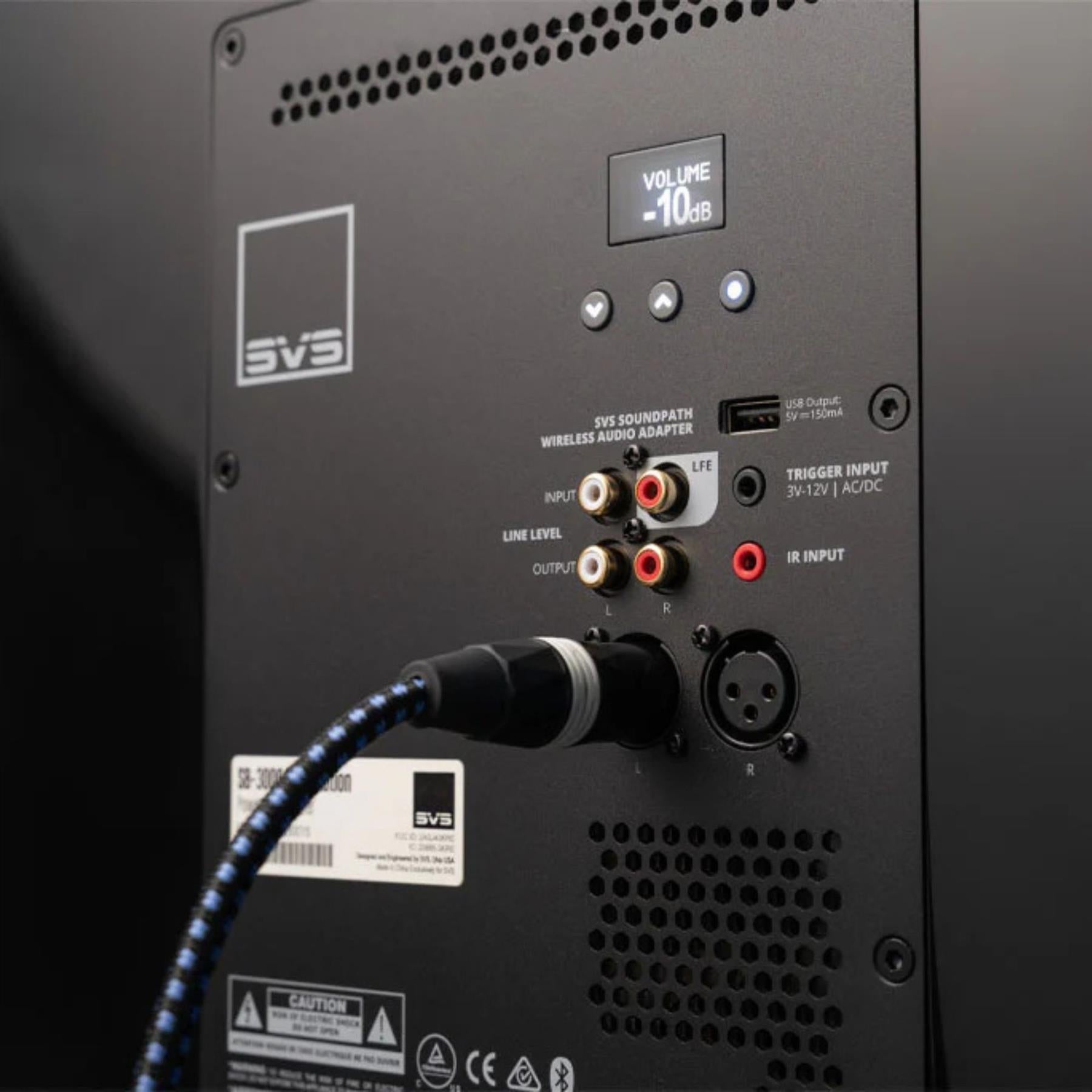

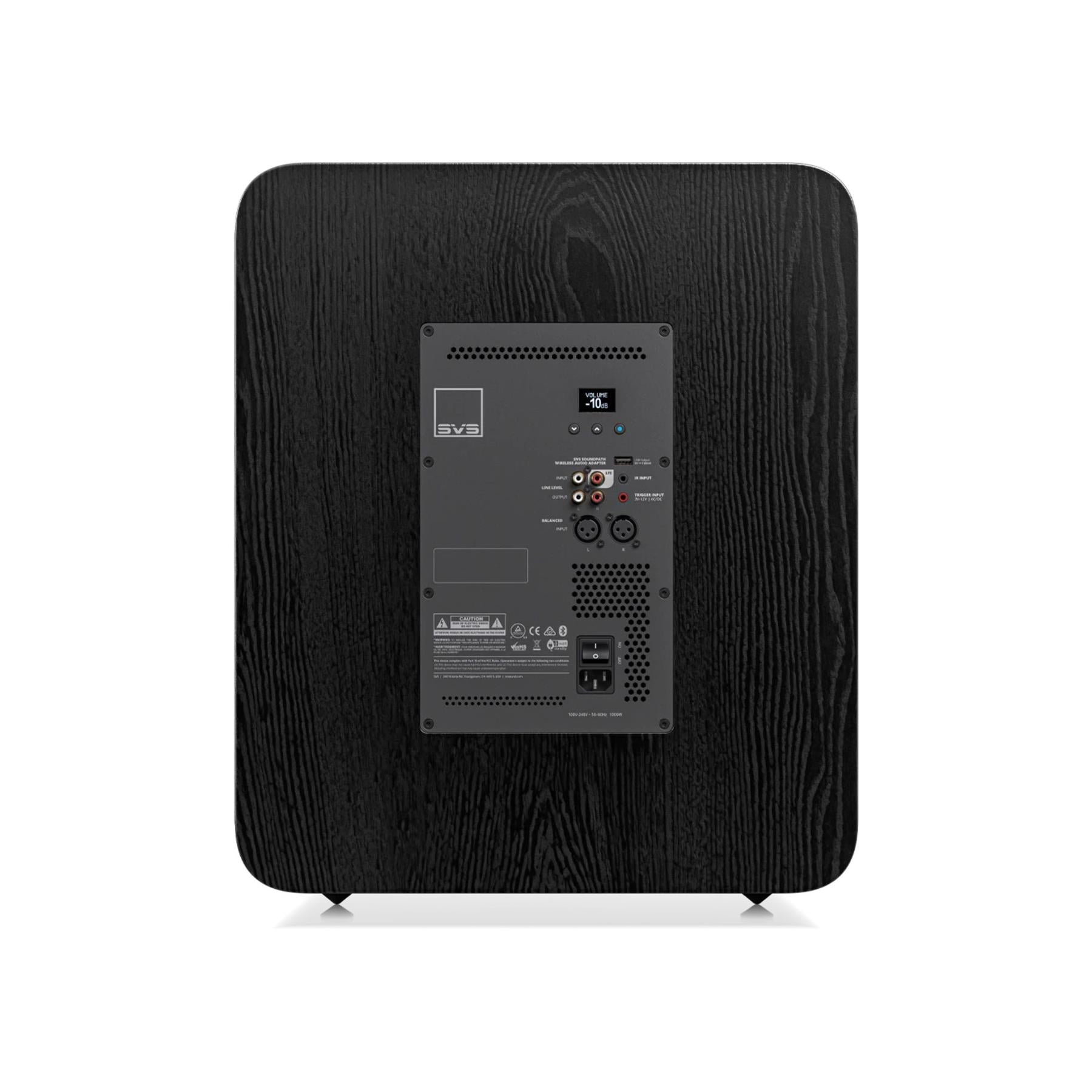

• Rear panel interface: OLED display + control interface; Display Flip function
• Dimensions (with grille): 21.9 in (557mm) H × 18.3 in (465mm) W × 24.7 in (626mm) D
• Dimensions (without grille): 21.9 in (557mm) H × 18.3 in (465mm) W × 23.5 in (597mm) D
• Shipped dimensions: 26.6 in (675mm) H × 24.4 in (619mm) W × 29.1 in (739mm) D
• Weight (unboxed): 85.1 lb (38.6 kg)
• Shipped weight: 104.3 lb (47.3 kg)
• Driver architecture: Proprietary 13-inch long-throw driver with overhung motor configuration
• Woofer/Motor mass: 24.1 lb (10.5 kg) woofer; 18.5 lb (8.4 kg) motor
• Excursion: 30.1mm Xmax; 72.9mm Xmech
• Voice coil: Flat edge wound split-wind; premium-grade aluminum 2" former
• Magnets: Two dedicated toroidal Y30 ferrite magnets
• Basket: FEA-optimized powder-coated cast aluminum
• Leads/Spider: Dual balanced 24-strand silver-plated Litz wire leads; 6.5" 2-ply Nomex composite linear spider
• Cone: Vented 13" 1100 aluminum cone
• Shorting sleeve: 6063 aluminum shorting sleeve
• Terminals: Nickel-plated high-tension spring terminals
• Surround/Gasket: Injection molded gasket; SBR extreme-excursion surround
• Amplifier: STA-1200D2 MOSFET Class D
• Power: 1,200W continuous (RMS) / 4,000+W peak
• DSP: 295MHz Analog Devices Audio DSP; 56-bit double precision filtering
• DAC/SNR: Premium DACs with >120 dB Signal-to-Noise Ratio
• THD+N: <0.05% at rated power
• RCA input impedance: 10kΩ (up to 4Vrms)
• XLR input impedance: 18kΩ (up to 4Vrms / +14dBu)
• Line-level I/O: RCA inputs/outputs; XLR inputs/outputs
• Trigger input: 3.5mm; 3–12V AC/DC (TS 1/8" mono cable)
• IR input: 3.5mm; powered IR repeater required; NEC format commands
• USB Type-A: Firmware updates; powers SVS SoundPath Wireless Audio Adapter (sold separately)
• App control compatibility: Apple iOS, Google Android, Amazon Fire
• Volume range: -60dB to 0dB (1dB steps)
• Low Pass Filter: 30–200Hz (1Hz steps); slopes 6/12/18/24 dB
• Phase: 0°–180° (1° steps)
• Polarity: + / -
• PEQ: 20–200Hz; -12.0 to +6.0dB; Q 0.2 to 10.0
• Room Gain Compensation: 25Hz/31Hz/40Hz; slopes 6/12 dB
• Port tuning modes: Standard / Sealed
• Presets: Three memory presets
• AC input: 100V–240V ~ 50–60Hz, 1000W
• Total Harmonic Distortion (THD): ≤ 1.00%
• Power Off mode: < 0.3W
• Auto Standby mode: < 0.5W
• Network (BT Connected) Standby mode: < 2.0W
• Compliance: RoHS compliant; lead-free construction; worldwide safety certifications
• Included accessories: Removable grille (ABS frame with fabric mesh), 2 foam port plugs, iso-elastomer feet, 6' detachable power cord, Quick Start Guide

SVS PB-3000 R Q&A:

How low does the PB-3000 R|Evolution play?

In Standard mode (ports open), it’s rated down to 16Hz (±3 dB) for deep, room-pressurizing bass.

What’s the difference between Standard mode and Sealed mode?

Standard delivers maximum ported output and extension, while Sealed (with the included port plugs) shifts the response for a tighter feel and different system matching.

Can I control the subwoofer from my phone?

Yes. The SVS Subwoofer Control app (Bluetooth) provides control over volume, low pass filter, phase, polarity, parametric EQ, room gain compensation, tuning modes, presets, and power settings.

Does it work with both RCA and XLR connections?

Yes. It includes unbalanced RCA and balanced XLR inputs and outputs for broad system compatibility.

What crossover and low-pass settings are available?

The low-pass filter adjusts from 30–200Hz (1Hz steps) with selectable slopes of 6/12/18/24 dB for precise blending.

Can I use a 12V trigger to turn it on/off automatically?

Yes. The 3–12V AC/DC trigger input supports automatic on/off with compatible processors and receivers.

What are the dimensions and weight?

It measures 21.9" H × 18.3" W × 24.7" D (with grille) and weighs 85.1 lb unboxed (104.3 lb shipped).

What comes in the box?

You get the subwoofer, removable grille, 2 foam port plugs, iso-elastomer feet, a 6' detachable power cord, and a Quick Start Guide.

SVS PB-3000 R Downloads:

SVS PB-3000 R Manual
SVS PB-3000 R Quick Start Guide
