The PD-505T is a meticulously engineered CD transport in the TEAC Reference 500 Series, designed for audiophiles seeking exceptional sound quality. It features advanced circuitry and a semi-floating mounting system that minimizes vibrations, ensuring precise and pure CD playback. Housed in a robust all-metal enclosure, the PD-505T builds on the legacy of the CD-5020A, offering durability and professional-grade performance.
Get the Details
The PD-505T is a high-precision CD transport in the TEAC Reference 500 Series, featuring advanced circuit design, semi-floating mounting, and a robust all-metal enclosure, all built on the durable and professional-grade foundation of the CD-5020A.
Nathan Miller
Brand Manager
Details
TEAC PD-505T CD Transport
The PD-505T is a long-anticipated addition to our Reference 500 Series, featuring a newly designed CD drive inspired by the proven specifications of our professional-grade products. This model is built on the foundation of the CD-5020A, a drive known for its durability and long-standing use in professional applications. The PD-505T enhances this design with innovations such as semi-floating mounting and a newly developed drive circuit, ensuring precise CD reading with high purity.
Key Features:
Enhanced CD Drive Design:
The PD-505T's CD drive builds on the TEAC CD-5020A, refined for optimal performance in this model.
Semi-floating mounting minimizes vibration feedback, preserving audio quality by preventing interference from chassis vibrations.
Advanced Circuit Design:
A newly developed drive control circuit provides smoother motor operation, resulting in a more open, natural sound.
BTL drive technology reduces switching noise, improving signal purity from the spindle motor to the pickup lens actuator.
Independent toroidal core transformers power the CD drive, display, and audio circuits, each with discrete circuits for enhanced sound quality.
Precision Clocking:
An internal low-phase-noise crystal oscillator ensures accurate digital signal output.
The PD-505T supports 10MHz external clock input, enabling further refinement of sound quality and synchronization in advanced digital systems.
Robust Hardware Design:
An all-metal enclosure shields against external electromagnetic noise while offering a stylish, compact footprint.
The 8mm-thick aluminum side panels enhance structural integrity, ensuring stability and precision.
The unit is equipped with our new Stressless Foot design, which features three loosely connected support points for more natural sound resonance.
Semi-Floating Top Panel:
The top panel is partially fixed, secured only by the side panels, contributing to a sound with a sense of openness.
Specifications:
Supported Media: Audio CD (CD-R/CD-RW compatible)

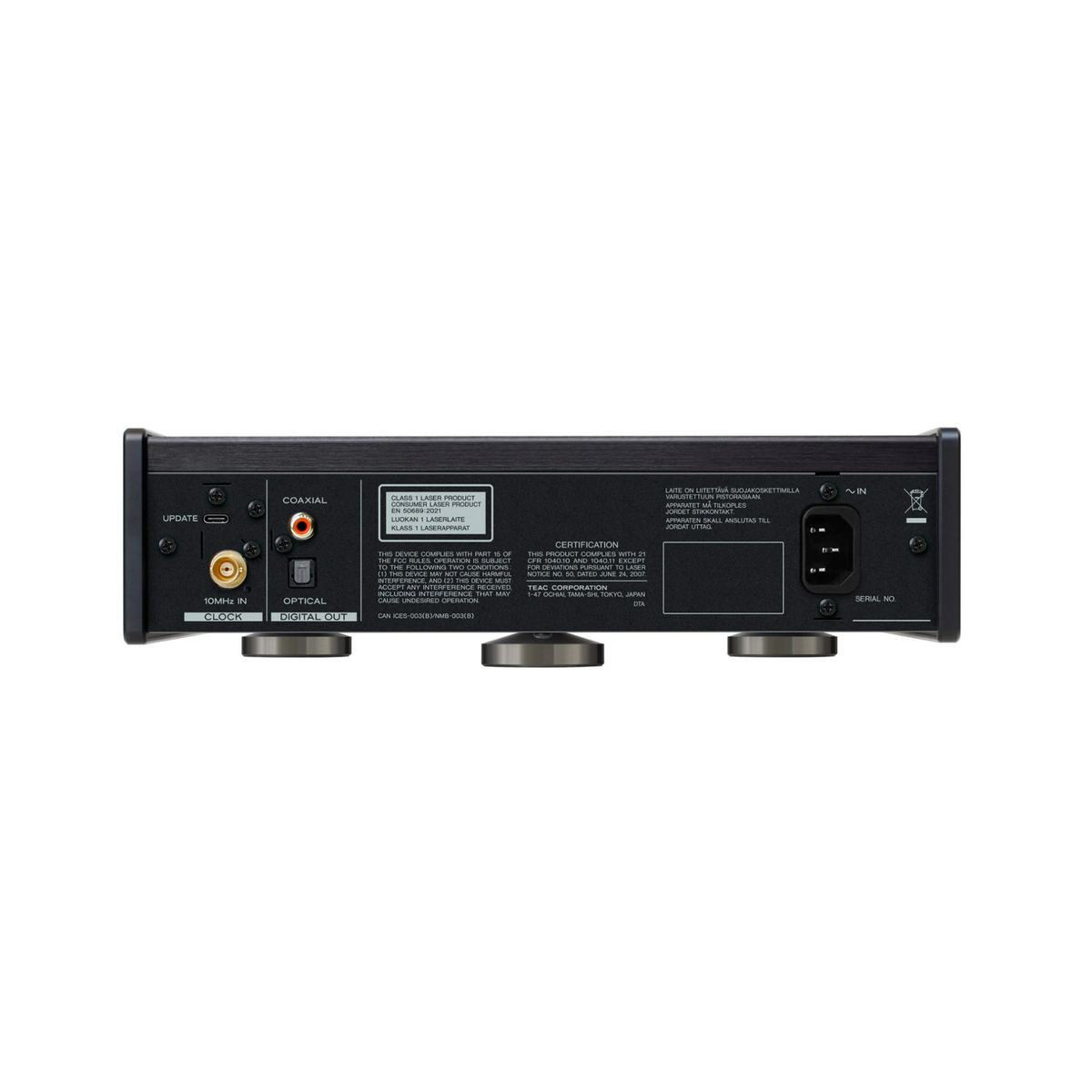

Digital Audio Outputs:
Coaxial: RCA (gold-plated), 0.5Vp-p, 75Ω
Optical: TOS (JEITA RC5720C)
Clock Sync Input:
Connector: BNC (gold-plated)
Input Frequency: 10MHz
Input Level: TTL (rectangle wave), 0.5 to 1.0Vrms (sine wave)
Included Accessories: AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's manual (with warranty)
Note: This product does not include a D/A converter circuit. An external unit like the UD-505-X or NT-505-X is required. Specifications are subject to change without notice.
