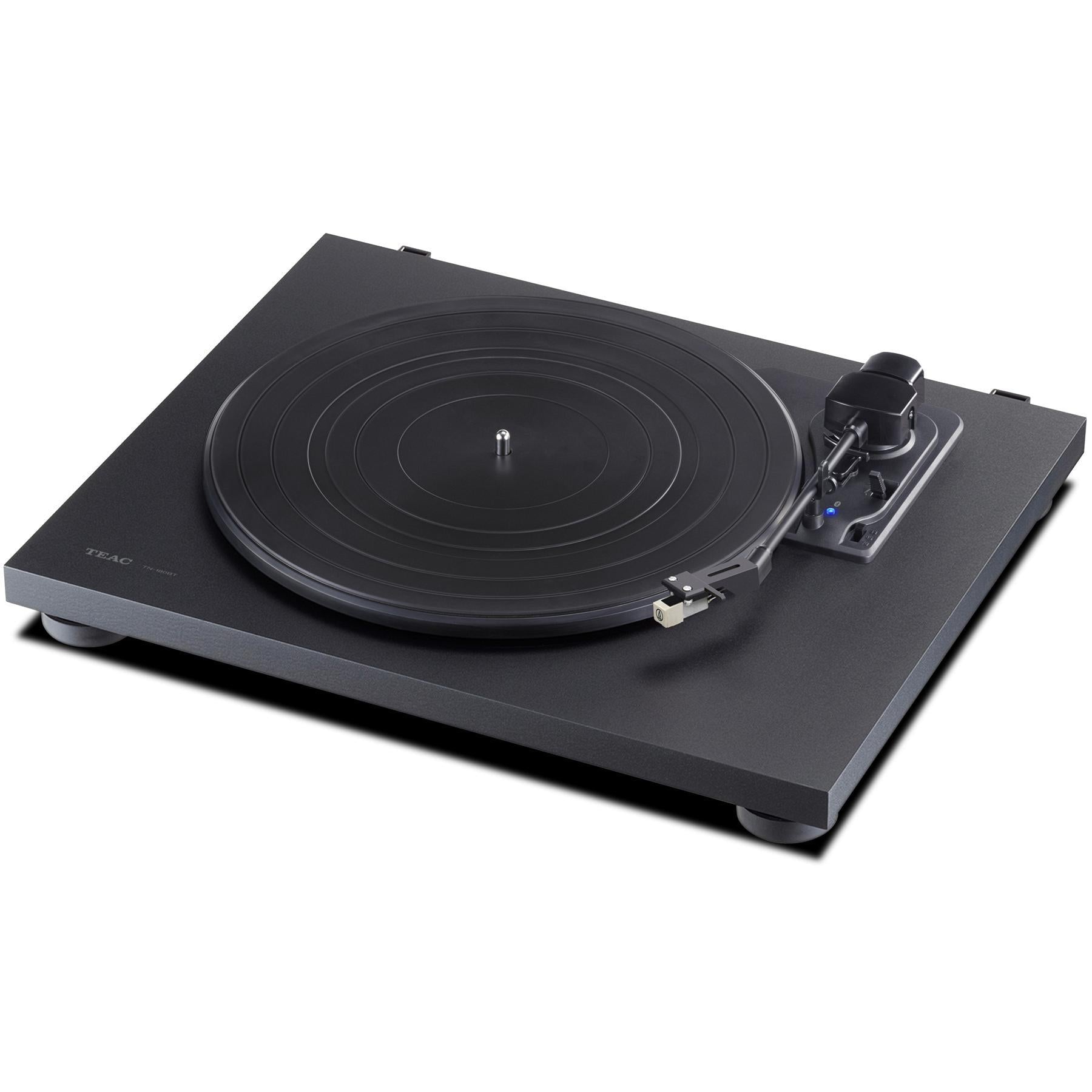

TEAC TN-180BT-A3 Bluetooth Turntable
- Wireless Bluetooth streaming for speaker and headphone playback
- Built-in phono equalizer with selectable PHONO, LINE, and Bluetooth outputs
- Belt-drive system for reduced noise and enhanced clarity
- High-density MDF cabinet minimizes vibration and resonance
- Pre-installed Audio-Technica AT3600L VM-type cartridge
- Supports 33-1/3, 45, and 78 RPM speeds with auto-return tonearm
Experience the warmth of vinyl in the most convenient way with the TEAC TN-180BT-A3 Bluetooth Turntable. Designed for both seasoned vinyl lovers and new collectors, this high-quality turntable offers wireless Bluetooth audio streaming, a built-in phono equalizer, and a classic belt-drive system—all wrapped in a sleek, resonance-reducing high-density MDF cabinet. With support for 33-1/3, 45, and 78 RPM records, auto-return functionality, and a factory-installed Audio-Technica AT3600L cartridge, it's ready to play right out of the box. Whether connecting via Bluetooth, Line, or Phono outputs, the TN-180BT-A3 delivers clear, rich, and immersive analog sound with effortless setup.
TEAC TN-180BT-A3 Full Specifications
-
Motor: DC motor with belt-drive system
-
Playback Speeds: 33 1/3, 45, 78 RPM
-
Wow and Flutter: 0.25%
-
Signal-to-Noise Ratio: 64dB or higher (A-weighted, 20kHz LPF)
-
Platter Material: Plastic
-
Platter Diameter: 12" (30cm)
-
Tonearm Type: Static Balance, Straight
-
Effective Arm Length: 7.9" (200mm)
-
Stylus Pressure Range: 0 to 5g
-
Cartridge Type: VM-type (AT3600L pre-installed)
-
Cartridge Output Voltage: 3.5mV (1 kHz, 5 cm/s)
-
Stylus Replacement: Audio-Technica ATN3600L
-
Analog Output Connectors: 1 Pair RCA Pin (Chrome-plated)
-
PHONO Output Voltage: 2.4mV (±3dB)
-
LINE Output Voltage: 149mV (–16.5dBV)
-
Bluetooth Range: Approx. 30 ft. / 10 meters
-
Bluetooth Codec: SBC
-
Power Supply: AC 100–240V, 50/60Hz
-
Power Consumption: <1.5W (Standby <0.2W)
-
Dimensions (W x H x D): 16.5" x 4.1" x 14.0" (420 x 105 x 356 mm)
-
Weight: Approx. 10.8 lbs (4.9 kg)
-
Accessories Included: Rubber Sheet, EP Adapter, Dust Cover, Dust Cover Rubber Feet x2, Hinges x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner’s Manual with Warranty Card
TEAC TN-180BT-A3 Q&A
- Can I use Bluetooth headphones with this turntable?
- Yes, the TN-180BT-A3 has a built-in Bluetooth transmitter that lets you connect to any Bluetooth-enabled headphones or speakers.
- Does it support all vinyl sizes and speeds?
- It plays 33-1/3, 45, and 78 RPM records, including LPs, EPs, and SPs, with an auto-return feature for added convenience.
- Do I need a separate amplifier to use this turntable?
- No, thanks to the built-in phono equalizer and LINE output, it connects directly to powered speakers or standard audio systems.
- Is the cartridge replaceable?
- Yes, it comes with a pre-installed Audio-Technica AT3600L cartridge, and the stylus can be replaced with the ATN3600L.
- How do I pair Bluetooth devices?
- Simply press the BT pairing button on the turntable when your Bluetooth device is ready to connect. The button lights up when pairing is successful.
- What is the turntable made of?
- The cabinet is made of high-density MDF wood to reduce vibrations, unlike many plastic turntables in this range.
- Can I still use it with traditional stereo systems?
- Absolutely. It includes RCA outputs for both PHONO and LINE level, and even comes with an RCA cable.
- Is it beginner-friendly?
- Yes, it’s ready to play out of the box and is ideal for beginners with straightforward Bluetooth pairing and auto-return tonearm.
TEAC TN-180BT-A3 Downloads
TEAC TN-180BT-A3 Product Manual
