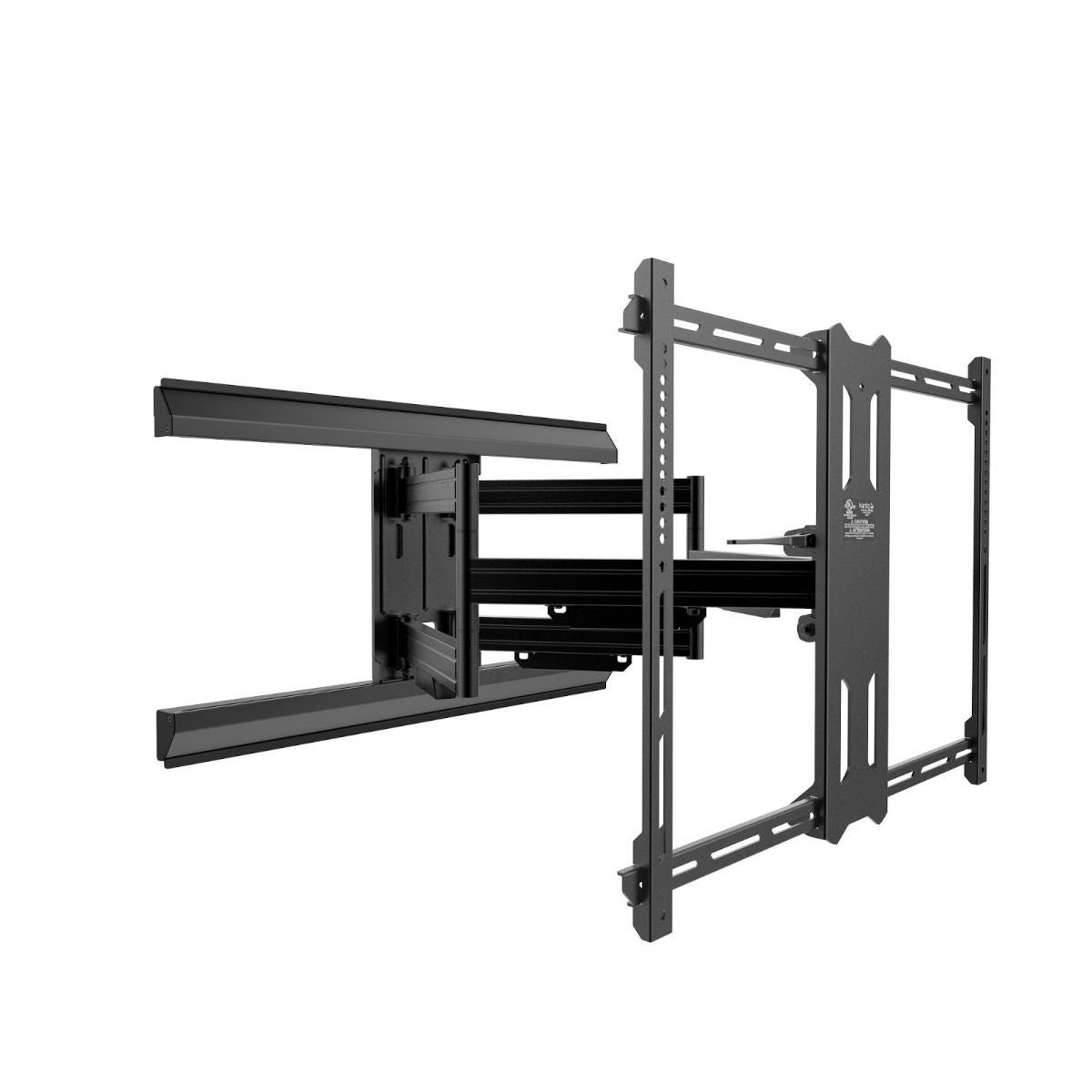

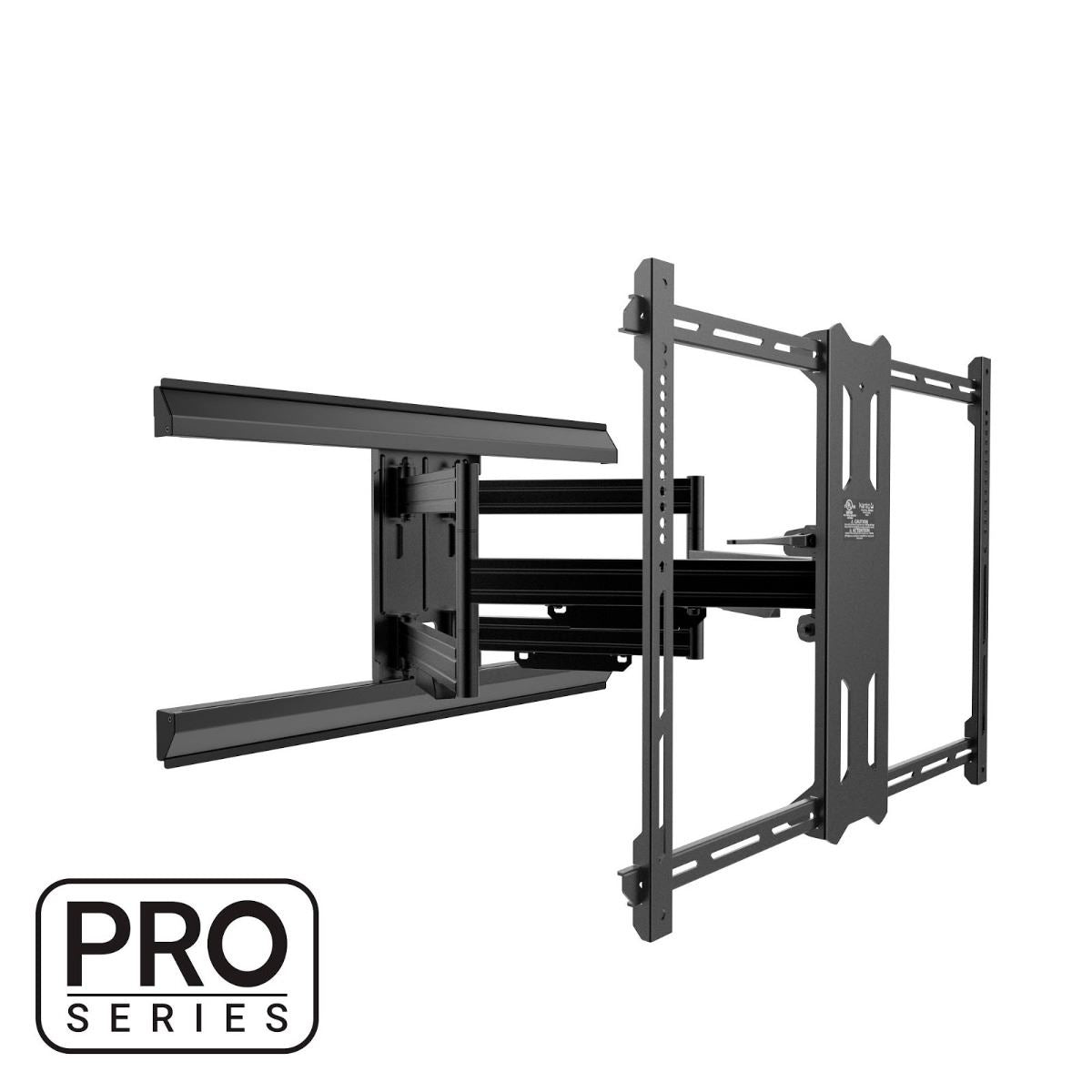

Kanto PMX700 Full Motion TV Mount – Pro Series
The Kanto PMX700 Full Motion TV Mount – Pro Series is built for large-screen flexibility, strength, and clean installation. Designed for most 50-inch to 100-inch flat-panel TVs, this articulating TV wall mount supports up to 150 lb and fits VESA patterns from 200x100 to 700x500. Its dual articulating arms extend up to 31.3 inches from the wall, retract to a low-profile 2.6 inches, and provide smooth tilt, swivel, horizontal offset, and leveling adjustments for an optimized viewing angle in living rooms, media rooms, conference spaces, and custom installations. With solid steel construction, integrated cable management, aluminum wall plate covers, included installation hardware, cULus certification, and a 10-year warranty, the PMX700 is a premium full-motion wall mount made for secure, polished big-screen setups.
What It's Good At:
- Supporting large 50-inch to 100-inch TVs up to 150 lb with a solid steel frame.
- Extending up to 31.3 inches to reach around fireplaces, recessed areas, or deep viewing positions.
- Creating flexible viewing angles with +12°/-3° tilt and up to 180° swivel depending on TV size.
- Centering the TV even when wall studs are not perfectly positioned, thanks to 22 inches of total horizontal offset.
- Keeping installations clean with integrated cable management and aluminum covers that conceal lag bolts.
- Simplifying setup with a paper wall template, installation manual, and hardware for wood stud or concrete installation.
Kanto PMX700 Full Motion TV Mount – Pro Series Full Specifications:
- Model: PMX700
- Product Type: Full Motion TV Mount
- Series: Pro Series
- Mount Style: Full-motion dual-stud articulating wall mount
- Compatible TV Sizes: 50" to 100"
- Compatible TV Size Range: 106 cm to 254 cm
- Maximum Weight Capacity: 150 lb
- Maximum Weight Capacity: 68 kg

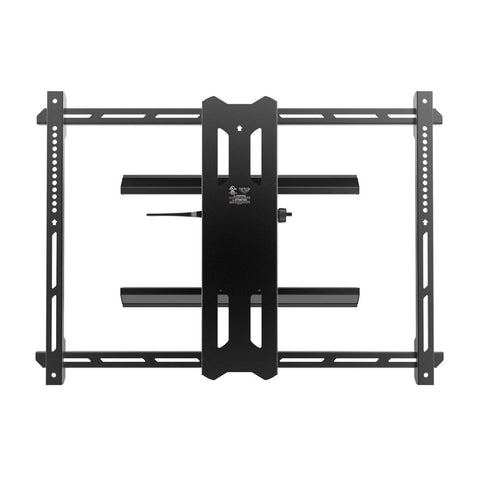

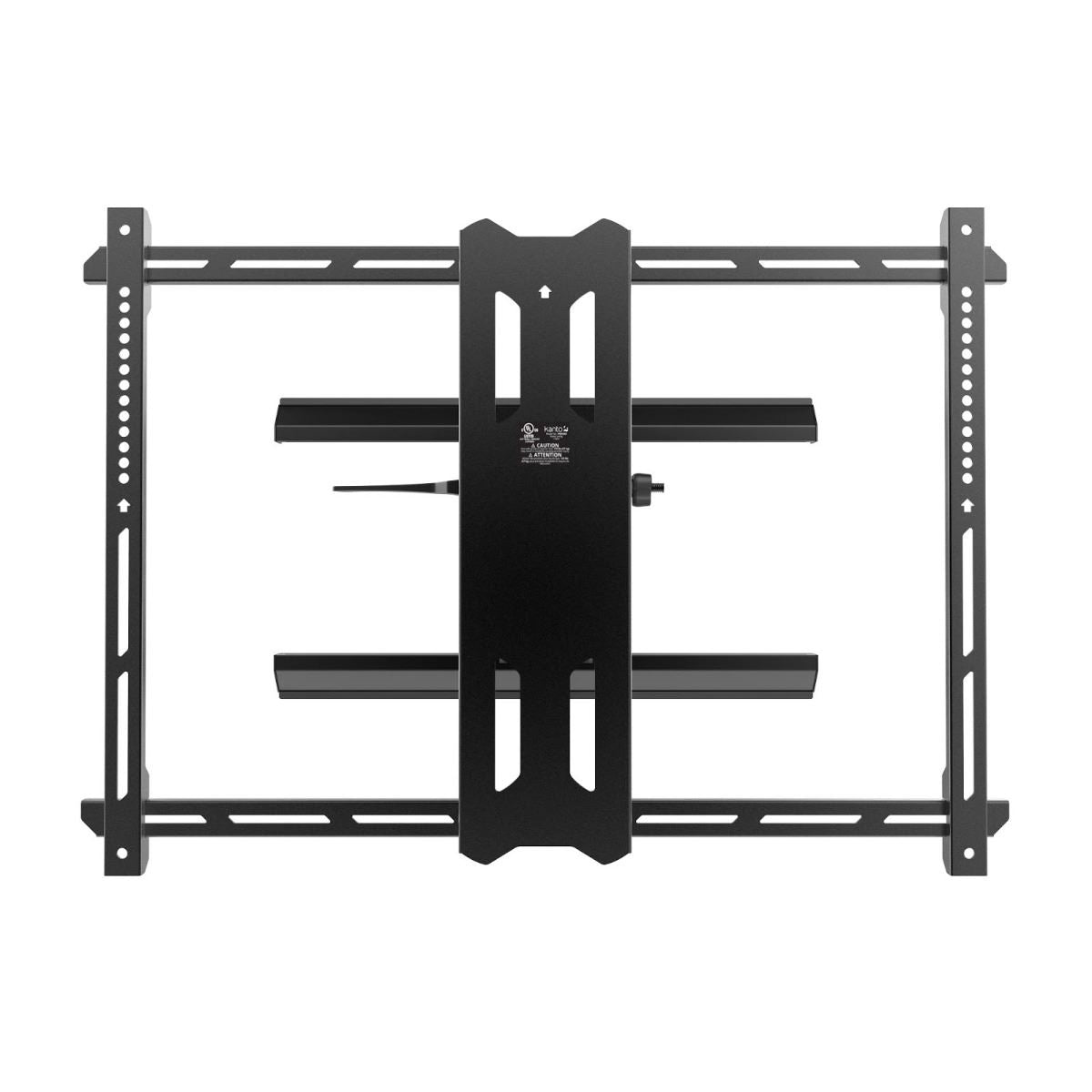

- VESA Compatibility: 200x100 to 700x500
- Horizontal VESA Range: 200 mm to 700 mm
- Vertical VESA Range: 100 mm to 500 mm

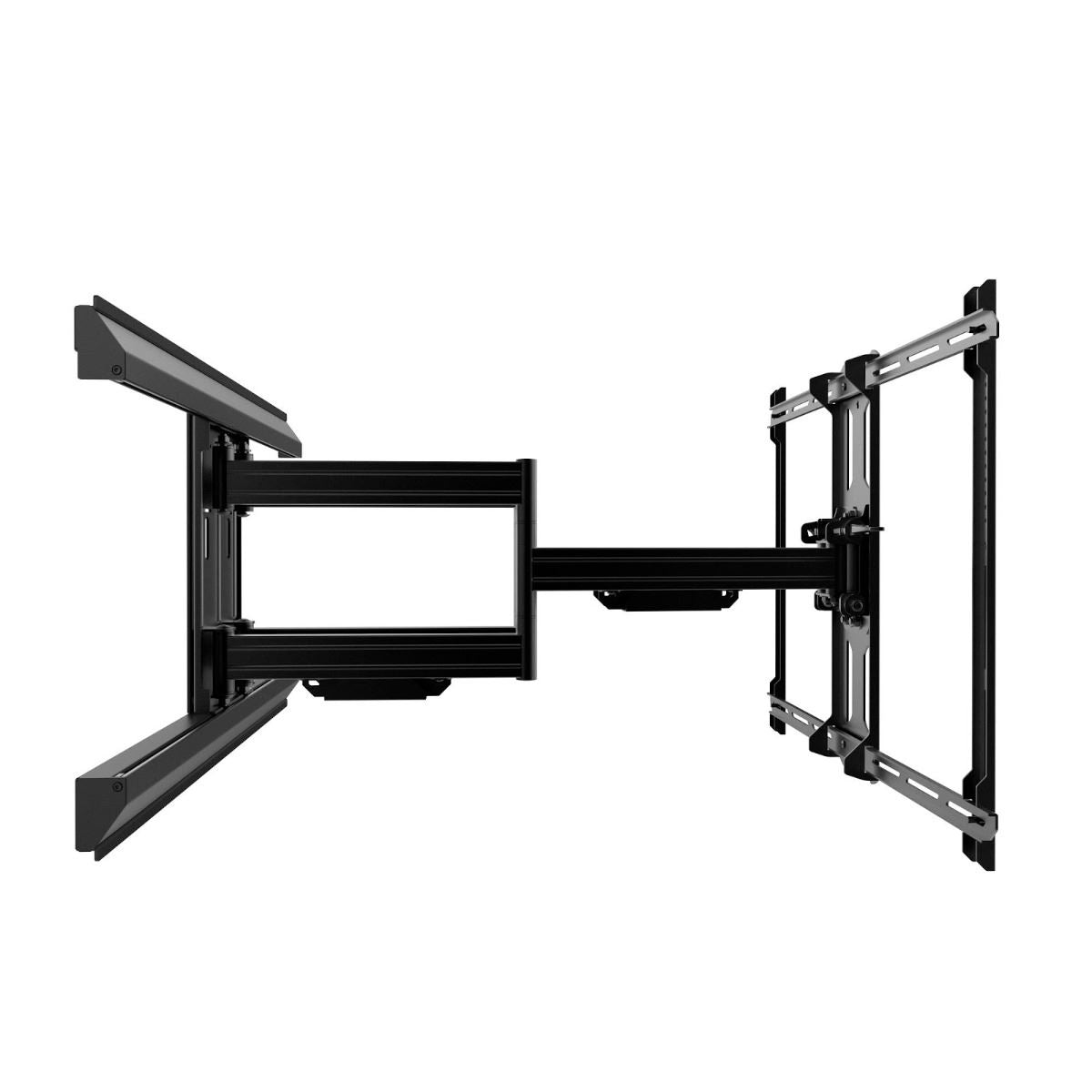

- Extension Range: 2.6" to 31.3"
- Extension Range: 6.6 cm to 79.5 cm
- Low-Profile Depth: 2.6" from wall when fully retracted
- Maximum Extension: 31.3" from wall
- Tilt Range: +12° to -3°
- Total Tilt Range: 15°
- Swivel Range: Up to 180° at full extension with a 50" TV
- Swivel Direction: Up to 90° left or right depending on screen size
- Horizontal Offset: +/- 11"
- Total Horizontal Offset: 22"
- Horizontal Offset: +/- 27.9 cm
- Adjustable Horizontal Leveling: Yes

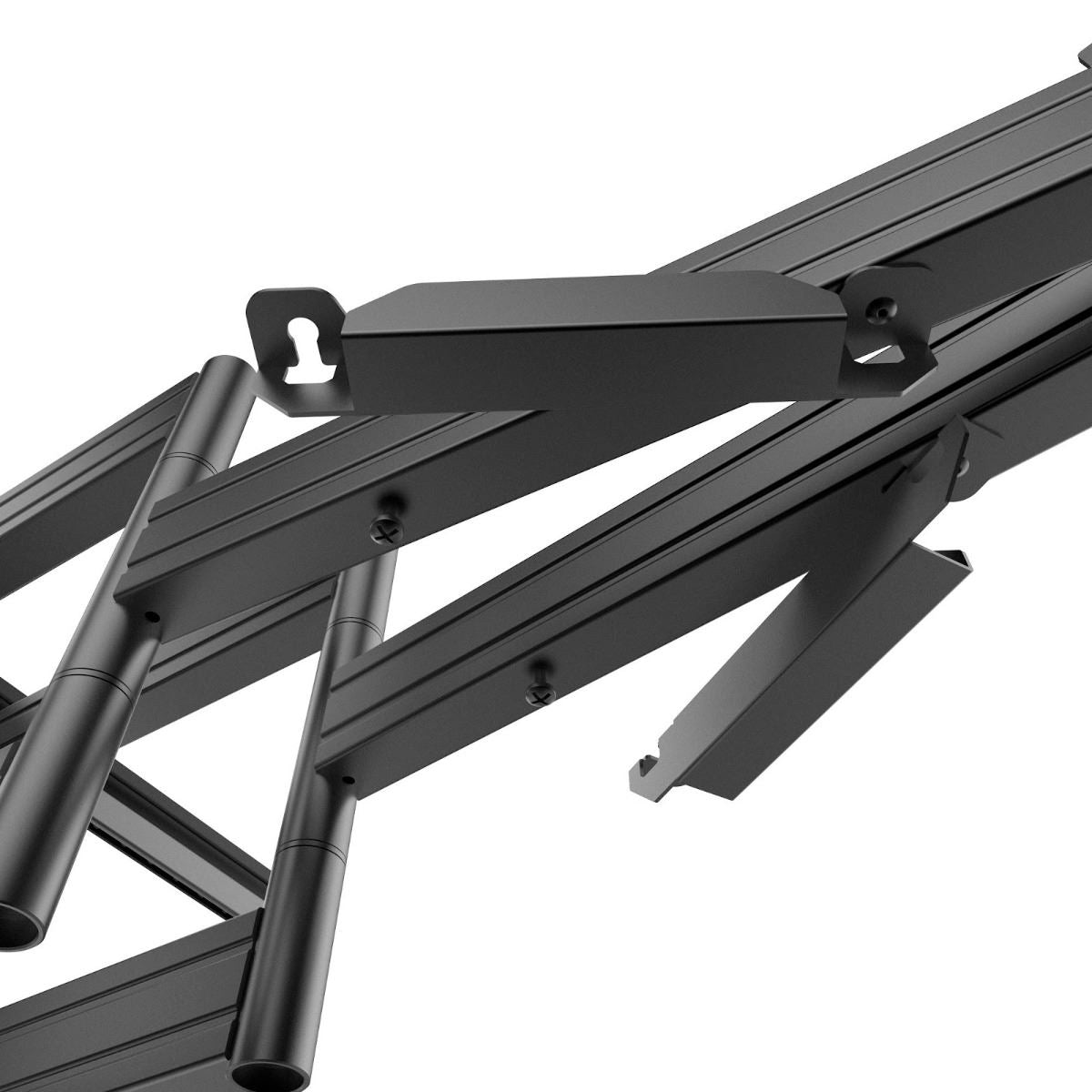

- Cable Management: Integrated cable management with cable raceways/clips
- Arm Design: Dual articulating arms / wishbone-style arms
- Wall Plate Width: 32.4"
- Wall Plate Width: 82.3 cm
- Stud Compatibility: Dual-stud installation with up to 24" stud spacing
- Standard Stud Spacing Support: 16" and up to 24"
- Construction: Solid steel
- Finish: Durable powder-coated finish

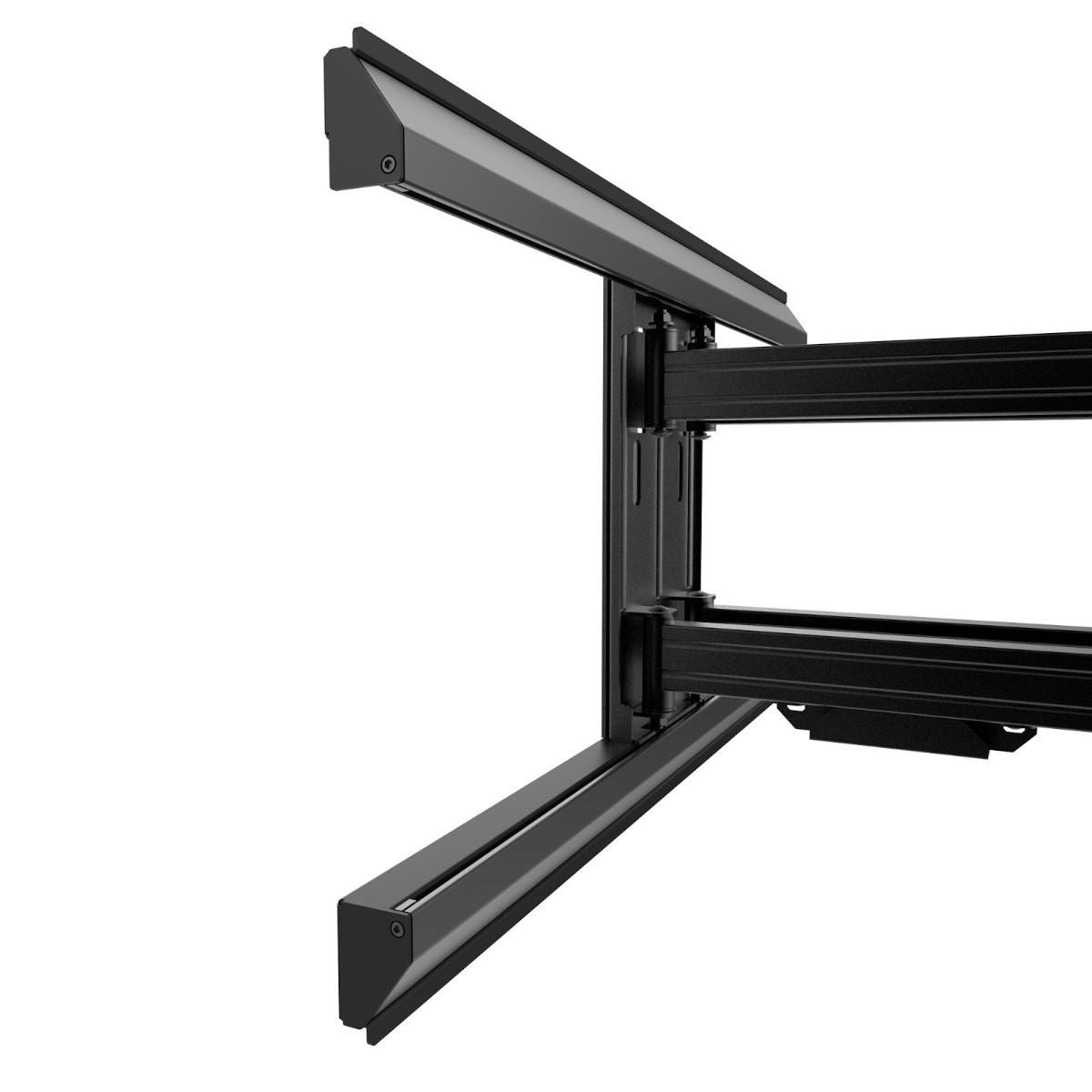

- Covers: Aluminum wall plate covers to hide lag bolts
- Certification: cULus Certified
- Warranty: 10 years
- Product Weight: 44.5 lb
- Product Weight: 20.2 kg
- Shipping Box Weight: 56 lb
- Shipping Box Weight: 25.4 kg
- Shipping Box Dimensions: 40" x 20.9" x 4.8"
- Shipping Box Dimensions: 101.5 x 53.2 x 12.3 cm
- UPC: 800152716640
- Included: Paper wall template for marking pilot holes
- Included: Installation manual
- Included: Mounting hardware for wood stud and concrete installation
- Included: TV mounting screws, washers, spacers, lag bolts, and concrete anchors
- Required Tools: Socket set, Phillips screwdriver, pencil, level, measuring tape, drill
- Required Wood Stud Tools: Stud finder and 1/4" wood bit
- Required Concrete Tools: Hammer and 5/8" masonry bit
- Installation Surface: Vertical surface only
- Supported Wall Types: Wood stud wall and concrete wall
- Not Recommended For: Steel stud walls or cinder block walls
- Wall Strength Requirement: Wall must support more than 5 times the combined weight of the TV and mount
- Concrete/Brick Requirement: Concrete or brick wall must be at least 4" thick
- Concrete Density Requirement: Concrete must be at least 2000 psi
- Concrete Installation Note: Concrete anchors must not be used in drywall or wood stud walls
Kanto PMX700 Full Motion TV Mount – Pro Series Q&A:
- What size TVs does the Kanto PMX700 support?
- The PMX700 is designed for most flat-panel TVs from 50 inches to 100 inches and supports up to 150 lb.
- What VESA patterns are compatible with the PMX700?
- This mount supports VESA patterns from 200x100 to 700x500, making it compatible with a wide range of large TVs.
- How far does the PMX700 extend from the wall?
- The mount extends up to 31.3 inches from the wall and retracts to a low-profile 2.6 inches when pushed back.
- Can this mount swivel and tilt?
- Yes. The PMX700 offers +12° to -3° tilt and up to 180° of swivel at full extension with a 50-inch TV, depending on screen size.
- Can the TV be centered if the studs are not perfectly positioned?
- Yes. The arm assembly can be shifted 11 inches left or right for 22 inches of total horizontal offset, helping center the TV on the wall.
- Does the PMX700 include cable management?
- Yes. Integrated cable management raceways and clips help keep wires organized and hidden for a cleaner installation.
- What wall types can the PMX700 be installed on?
- The mount includes hardware for wood stud and concrete installation. It should not be installed on steel stud walls or cinder block walls.
- What comes in the box?
- The PMX700 includes the mount, paper wall template, installation manual, TV screws, spacers, washers, lag bolts, concrete anchors, and installation hardware for supported wall types.
