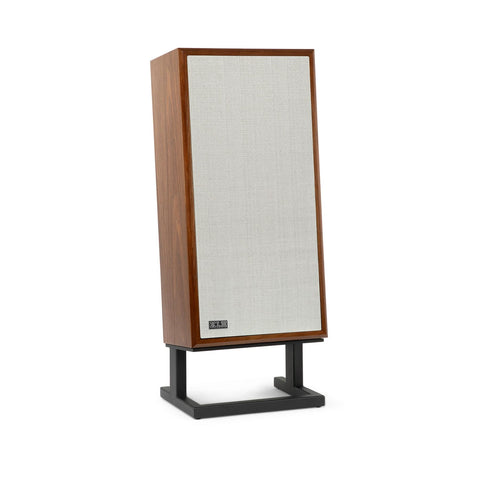

KLH Model Four Three-Way Acoustic Suspension Loudspeaker

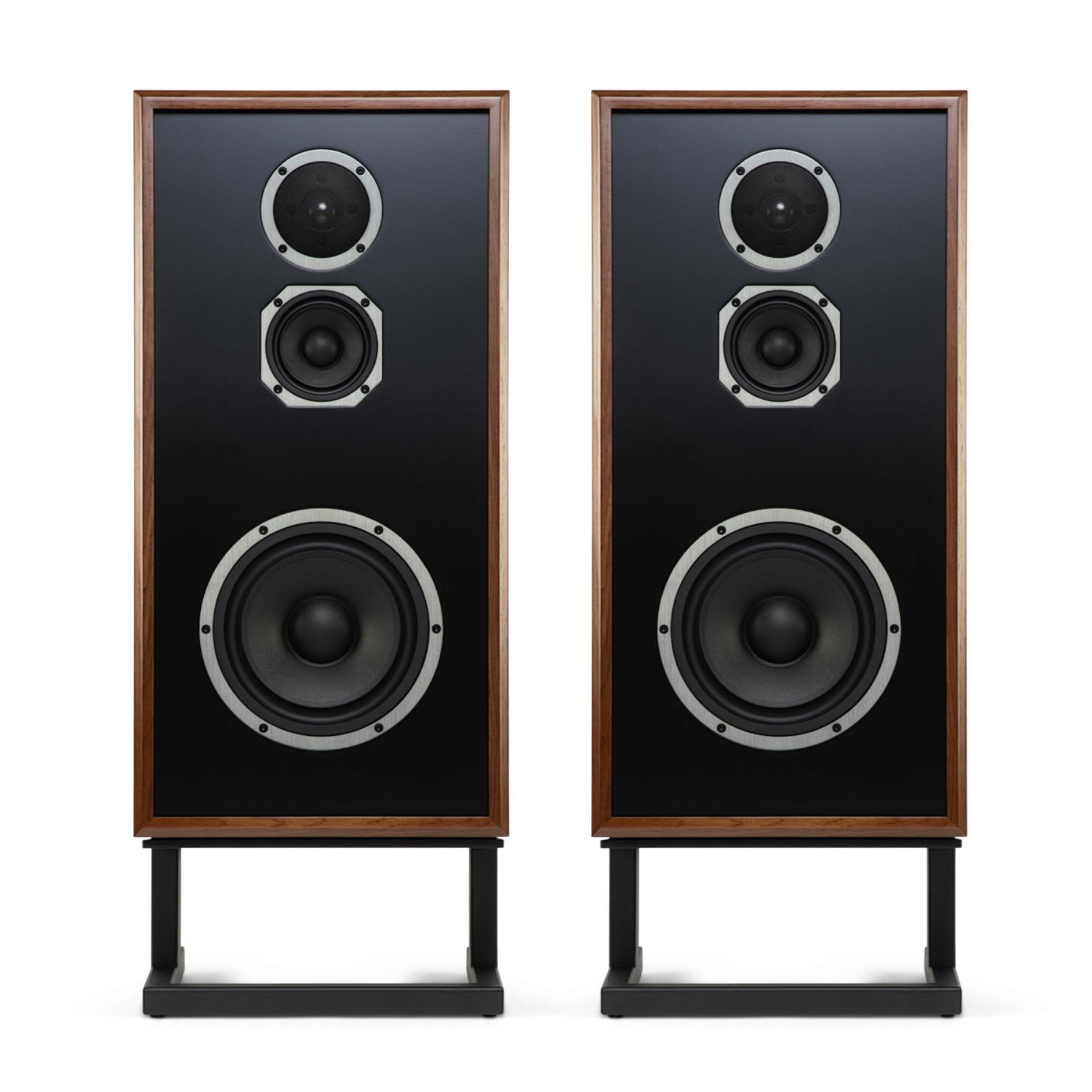

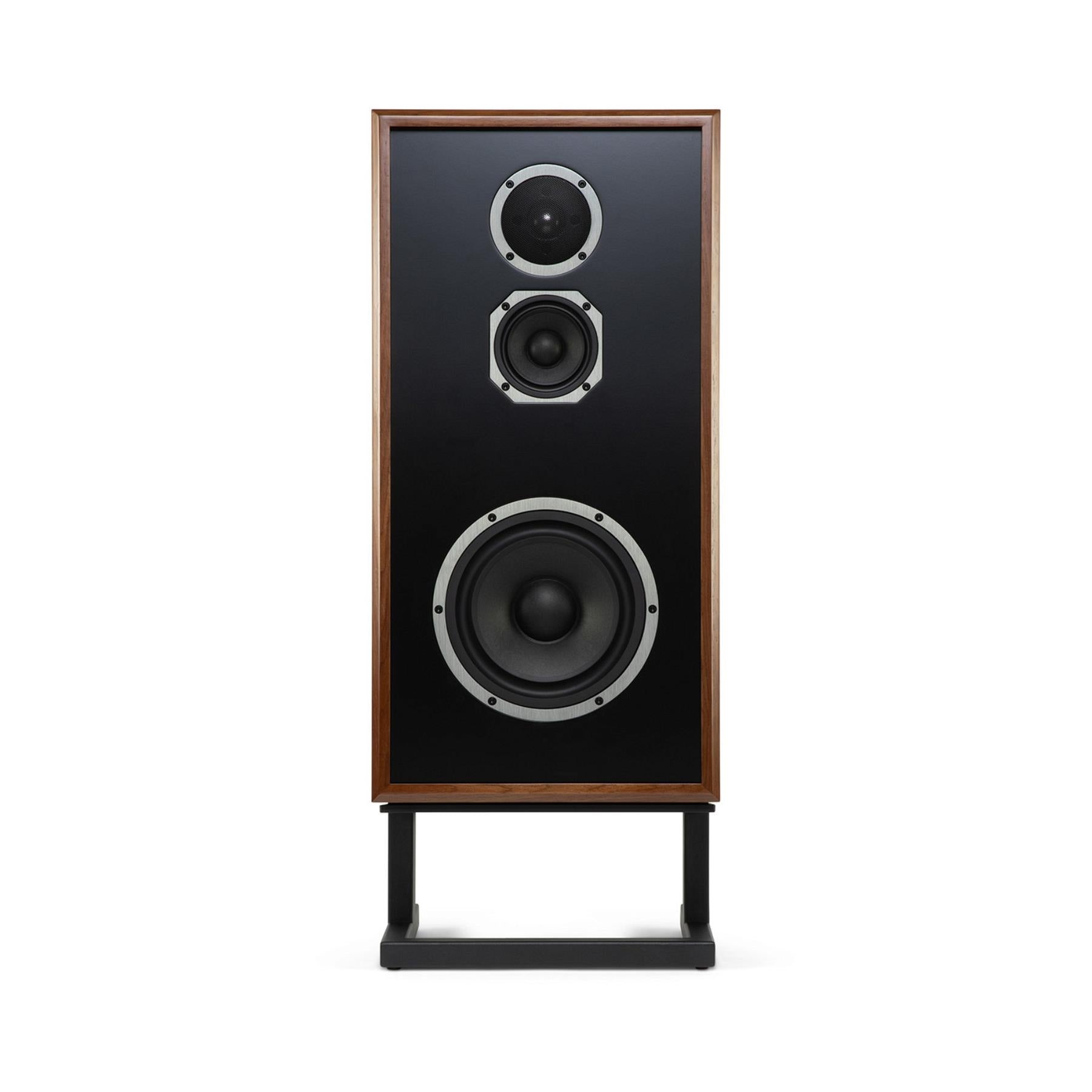

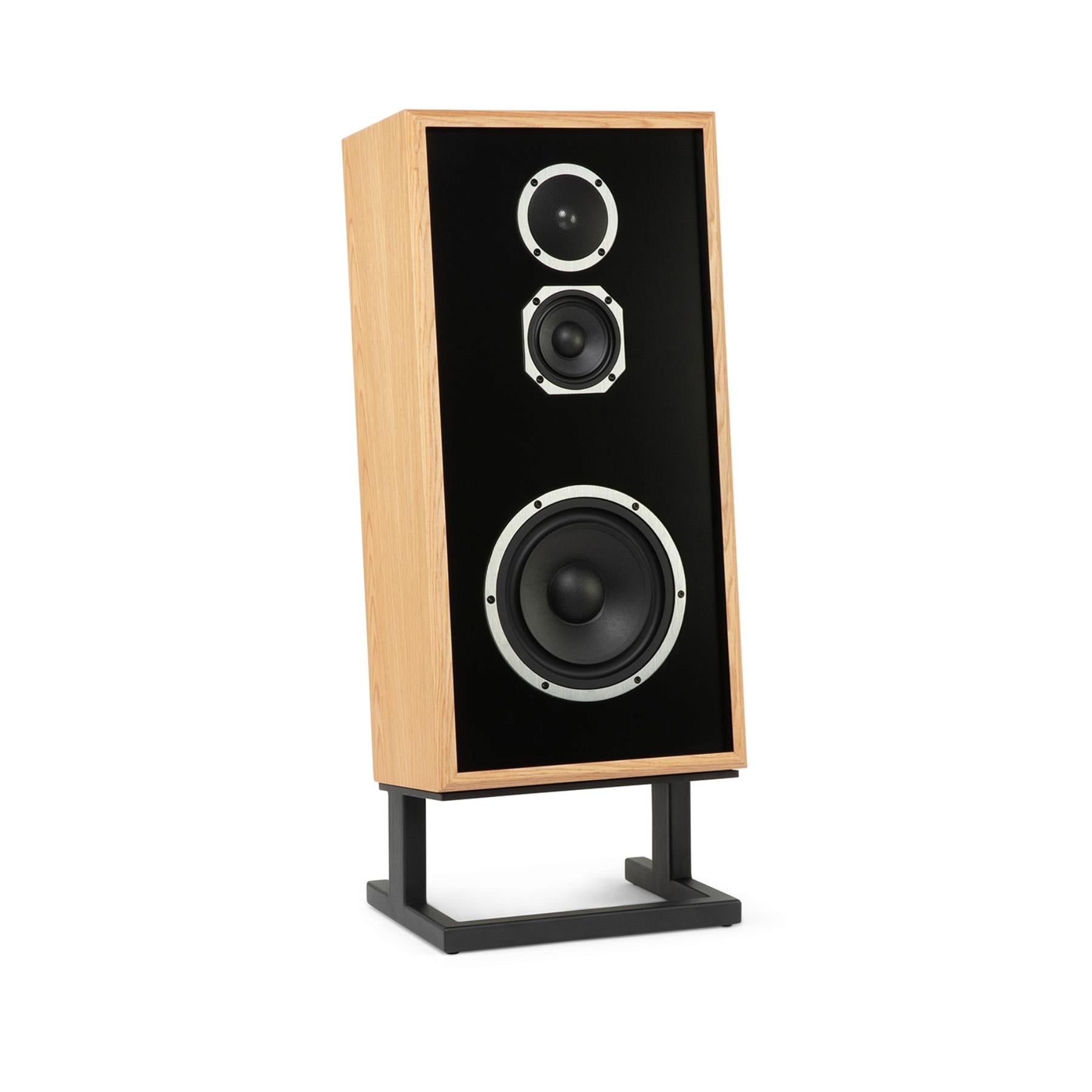

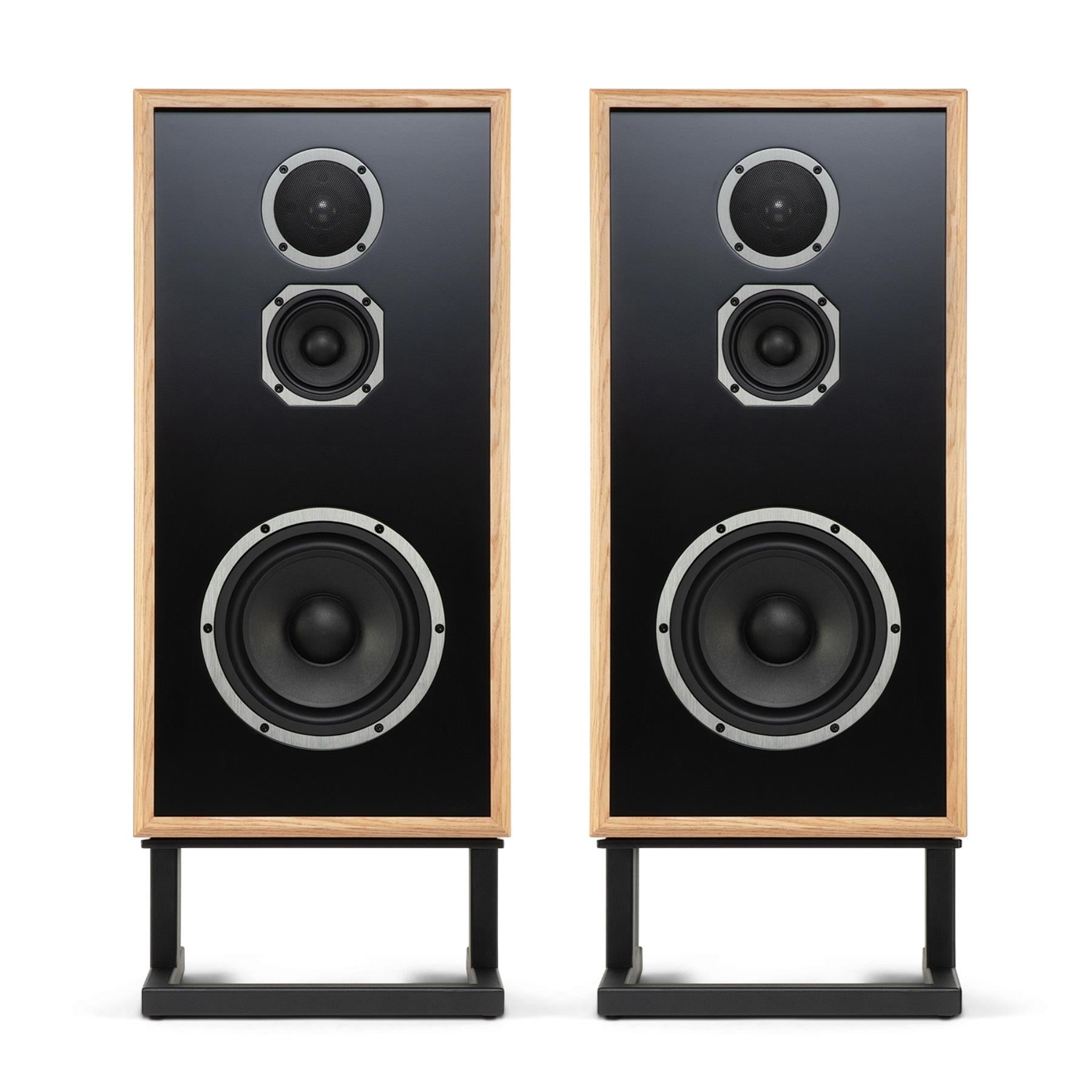

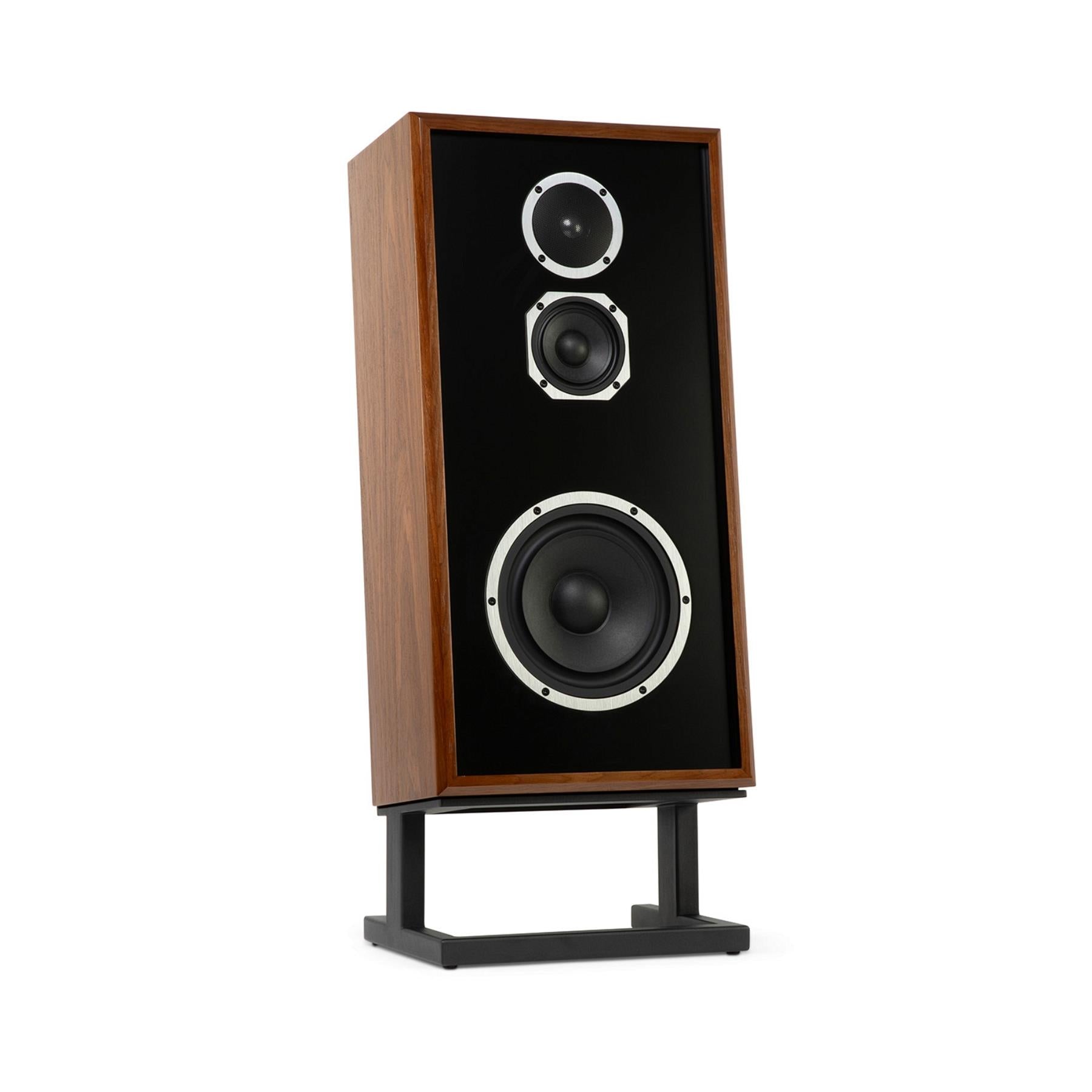

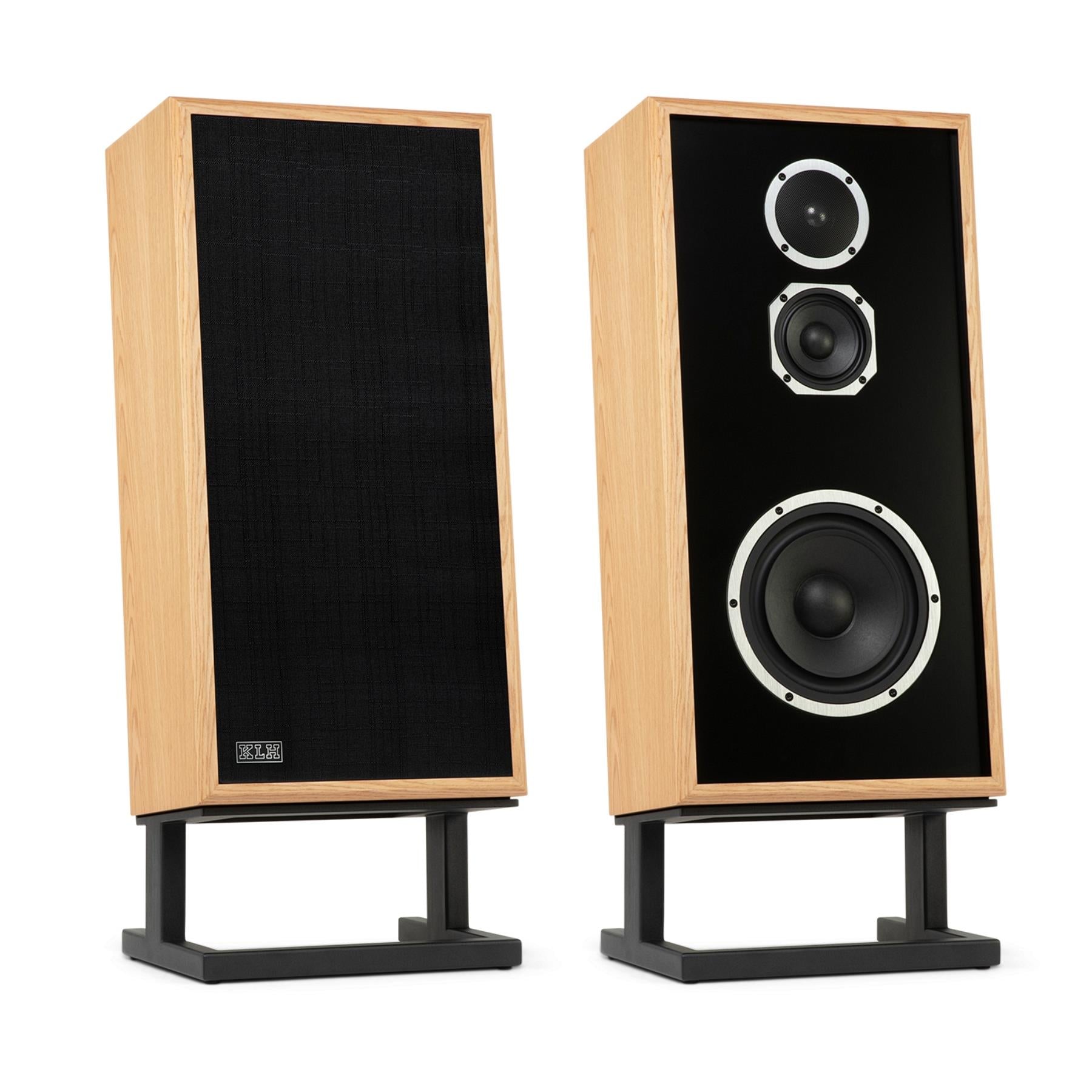

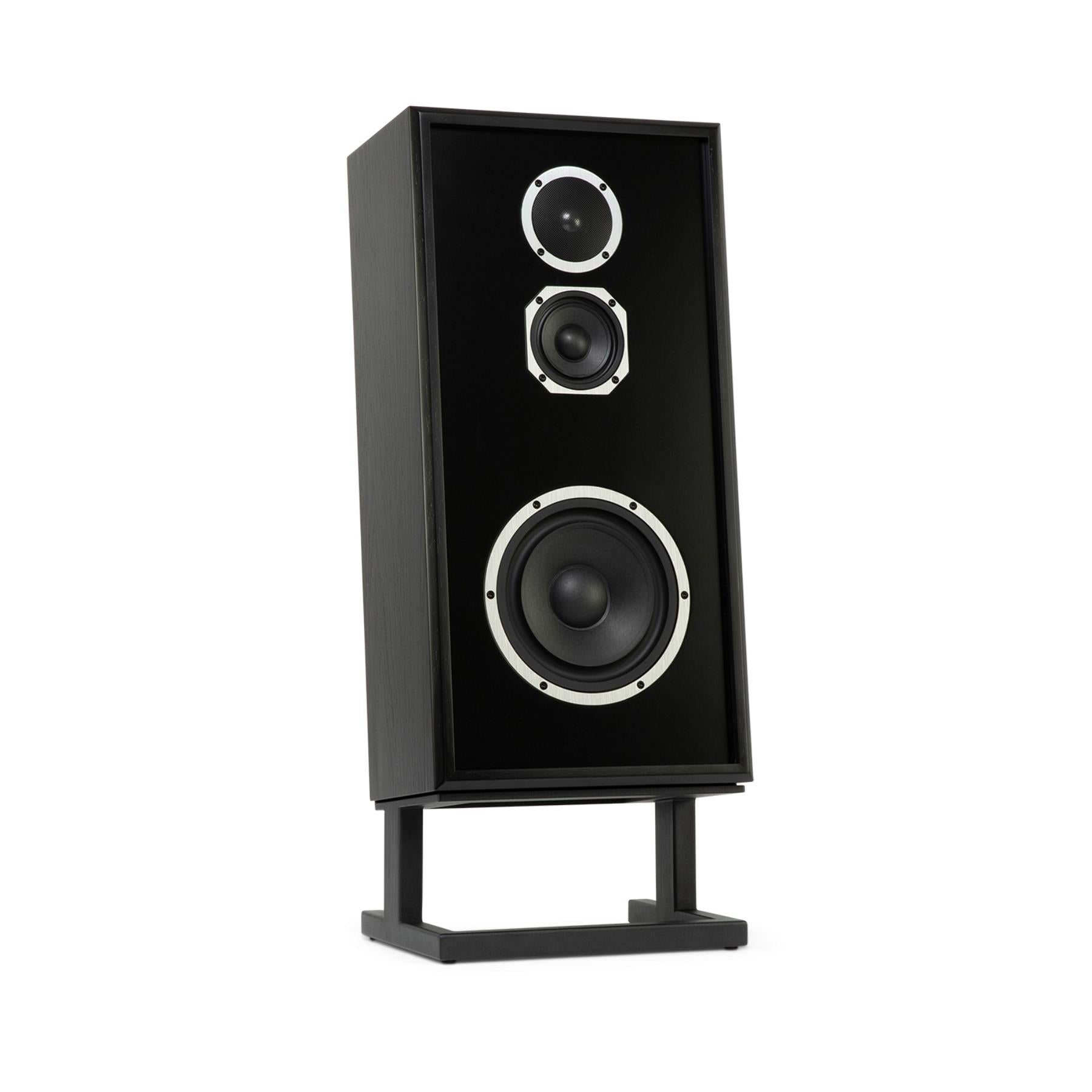

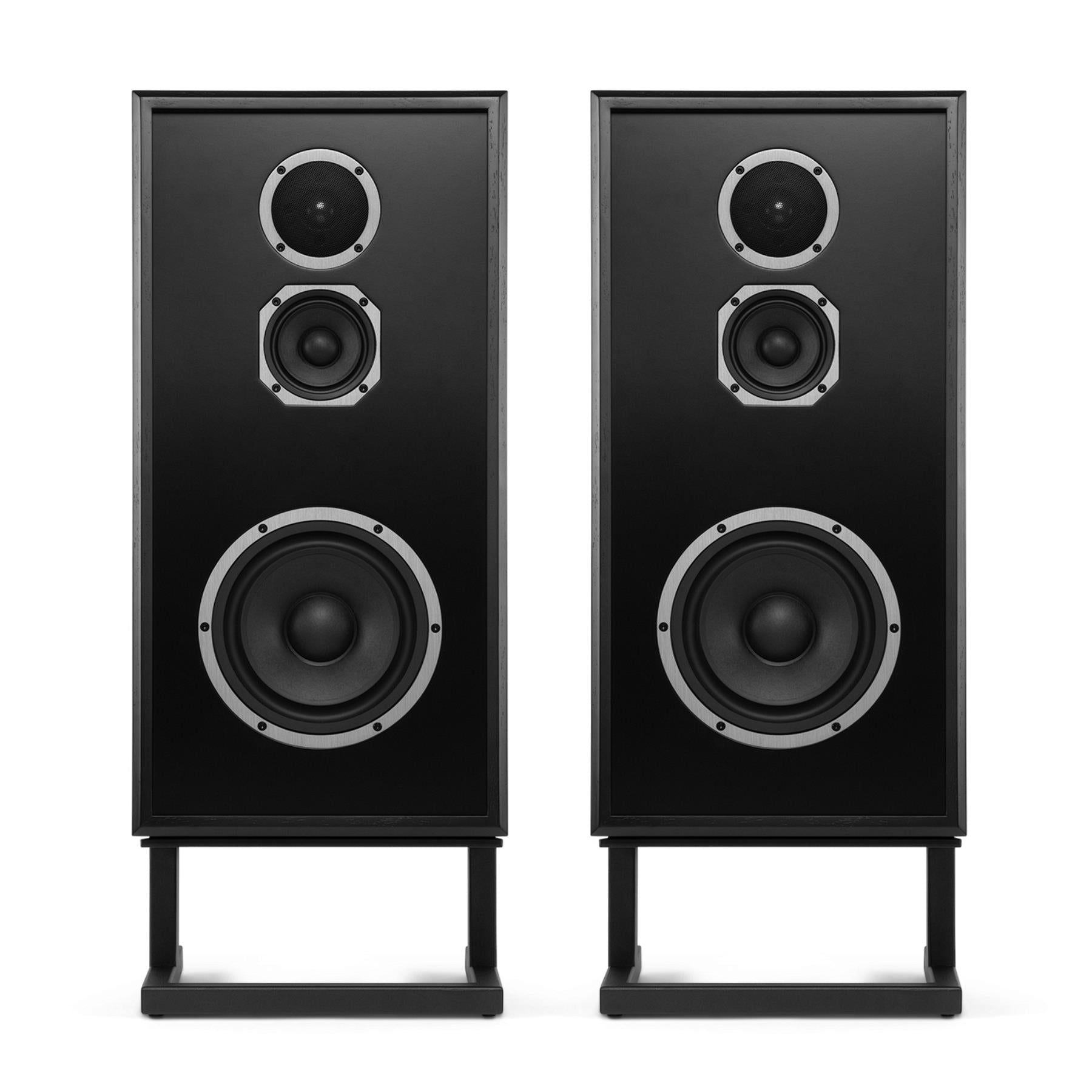

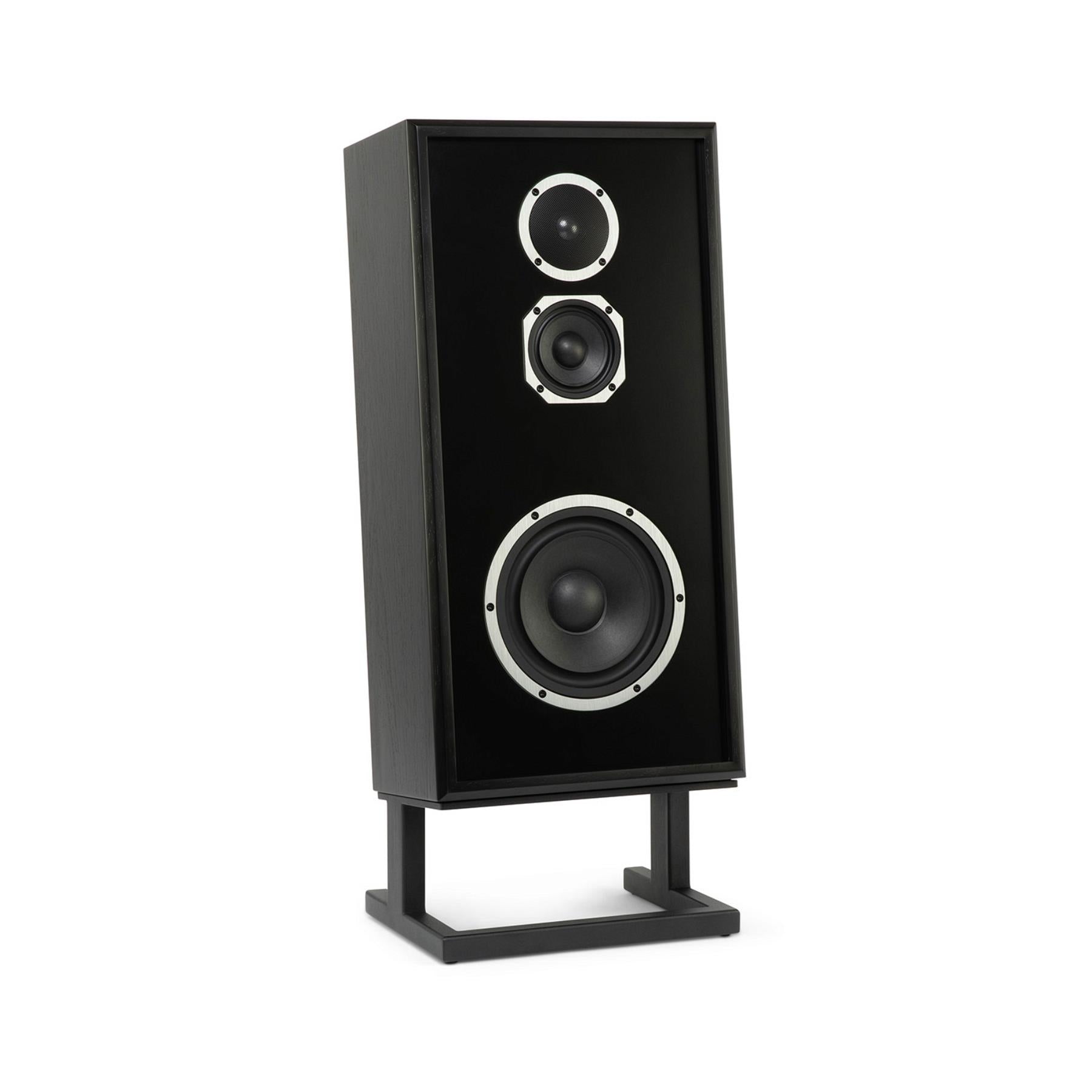

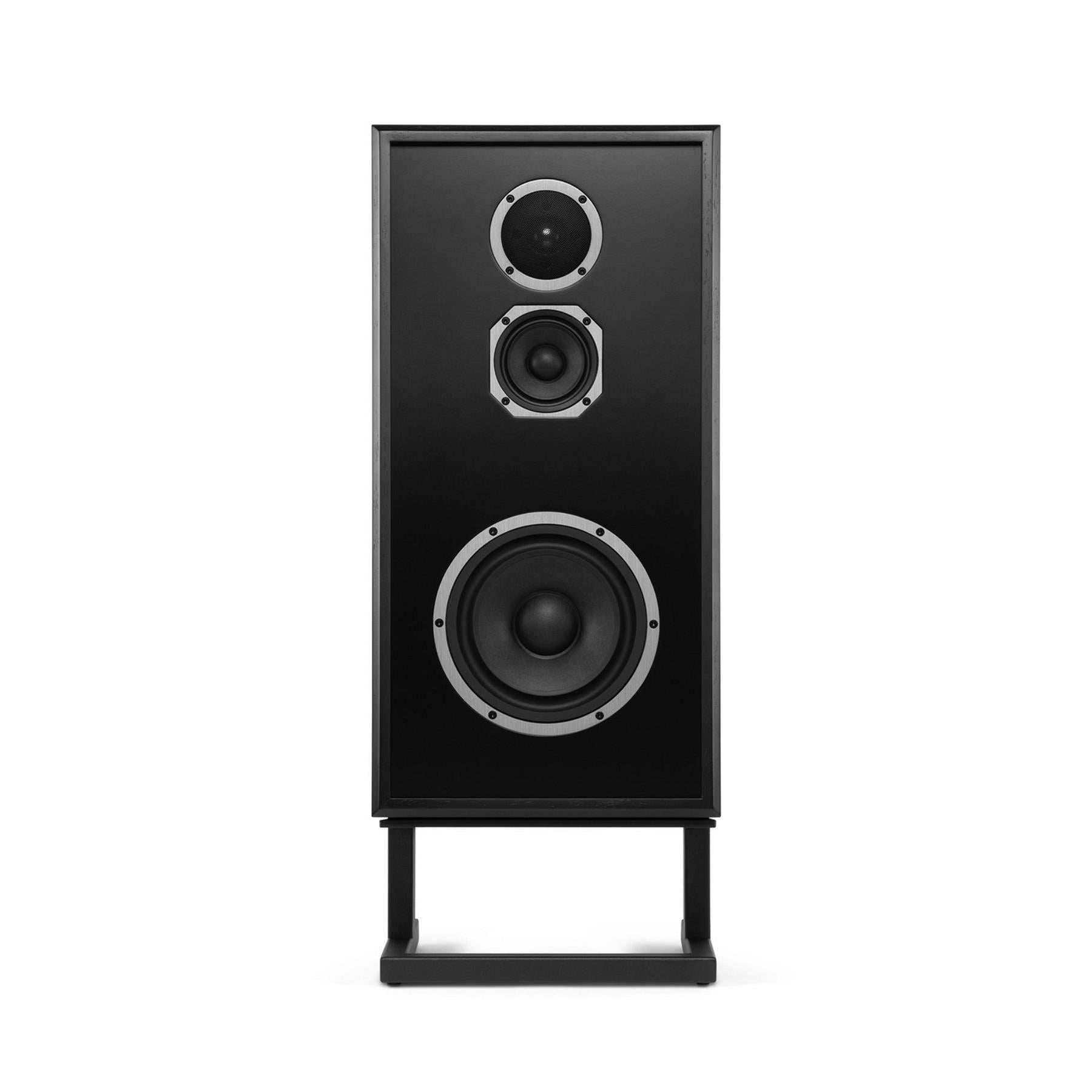

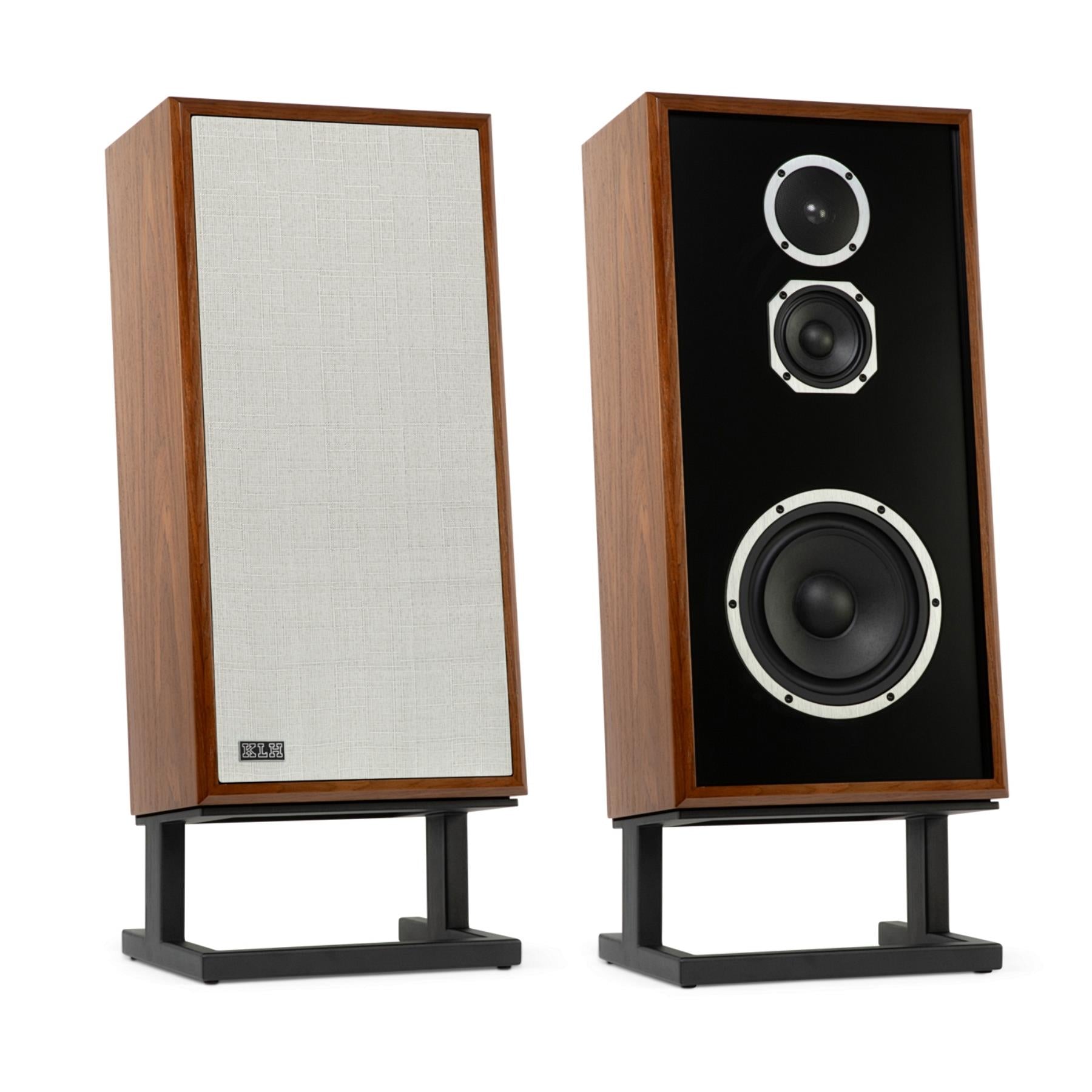

The KLH Model Four is a compact 3-way acoustic suspension floorstanding loudspeaker built for high-fidelity sound in real-world listening spaces. Designed to bridge the gap between the Model Three and Model Five, this premium KLH speaker combines an 8-inch pulp-paper cone woofer, a dedicated 4-inch midrange driver, and a 1-inch aluminum dome tweeter to deliver tight bass, natural vocals, detailed highs, and a full-range soundstage from a room-friendly cabinet.

With its shallow cabinet depth, 13-inch-wide front baffle, and included 6-degree riser base, the Model Four is ideal for apartments, condos, living rooms, listening rooms, and design-focused interiors where placement flexibility matters. KLH acoustic suspension technology helps produce accurate, controlled bass without relying on a ported enclosure, while the Three-Position Acoustic Balance Control lets listeners fine-tune the mid and high frequencies to match reflective, neutral, or heavily furnished rooms. Finished with mid-century modern styling, a magnetic grille, five-way gold-plated binding posts, and a structurally reinforced MDF enclosure, the KLH Model Four delivers serious stereo performance in a compact, elegant loudspeaker design.

What It's Good At:

• Room-friendly high-fidelity sound: Acoustic suspension design delivers controlled, accurate bass with flexible placement near walls or in tighter spaces.
• Balanced 3-way performance: Separate woofer, midrange, and tweeter drivers help create clean vocals, detailed highs, and dynamic full-range playback.

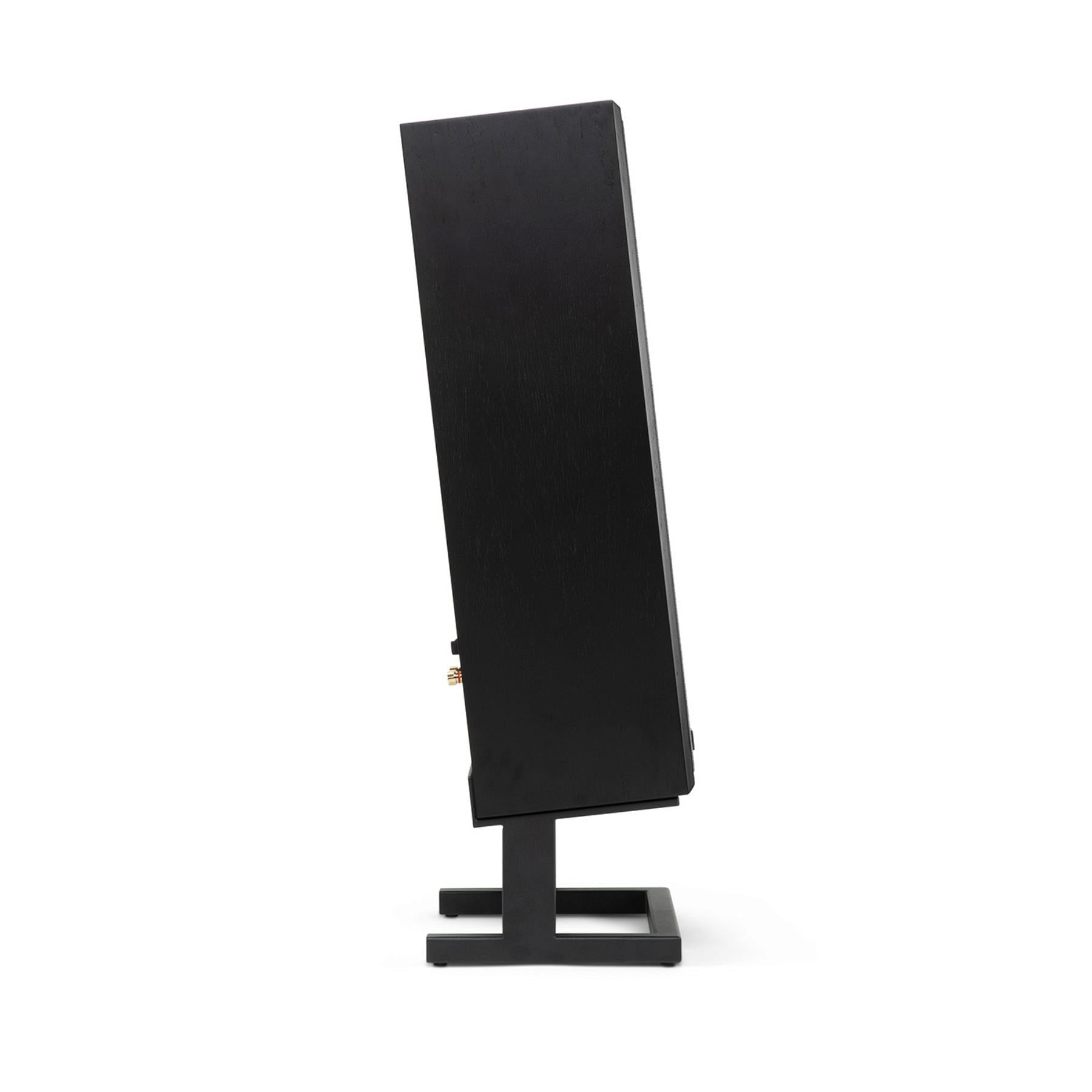

• Compact floorstanding design: A shallow cabinet and included 6-degree riser base provide a premium listening experience without a bulky footprint.
• Custom room tuning: Three-Position Acoustic Balance Control adjusts output above 400Hz for bright, neutral, or more absorptive rooms.
• Premium construction: Structurally reinforced ¾-inch and 1-inch MDF, gold-plated binding posts, and quality driver materials support long-term performance.
• Modern KLH heritage styling: Mid-century inspired design, finish options, and a magnetic grille make the Model Four easy to integrate into refined living spaces.

KLH Model Four Loudspeaker Full Specifications:

• Product Type: 3-Way 8-inch acoustic suspension loudspeaker
• Frequency Response: 46Hz – 20,000Hz +/- 3dB
• Low Frequency Extension: -10dB @ 35Hz
• In-Room Sensitivity: 88dB @ 2.83V / 1M
• Free-Field Sensitivity: 85dB @ 2.83V / 1M
• Power Handling: 150 Watts / 600 Watts Peak
• Recommended Amplification: 30 - 150 Watts
• In-Room Maximum SPL: 108dB
• Maximum Output @ 45Hz: 101dB
• Impedance: 6 Ohms, 3.5 ohm minimum @ 120Hz
• -6dB Horizontal Dispersion: 140 degrees

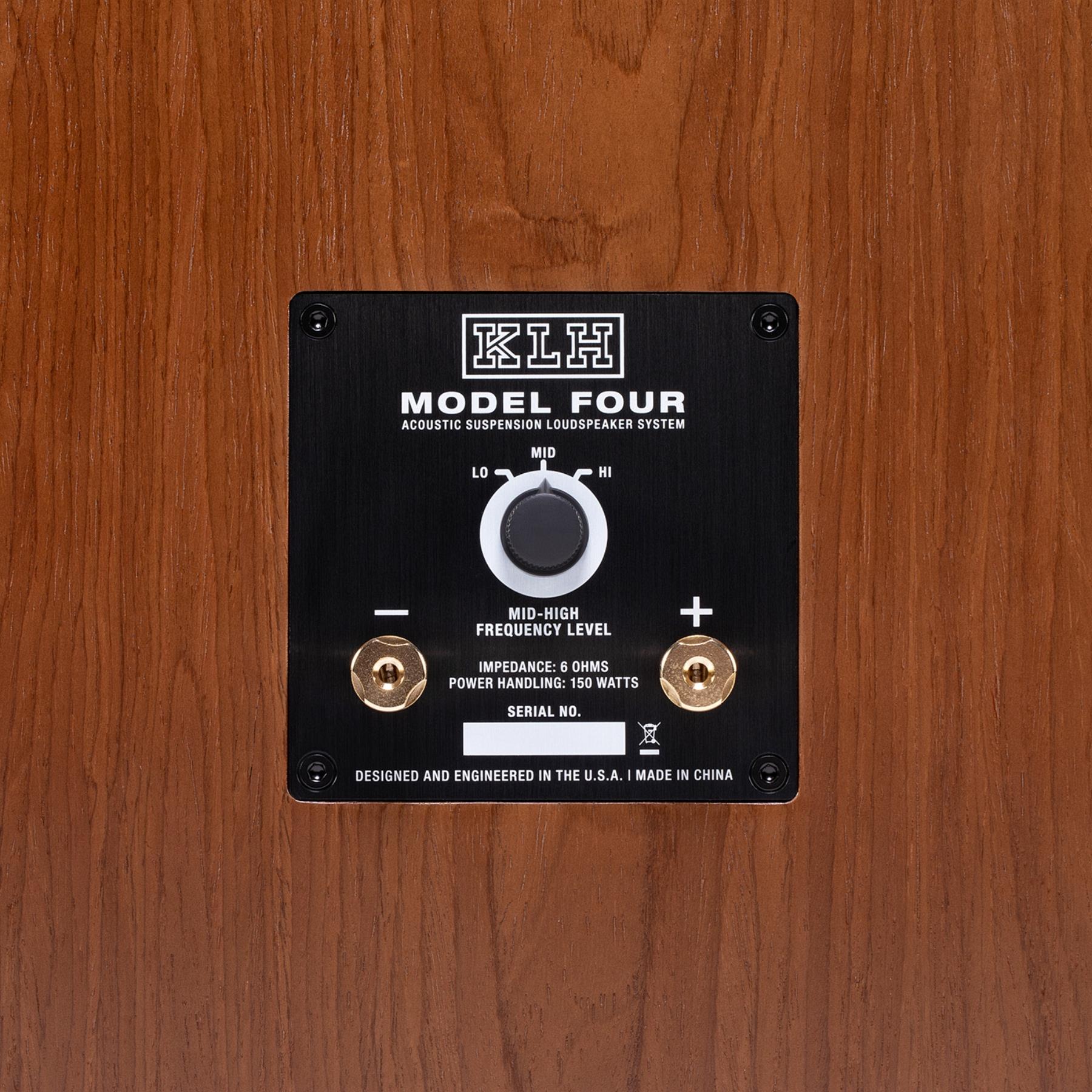

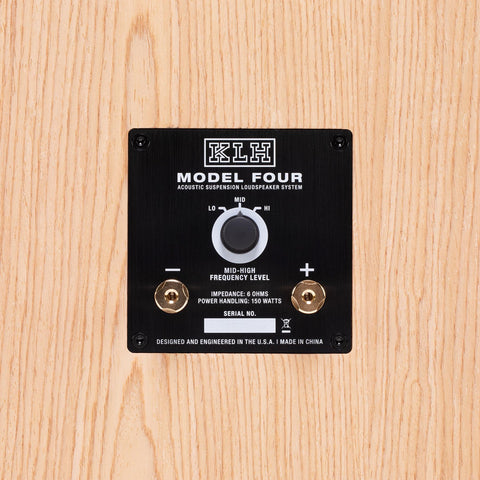

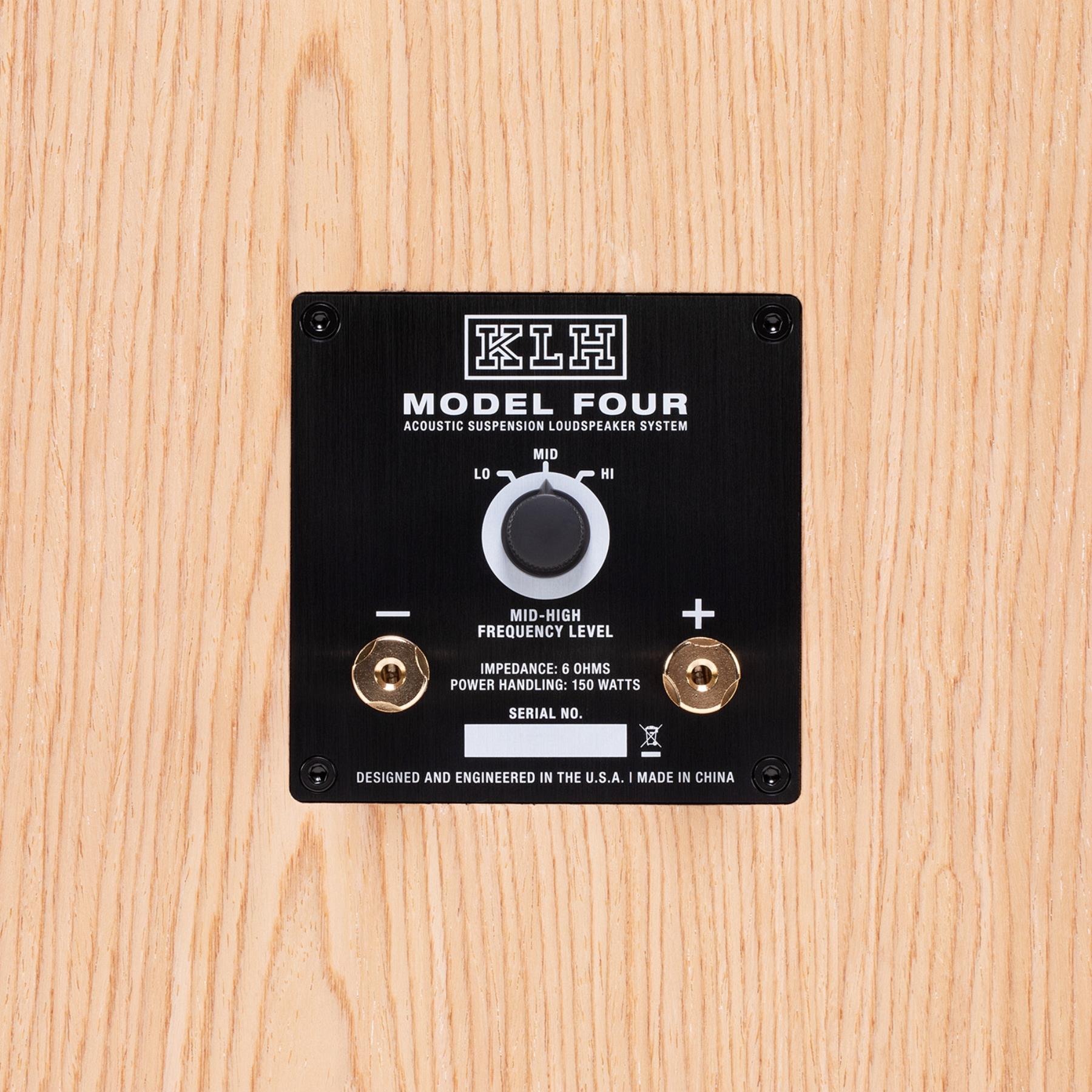

• Acoustic Balance Feature: Three-Position Acoustic Balance Control
• Acoustic Balance Control Range: Mid and high-frequency adjustment above 400Hz
• Acoustic Balance HI Setting: Best for neutral to dead rooms with carpeting, plush furniture, heavy drapery, or acoustic treatment
• Acoustic Balance MID Setting: Default setting; reduces output above 400Hz by 1.5dB for typical rooms with mixed hard and soft surfaces
• Acoustic Balance LO Setting: Reduces output above 400Hz by 3.0dB for reflective rooms with hard floors, large windows, and bare walls
• Crossover Frequency: MF: 380Hz, 2nd order electro-acoustic; HF: 2,500Hz, 2nd order electro-acoustic

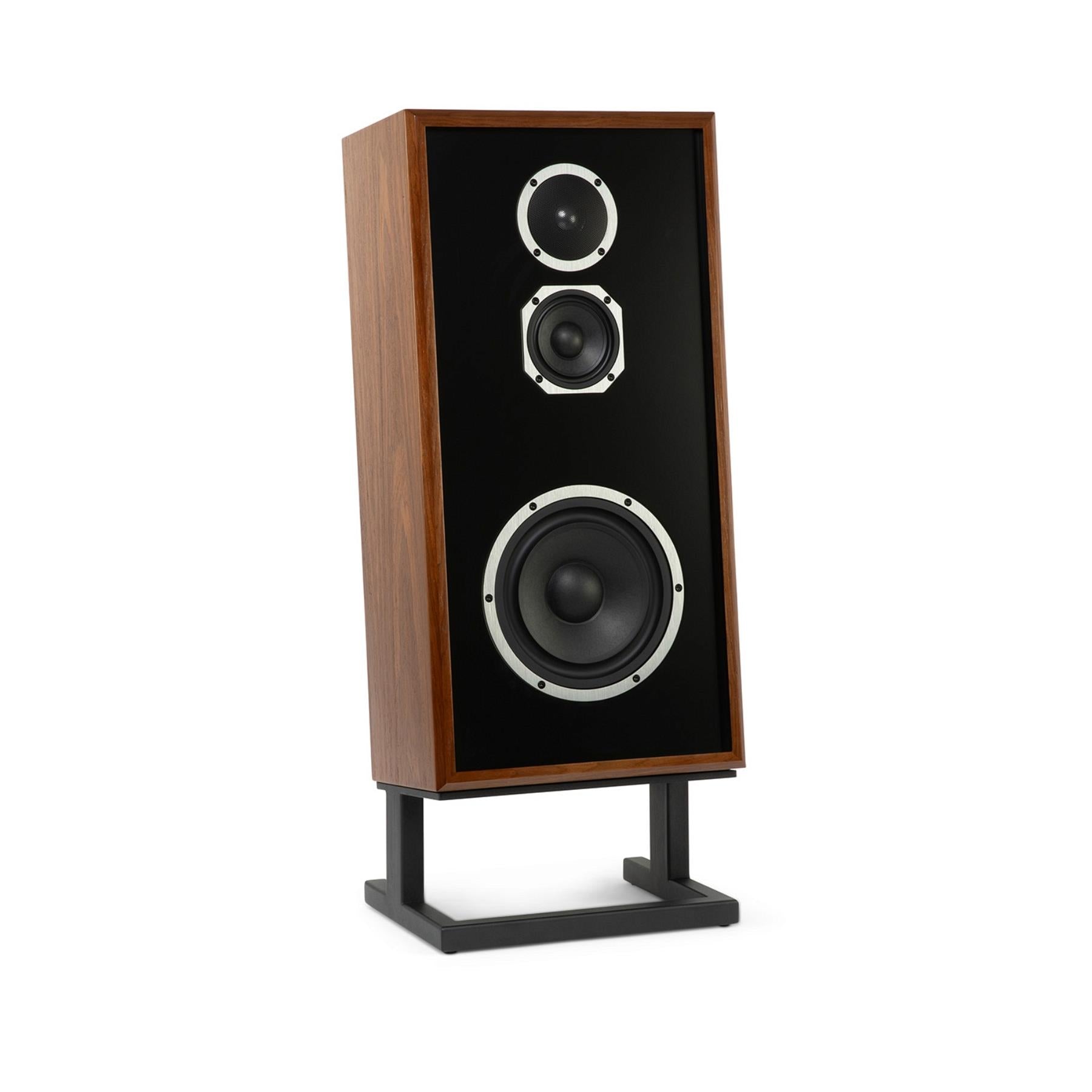

• High Frequency Driver: 1-inch aluminum dome with soft rubber surround
• Mid Frequency Driver: 4-inch pulp-paper cone with reverse roll rubber surround
• Low Frequency Driver: 8-inch pulp-paper cone with reverse roll rubber surround and 1.5-inch diameter flat-wire voice coil
• Enclosure Material: Structurally reinforced ¾-inch and 1-inch medium density fiberboard

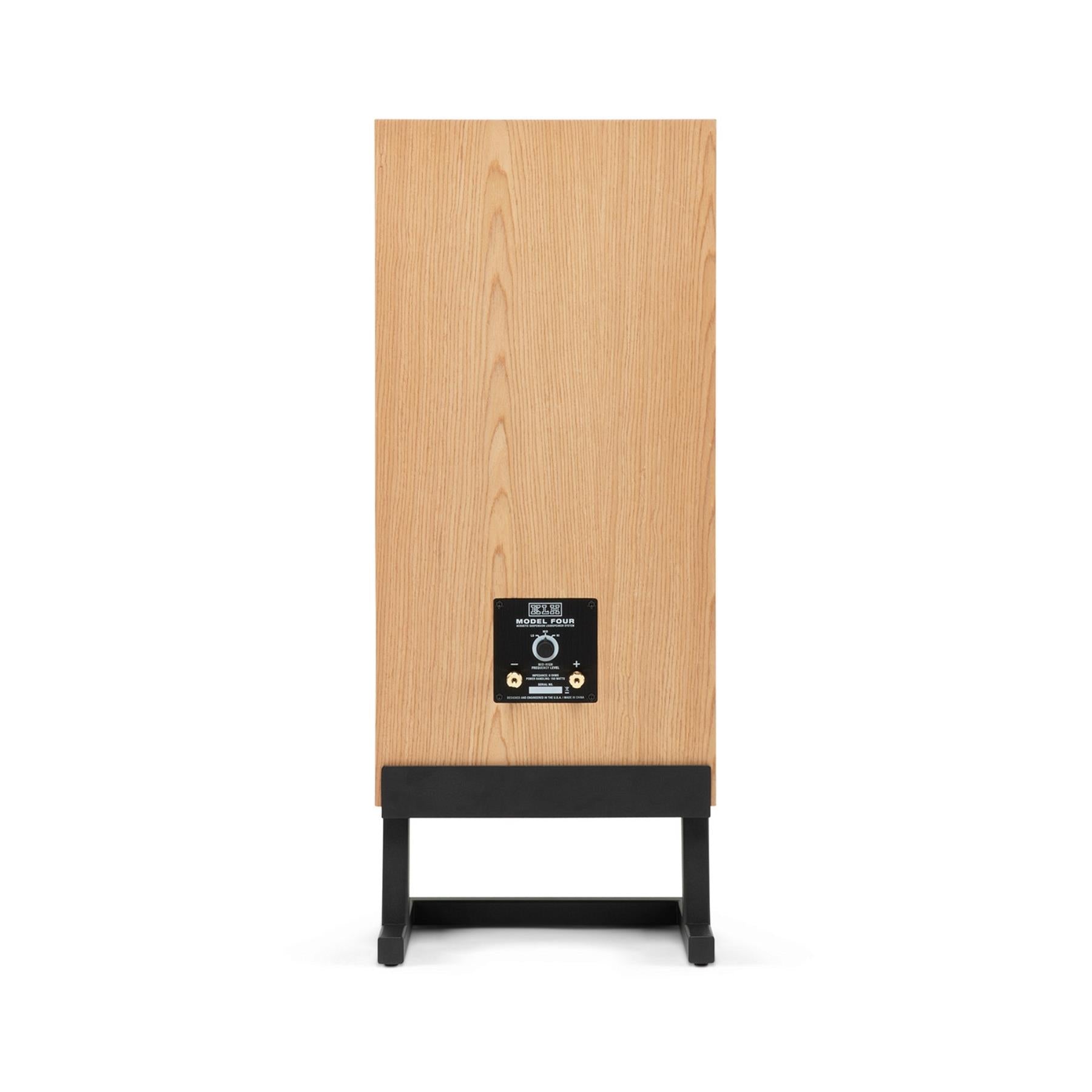

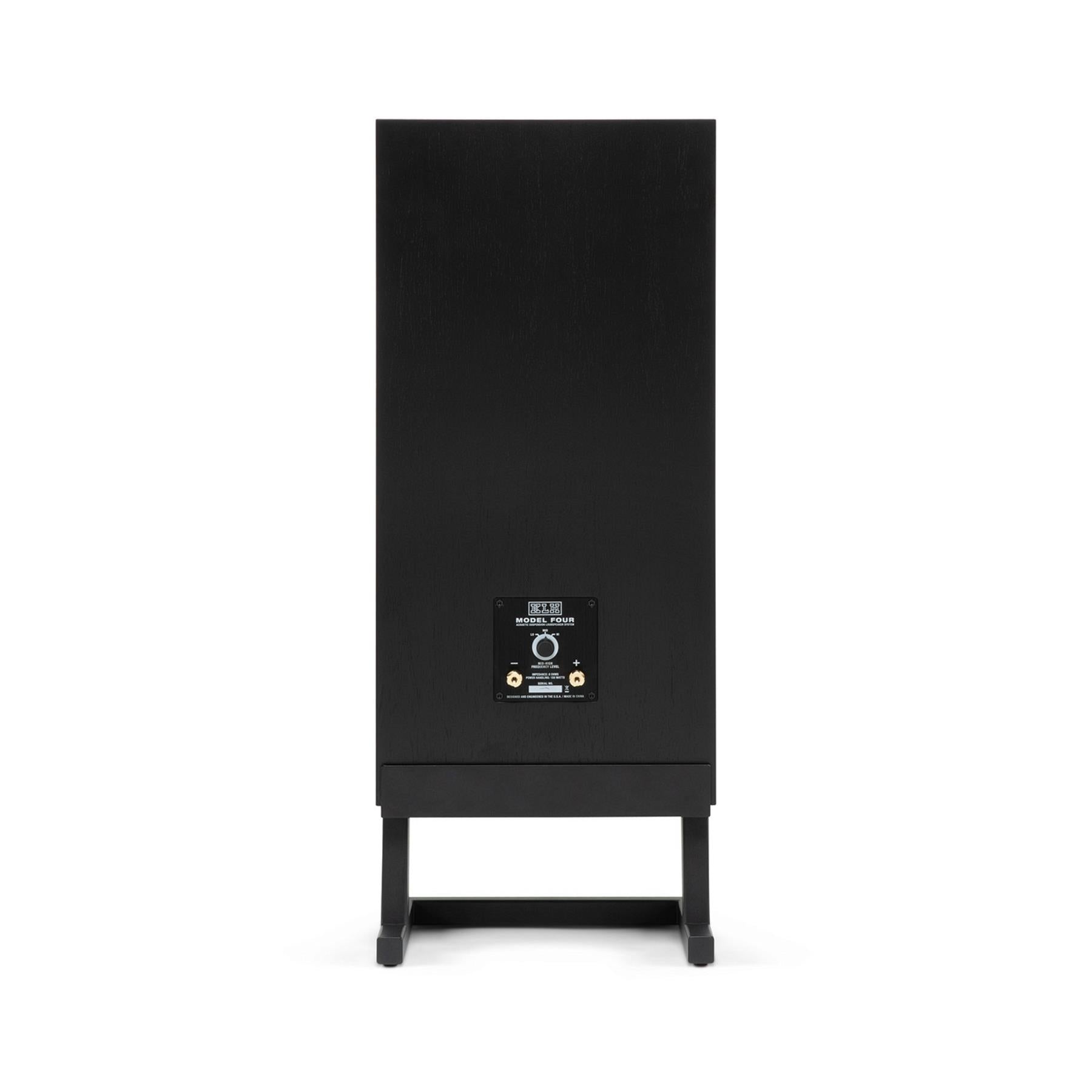

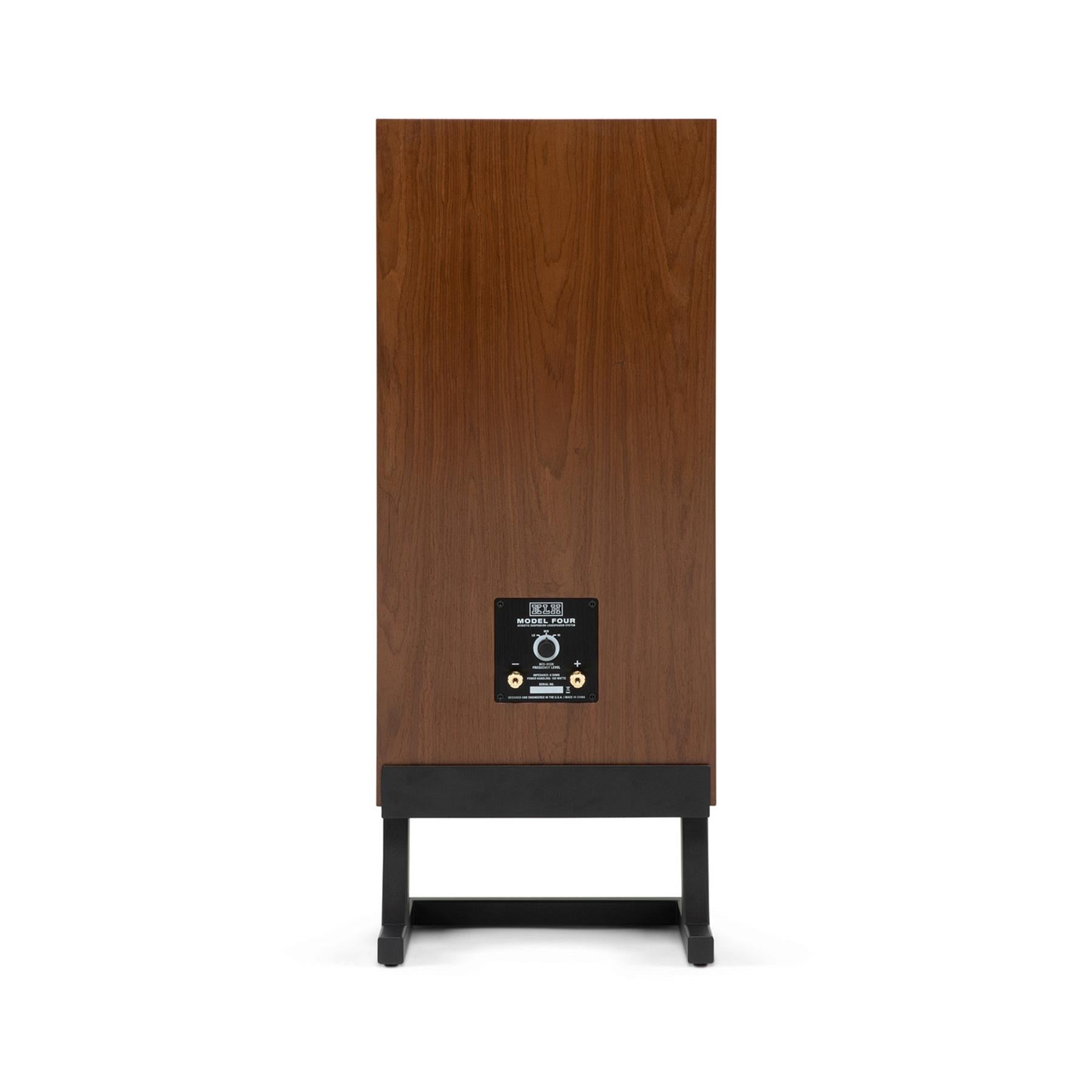

• Inputs: Five-way gold-plated binding posts
• Supported Connector Types: Banana plugs, pin connectors, spade connectors, and bare wire

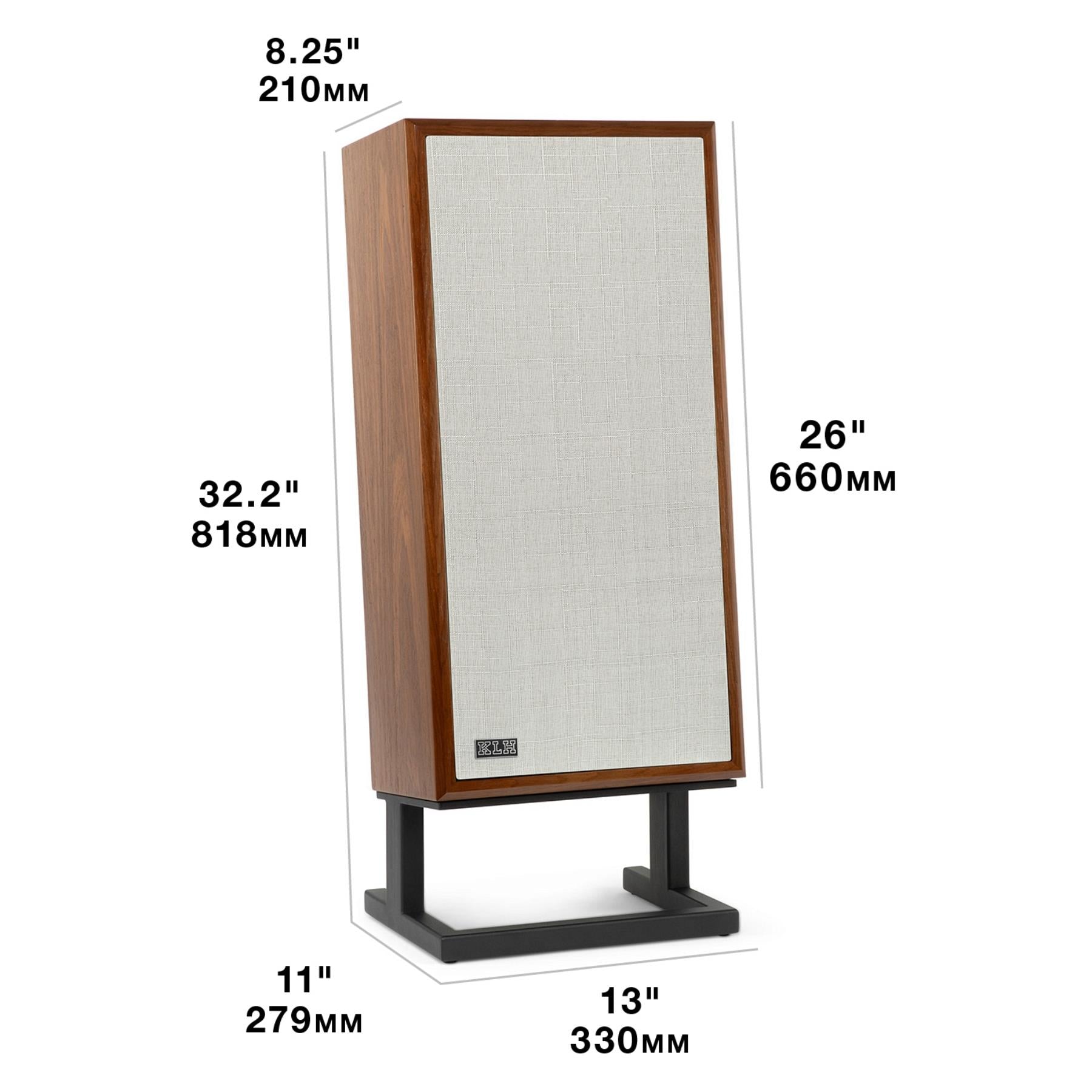

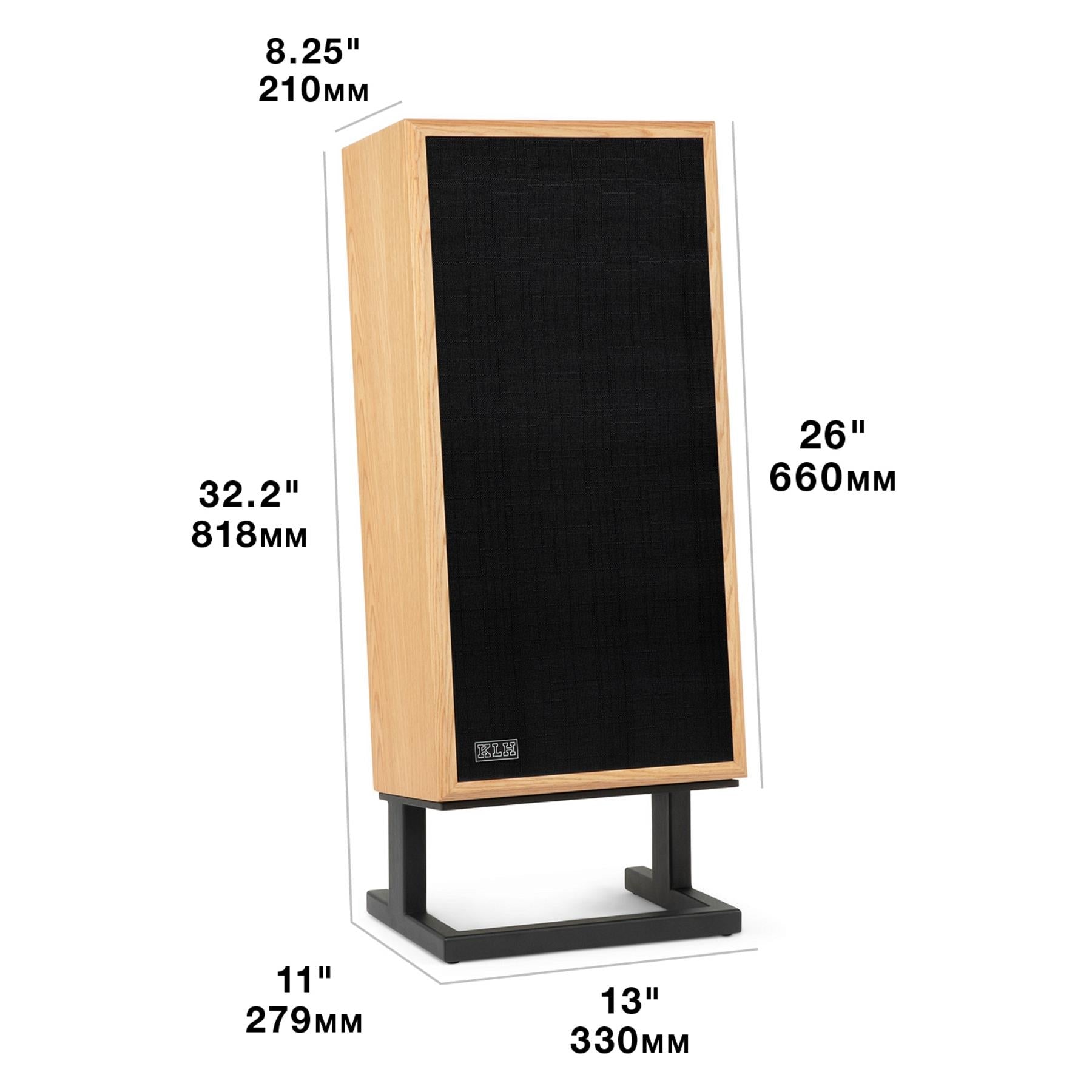

• Weight With Included Riser Base: 47 lbs. / 21.3 kg
• Weight Without Riser Base: 39.5 lbs. / 17.9 kg
• Height With Included Riser Base: 32.2 inches / 81.8 cm
• Height Without Riser Base: 26 inches / 66.0 cm
• Width: 13 inches / 33.0 cm
• Depth With Included Riser Base: 11 inches / 27.9 cm
• Depth Without Riser Base: 8.25 inches / 21.0 cm

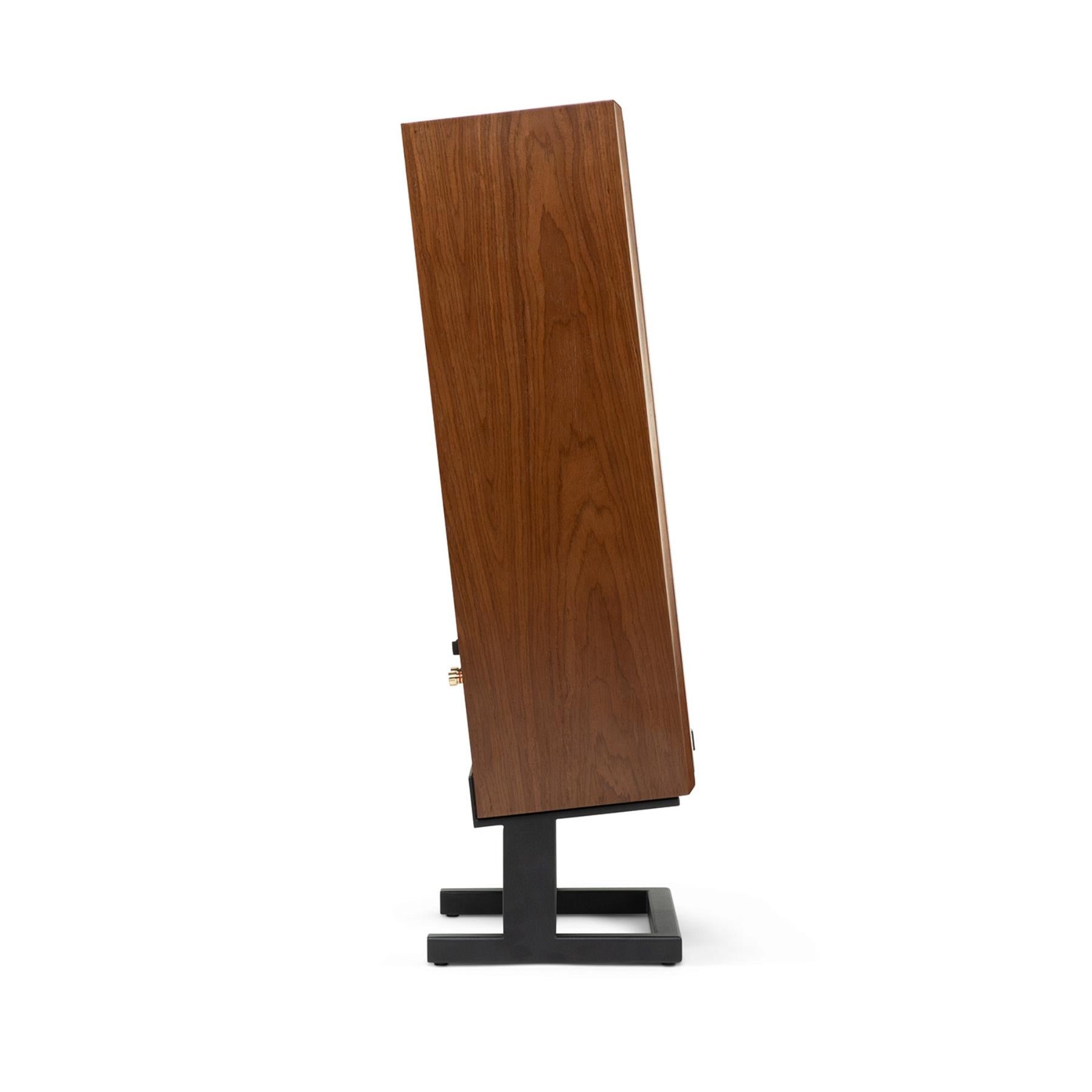

• Included Accessories: 6-degree riser base
• Carton Contents: One Model Four loudspeaker, magnetic grille, one riser base, and one owner's manual

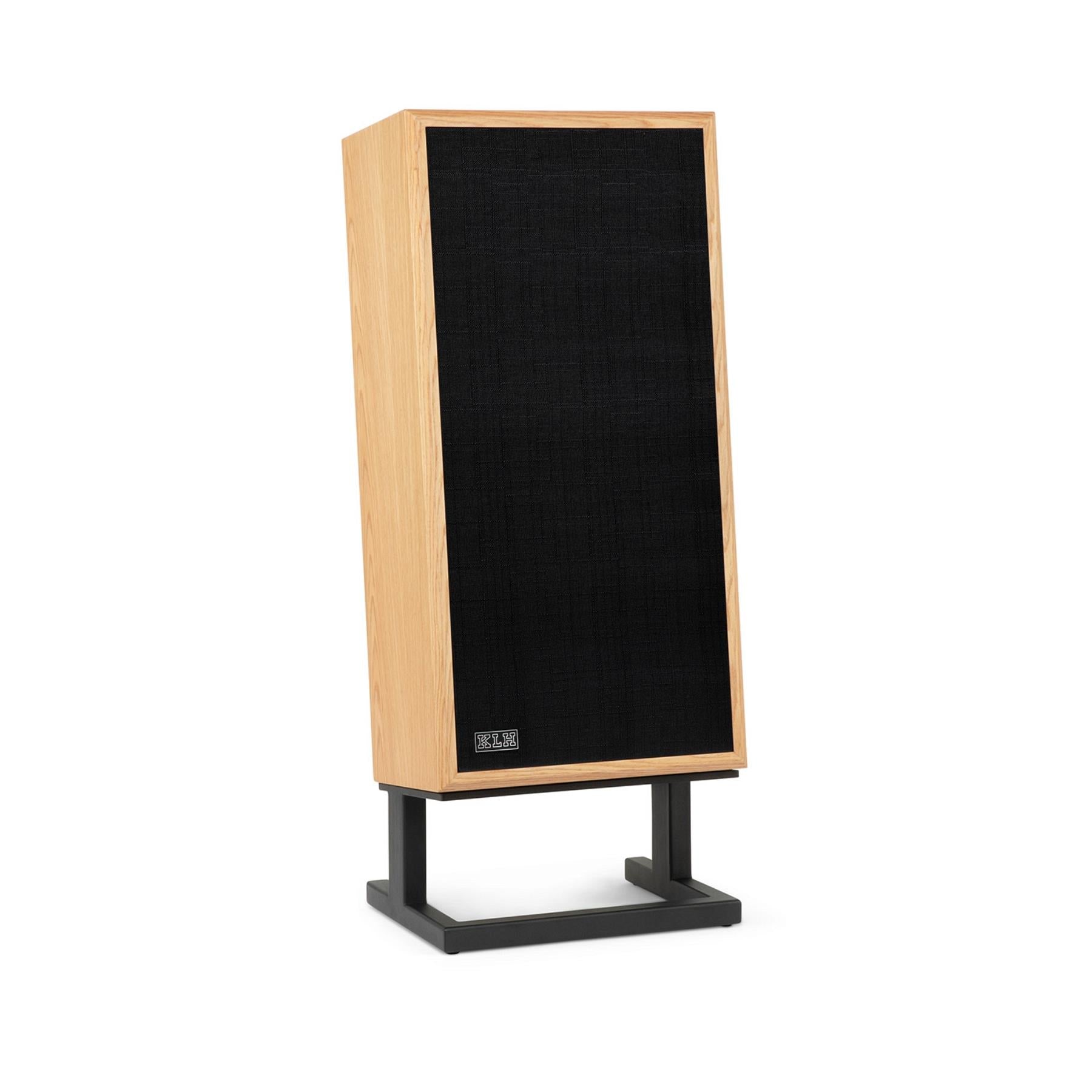

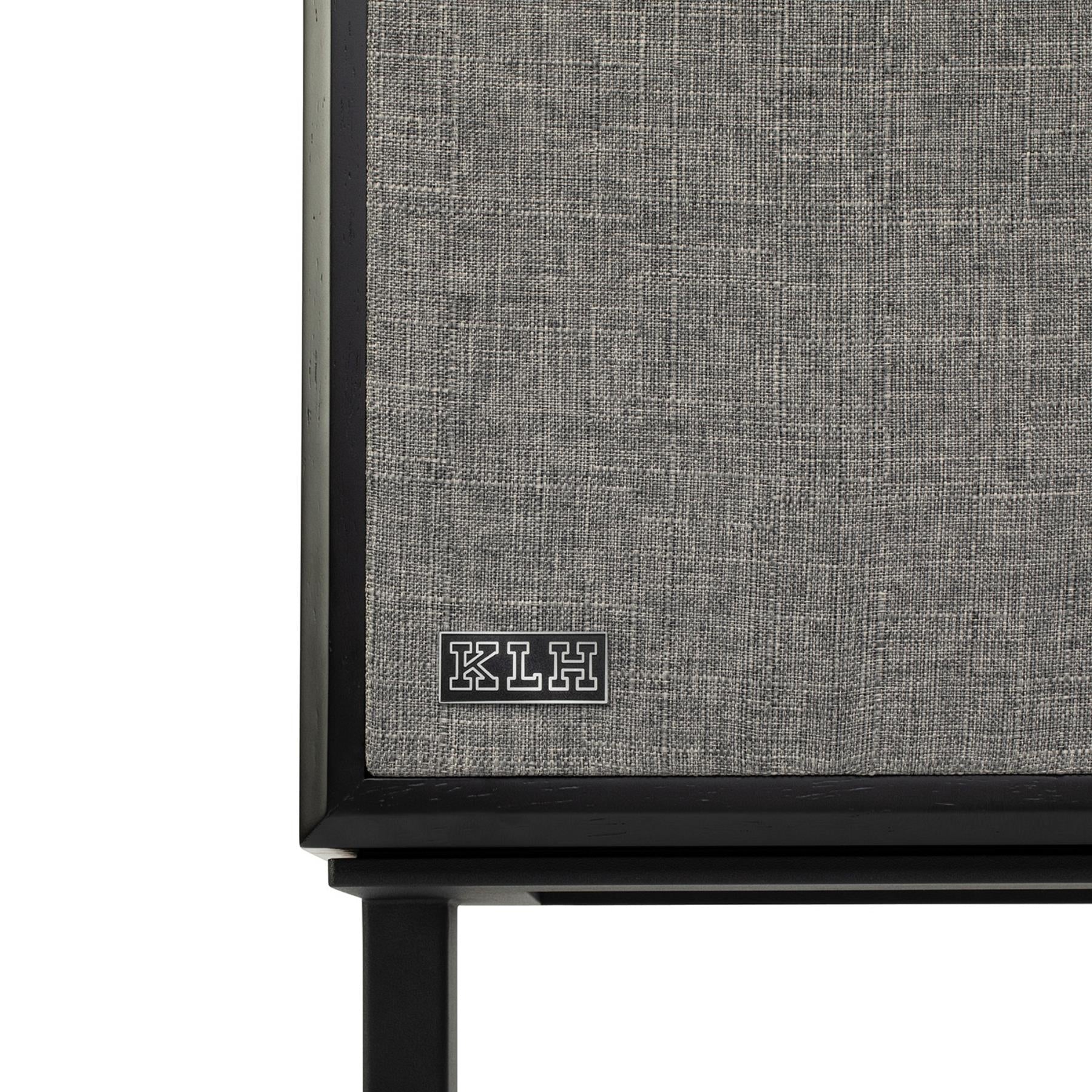

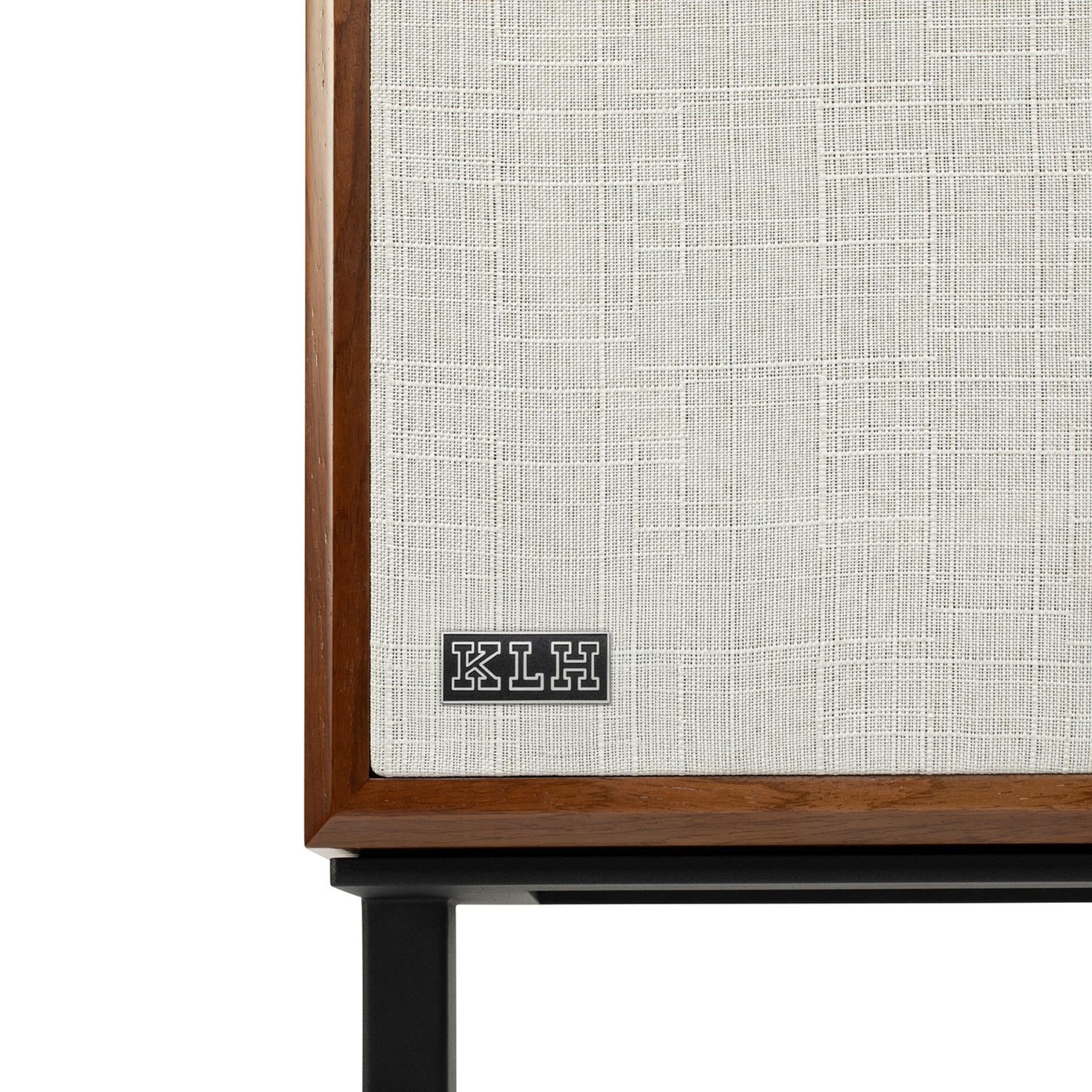

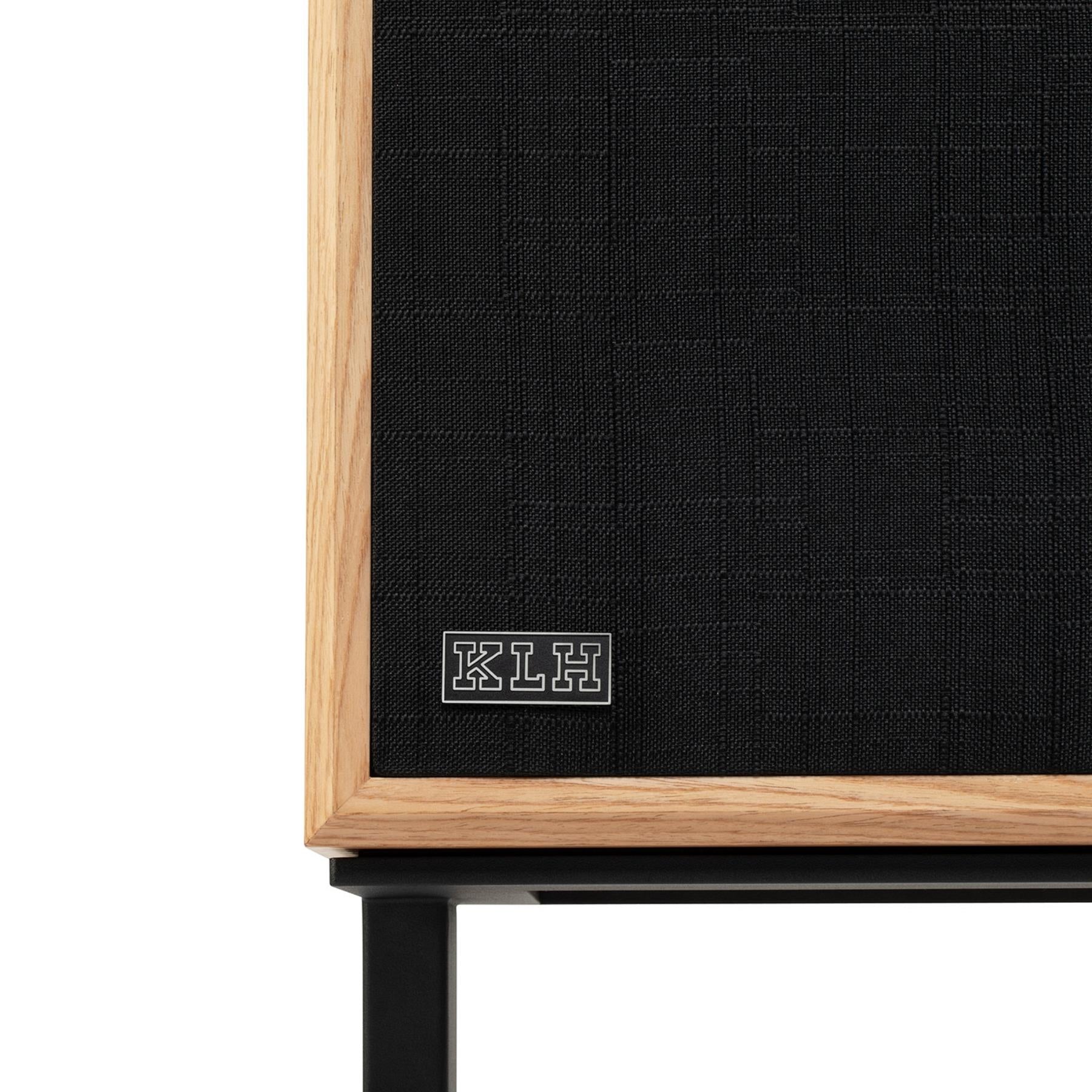

• Grille: Magnetic grille included

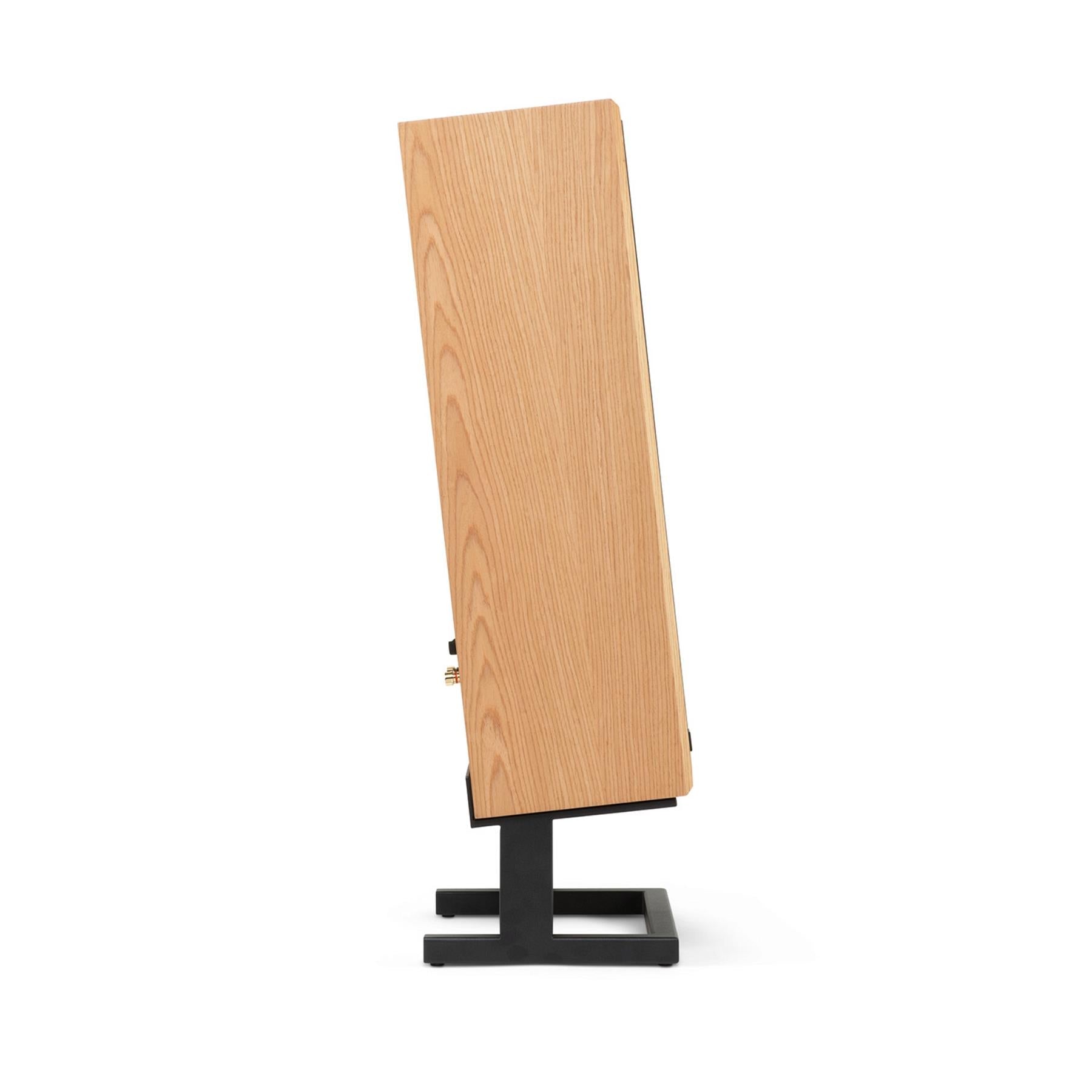

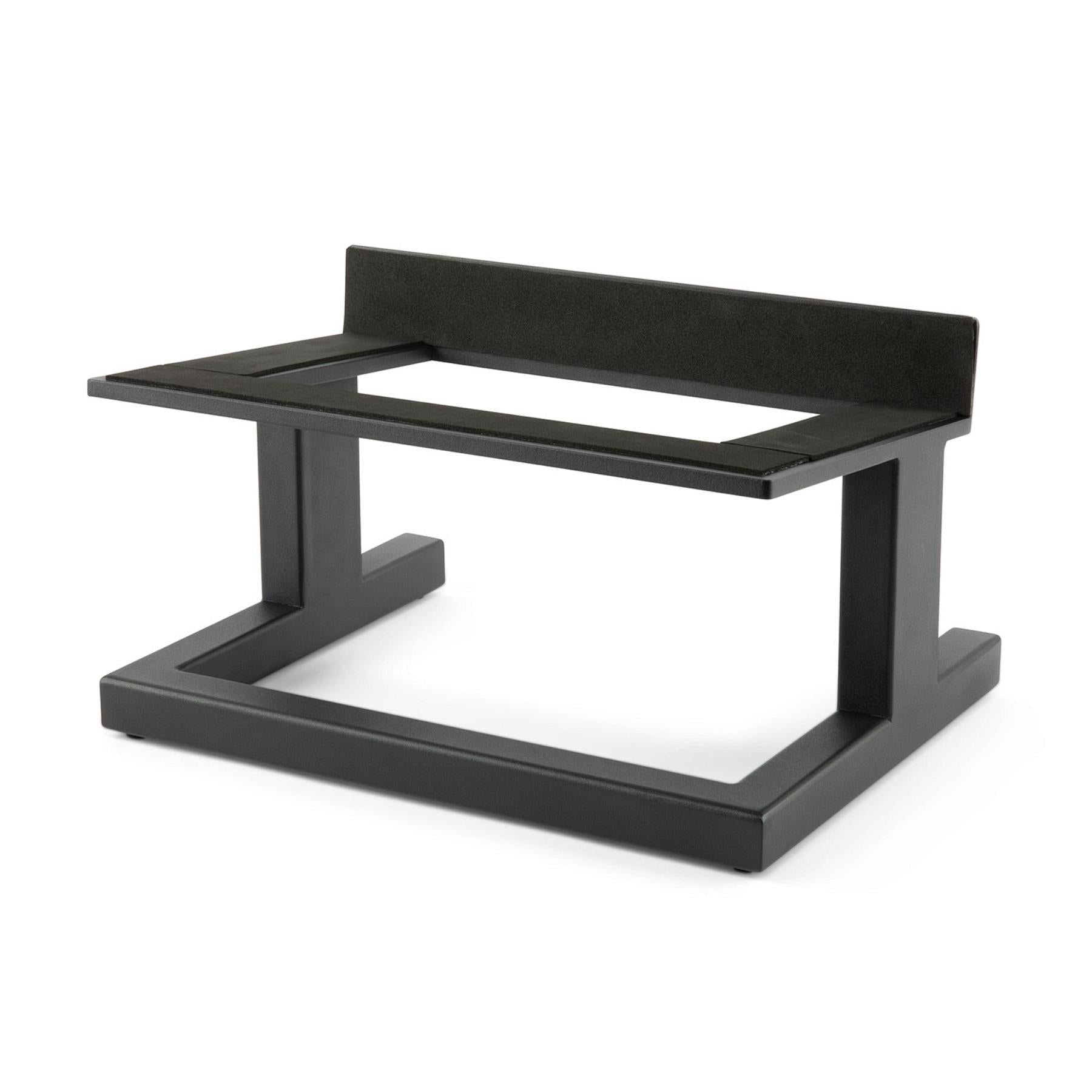

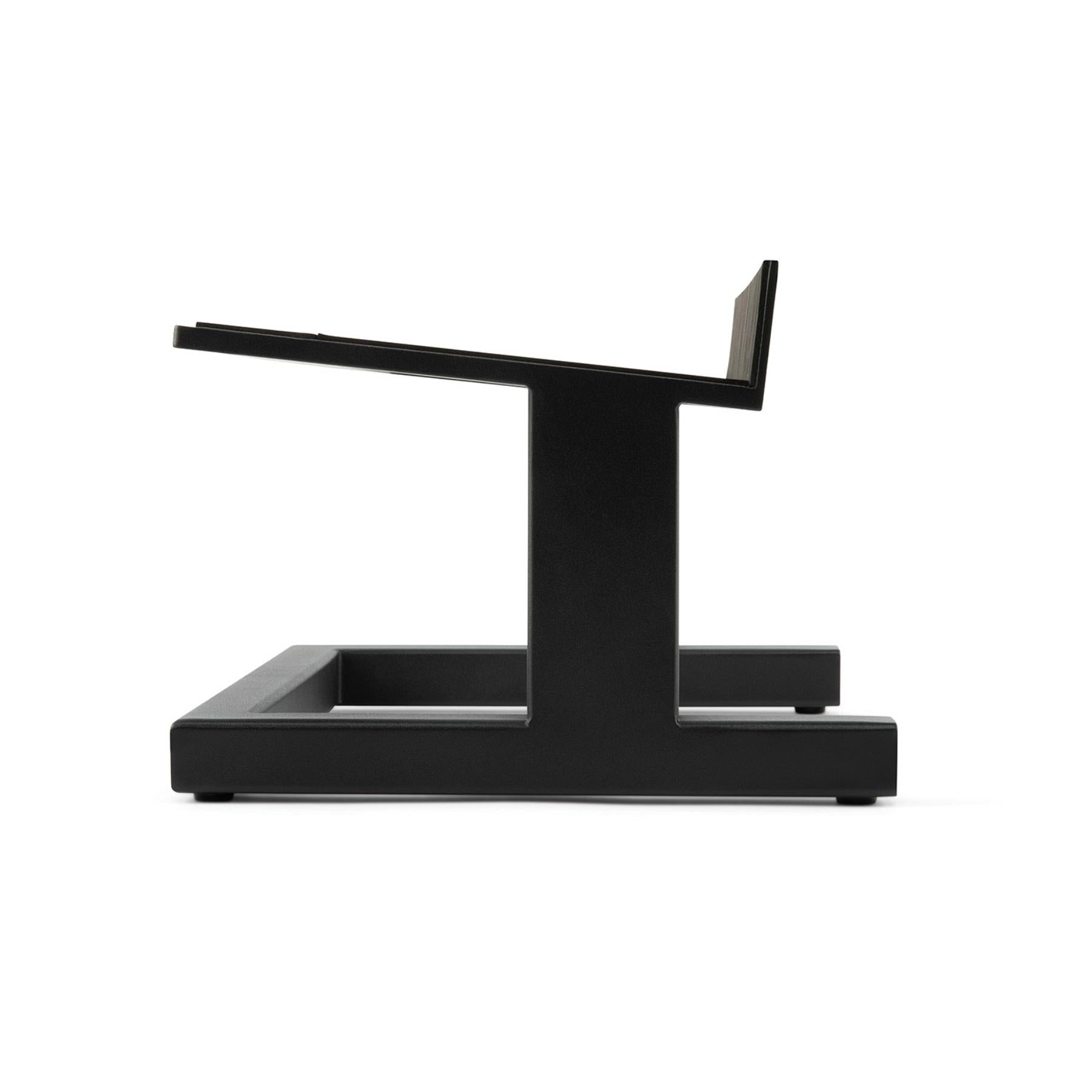

• Riser Base: Matte black 6-degree riser base included

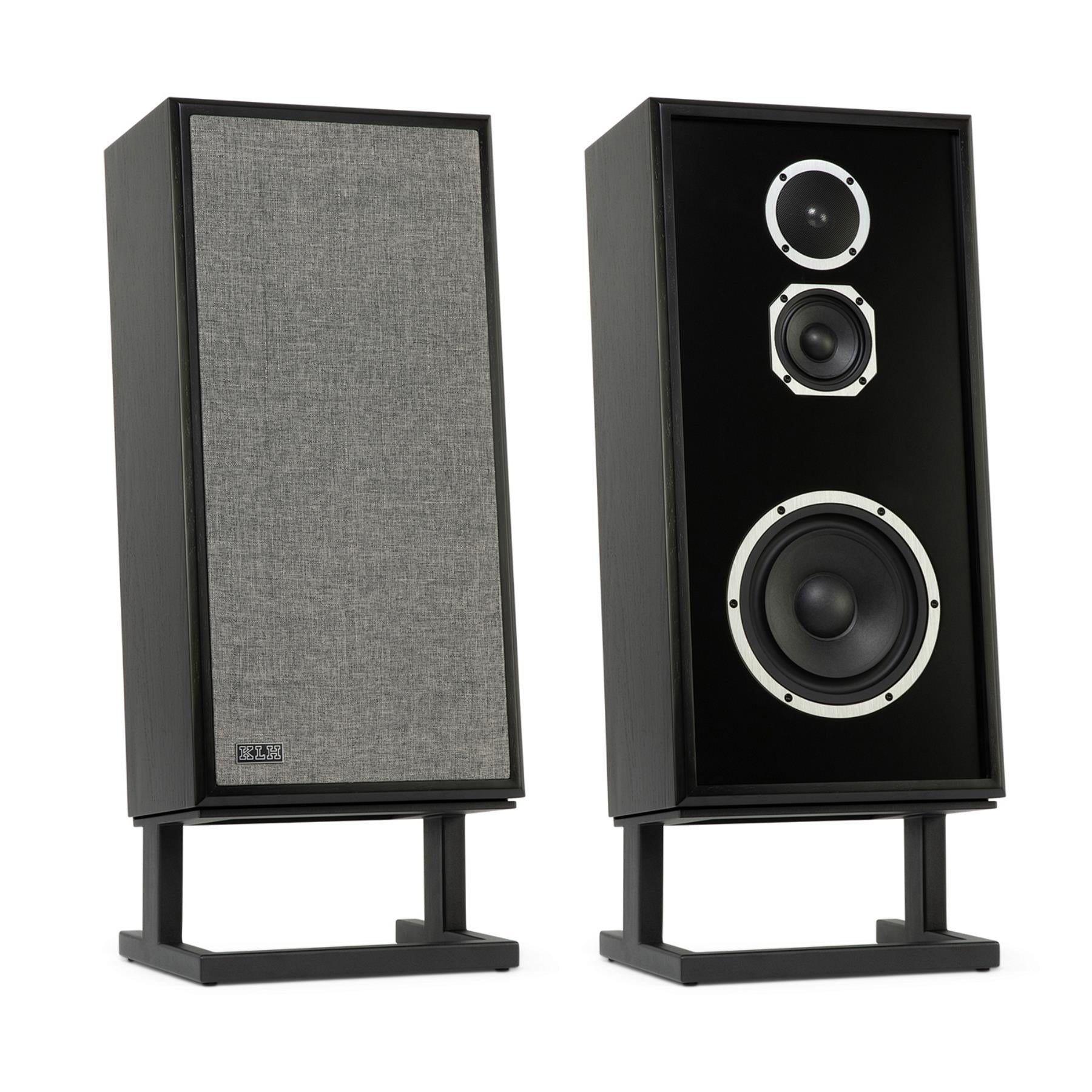

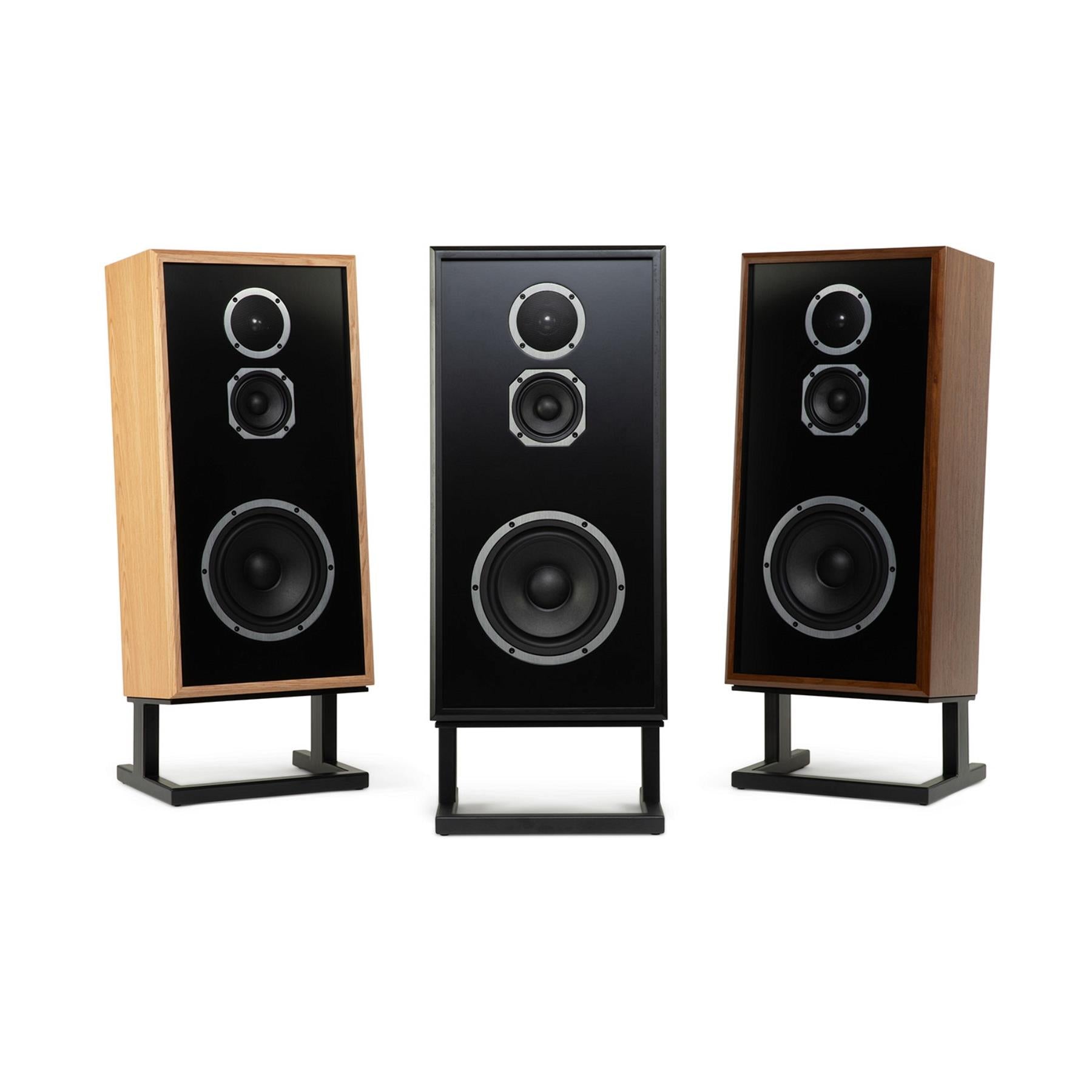

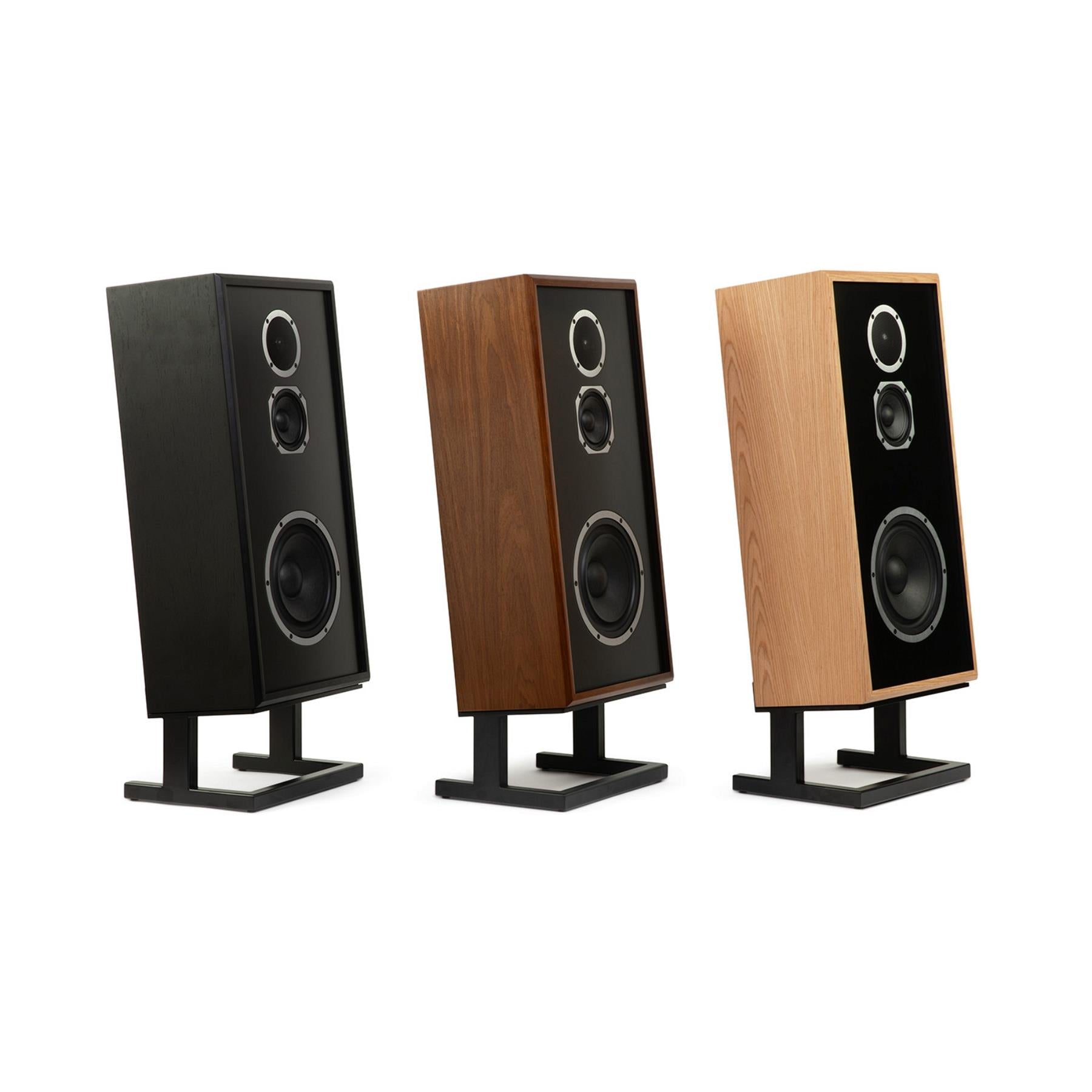

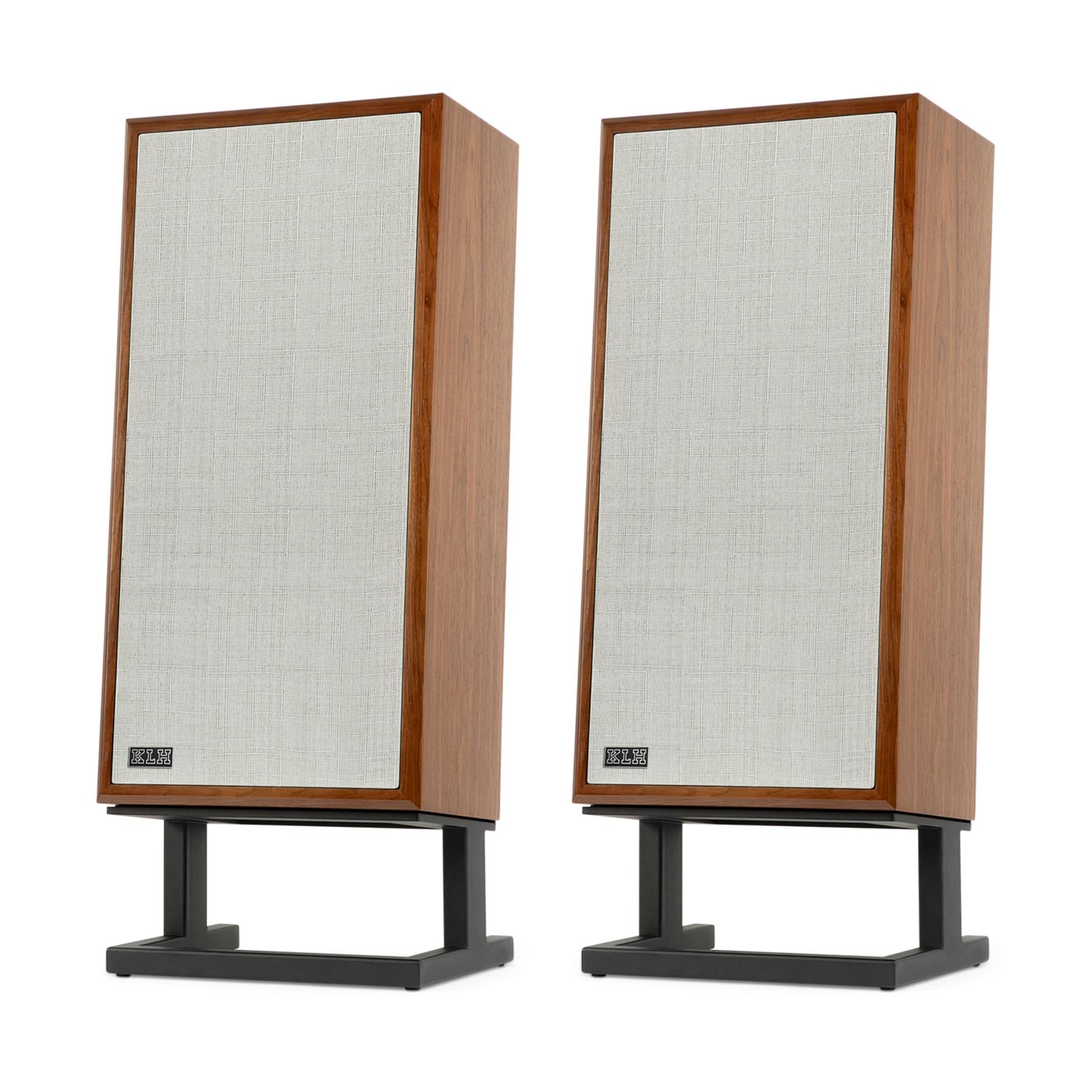

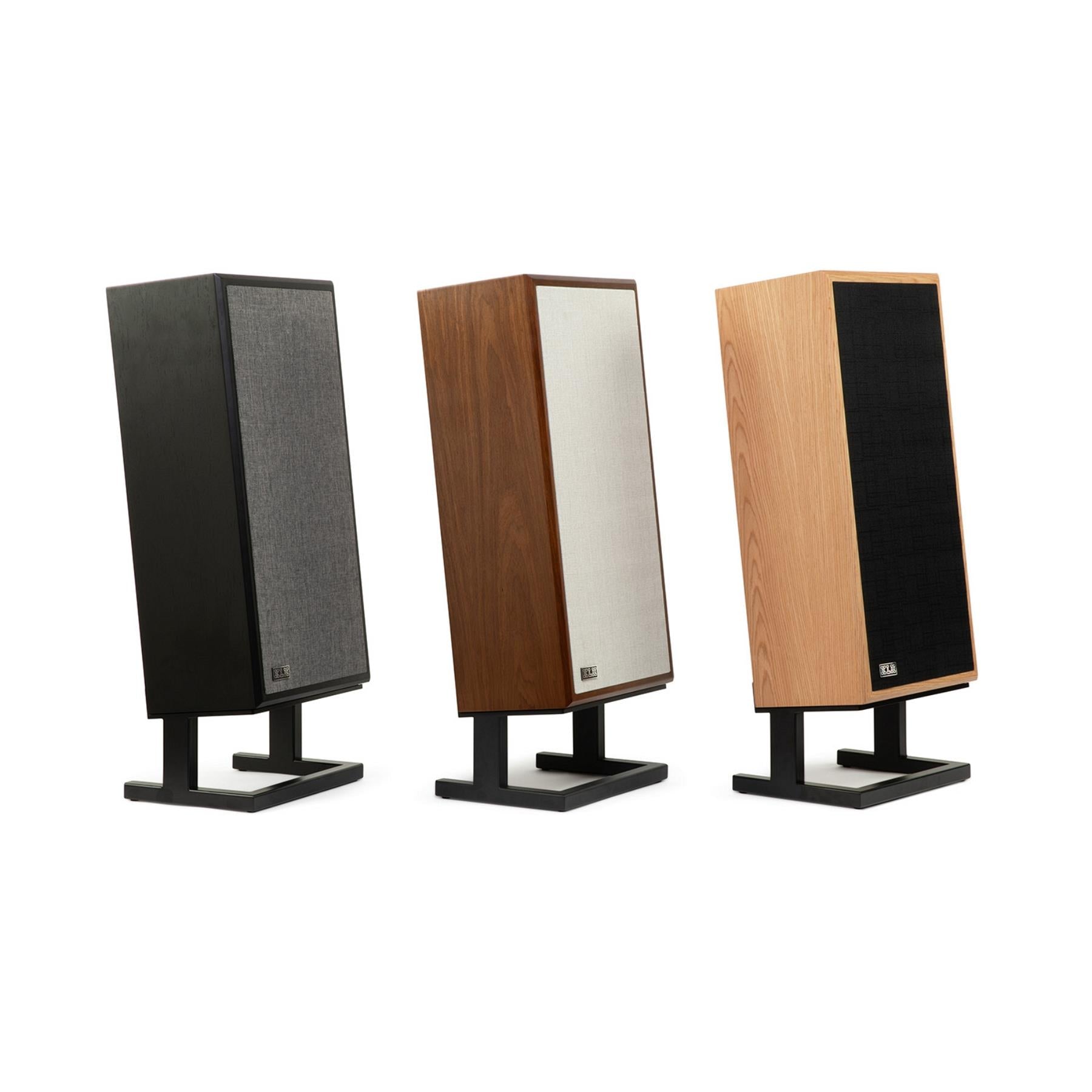

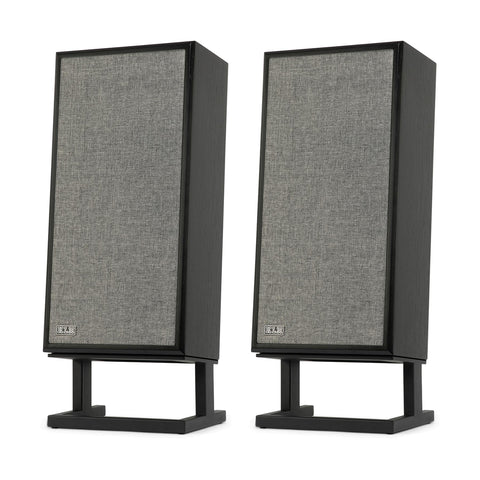

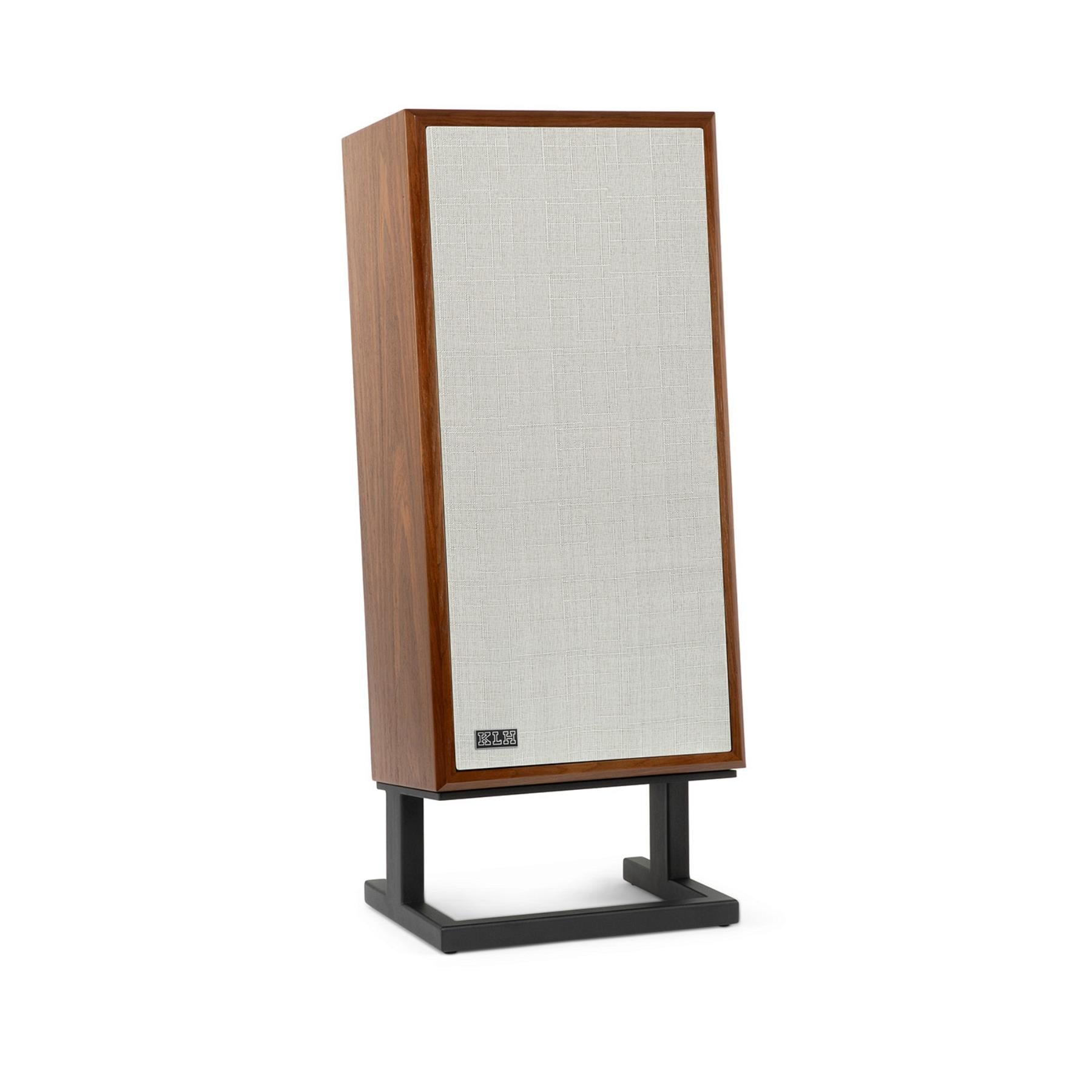

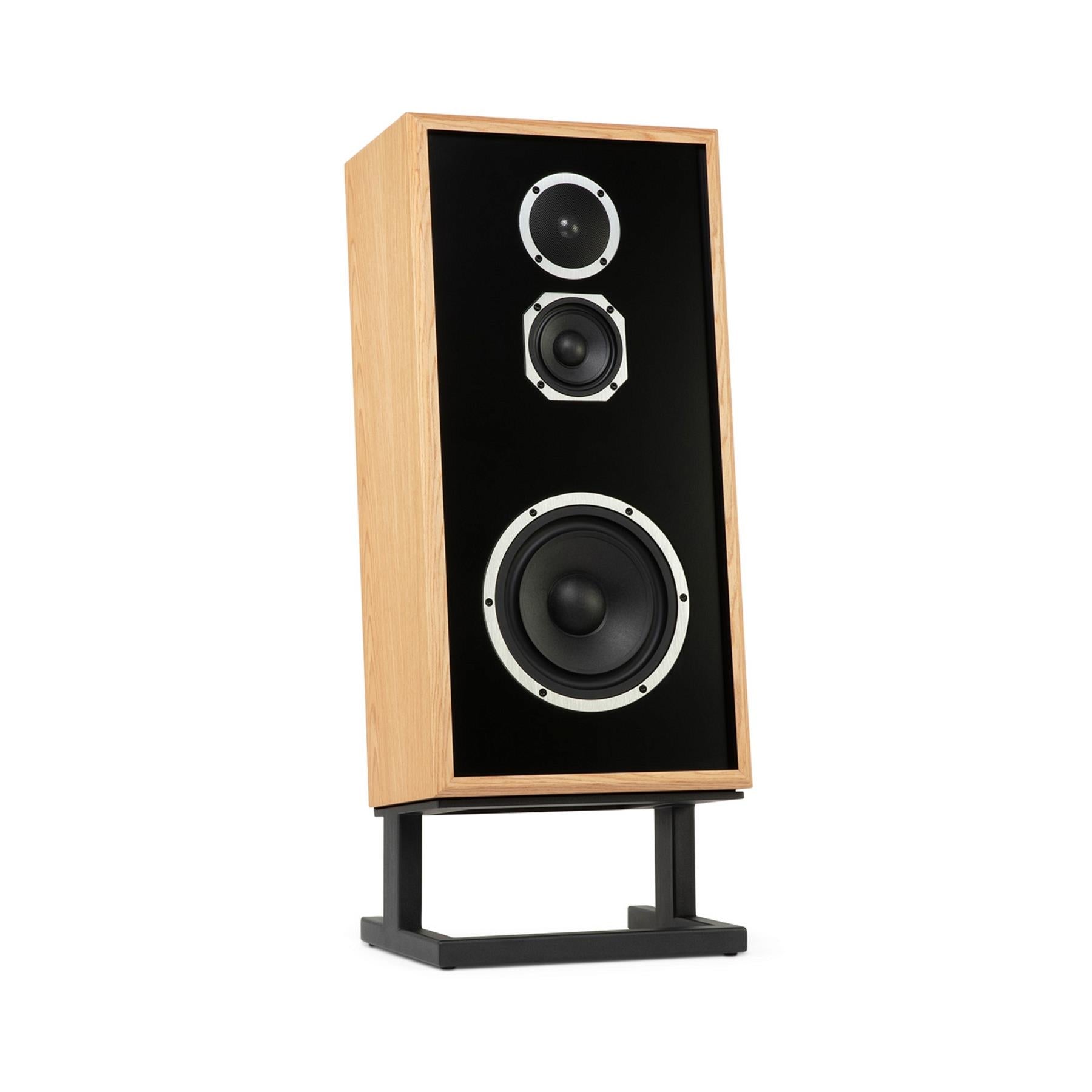

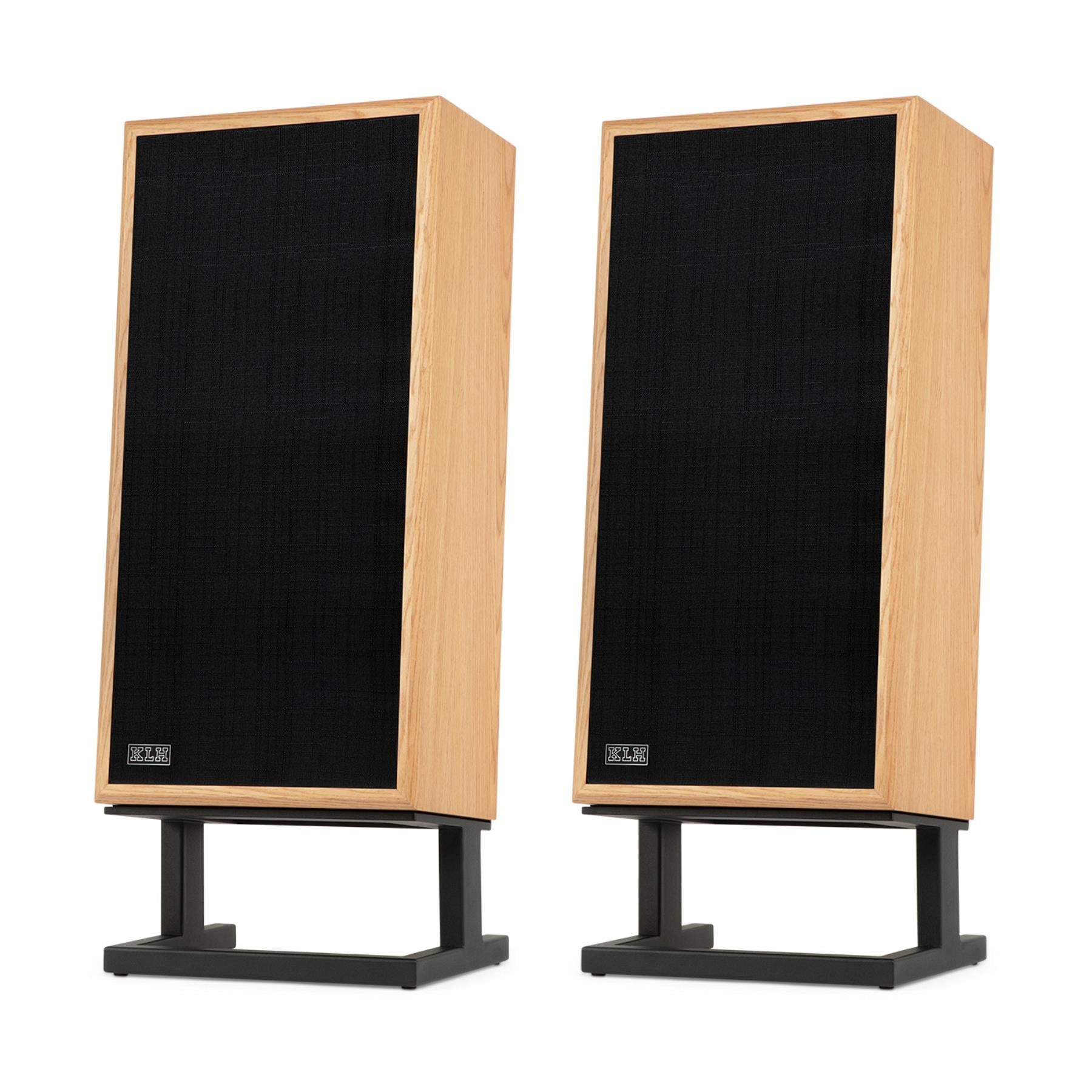

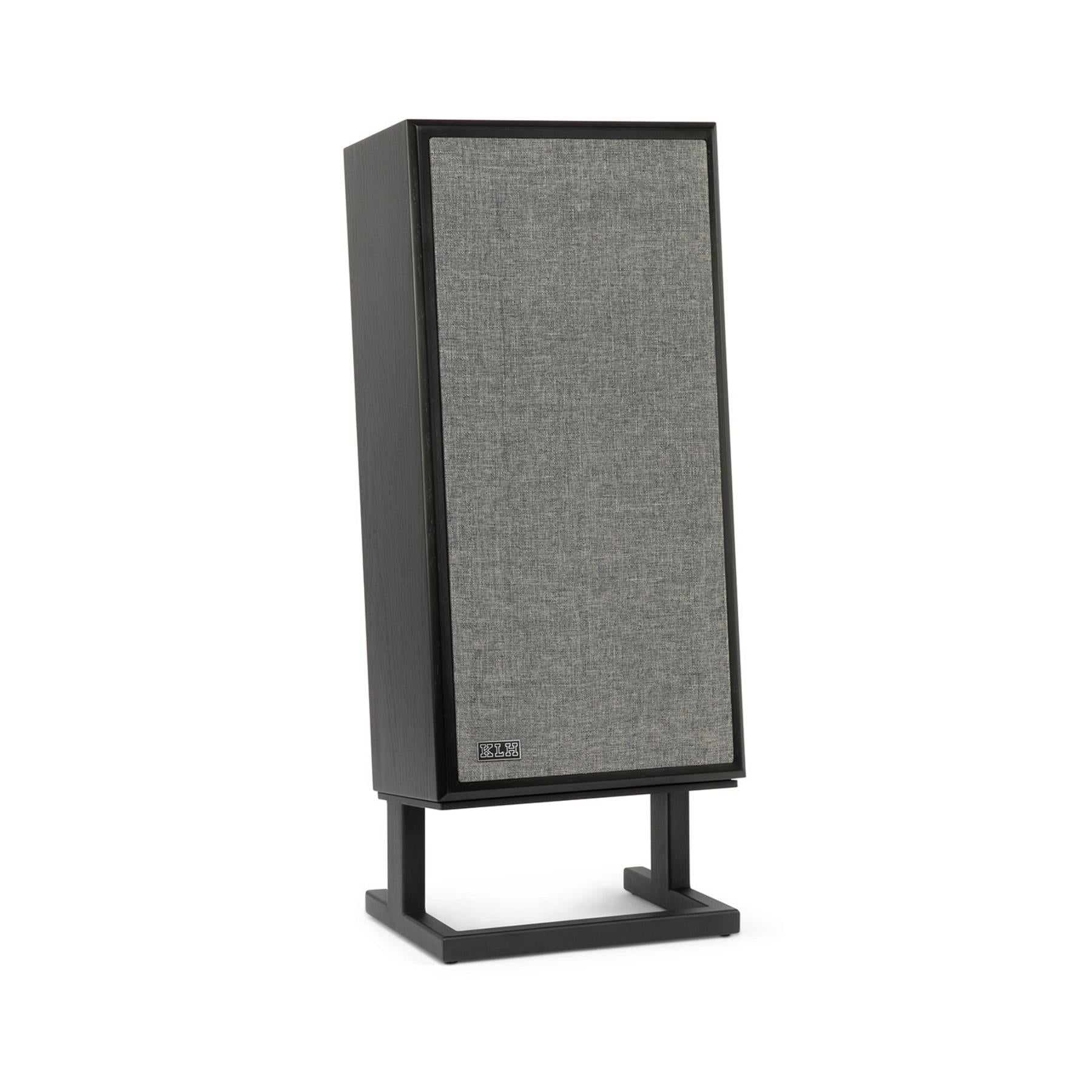

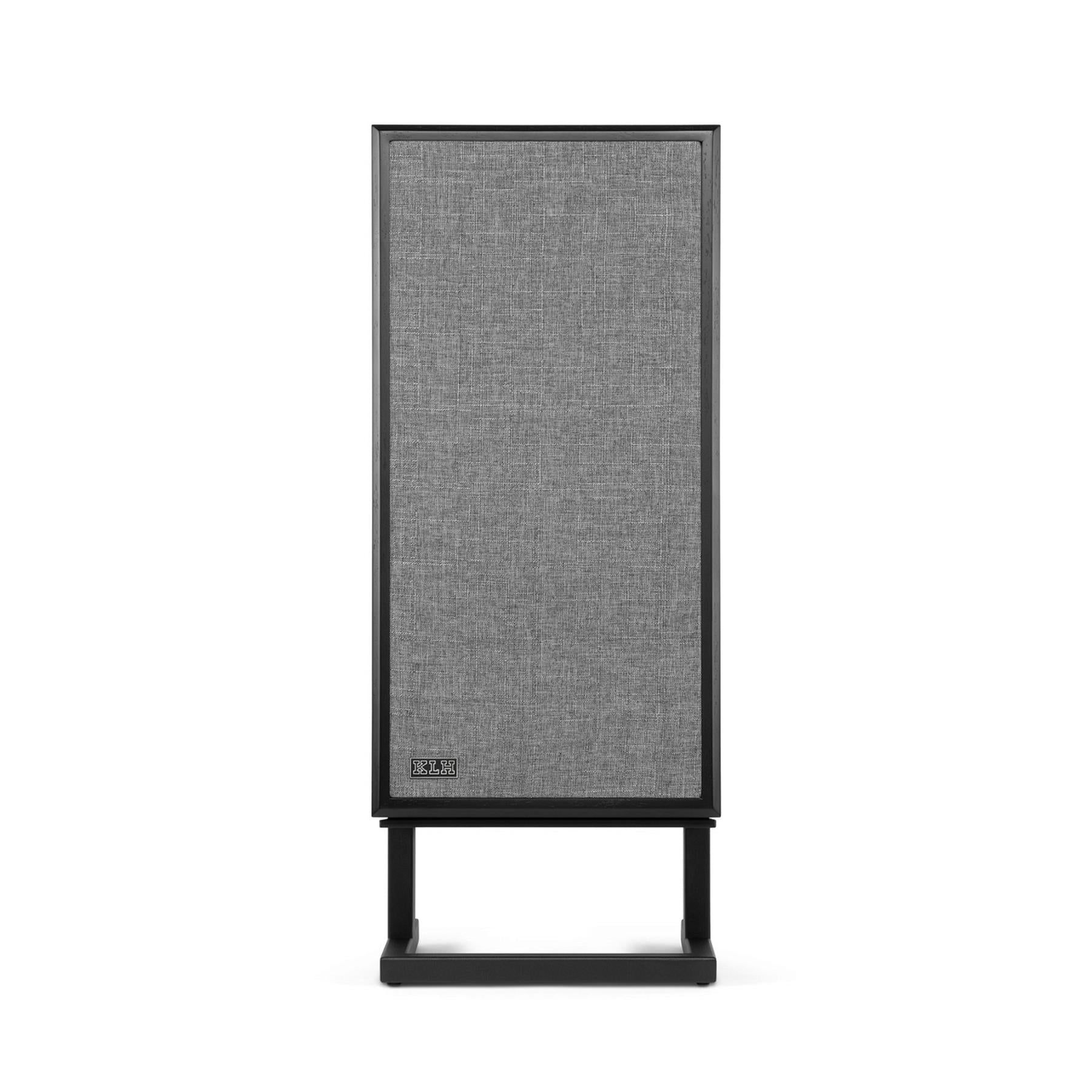

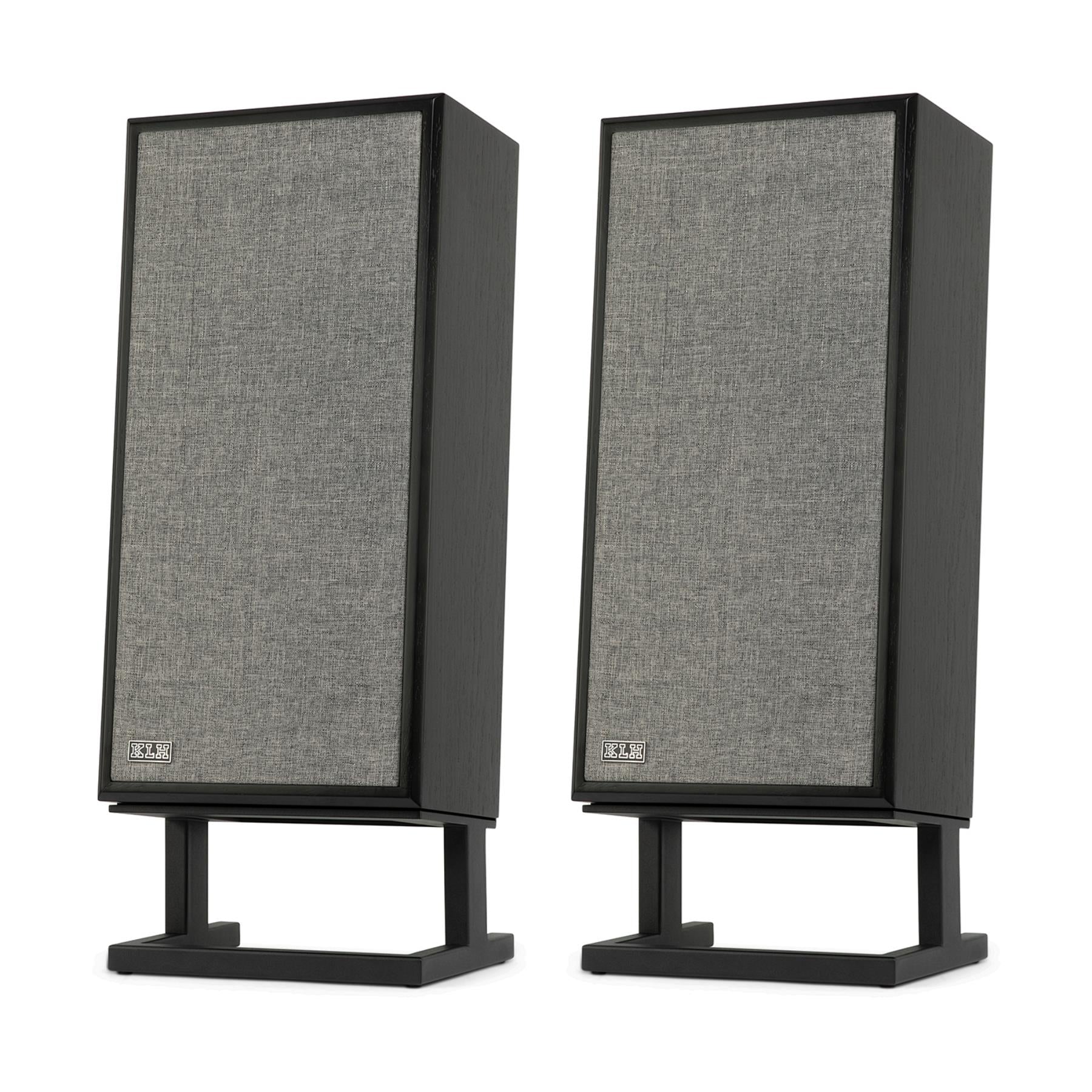

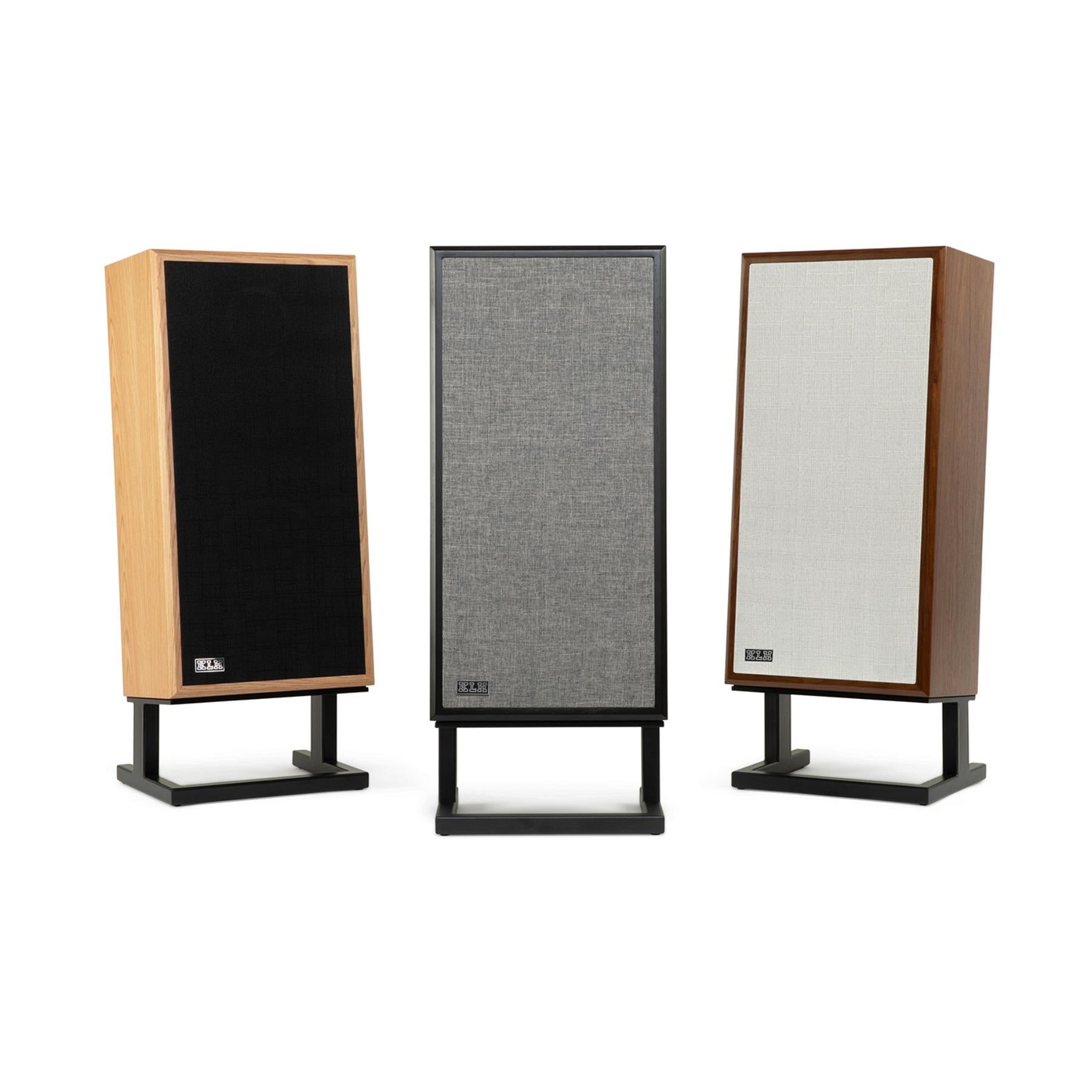

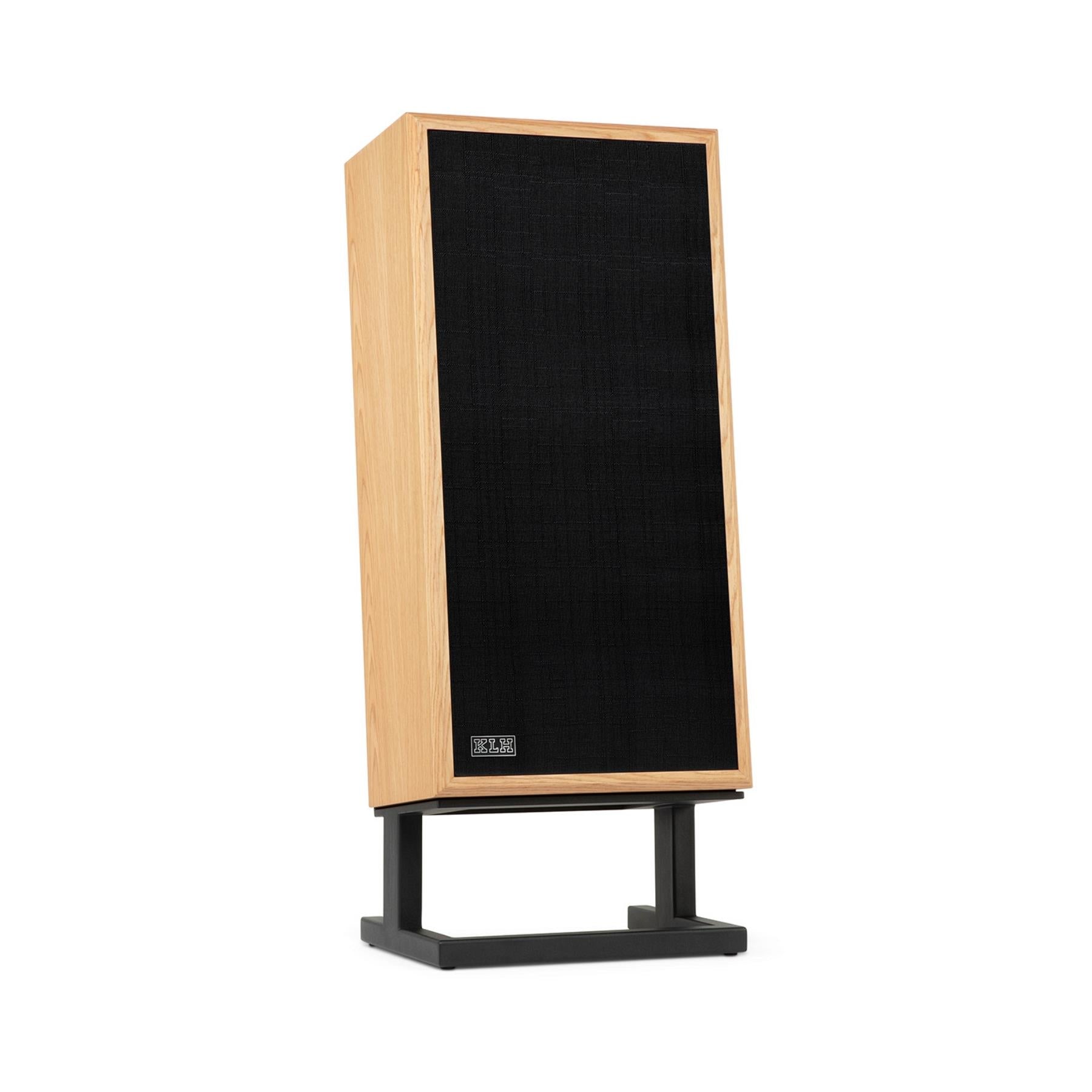

• Finish Options: English Walnut with Stonewash Knit Grille; Black Ash with Grey Knit Grille; White Oak with Black Knit Grille
• Recommended Initial Placement: 6 to 24 inches from the back wall and at least 24 inches from any corner
• Recommended Speaker Spacing: 6 to 8 feet apart
• Recommended Listening Distance: 8 to 10 feet away
• Warranty: 10-year warranty beginning from the purchase date with original receipt required

KLH Model Four Loudspeaker Q&A:

What type of speaker is the KLH Model Four?

The KLH Model Four is a compact 3-way acoustic suspension floorstanding loudspeaker with an 8-inch woofer, 4-inch midrange driver, and 1-inch aluminum dome tweeter.

Is the KLH Model Four a good speaker for smaller rooms or living spaces?

Yes. Its shallow cabinet depth, acoustic suspension design, and flexible placement recommendations make it well suited for apartments, condos, living rooms, and other spaces where large floorstanding speakers may be difficult to place.

How far should the Model Four be placed from the wall?

For best initial placement, position the speakers 6 to 24 inches from the back wall, at least 24 inches from any corner, 6 to 8 feet apart, and 8 to 10 feet from the listening position.

What does the Acoustic Balance Control do?

The Three-Position Acoustic Balance Control adjusts frequencies above 400Hz so the speaker can be tuned for different room types, including reflective rooms, typical mixed-surface rooms, and more heavily furnished or acoustically absorbent rooms.

What amplifier power is recommended for the KLH Model Four?

The Model Four is recommended for amplifiers rated from 30 watts to 150 watts and has power handling of 150 watts with 600 watts peak capability.

What kind of bass performance does the Model Four offer?

The Model Four delivers a frequency response of 46Hz to 20,000Hz +/- 3dB, with low frequency extension rated at -10dB @ 35Hz and maximum output of 101dB @ 45Hz.

What connection types work with the Model Four binding posts?

The five-way gold-plated binding posts accept banana plugs, pin connectors, spade connectors, and bare speaker wire.

What is included with the KLH Model Four?

The carton includes one Model Four loudspeaker, a magnetic grille, one 6-degree riser base, and one owner's manual.
