Klipsch Courtyard 2.0 Landscape Speaker Expansion

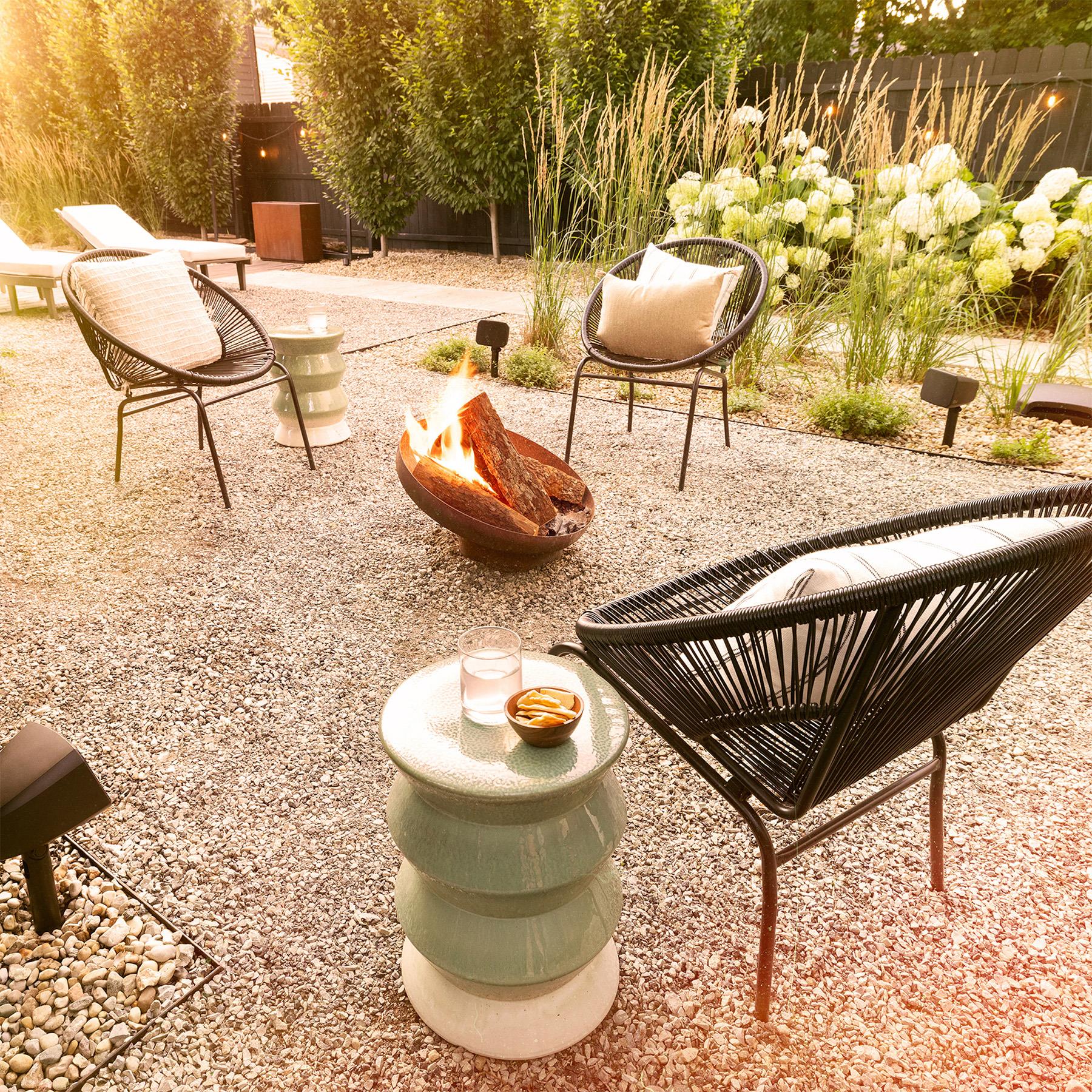

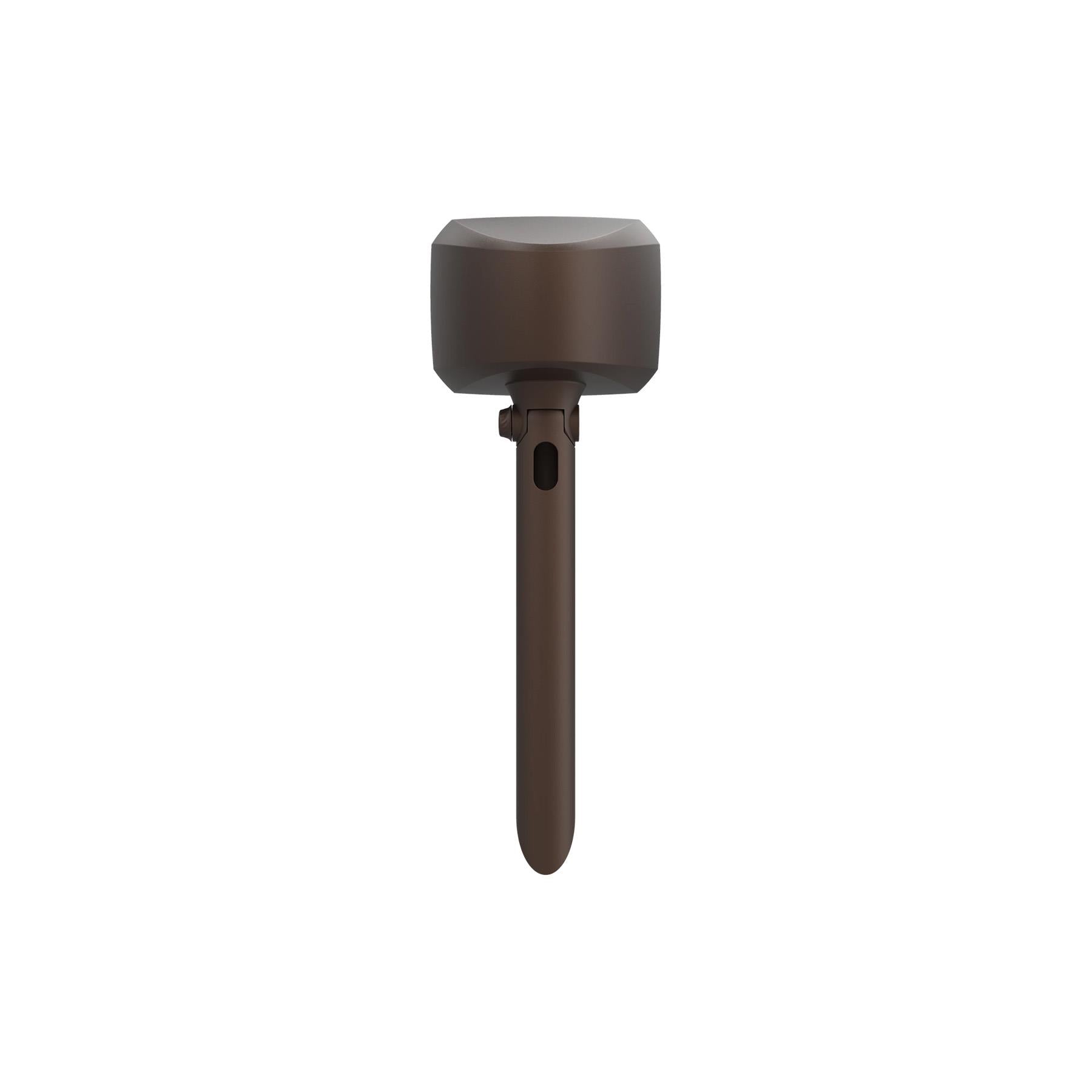

The Klipsch Courtyard 2.0 Landscape Speaker Expansion is the smart way to extend your existing Courtyard outdoor audio system with wider, more even coverage across patios, pool decks, fire pit areas, and landscaped entertaining spaces. Designed to pair with the Courtyard 4.1 system, this expansion pack includes two horn-loaded satellite speakers plus mounting posts and stakes, giving you a clean, scalable path to a larger 6.1 or 8.1 outdoor speaker layout. Its aimable speaker design helps direct sound where you want it, while Klipsch’s Tractrix horn-loaded architecture supports clear, dynamic outdoor performance.
Built for year-round outdoor use, the Courtyard satellite speakers are colorfast and rated IPX7 to handle rain, snow, direct sun, and high-pressure water exposure in demanding environments. The rugged all-weather enclosure construction is engineered for outdoor durability, and the included installation hardware supports a straightforward in-ground setup. This outdoor speaker expansion is a strong fit for homeowners and integrators who want premium landscape audio without replacing a working system.
What It's Good At:
- Expanding an existing Klipsch Courtyard 4.1 system for broader outdoor sound coverage
- Delivering clear, directed sound with horn-loaded, aimable satellite speakers
- Standing up to rain, snow, direct sunlight, and high-pressure water with IPX7-rated durability

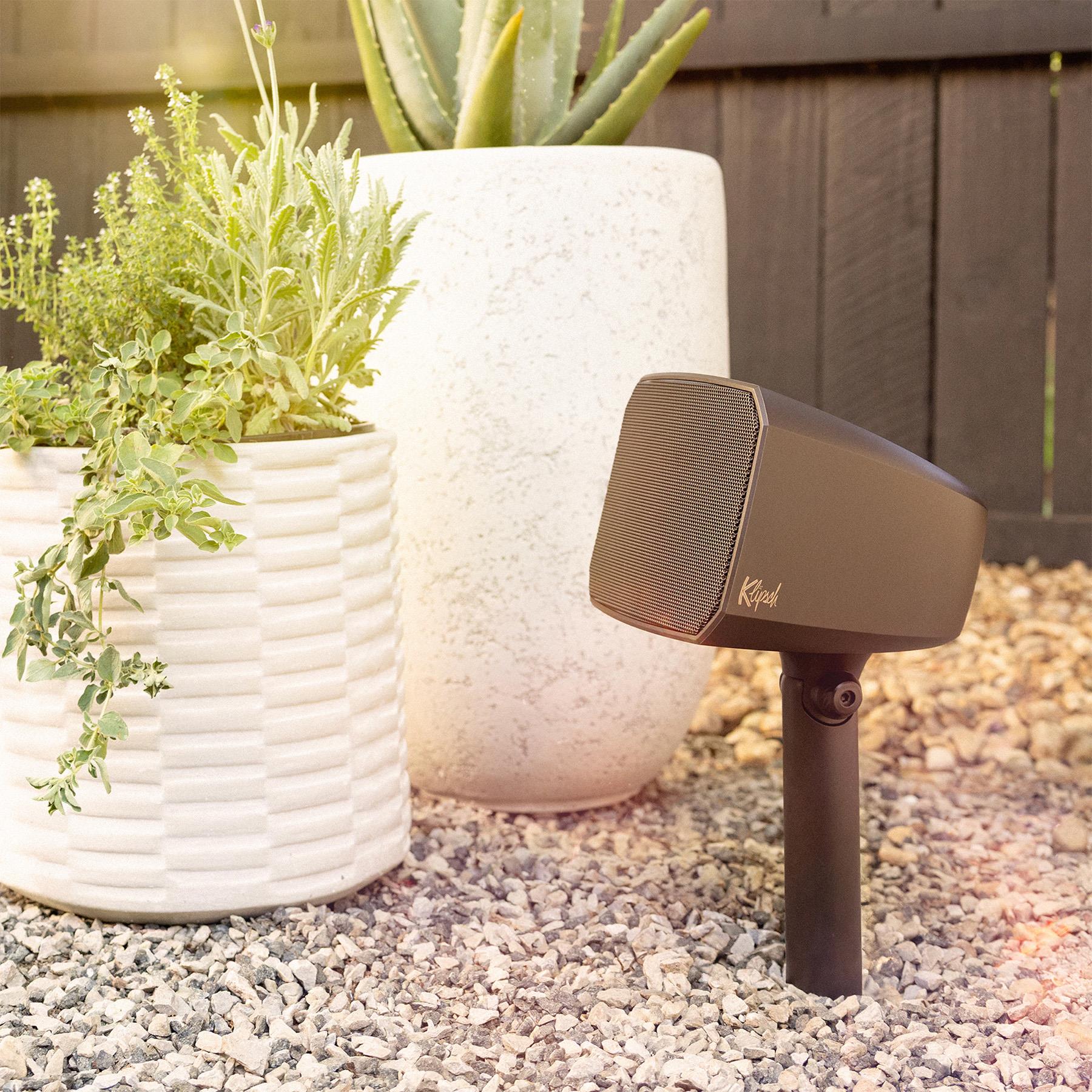

- Supporting clean landscape installation with included mounting posts, stakes, and setup hardware
- Matching the look and sound profile of the Courtyard system for seamless expansion
- Scaling patios and backyard entertaining spaces into larger 6.1 or 8.1 configurations
Klipsch Courtyard 2.0 Landscape Speaker Expansion Full Specifications:
- Product name: Klipsch Courtyard 2.0 Landscape Speaker Expansion
- Product type: Landscape speaker expansion pack for the Klipsch Courtyard outdoor system
- System role: Add-on pack for an existing Courtyard 4.1 system

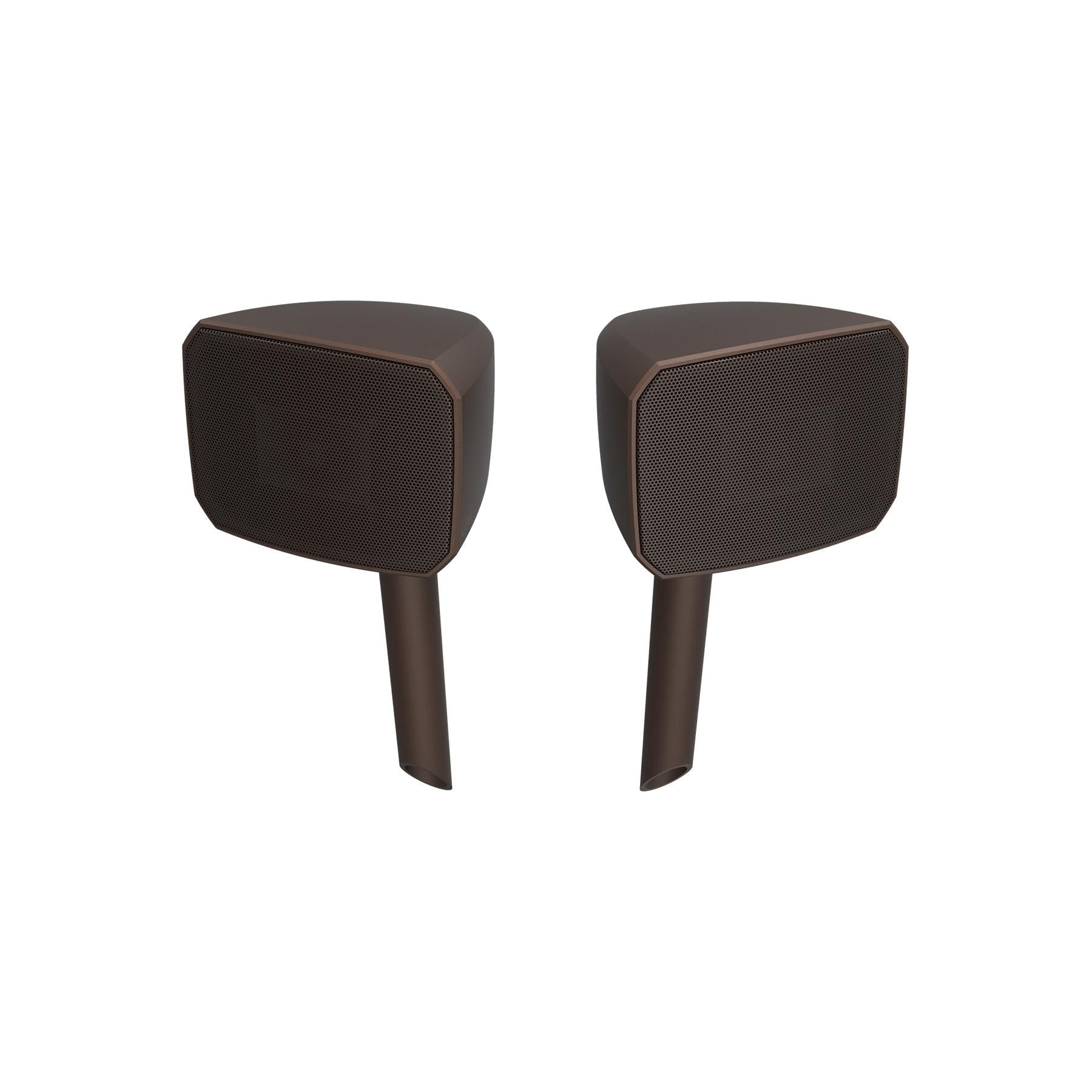

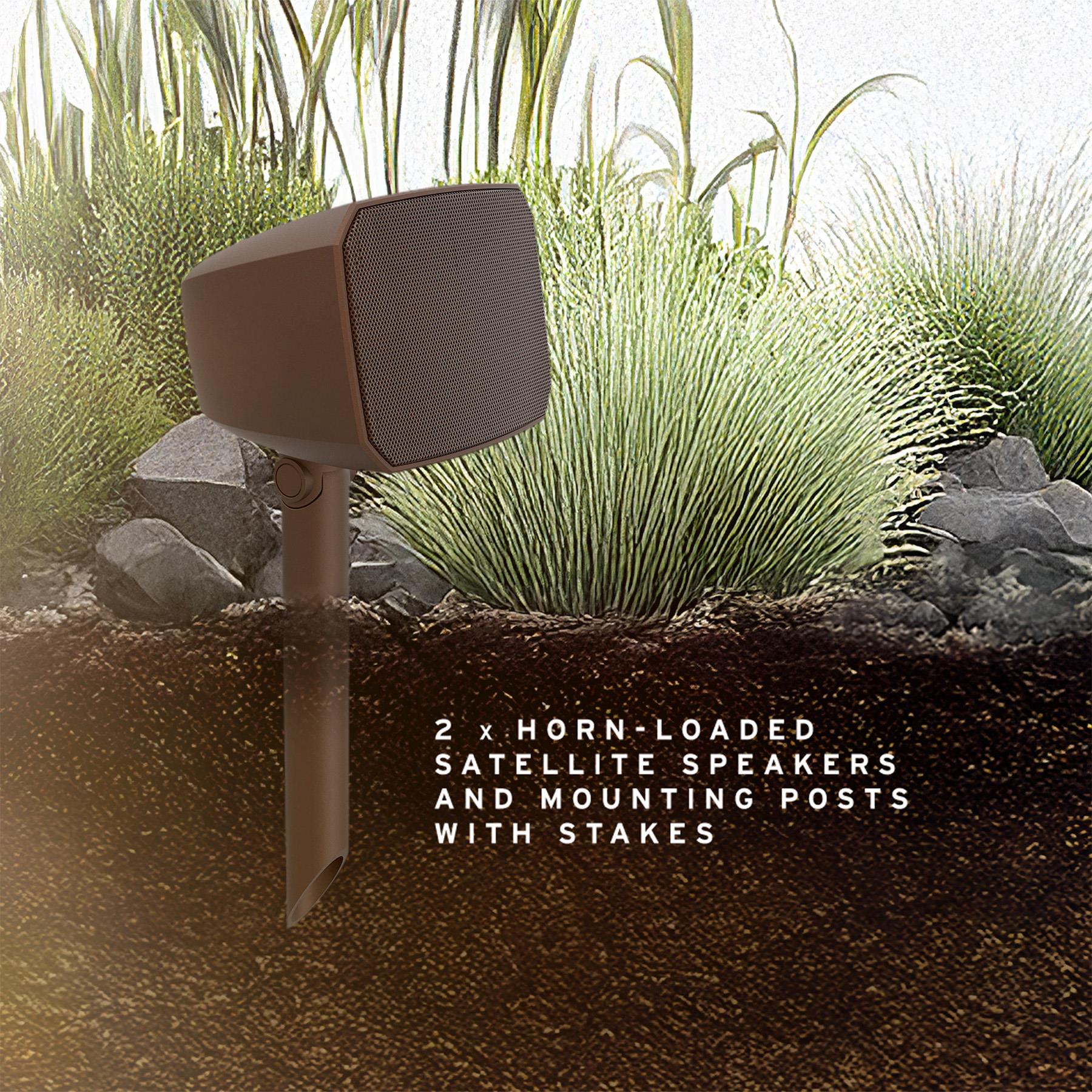

- Included speakers: 2 satellite speakers

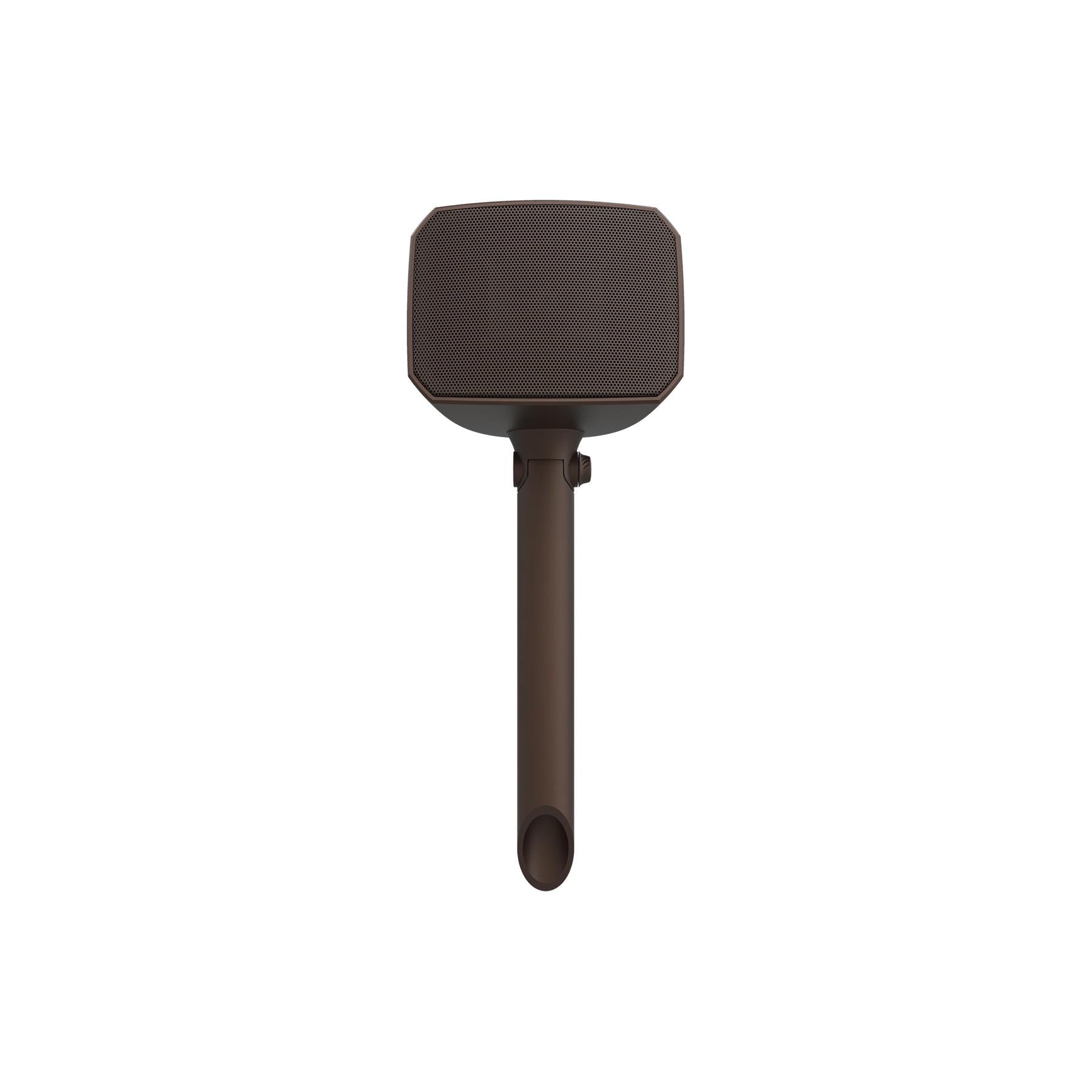

- Included hardware: Mounting posts with stakes
- Additional included installation items noted in Klipsch Courtyard materials: Silicone wire nuts, hammer cap, and Allen key
- Frequency response: 35 Hz – 20 kHz (+/- 3 dB)
- Power handling (continuous/peak): 120 watts / 240 watts
- Max continuous output: 107 dB
- Sensitivity: 86 dB @ 2.83V / 1m
- Coverage: V120° / H60° (satellite, aimable); omni-directional (subwoofer listed on shared Courtyard spec sheet)
- Nominal impedance: 8 ohm compatible (6.0 ohm minimum)
- Crossover frequency: 120 Hz (sub-sat), 3.0 kHz (satellite woofer/tweeter)
- High-frequency driver: 1-inch Tractrix horn-loaded aluminum tweeter
- Low-frequency driver: 4-inch polypropylene (satellites)
- Enclosure material: UV-treated all-weather ABS; shared Courtyard spec sheet also lists rotomolded linear low-density polyethylene (LLDP) for the subwoofer enclosure in the larger system
- Enclosure type: Sealed; shared Courtyard spec sheet also lists hardscape/partial burial for the subwoofer in the larger system
- IP rating: IPX7
- Inputs: 65 cm pigtail (30 inches) bare wire with silicone-filled wire nuts

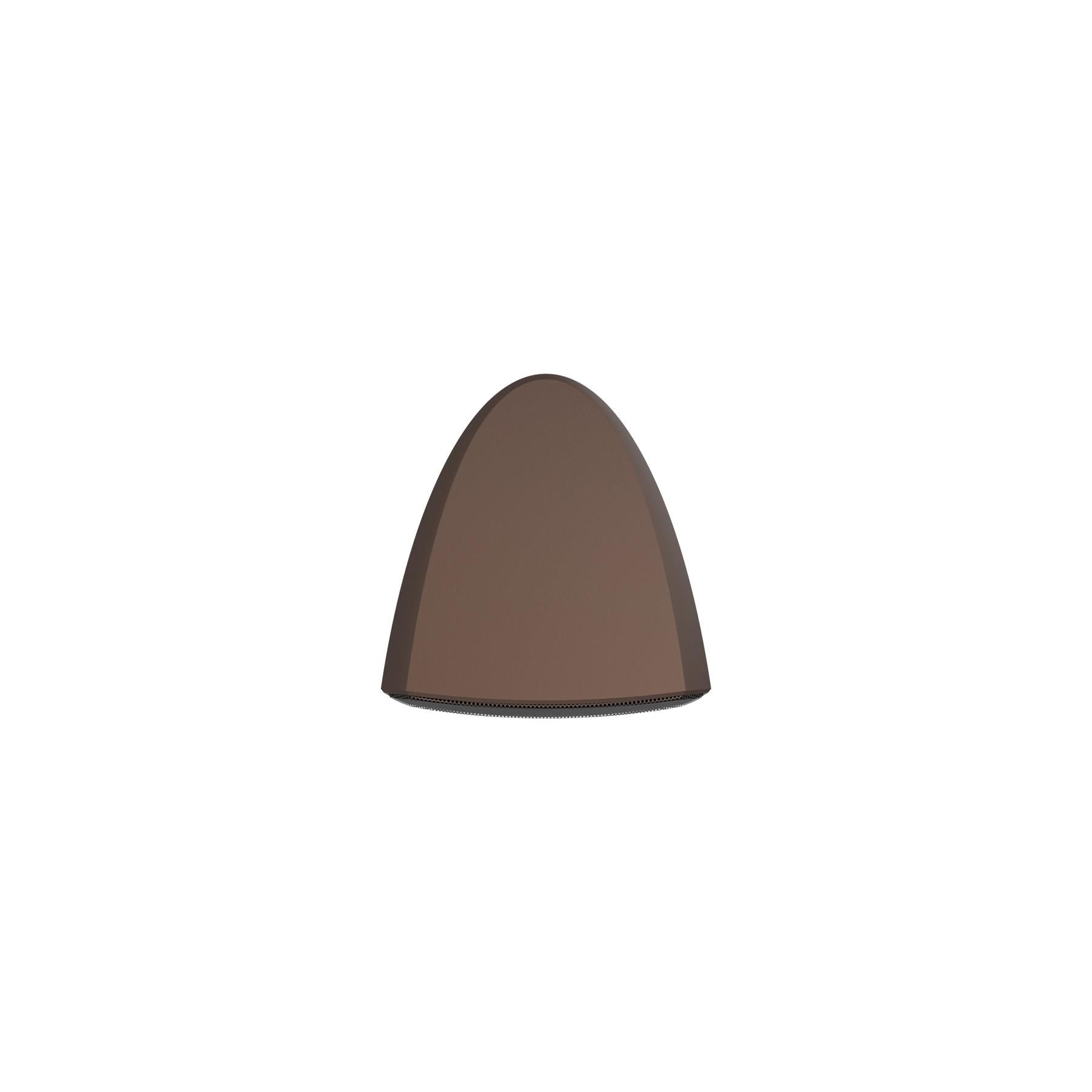

- Satellite dimensions: 5.75 in H (no stake) x 7.38 in W x 7 in D

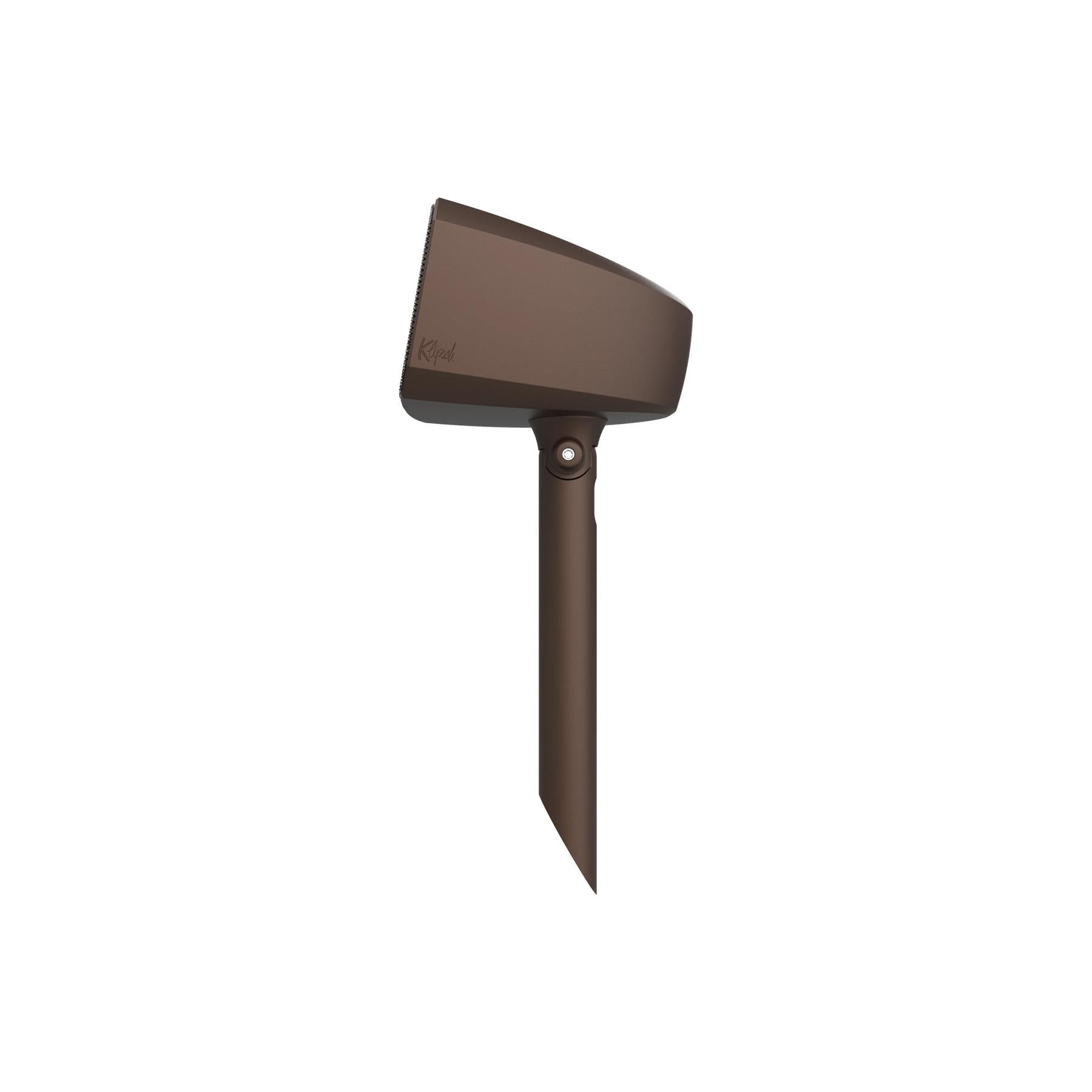

- Stake dimensions: 12.5 in length x 1.55 in diameter; stake fits 1.5 in schedule 40 PVC
- Satellite weight: 3.5 lb (1.6 kg) each
- Stake weight: 0.37 lb (0.17 kg)
- Finish: Brown matte
- Suggested speaker spacing in the manual: About 8 to 10 feet apart
- Suggested trench depth in the manual: 5 inches for speaker wire routing
- Suggested burial-rated speaker wire in the manual: 16 AWG or better up to 100 ft, 14 AWG or better for 100 to 200 ft, 12 AWG or better for 200 to 300 ft
Klipsch Courtyard 2.0 Landscape Speaker Expansion Q&A:
- What is the Klipsch Courtyard 2.0 Landscape Speaker Expansion designed to do?
- It is designed to expand an existing Klipsch Courtyard 4.1 outdoor speaker system by adding two more satellite speakers for wider sound coverage.
- What comes in the box?
- The expansion pack includes two satellite speakers and mounting posts with stakes. Klipsch Courtyard documentation also references installation hardware such as silicone wire nuts, a hammer cap, and an Allen key for setup.
- Can this be used by itself?
- No. Klipsch positions it as an add-on for the Courtyard 4.1 system rather than a standalone outdoor audio solution.
- How large a system can it help create?
- When added to an existing Courtyard 4.1 kit, this expansion pack can help build out a larger 6.1 or 8.1 outdoor speaker system.
- Is it built for outdoor weather exposure?

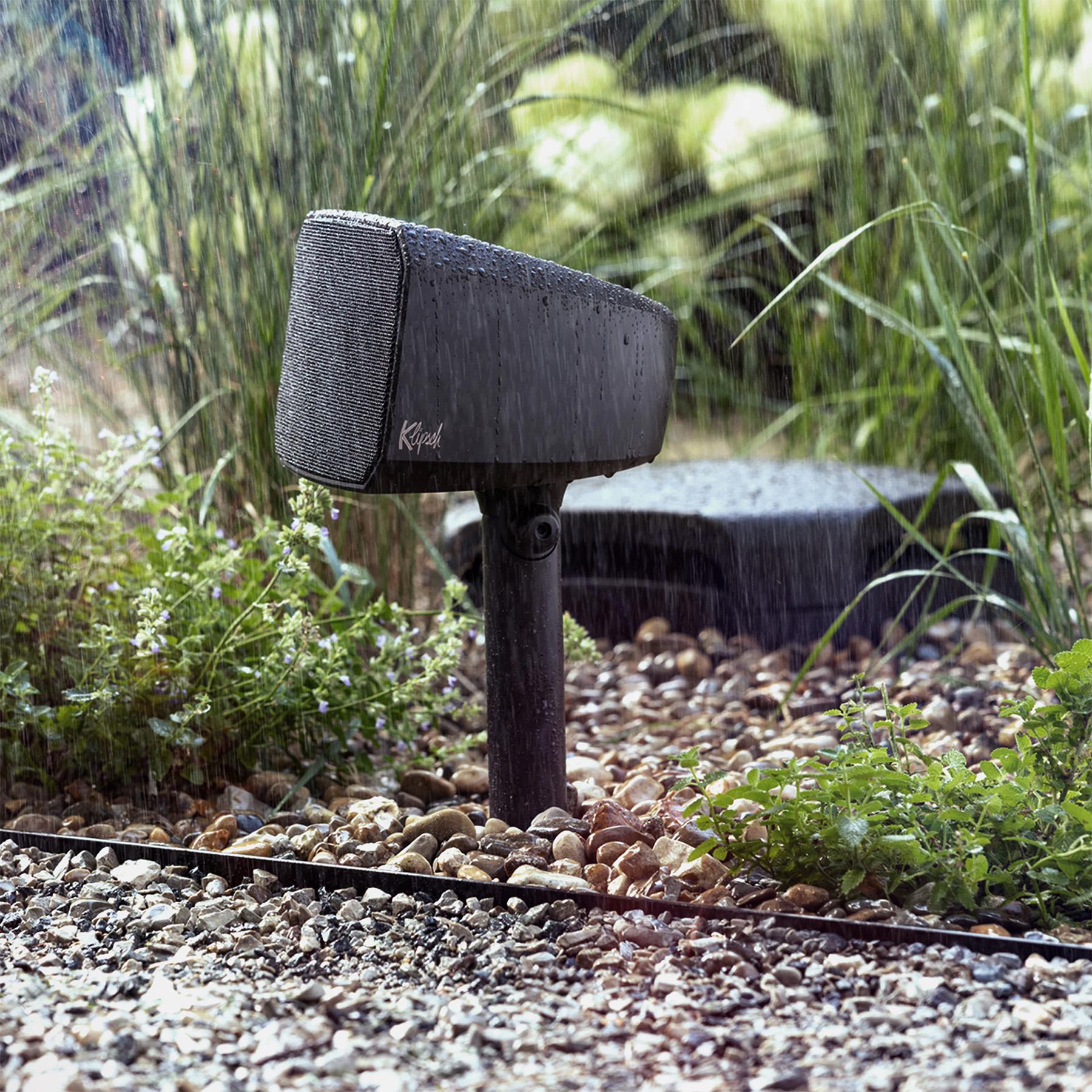

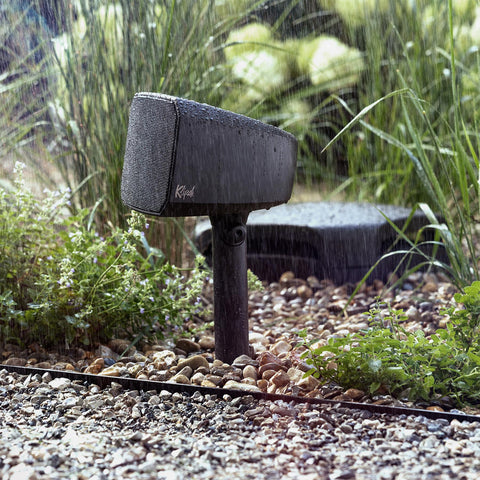

- Yes. The satellite speakers are described as colorfast and IPX7-rated to handle rain, snow, direct sunlight, and high-pressure water.
- What kind of tweeter does it use?
- The shared Courtyard spec sheet lists a 1-inch Tractrix horn-loaded aluminum tweeter for clear, detailed outdoor sound.
- What are the speaker dimensions?
- Each satellite speaker measures 5.75 inches high without the stake, 7.38 inches wide, and 7 inches deep.
- How far apart should the satellite speakers be installed?
- The manual suggests placing the satellite speakers about 8 to 10 feet apart for effective coverage.
Klipsch Courtyard 2.0 Landscape Speaker Expansion Downloads:
Klipsch Courtyard 4.1 Outdoor Speaker System User Manual
Klipsch Courtyard 4.1 Outdoor Speaker System Specifications Sheet
