Klipsch Courtyard 4.1 Landscape Speaker System

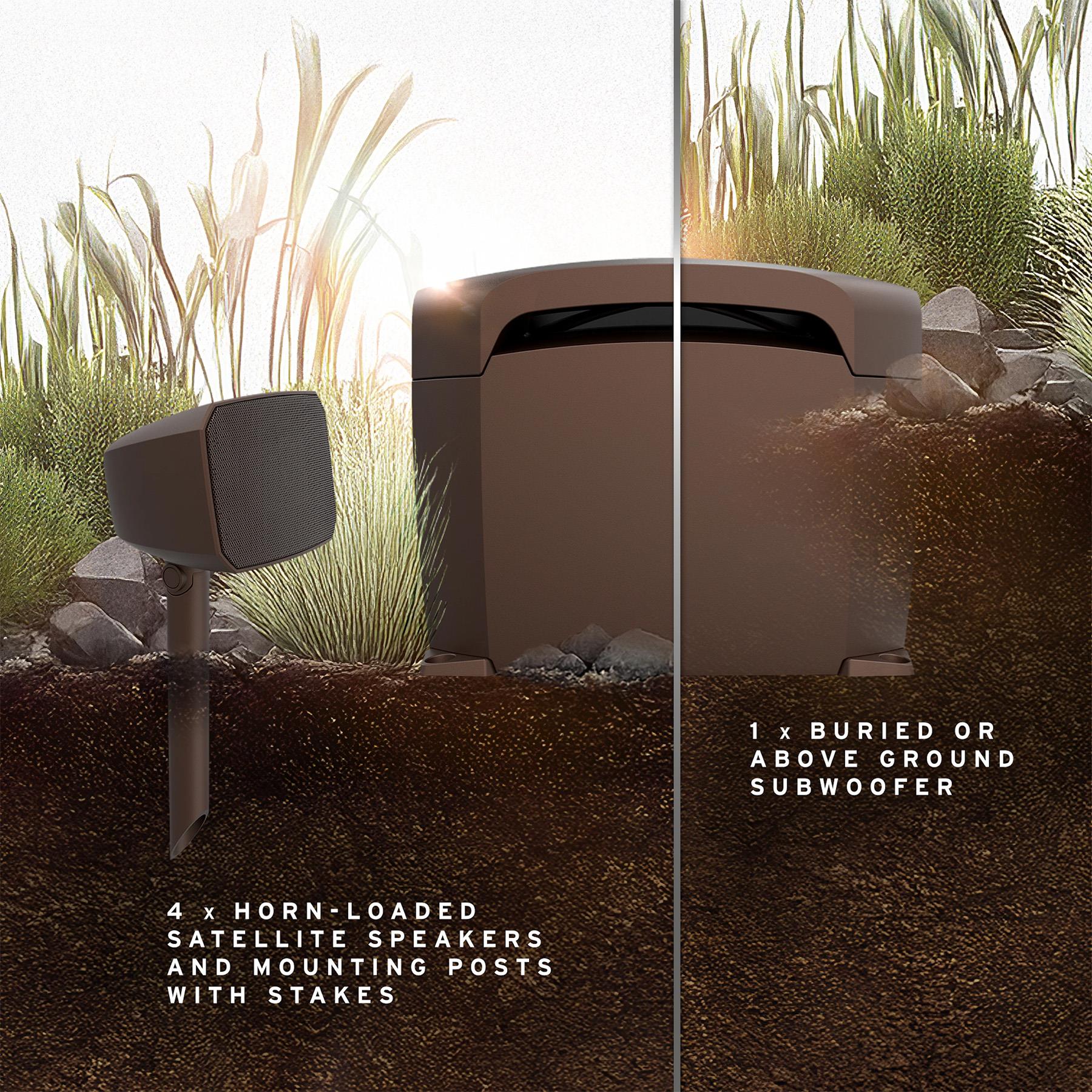

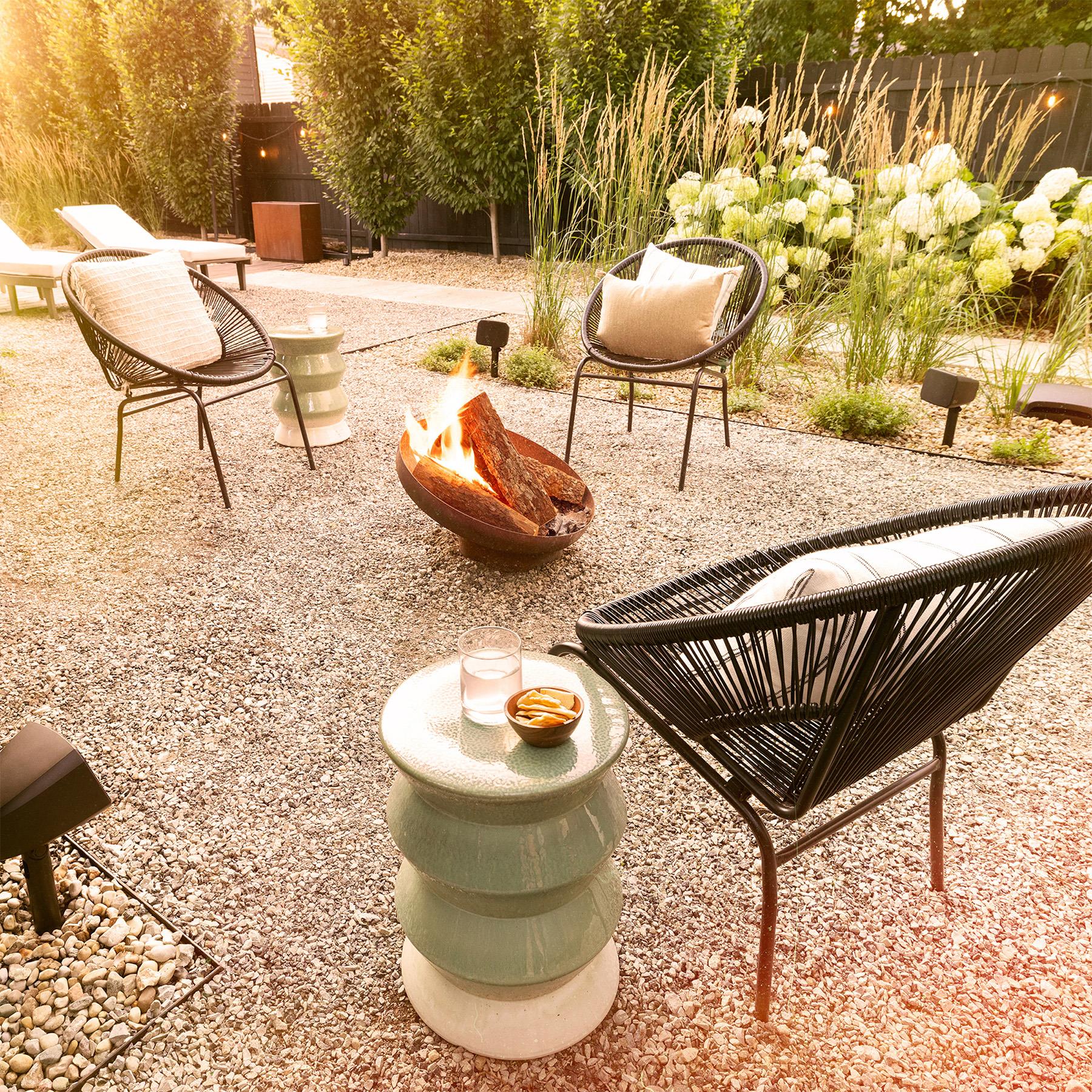

The Klipsch Courtyard 4.1 Landscape Speaker System is an all-in-one outdoor audio solution built to deliver powerful, precision-tuned sound across patios, backyards, and landscaped entertainment spaces. Designed with four aimable satellite speakers and a low-profile subwoofer, this landscape speaker system brings Klipsch’s horn-loaded performance outdoors with deep bass, wide coverage, and durable weather resistance for year-round listening. It installs quickly with included mounting posts, stakes, silicone-filled wire nuts, a hammer cap, and an Allen key, making it a strong choice for homeowners who want premium outdoor sound without a complicated setup. For larger spaces, the system can also be expanded up to eight satellite speakers and two subwoofers, giving it the flexibility to grow with the installation.
What It's Good At:

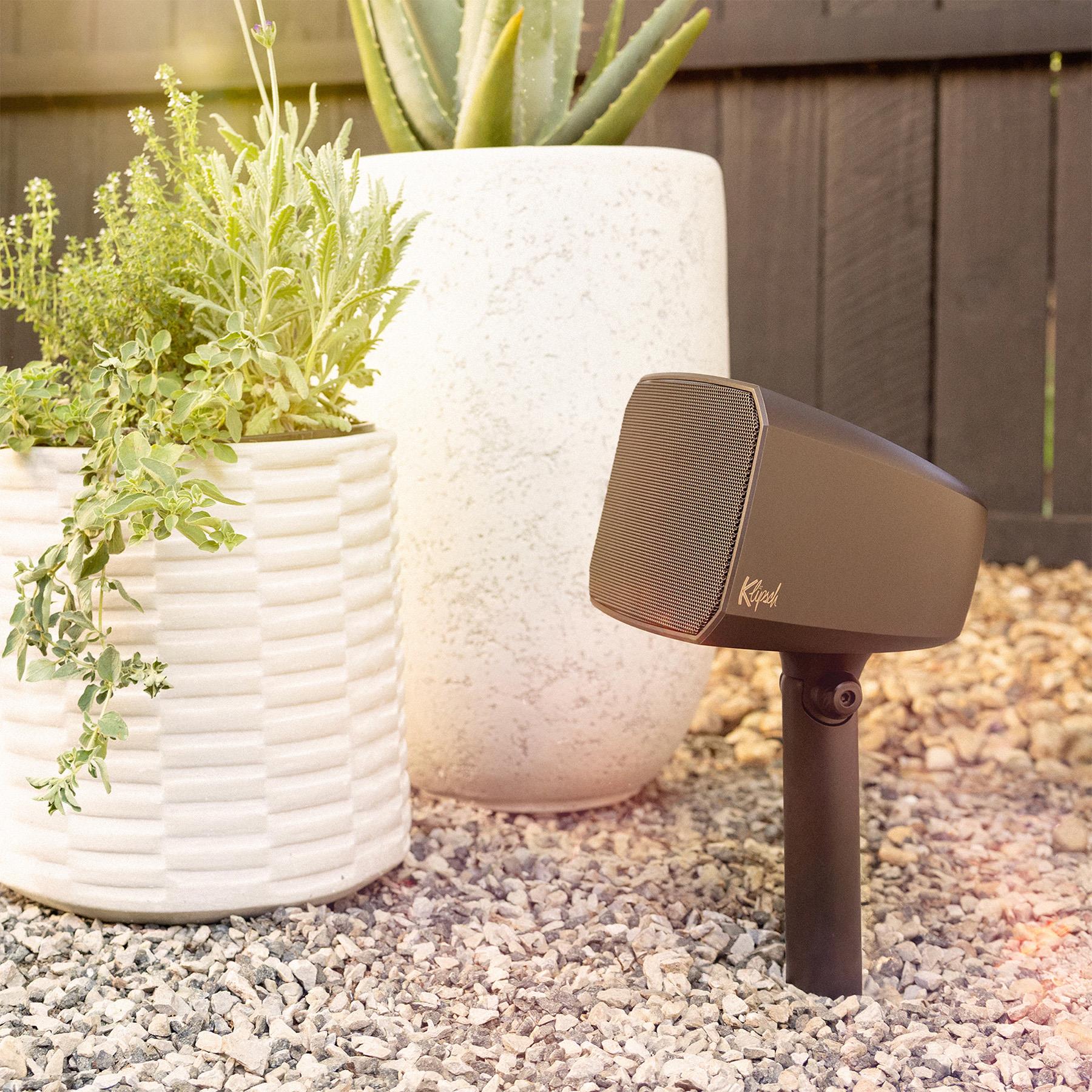

- Filling patios, courtyards, and backyards with clear, powerful outdoor sound
- Delivering deep bass from a compact subwoofer that can be buried or installed above ground

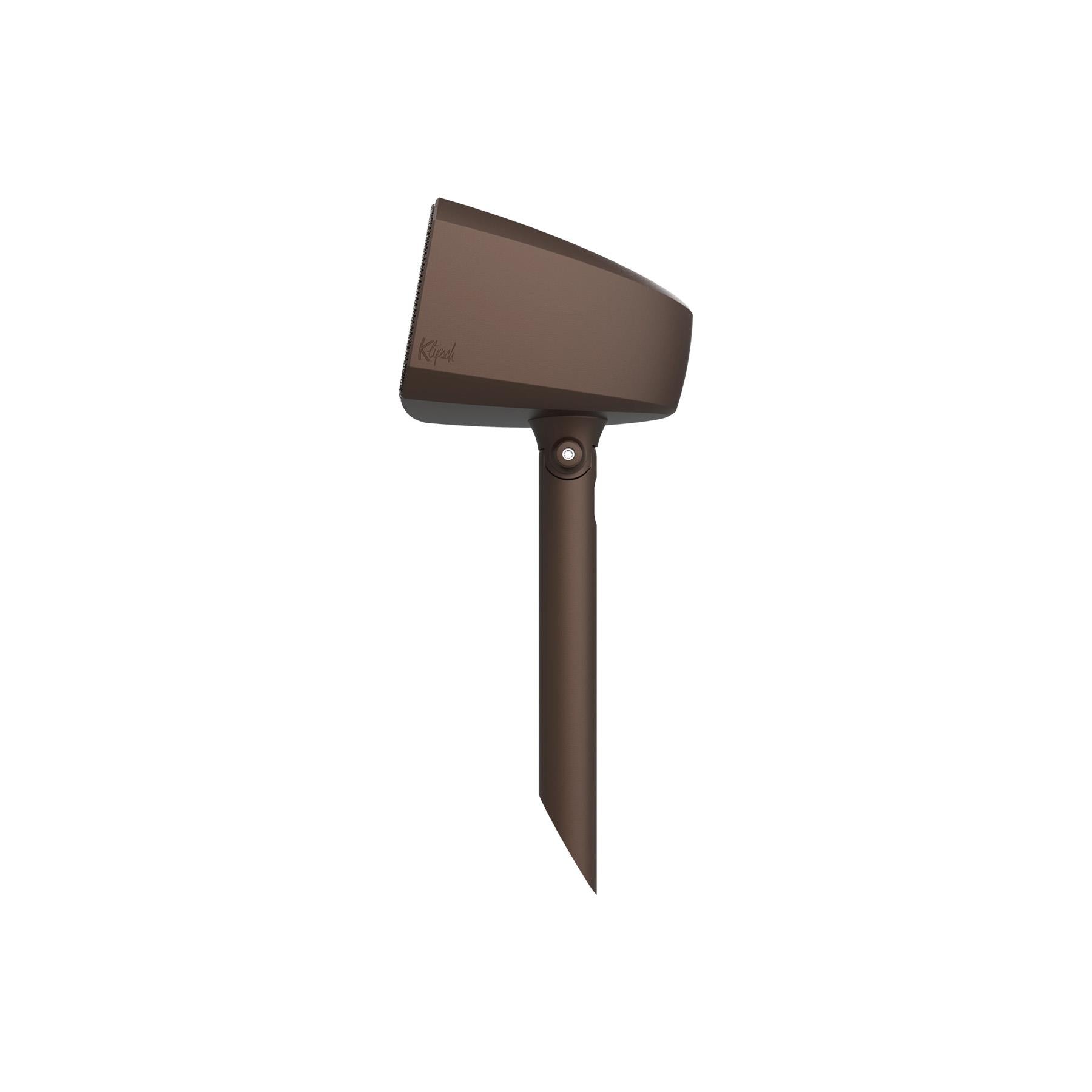

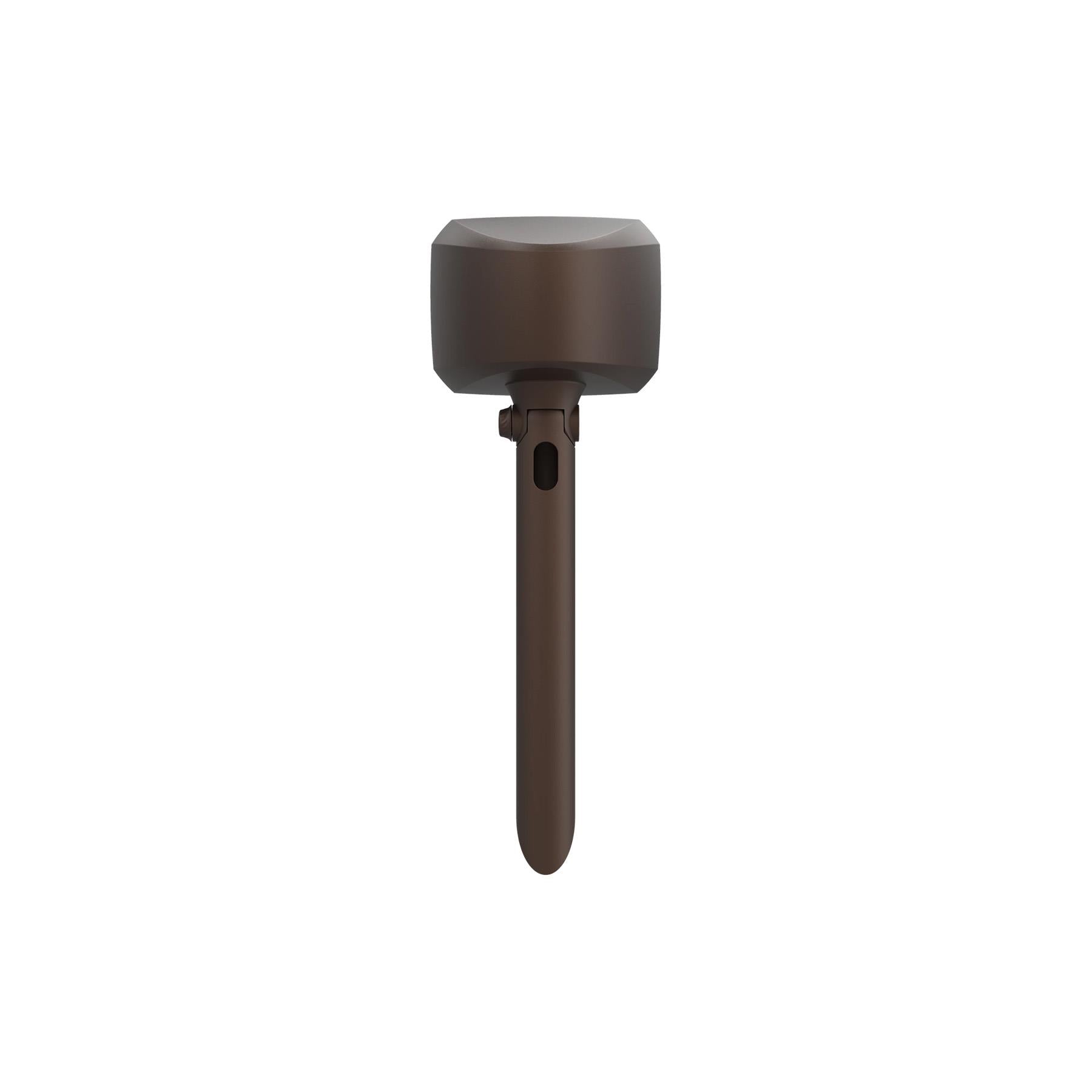

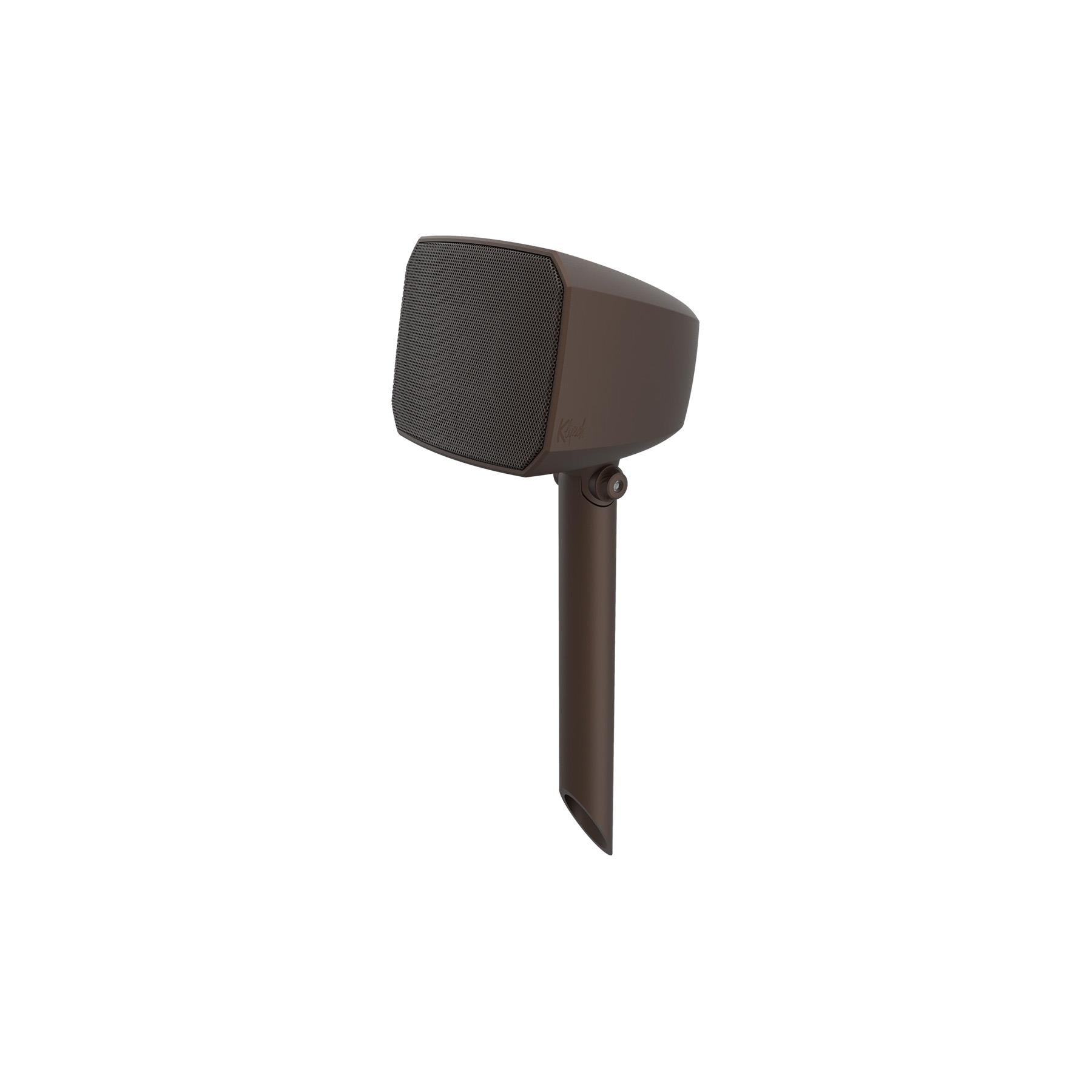

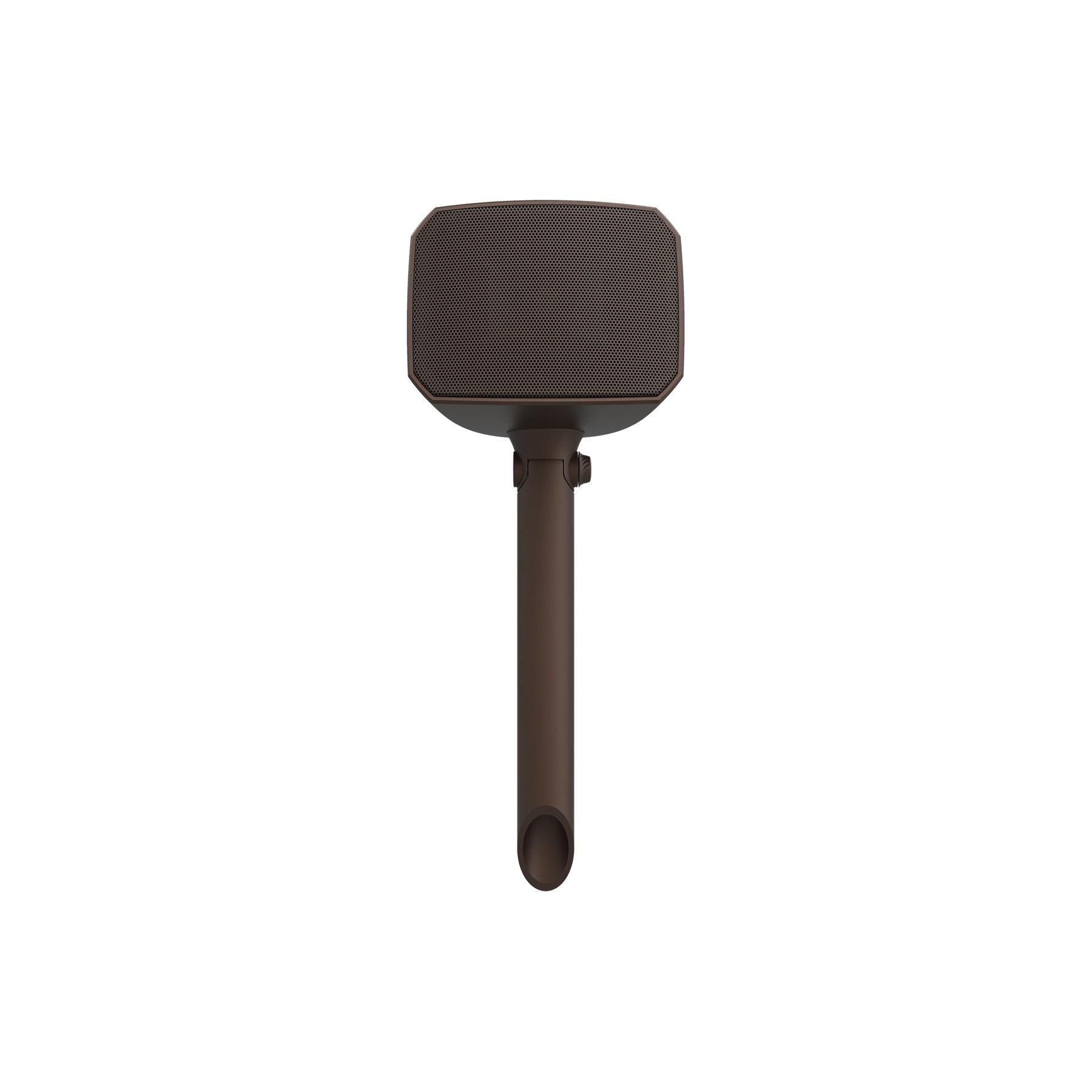

- Providing wide, aimable coverage with horn-loaded satellite speakers

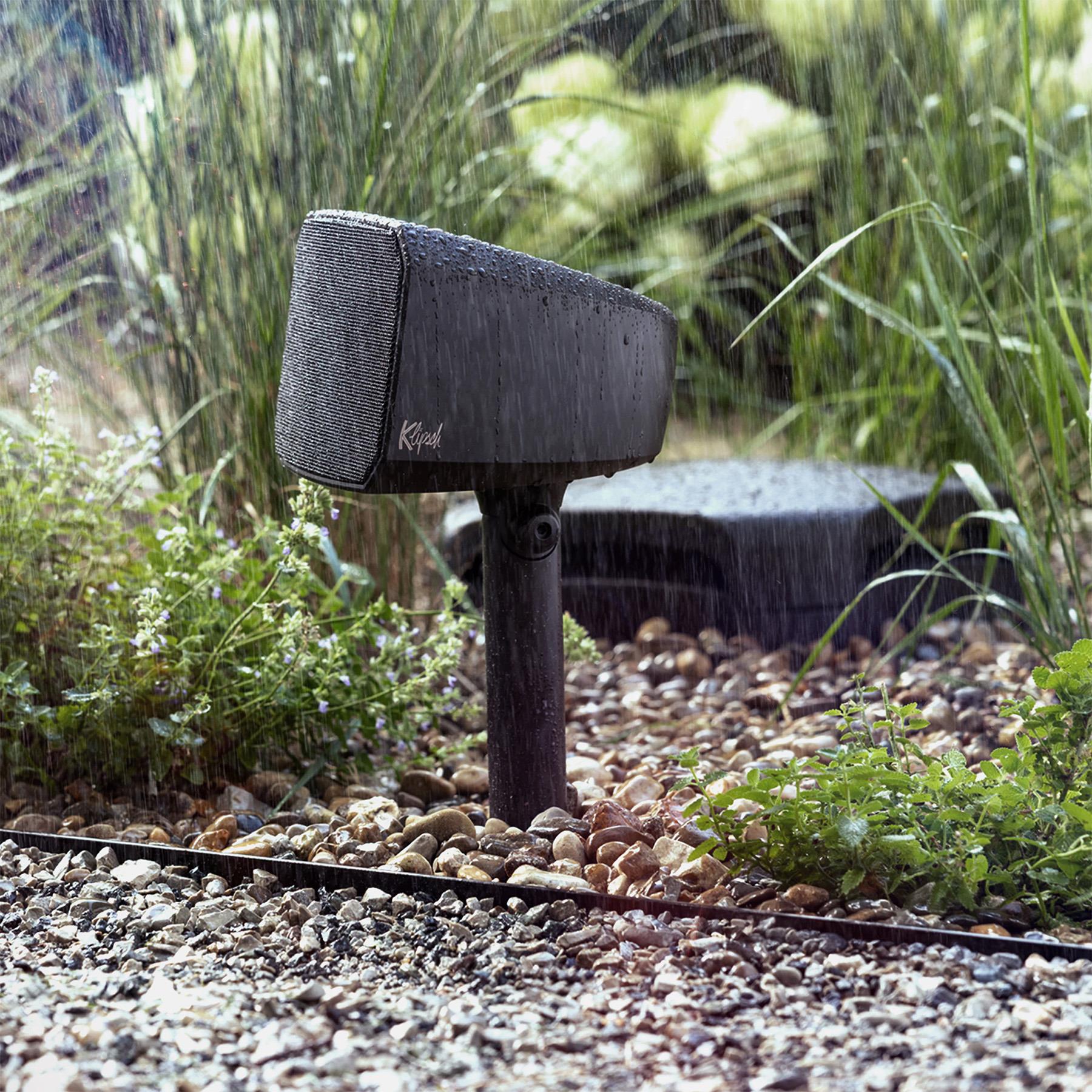

- Standing up to rain, snow, high-pressure water, and direct sunlight with an IPX7-rated design
- Simplifying installation with included stakes, mounting posts, silicone wire nuts, a hammer cap, and an Allen key
- Expanding for larger outdoor zones with support for up to eight satellite speakers and two subwoofers
Klipsch Courtyard 4.1 Landscape Speaker System Full Specifications:
-
Product name: Klipsch Courtyard 4.1 Landscape Speaker System
-
System type: Landscape speaker system
-
Frequency response: 35Hz – 20kHz (+/- 3dB)
-
Power handling (continuous/peak): 120W / 240W
-
Maximum continuous output: 107dB
-
Sensitivity: 86dB @ 2.83V / 1m
-
Coverage: V120° / H60° (satellite, aimable); omni-directional (subwoofer)
-
Nominal impedance: 8 ohm compatible (6.0 ohm minimum)
-
Crossover frequency: 120Hz (sub-sat); 3.0kHz (satellite woofer/tweeter)
-
High-frequency driver: 1" Tractrix horn-loaded aluminum tweeter
-
Low-frequency drivers: 4" polypropylene (satellites); 10" polypropylene (subwoofer)
-
Enclosure material: UV-treated all-weather ABS; rotomolded linear low-density polyethylene (LLDP)
-
Enclosure type: Sealed; hardscape/partial burial (subwoofer)
-
IP rating: IPX7
-
Inputs: 65cm pigtail (30") bare wire with silicon-filled wire nuts
-

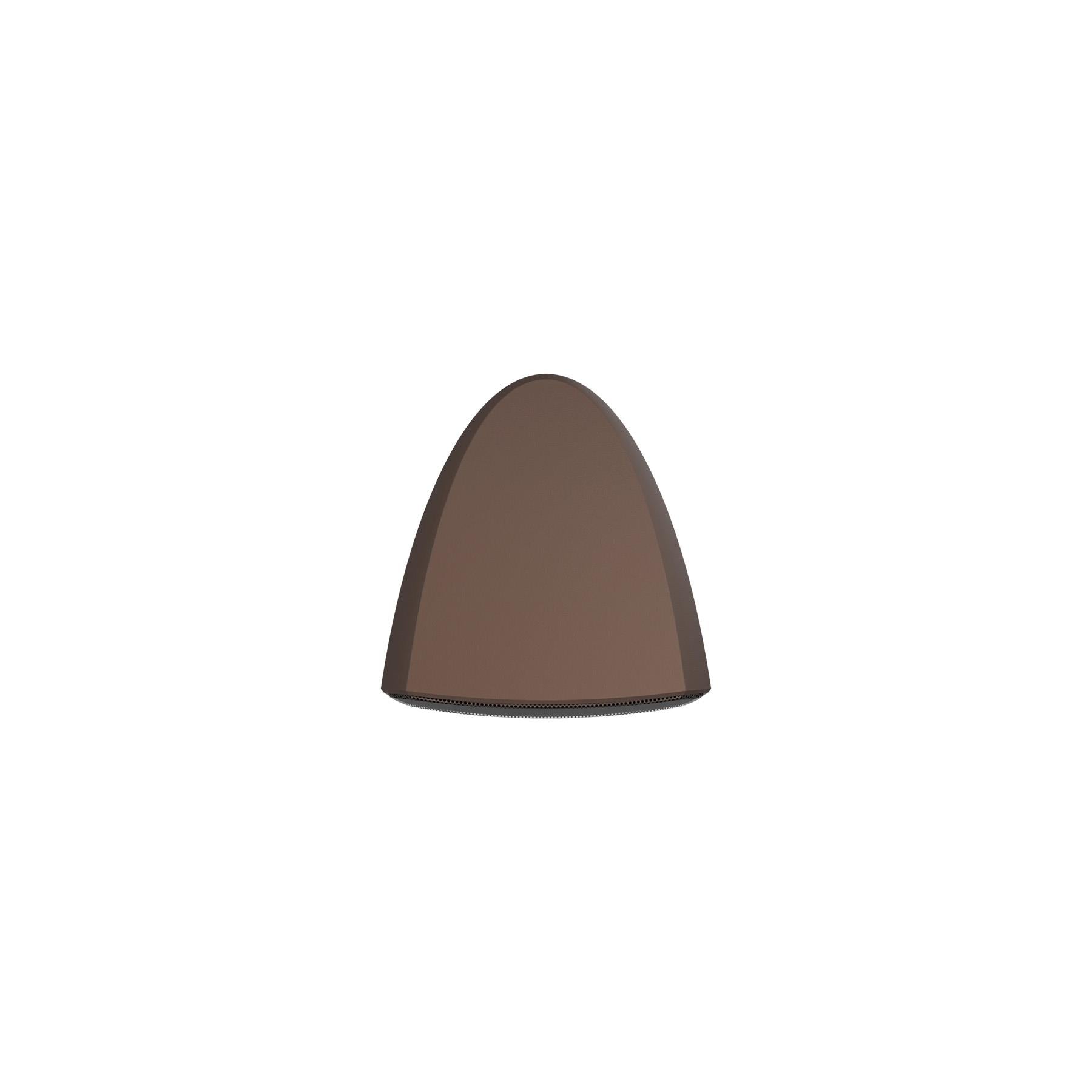

Satellite dimensions: 5.75" H (no stake) x 7.38" W x 7" D
-
Subwoofer dimensions: 12" H x 15" W x 15" D
-
Stake dimensions: 12.5" length x 1.55" diameter; fits 1.5" schedule 40 PVC
-
Satellite weight: 3.5 lb (1.6 kg)
-
Subwoofer weight: 24 lb (10.9 kg)
-
Stake weight: 0.37 lb (0.17 kg)
-
Finish: Brown matte
-

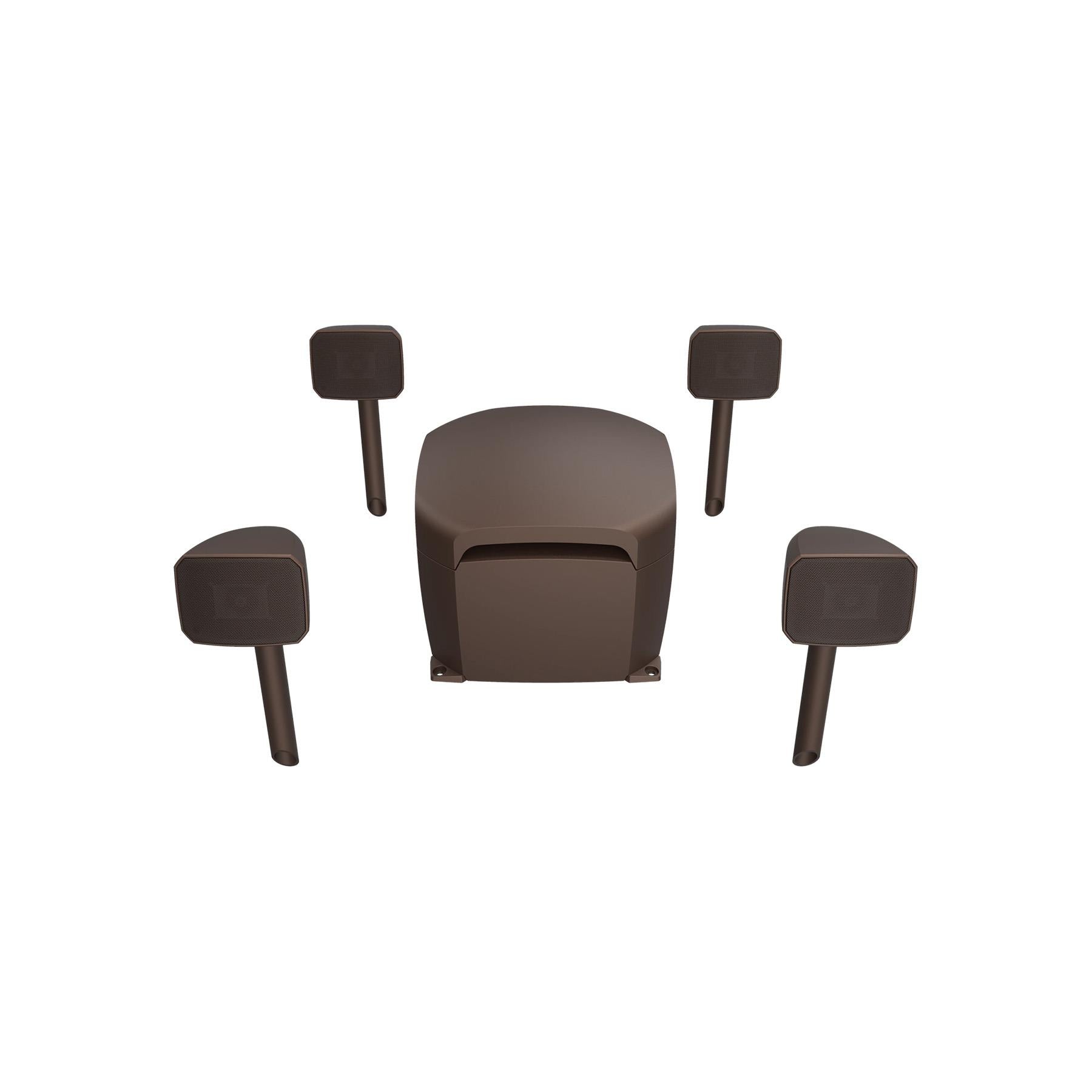

Main kit includes: 4 satellite speakers, 1 subwoofer, mounting posts with stakes, silicone-filled wire nuts, hammer cap, Allen key, and documentation
-
Expandable to: Up to 8 satellite speakers and 2 subwoofers
-
Suggested wire: Burial-rated speaker wire; 16 gauge or better up to 100 ft, 14 gauge or better for 100–200 ft, and 12 gauge or better for 200–300 ft
-
Required tools not included: Wire strippers, shovel, rubber mallet, burial-rated speaker wire
Klipsch Courtyard 4.1 Landscape Speaker System Q&A:
- What comes in the Klipsch Courtyard 4.1 system?
- The main kit includes four satellite speakers, one subwoofer, mounting posts with stakes, silicone-filled wire nuts, a hammer cap, an Allen key, and product documentation for installation.
- Is this outdoor speaker system weather-resistant?

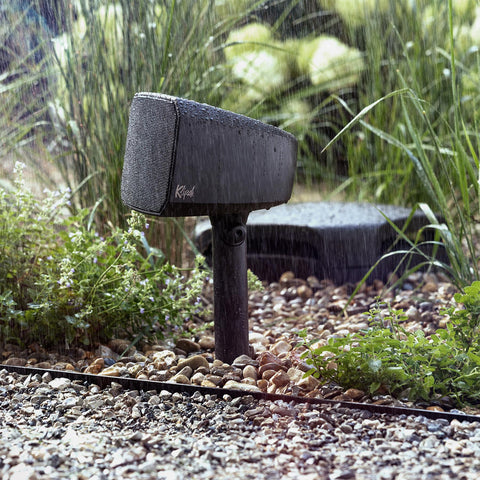

- Yes. The satellites and subwoofer are IPX7 rated and designed to withstand rain, snow, high-pressure water, and direct sunlight for long-term outdoor use.
- Can the subwoofer be buried?

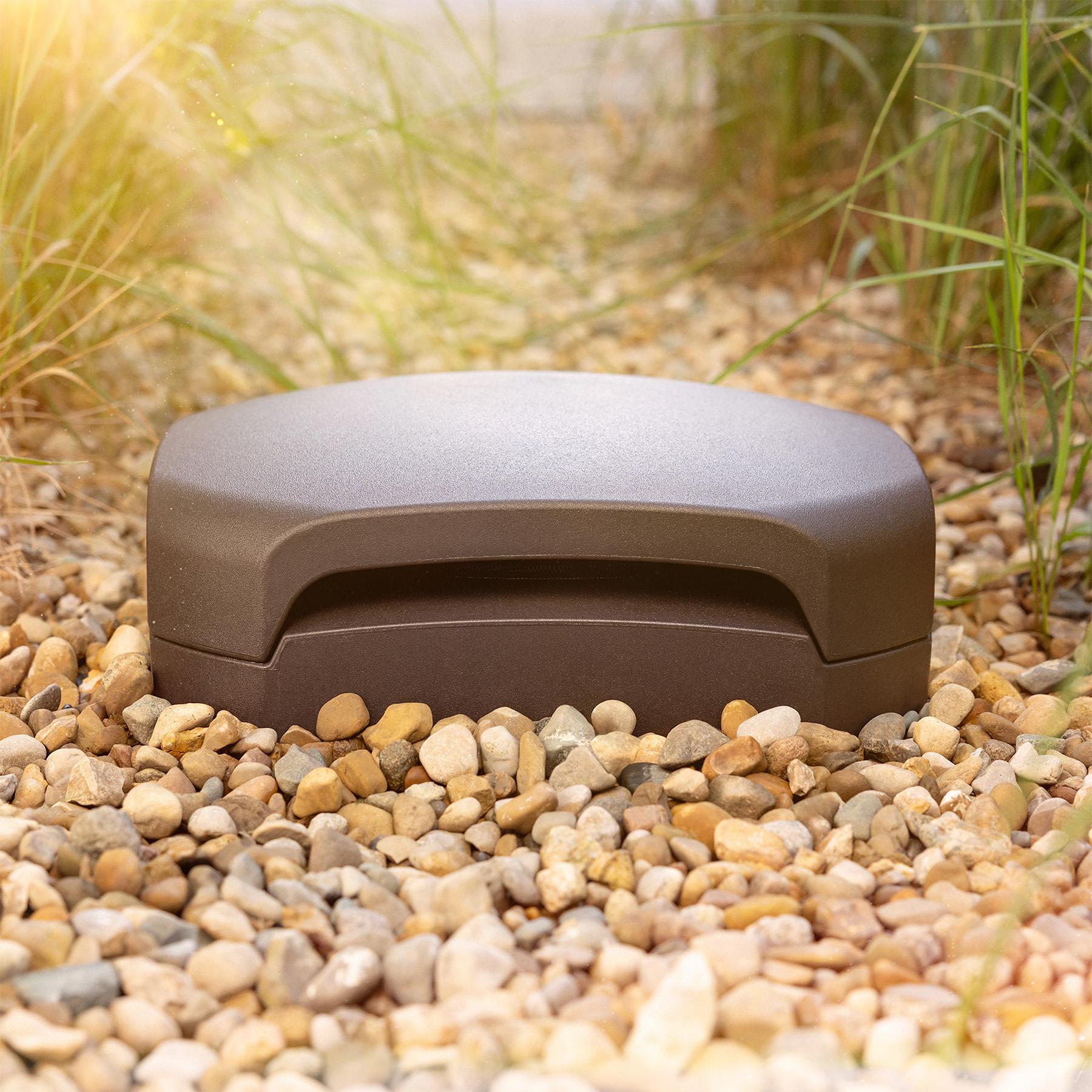

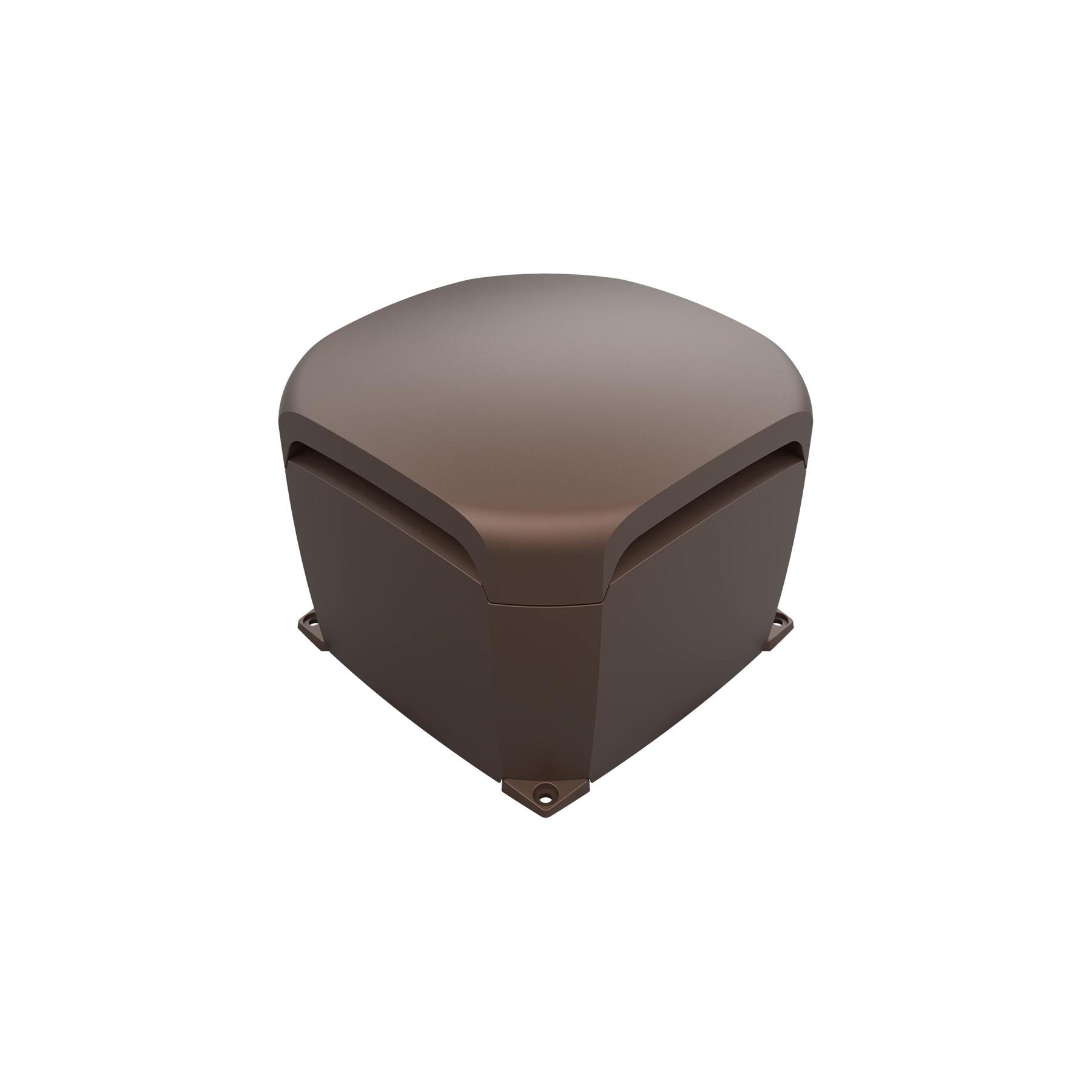

- Yes. The low-profile subwoofer is designed for hardscape or partial-burial installation, and it can also be installed above ground depending on the look of the space.
- Can this system be expanded for larger yards or patios?
- Yes. The Courtyard 4.1 system can be expanded up to eight satellite speakers and two subwoofers for bigger outdoor listening areas.
- What kind of amplifier setup does it work with?
- Klipsch states the system is intended to deliver outdoor sound from an AVR’s Zone 2, making it a practical option for home audio systems with multi-zone capability.
- What speaker wire should be used for installation?
- Burial-rated speaker wire is recommended. Use 16 gauge or better for runs up to 100 feet, 14 gauge or better for 100 to 200 feet, and 12 gauge or better for 200 to 300 feet.
- Is installation hardware included?
- Yes. The package includes wire-concealment accessories, ground stakes, rotatable and locking speaker posts, silicone wire nuts, a hammer cap, and an Allen key to simplify setup.
- What kind of sound can buyers expect from this system?
- Buyers can expect clear, wide outdoor coverage from four aimable horn-loaded satellites plus deep bass from a 10-inch subwoofer, with a frequency response of 35Hz to 20kHz and output up to 107dB continuous.
