Klipsch RP-502S II Surround Speakers

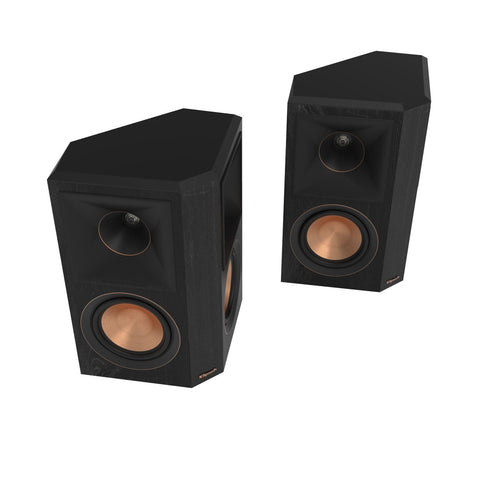

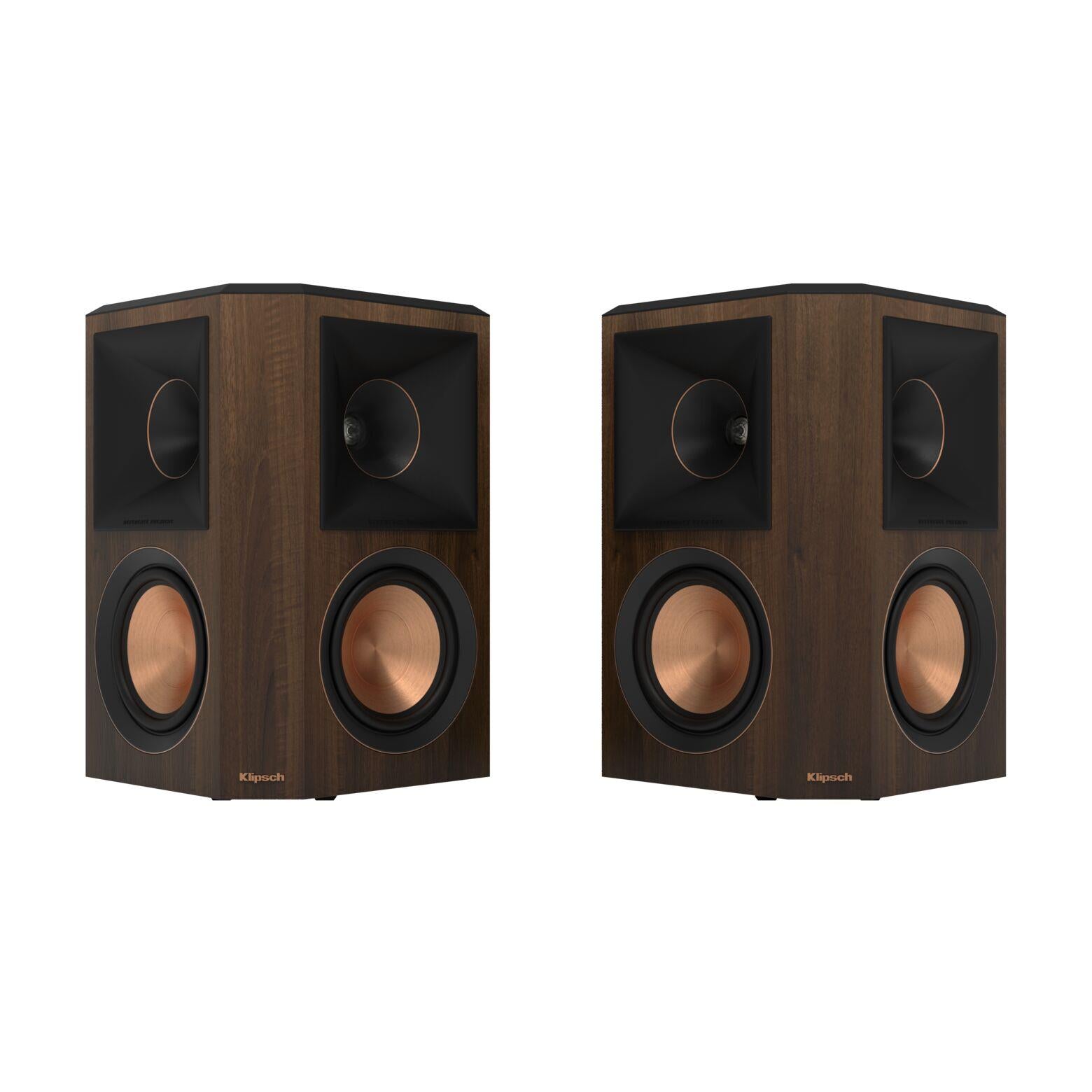

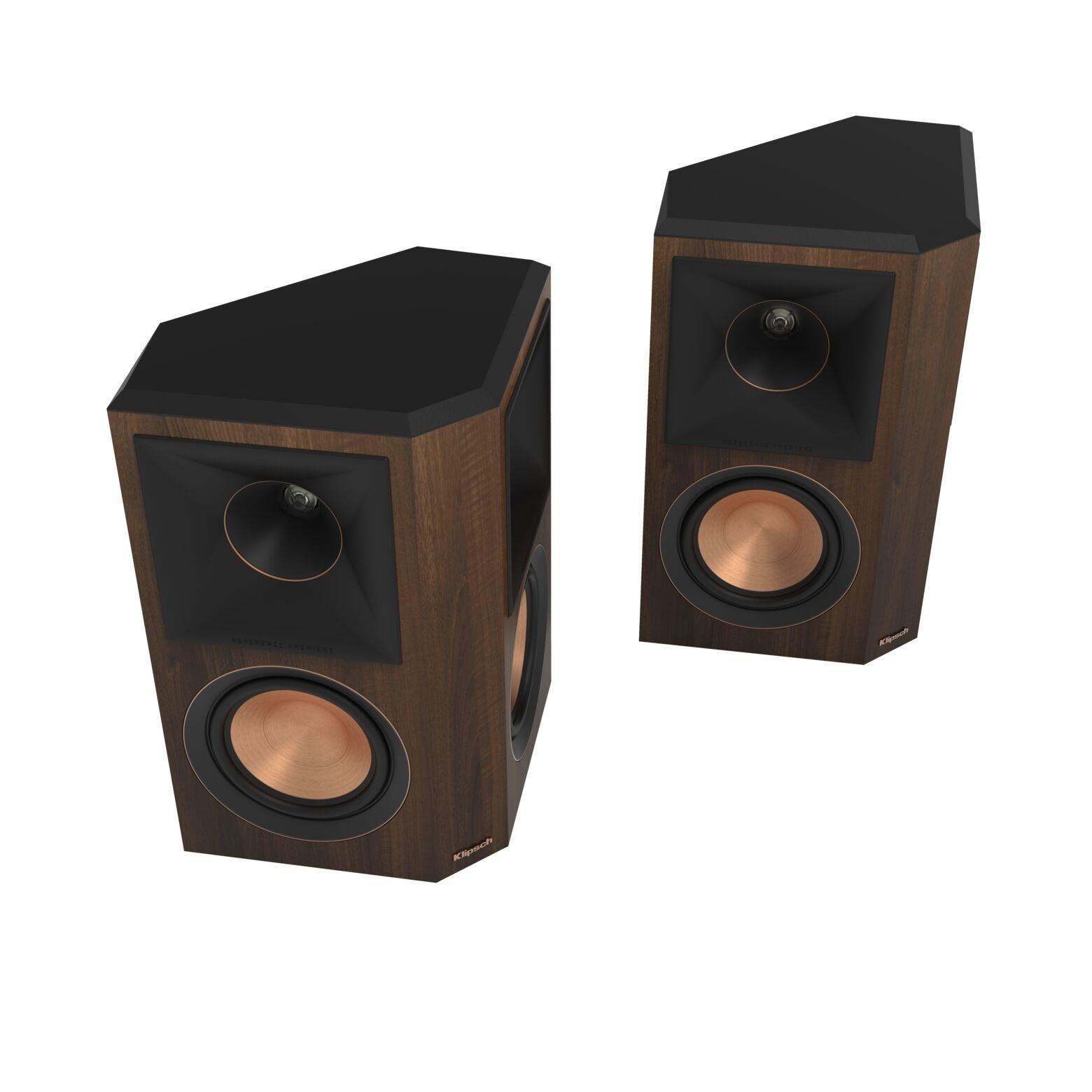

Bring cinema-caliber immersion to your home theater with the Klipsch RP-502S II Reference Premiere surround speakers. The Klipsch RP-502S II are part of the Reference Premiere Series. Each cabinet deploys Klipsch’s Wide Dispersion Surround Technology (WDST) with dual horn-loaded LTS titanium tweeters and dual 5.25" Cerametallic woofers to blanket a wide listening area with seamless, precisely placed effects. The second-generation Hybrid Tractrix horn and vented tweeter design lower distortion and sharpen detail, while the sealed, internally braced MDF enclosure maintains tight, articulate transients. Finished in furniture-grade ebony or walnut with low-profile magnetic grilles, the RP-502S II blends premium build with effortless, room-filling surround performance.
What It’s Great At
- Enveloping, 180° surround coverage with WDST for flexible placement.
- Crystal-clear highs from 1" LTS titanium tweeters with vented housings to reduce harshness.
- Fast, dynamic impact from dual 5.25" Cerametallic woofers with upgraded motor structures.
- Clean, controlled response from a sealed, internally braced cabinet.
- Premium fit-and-finish (satin baffles, magnetic grilles) that looks as good as it sounds.
- Simple, secure connections via aluminum binding posts; keyhole-ready on-wall options.
Klipsch RP-502S II Specifications
-
Frequency Response: 62-25kHz +/- 3dB
-
Series: Reference Premiere II
-
Sensitivity: 94dB @ 2.83V / 1m
-
Power Handling (Continuous/Peak): 100W/400W
-
Nominal Impedance: 8 Ohms Compatible
-
Crossover Frequency: 1500Hz
-
High Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
-
Low Frequency Driver: Dual 5.25" Cerametallic Woofers with Faraday Rings
-
Enclosure Material: MDF (Internally Braced)
-
Enclosure Type: Sealed
-
Inputs: Single Aluminum Binding Posts
-
Height (Inches/MM): 14.15" (36.0 cm)
-
Width (Inches/MM): 11.94" (30.3 cm)
-
Depth (Inches/MM): 7.63" (19.4 cm)
-
Product Weight (lbs/kg): 16.7 lb (7.60 kg)
-
Finish: Ebony, Walnut
-
Accessories: Rubber Feet (8)
Klipsch RP-502S II Q&A
- What makes the RP-502S II different from typical surround speakers?
- The RP-502S II uses Klipsch’s WDST layout—two horn-loaded tweeters set at 90° with dual woofers—to deliver smooth, even coverage across a broad seating area, improving placement flexibility and immersion.
- Can these speakers be wall-mounted?

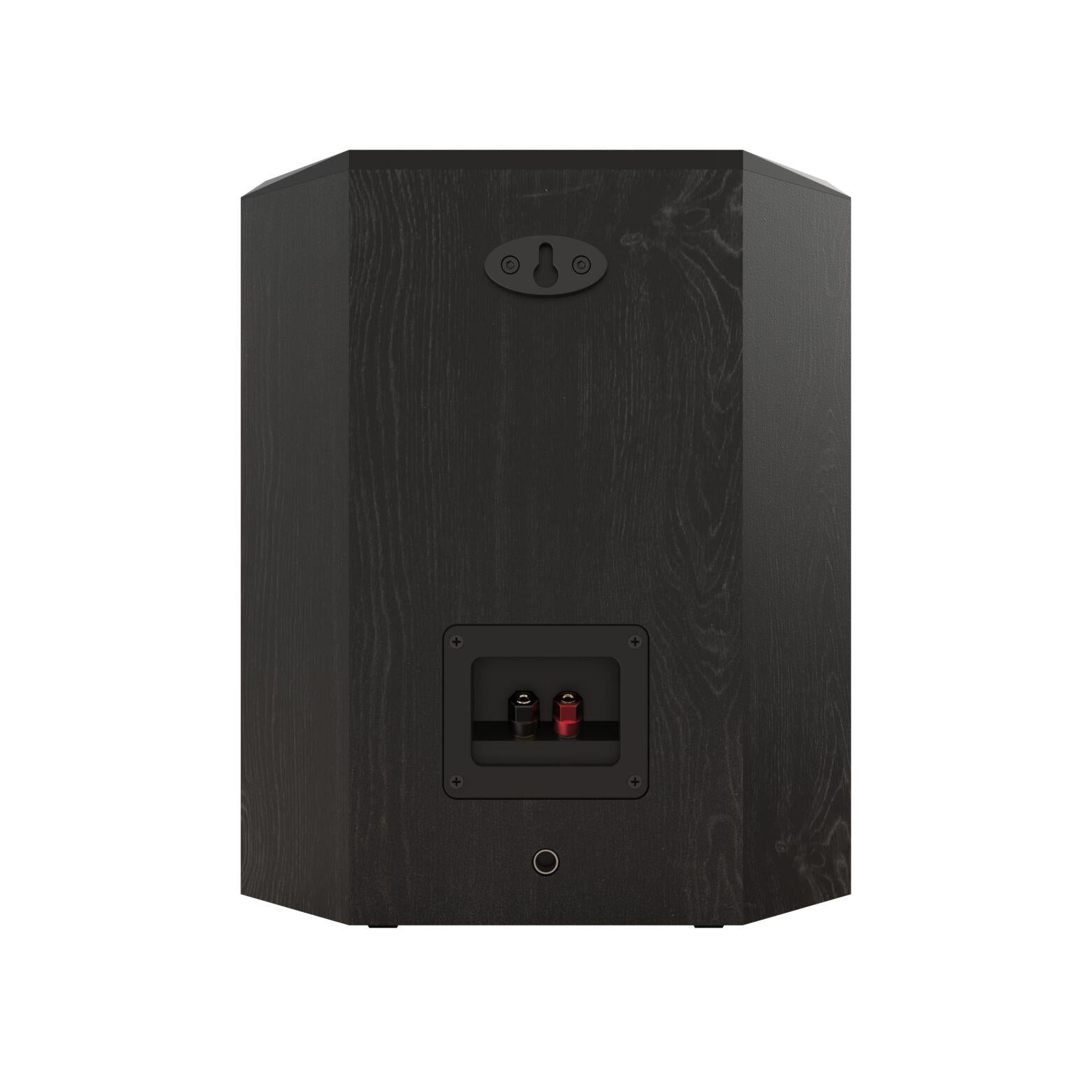

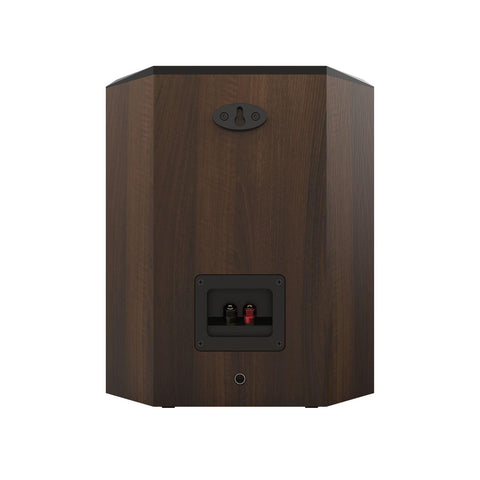

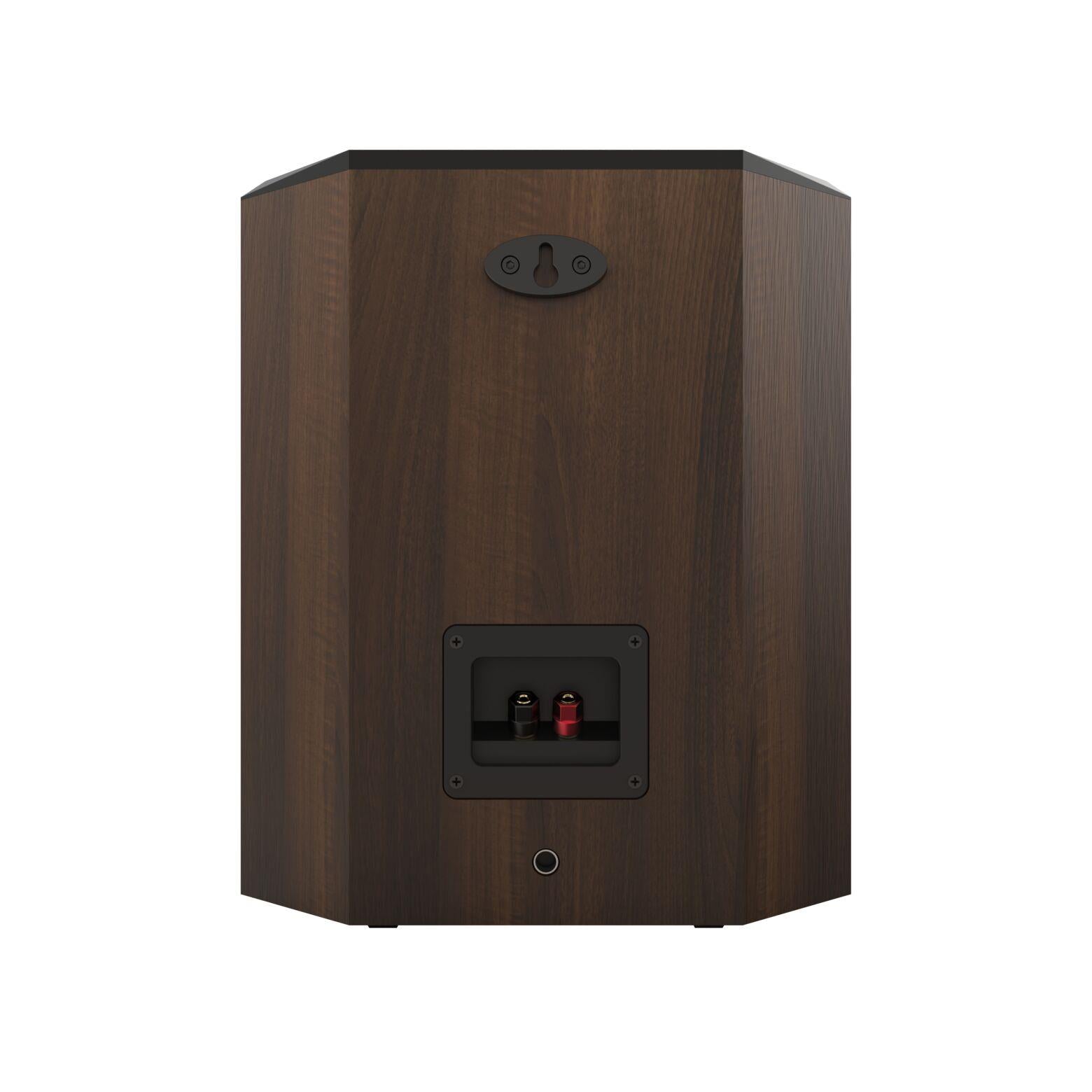

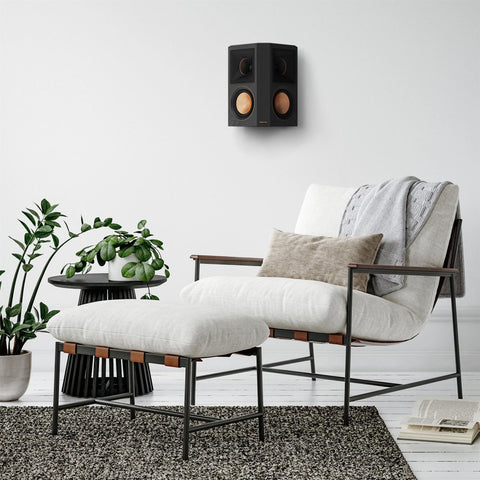

- Yes. They include a convenient keyhole system for simple on-wall installation; they can also be placed on stands or shelves as surrounds or height/elevation channels.
- Do they need a powerful amplifier?
- With 94dB sensitivity and 8-ohm compatibility, they’re easy to drive with most modern AV receivers; rated power handling is 100W continuous / 400W peak.
- Are they sealed or ported?
- They’re sealed, which supports cleaner transients and easier placement near walls without port noise.
- What size drivers are inside?

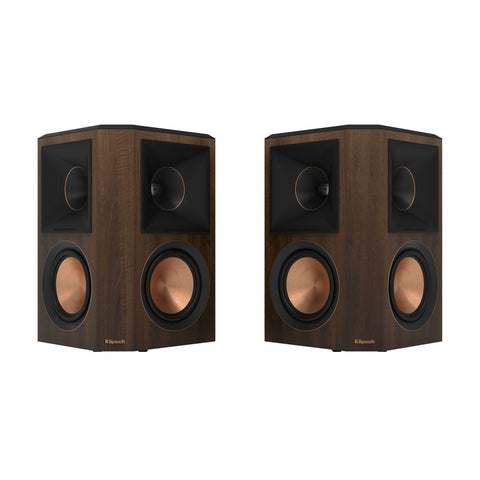

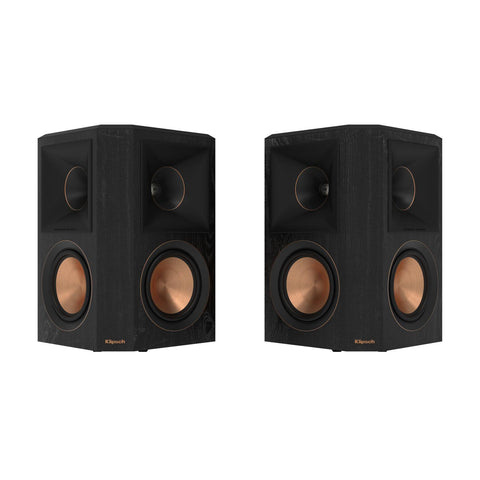

- Each cabinet features two 5.25" Cerametallic woofers and two 1" LTS titanium tweeters mounted in Hybrid Tractrix horns.
- How big are the speakers?
- Each speaker measures 14.15" H × 11.94" W × 7.63" D and weighs 16.7 lb.
- Which finishes are available?

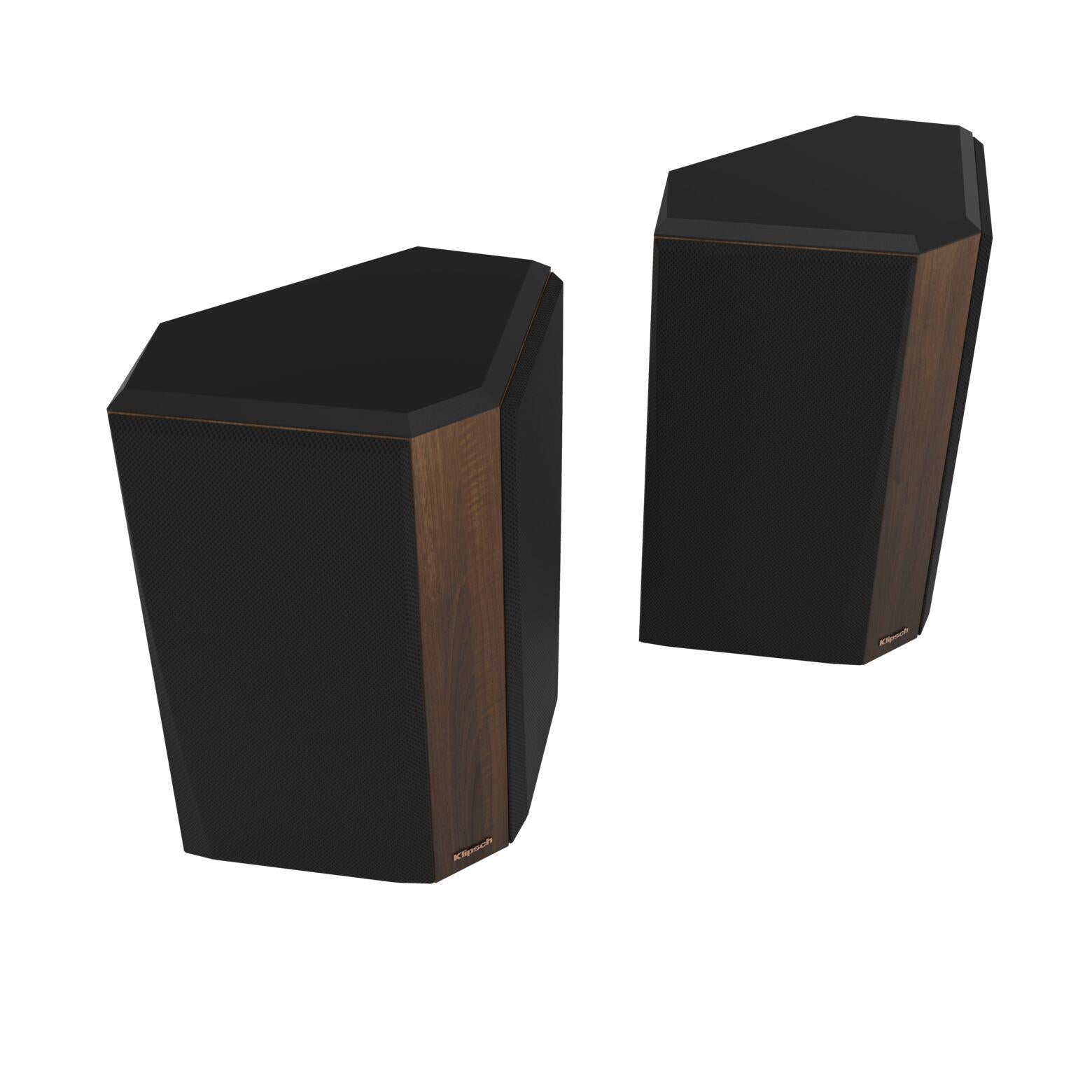

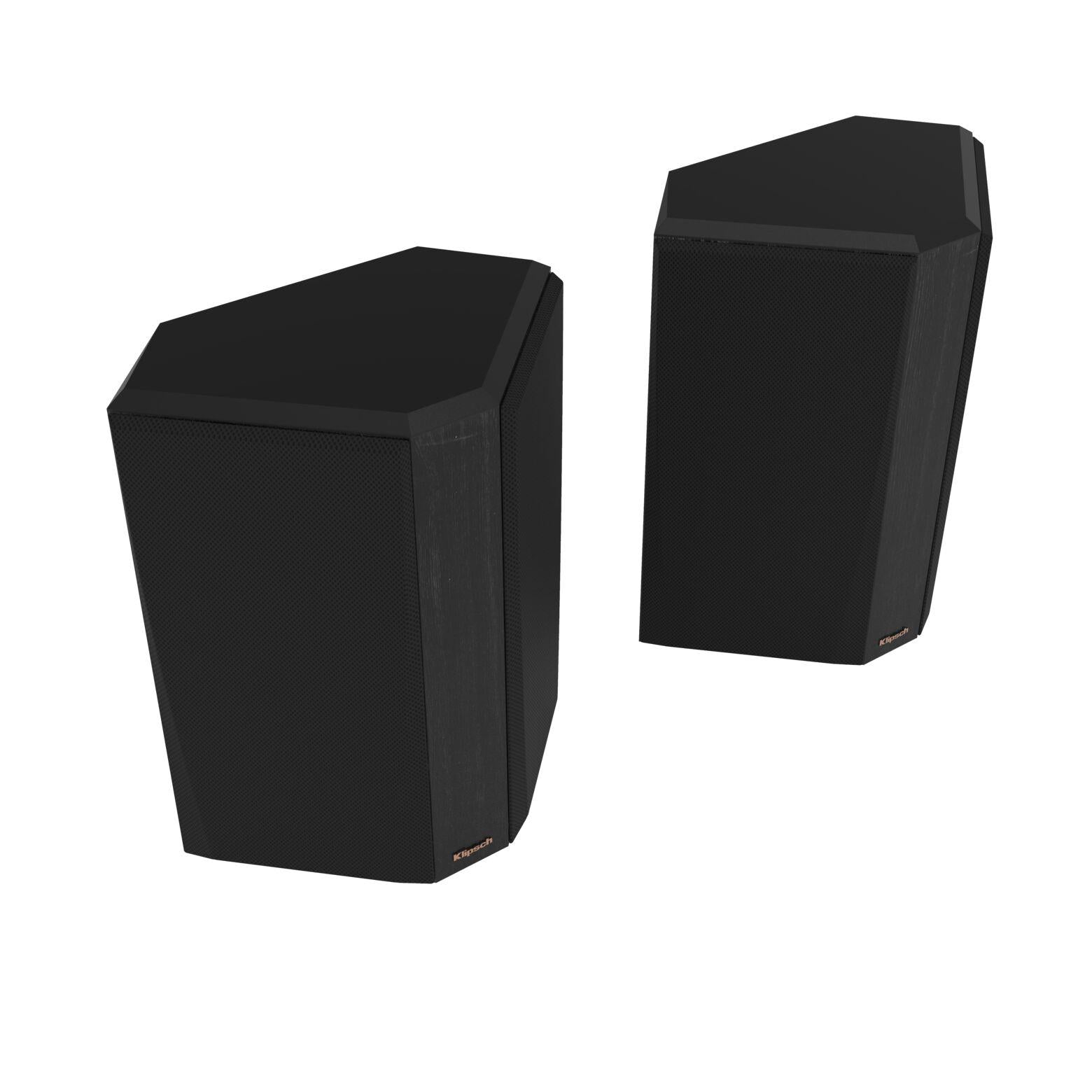

- Ebony and Walnut, both with satin-painted, scratch-resistant baffles and magnetic grilles.
- Where do they fit in a home theater layout?

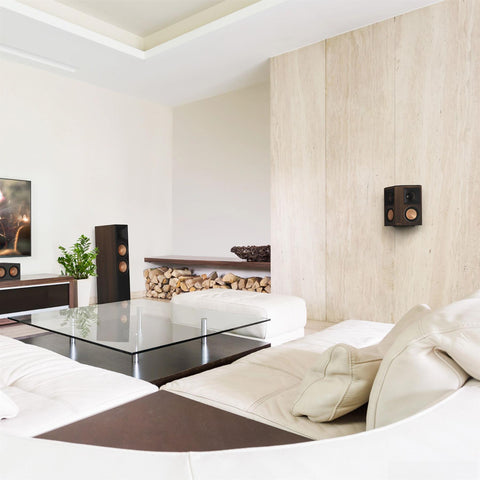

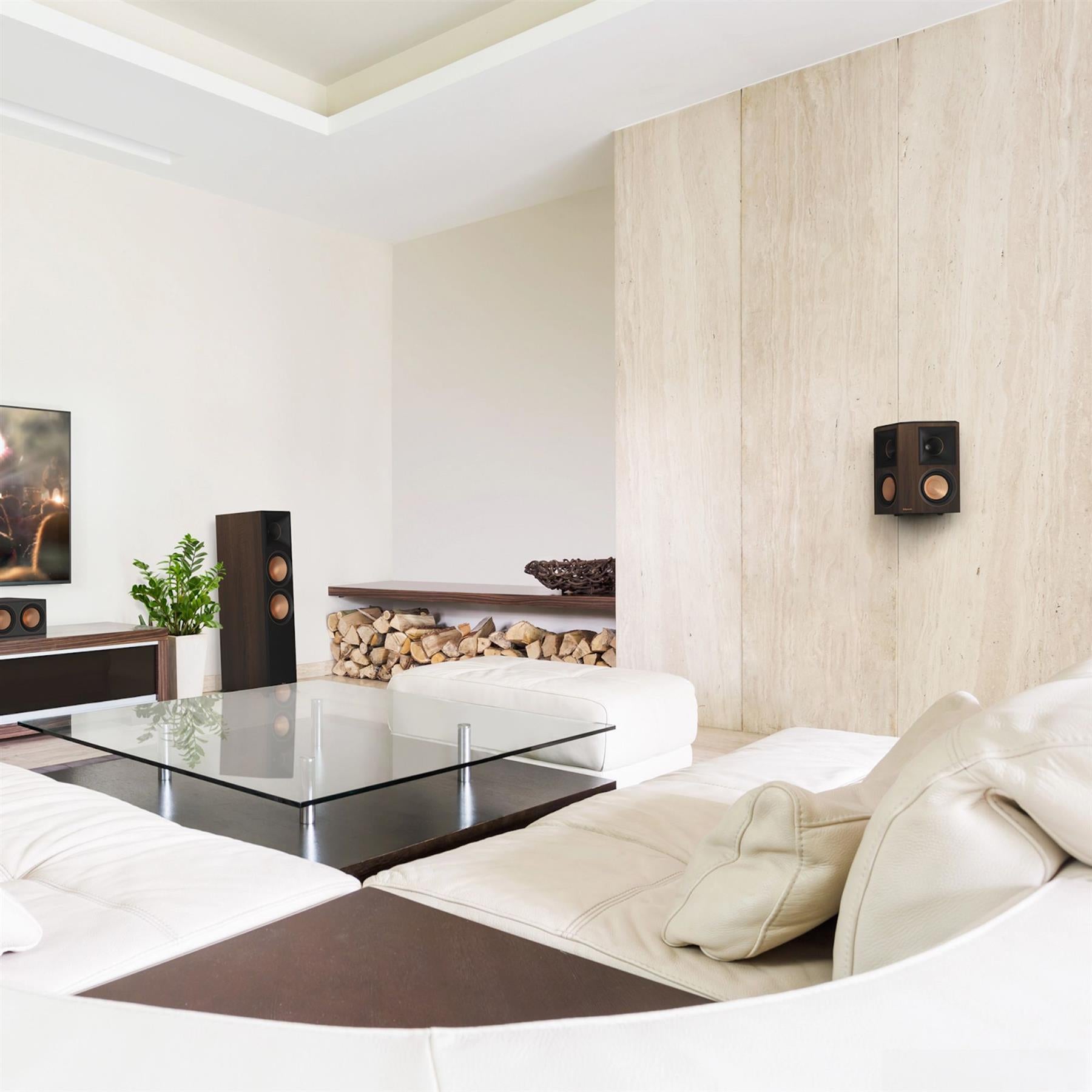

- Place them to the sides or slightly behind the main listening position at ear height for surround or rear-surround duties; they pair perfectly with Klipsch Reference Premiere fronts and a powered sub.
