Marantz AMP 30 Slim 6-Channel Class D Power Amplifier

The Marantz AMP 30 delivers powerful, efficient performance in a sleek chassis designed to perfectly match the AV 30 and other Marantz components. This high-performance 6-channel Class D amplifier provides up to 400 watts per channel in bridged mode and supports flexible configurations for surround sound systems or bi-amping capable speakers. Featuring Marantz’s proprietary HDAM® circuitry and current feedback design, the AMP 30 offers remarkable control, low distortion, and dynamic response even under demanding loads. Balanced XLR and unbalanced RCA inputs provide integration flexibility, while illuminated analog meters and auto-standby enhance usability in high-end home theater setups.

Specifications

• Amplifier Type: 6-channel Class D power amplifier
• Power Output (8 ohms): 200W per channel (1 kHz, 0.05% THD, 2 channels driven)
• Power Output (4 ohms): 400W per channel (1 kHz, 0.7% THD, 2 channels driven)
• Bridged Output (8 ohms): 400W per channel (1 kHz, 0.05% THD, 2 channels driven)
• Bi-Amp Capability: Yes, for speakers with dual input terminals
• Amplifier Technology: HDAM® modules with current feedback amplification
• Level Meter: Illuminated analog level meters
• Auto Standby: Selectable power-saving mode

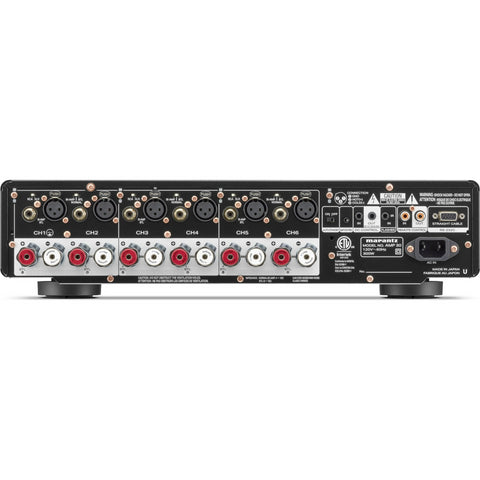

• Inputs: Balanced XLR and unbalanced RCA (mono) for each channel
• Speaker Terminals: Binding post terminals for all channels
• Control Ports: RS-232C, IR in/out, 12V trigger, Marantz amp control input
• Power Cord: Detachable
• Dimensions: 17.4" W x 4.4" H x 17.4" D
• Weight: 22 lbs.
• Warranty: 5 years

Expanded Key Features List

• 6-Channel Class D Amplifier: Compact but powerful design for driving modern surround or bi-amp speaker setups.
• Up to 400W Bridged Power: Delivers 400 watts per channel into 8 ohms in bridged mode for demanding systems.
• HDAM® + Current Feedback Design: Ensures dynamic, low-distortion output and high-fidelity performance.
• Balanced and Unbalanced Inputs: Offers flexible system integration with XLR and RCA options for each channel.
• Illuminated Analog Level Meters: Adds visual feedback and a classic touch to your equipment rack.
• Auto Standby Mode: Reduces energy use when the system is idle, with user-selectable settings.
• Full Control Integration: Includes RS-232C, IR, 12V trigger, and Marantz link control for seamless system coordination.
• Slim Matching Chassis: Designed to match AV 30 and other Marantz processors both visually and dimensionally.

Q&A Section

Q: How much power does the AMP 30 deliver per channel?
A: It delivers 200W per channel into 8 ohms or 400W per channel into 4 ohms (1kHz, with 2 channels driven).

Q: Can I bridge the AMP 30 for more power?
A: Yes, in bridged mode it delivers 400W per channel into 8 ohms with two channels driven.

Q: What types of speaker connections does it support?
A: It uses high-quality binding post terminals for each of the six channels.

Q: Does the AMP 30 support balanced inputs?
A: Yes, it includes both balanced XLR and unbalanced RCA mono inputs per channel.

Q: Is the AMP 30 compatible with other Marantz components?
A: Absolutely, it’s designed to visually and functionally integrate with Marantz preamps like the AV 30.

Q: What is HDAM® technology?
A: Marantz's Hyper Dynamic Amplifier Modules provide faster signal handling and cleaner audio with less distortion.

Q: Can I bi-amp my speakers using the AMP 30?
A: Yes, the AMP 30 supports bi-amp mode for compatible speakers with dual input terminals.

Q: Is there an auto power-down feature?
A: Yes, it includes a selectable auto-standby mode to help conserve power when not in use.
