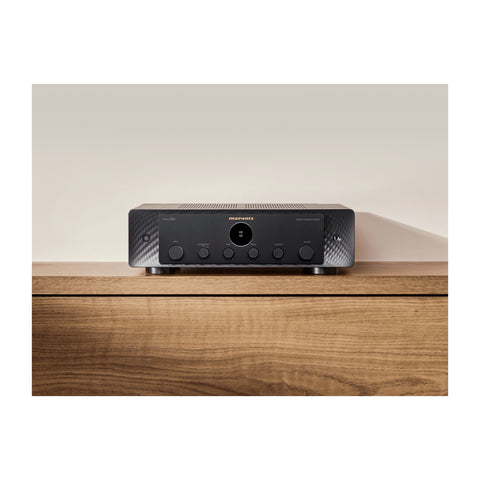

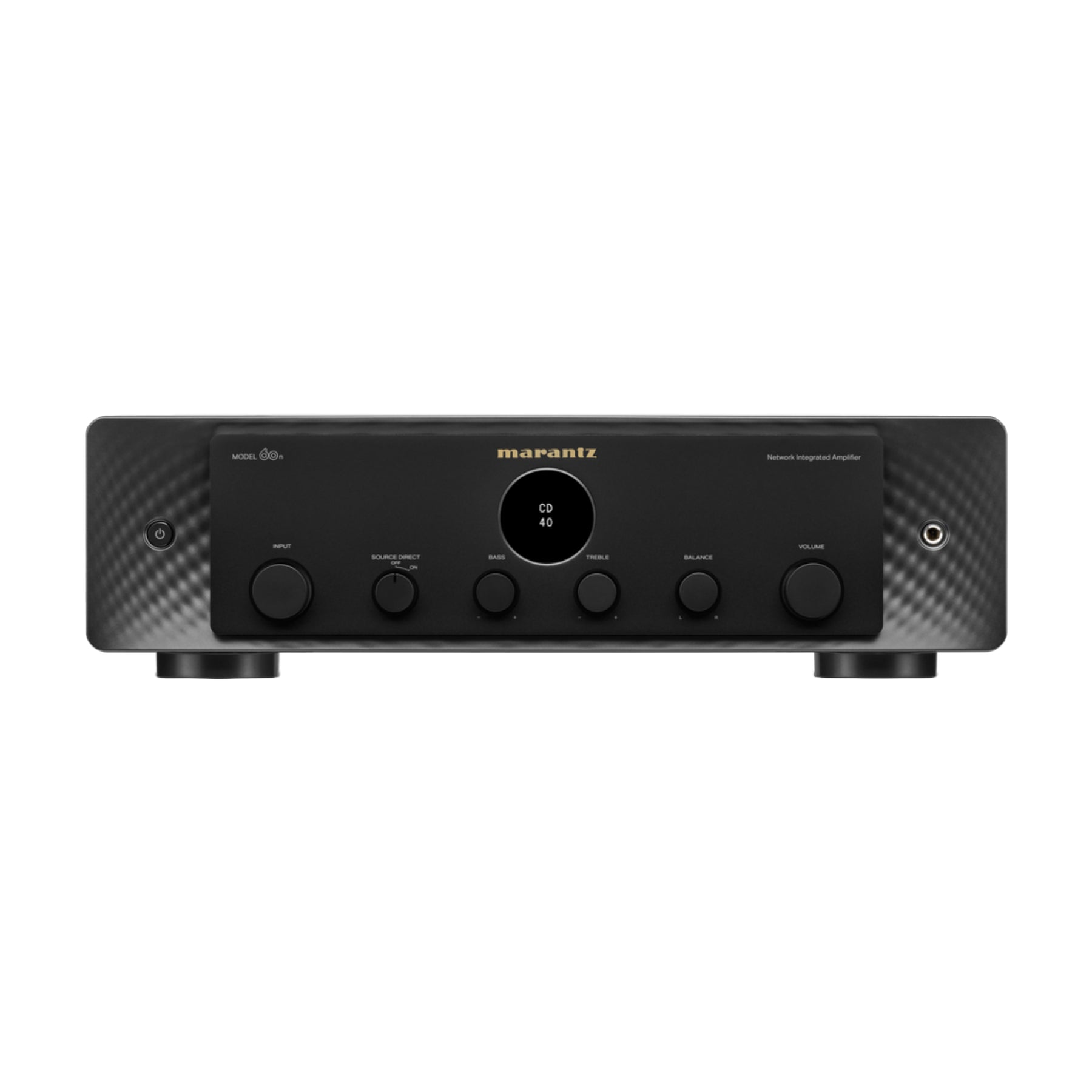

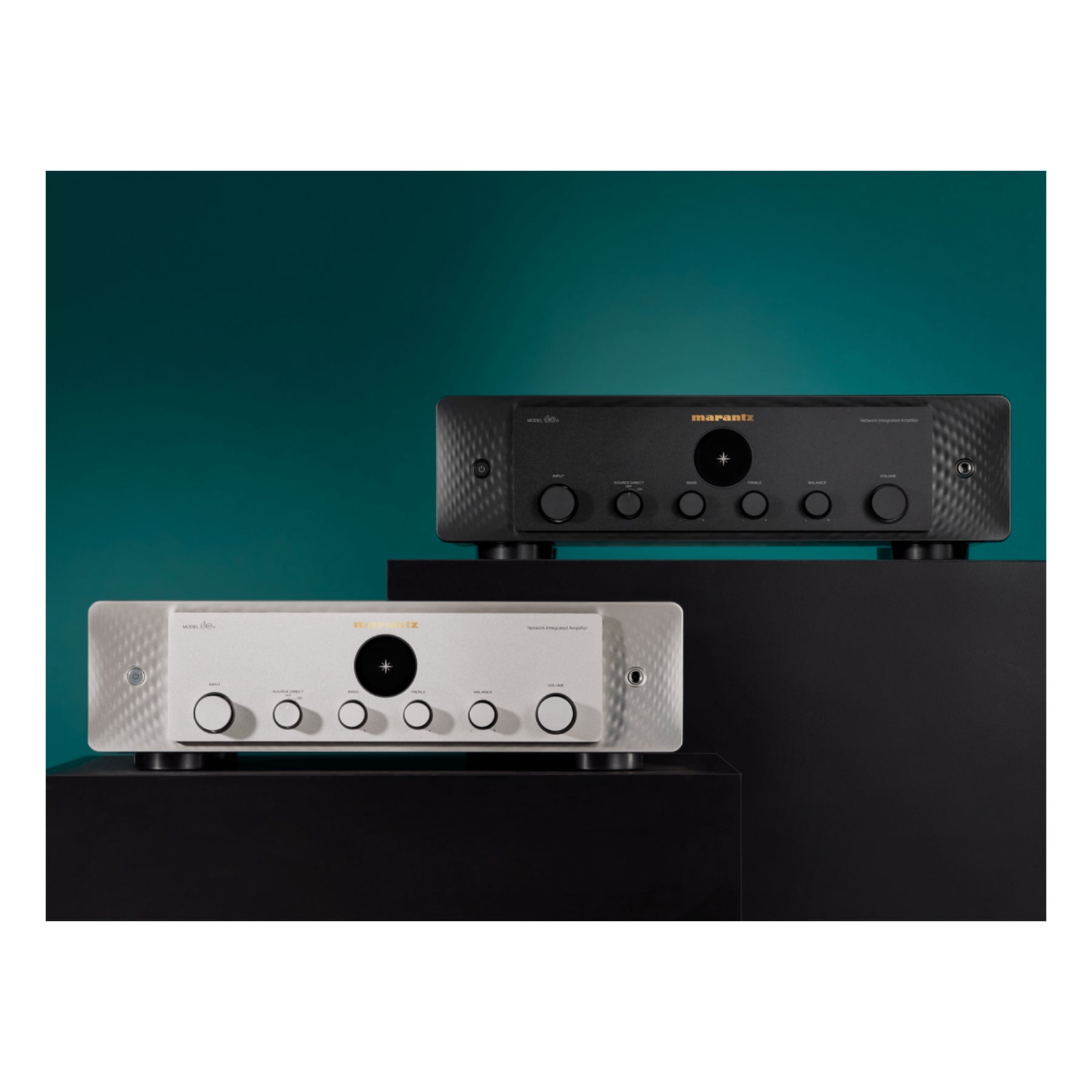

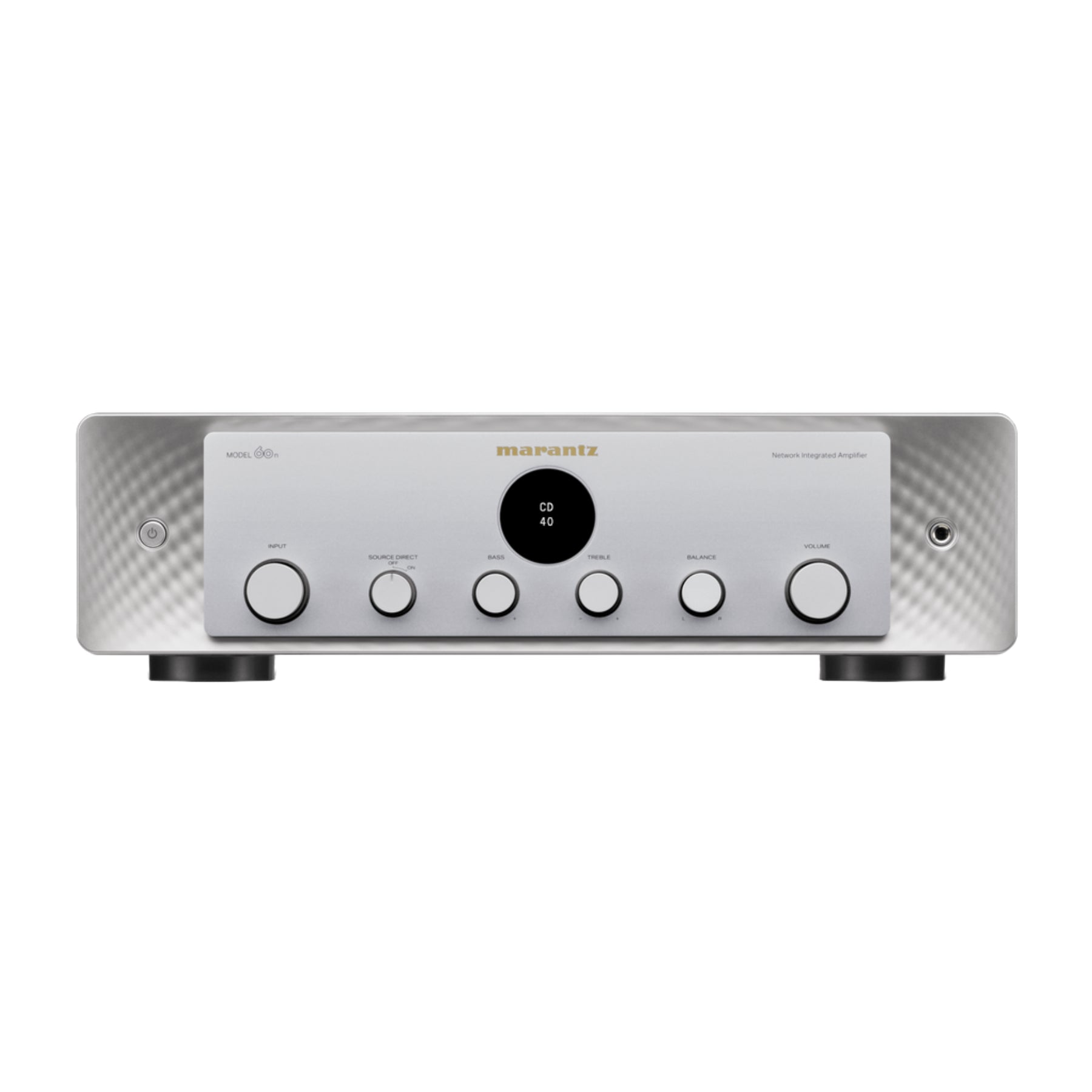

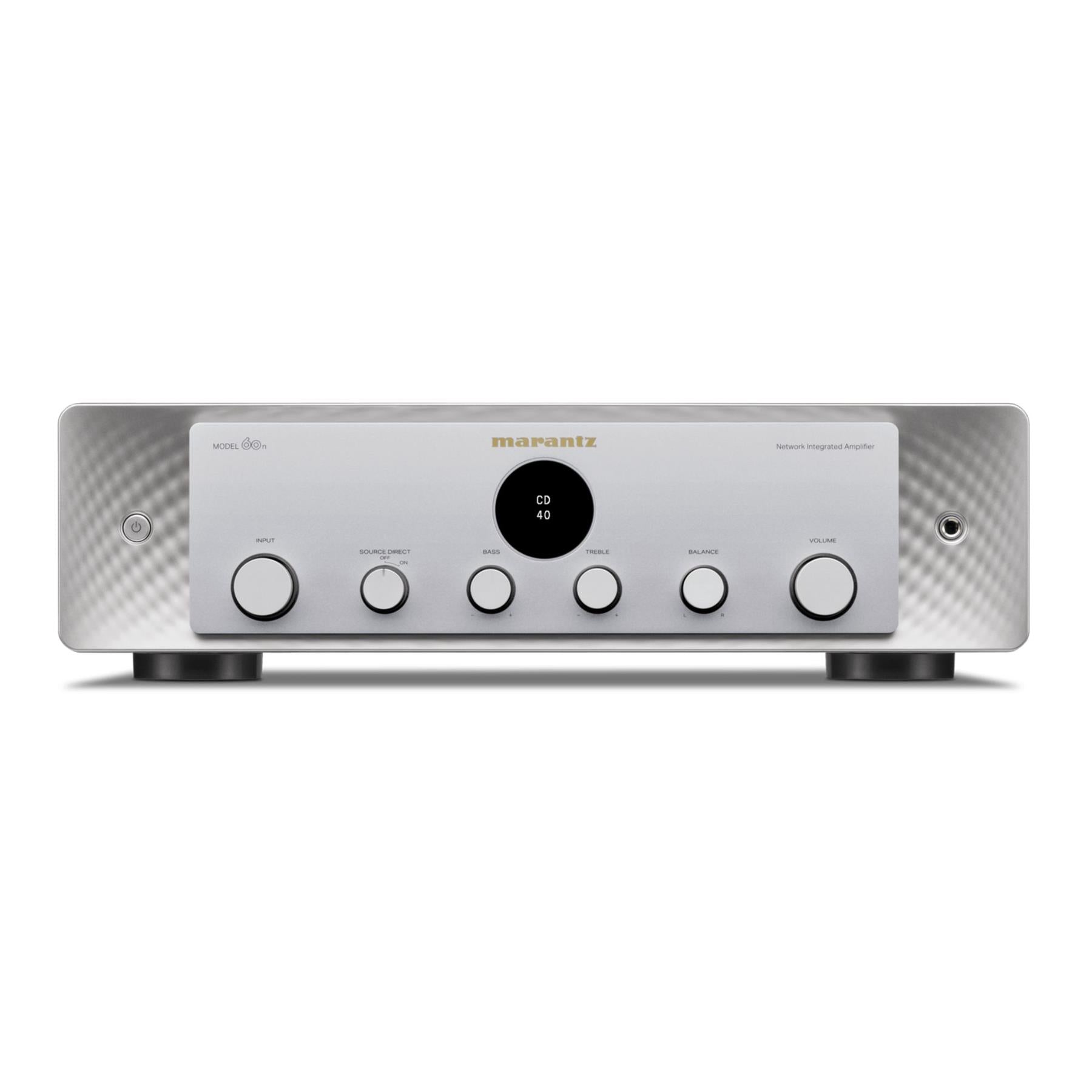

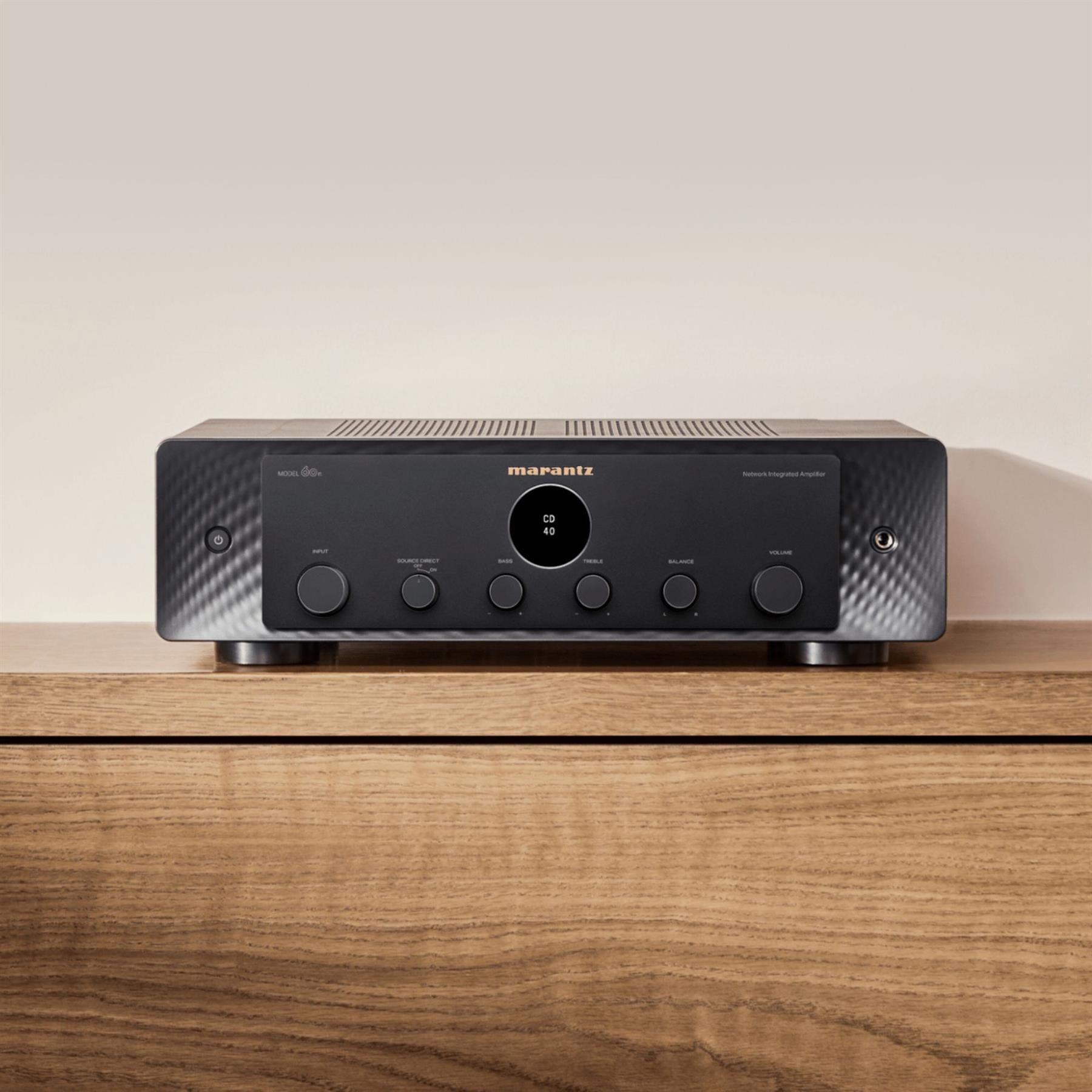

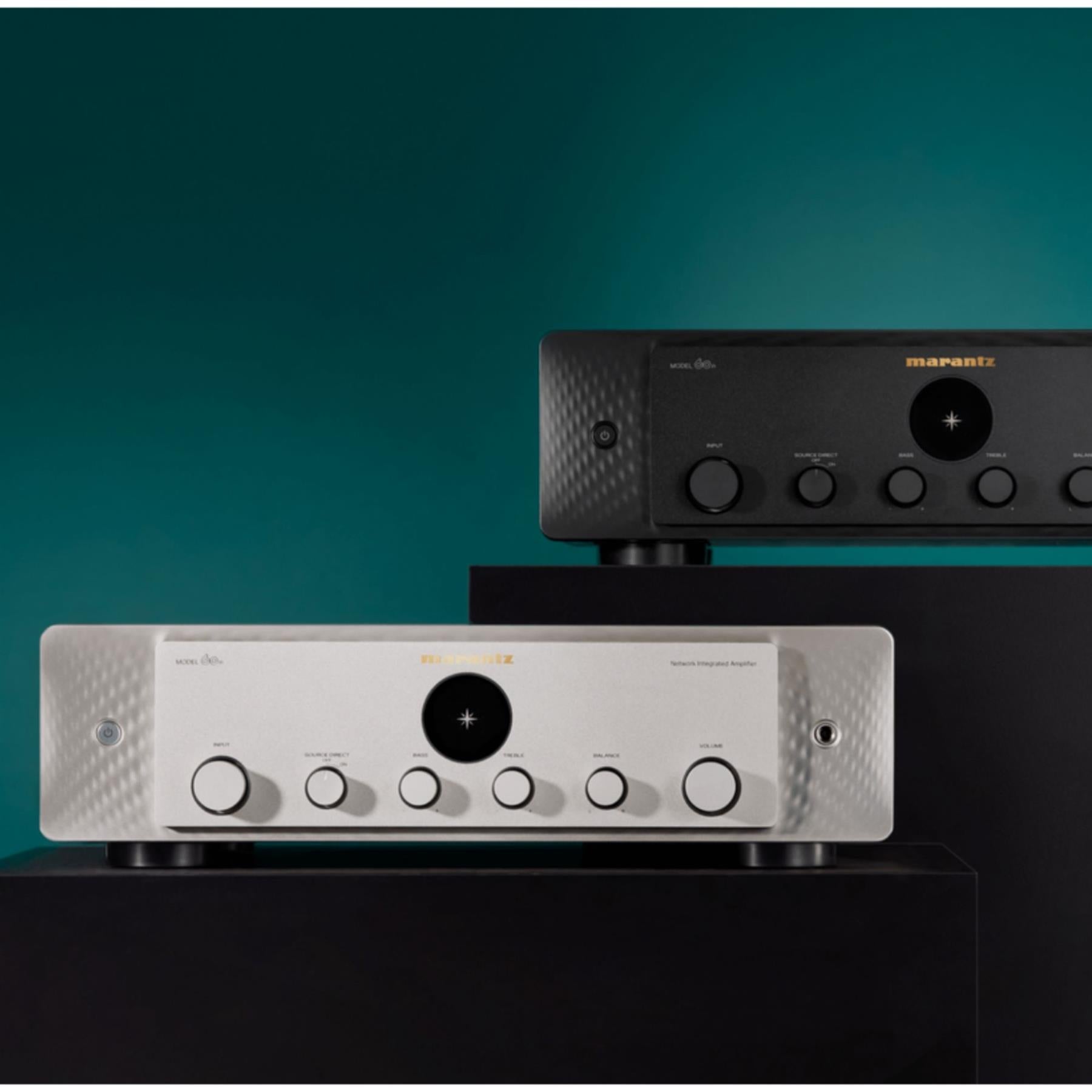

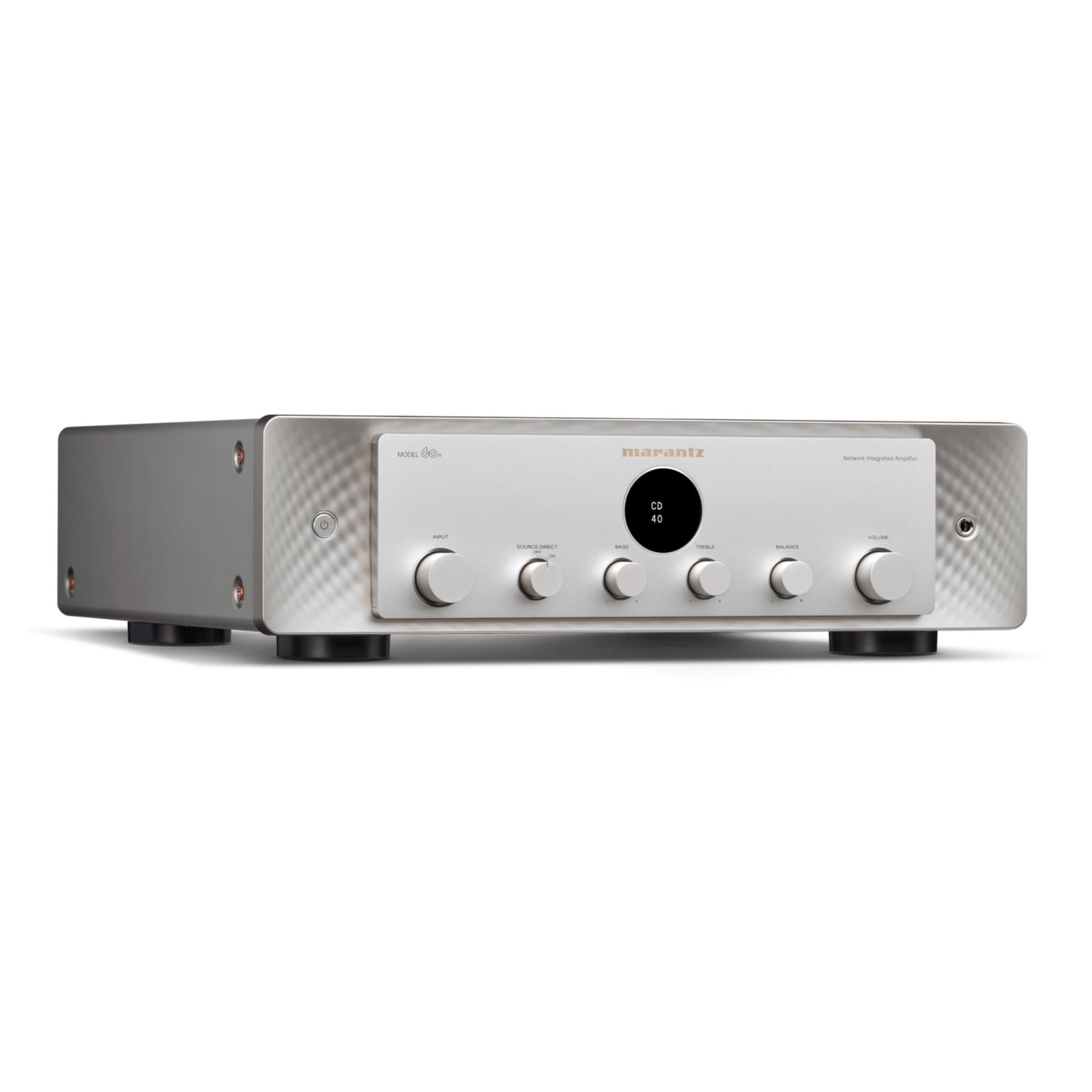

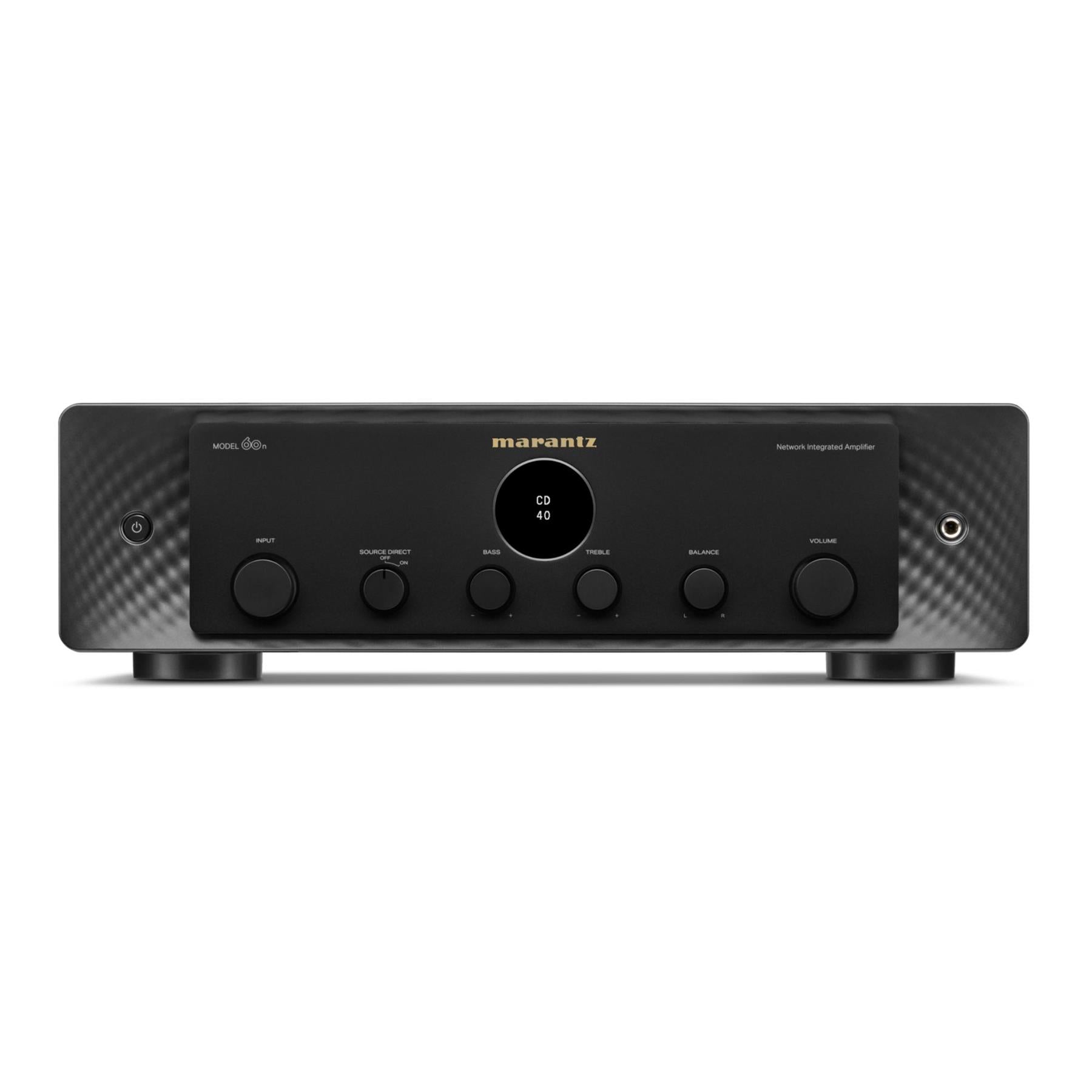

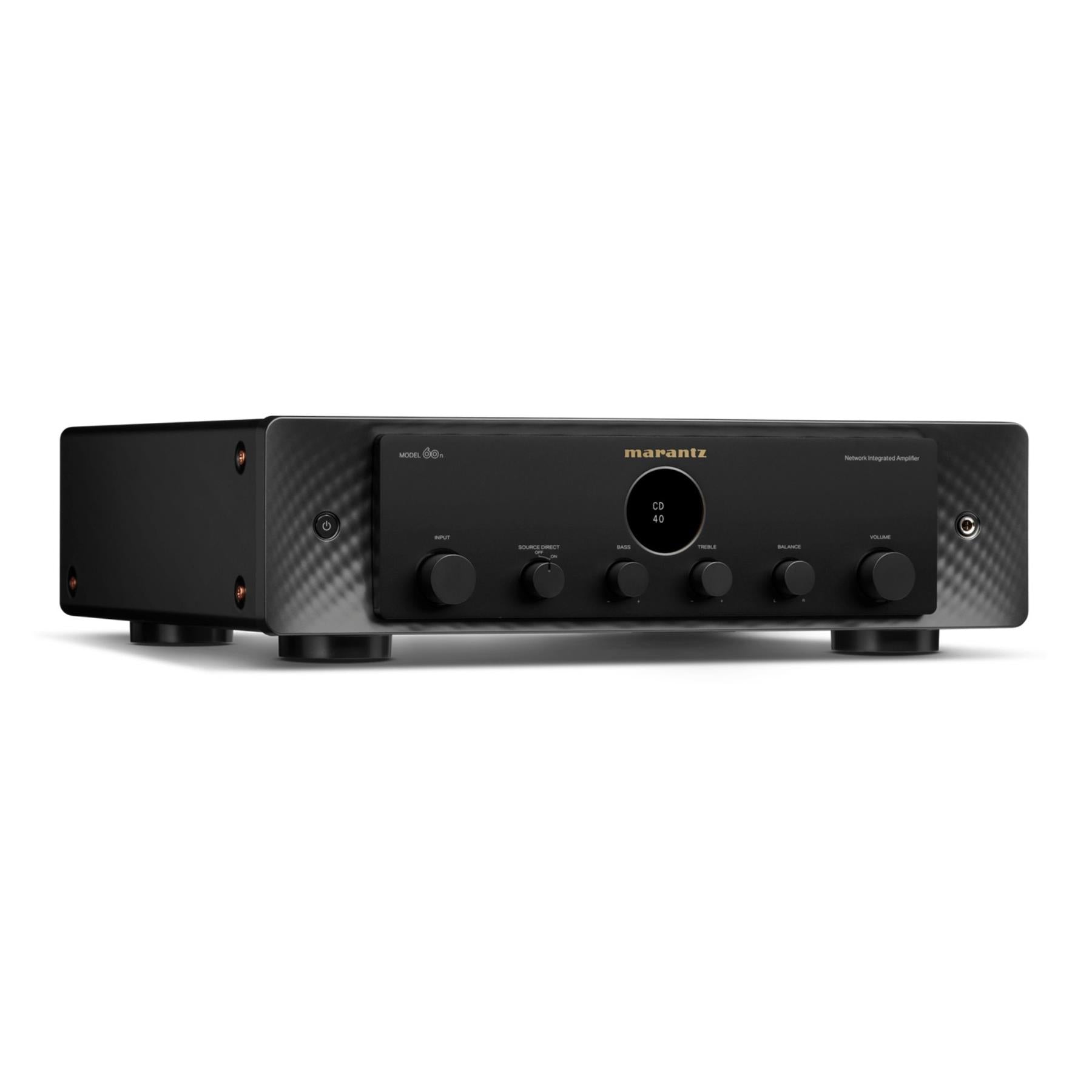

Marantz MODEL 60n Premium Integrated Amplifier
The Marantz MODEL 60n is a premium 2-channel network integrated amplifier designed for listeners who want true hi-fi sound without sacrificing modern convenience. Built around Marantz’s signature tuning and proprietary HDAM circuitry, it delivers rich detail, natural tone, and confident dynamics from vinyl, CDs, and high-resolution streaming alike. With HEOS Built-in, you can stream from popular services in high resolution, control multiroom audio, and enjoy seamless playback over Wi-Fi, Ethernet, AirPlay 2, Bluetooth, and more. Add HDMI ARC with CEC for dramatically better TV and gaming sound, plus flexible connectivity—including four gold-plated analog inputs, an MM phono stage, and a subwoofer/preamp output—to build a complete, elegant stereo system around one exceptional amplifier. The Marantz MODEL 60n is part of ListenUp's Marantz Amplifiers Collection.
What It's Good At:
- Delivering classic Marantz musicality with clarity, texture, and punch (HDAM + Sound Master tuning)
- Powering stereo speakers with confident control (60W/ch @ 8Ω, 80W/ch @ 4Ω, Class A/B)
- High-quality TV and gaming audio via HDMI ARC + CEC (single-cable convenience)
- Effortless hi-res streaming & multiroom with HEOS Built-in (Wi-Fi/Ethernet, app control)
- Building a full system with real-world inputs: CD/Line + MM phono, plus digital inputs
- Adding low-end weight and expansion via subwoofer output / preamp out
Marantz MODEL 60n Full Specifications:
-
Product Type: Network Integrated Amplifier
-
Channels: 2
-
Amplifier Topology: Class A/B
-
Power Output (RMS, 8Ω / 4Ω): 60 W / 80 W
-
RMS Power Output (20 Hz–20 kHz, both channels driven): 60 W x 2 (8Ω), 80 W x 2 (4Ω)
-
PSU Transformer: Toroidal
-
Current Feedback Topology: Yes
-
HDAM Version: SA3, SA2
-
High Grade Audio Components: Yes
-
Customised Components: Yes
-
Symmetric PCB Layout: Yes
-
Aluminium Extrusion Heat Sink: Yes
-
Copper Plated Chassis: No
-
Marantz Musical Digital Filtering: No
-
Linear Drive Power Supply: Yes
-
BI-AMP and Multichannel Option: No
-
Shottky Diodes: Yes
-
Speaker A / B: No
-
Speaker Terminals: Marantz SPKT-1+
-
Number of Terminals: 2
-
D-Bus: Yes
-
Digital Inputs: Coaxial, Optical, USB-A
-
Max PCM Sample Rate: 192 kHz / 24-bit
-
Max DSD Sample Rate: DSD 4X (11.2 MHz)
-
HDMI: 1 (ARC)
-
HEOS Multiroom and Streaming: Yes
-
Streaming Technologies: Bluetooth, AirPlay 2, Roon Ready, Spotify Connect, Tidal Connect
-
Streaming Services (subject to change and local availability): Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
-
Lossy Formats: MP3, WMA, AAC
-
Lossless Formats: DSD/DSF, FLAC, ALAC, WAV, AIFF
-
Gapless Playback: Yes
-
HEOS App: iOS, Android
-
Wi-Fi / Wired LAN: Yes / Yes
-
Display: Low-Noise OLED Monochrome
-
Phono EQ: MM Standard
-
Analog Audio Inputs: 4
-
Audio Adjustments: Bass / Treble EQ, Balance
-
Source Direct: Yes
-
Power Amp Direct: No
-
Balanced In / Out: No / No
-
Preamp Outputs: 1
-
Subwoofer Output: 1 (Mono)
-
Headphone Out: Yes
-
Tuner (FM / AM): No
-
Frequency Response: 5 Hz – 100 kHz
-
Total Harmonic Distortion: 0.02 %
-
Damping Factor: 100 and over
-
Input Sensitivity: MM: 1.9 mV / 47 kOhm
-
Signal to Noise Ratio: MM/MC: 87 dB / –
-
Input Sensitivity: High Level: 190 mV / 20 kOhm
-
Signal to Noise Ratio: High Level: 113 dB
-
Treble Control: ± 10 dB (listed at 15 kHz)
-
Bass Control: ± 10 dB (at 50 Hz)
-
Metal Front Panel: Yes
-
Power Consumption: 220 W
-
Standby Consumption: 0.3 W
-
Auto Power Off: Yes
-
Detachable Power Cable: Yes
-
Remote Control: RC006PM
-
System Remote Function: Yes
-
Maximum Dimensions (W x D x H) mm: 442 x 431 x 129
-
Maximum Dimensions (W x D x H) in: 17.4 x 17 x 5.1
-
Weight: 28.1 lbs
-
Carton Maximum Dimensions (W x D x H) mm: 527 x 517 x 255
-
Carton Maximum Dimensions (W x D x H) in: 20.8 x 20.4 x 10.1
-
Carton Weight (inc. product): 15.5 kg / 34.3 lbs
-
Voice Control Support: Amazon Alexa, Apple Siri
Marantz MODEL 60n Q&A:
- What speakers can the Marantz MODEL 60n drive?
- MODEL 60n delivers 60W per channel into 8Ω and 80W per channel into 4Ω, making it a strong match for many bookshelf and floor-standing speakers that benefit from clean, controlled Class A/B power.
- Can I connect my TV to the MODEL 60n with one cable?
- Yes—use the HDMI ARC port to bring TV audio into the amplifier and control volume/power behavior via CEC for a simpler, better-sounding TV setup.
- Does the MODEL 60n have built-in streaming?
- Yes. HEOS Built-in enables streaming over Wi-Fi or Ethernet and supports AirPlay 2, Bluetooth, Roon Ready, Spotify Connect, and Tidal Connect for broad compatibility.
- Is this amplifier good for vinyl playback?
- It includes an MM (moving magnet) phono stage, so you can connect a turntable directly without needing an external phono preamp.
- What music file formats does it support over the network or USB?
- It supports lossy formats like MP3/WMA/AAC and lossless formats including DSD/DSF, FLAC, ALAC, WAV, and AIFF, with gapless playback supported.
- Can I add a subwoofer?
- Yes—there is a mono subwoofer output, making it easy to create a 2.1 system with deeper low-end impact.
- How many devices can I connect besides streaming and TV?

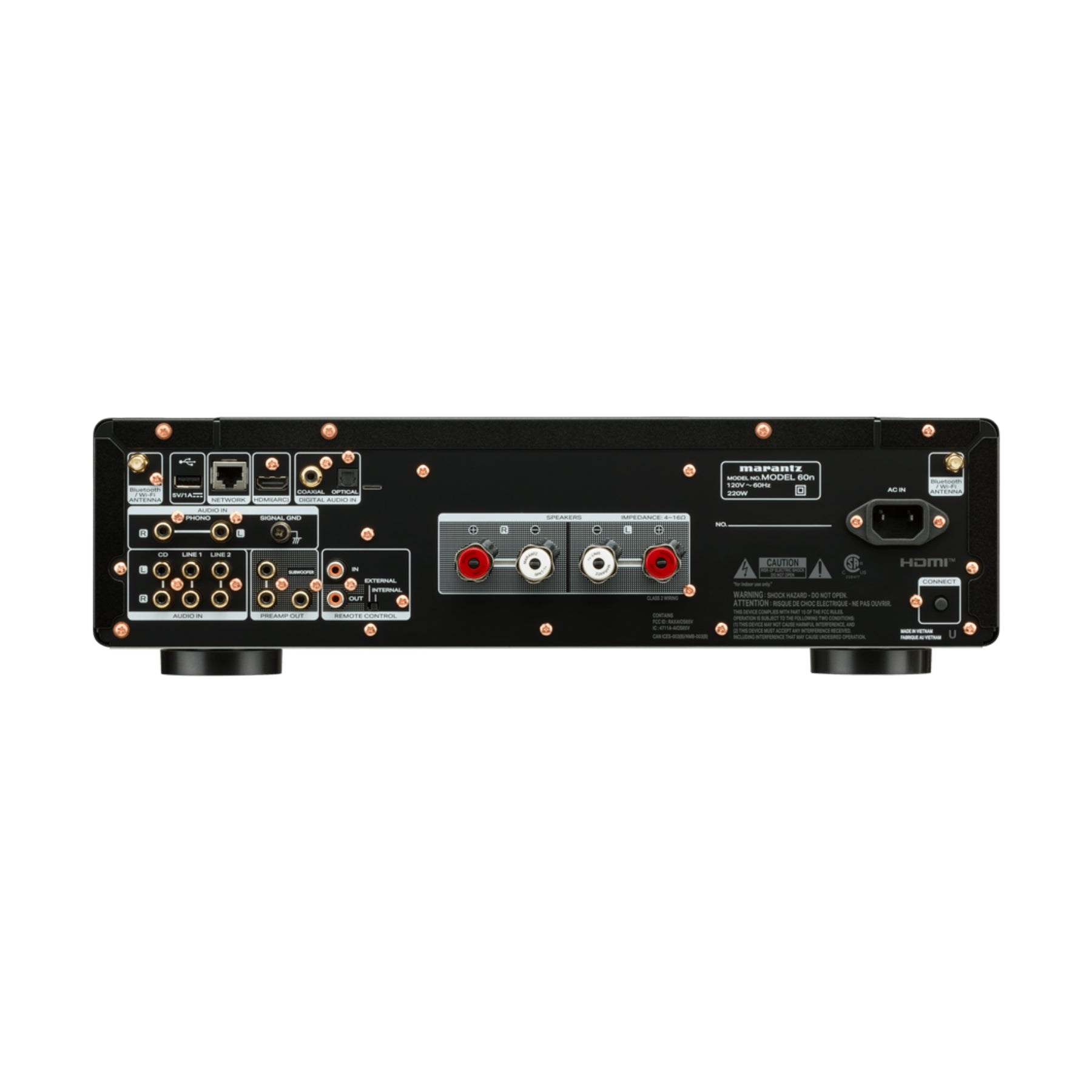

- You get four analog inputs (including CD/Line and MM phono) plus digital inputs (coaxial, optical, and USB-A), so it’s ready for a full system of sources.
- Can I control it from my phone?
- Yes—the HEOS app (iOS/Android) provides streaming, input control, multiroom grouping, and convenient day-to-day operation.
Marantz MODEL 60n Downloads:
Model 60N User Manual
Model 60N User Info Sheet
