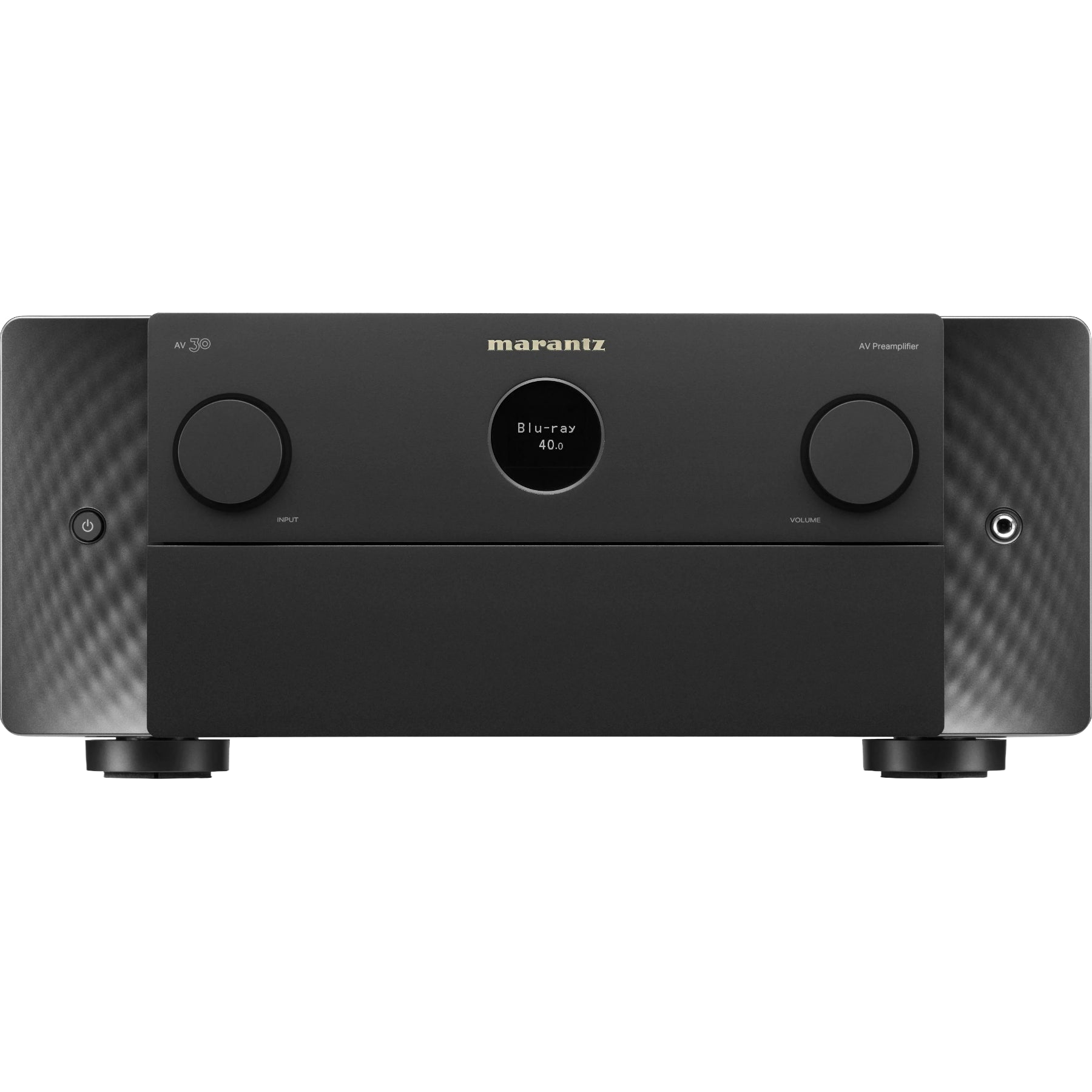

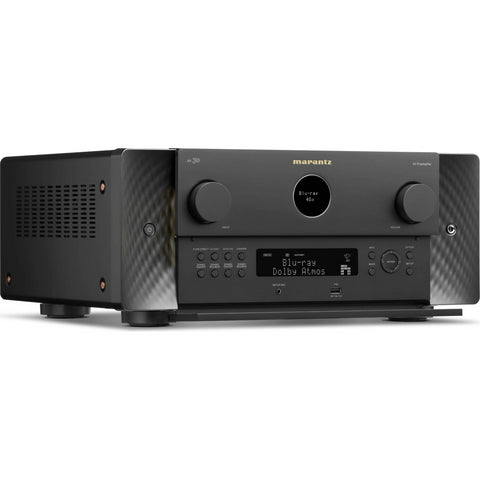

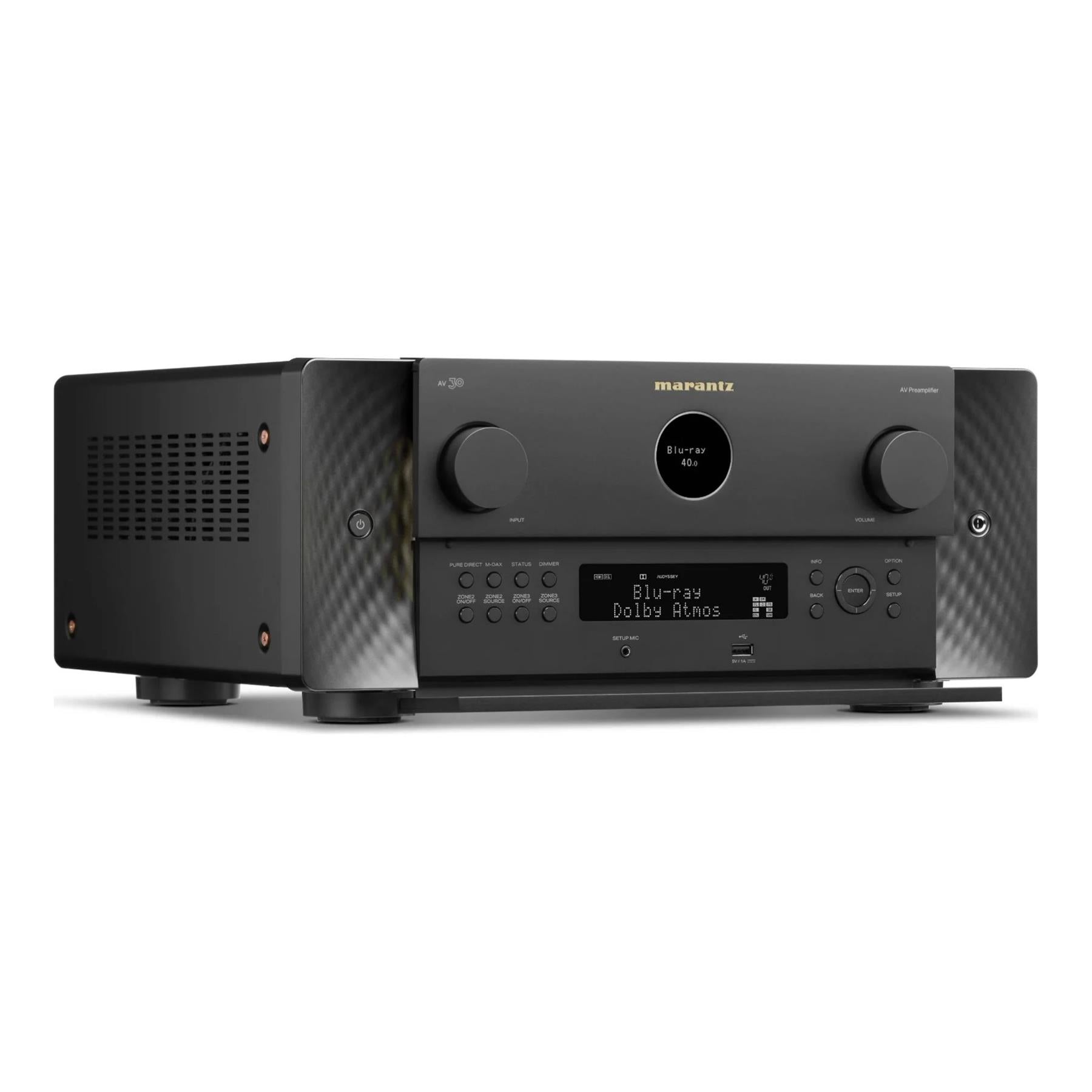

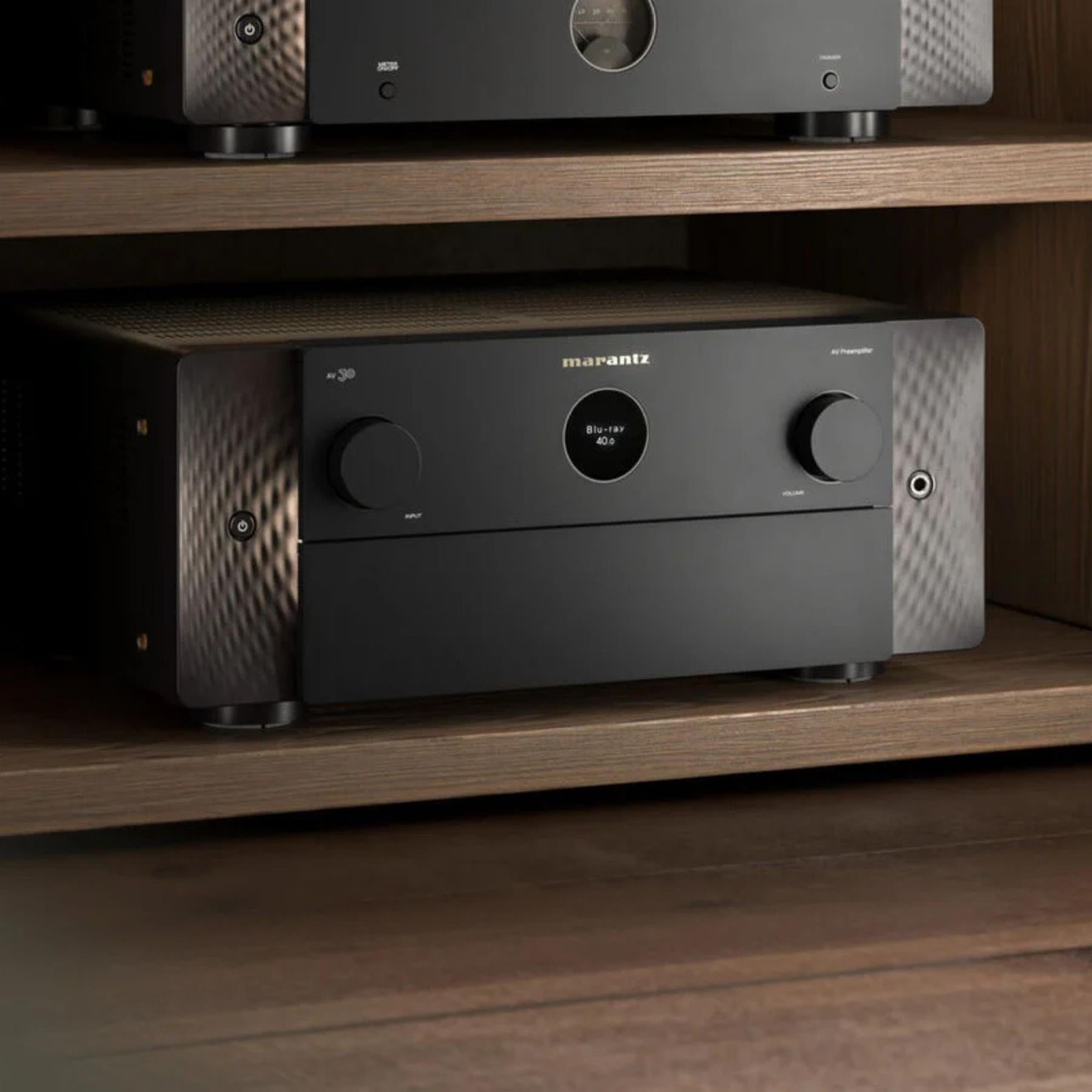

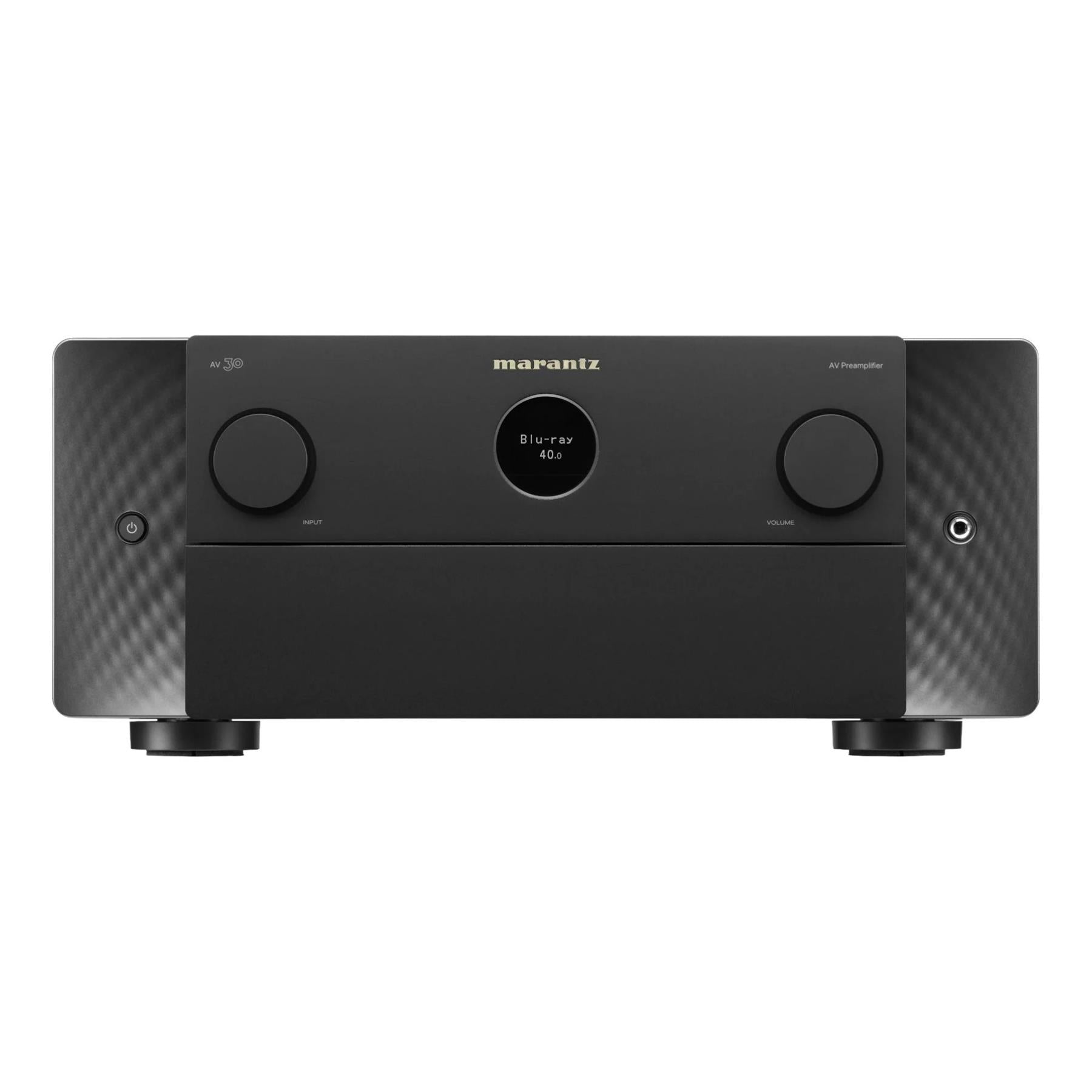

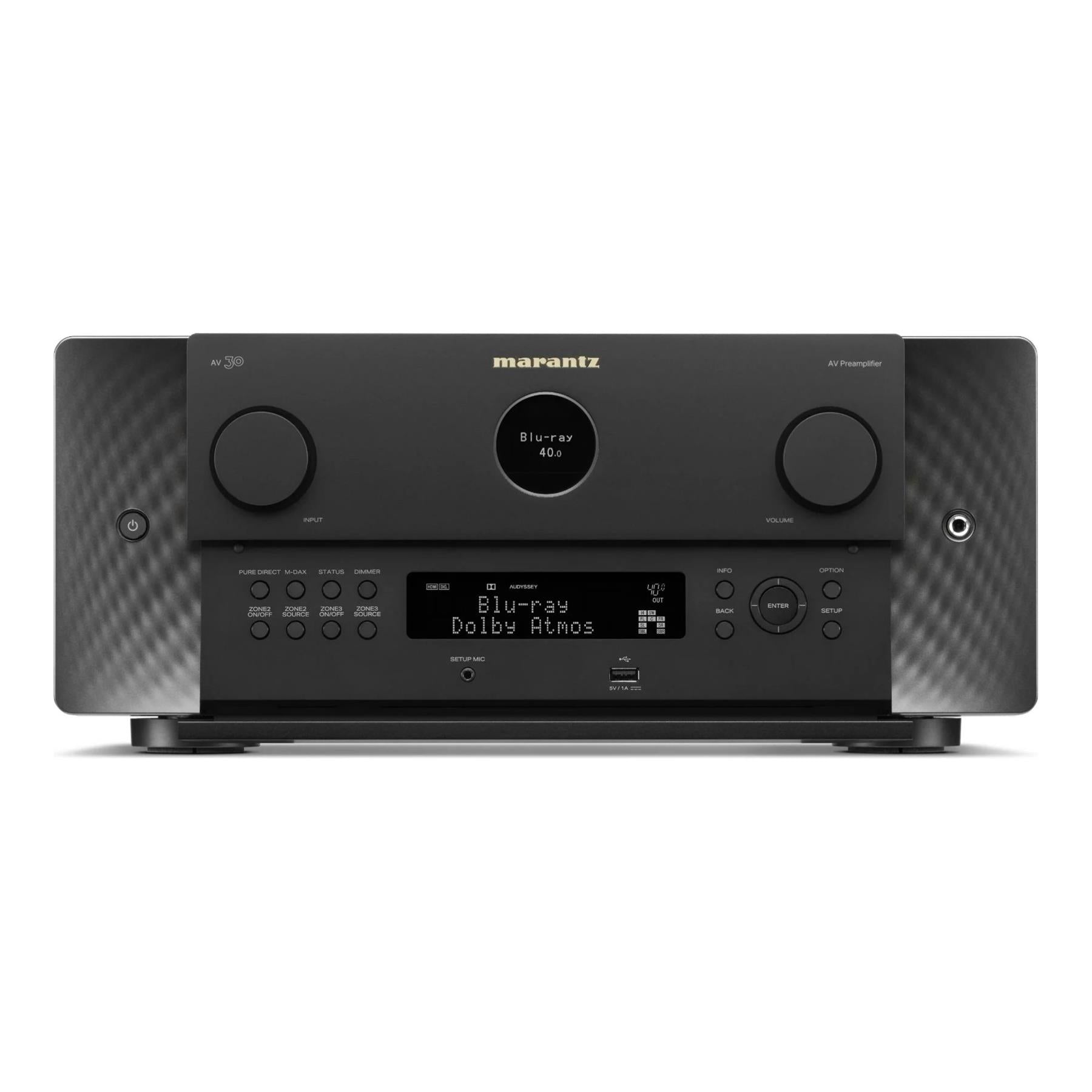

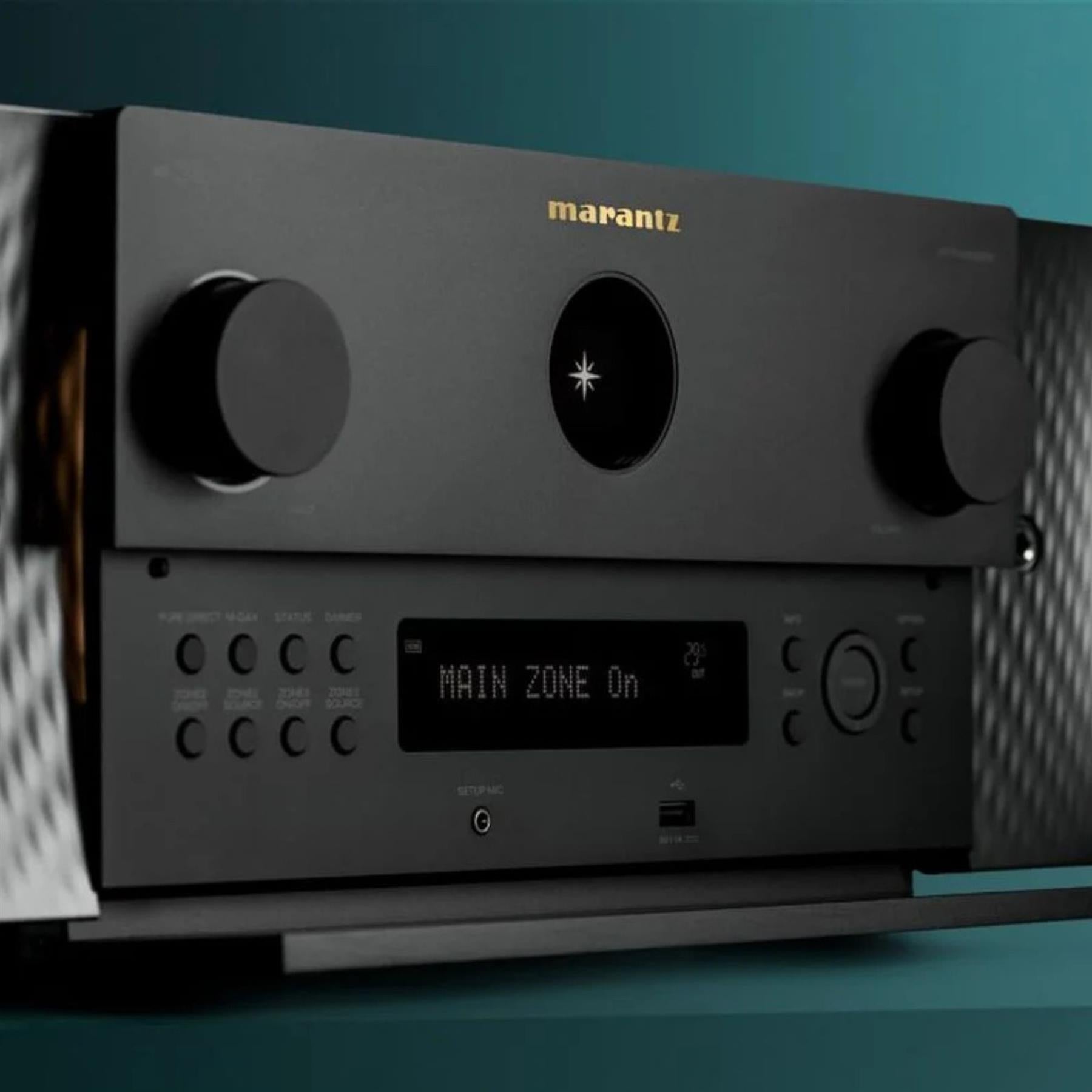

Marantz AV 30 High-Performance Home Theater Preamp/Processor

Elevate your home theater system with the Marantz AV 30 — a high-end preamp/processor engineered for immersive, audiophile-grade performance. Designed and manufactured in Japan, and meticulously tuned by the Marantz Sound Master, the AV 30 delivers reference-level sound and video processing for advanced surround sound setups up to 11.4 channels. With support for Dolby Atmos®, DTS:X®, and Auro-3D®, plus HDMI 2.1 with 8K/60Hz and 4K/120Hz compatibility, this processor ensures pristine playback for modern movies, music, and games. Stream effortlessly with HEOS Built-in, Bluetooth, Apple AirPlay 2, or connect high-res music sources through USB and Roon.

Specifications

• Processing Channels: 11.4-channel preamp with balanced XLR and unbalanced RCA outputs
• Surround Decoding: Dolby Atmos®, DTS:X®, Auro-3D®, Dolby Atmos Height Virtualization, DTS Virtual:X®

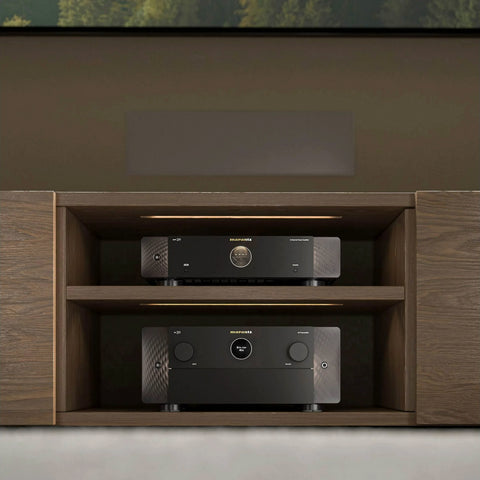

• Amplifier Compatibility: Designed to pair with Marantz AMP 30, AMP 20, and AMP 10
• Room Calibration: Audyssey MultEQ XT32; optional Dirac Live (with ART, Bass Control)
• HDMI Inputs/Outputs: 7 in / 3 out (2 outputs support 8K/60Hz & 4K/120Hz)
• HDR Support: HDR10, HDR10+, Dolby Vision®, Dynamic HDR, HLG
• Gaming Features: VRR, ALLM, QFT for lag-free gameplay
• Multi-Zone Output: 3-zone/3-source audio-video playback
• Streaming & Wireless: Wi-Fi, Bluetooth, HEOS Built-in, AirPlay 2, Roon Ready
• Voice Control: Works with Alexa, Google Assistant, and Siri
• Digital Inputs: 2 optical, 2 coaxial
• Analog Inputs: 5 RCA stereo, MM phono input for turntables

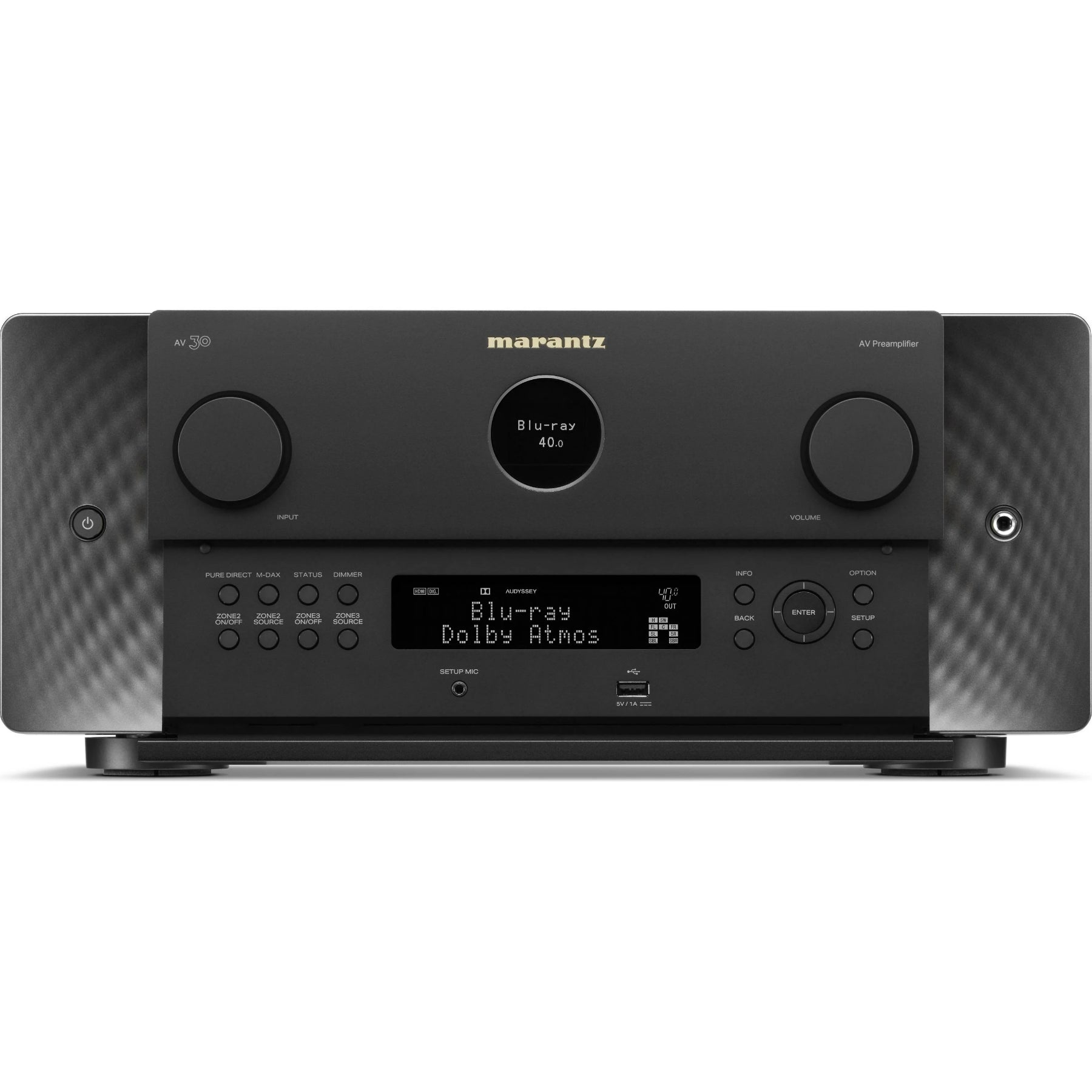

• USB: Front-panel Type-A USB for audio playback; rear USB for power
• Video Inputs: 1 component, 2 composite
• Headphone Output: Standard 1/4" jack

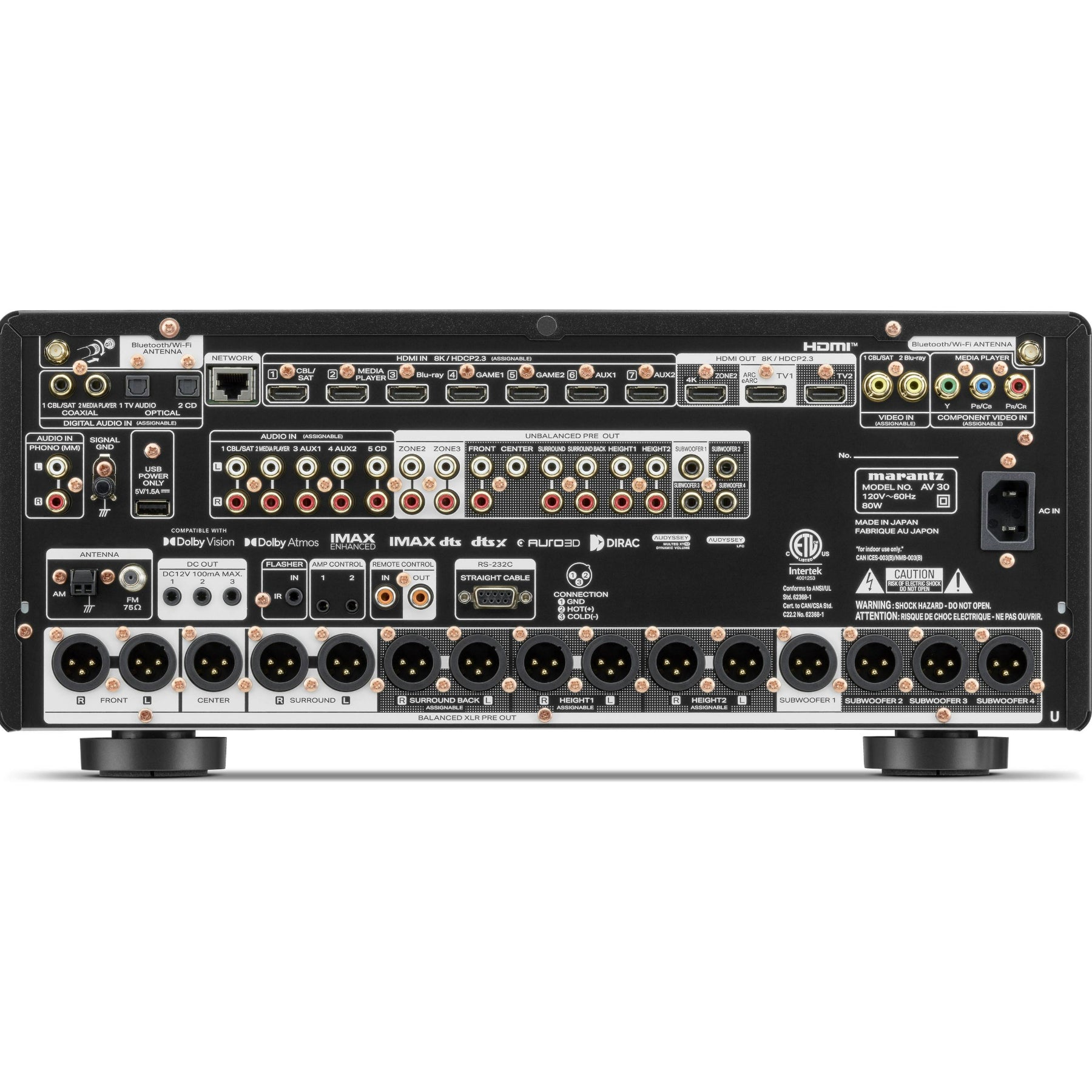

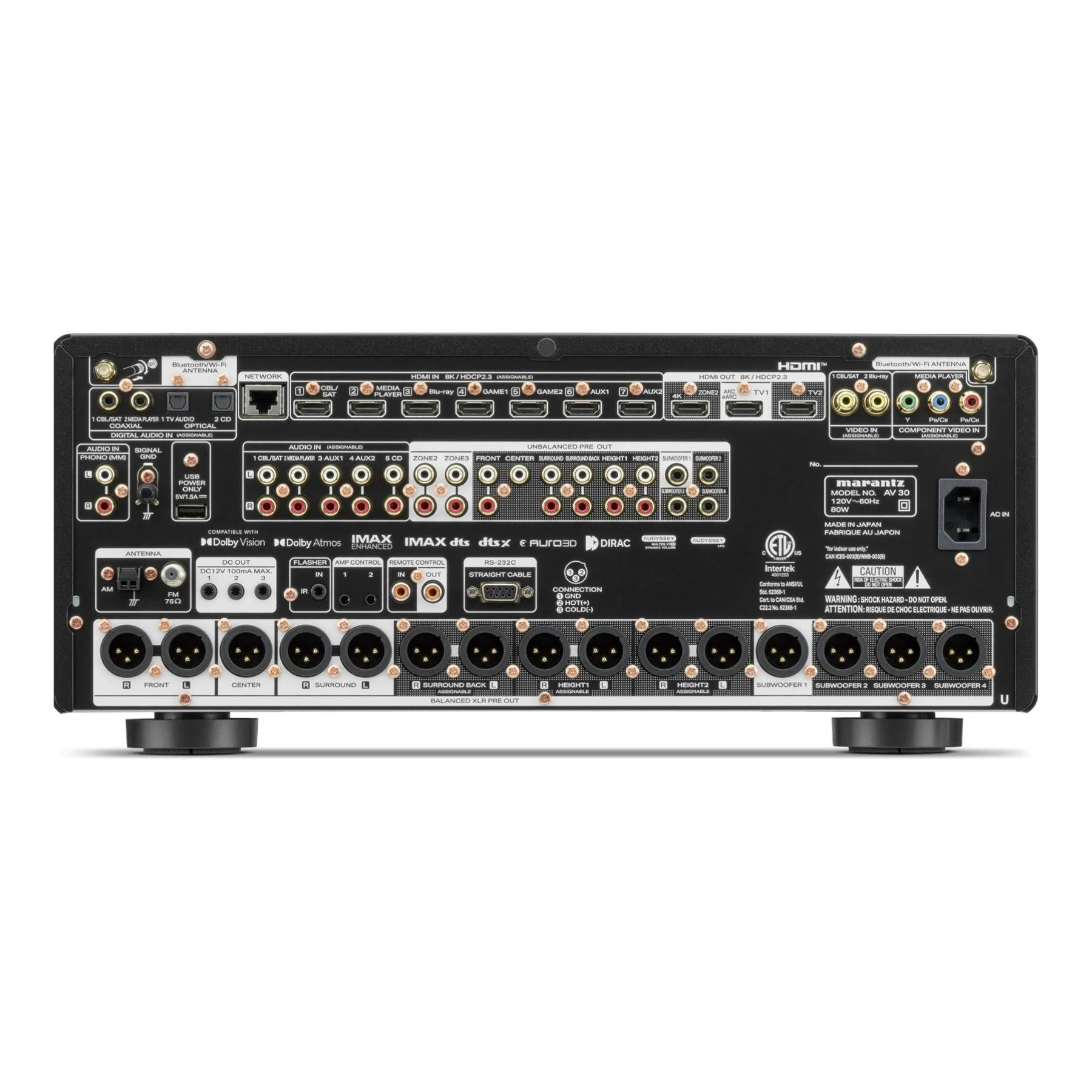

• Trigger & Control Ports: 3 x 12V triggers, RS-232C, IR in/out, AMP control outputs
• Dimensions: 17.4"W x 7.5"H x 16.3"D (10"H with antennas raised)
• Weight: 24.5 lbs
• Warranty: 5 years

Expanded Key Features List

• 11.4-Channel Preamp Configuration: Balanced XLR and RCA outputs provide flexibility for high-end amplifier pairing.
• Dolby Atmos®, DTS:X®, and Auro-3D® Support: Create a true 3D surround experience with height and immersive channel processing.
• 8K HDMI 2.1 Connectivity: All HDMI inputs and two outputs support up to 8K/60Hz and 4K/120Hz video for next-gen content.
• Audyssey XT32 & Dirac Live Calibration: Optimize sound performance with advanced room correction and optional Active Room Treatment.
• HEOS Built-in Multi-Room Streaming: Stream Spotify, TIDAL, Pandora, and more to any room in the house using Wi-Fi or Ethernet.
• Gaming-Optimized Video: Enjoy lag-free, tear-free gaming with Variable Refresh Rate, Auto Low Latency Mode, and Quick Frame Transport.
• Hi-Res Audio & Vinyl Playback: Supports USB, PCM up to 24-bit/192kHz, DSD up to 5.6 MHz, and includes MM phono input.
• Flexible Multi-Zone Capabilities: Output different audio/video content to three independent zones simultaneously.
• Voice Assistant Compatibility: Control playback and volume with Amazon Alexa, Google Assistant, or Siri via Apple devices.
• Premium Build & Japanese Engineering: Crafted in Japan and tuned by the Marantz Sound Master for unmatched fidelity.

Q&A Section

Q: What is the difference between the Marantz AV 30 and AV 10?
A: The AV 30 offers similar high-end processing and design but at a more accessible price point, with slightly fewer customization options than the flagship AV 10.

Q: Can the AV 30 handle 8K video signals?
A: Yes, all HDMI inputs and two of its three HDMI outputs support 8K/60Hz and 4K/120Hz passthrough for ultra-high-definition sources.

Q: Does this unit require external amplification?
A: Yes, the AV 30 is a preamp/processor and must be paired with external power amps such as the Marantz AMP 30, AMP 20, or AMP 10.

Q: Is Dirac Live included with the AV 30?
A: Dirac Live is supported but requires a separate license, compatible microphone, and computer for setup.

Q: Can I stream music wirelessly?
A: Absolutely. The AV 30 supports Bluetooth, Wi-Fi, HEOS multi-room, and Apple AirPlay 2 for seamless streaming.

Q: What streaming services are available through HEOS?
A: Services include Spotify, Pandora, TIDAL, Qobuz, and internet radio. Subscriptions may be required for some platforms.

Q: Is this compatible with voice assistants?
A: Yes, it works with Amazon Alexa, Google Assistant, and Siri for hands-free voice control.

Q: Can I connect my turntable directly?
A: Yes, the AV 30 includes a built-in MM phono input for vinyl playback.
