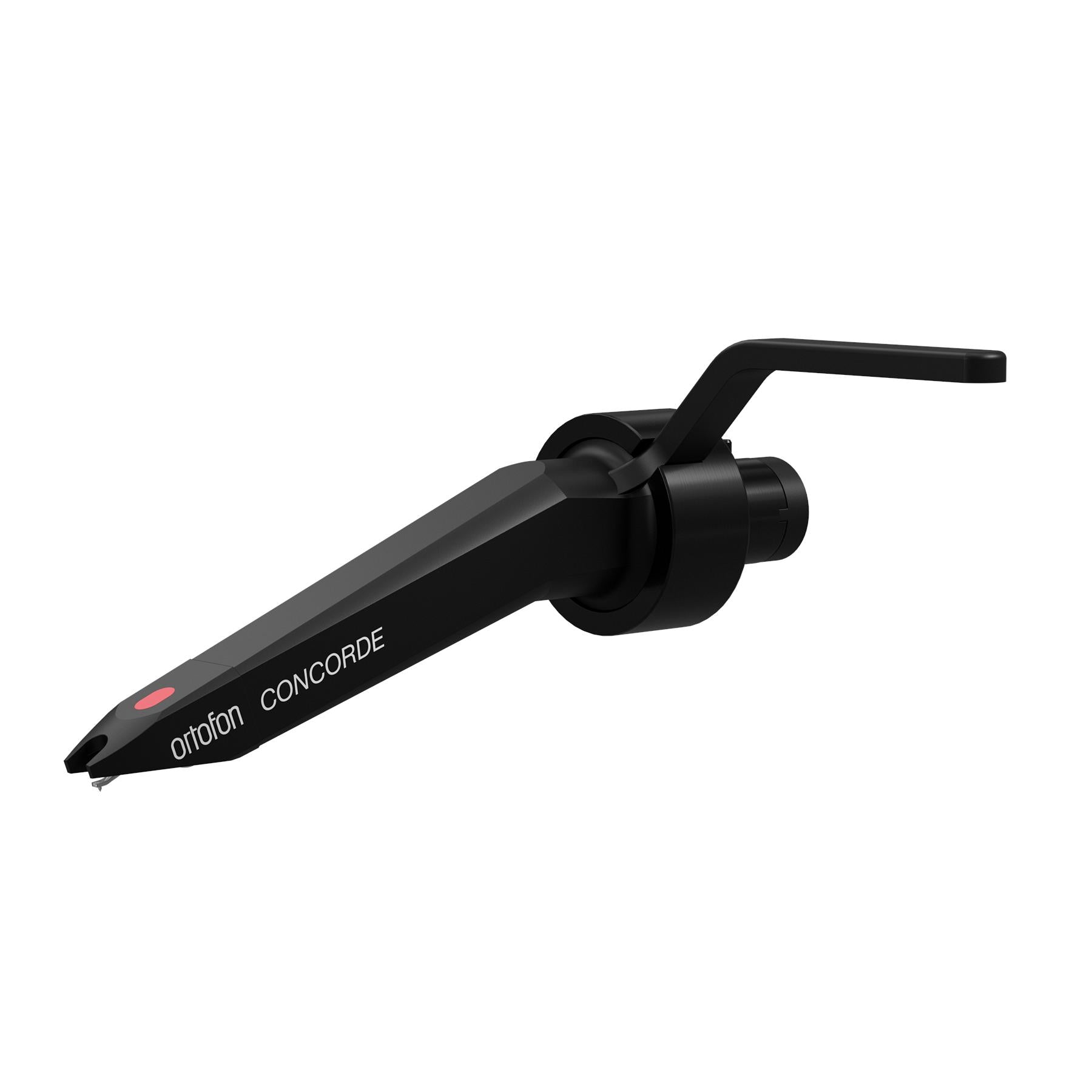

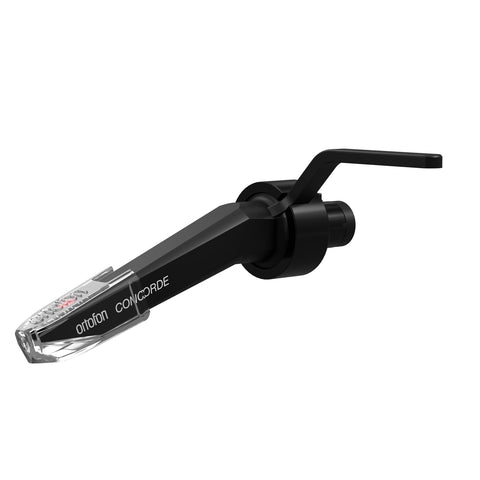

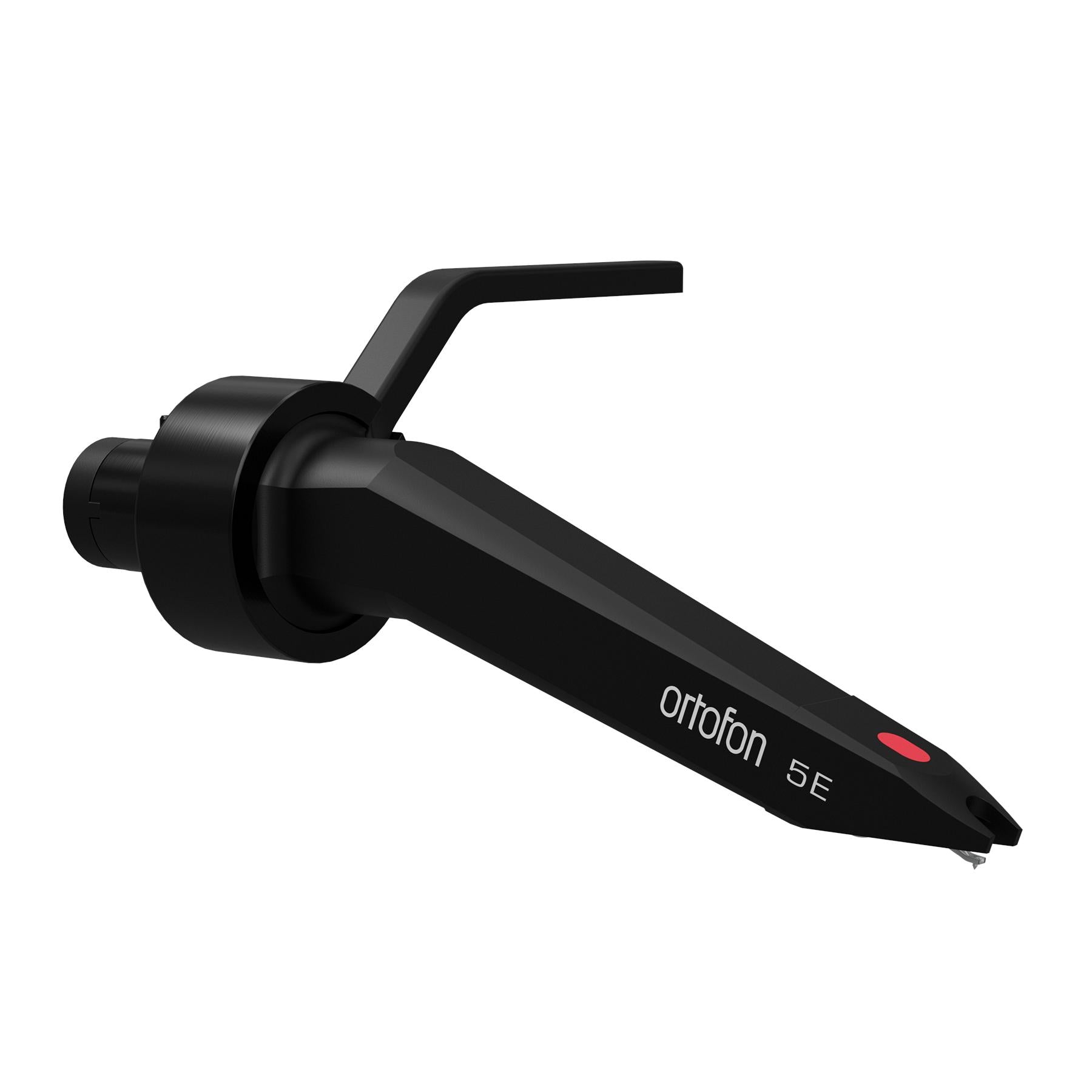

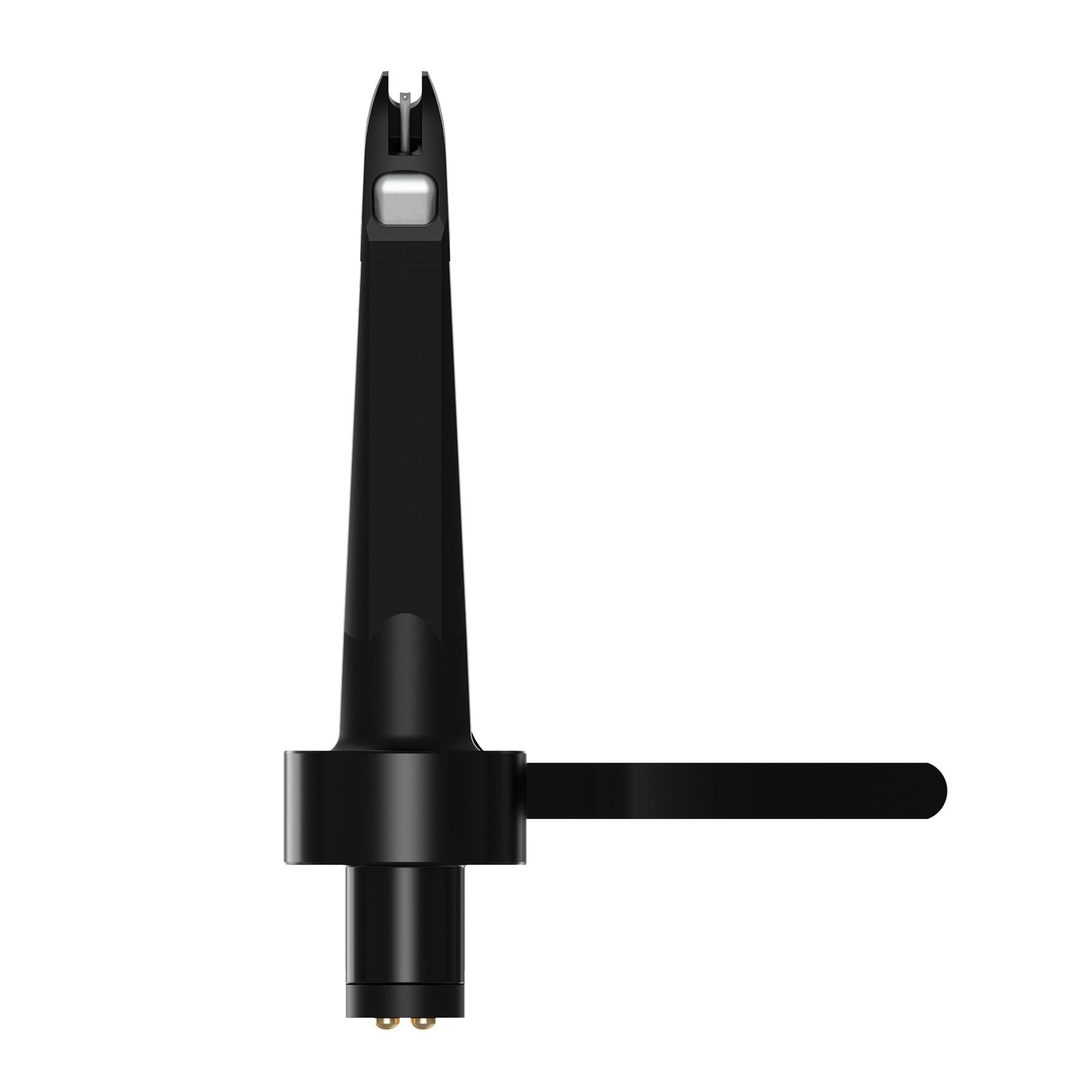

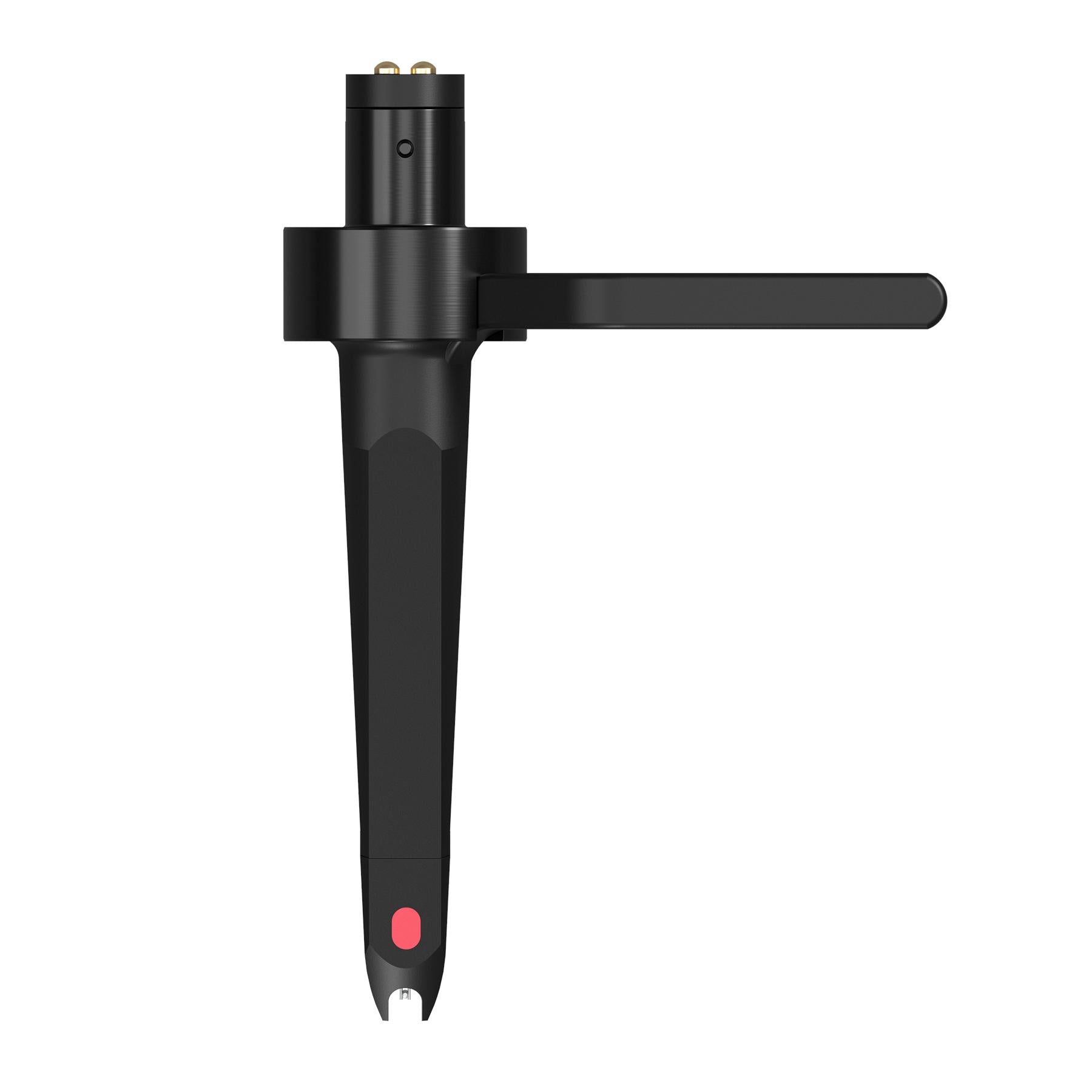

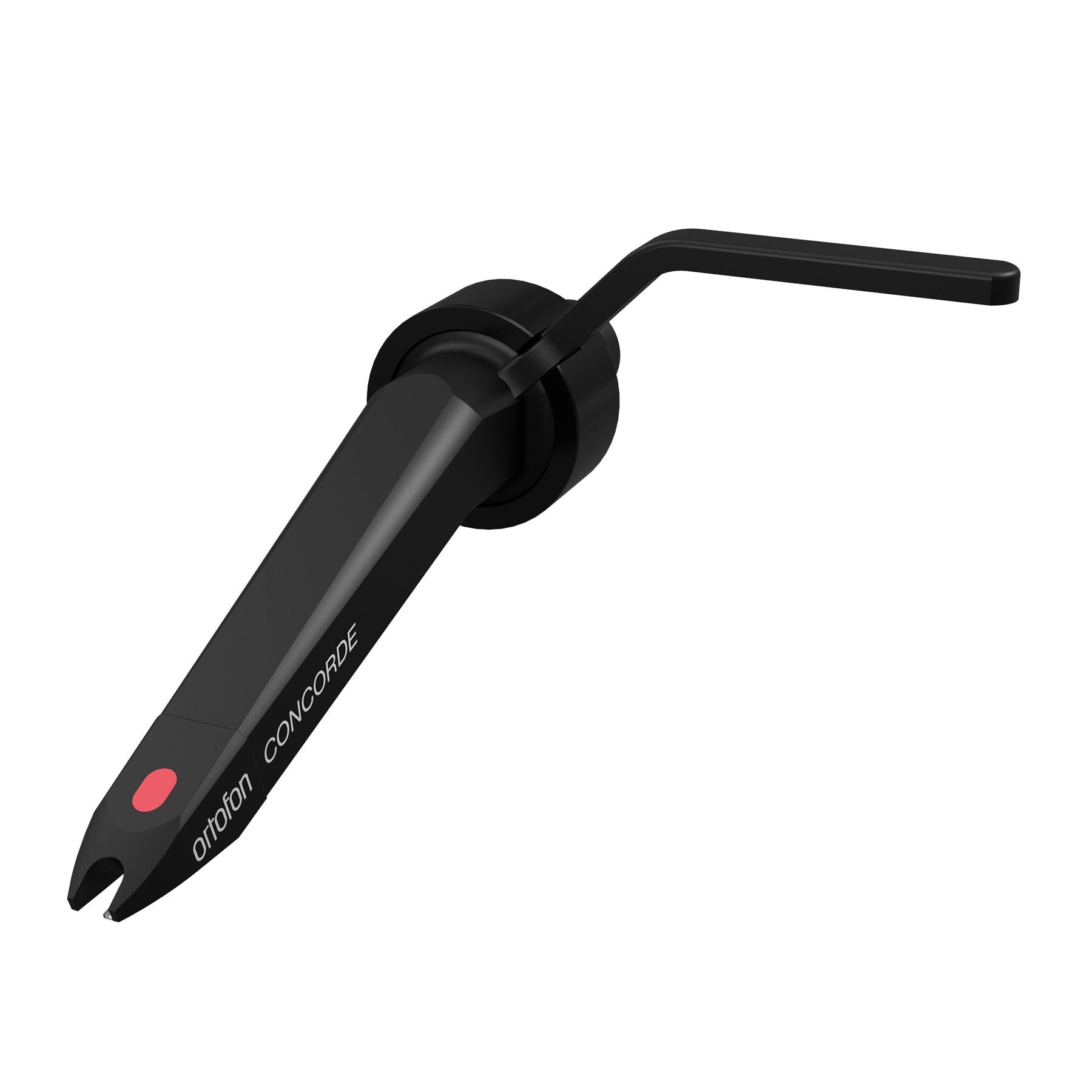

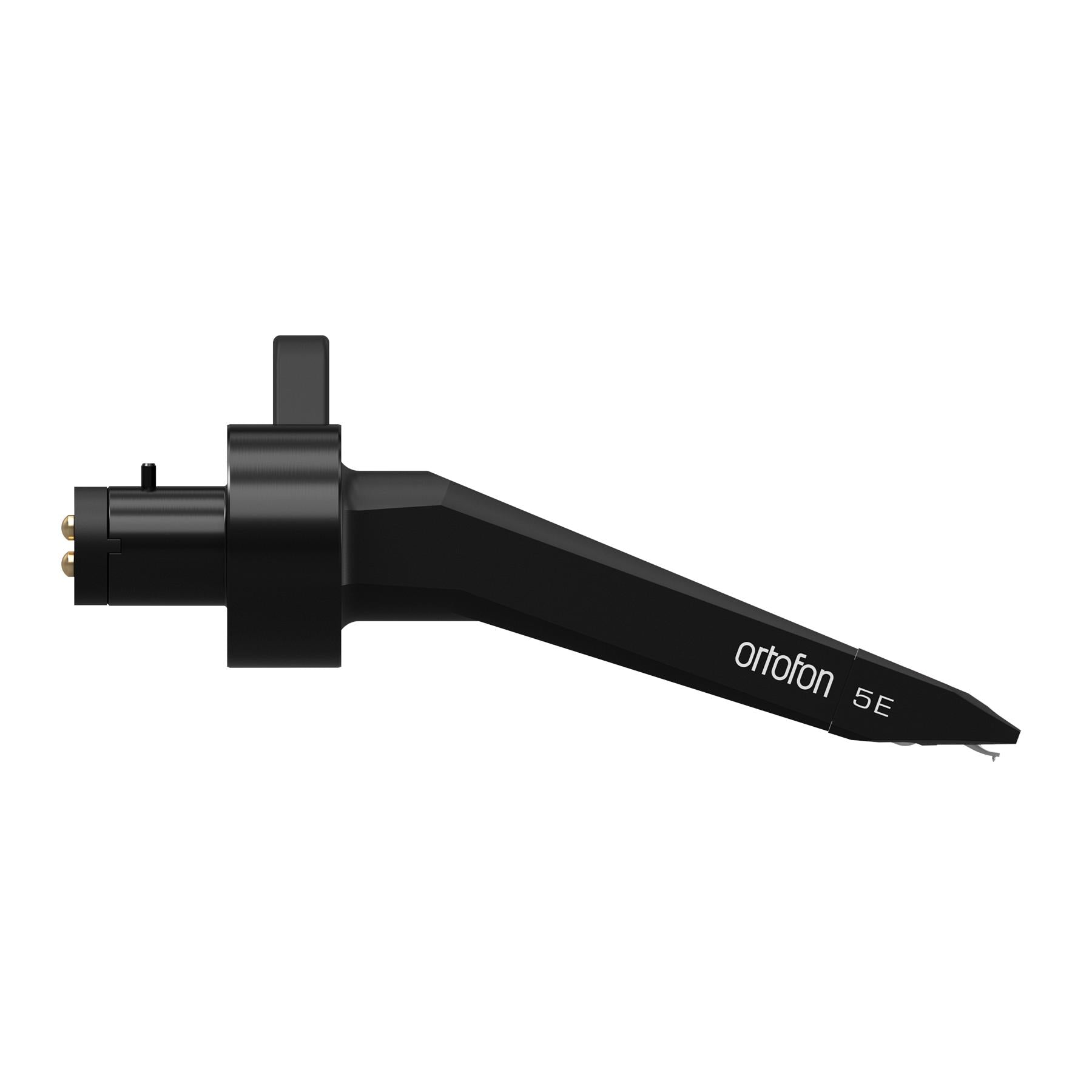

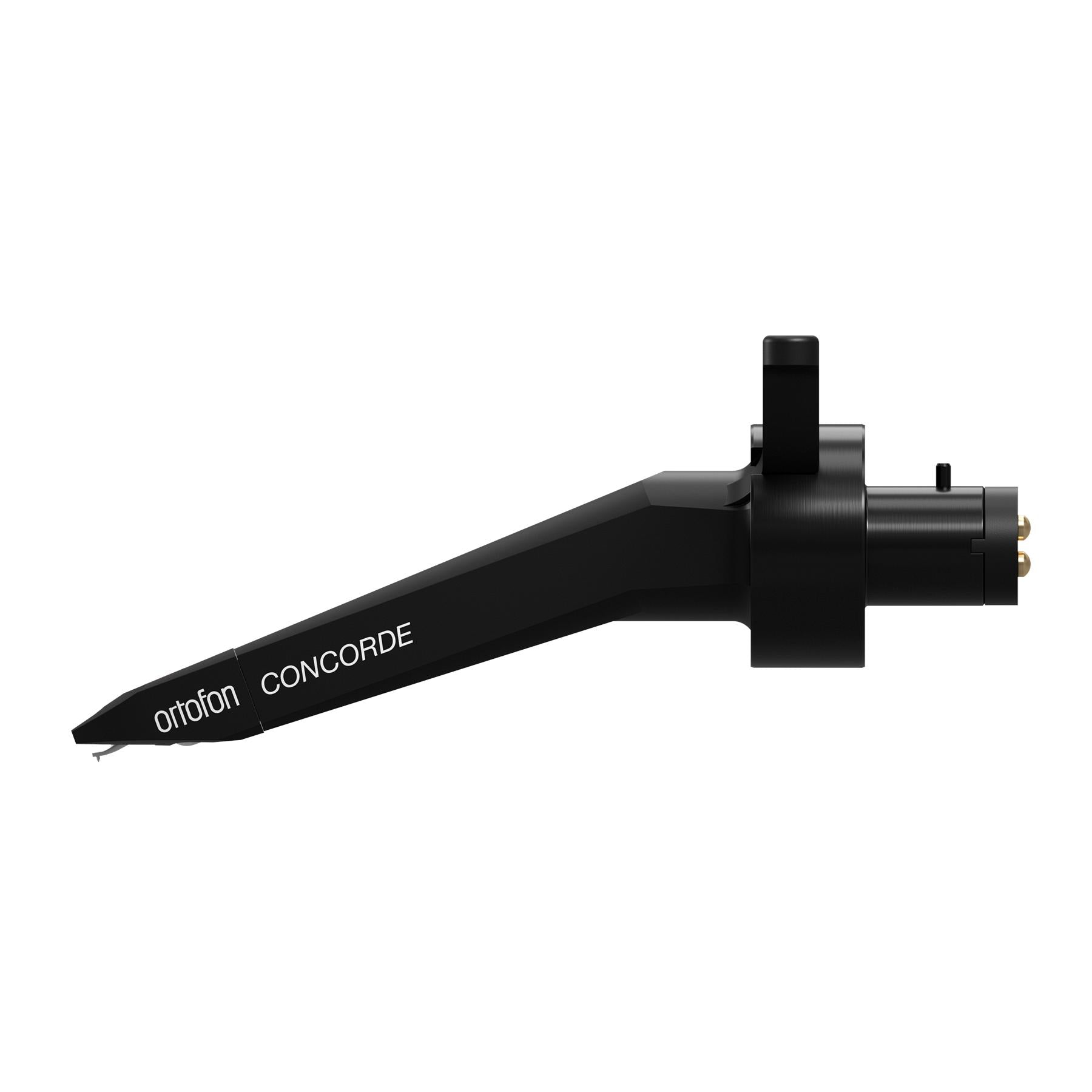

Ortofon Concorde 5E Phono Cartridge - High-Fidelity Sound for Vinyl Enthusiasts
The Ortofon Concorde 5E is a high-fidelity phono cartridge designed for vinyl enthusiasts who demand precision and clarity in their listening experience. With an elliptical diamond stylus, it ensures optimal groove contact, reducing distortion and revealing the finest details in your records. Its no-tool installation makes it easy to set up, while its balanced sound and natural tonal quality make it an ideal choice for those who appreciate the richness of analog audio. The Concorde 5E is built with durable materials and engineered for long-lasting performance, making it a reliable addition to any turntable system.
Key Features:
-
No-tool installation: Easy setup without the need for additional tools or adjustments.
-
Elliptical diamond stylus: Enhances tracking and detail retrieval for a more accurate sound reproduction.
-
Balanced and natural sound: Delivers a clear, detailed listening experience with minimal distortion.
-
High-fidelity performance: Offers precise groove contact for accurate sound reproduction.
Product Specifications:
-
Channel balance at 1 kHz: < 2 dB
-
Output voltage at 1 kHz, 5cm/sec: 4 mV
-
Channel separation at 1 kHz: > 20 dB
-
Frequency response 20 Hz - 20 kHz: +/- 3 dB
-
Compliance, dynamic, lateral: 20 µm/mN
-
Cantilever material: Aluminium
-

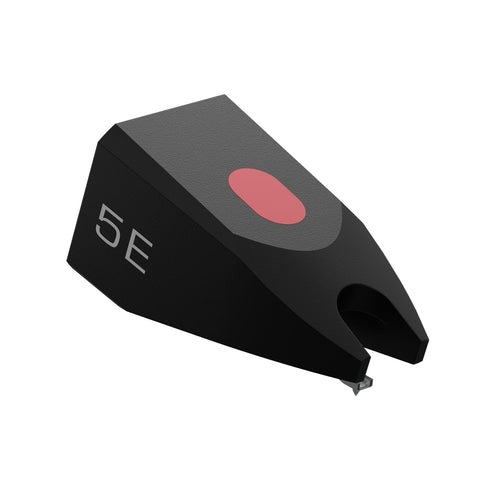

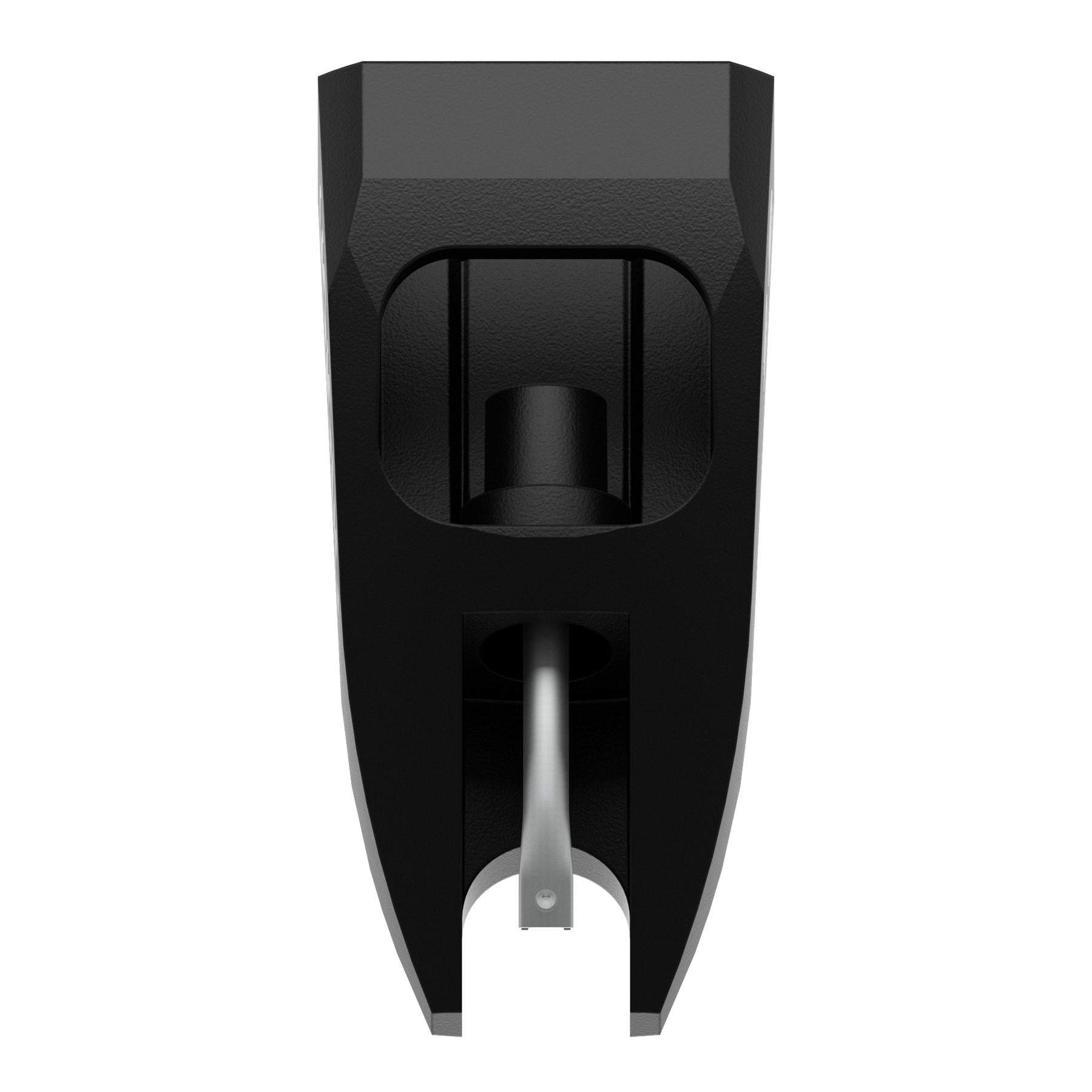

Stylus type: Elliptical Diamond
-
Stylus tip radius: r/R 8/18 µm
-
Tracking force, recommended: 1.8 grams
-
Internal impedance, DC resistance: 750 ?
-
Coil wire material: OFC
-
Cartridge colour: Black
-
Cartridge weight: 18.5 grams
-
Recommended load resistance: 47 k?
Product Q&A:
- Q: Is the Concorde 5E compatible with all turntables?
- A: Yes, it is designed to work with most standard tonearms and turntables.
- Q: How does the elliptical stylus improve sound quality?
- A: The elliptical shape allows for better contact with the record groove, reducing distortion and revealing more detail in music.
- Q: Is the tracking force easy to adjust?
- A: Yes, the recommended tracking force is 1.8 grams and can be adjusted to suit your turntable setup.
- Q: Does the Concorde 5E require any special maintenance?
- A: Regular cleaning of the stylus and careful handling will ensure optimal performance over time.
- Q: Can the Concorde 5E be used with both mono and stereo records?
- A: Yes, it is designed to work with both mono and stereo records for a wide range of listening experiences.
- Q: What is the recommended load resistance for this cartridge?
- A: The 47 k? load resistor is recommended for the best sound performance.
- Q: Is this cartridge suitable for audiophiles?
- A: Yes, the Concorde 5E is designed with audiophiles in mind, offering high-fidelity sound and precise tracking.
Ortofon Concorde 5E Downloads:
Ortofon Concorde 5E User Guide
