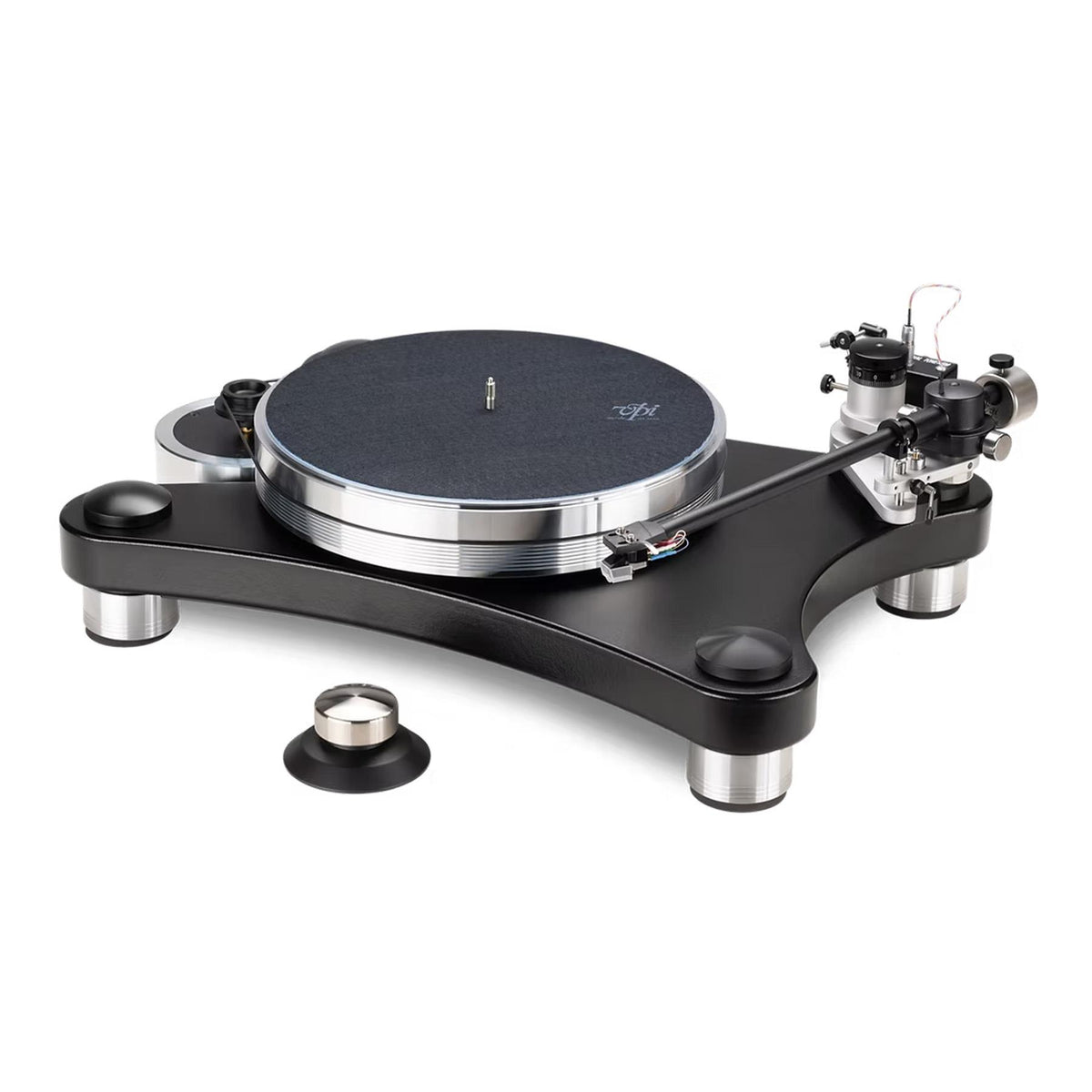

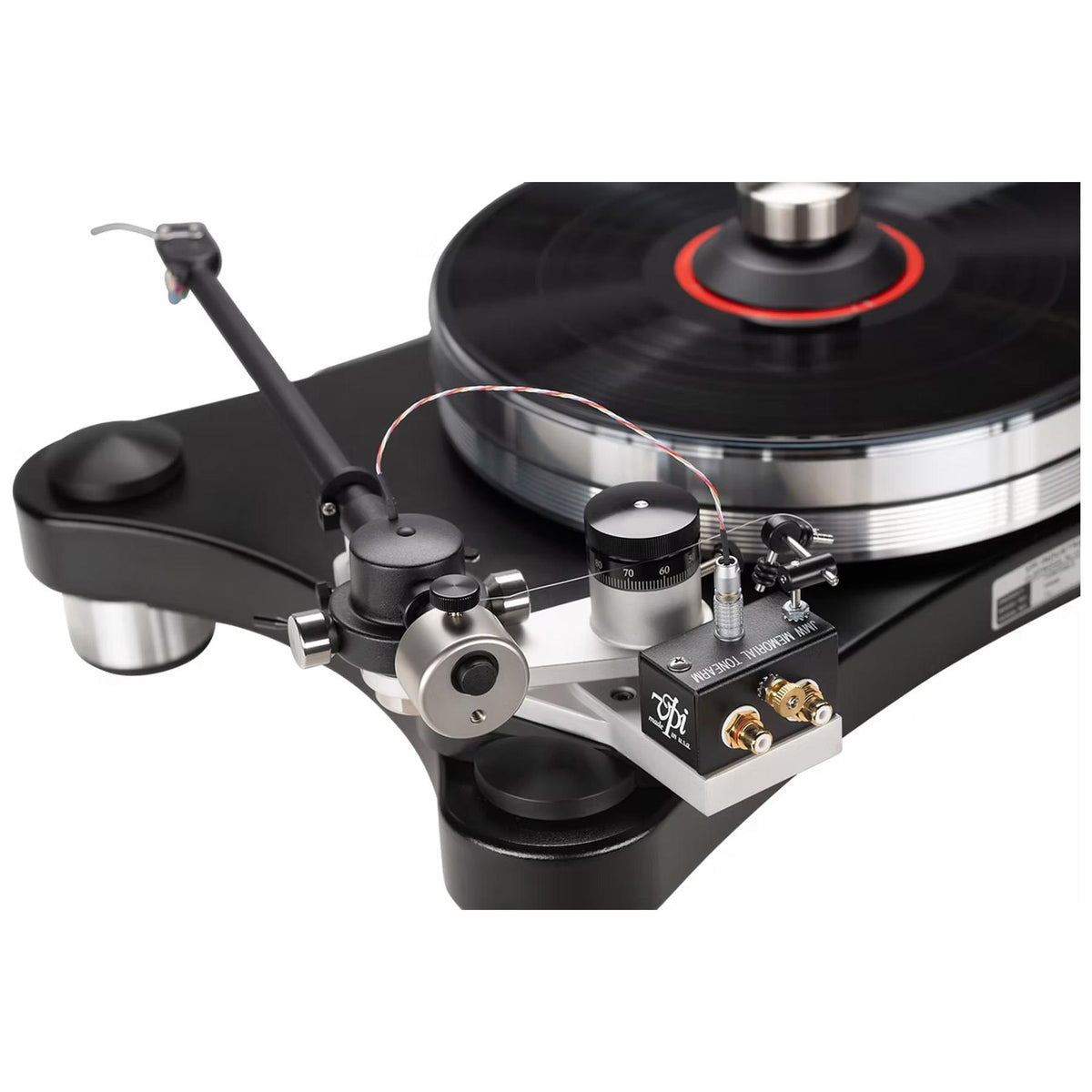

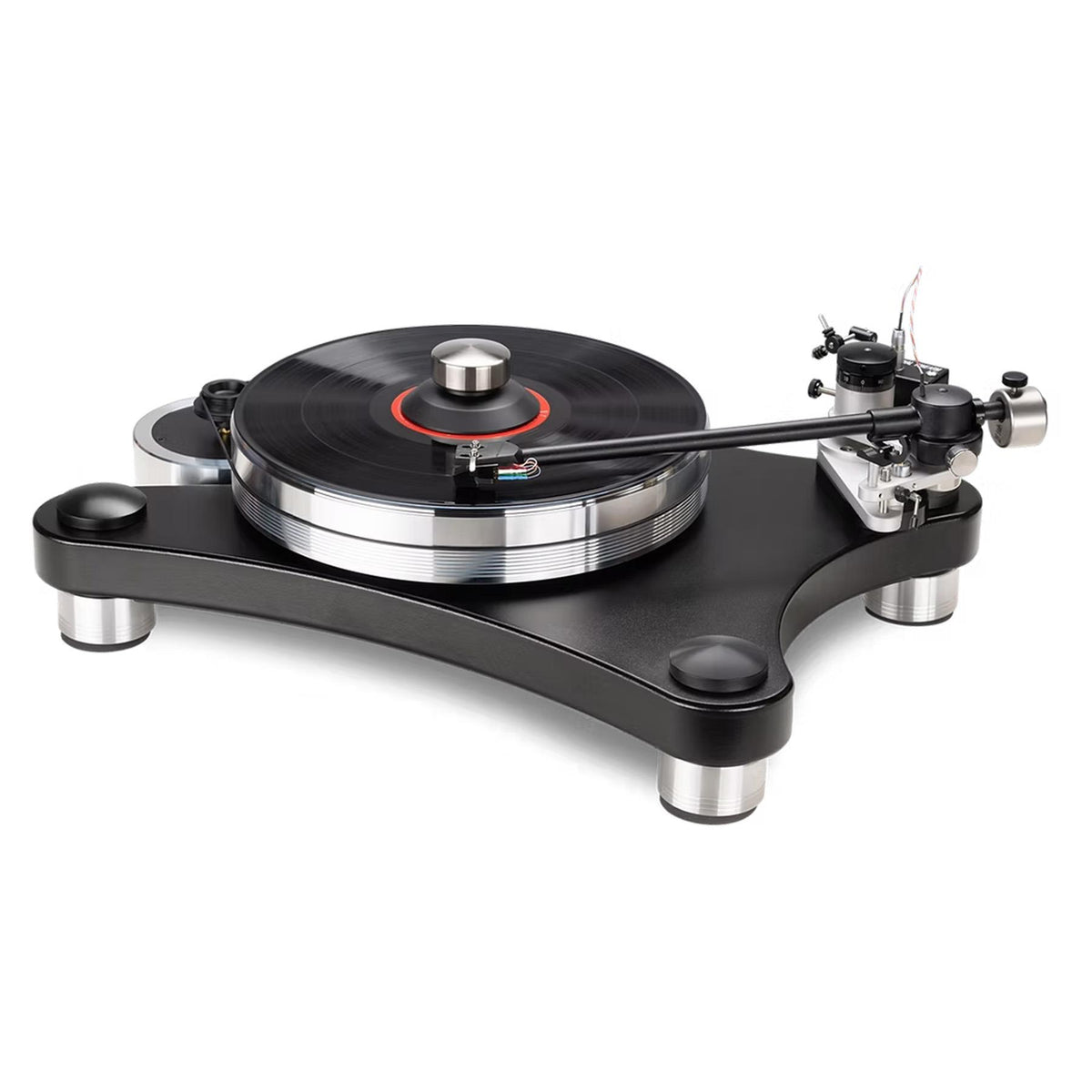

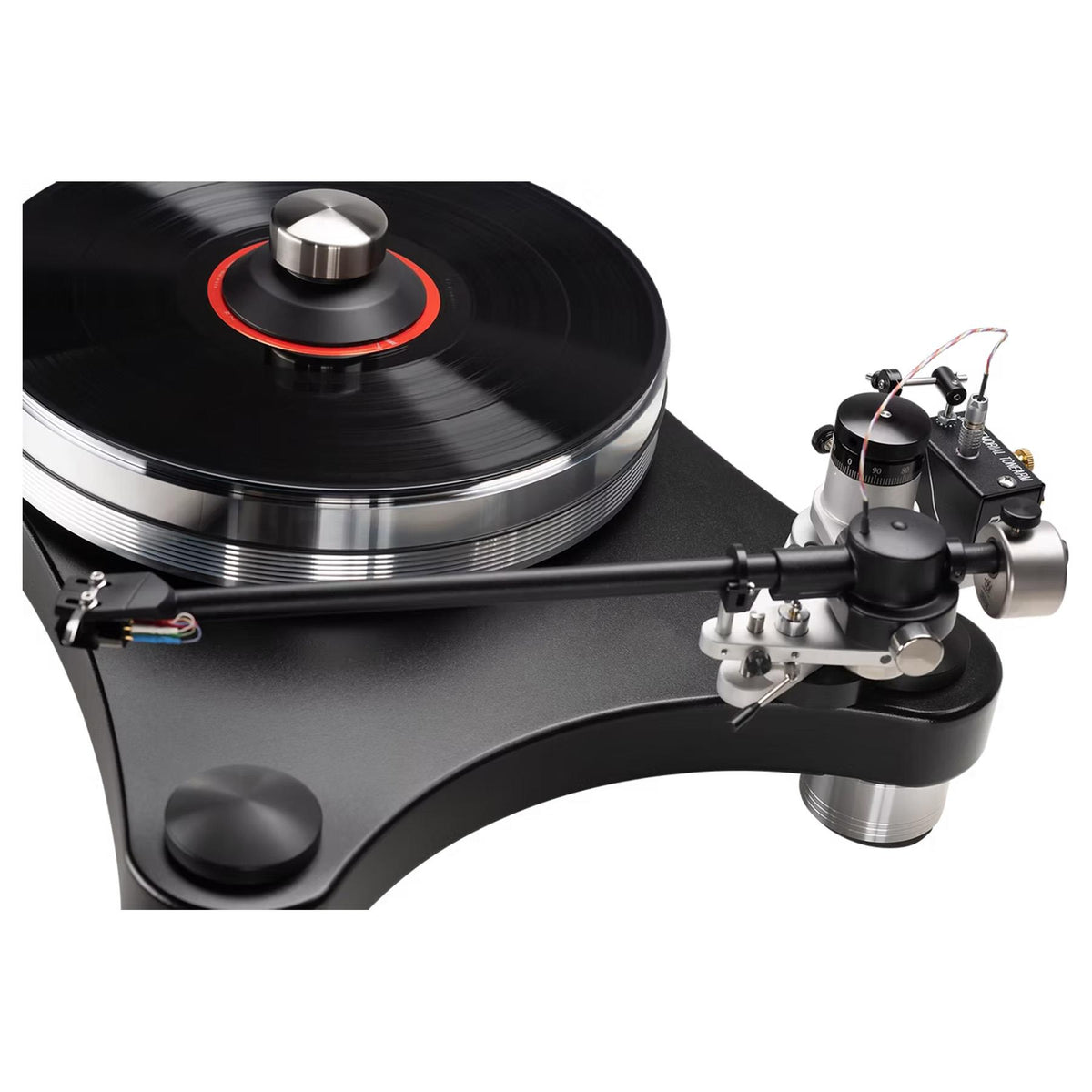

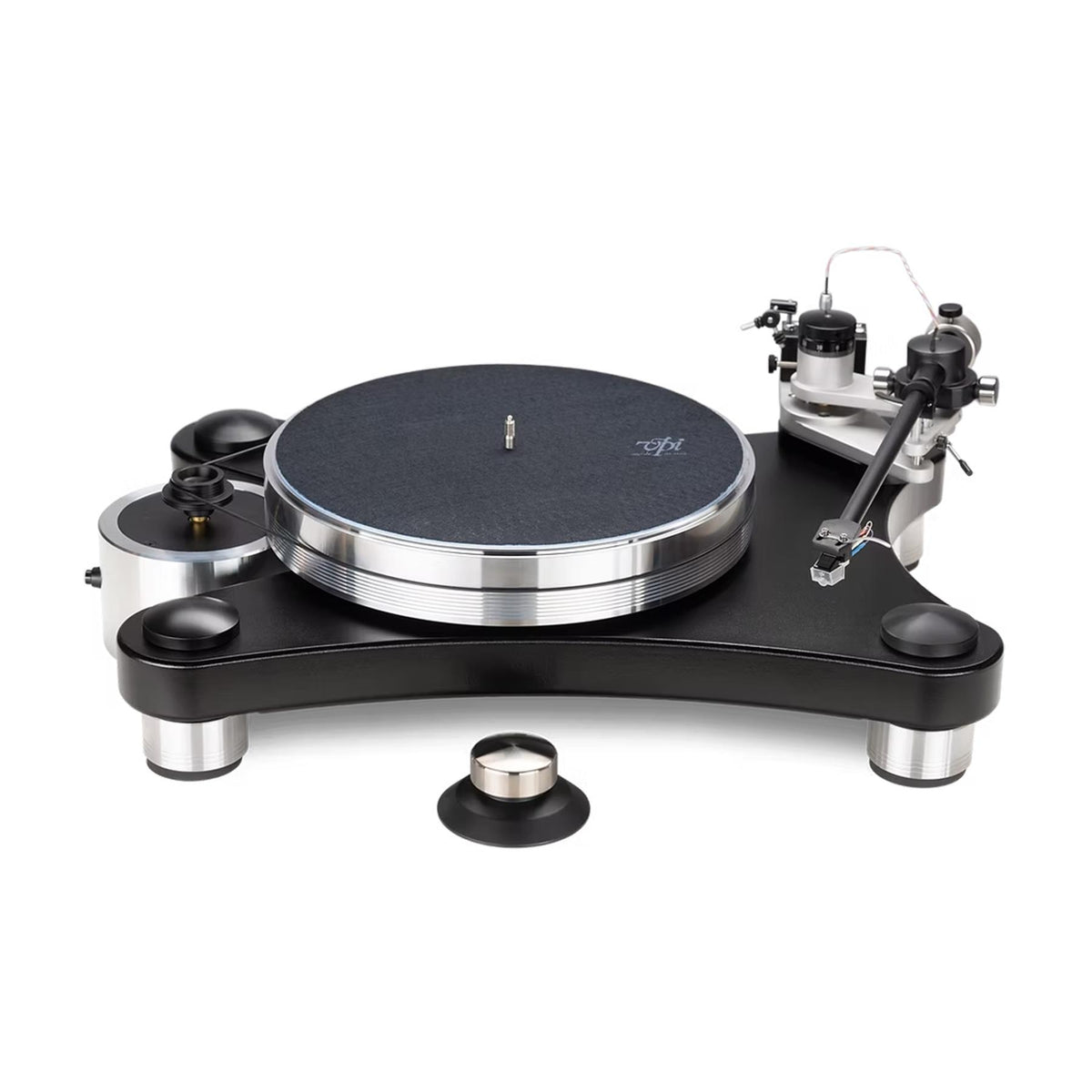

The VPI Prime X turntable is a high-performance belt-drive record player built around a 20-pound aluminum platter, steel-reinforced MDF chassis, and upgraded HW-40 isolation feet. Its included 3D-12 JMW tonearm provides a 313 mm effective length plus VTA, azimuth, counterweight, and side-weight adjustments for precise cartridge setup. A 300 RPM, 24-pole AC synchronous motor supports stable playback, with published wow and flutter and speed accuracy of 0.05%. With 33 and 45 RPM playback and multiple VPI upgrade options, the Prime X is designed for serious analog systems seeking precision, adjustability, and isolation.
Get the Details

VPI Prime X Turntable

The VPI Prime X Turntable builds on VPI’s Prime platform with upgraded isolation, a substantial 20-pound aluminum platter, and the long 3D-12 JMW tonearm for highly adjustable analog playback. Its 44-pound chassis combines vinyl-wrapped MDF and steel, while upgraded HW-40 isolation feet help control unwanted vibration and provide a stable foundation for vinyl playback. The included JMW-12 / 3D-12 tonearm features a 313 mm effective length, VPI copper-weave internal wiring, adjustable VTA, azimuth side weights, and an adjustable drop counterweight for precise cartridge setup. A 300 RPM, 24-pole AC synchronous motor drives the platter, with published wow and flutter and speed accuracy of 0.05%. Designed for serious vinyl systems, the Prime X combines mechanical stability, extensive setup control, and a range of available VPI upgrades for enthusiasts seeking a premium high-performance turntable.

What It's Good At:

• Controlling vibration: Upgraded HW-40 isolation feet and a substantial 44-pound construction provide a stable platform for record playback.
• Maintaining consistent rotation: The 20-pound aluminum platter works with a 300 RPM, 24-pole AC synchronous motor, with published wow and flutter and speed accuracy of 0.05%.
• Precise cartridge geometry: The 12-inch-class JMW tonearm provides a 313 mm effective length, 300 mm pivot-to-spindle distance, 13 mm overhang, and 17.37-degree offset angle.
• Fine-tuning cartridge setup: Adjustable VTA, azimuth side weights, and an adjustable drop counterweight provide extensive control over tonearm setup.
• Supporting 33 and 45 RPM records: Playback speed is selected by changing the drive belt position on the motor pulley.
• Growing with a high-end vinyl system: Available upgrades include a Periphery Ring Clamp, Analog Drive System, Reference Feet, and Fatboy tonearms in gimbal or unipivot configurations.

VPI Prime X Turntable Full Specifications:

• Product: VPI Prime X Turntable
• Chassis Composition: Vinyl-wrapped MDF and steel
• Isolation: Upgraded HW-40 isolation feet
• Platter: 12-inch aluminum
• Platter Weight: 20 lb
• Included Tonearm: JMW-12 / 3D-12 JMW
• Tonearm Type: 3D JMW unipivot design
• Pivot-to-Spindle Distance: 300 mm
• Effective Length: 313.0 mm
• Effective Mass: 10.5 g
• Overhang: 13 mm
• Offset Angle: 17.37 degrees
• Average RMS Distortion: 0.267%
• Internal Tonearm Wire: VPI copper weave
• Tonearm Material: VPI 3D technology using materials including epoxy resin and Delrin
• Tonearm Adjustments and Features: Adjustable drop counterweight, azimuth side weights, VTA adjustment, and Lemo connection
• Motor: 300 RPM, 24-pole AC synchronous motor
• Playback Speeds: 33 and 45 RPM; speed is selected by changing belt position on the motor pulley
• Wow and Flutter: 0.05%
• Speed Accuracy: 0.05%
• Rumble: 80 dB down
• Footprint: 19½ x 13¾ inches
• Overall Size: 21⅜ x 15¾ inches
• Total Weight: 44 lb

VPI Prime X Turntable Q&A:

What does the VPI Prime X upgrade compared with the original VPI Prime?

The Prime X carries forward the Prime concept while adding upgraded HW-40 isolation feet and making the 3D-12 JMW tonearm standard equipment.

What tonearm comes with the VPI Prime X?

The Prime X includes VPI’s JMW-12 / 3D-12 JMW tonearm. It has a 313 mm effective length, 300 mm pivot-to-spindle distance, 10.5 g effective mass, and VPI copper-weave internal wiring.

What is the platter made from, and how much does it weigh?

The turntable uses a 12-inch aluminum platter weighing 20 pounds, giving the Prime X a substantial rotating assembly.

Can the VPI Prime X play both 33 and 45 RPM records?

Yes. The Prime X supports 33 and 45 RPM operation, with speed selected by positioning the belt on the appropriate section of the motor pulley.

How adjustable is the Prime X tonearm for cartridge setup?

The tonearm provides an adjustable drop counterweight, azimuth side weights, VTA adjustment, and a Lemo connection, giving users multiple ways to fine-tune cartridge setup.

What are the Prime X's published speed and noise specifications?

VPI lists wow and flutter at 0.05%, speed accuracy at 0.05%, and rumble at 80 dB down.

How large and heavy is the VPI Prime X?

The Prime X has a 19½ x 13¾-inch footprint, measures 21⅜ x 15¾ inches overall, and weighs 44 pounds.
