The VPI Dragon is a high-end audiophile turntable designed for low-noise, high-resolution vinyl playback. A mechanically isolated 300 RPM AC synchronous motor, integrated low-distortion drive electronics, and triple-belt system help minimize vibration and maintain stable rotation. Its 20-pound 12-inch aluminum platter, inverted bearing architecture, damped chassis, and vibration-controlling feet provide a substantial foundation for detailed analog playback. The adjustable 10-3D gimbal tonearm platform adds VTA, azimuth, counterweight adjustment, and VPI copper-weave wiring for precise cartridge setup.
Get the Details

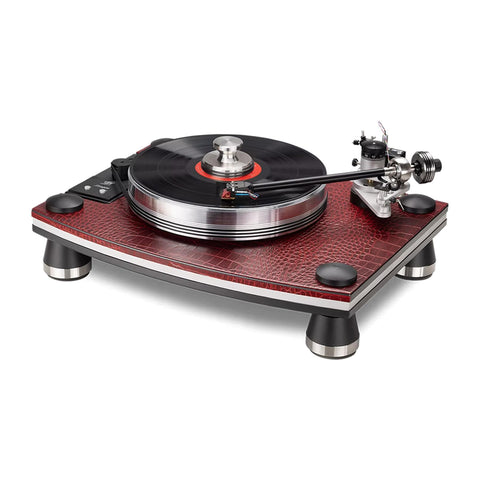

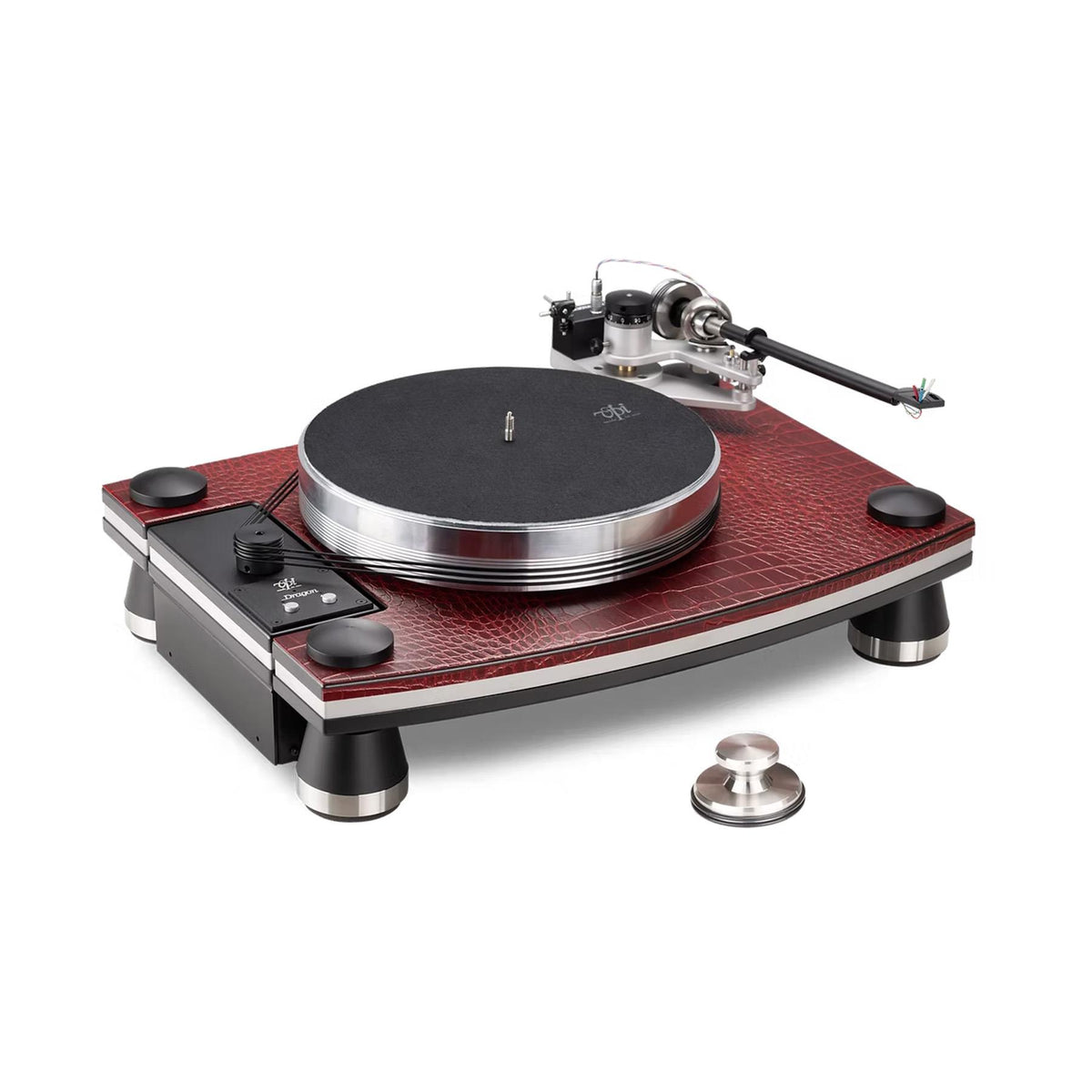

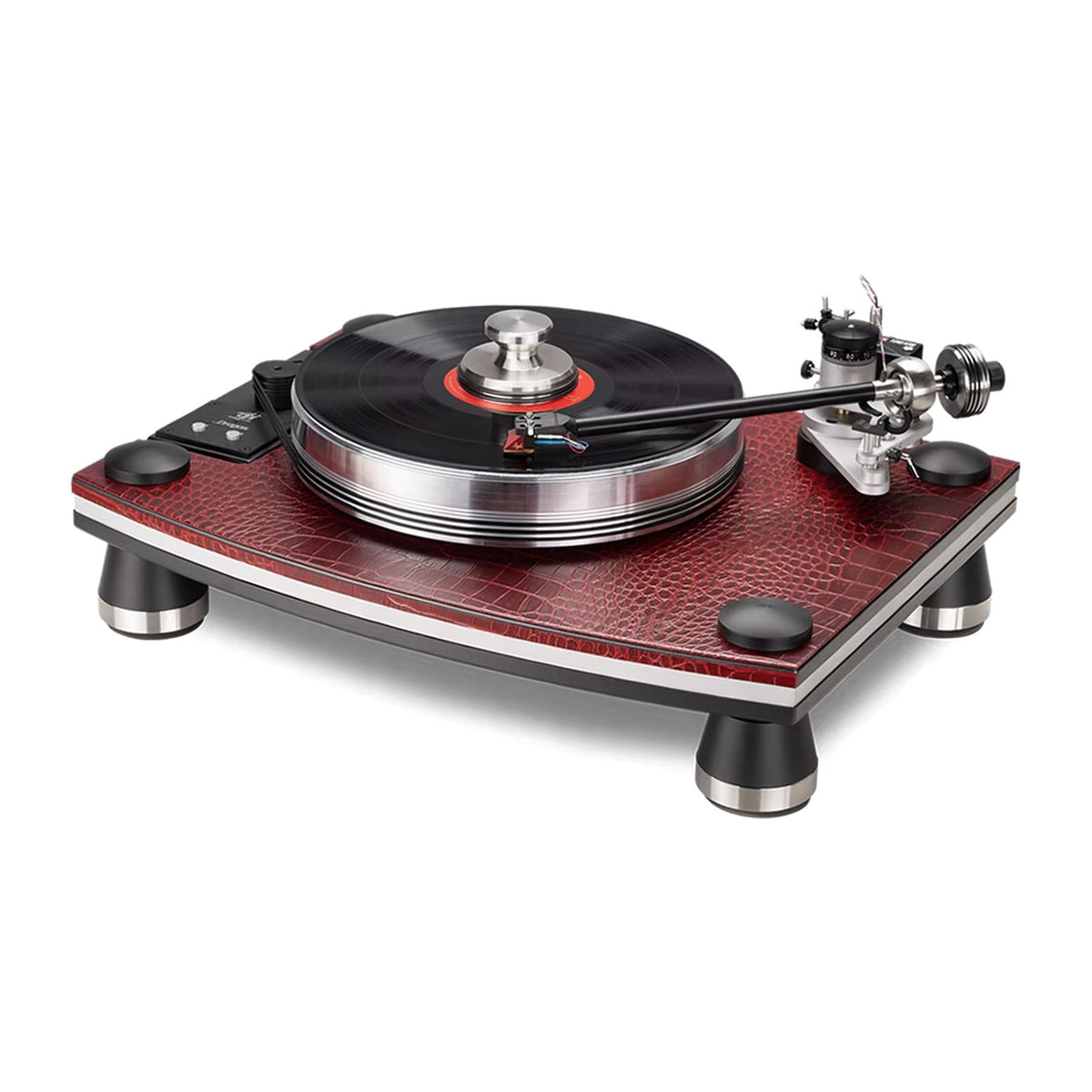

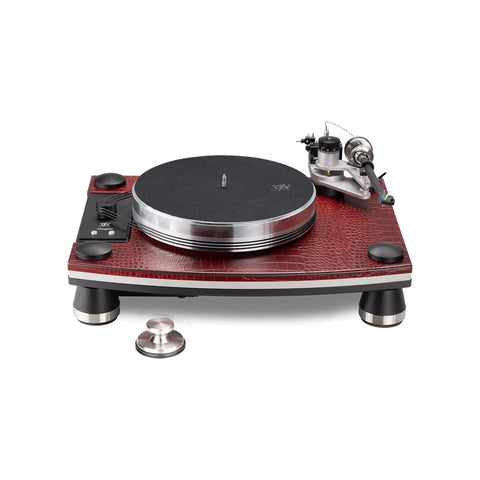

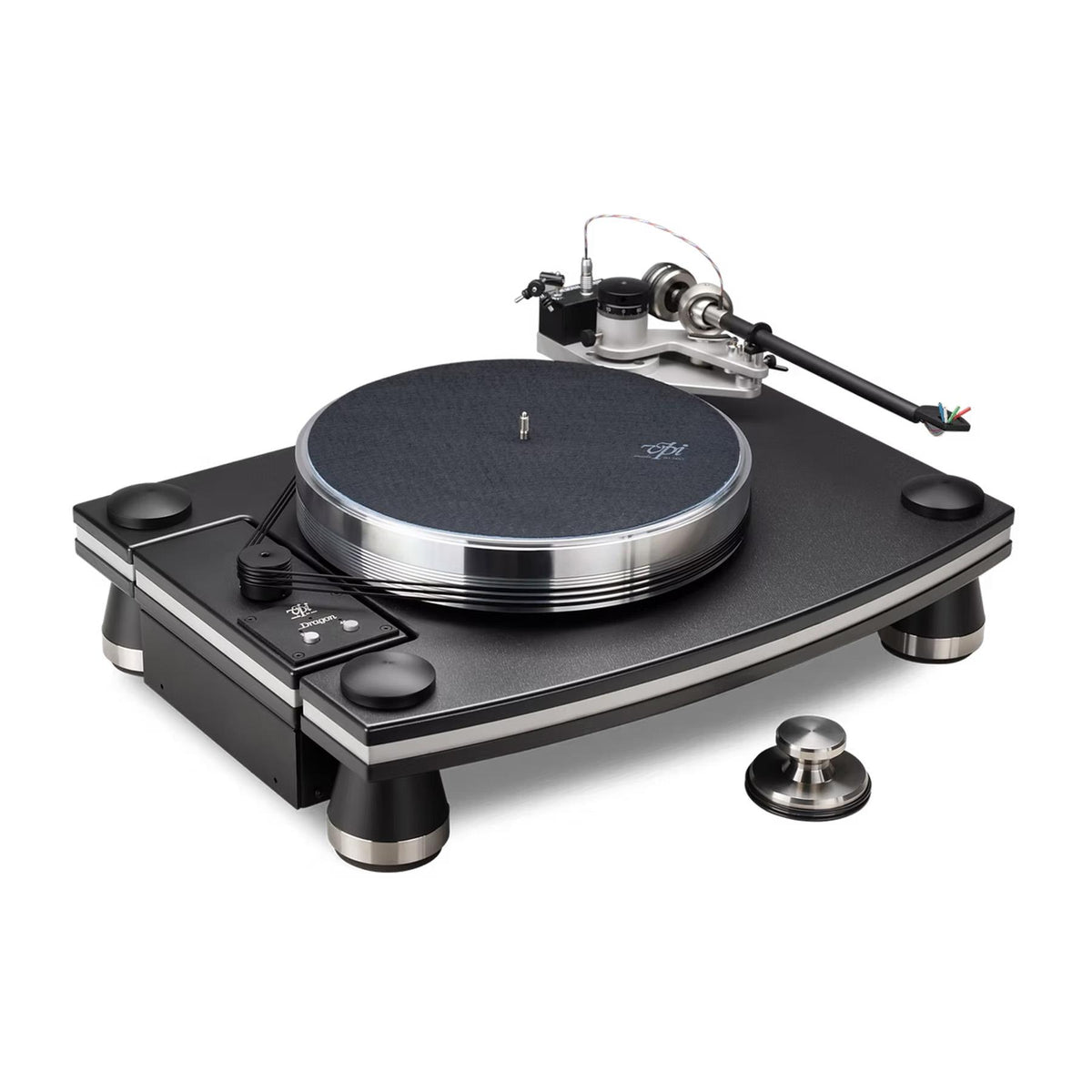

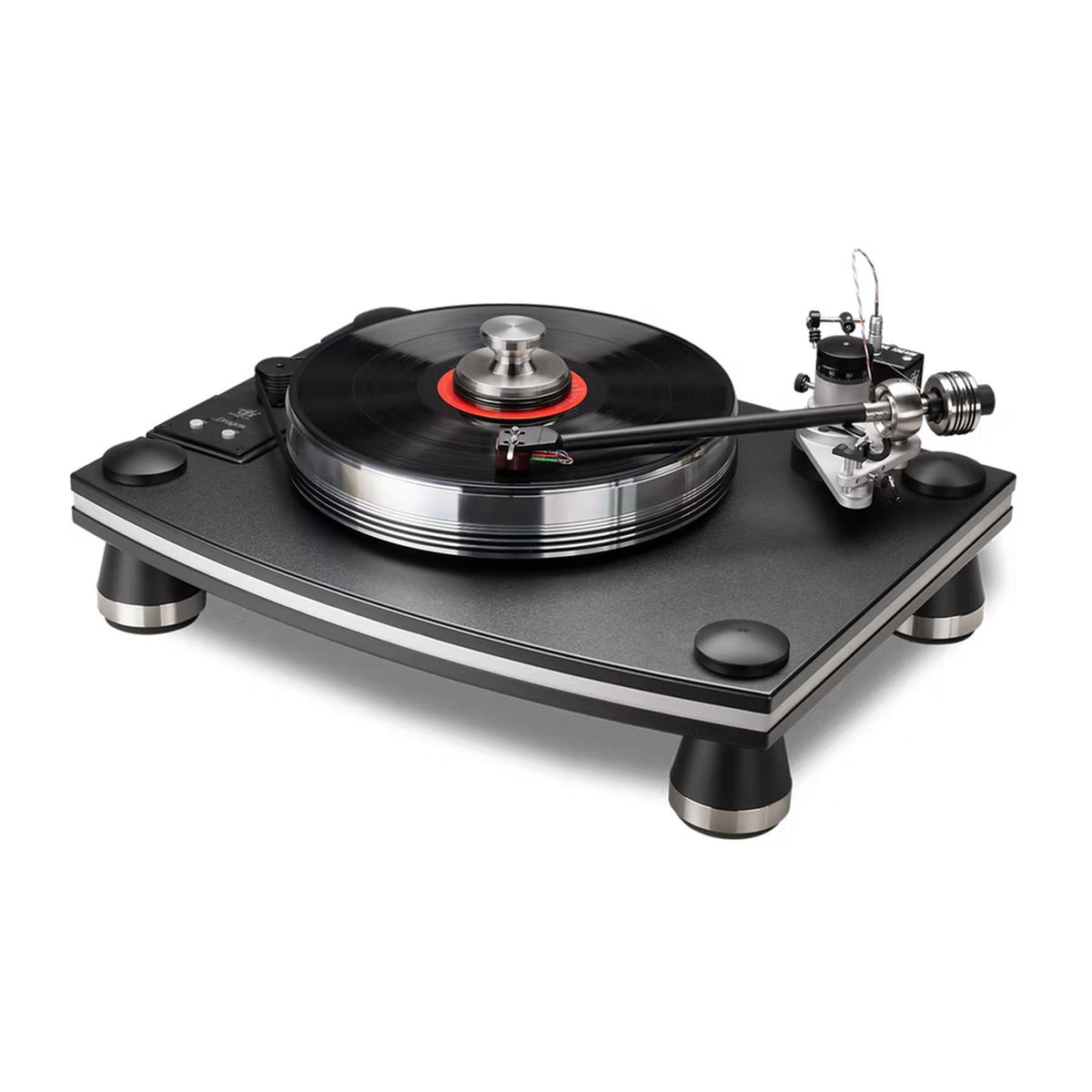

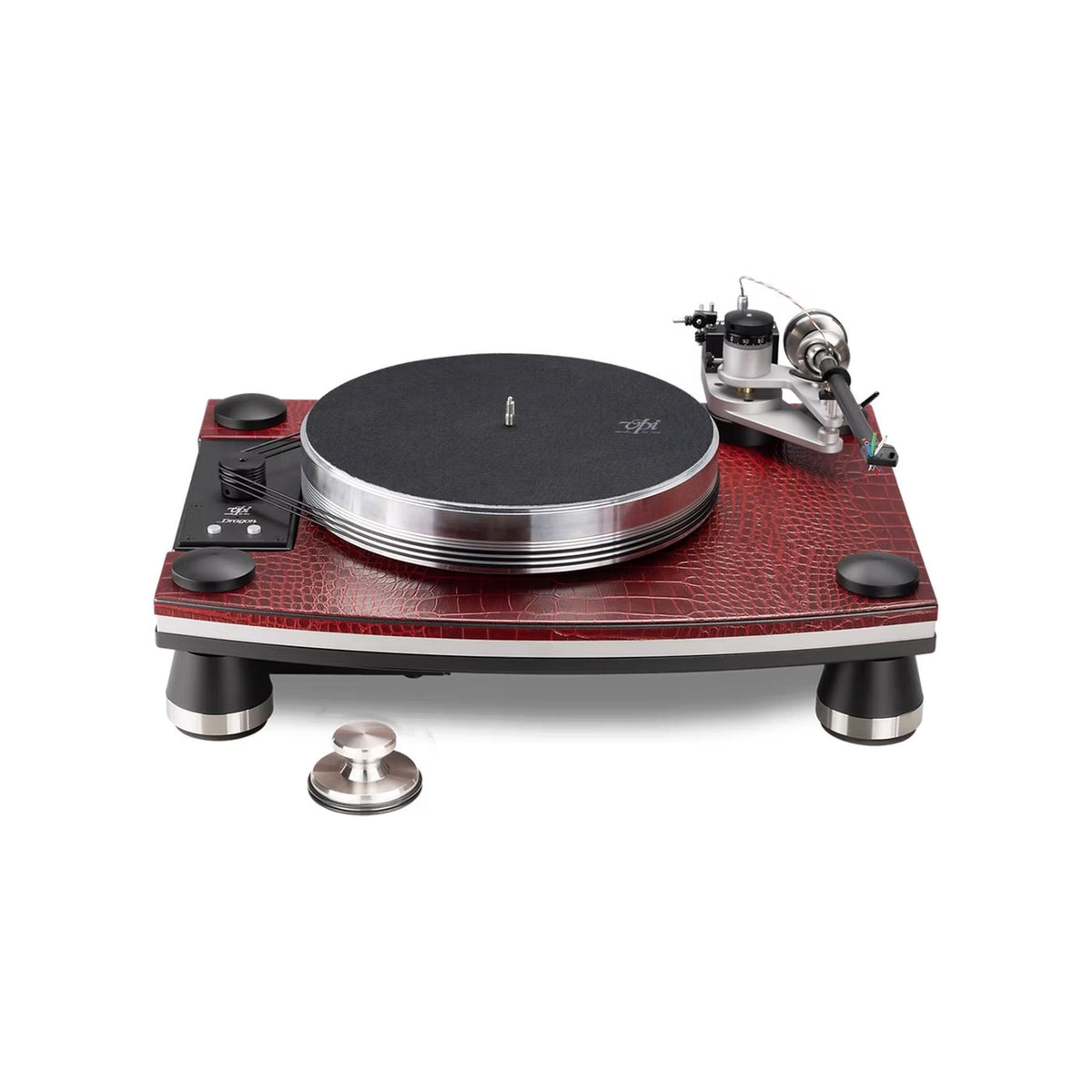

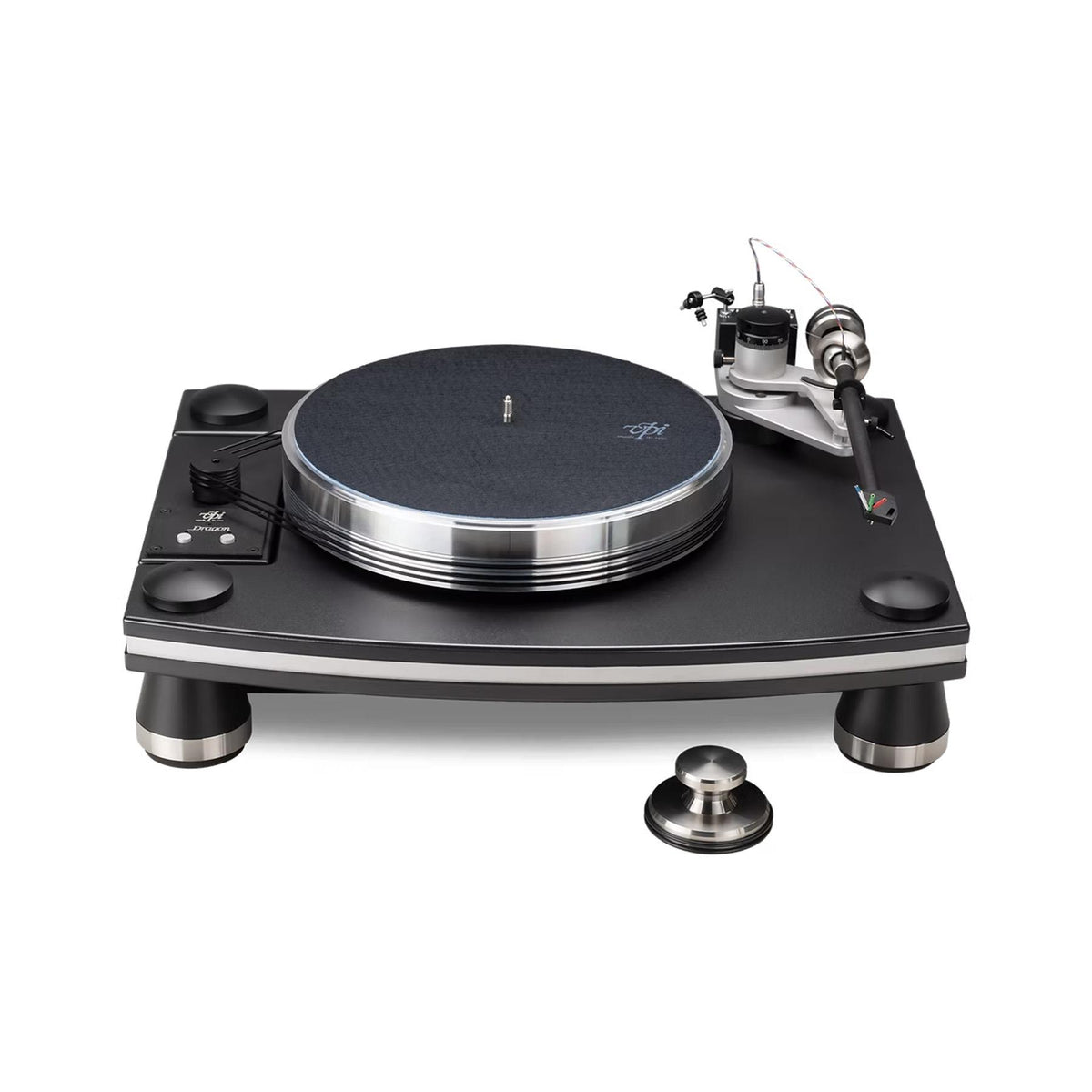

VPI Dragon Turntable

The VPI Dragon Turntable is a premium high-end audiophile turntable engineered to reveal fine musical detail, expansive soundstage, engaging dynamics, and clean vinyl playback. Its high-torque 300 RPM AC synchronous motor is housed in a mechanically separate enclosure and paired with integrated motor-drive electronics, including two low-distortion oscillators and Class-AB circuitry. A precision-machined pulley and triple-belt drive system further isolate motor vibration from the playback system, helping keep unwanted mechanical energy out of the audio signal.

At the heart of the Dragon is a substantial 12-inch, 20-pound aluminum platter with an MDF damping layer, rotating on an inverted bearing system. The stainless-steel shaft, inverted phosphor-bronze bushing, highly damped chassis construction, and machined Delrin/aluminum feet with vibration-damping polymer cores work together to control resonance and provide a stable platform for demanding analog playback.

The Dragon's 10-3D tonearm platform provides a full-gimbal bearing, VPI copper-weave internal wiring, adjustable counterweight, azimuth side weights, VTA adjustment, and a Lemo connection for precise cartridge setup. With a total weight of 58 pounds, specified 0.05% speed accuracy, less than 0.1% wow and flutter, and several available upgrade paths, the VPI Dragon is designed for serious vinyl systems where isolation, adjustability, and mechanical precision are priorities.

What It's Good At:

• Reducing Motor Vibration: The mechanically isolated motor enclosure and triple-belt drive help prevent motor energy from reaching the stylus and audio signal.
• Maintaining Stable Record Rotation: A high-torque AC synchronous motor, precision-machined pulley, integrated drive electronics, and substantial platter support consistent playback.
• Controlling Resonance: The damped chassis, 20-pound aluminum/MDF platter, inverted bearing, and polymer-core isolation feet are designed to manage unwanted vibration.
• Supporting Precise Cartridge Setup: Adjustable VTA, azimuth side weights, counterweight adjustment, and full-gimbal tonearm construction provide extensive setup flexibility.
• Resolving Fine Musical Information: The Dragon's low-noise mechanical architecture is designed to preserve subtle recording detail, dynamics, and spatial information.
• Providing an Upgradeable Analog Platform: Optional Reference Feet, Periphery Ring Clamp, and Fatboy tonearm configurations allow the system to be further refined.

VPI Dragon Turntable Full Specifications:

• Product: VPI Dragon
• Drive System: Triple-belt drive
• Motor: High-torque AC synchronous motor
• Motor Speed: 300 RPM
• Motor Installation: Mechanically isolated/separate motor enclosure
• Motor-Drive Electronics: Integrated
• Oscillators: Two low-distortion oscillators
• Motor Electronics: Class-AB electronics
• Motor Pulley: Precision-machined
• Motor Pulley Accuracy: ±0.0005"
• Shaft: Stainless steel
• Bushing: Inverted phosphor-bronze bushing
• Main Chassis Construction, Feature Description: Highly damped, vinyl-wrapped MDF and aluminum sandwich
• Chassis Composition, Technical Specification Listing: Vinyl-wrapped MDF and steel
• Feet: Machined Delrin and aluminum
• Foot Isolation: Vibration-damping polymer core
• Platter Material: Aluminum
• Platter Size: 12"
• Platter Weight: 20 lb
• Platter Construction: Machined from solid aluminum with MDF damping layer
• Platter Bearing: Inverted bearing
• Tonearm Designation in Tonearm Section: VPI Prime Gimbal 10-3D
• Tonearm Designation in Technical Specification Listing: JMW-10-3D Tonearm
• Tonearm Bearing Type: Full gimbal bearing
• Tonearm Internal Wire: VPI copper weave
• Pivot-to-Spindle Distance: 258 mm
• Effective Tonearm Length: 273.4 mm
• Effective Tonearm Mass: 10.2 g
• Overhang: 15.4 mm
• Offset Angle: 19.98°
• Average RMS Distortion: 0.31%
• Tonearm Material: VPI 3D technology utilizing materials including epoxy resin, Delrin, copper, aluminum, and steel
• Tonearm Adjustments/Features: Adjustable counterweight, azimuth side weights, VTA, and Lemo connection
• Power Requirements: 100–120 VAC or 220–240 VAC, 50–60 Hz
• Wow and Flutter: <0.1%
• Speed Accuracy: 0.05%
• Rumble: 80 dB down
• Footprint: 7.9" (200 mm) × 21.0" (533 mm) × 15.9" (404 mm)
• Overall Size: 21⅜" × 15¾"
• Total Weight: 58 lb

VPI Dragon Turntable Q&A:

What type of drive system does the VPI Dragon use?

The VPI Dragon uses a precision triple-belt drive system powered by a high-torque 300 RPM AC synchronous motor. The motor is mechanically separated from the main turntable structure to help minimize vibration transfer.

How does the VPI Dragon reduce motor noise and vibration?

Its motor is housed in a mechanically isolated enclosure and works with integrated motor-drive electronics, a precision-machined pulley, and triple belts. The damped chassis and isolation-focused feet provide additional vibration control.

What type of platter is used on the VPI Dragon?

The Dragon features a 12-inch, 20-pound aluminum platter with an MDF damping layer. It rotates on an inverted bearing system using a stainless-steel shaft and inverted phosphor-bronze bushing.

Which tonearm is included with the VPI Dragon?

VPI's Dragon page identifies the arm as the VPI Prime Gimbal 10-3D in its dedicated tonearm section, while the technical specifications list a JMW-10-3D Tonearm. Because both names appear in the manufacturer's information, the current production tonearm designation should be confirmed when ordering.

What adjustments does the Dragon tonearm provide?

The tonearm provides an adjustable counterweight, azimuth side weights, VTA adjustment, and a Lemo connection. Its full-gimbal bearing architecture is designed to provide controlled and repeatable cartridge setup.

What are the VPI Dragon's speed-performance specifications?

VPI specifies 0.05% speed accuracy, less than 0.1% wow and flutter, and rumble rated at 80 dB down. Motor pulley accuracy is specified at ±0.0005".

How large and heavy is the VPI Dragon?

The Dragon weighs 58 pounds. VPI lists a footprint of 7.9" (200 mm) × 21.0" (533 mm) × 15.9" (404 mm), along with an overall size specification of 21⅜" × 15¾".
