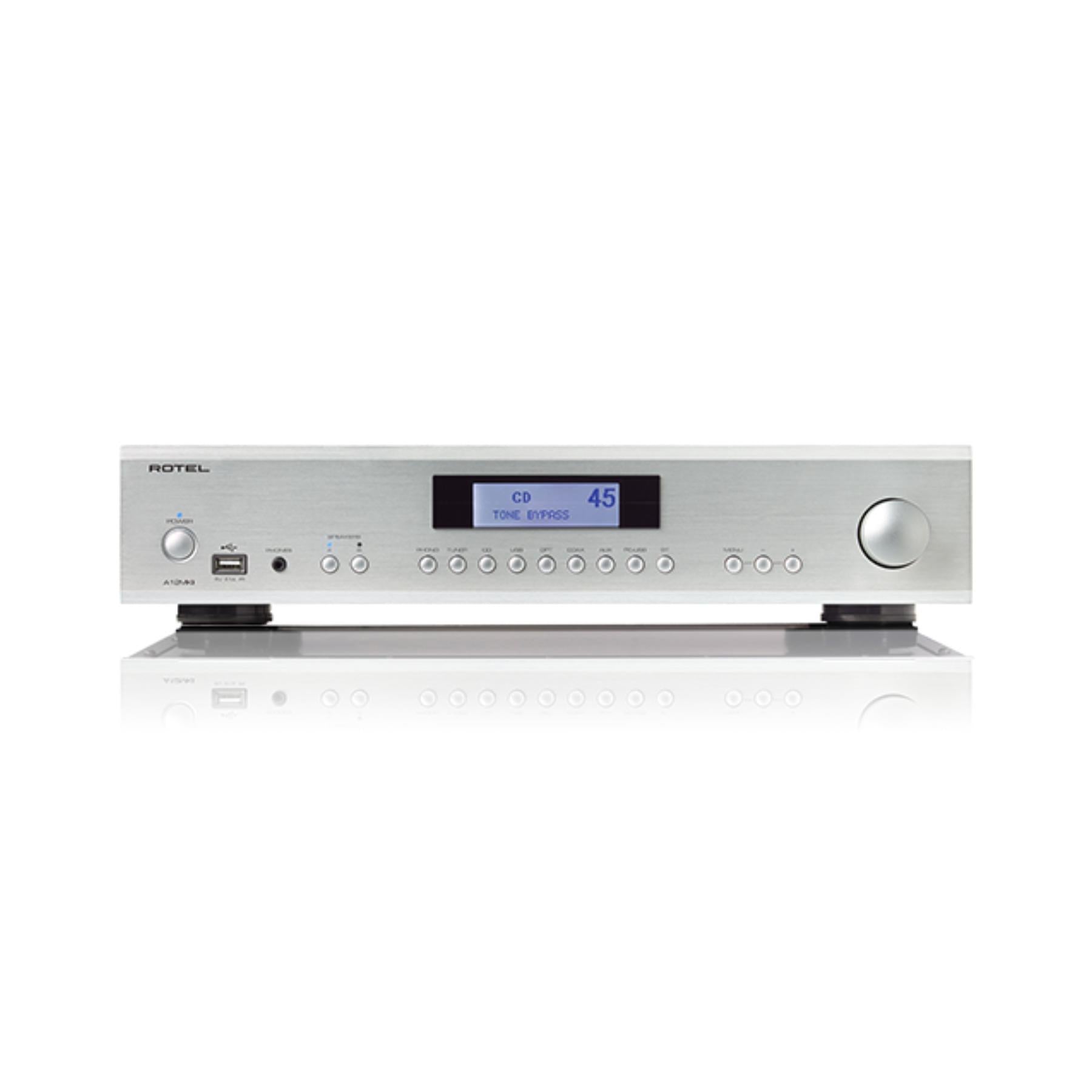

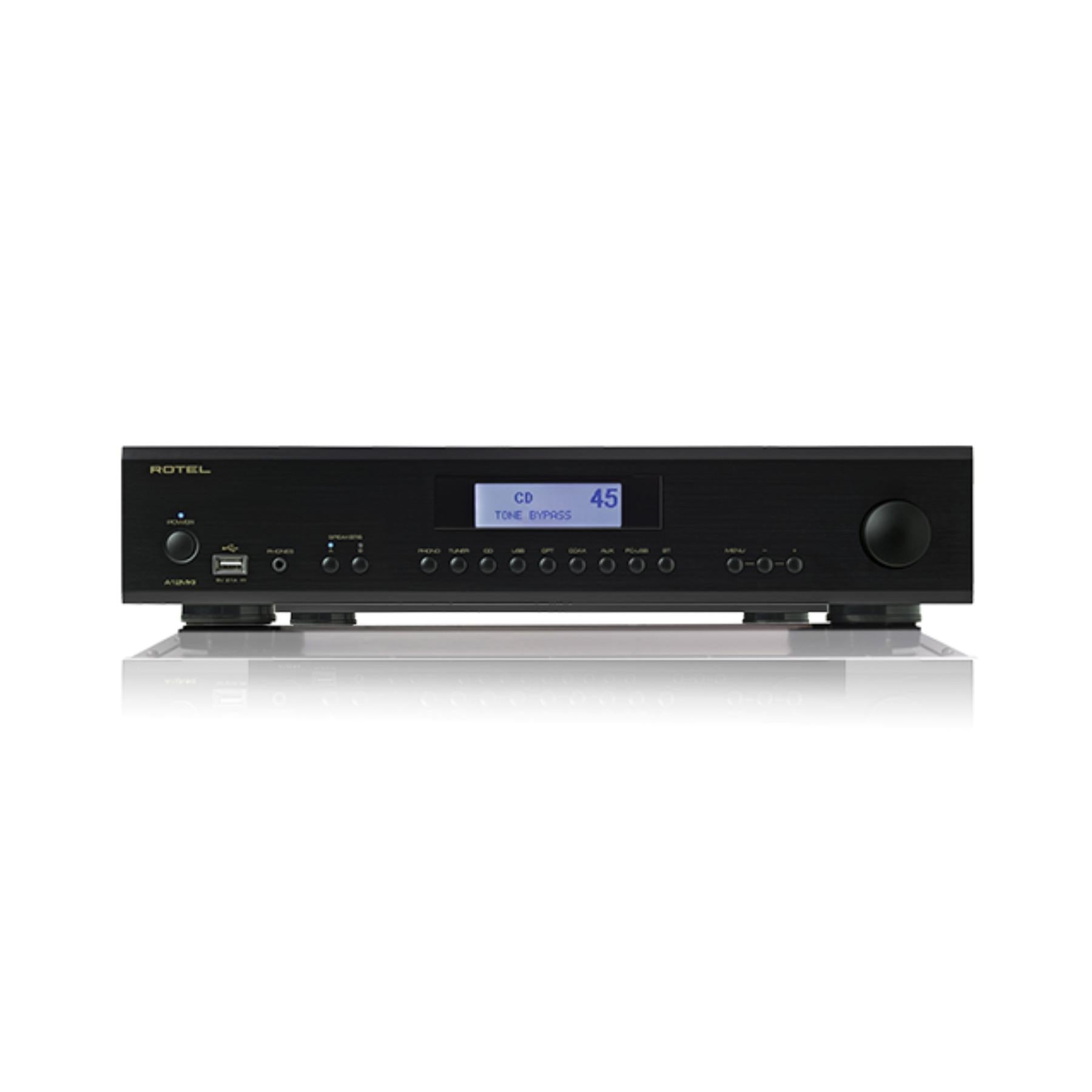

The Rotel A12MKII Integrated Amplifier

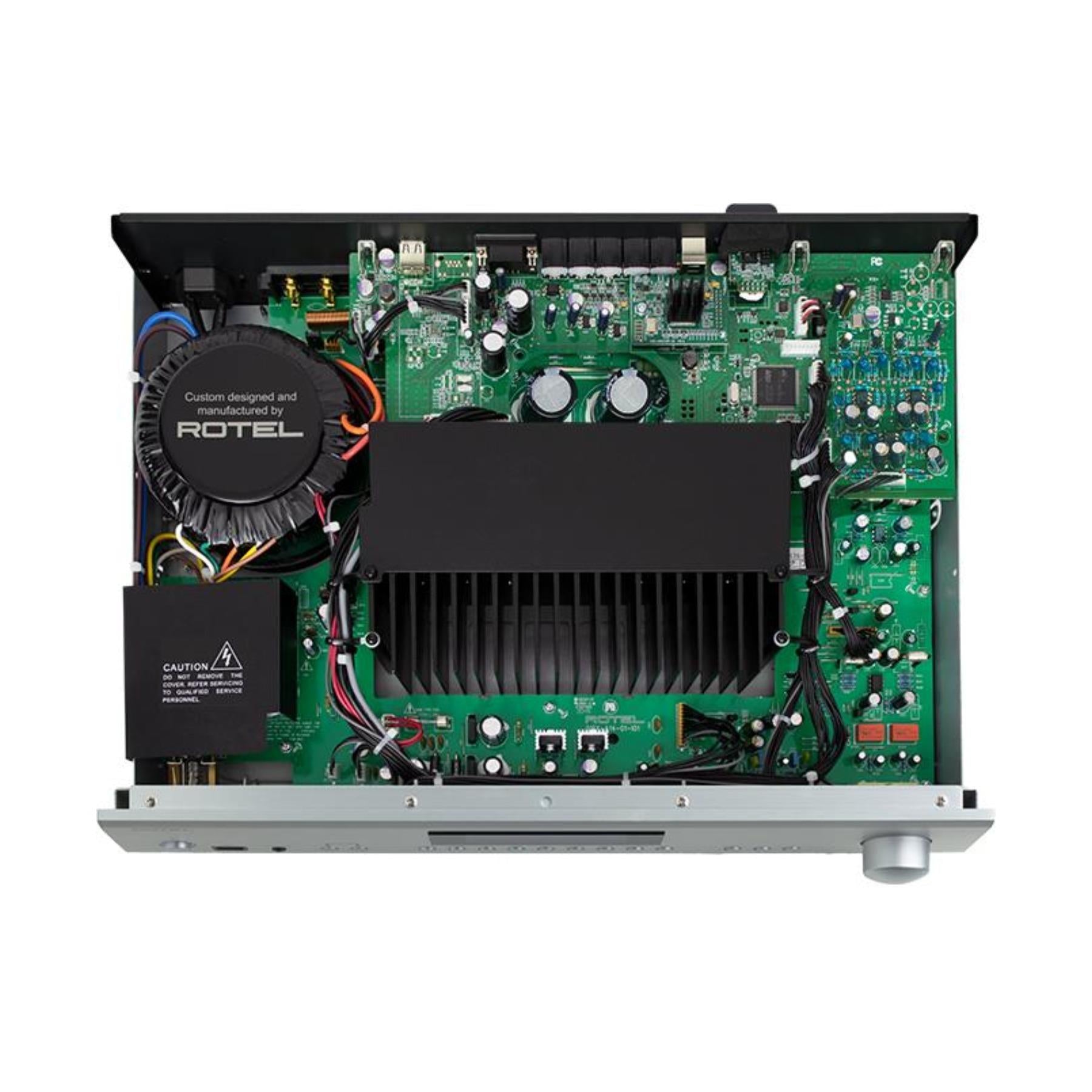

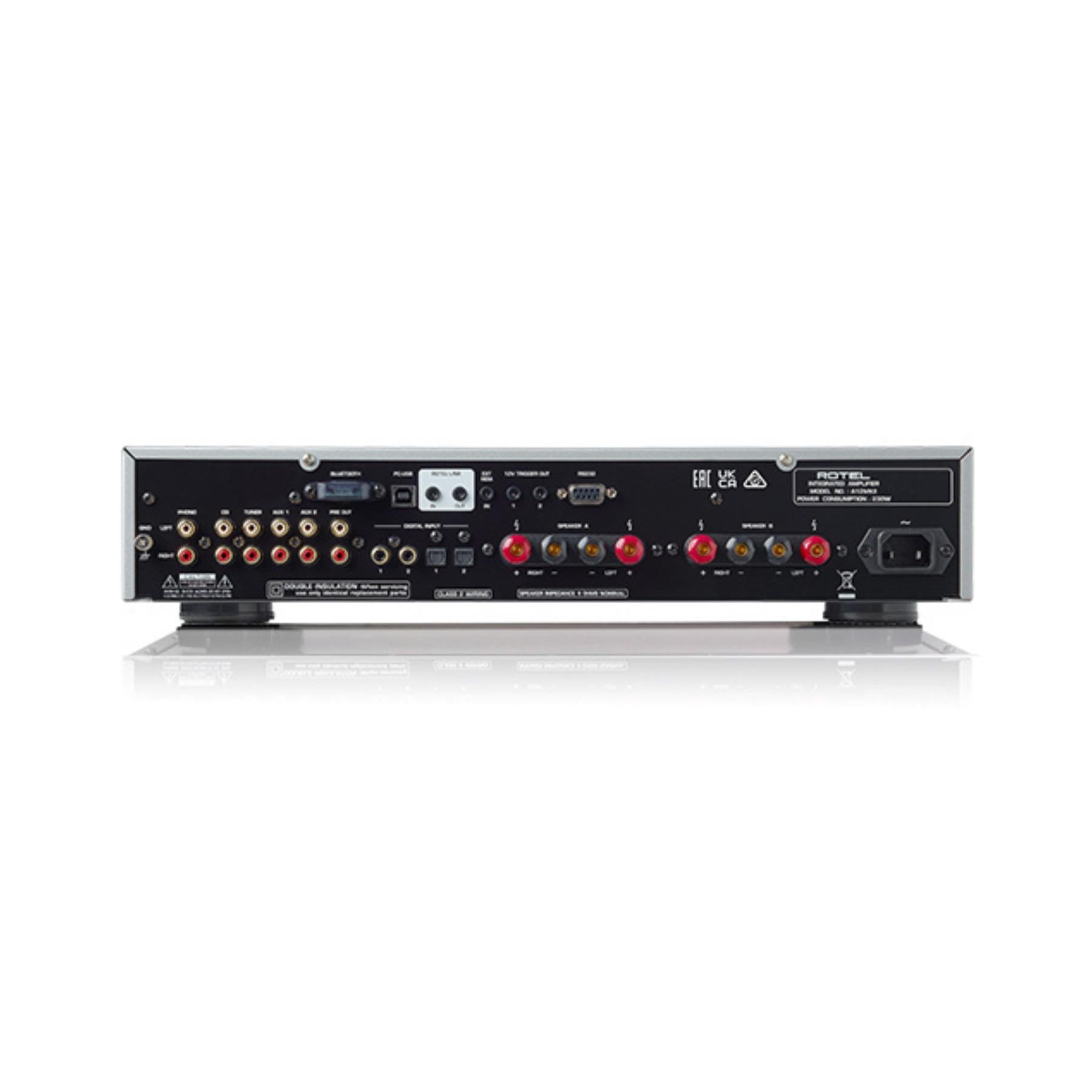

stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms. A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptX^TM Bluetooth input ensures connection to your favorite sources. The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Rotel A12MKII Specifications:

MAXIMUM POWER OUTPUT: 120W/Ch (4Ω)

CONTINUOUS POWER OUTPUT: 60W/Ch (8Ω)

TOTAL HARMONIC DISTORTION (THD): <0.018%

FREQUENCY RESPONSE:

Line Level Inputs: 10Hz - 100kHz, 0±0.5dB

Digital Inputs: 10Hz - 90kHz, 0±2dB

Phono Input: 20Hz - 20kHz, 0±0.5dB

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 100dB

Digital Inputs: 103dB

Phono Input: 90dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%

DAMPING FACTOR: 220

INPUT SENSITIVITY

Line Level Inputs: 230mV

Digital Inputs: 0dBfs

Phono Input (MM): 3.4mV

INPUT IMPEDANCE

Line Level Inputs: 24kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

INPUT OVERLOAD

Line Level Inputs: 4V

Phono Input: 50mV

PREOUT LEVEL: 1.2V

OUTPUT IMPEDANCE: 470Ω

TONE CONTROLS: ±10dB at 100Hz / 10kHz

DIGITAL INPUT: SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24-bit/96kHz)

USB Audio Class 2 (up to 32-bit/384kHz)*

*Driver installation required

Roon Tested

DIMENSIONS (W × H × D): 17" × 3.6" × 13.5"

FRONT PANEL HEIGHT: 3.15"

POWER REQUIREMENTS: 120V, 60Hz

POWER CONSUMPTION: 230W

STANDBY POWER CONSUMPTION: <0.5W

NET WEIGHT: 19.3 lbs.
