Product Description

Line Circle

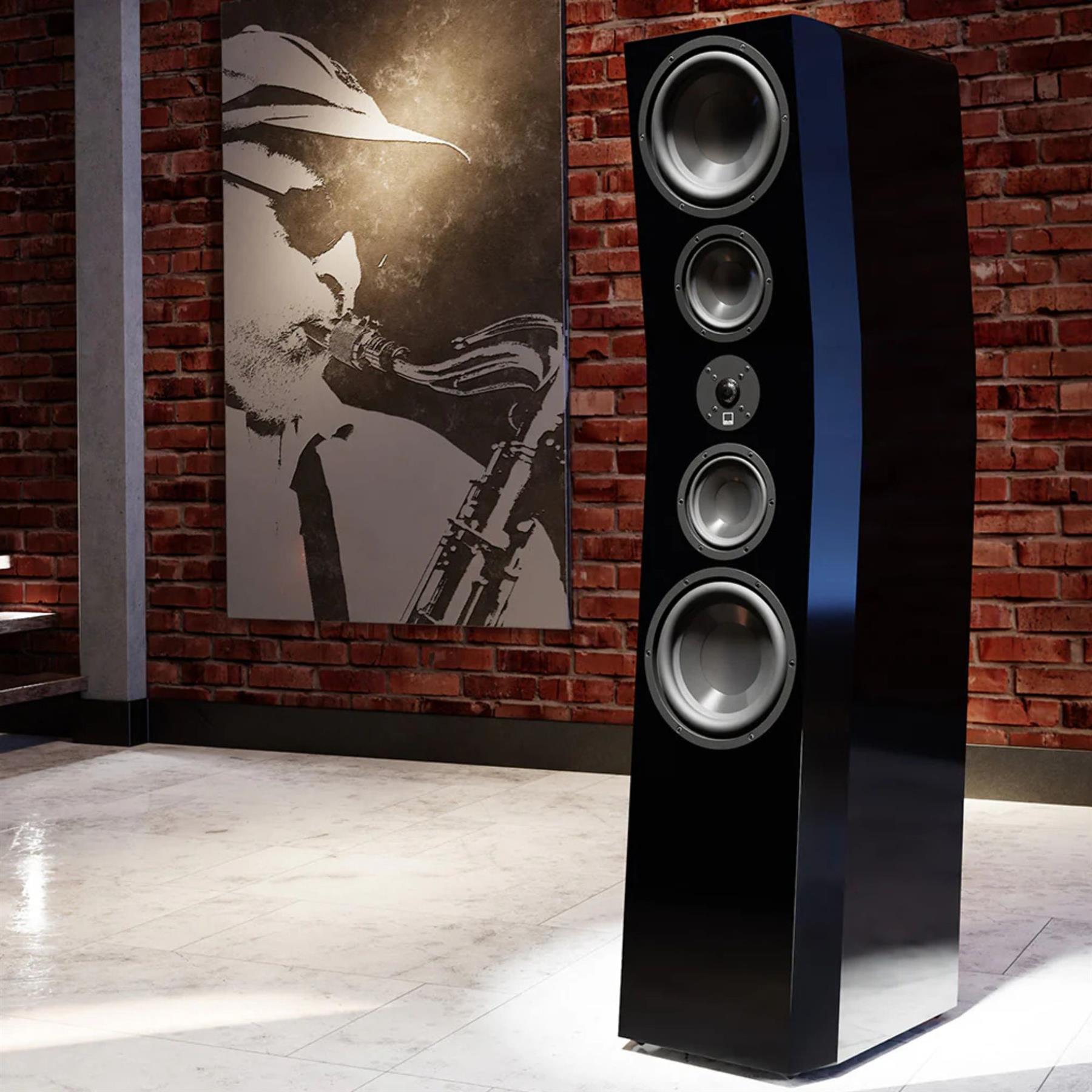

The SVS Ultra Evolution Pinnacle is a flagship floorstanding tower speaker engineered for reference-level music and home theater performance. Its 3-way driver array combines a diamond coated 1” tweeter, dual 5.25” midrange drivers, and a force-balanced quad 8” woofer system for deep bass, clear vocals, and extended highs. With a 24Hz–40kHz (+/-3 dB) frequency response and premium crossover/cabinet engineering, it delivers a large, precise soundstage with exceptional detail. Finished in luxury options and built with serious connectivity and stability features, it’s designed to anchor a high-end audio system.
Get the Details

Features & Specs Line Circle

Reaches into true low bass while extending well beyond the audible band, preserving weight, air, and realism across music and movies.
24Hz–40kHz (+/-3 dB) full-range performance
3-way design with diamond coated 1” tweeter
The diamond-like coated aluminum dome and diffuser-focused design aim for pristine clarity, fast transients, and refined treble detail.
Dual 5.25” midrange drivers for clarity and dynamics
A dual midrange array helps keep vocals and instruments clean and present, with strong output capability and controlled behavior through the crossover region.
Force-balanced quad 8” woofer array for deep, controlled bass
The opposed/force-balanced configuration is designed to energize the room with powerful lows while reducing mechanical vibration that can blur detail.
Premium 3-way crossover with defined crossover points
High-quality components and carefully chosen handoff points (1.8 kHz and 140 Hz) help maintain tonal consistency and a seamless transition between drivers.
Acoustically Centered Time Alignment cabinet architecture
Driver symmetry, time-aligned geometry, and a heavily braced enclosure work together to sharpen imaging, improve coherence, and reduce cabinet coloration.
Reaches into true low bass while extending well beyond the audible band, preserving weight, air, and realism across music and movies.
24Hz–40kHz (+/-3 dB) full-range performance
3-way design with diamond coated 1” tweeter
The diamond-like coated aluminum dome and diffuser-focused design aim for pristine clarity, fast transients, and refined treble detail.
Dual 5.25” midrange drivers for clarity and dynamics
A dual midrange array helps keep vocals and instruments clean and present, with strong output capability and controlled behavior through the crossover region.
Force-balanced quad 8” woofer array for deep, controlled bass
The opposed/force-balanced configuration is designed to energize the room with powerful lows while reducing mechanical vibration that can blur detail.
Premium 3-way crossover with defined crossover points
High-quality components and carefully chosen handoff points (1.8 kHz and 140 Hz) help maintain tonal consistency and a seamless transition between drivers.
Acoustically Centered Time Alignment cabinet architecture
Driver symmetry, time-aligned geometry, and a heavily braced enclosure work together to sharpen imaging, improve coherence, and reduce cabinet coloration.

Expert Insight

Line Circle

If you have the space for a pair of speakers that throw some energy into the room and are guaranteed to put a smile on your face from time to time – stop shopping. The SVS Ultra Evolution Pinnacle floorstanding loudspeakers render your music with clarity, drive, detail, and body. Making for enjoyable listening track after track.

Expert Img
Jason Methfessel
the absolute sound

Details

Line Circle

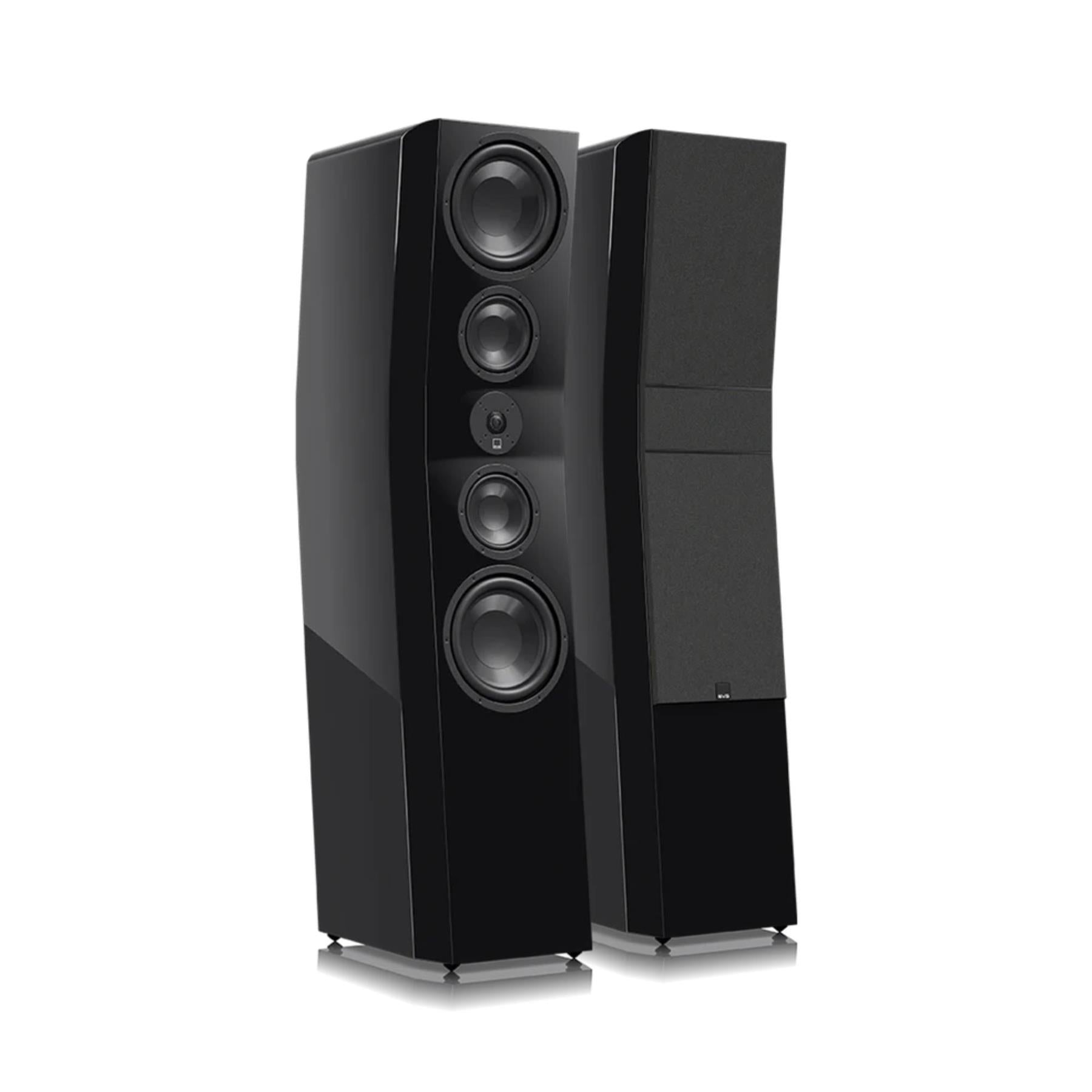

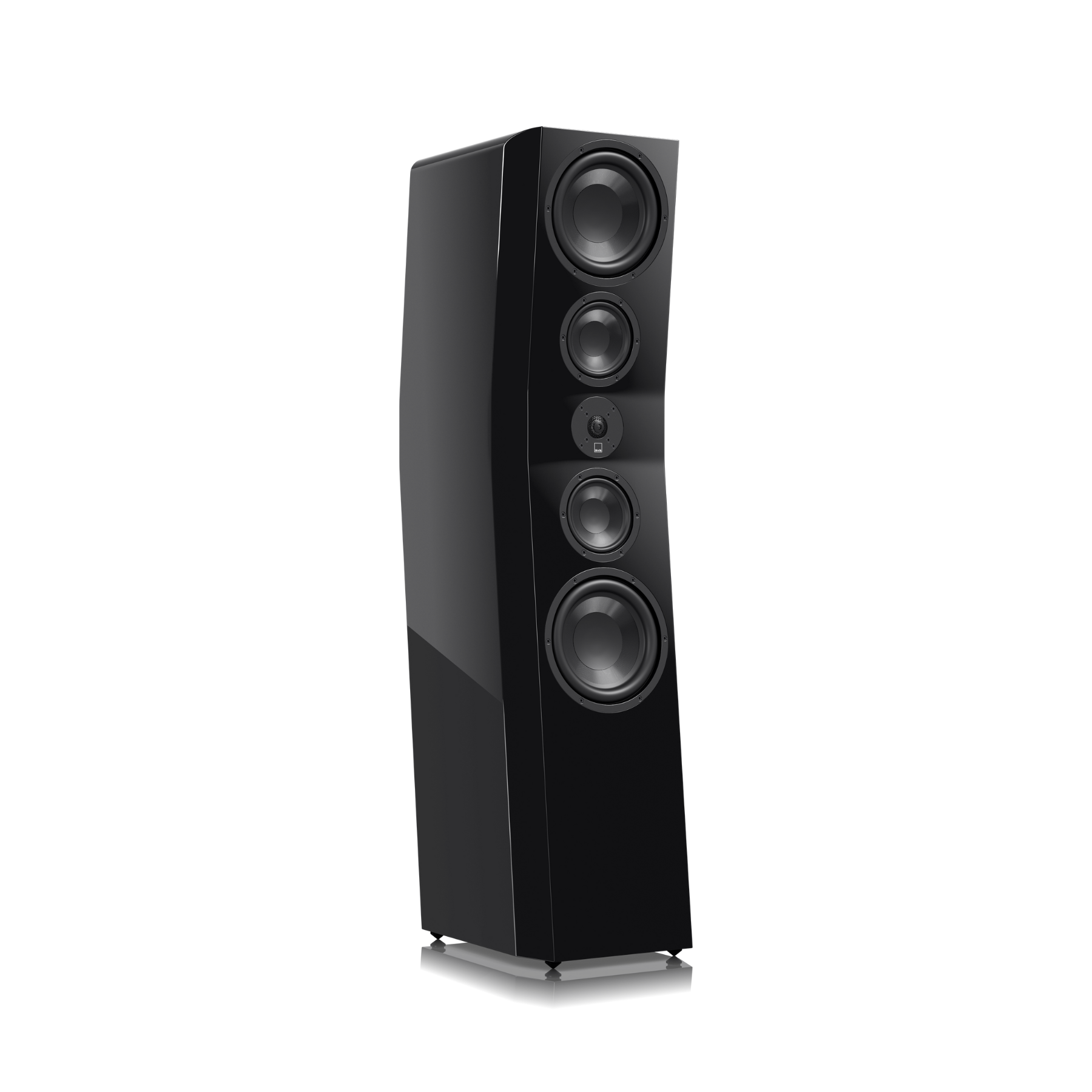

SVS Ultra Evolution Pinnacle Floor-Standing Speakers

are SVS’s best tower speakers. Delivering high-fidelity sound for both two-channel audiophiles and home theater fans at a value price.


See the ListenUp SVS ULTRA EVOLUTION awesome video!

1” Diamond Coated Tweeter:

  • FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
  • Hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome extends high-frequency response beyond human hearing
  • Silver tinsel for optimal signal transfer and power handling

5.25” Glass Fiber Composite Midrange Drivers:

  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
  • Precision-cast aluminum-alloy baskets ensure precise alignment and thermal dissipation
  • Vented Kapton voice coil former for excellent dynamics and transient response

Quad 8” Woofers in Force Balance Array:

  • Long stroke motor and suspension for high output
  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
  • Precision-cast aluminum alloy baskets ensure precise alignment and thermal dissipation
  • Vented aluminum voice coil former for thermal control and minimized air compression artifacts

Cabinet:

  • Acoustically-centered architecture for a coherent, integrated, faithful acoustic image
  • Time-aligned cabinet geometry for improved linearity and directionality

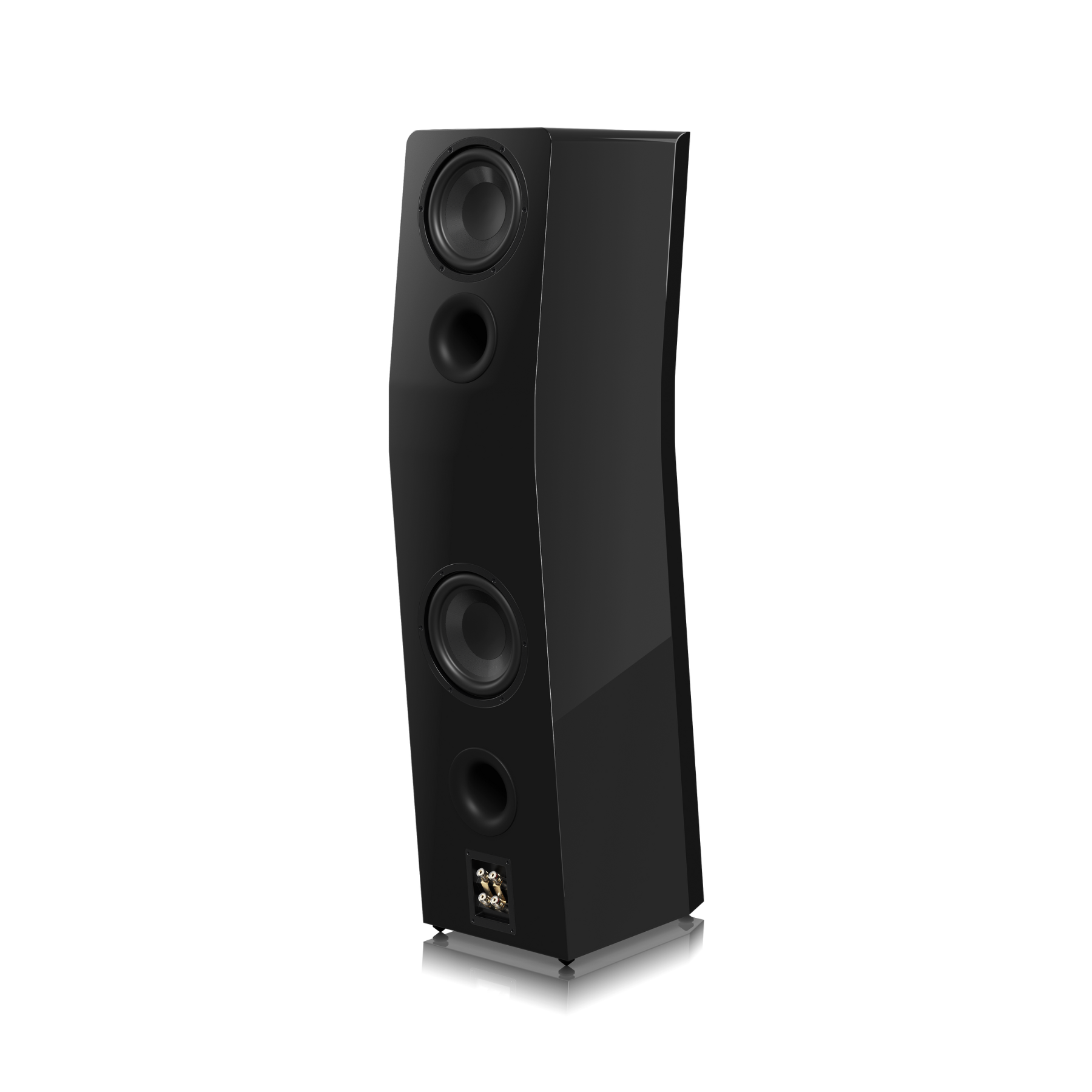

  • Quad 8” woofers in Force-Balanced Opposed Array for deep, accurate, evenly distributed bass
  • Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure
  • Chamfered front baffle and flush-mounted drivers for improved high-frequency response
  • Extra-thick 1” (25mm) driver baffles for resonance-free mounting
  • FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation for an inert enclosure and uncolored response

Additional Features:

  • Dual gold-plated 5-way binding posts

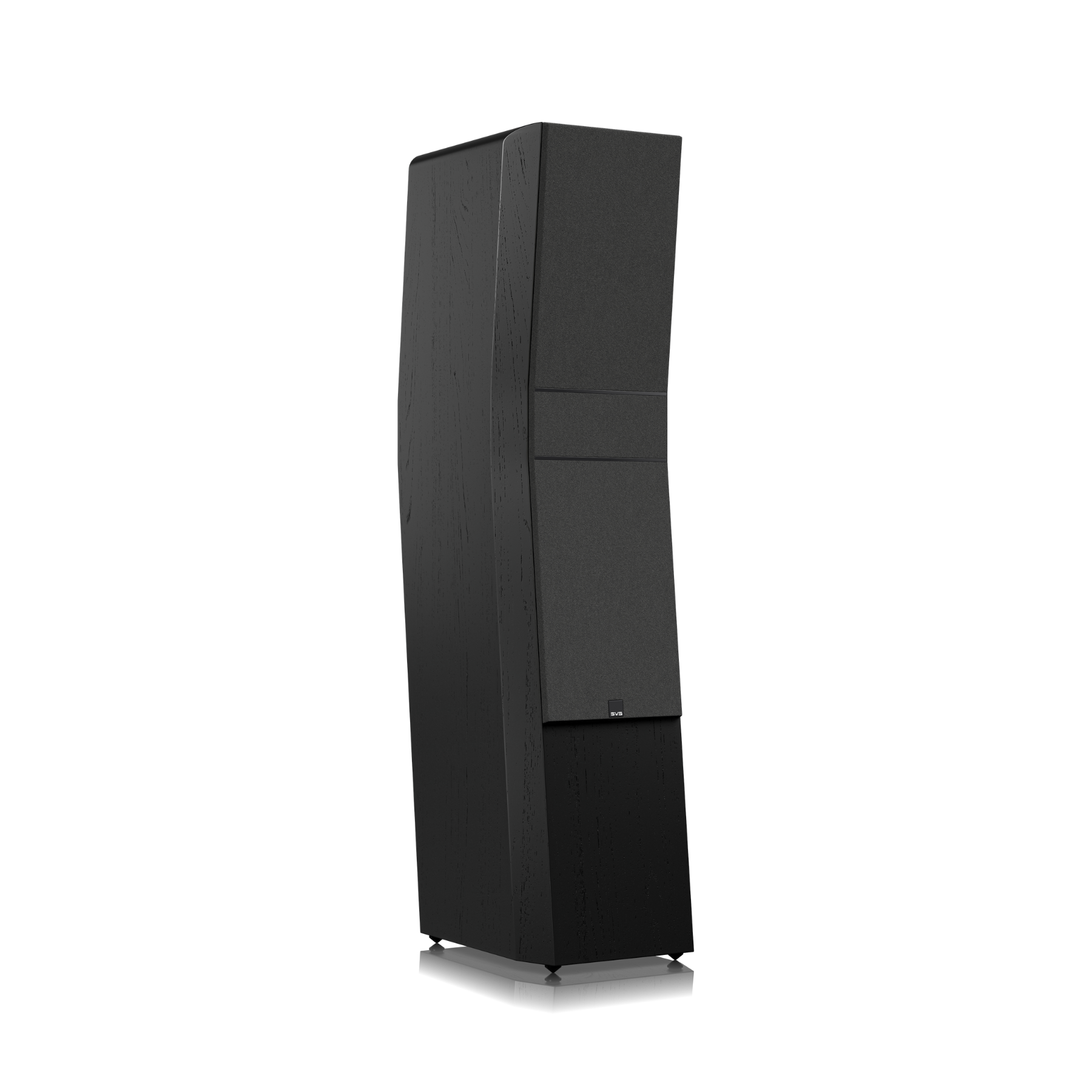

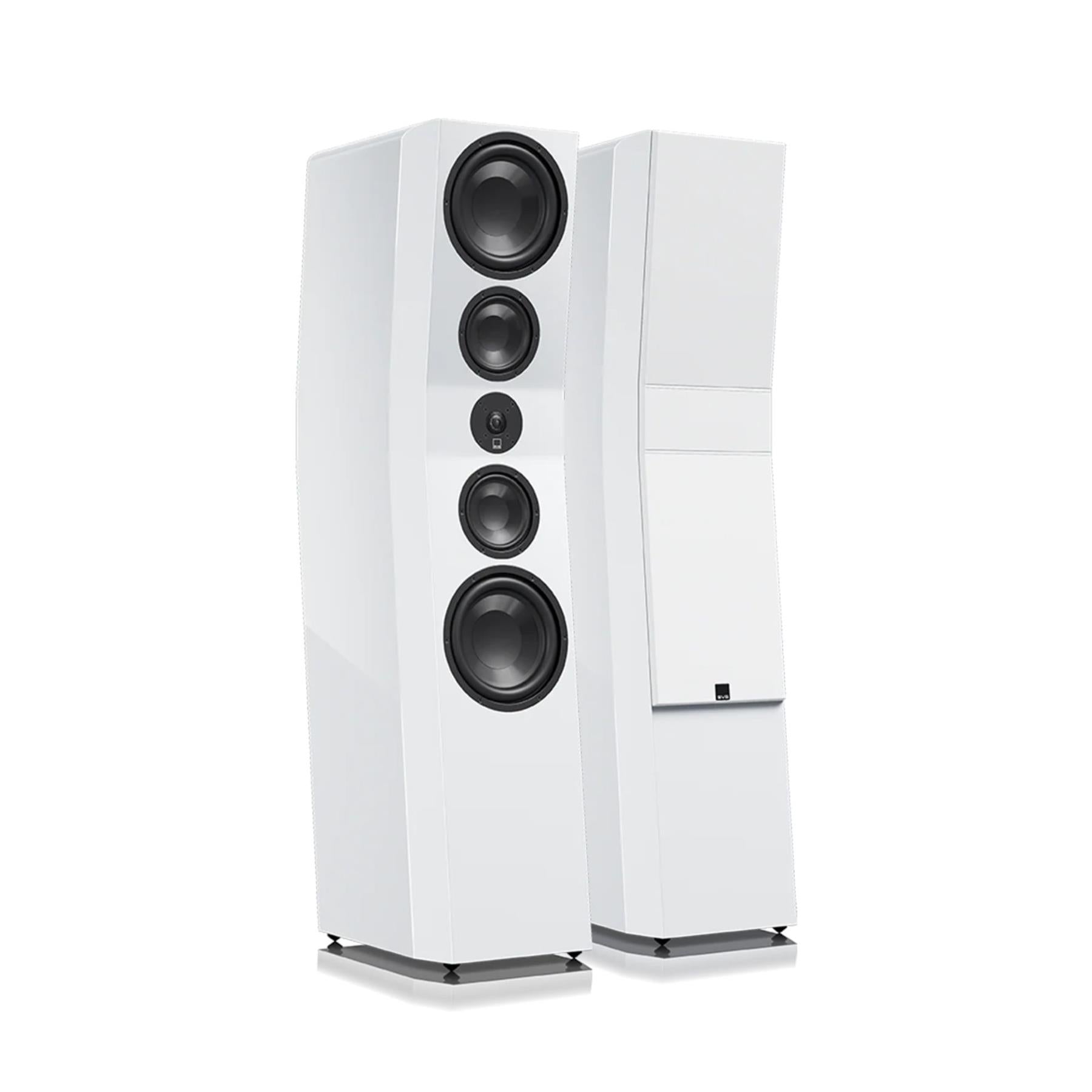

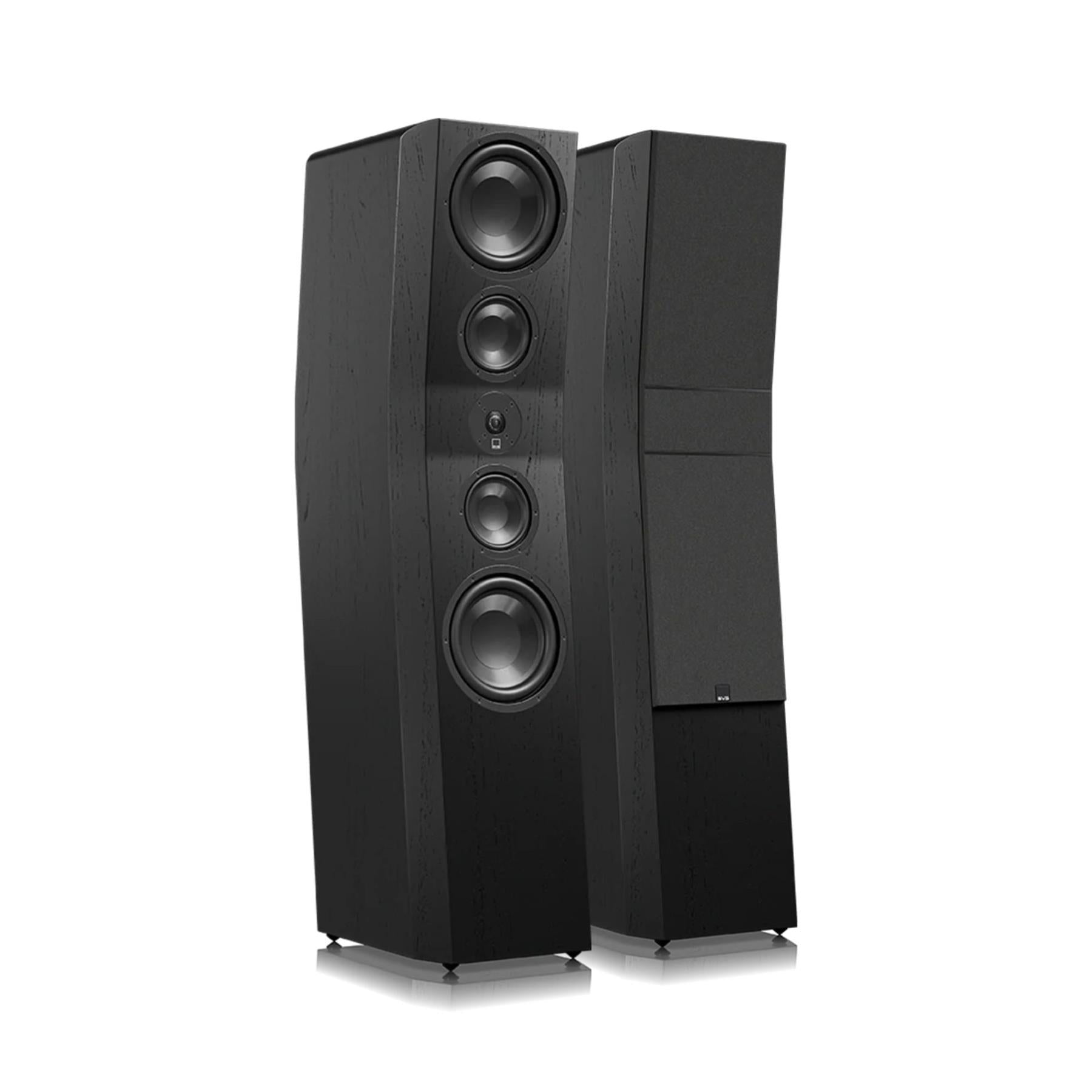

  • Cloth grille with magnetic retention system
  • Elastomer screw-in feet – adjustable for level
  • Spiked metal screw-in feet included – adjustable for level

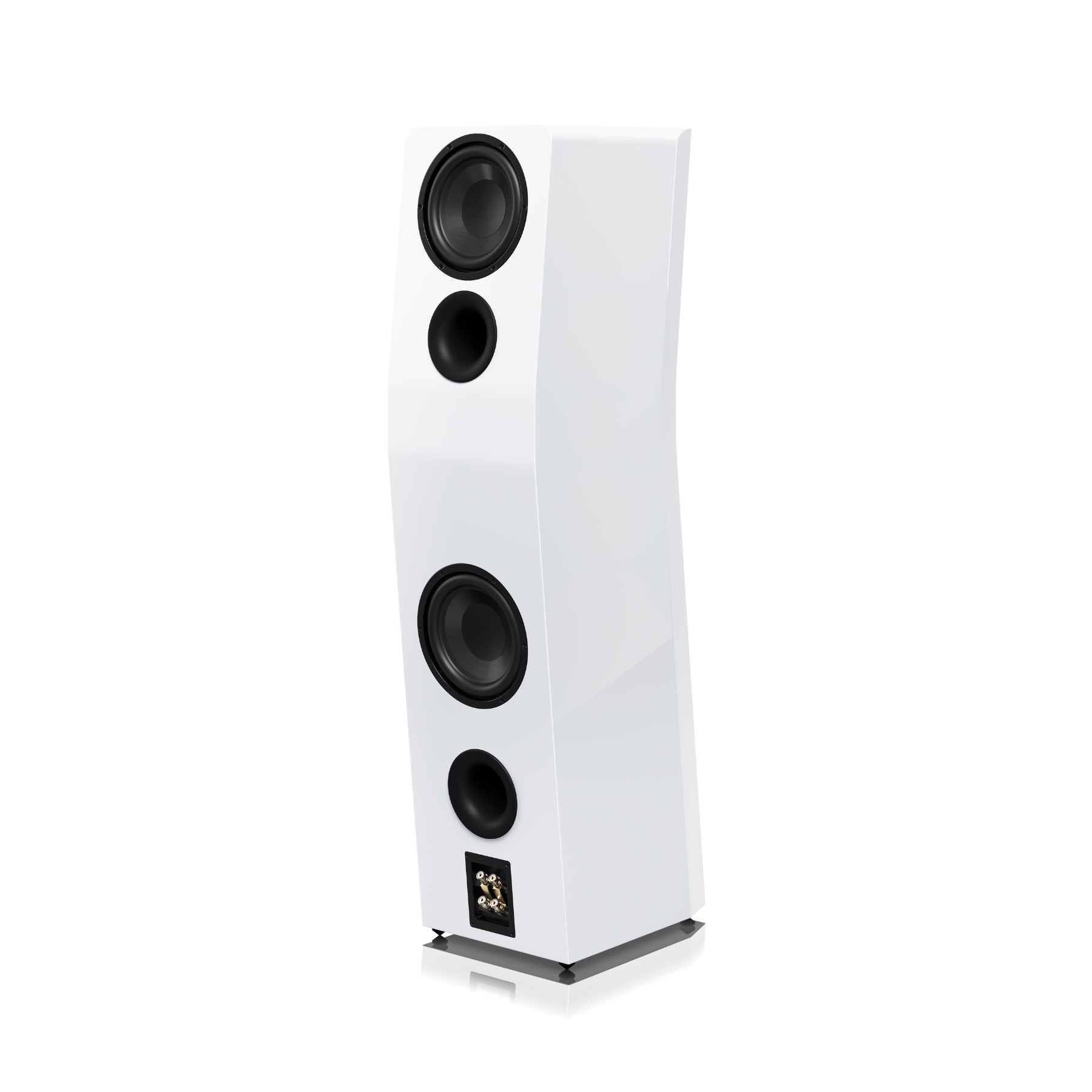

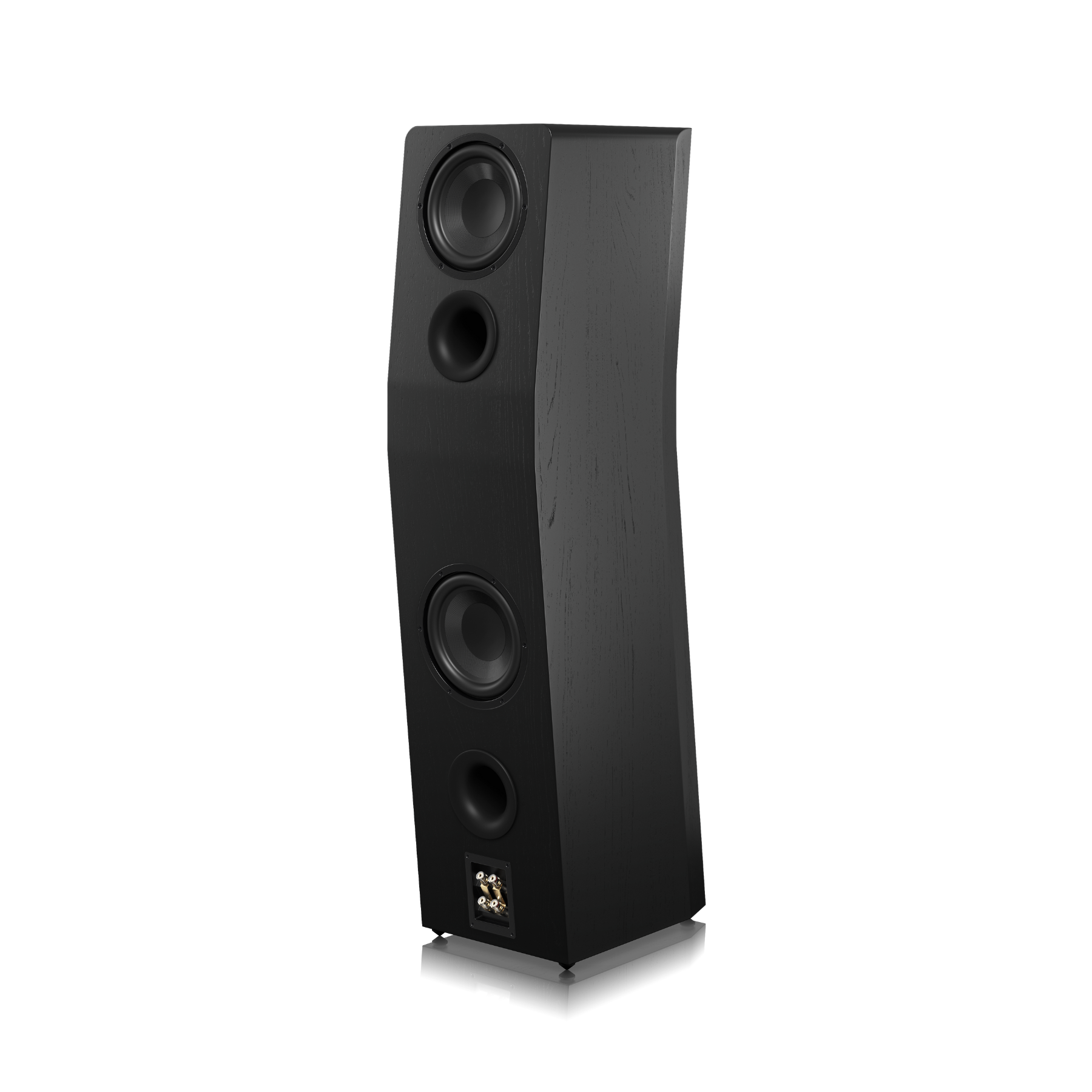

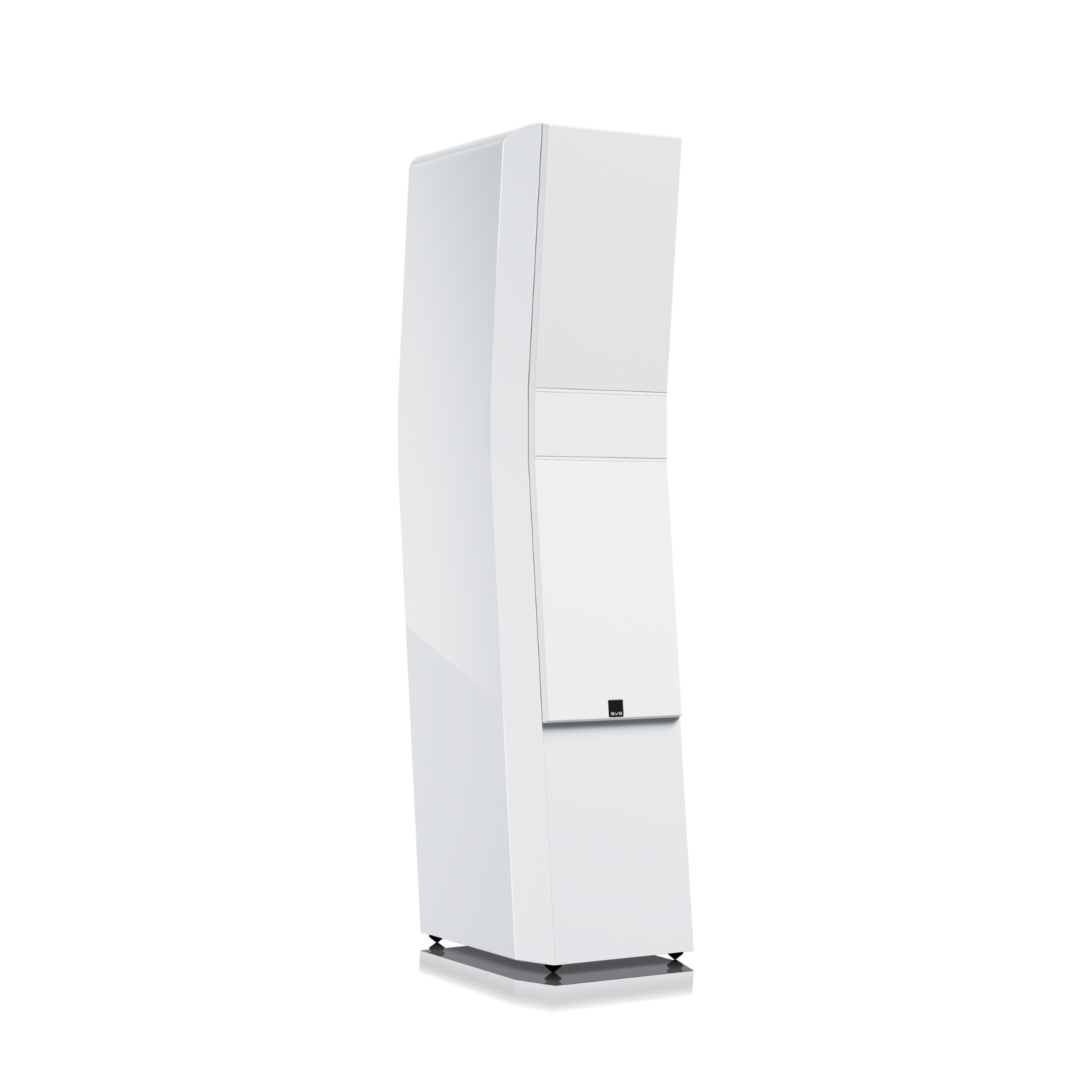

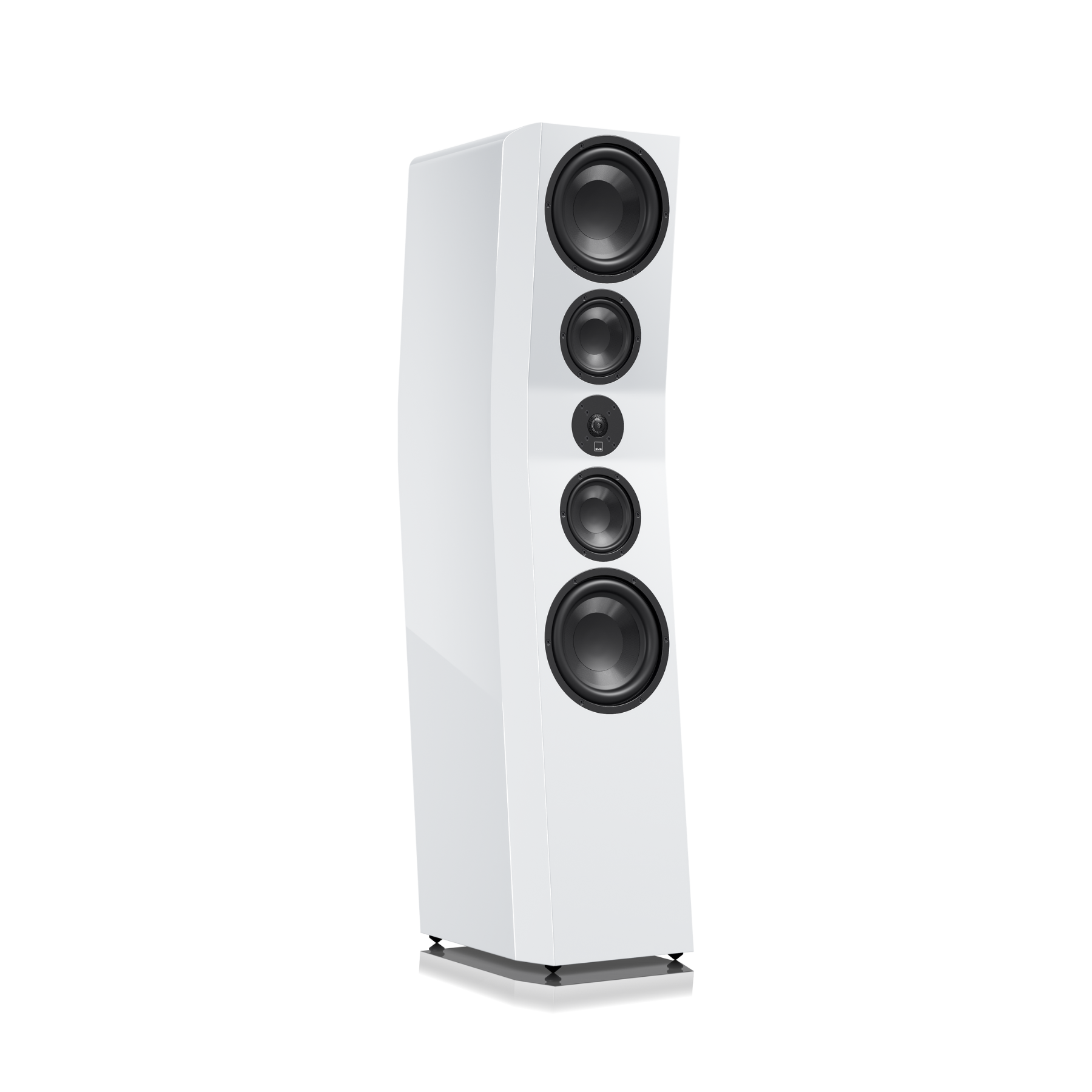

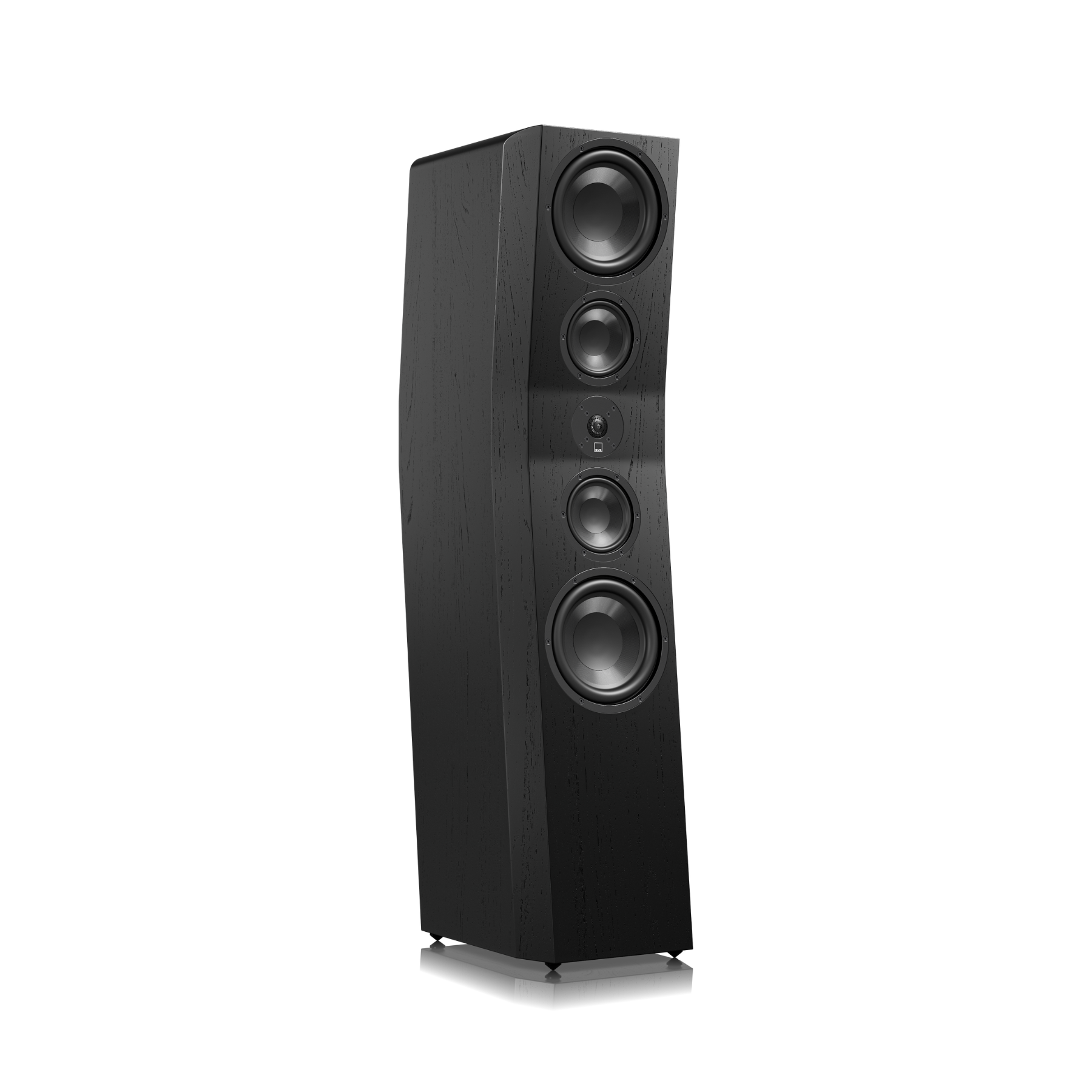

  • Finish options: Piano gloss black, piano gloss white, real black oak veneer

Ultra Evolution matching Center Speaker

Ultra Evolution matching On-Wall/On-Ceiling Speakers

Ultra Evolution matching Bookshelf Speakers

Ultra Evolution matching Compact Bookshelf Speakers

SVS Ultra Evolution Pinnacle Specifications:

In-Room Frequency Response: 24Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Tweeter-to-Midrange crossover: 1.8 kHz

Midrange-to-woofer crossover: 140 Hz

Recommended Amplifier Power: 20 – 300 watts

Ports: Dual 3” wide-flared rear-firing

Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)

Overall Dimensions (with grille, feet, and binding posts): 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D)

Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)

Packaged Weight: 110.8 pounds / 50.3 kgs

Unboxed Weight: 96.7 pounds / 43.9 kgs

SVS Ultra Evolution Owners Manual
