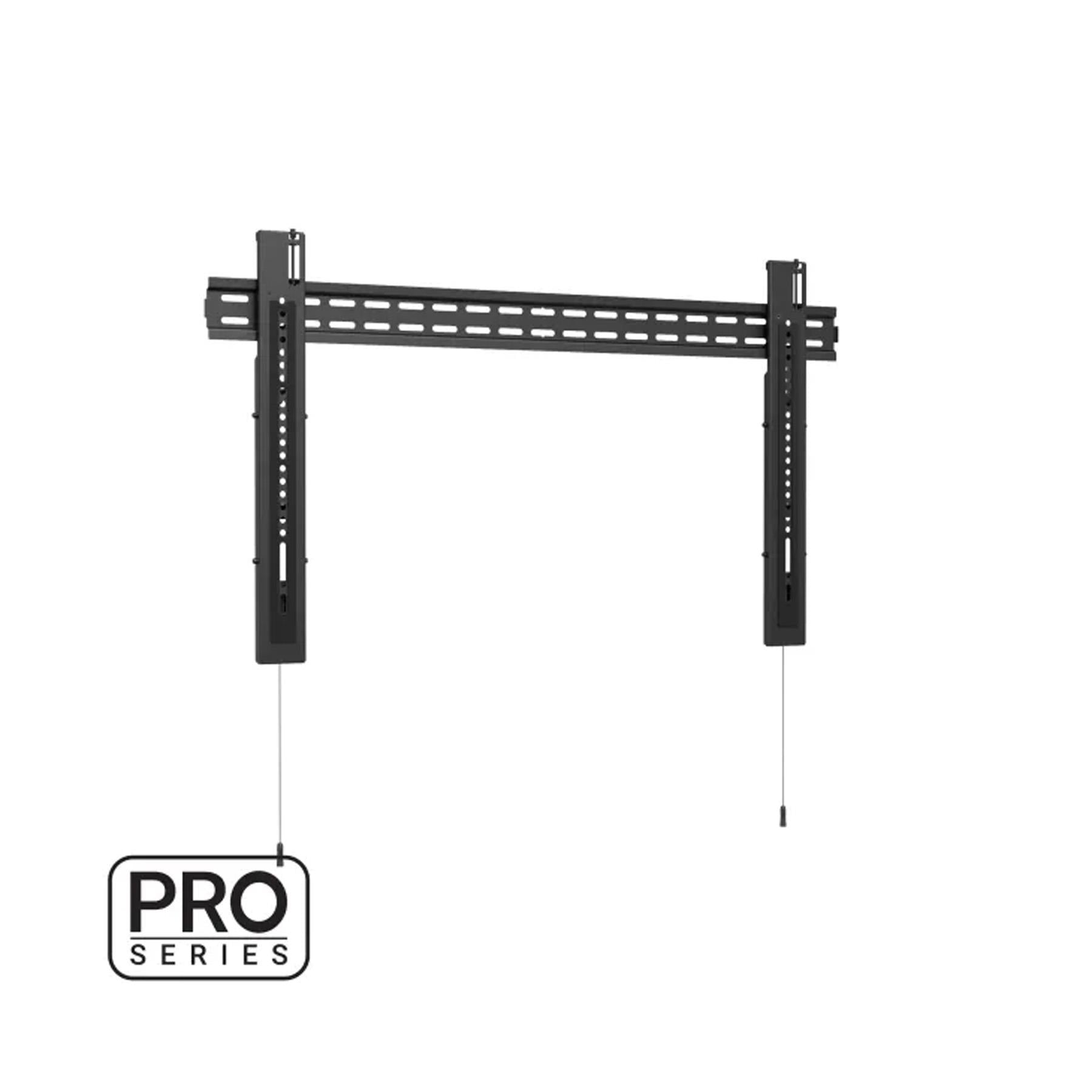

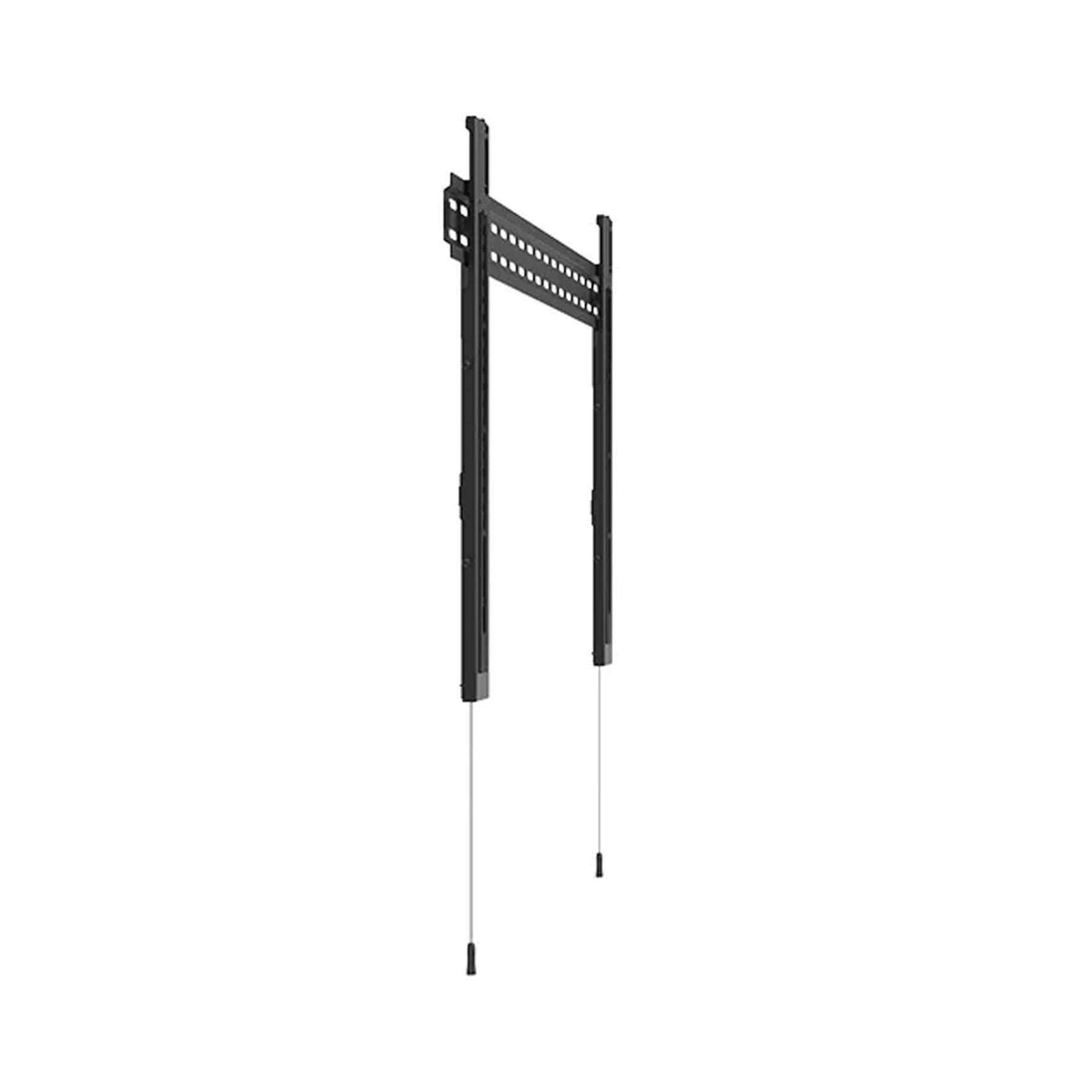

Kanto PF405 Ultra Slim Fixed TV Wall Mount
The Kanto PF405 Ultra Slim Fixed TV Wall Mount is built for clean, high-end home theater and commercial AV setups that need a true low-profile look without giving up strength or service access. This ultra-slim fixed TV wall mount sits just 0.6 inches from the wall, supports most 50- to 90-inch TVs up to 125 lb, and fits VESA patterns from 100x100 to 800x600 for broad compatibility. Its extra-wide wall plate works across dual 24-inch or triple 16-inch stud spacing, while horizontal leveling and 1.6 inches of vertical adjustment help fine-tune placement in recesses, cabinets, and tight spaces. Quick-release arms, an integrated kickstand, solid steel construction, and a 10-year warranty make the PF405 a premium choice for sleek, stable, and service-friendly TV mounting.
What It's Good At:
- Creating an ultra-slim, gallery-style TV installation that keeps the display close to the wall
- Supporting large, heavy TVs with up to 125 lb of load capacity
- Handling a wide range of VESA mounting patterns up to 800x600
- Making off-center stud layouts easier to manage with horizontal shift and wide stud support
- Allowing easier cable access and servicing through quick-release arms and the integrated kickstand
- Delivering long-term durability with solid steel construction and a 10-year Pro Series warranty
Kanto PF405 Wall Mount Full Specifications:
- Product name: Kanto PF405 Ultra Slim Fixed TV Wall Mount
- Series: PRO
- Mount type: Fixed ultra-low-profile TV wall mount
- Recommended TV size range: 50" to 90"
- Weight capacity: 125 lb (56.7 kg)
- VESA compatibility: 100×100 to 800×600
- Profile from wall: 0.6" (1.6 cm)
- Vertical adjustment: 1.6" (4.1 cm)
- Post-install positioning: adjustable horizontal leveling / horizontal shift
- Wall plate width: 39.4" (100 cm)
- Stud compatibility: dual 24" stud spacing or triple 16" stud spacing; spans two or three studs
- Material: solid steel
- Finish: durable powder-coated finish
- Product dimensions (W/D/H): 100 x 1.6 x 76.3 cm (39.4" x 0.6" x 30")
- Product weight: 4.7 kg (10.3 lb)
- Shipping box dimensions (W/D/H): 117.1 x 12.8 x 8.5 cm (46.1" x 5" x 3.3")
- Shipping box weight: 5.8 kg (12.7 lb)
- UPC: 800152724966
- Warranty: 10-year manufacturer’s / Pro Series warranty
- Service features: spring-loaded quick-release arms and integrated kickstand
- Supported installation surfaces: wood stud walls and concrete walls
- Not intended for: steel stud walls or cinder block walls
- What’s included: PF405 Ultra Slim Fixed TV Mount, installation manual, and all mounting hardware for wood stud and concrete installation
- Hardware pack includes:
- A: M6 x 10 mm screws (x4)
- B: M6 x 14 mm screws (x4)
- C: M6 x 20 mm screws (x4)
- D: M6 x 35 mm screws (x4)
- E: M8 x 10 mm screws (x4)
- F: M8 x 14 mm screws (x4)
- G: M8 x 22 mm screws (x4)
- H: M8 x 30 mm screws (x4)
- I: M8 x 35 mm screws (x4)
- J: M8 x 50 mm screws (x4)
- K: 2.5 mm spacers (x8)
- L: 5 mm spacers (x8)
- M: M6 washers (x4)
- N: M8 washers (x4)
- O: M8 x 50 mm lag bolts (x6)
- P: M8 washers (x6)
- Q: Concrete anchors (x6)
- R: M5 x 6 mm screws (x4)
- S: 3 mm hex key (x1)
Kanto PF405 Wall Mount Q&A:
- What TV sizes does the PF405 support?
- The PF405 is designed for most TVs from 50 to 90 inches.
- What VESA patterns are compatible with this mount?
- It supports VESA patterns from 100x100 up to 800x600, making it suitable for a wide range of large TVs.
- How much weight can the PF405 hold?
- This fixed TV wall mount supports up to 125 lb (56.7 kg).
- How close does the TV sit to the wall?
- The PF405 sits just 0.6 inches (1.6 cm) from the wall for a sleek, ultra-low-profile finish.
- Can cables still be accessed after installation?
- Yes. The quick-release arms and integrated kickstand make it easier to pull the TV away slightly for cable routing and maintenance.
- Can the mount help with off-center studs or tight built-in spaces?
- Yes. It offers horizontal adjustment for centering and 1.6 inches of vertical adjustment for fine-tuning the TV position in recesses, cabinets, or other tight spaces.
- What wall types can this mount be installed on?
- The PF405 includes hardware for wood stud and concrete installation. It is not intended for steel stud walls or cinder block walls.
- Will it work with curved TVs or TVs that have recessed mounting holes?
- It can. The included spacers are designed to help accommodate curved TVs, recessed mount holes, rear protrusions, and inputs that need extra clearance.
Kanto PF405 Wall Mount Downloads:
Kanto PF405 Wall Mount Manual
Kanto PF405 Wall Mount Product Sheet
Kanto PF405 Wall Mount Drawing
