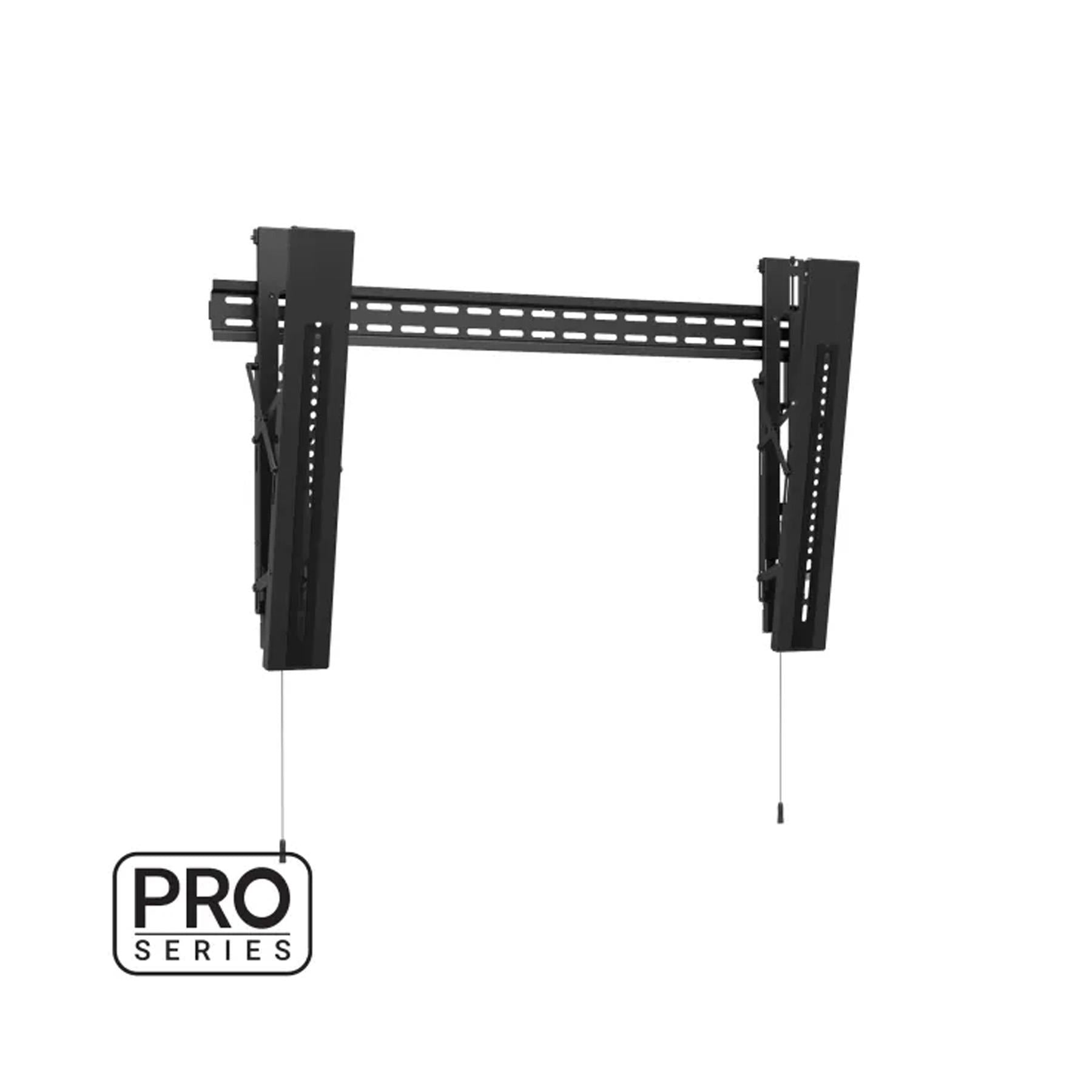

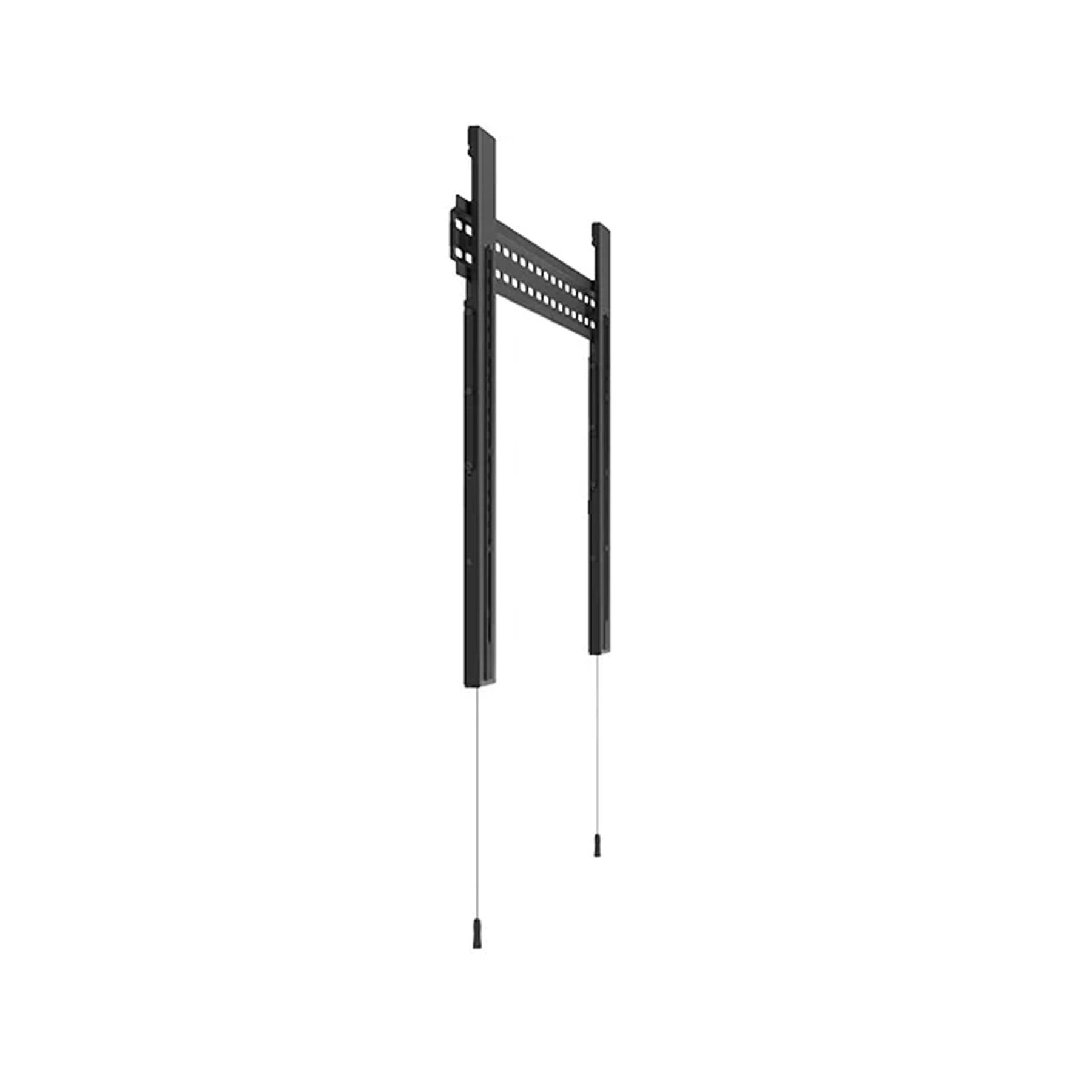

Kanto PT405 Ultra Slim Tilting TV Wall Mount

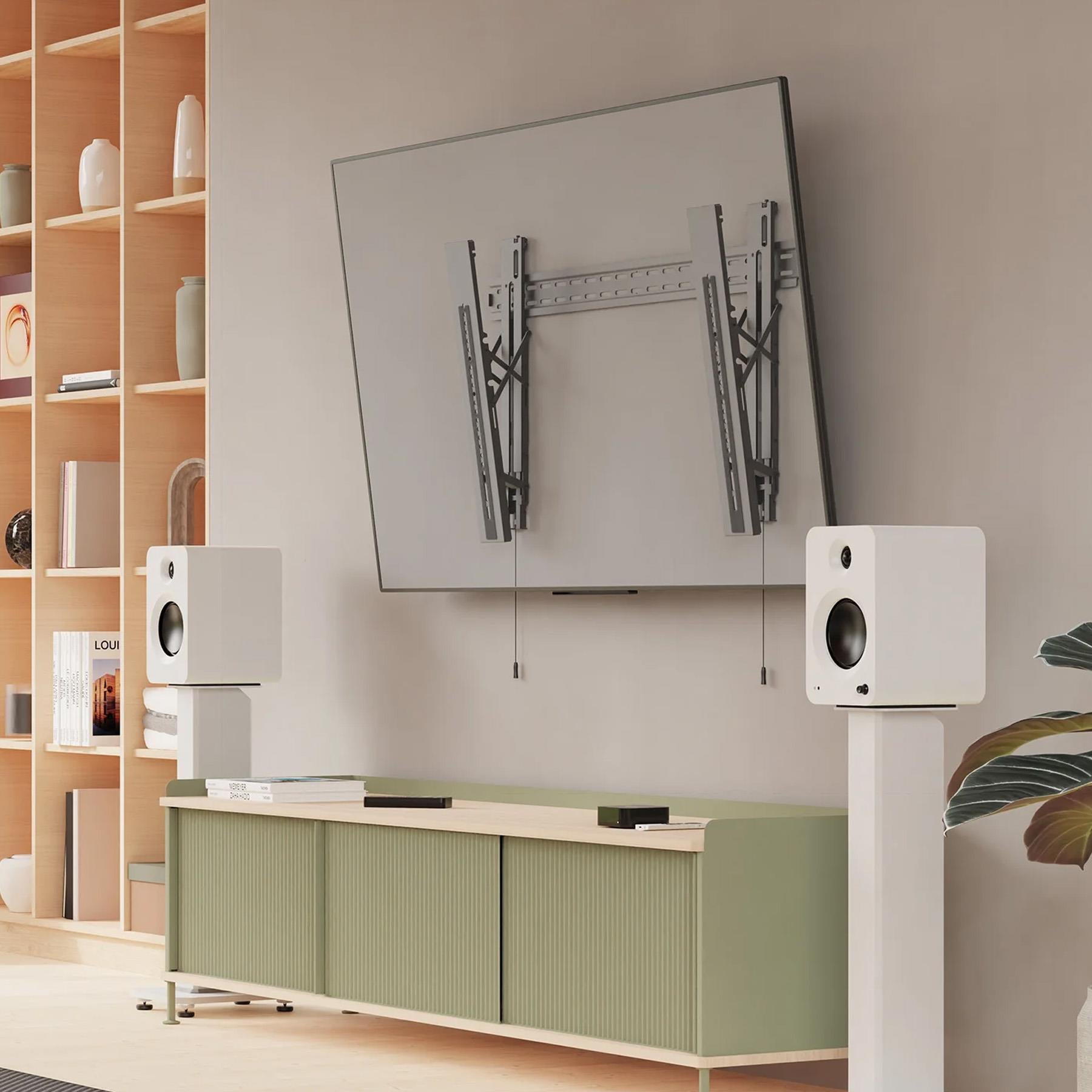

The Kanto PT405 Ultra Slim Tilting TV Wall Mount is designed for clean, high-end TV installations where a low-profile look matters just as much as strength and adjustability. Built for 50-inch to 90-inch TVs, this ultra slim tilting TV wall mount supports up to 125 lb and fits VESA patterns from 100 x 100 to 800 x 600, making it a strong choice for large flat-panel displays. Its 0.7-inch from-the-wall profile creates a sleek, gallery-style appearance, while 10 degrees of forward tilt, 1.6 inches of vertical adjustment, and horizontal shift/leveling help fine-tune placement after installation. An integrated kickstand, quick-release arms, and a wide wall plate for dual 24-inch or triple 16-inch stud spacing make the PT405 practical for both installers and home theater upgrades.
What It's Good At:
- Creating a clean, ultra-low-profile TV installation that looks more like framed wall art than a bulky mount
- Supporting large, heavy TVs with 125 lb capacity and up to 800 x 600 VESA compatibility
- Reducing screen glare with up to 10 degrees of forward tilt
- Making post-install alignment easier with vertical adjustment and horizontal shift/leveling
- Simplifying access to ports and cables with an integrated kickstand and quick-release arms
- Delivering long-term peace of mind with solid steel construction and a 10-year Pro Series warranty
Kanto PT405 Tilting TV Wall Mount Full Specifications:
- Product name: Kanto PT405 Ultra Slim Tilting TV Wall Mount
- Series: PRO Series
- Mount type: Ultra low-profile tilting TV wall mount
- Recommended TV size range: 50 in to 90 in
- Maximum weight capacity: 125 lb (56.7 kg / 57 kg)
- VESA compatibility: 100 x 100 to 800 x 600
- Profile from wall: 0.7 in (1.8 cm)
- Tilt range: +10° viewing angle / 10° forward tilt
- Vertical adjustment: 1.6 in (4.1 cm / 4 cm)
- Horizontal adjustment: Horizontal shift / adjustable horizontal leveling
- Wall plate width: 39.4 in (100 cm)
- Wall plate compatibility: Supports dual 24 in stud spacing or triple 16 in stud spacing
- Stud installation support: Mounts to two or three studs
- Material: Solid steel with durable powder-coated finish
- Product dimensions (W x D x H): 100 x 1.8 x 77.2 cm (39.4 x 0.7 x 30.4 in)
- Product weight: 6.7 kg (14.8 lb)
- Shipping box dimensions (W x D x H): 117.6 x 13.3 x 8.5 cm (46.3 x 5.2 x 3.3 in)
- Shipping box weight: 7.8 kg (17.2 lb)
- UPC: 800152724973
- Warranty: 10-year manufacturer / Pro Series warranty
- Included in the box:
- PT405 Ultra Slim Tilting TV Wall Mount
- Installation manual
- All mounting hardware for wood stud and concrete installation
- Included TV mounting screws:
- A: M6 x 10 mm (x4)
- B: M6 x 14 mm (x4)
- C: M6 x 20 mm (x4)
- D: M6 x 35 mm (x4)
- E: M8 x 10 mm (x4)
- F: M8 x 14 mm (x4)
- G: M8 x 22 mm (x4)
- H: M8 x 30 mm (x4)
- I: M8 x 35 mm (x4)
- J: M8 x 50 mm (x4)
- Included spacers, washers, and install hardware:
- K: 2.5 mm spacers (x8)
- L: 5 mm spacers (x8)
- M: M6 washers (x4)
- N: M8 washers (x4)
- O: M8 x 50 mm lag bolts (x6)
- P: M8 washers for lag bolts (x6)
- Q: Concrete anchors (x6)
- R: M5 x 6 mm screws (x4)
- S: 3 mm hex key
- T: 2.5 mm hex key
- Wall compatibility:
- Wood stud walls
- Concrete walls
- Not intended for:
- Steel stud walls
- Cinder block walls
- Install note: The wall must support more than 5 times the combined weight of the TV and mount
- Required tools shown in the manual: socket set, Phillips screwdriver, pencil, level, measuring tape, drill, stud finder, wood bit, hammer, and masonry bit
Kanto PT405 Tilting TV Wall Mount Q&A:
- What TV sizes does the Kanto PT405 support?
- The PT405 is designed for 50-inch to 90-inch TVs, making it a strong fit for large living room, media room, and commercial display installations.
- How much weight can the PT405 hold?
- This mount supports TVs up to 125 lb (56.7 kg / 57 kg).
- What VESA patterns are compatible with this mount?
- The PT405 supports VESA sizes from 100 x 100 to 800 x 600, giving it broad compatibility with many large flat-panel TVs.
- How close does the PT405 sit to the wall?
- The mount sits just 0.7 in (1.8 cm) from the wall for an ultra-slim, picture-like profile.
- Can the screen angle be adjusted to reduce glare?
- Yes. The PT405 offers up to 10 degrees of forward tilt, helping improve viewing comfort and manage screen glare.
- Does this mount allow adjustment after the TV is installed?
- Yes. It offers 1.6 inches of vertical adjustment plus horizontal shift / leveling to help center and align the display more precisely after mounting.
- Does the PT405 make cable access easier?
- Yes. Quick-release arms and an integrated kickstand make it easier to reach ports and manage cables without fully removing the TV.
- What wall types can it be installed on?
- The PT405 includes hardware for wood stud and concrete installation, but it is not intended for steel stud walls or cinder block walls.
Kanto PT405 Tilting TV Wall Mount Downloads:
Kanto PT405 Tilting TV Wall Mount Manual
Kanto PT405 Tilting TV Wall Mount Product Sheet
Kanto PT405 Tilting TV Wall Mount Drawing
