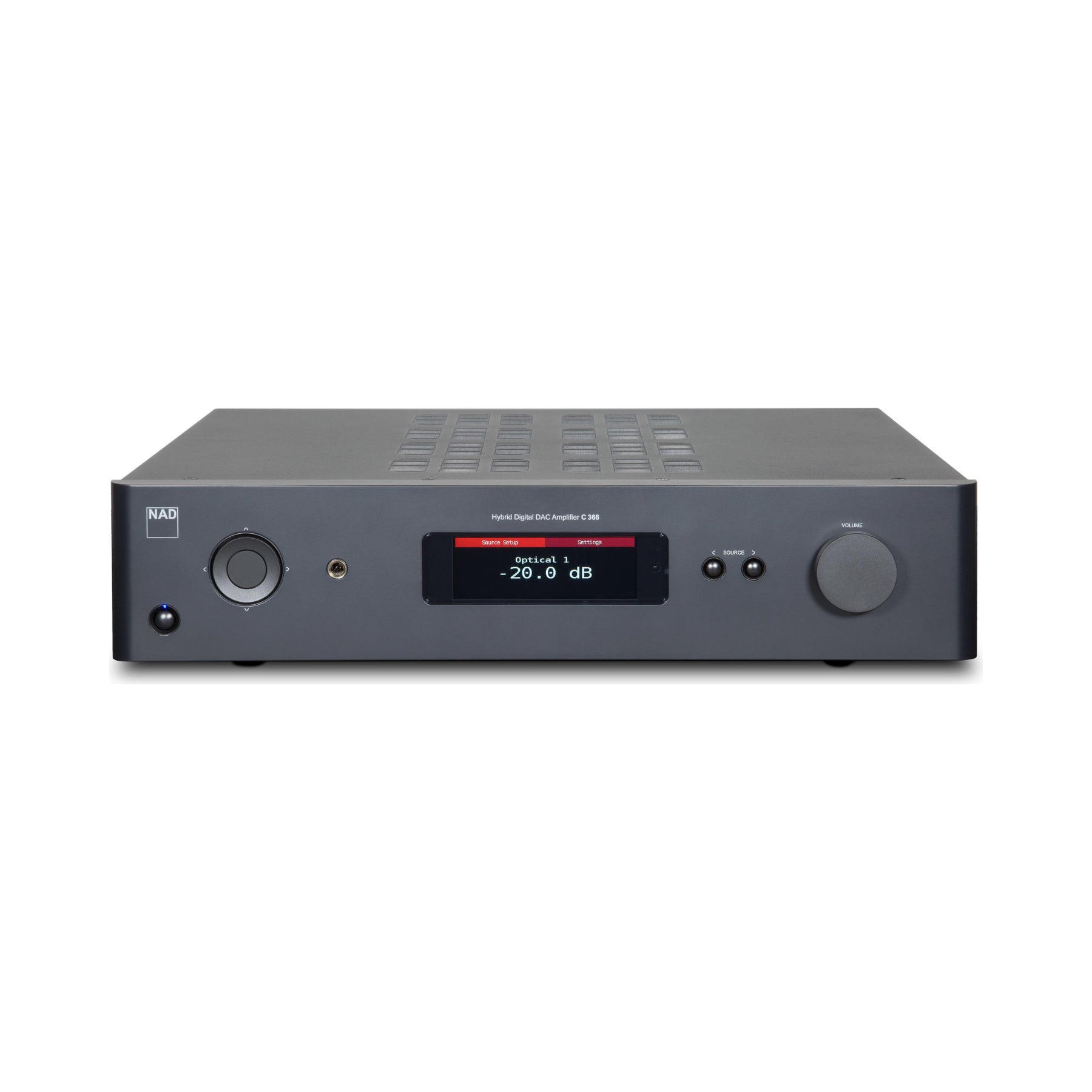

NAD C 368 HybridDigital DAC Amplifier

The NAD C 368 HybridDigital DAC Amplifier is a modern integrated amplifier built for listeners who want clean power, flexible connectivity, and an easy upgrade path as their system evolves. Delivering 80 watts per channel into 8 or 4 ohms, it brings confident control, low noise, and dynamic headroom to real-world speakers—making everything from vocals to dense electronic mixes feel more open and composed. A high-performance DAC and multiple digital inputs (optical and coaxial) make it simple to get great sound from TVs, streamers, and disc players, while Bluetooth with aptX provides quick, high-quality wireless playback. For vinyl lovers, the built-in MM phono stage keeps turntable setups clean and straightforward, and a dedicated headphone amplifier supports private listening with clarity and drive.

Designed around NAD’s MDC (Modular Design Construction) platform, the C 368 can expand with optional modules—such as BluOS multi-room hi-res streaming, HDMI switching, or USB/DSD playback—so your amplifier can grow with your sources instead of being replaced. It also offers practical system-building features like preamp/subwoofer outputs, Speaker A/B switching, and custom-install friendly control options including 12V trigger, IR in/out, and RS-232. If you’re looking for an integrated amp that blends musical authority with future-ready flexibility, the C 368 is a highly capable centerpiece for a serious hi-fi system.

The NAD C368 is part of ListenUp's NAD Integrated Amplifiers Collection.

What It's Good At:

• Delivering clean, stable 80W x 2 power that controls real speakers with ease
• Improving TV/streamer sound via optical & coax digital inputs and a high-performance DAC
• Making wireless playback simple with Bluetooth A2DP + aptX for better-than-basic streaming
• Powering vinyl setups with a built-in MM phono input for low-noise analog enjoyment
• Enabling system growth with MDC expansion slots (optional BluOS/HDMI/USB-DSD modules)
• Supporting advanced setups with preamp/sub out, Speaker A/B, and custom-install controls

NAD C 368 Full Specifications:

• Continuous power (stereo, 4 & 8 ohms): >80W (ref. 20–20kHz at rated THD, both channels driven)
• Continuous power (bridge mode, 8 ohms): 300W (20–20kHz at THD 0.03%)
• THD (20Hz–20kHz): <0.03% (250mW to 80W, 8 ohms and 4 ohms)
• Signal-to-noise ratio (amp section): >98dB (A-weighted, 500mV input, ref. 1W out in 8 ohms)
• Clipping power: >95W (at 1kHz, 0.1% THD)
• Clipping power (bridge mode): >315W (at 1kHz, 0.1% THD)
• IHF dynamic power: 120W (8 ohms), 200W (4 ohms), 250W (2 ohms)
• IHF dynamic power (bridge mode): 500W (8 ohms), 560W (4 ohms)
• Peak output current: >20A (in 1 ohm, 1ms)
• Damping factor: >300 (ref. 8 ohms, 20Hz and 6.5kHz)
• Frequency response (amp section): ±0.3dB (20Hz–20kHz)
• Channel separation (amp section): >75dB (1kHz), >70dB (10kHz)
• Input sensitivity (for 80W in 8 ohms): Line In 470mV; Digital In 21% FS
• Sample rate: up to 24-bit/192kHz
• Bluetooth frequency band: 2.402G–2.480G
• Maximum transmit power: 7dBm ±2dBm
• Preamplifier THD (20Hz–20kHz): <0.005% at 2V out
• Preamplifier signal-to-noise ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
• Preamplifier channel separation: >80dB (1kHz); >70dB (10kHz)
• Preamplifier input impedance (R and C): 22 kilohm + 100pF
• Preamplifier maximum input signal: >4.5Vrms (ref. 0.1% THD)
• Preamplifier output impedance: Source Z + 240 ohm
• Preamplifier input sensitivity: 93mV (ref. 500mV out, Volume maximum)
• Preamplifier frequency response: ±0.03dB (20Hz–20kHz)
• Preamplifier maximum voltage output (IHF load): >4.5V (ref. 0.1% THD)
• Tone controls: Treble ±7.0dB at 20kHz; Bass ±7.0dB at 60Hz; Balance -10dB
• Phono/Analog stage THD (20Hz–20kHz): <0.01% at 2V out
• Phono/Analog signal-to-noise ratio: >84dB (200 ohm source; A-weighted, ref. 500mV out); >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
• Phono/Analog input sensitivity: 1.44mV (ref. 500mV out, Volume maximum)
• Phono/Analog frequency response: ±0.3dB (20Hz–20kHz)
• Phono/Analog maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)
• Headphone amplifier THD (20Hz–20kHz): <0.005% at 1V out
• Headphone amplifier signal/noise ratio: >110dB (32 ohm loads; A-weighted, ref. 2V out, unity gain)
• Headphone amplifier frequency response: ±0.3dB (20Hz–20kHz)
• Headphone amplifier channel separation: >60dB at 1kHz
• Headphone amplifier output impedance: 6 ohms
• Power consumption (Auto Standby ON / Network Standby OFF): 0.5W
• Power consumption (Auto Standby ON / Network Standby ON): 1.2W
• Power consumption (OFF mode): 0.1W
• Gross dimensions (W x H x D): 435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)
• Net weight: 7.8kg (17.2lb)
• Shipping weight: 10.1kg (22.3lb)

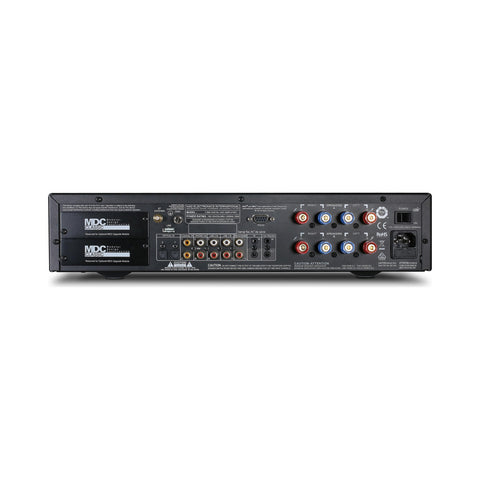

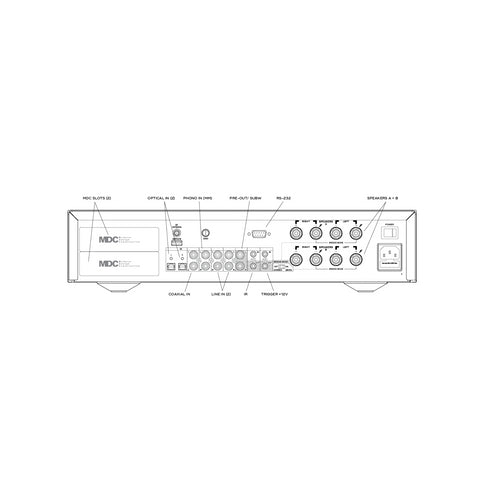

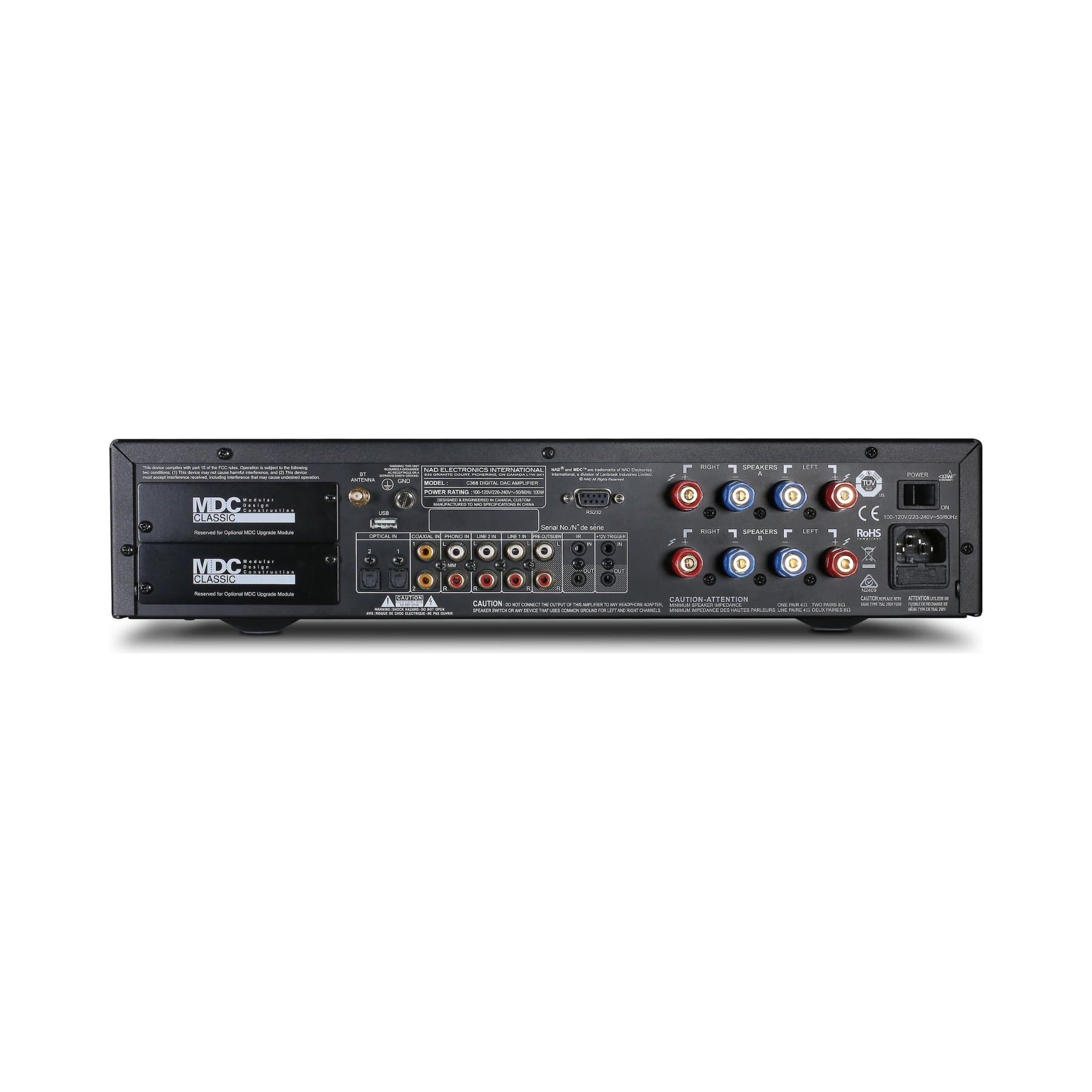

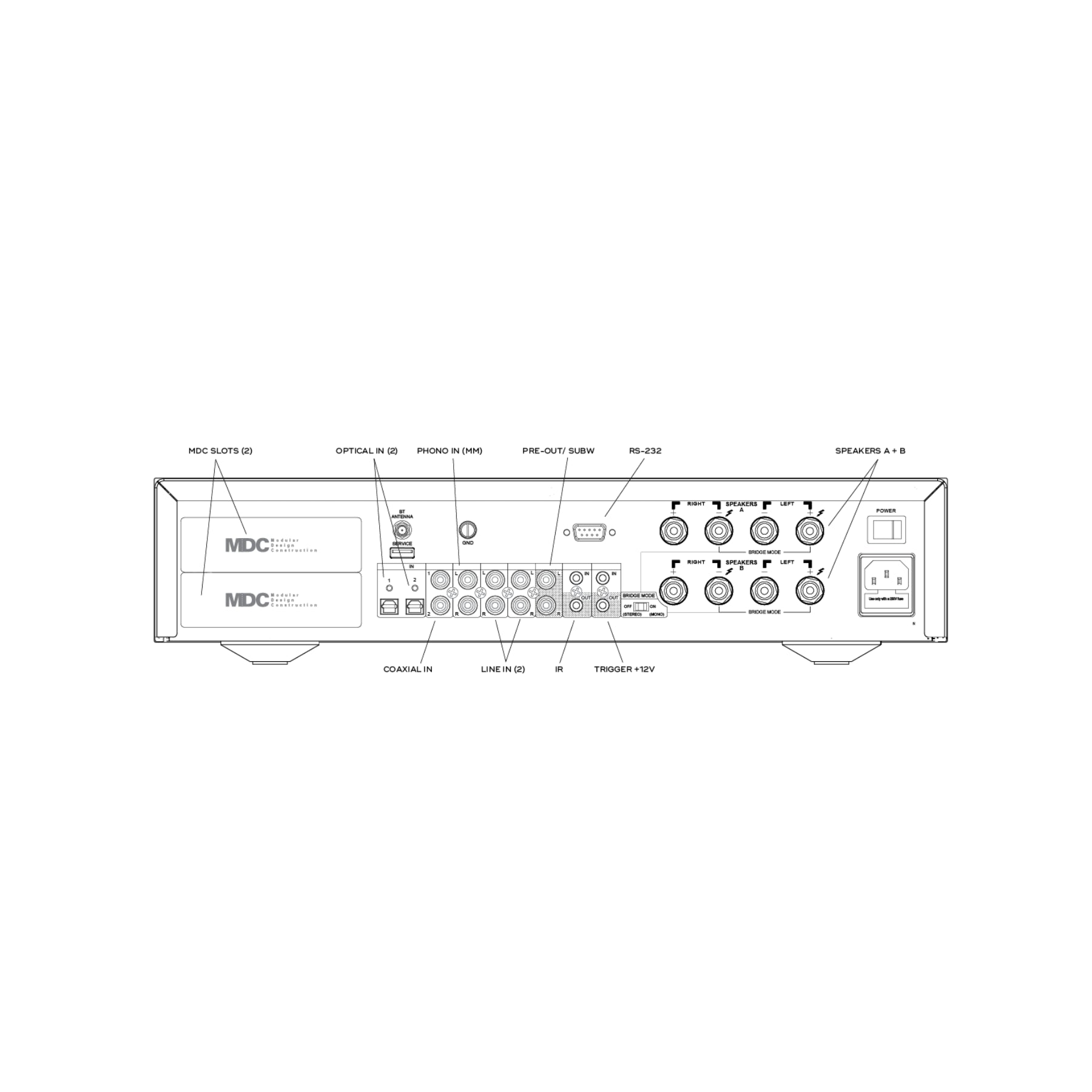

• System features (as listed): MM phono input; analogue line inputs; SPDIF coax and optical inputs; preamp/subwoofer out; Speaker A/B; stereo or bridge mode; MDC upgrade slots; IR remote; smartphone control app; 12V trigger in/out; IR in/out; RS-232 serial control; certified for Control4, Crestron, RTI, URC, AMX, Savant, Elan

NAD C 368 Q&A:

Does the NAD C 368 work well with most bookshelf and floorstanding speakers?

Yes. With over 80W per channel into 8 or 4 ohms and strong current capability, it’s designed to drive real-world speakers confidently.

Can I connect my TV to the C 368?

Yes. Use the optical or coaxial digital inputs to feed TV audio into the amp’s DAC for a cleaner, more powerful sound through your speakers.

Is Bluetooth included, and does it support higher quality playback?

Yes. Bluetooth A2DP is built in and supports aptX for improved wireless audio quality where compatible.

Can I connect a turntable directly to the C 368?

Yes. It includes an MM phono input, allowing you to connect many moving-magnet turntables without needing an external phono preamp.

Can I add streaming later without replacing the amplifier?

Yes. The MDC expansion slots let you add optional modules (such as BluOS streaming or other connectivity upgrades) as your system needs change.

Does it have outputs for a subwoofer or external amplifier?

Yes. It provides preamp and subwoofer outputs, making it easy to expand your system.

Can I run two sets of speakers?

Yes. It supports Speaker A/B outputs for switching between two pairs of speakers.

Is it suitable for custom installations or control systems?

Yes. It includes integration-friendly connections like 12V trigger, IR in/out, and RS-232, plus certification for several major control platforms.
