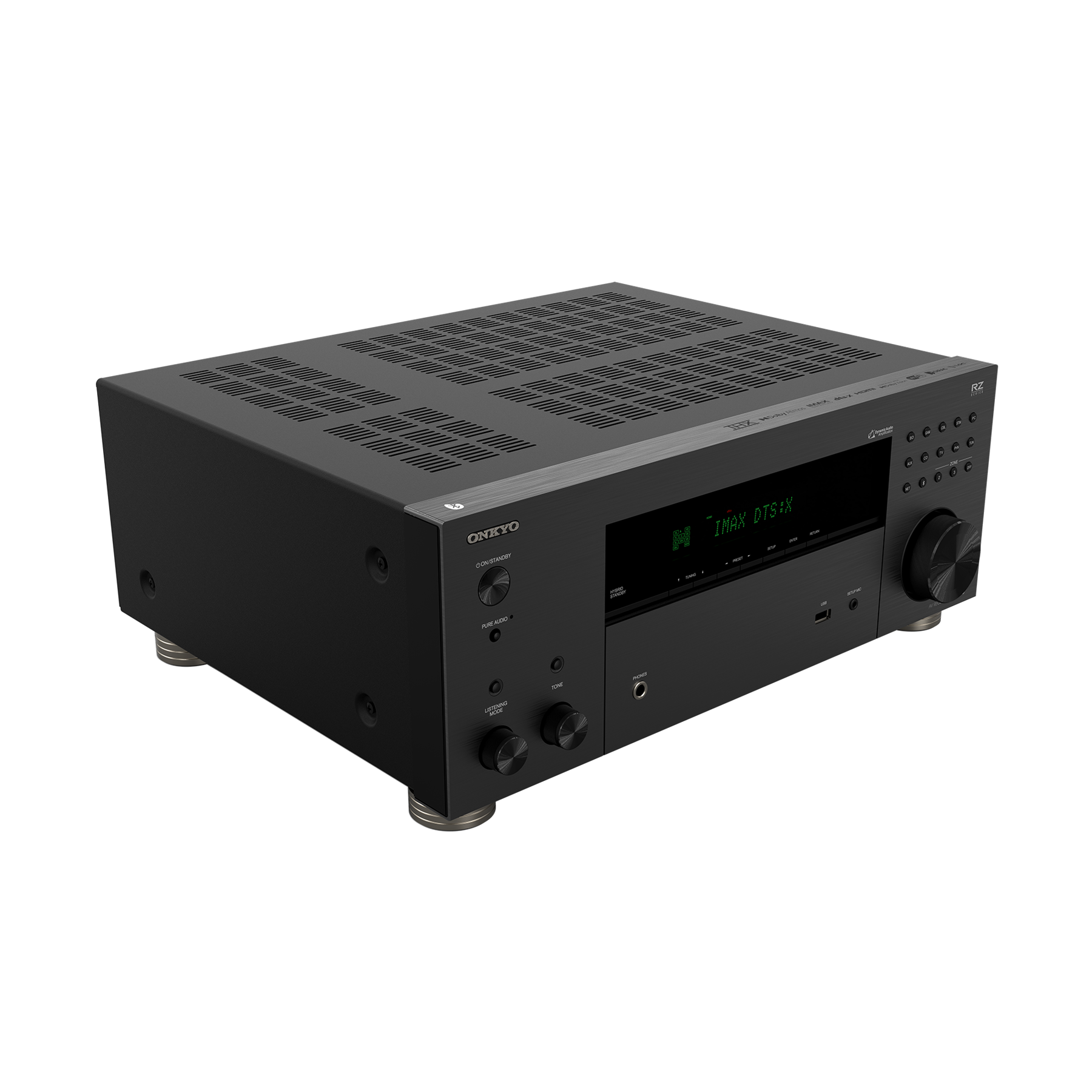

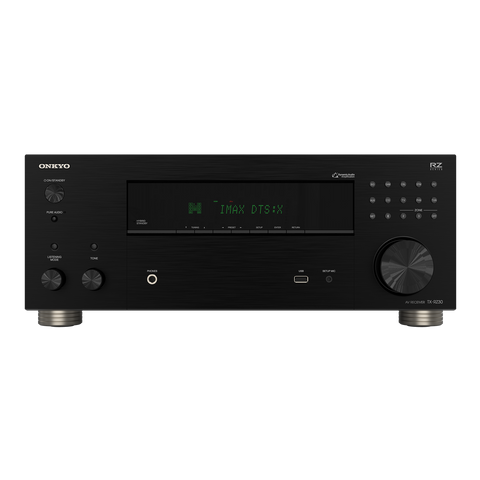

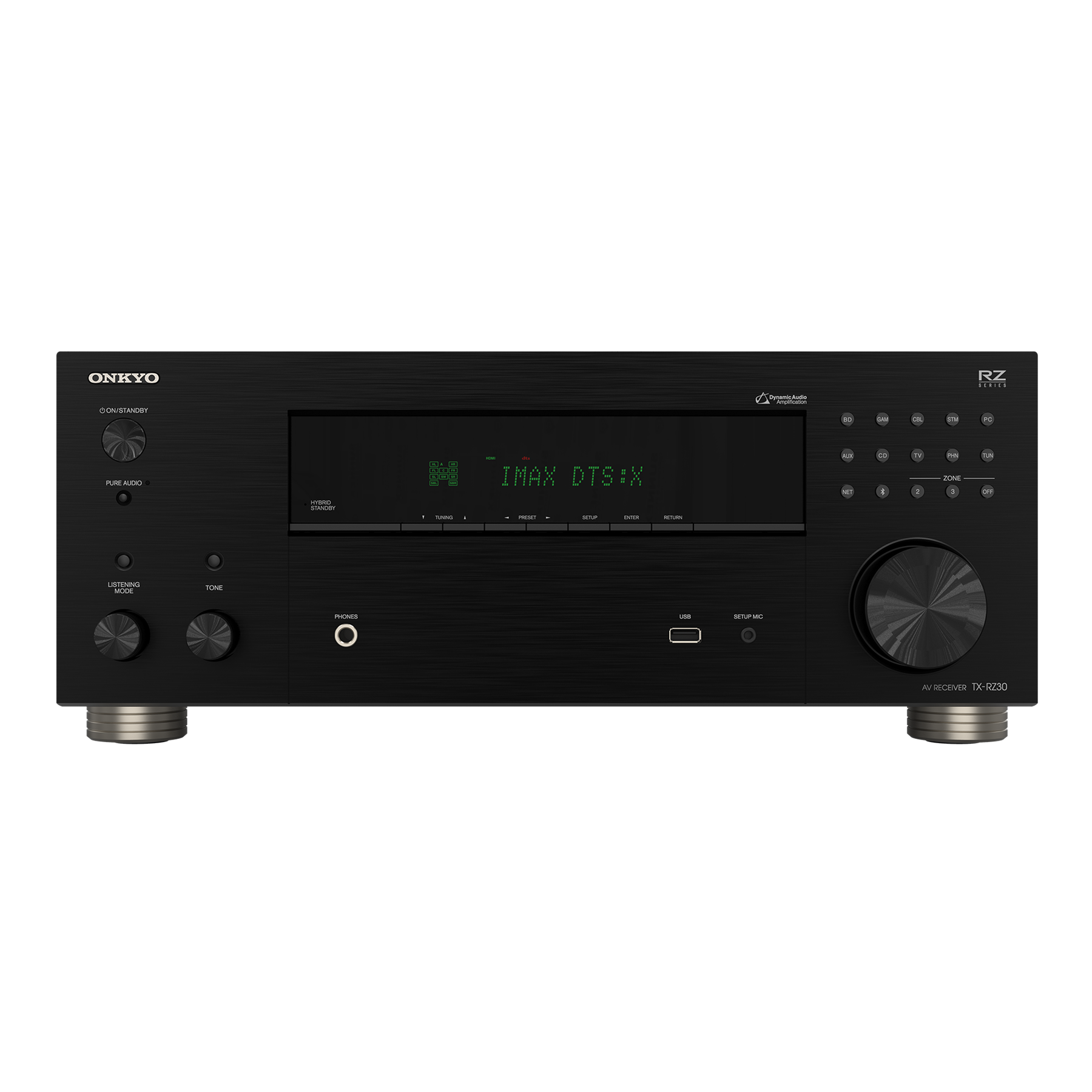

Onkyo TX-RZ30 9.2 Channel Surround Sound Receiver
Elevate your home theater experience with the Onkyo TX-RZ30, a powerful 9.2-channel surround receiver designed for the ultimate in audio performance and versatility. With cutting-edge technology and a robust feature set, this receiver is perfect for audiophiles and home theater enthusiasts alike.
Onkyo TX-RZ30 Full Specifications:
- Channels: 9.2 channel processing
- Amplifier Type: Class A/B with high-current circuitry
- Power Output: Approx. 100 W per channel (8 Ω, 20 Hz-20 kHz, 2ch driven)
- Frequency Response: 5 Hz – 100 kHz
- Room Correction: Dirac Live Full Bandwidth (included); optional Bass Control upgrade
- Immersive Audio Formats: Dolby Atmos, DTS:X, IMAX Enhanced
- THX® Certification: Select
- HDMI Inputs/Outputs: 6x HDMI 2.1 inputs, 2x HDMI outputs (1 with eARC)
- Video Support: 8K/60Hz pass-through, 4K/120Hz pass-through, HDR10, HDR10+, Dolby Vision, HLG
- Gaming Features: ALLM, VRR, QFT
- Streaming & Networking: Built-in streaming apps, Sonos integration, Wi-Fi, Bluetooth
- Subwoofer Outputs: 2 independent subwoofer outputs
- Pre-Outs: 9.2 channel pre-outs
- Legacy Inputs: Analog and component video inputs available
- Dimensions/Weight: Standard AVR form factor (varies by region)
Onkyo TX-RZ30 Q&A:
- What audio formats does the Onkyo TX-RZ30 support?
- It supports immersive audio formats including Dolby Atmos, DTS:X, and IMAX Enhanced for 3D surround sound.
- Does the TX-RZ30 include room calibration software?
- Yes, Dirac Live Full Bandwidth room correction is included out of the box to optimize sound for your room.
- How many HDMI inputs and outputs are available?
- There are six HDMI 2.1 inputs and two HDMI outputs, including one with eARC support.
- Can the receiver handle 8K and high refresh-rate content?
- Yes, it supports 8K/60Hz and 4K/120Hz passthrough along with HDR10, Dolby Vision, and HDR10+ formats.
- Is the TX-RZ30 suitable for gaming?
- Absolutely. It includes gaming-friendly features like Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT).
- Can I stream music directly through this receiver?
- Yes, it has built-in streaming apps and works with Sonos and other wireless protocols for seamless playback.
- How many speakers can I connect?
- The receiver supports up to 9 speakers and 2 independent subwoofers for full surround setups.
- Does it support multi-zone audio setups?
- Yes, with pre-outs and zone capabilities, you can configure multi-room audio or bi-amping for front speakers.
Onkyo TX-RZ30 Downloads:
Onkyo TX-RZ30 Specification Sheet
Onkyo TX-RZ30 User Manual
