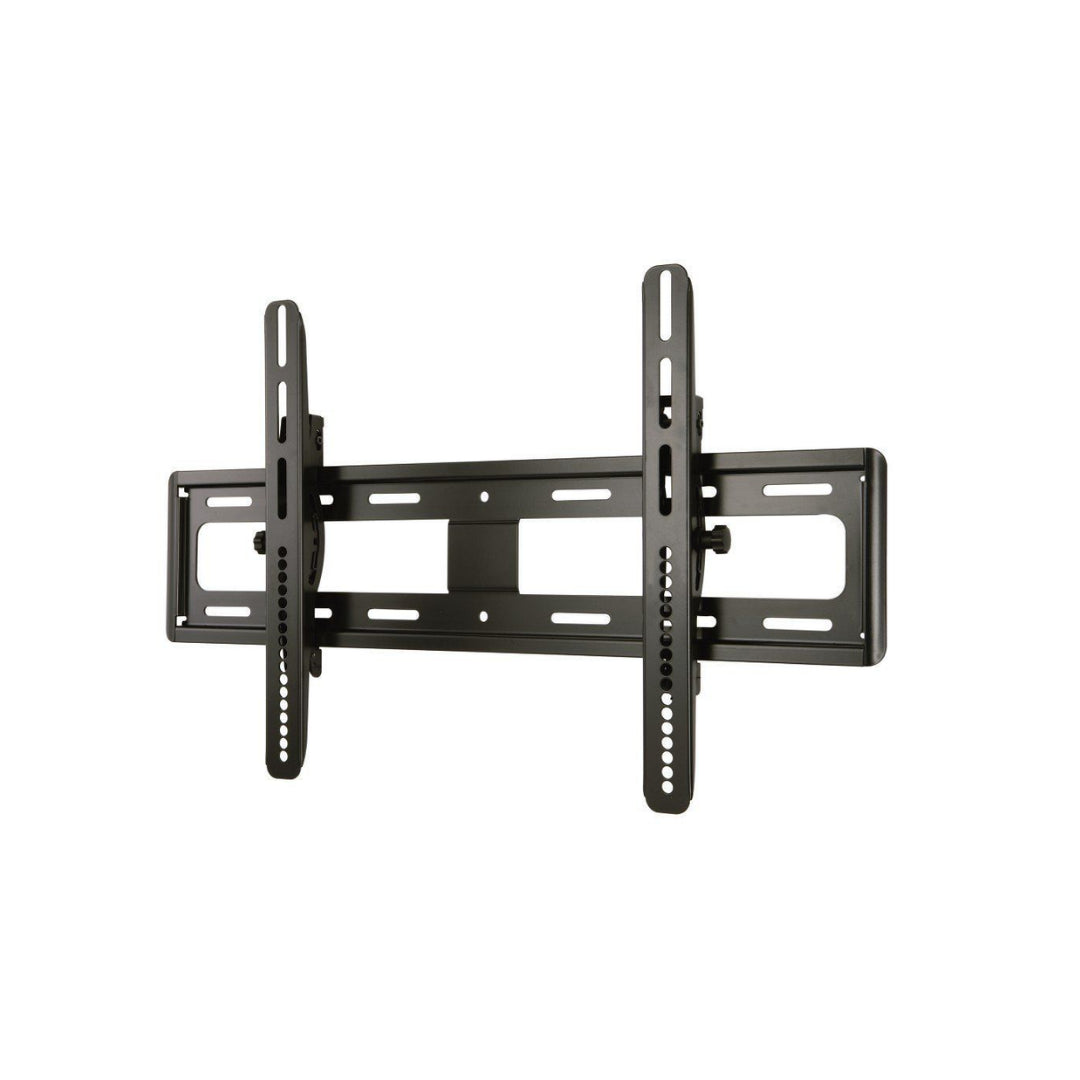

VMPL50A Tilting Wall Mount for 32" – 70" flat-panel TVs: Easy adjustment with just the touch of a finger

• Easily adjust your TV without tools
• Hardware included
• Lateral shift allows TV to slide left and right for perfect TV placement, even with off-center studs
• Leveling adjustments allow TV to be perfectly positioned after hanging
• Locking system secures your TV to the wall
• Our TV Mount products are Safety Tested and UL Certified
• Slide TV side-to-side for perfect positioning on the wall
• TV clicks into place for a safe connection you can hear
• Tilt your TV for perfect viewing from the couch or floor

The SANUS VMPL50A is a tilting wall mount for 32in – 70in flat-panel TVs. SANUS Virtual Axis tilting system provides easy adjustment of viewing angle with just the touch of a finger. ProSet post-installation height and leveling adjustments ensure TVs are always perfectly positioned after hanging. Its solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. Adjustable TV brackets offer lateral shift ability to allow perfect TV placement, even with off-center wall studs. TV is positioned just 1.8in (4.57 cm) from the wall for a clean, low-profile appearance. Universal mounting pattern fits virtually any LCD or plasma TV up to 150 lbs (68.18 kg). Mount now fits TVs 32in – 70in, and all current VMPL50A models have been tested for compatibility with the updated size range.

• Product Dimensions WHD: 30.00" x 18.50’’ x 1.81’’ / 76.20 x 46.99 x 4.60cm
• Product Weight: 11.55lbs / 5.24kg
• TV Size Range: 32" - 70" / 81.28cm - 177.80cm
• Maximum TV Weight: 150lbs / 68.04kg
• Universal Mounting: Yes / 48 x 25 through 673 x 438
• Tilt: 9° / -10°

Installation Tools

• 7/32" Drill Bit
• 3/8" Masonry Bit (Concrete Installations)
• 1/2" Socket Wrench
• Awl
• Electric Drill
• Hammer
• Level
• Pencil
• Phillips Head Screwdriver
• Stud Finder
• Tape Measure

What's in the Box

• Wall plate
• 2 TV mounting brackets
• 4 Philips-head bolts (M4 x 12mm)
• 4 Philips-head bolts (M4 x 30mm)
• 4 Philips-head bolts (M6 x 14mm)
• 4 Philips-head bolts (M6 x 40mm)
• 4 Philips-head bolts (M8 x 16mm)
• 4 Philips-head bolts (M8 x 40mm)
• Four M4 flat-washers
• Four M6/M8 flat-washers
• 4 Shoulder washers
• Four 14mm spacers
• Four 24mm spacers
• Four 5/16" x 2-3/4" lag-bolts
• 4 Flat-washers (for lag-bolts)
• 4 Lag-bolt anchors
• 3/16" x 10" hex-key
• Instructions booklet
