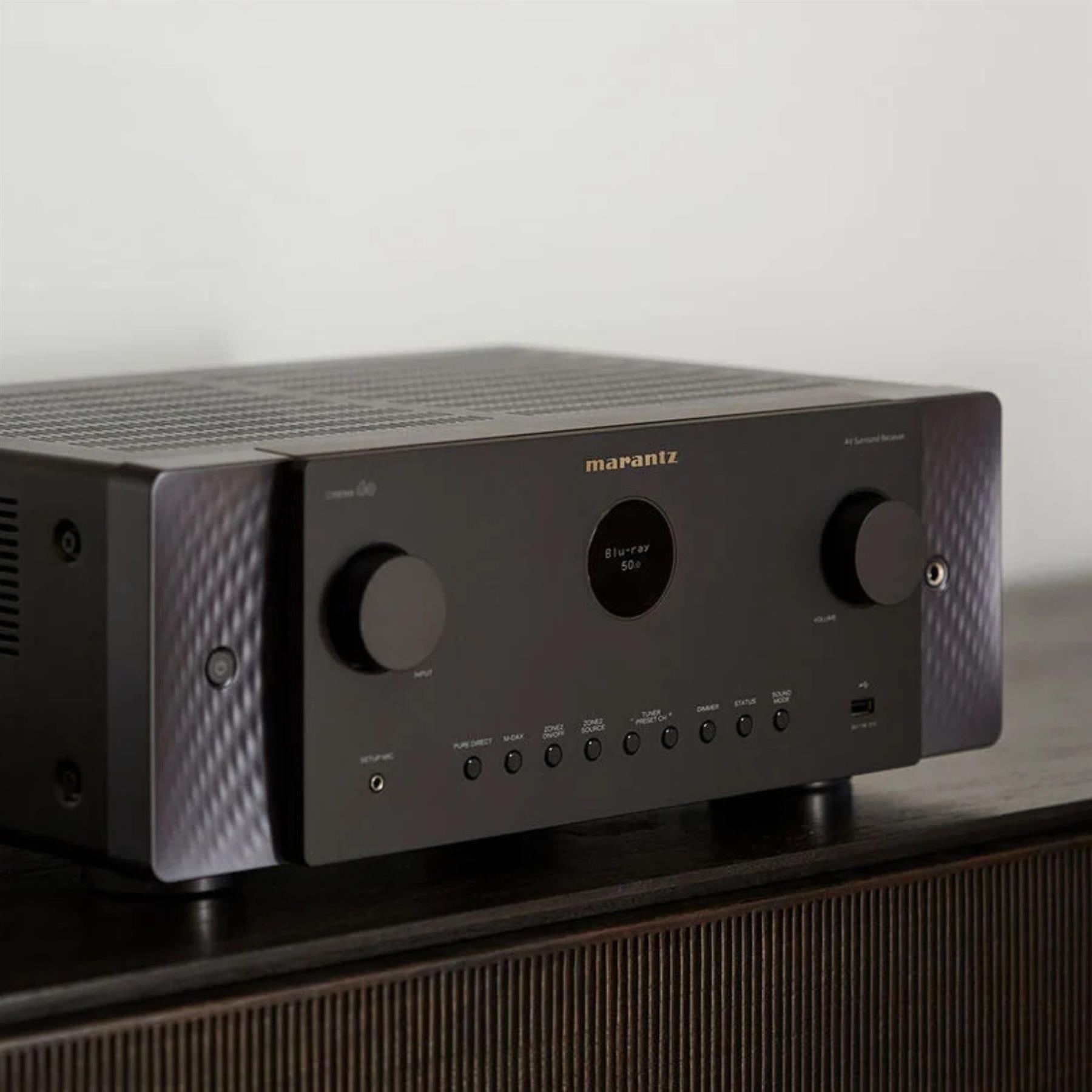

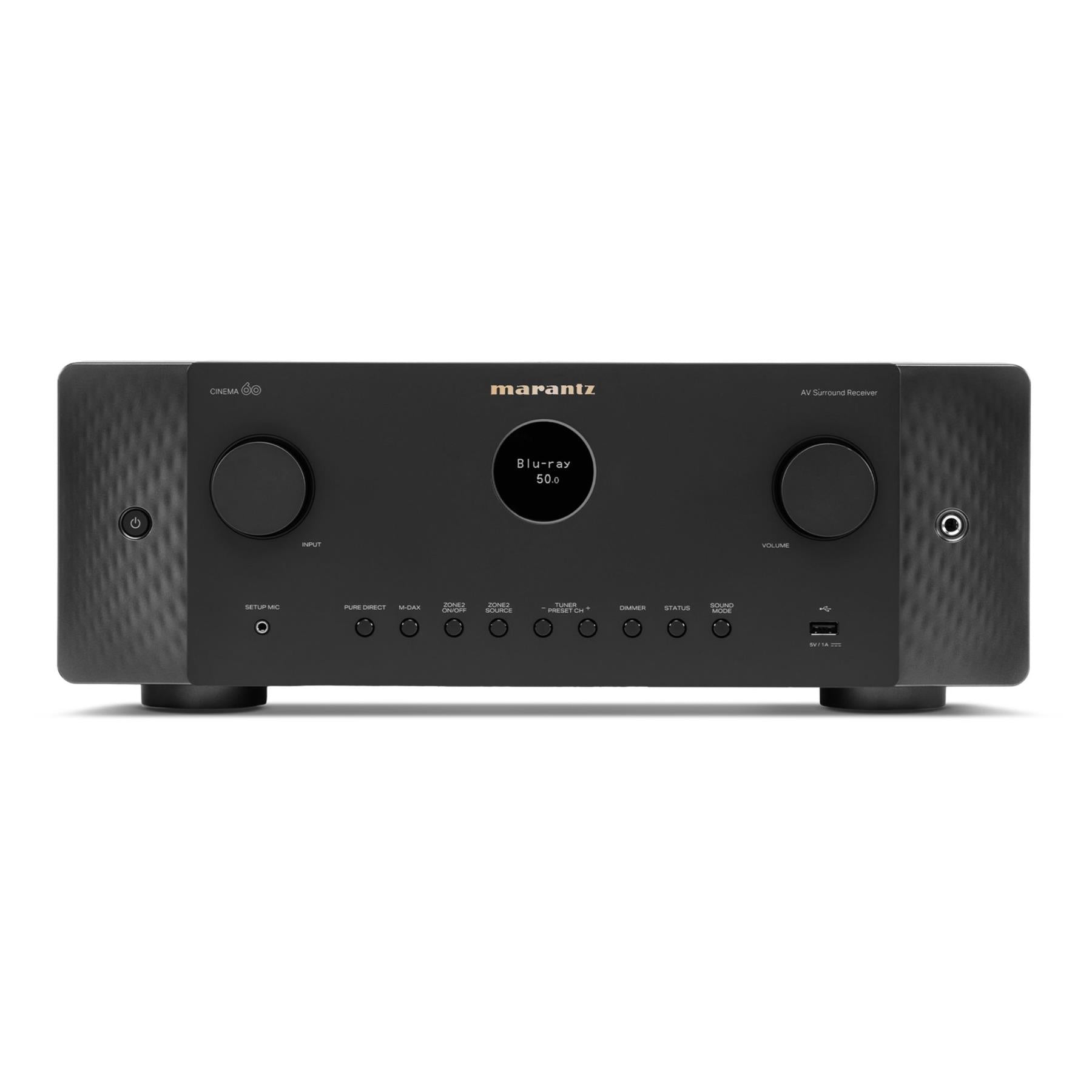

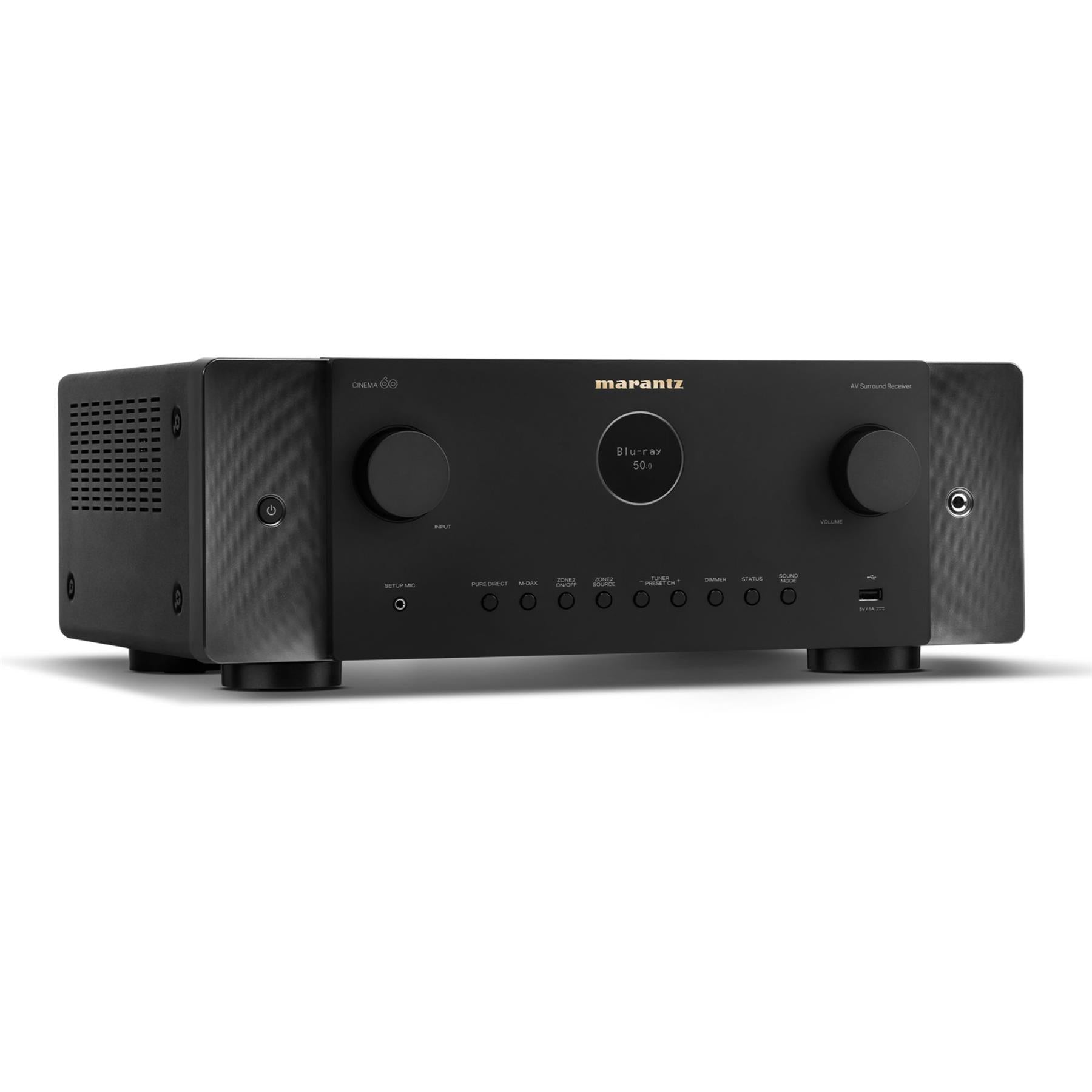

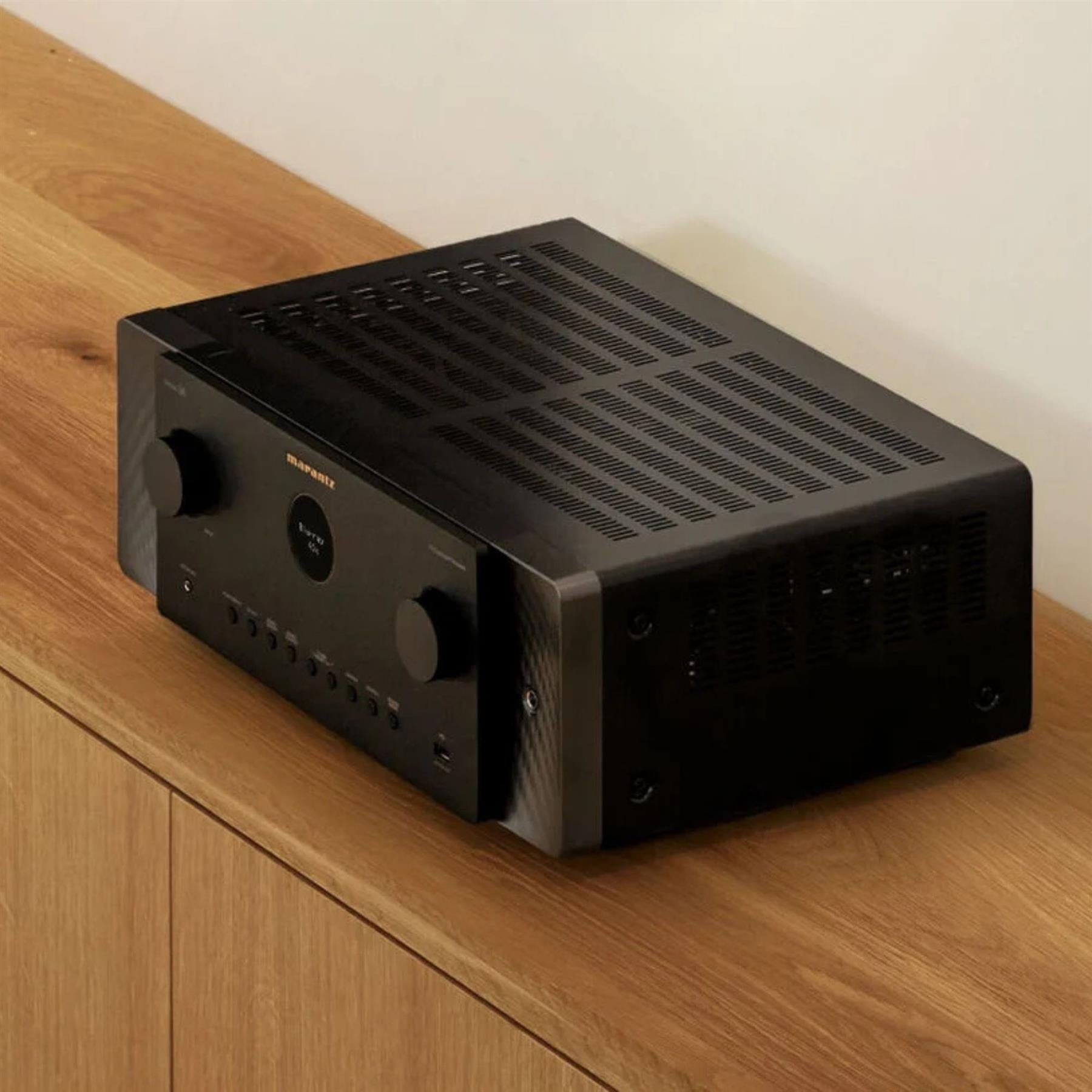

Take your home entertainment to new heights with the Marantz Cinema 60

A top-tier 7.2 channel AV receiver boasting 100 watts per channel amplification. Immerse yourself in a rich, multi-dimensional audio experience with Dolby Atmos and DTS:X. This receiver is primed for the future with support for 8K Ultra HD and features built-in HEOS for seamless streaming.

Dolby Atmos & Dolby Atmos Height Virtualization Technology:

Indulge in the immersive audio of Dolby Atmos. Upgrade to a 5.1.2 speaker setup for a fully enveloping 3D audio experience from Dolby Atmos content. The Dolby Surround upmixer engages all speakers, transforming legacy content into a captivating 3D audio sensation. Even if you don't have a 5.1.2 setup, Dolby Atmos Height Virtualization Technology gives you the feeling of overhead sound using a 7.1, 5.1, or 2.1 speaker configuration. Enjoy Dolby Atmos music tracks from Apple Music, Amazon Music HD, and TIDAL through compatible streaming devices.

DTS:X & DTS Virtual:X:

Experience sound as it naturally occurs with DTS:X, creating a lifelike, multi-dimensional audio environment. The DTS Neural:X upmixer enhances immersion and realism for existing content. DTS Virtual:X brings immersive audio to setups without height channels, creating virtual height effects in a 7.1, 5.1, or 2.1 speaker system.

High-Resolution Audio Support:

Discover the exceptional fidelity of Hi-Res Audio tracks, decoding up to 24-bit/192-kHz ALAC, FLAC, and WAV lossless files, as well as DSD 2.8MHz and 5.6MHz tracks via the front panel USB port and network sources. Enjoy a wide range of file formats, including MP3.

HEOS Built-In Multi-Room Streaming:

Leverage the power of HEOS Built-in technology for seamless wireless music enjoyment throughout your home. Play the same song across every room or curate a unique playlist for each connected room. Access music from popular platforms such as Spotify, Amazon Music HD, TuneIn, SoundCloud, TIDAL, Napster, Deezer, or your local music libraries.

John.ai Support:

Introducing Josh.ai, an advanced voice agent designed for sophisticated smart homes. Command and control your thermostat, lights, home appliances, speakers, AV receiver, and more with intuitive voice commands. Josh.ai, installed by custom integrators, is accessible via an app on both iOS and Android devices.

Roon Tested:

Maximize your digital music library with Roon, offering a rich database of searchable information about your favorite artists and tracks. Uncover lyrics, concert dates, photos, bios, reviews, and much more.

Masterful 8K HDMI Connectivity:

The Marantz Cinema 60 boasts up to six HDMI inputs and one output to accommodate all your preferred sources. Three inputs support 8K/60Hz or 4K/120Hz passthrough, 4:4:4 PureColor sub-sampling, Dolby Vision, HLG, HDR10, and BT.2020 pass-through, along with HDCP 2.3—the latest in copy protection standards. Stay at the cutting edge of HDMI technology with support for HDR10+, Dynamic HDR, ALLM, VRR, and QFT. The video processor can upscale your native video source to impressive 8K quality.

Multi-Source, Multi-Room:

The Marantz Cinema 60 offers versatile entertainment options. Watch a movie in one room while another family member enjoys music from Spotify in a different zone—seamless and interruption-free. Revel in 7.2 channel surround sound in the main room while simultaneously streaming a separate source or music in a second zone. Easily connect a separate stereo amp and speakers to the second zone pre-out for a tailored audio experience. The Marantz Cinema 60 sets the bar for foundational luxury in home theater.

Marantz Cinema 60 Specifications

Power Amplifier

• Number of Powered Channels: 7
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 100 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): -
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 140 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 200 W
• 70% Guarantee: Yes
• Discrete Power Amplifier: Yes
• Amplifier Topology: Class A/B
• Current Feedback Topology: Yes
• Bi-Amp Drive: Assignable

Multichannel Surround Technologies

• DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Max Number of Processing (Preamp) Channels: 7.1

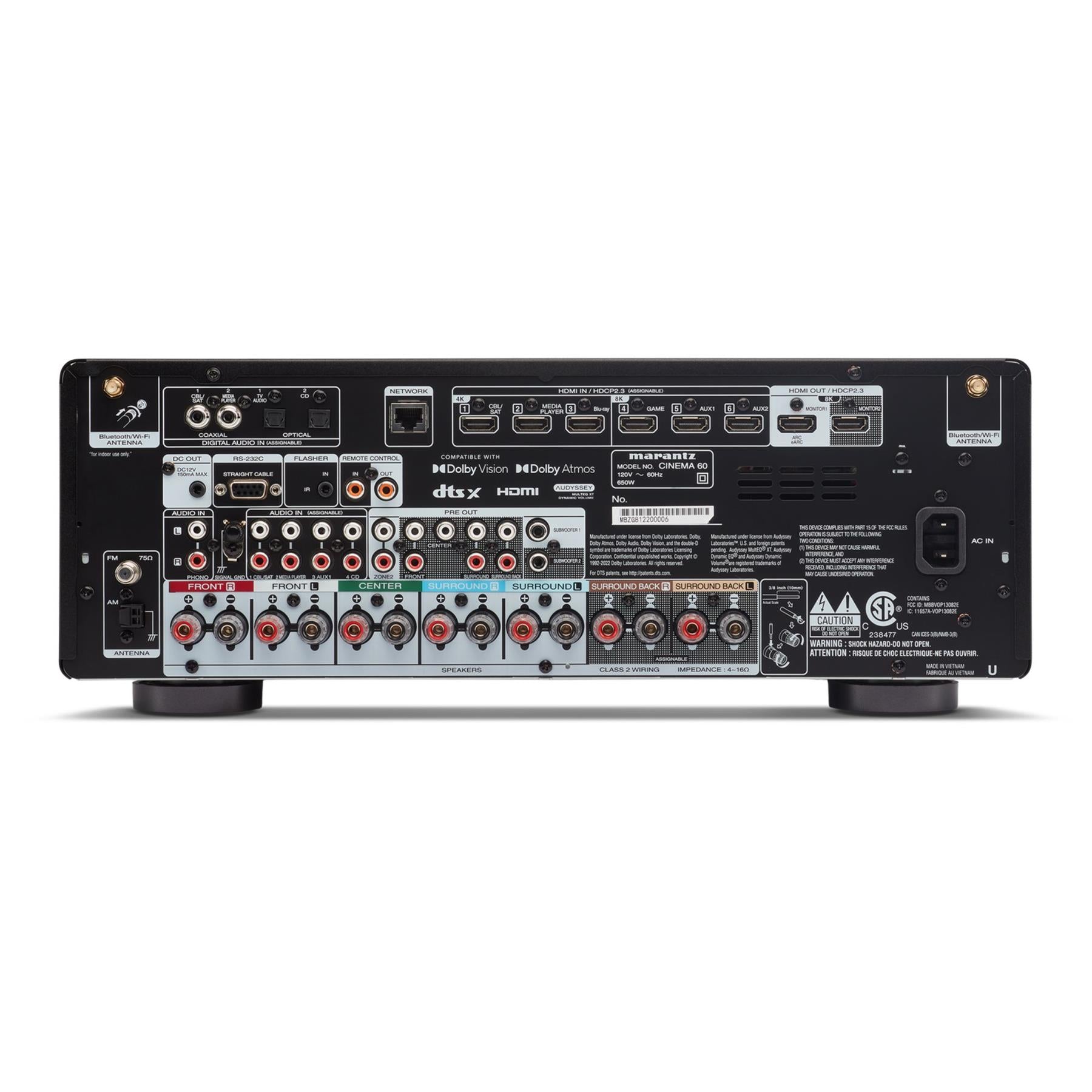

Inputs/Outputs

• Composite In / Out: 0/0
• Component In / Out: 0/0
• HDMI In / Out: 6 / 2
• Multi-Room Video Out via HDMI: No
• Analog In / Fixed Level Out: 4 in / 0 out
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 1 / 0
• Multichannel Preamp Out: 7.2
• Subwoofer Out: 2
• 7.1 Multichannel Input: No
• Number of Speaker Terminals: 7
• Speaker A / B: Assignable
• Multi-Room Speaker Terminal: Assignable
• Front Inputs: USB-A
• USB Audio / Made for iPod / Made for iPhone: Yes / No / No
• AM/FM Tuner: Yes

HDMI

• Total HDMI Inputs / No. Support 8K: 6 / 3
• HDCP2.3 Support: Yes
• HDMI Outputs: Main / Zone: 2 / 0
• Analog to HDMI Video Conversion: No
• HDMI Upscaling: 1080P/4K to 8K
• Max Resolution @ Framerate: 8K/60Hz, 4K/120Hz
• Audio Return Channel: ARC, eARC
• Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for Gaming: Yes
• Variable Refresh Rate / Quick Frame Transport: Yes / Yes
• HDMI Pass-Through in Standby Mode: Yes
• CEC: Yes
• DSD Audio Over HDMI: No
• Auto LipSync: Yes

Performance Technologies

• Copper Plated Chassis: No
• Toroidal Power Supply Transformer: No
• Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
• Pure Direct Mode: Yes
• Gold Plated RCA Terminals: No
• Clock Jitter Reducer: No

Acoustic / Room Correction

• Audyssey: MultEQ XT
• Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
• Audyssey LFC: No
• Dirac Live Support: No
• Variable Crossover: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: No

Music File Support

• Lossy Formats: MP3 / WMA / AAC
• Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
• DSD Audio: 2.8 MHz / 5.6MHz
• Gapless Playback: FLAC, WAV, ALAC, DSD
• Compressed Audio Enhancer: MDAX2: Yes
• Network Audio Sharing: Yes

Streaming Services

• HEOS Multi-room and Streaming: Yes
• AirPlay Audio Streaming: AirPlay 2
• Internet Radio: TuneIn
• Spotify: Spotify Connect
• Pandora: Yes
• SiriusXM: Yes
• Other Streaming Services: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
• Roon Tested: Yes

Network Connectivity

• Ethernet Ports: Yes
• Wi-Fi (Include Version / Band): Yes
• Bluetooth (Include Version): Yes
• Bluetooth Re-transmit for Bluetooth Headphones: Yes

Smart Home Integration And Control

• Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
• App for Smart Phones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR / IP: Yes / Yes
• Multi-Room Zones: 2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout: Yes / Yes
• Zone HDMI Output from HDMI Source: No
• Control Connectivity: IP Control / RS232 Control / Web Control / App Control
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 1
• HDMI Diagnostics: Yes

Others

• Front Display: Port Hole OLED
• GUI Languages: 3
• Setup Assistant: Yes
• Smart Select on Remote: Yes
• Firmware Update by Network / USB: Yes / Yes
• ECO Mode: Yes
• Auto Power Off: Yes
• Sleep Timer: Yes

General

• Available Colors: Black
• Metal Front Panel: No
• System Remote Control: RC049SR
• Power Consumption in W: 650
• Power Consumption No-Sound (ECO on/off) in W: 45 / 75
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: Less than 2.0

Maximum Dimensions

• Antenna: Horizontal: (W x D x H) in inches: 17.4 x 13.9 x 9.3
• Antenna: Vertical: (W x D x H) in inches: 17.4 x 13.5 x 6.5
• W/o Antenna: (W x D x H) in inches: 17.4 x 13.9 x 6.5

Weight in lbs.: 24

What's in the Box

• Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antenna, AC cord
