Kanto LF100 Ultra Low Profile Fixed TV Mount

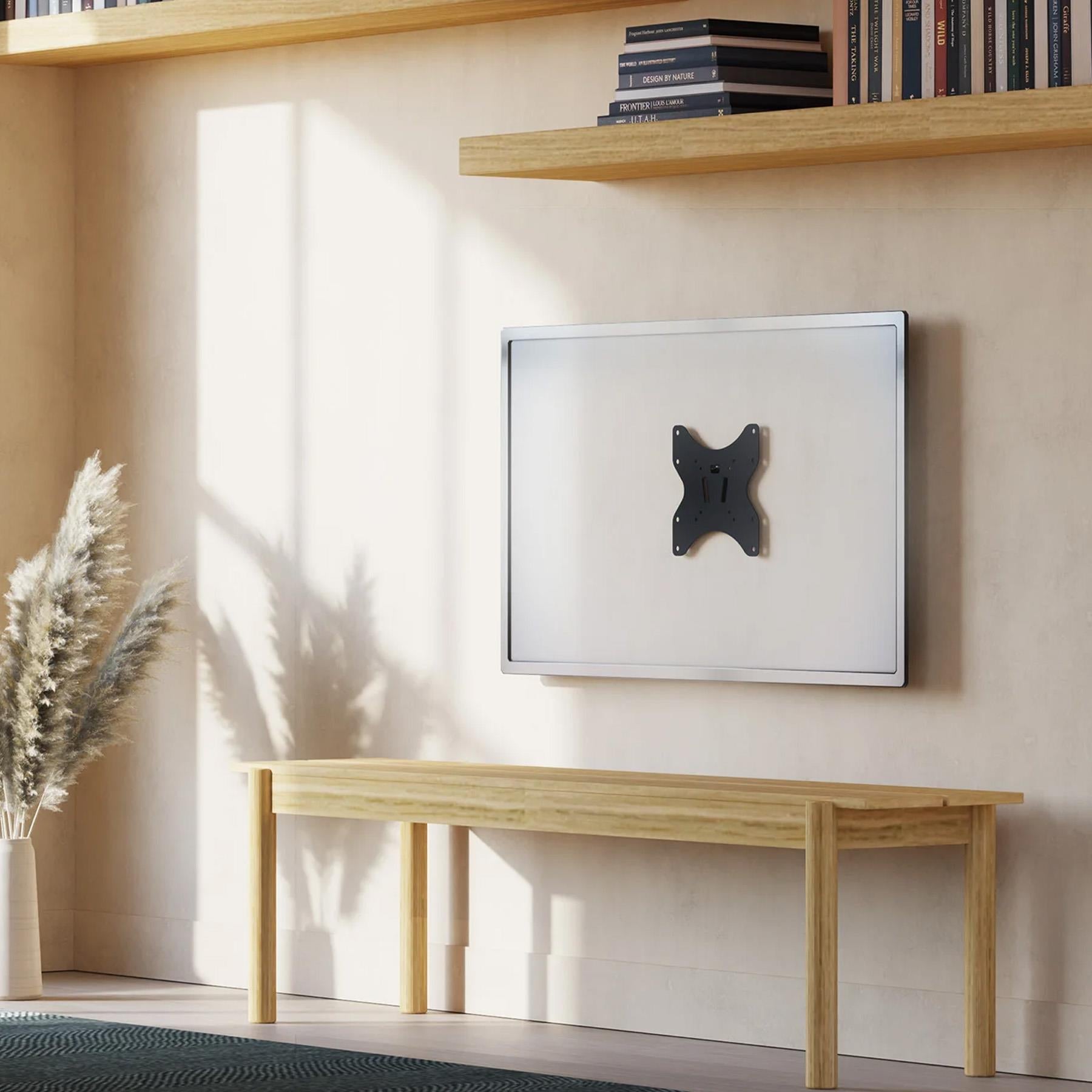

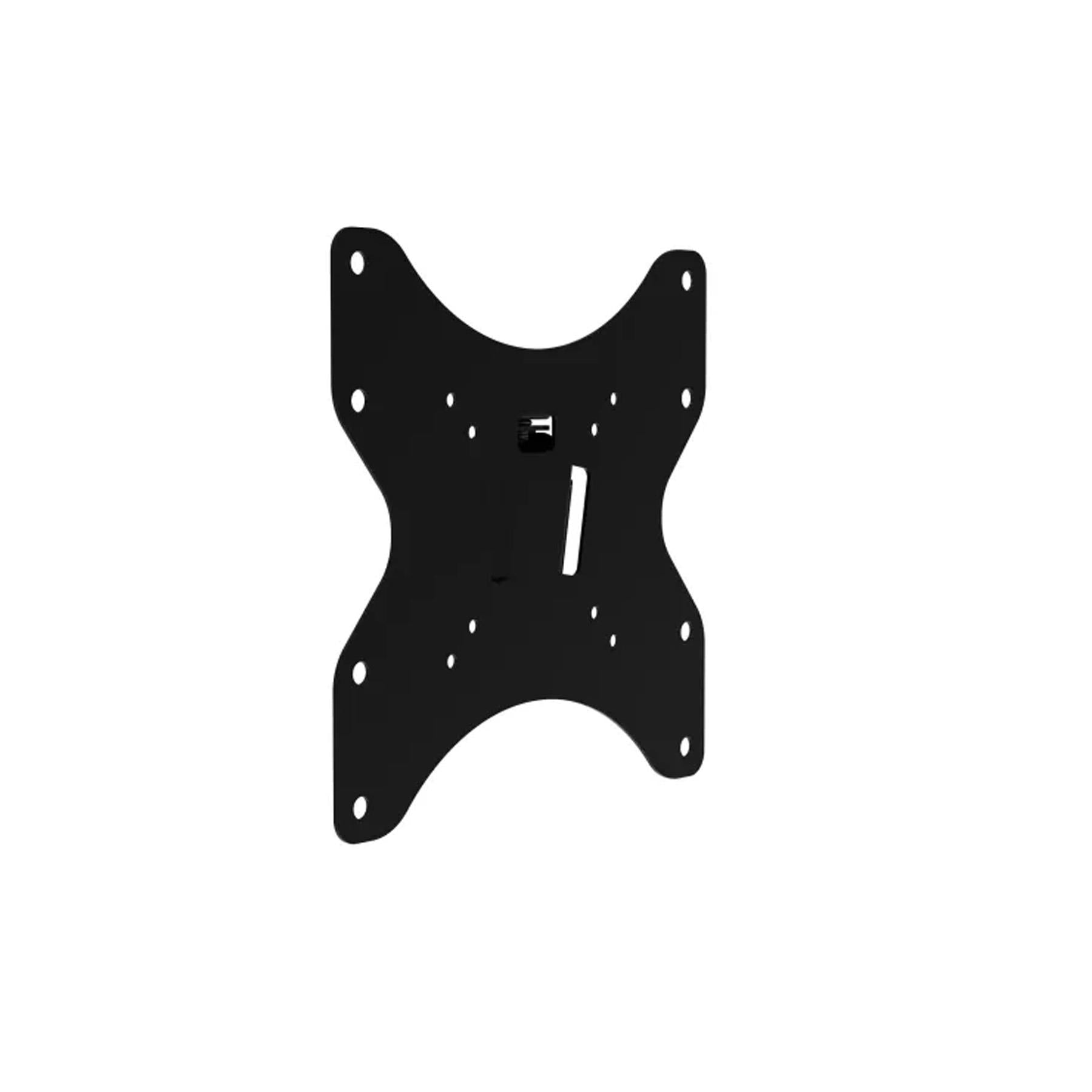

The Kanto LF100 Ultra Low Profile Fixed TV Mount is designed for clean, space-saving installations on TVs from 15 to 45 inches. With a slim 0.5-inch profile, solid steel construction, and support for up to 50 lb, it creates a sleek picture-frame look while keeping your display securely in place. Included 100x100 and 200x200 VESA plates improve compatibility across smaller and larger TVs, helping avoid blocked ports and awkward fitment issues. Its single-stud design, included 280 mm Allen key, and mounting hardware for wood stud and concrete installation make it a practical low-profile TV wall mount for streamlined installs in modern spaces.

What It's Good At:

• Creating a near-flush TV installation with a slim 0.5-inch wall profile
• Supporting small to mid-size TVs from 15 inches to 45 inches
• Handling VESA patterns from 75x75 to 200x200 with included 100x100 and 200x200 plates
• Simplifying installs in narrow recesses with a single-stud mounting design
• Delivering secure support with solid steel construction and a 50 lb weight rating
• Helping complete installs on-site with a long 280 mm Allen key and included mounting hardware

Kanto LF100 Fixed TV Mount Full Specifications:

• Model: LF100
• Product type: Fixed TV wall mount / ultra low profile TV mount
• TV size compatibility: 15" to 45"
• Weight capacity: 50 lb (22.7 kg)
• VESA compatibility: 75x75 to 200x200
• Included VESA plates: 100x100 and 200x200
• Wall profile: 0.5" (1.3 cm) from the wall
• Installation type: Single stud
• Wall plate style: Single stud wall plate
• Material: Solid steel
• Finish: Durable powder-coated finish
• Product dimensions (W/D/H): 22.6 x 1.4 x 22.6 cm (8.9" x 0.5" x 8.9")
• Product weight: 1 kg (2.2 lb)
• Shipping box dimensions: 24.5 x 23 x 4 cm (9.6" x 9.1" x 1.6")
• Shipping box weight: 1.1 kg (2.5 lb)
• UPC: 800152724997
• Warranty: 5-year manufacturer’s warranty
• What’s included: LF100 TV wall mount, installation manual, 280 mm Allen key, and all mounting hardware for wood stud and concrete installation
• Included TV screws:
  • A: M4 x 12 mm (x4)
  • B: M4 x 20 mm (x4)
  • C: M6 x 10 mm (x4)
  • D: M6 x 14 mm (x4)
  • E: M6 x 20 mm (x4)
  • F: M6 x 30 mm (x4)
  • G: M8 x 10 mm (x4)
  • H: M8 x 16 mm (x8)
  • I: M8 x 20 mm (x4)
  • J: M8 x 30 mm (x4)
• Included spacers and washers:
  • K: 3 mm spacers (x8)
  • L: 5 mm spacers (x8)
  • M: M4 washers (x4)
  • N: M6 washers (x4)
  • O: M8 washers (x8)
• Included wall hardware:
  • P: M6 x 55 mm lag bolts (x2)
  • Q: M6 washers (x2)
  • R: Concrete anchors (x2)
  • S: 4 mm Allen key
• Compatible wall types: Wood stud wall and concrete wall
• Not intended for: Steel stud walls or cinder block walls
• Required tools noted in the manual: Socket set, Phillips screwdriver, pencil, level, measuring tape, drill, stud finder, 3/16" wood bit, hammer, and 3/8" masonry bit

Kanto LF100 Fixed TV Mount Q&A:

What size TVs is the Kanto LF100 designed for?

It is designed for TVs from 15 inches to 45 inches.

What VESA patterns does the LF100 support?

The mount supports VESA patterns from 75x75 to 200x200 and includes 100x100 and 200x200 VESA plates.

How close does the TV sit to the wall?

The LF100 holds the TV just 0.5 inches (1.3 cm) from the wall for a very slim, low-profile look.

How much weight can this mount support?

It supports TVs up to 50 lb (22.7 kg).

Is this a single-stud TV mount?

Yes. The LF100 uses a single-stud design, which helps with installations in tighter spaces and narrow recesses.

What comes in the box?

The package includes the LF100 mount, installation manual, 280 mm Allen key, TV mounting hardware, and hardware for wood stud and concrete installation.

What wall types can it be installed on?

It is intended for wood stud and concrete wall installation. The manual says it should not be installed on steel stud walls or cinder block walls.

Does it help avoid blocked ports on smaller TVs?

Yes. The included 100x100 and 200x200 VESA plates are meant to improve fitment so smaller TVs can be mounted without blocking ports or interfering with inputs.

Kanto LF100 Fixed TV Mount Downloads:

Kanto LF100 Fixed TV Mount Manual
Kanto LF100 Fixed TV Mount Product Sheet
Kanto LF100 Fixed TV Mount Drawing
