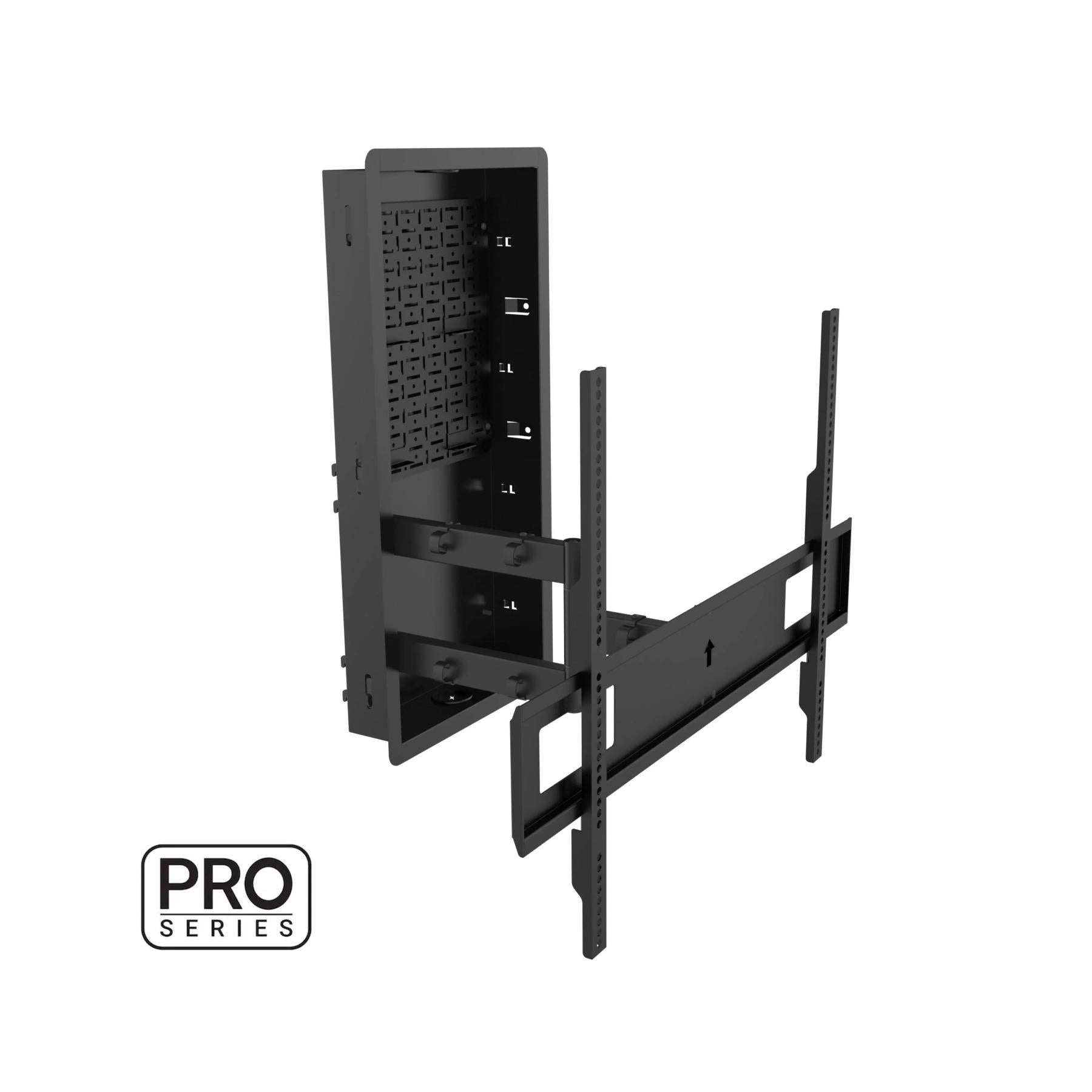

Kanto R600 PRO Recessed In-Wall TV Mount
The Kanto R600 PRO Recessed In-Wall TV Mount is a premium, full-motion recessed solution designed to deliver a clean, built-in look—while still giving you the flexibility of tilt, swivel, and extension. Its oversized in-wall box hides bulky components like TV breakout boxes, set-top boxes, and Samsung One Connect-style boxes on the included removable accessory plate, keeping everything concealed behind the screen. For a true designer finish, the R600 includes two TV interfaces: a zero-gap plate that lets smaller VESA TVs sit perfectly flush, plus a large VESA interface for extra-large panels. Contractor-friendly details—like a foldable new-construction template, metal power knockouts, rubber grommets, and built-in cable management clips—make it ideal for pro installs and high-end home theater builds.
What It's Good At:
- Creating a true flush, zero-gap TV look (for smaller VESA patterns)

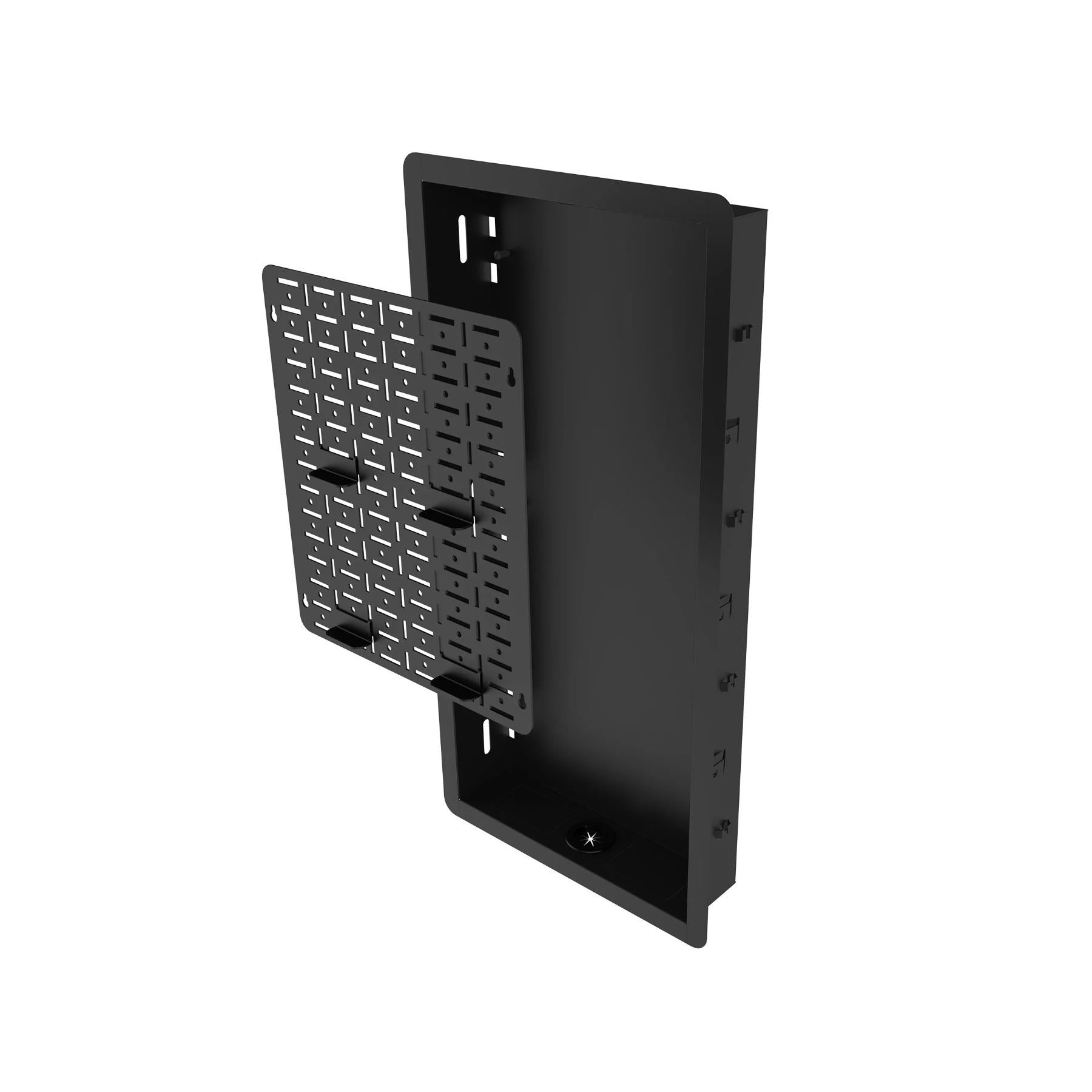

- Concealing devices and cabling inside a spacious recessed in-wall box
- Supporting large-format TVs (65"–90") and extra-large VESA up to 800×600

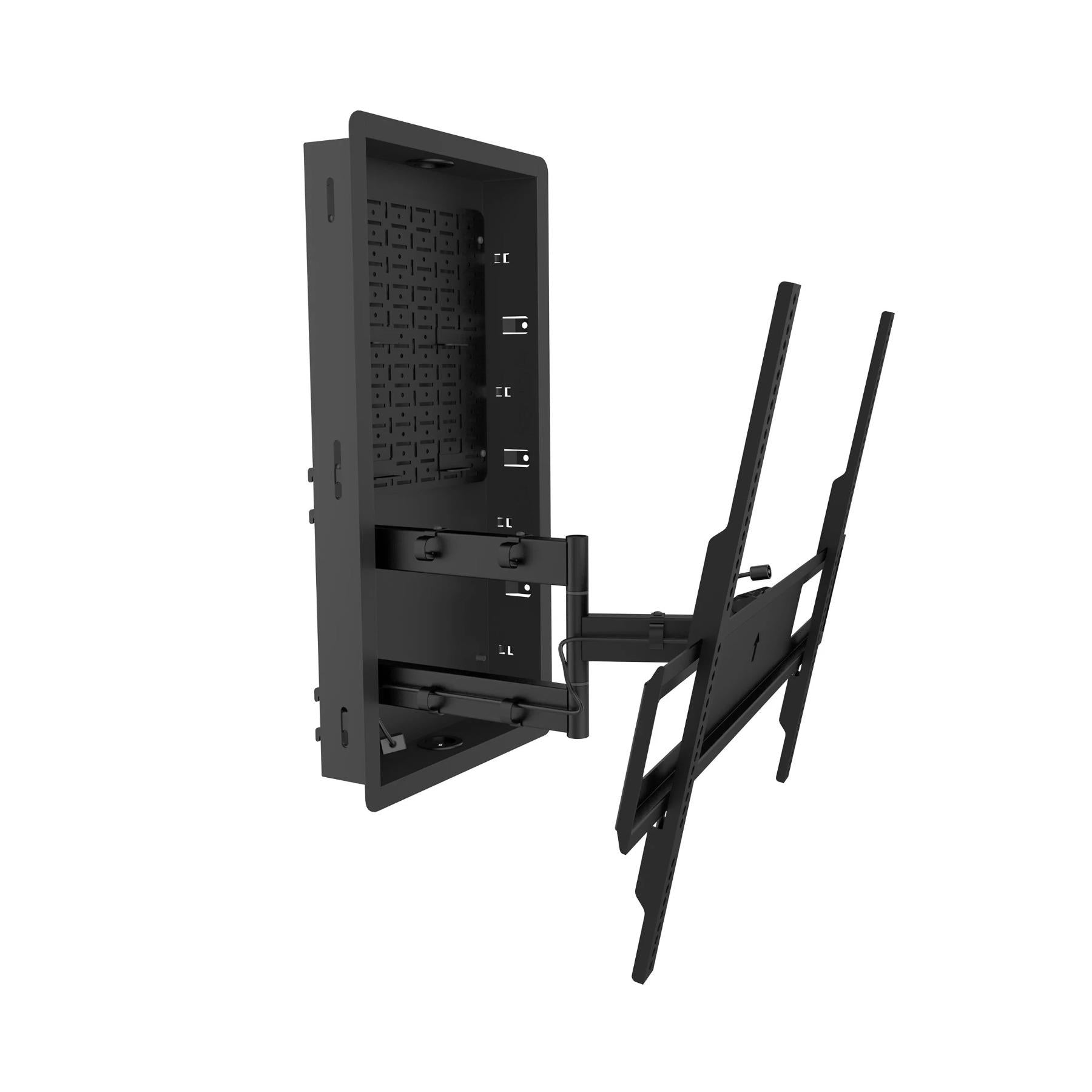

- Delivering smooth full-motion positioning with swivel, tilt, and extension
- New construction and retrofit installs with included templates and pro-friendly design
- Keeping installs clean with integrated cable management, grommets, and tie points
Kanto R600 Full Specifications:
-
Model: R600
-
Series: PRO
-
Mount Type: Full Motion, Recessed / In-Wall TV Mount (Recessed Articulating TV Mount)
-
Supported TV Size Range: 65" to 90"
-
Weight Capacity: 135 lb (61 kg)
-
VESA Compatibility: 100×100 to 800×600
-
Zero-Gap / Flush Fit: TVs with VESA 300×300 or smaller sit flush against the wall
-
Profile for Larger VESA: 1.1" (2.8 cm) from the wall with VESA 400×400 and larger (using large interface)
-
Extension Range: Up to 18.7" (47.5 cm) from the wall
-
Tilt: +10° to -2°
-
Swivel: 90° in either direction (dependent on TV size)
-
Horizontal Adjustment: Adjustable horizontal leveling
-
Stud Spacing: In-wall box designed for installation between 16" stud spacing
-
Cable Management: Integrated cable management; durable metal cable clips; zip-tie mounting points; rubber grommets for routing
-

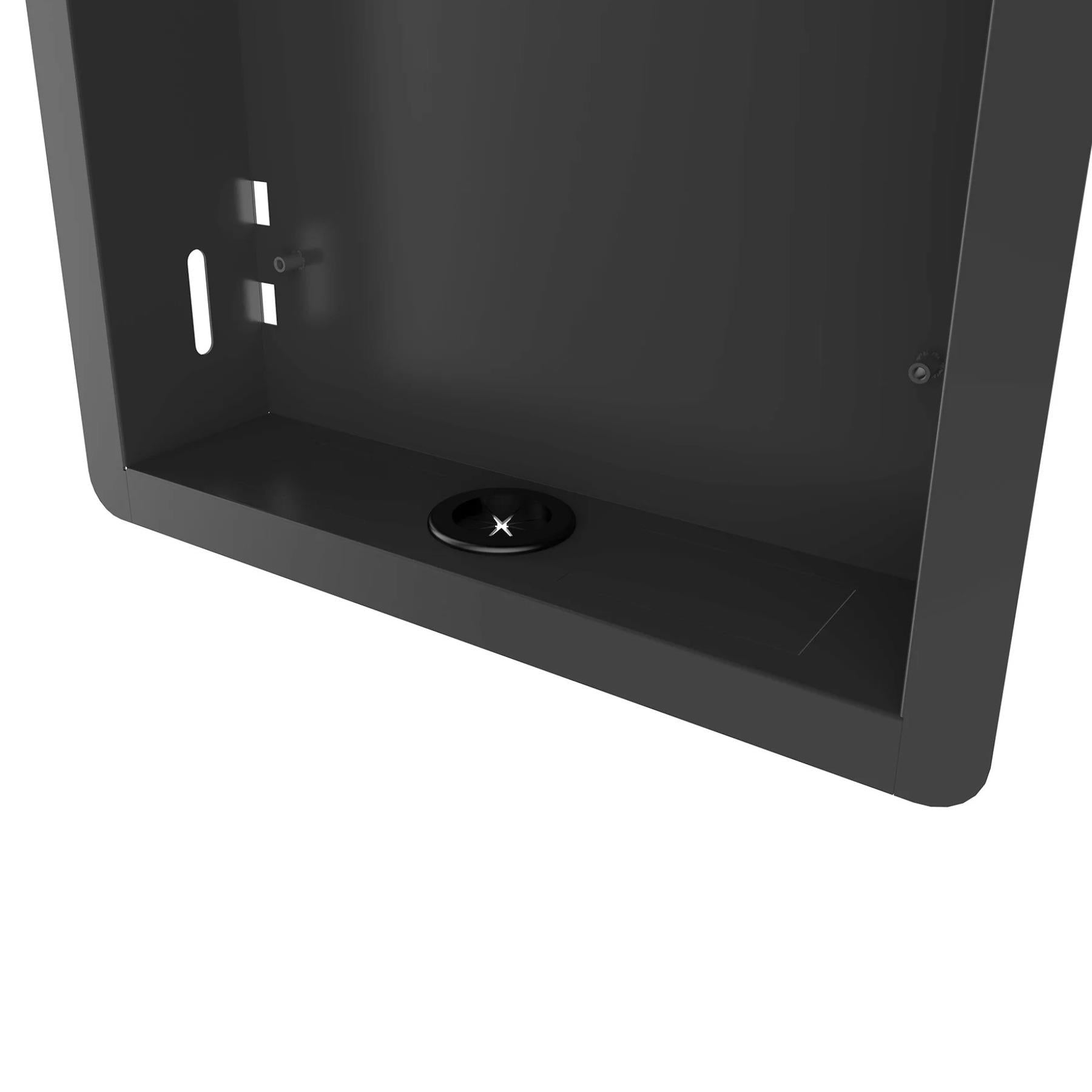

Power Integration: Metal knockouts for running power into the in-wall box (for in-box outlet installation)
-
Construction: Solid steel construction with durable powder-coated finish
-
Included Hardware: Manual and all mounting hardware for wood stud installation
-
What’s Included:
- R600 Pro-Series Recessed In-wall TV Mount
- Drywall Template
- In-Wall Template
- Hardware
- Manual(s)
-
Product Weight: 45.2 lb (20.5 kg)
-
Shipping Box Weight: 48.5 lb (22 kg)
-
Shipping Box Dimensions: 36.8" × 20.7" × 5.7" (93.5 × 52.5 × 14.5 cm)
-
Warranty: Ten-year manufacturer’s warranty
-
UPC: 800152721668
Kanto R600 Q&A:
- Will this mount fit my TV’s VESA pattern?
- The R600 supports VESA patterns from 100×100 up to 800×600, covering a wide range of modern large-screen TVs.
- What TV sizes and weights does the R600 support?
- It’s designed for 65"–90" TVs and supports up to 135 lb (61 kg).
- Can I achieve a completely flush, “zero-gap” look?
- Yes—TVs with VESA 300×300 or smaller can sit directly against the wall for a true flush finish.
- How far can the TV extend, and does it tilt and swivel?
- The mount extends up to 18.7", offers +10° to -2° tilt, and provides up to 90° swivel in either direction (depending on TV size).
- Can I hide a One Connect-style box or other components behind the TV?
- Yes—the oversized recessed in-wall box and removable accessory plate are built to conceal breakout boxes, set-top boxes, and similar devices behind the TV.
- Does it support running power into the recessed box?
- Yes—metal knockouts are included to help route power into the in-wall box so you can keep equipment powered inside the wall cavity.
- What stud spacing is this designed for?
- The in-wall box is designed for installation between standard 16" stud spacing.
- What comes in the box?
- You get the R600 mount, drywall template, in-wall template, hardware, and manual(s) for a complete installation setup.
